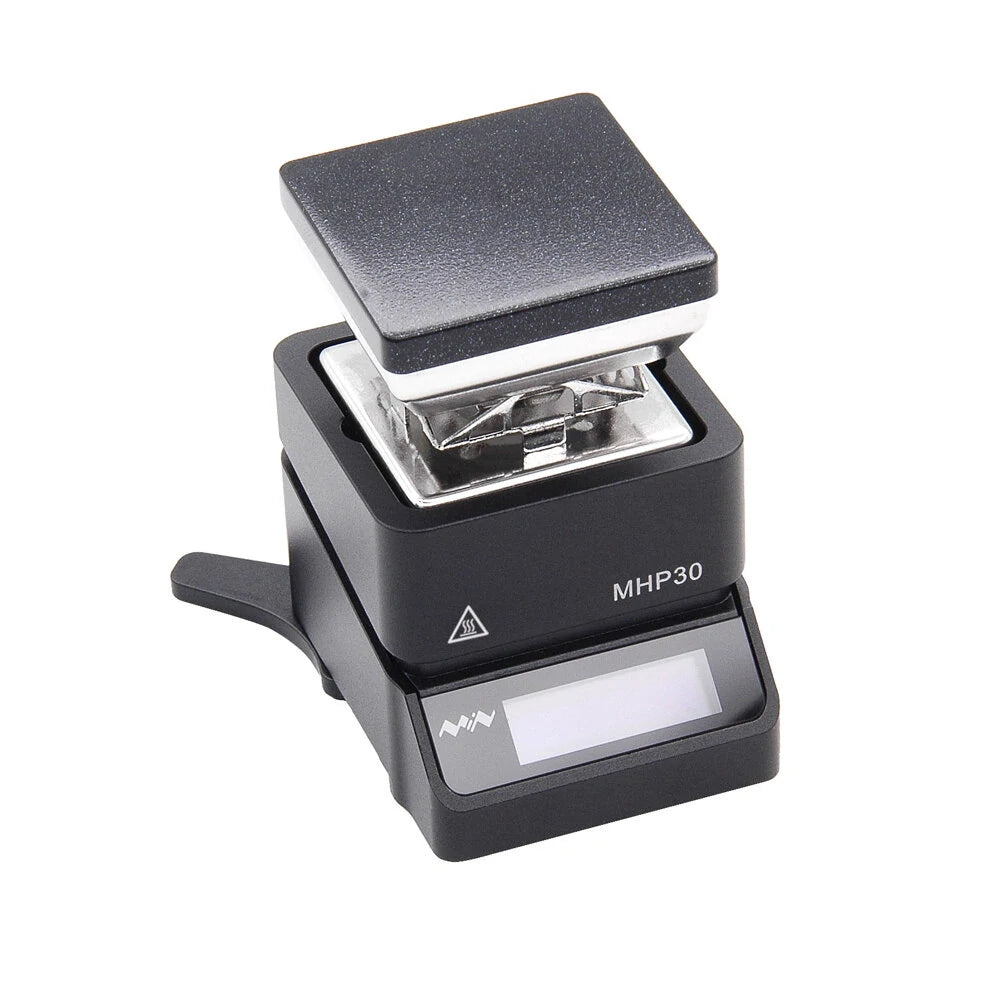

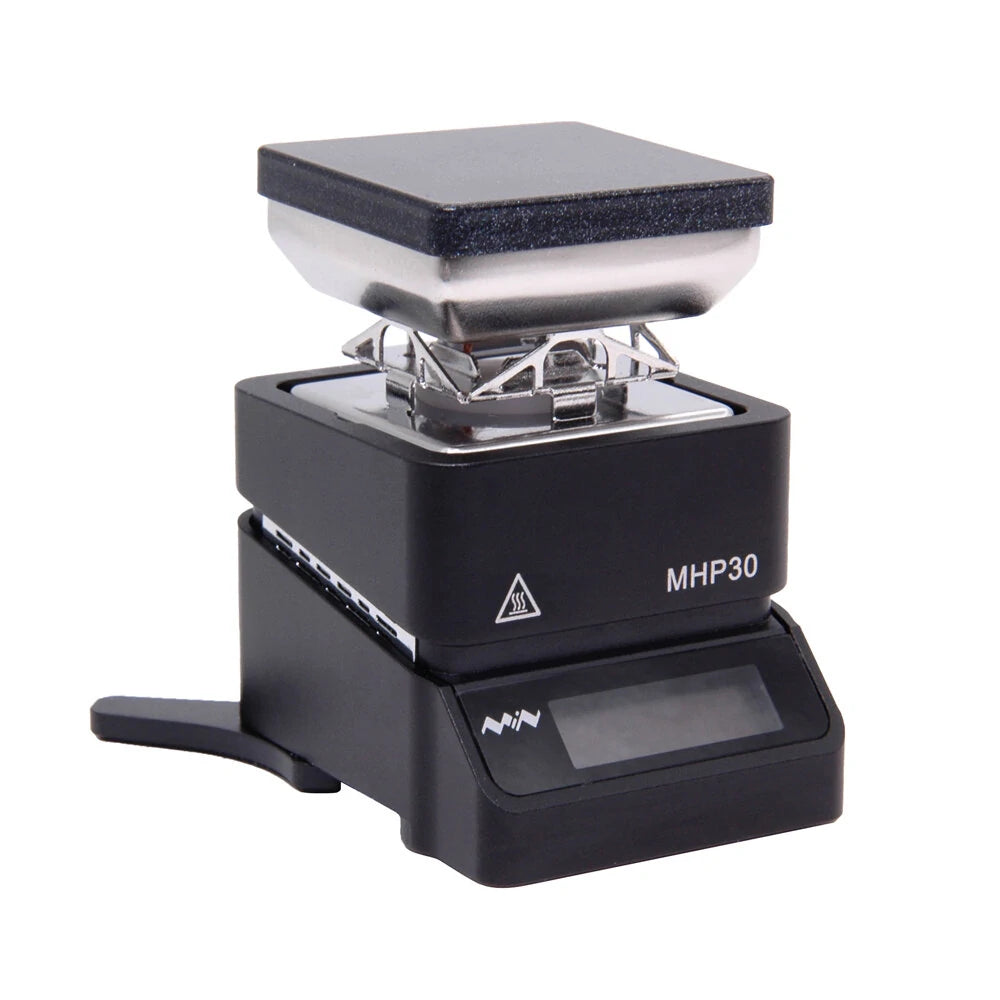

MHP30 Mini Hot Plate Preheater

The MHP30 Mini Hot Plate Preheater is an ultra-compact, smart constant temperature heating station. Designed to maximize efficiency while reducing energy consumption and heating time, this device transforms the traditional desktop heating station into a portable solution.

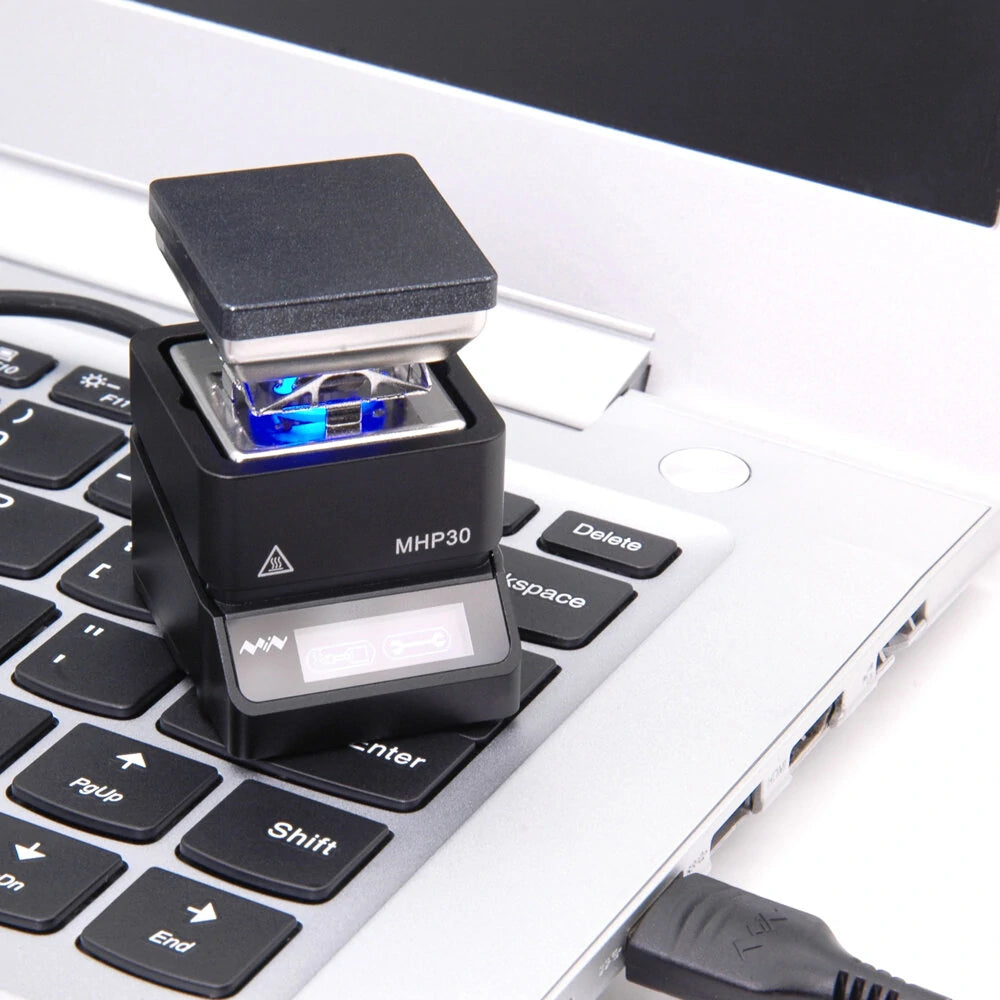

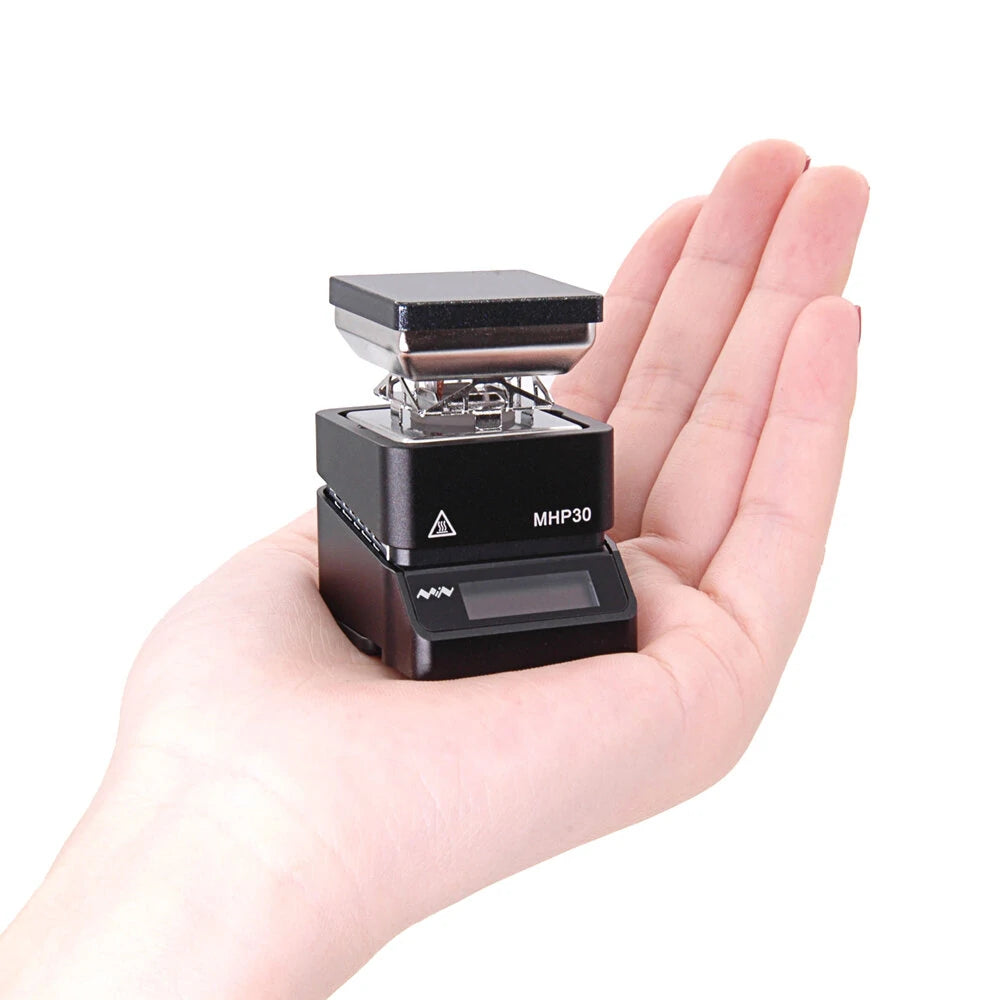

Compact & Portable Design

Standing at only 5.2 cm (2 inches) tall, the MHP30 showcases a sleek tower design. Its controller and hot plate are easily detachable for convenient replacement. Equipped with an OLED display and two control buttons on the back, the controller is user-friendly and efficient. Support feet at the bottom can be extended for enhanced stability. The hot plate features a nano-ceramic coated brass heating body ensuring a smooth and even heat distribution.

Advanced Heating Performance

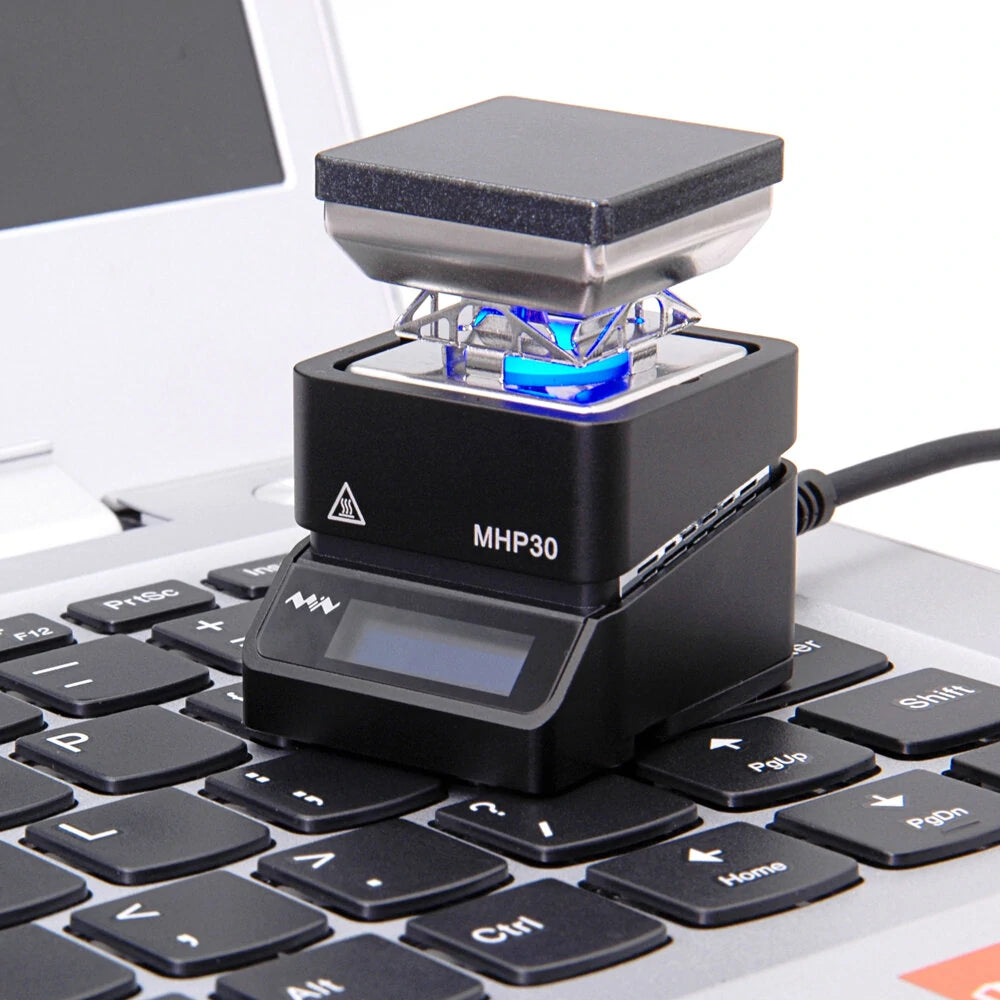

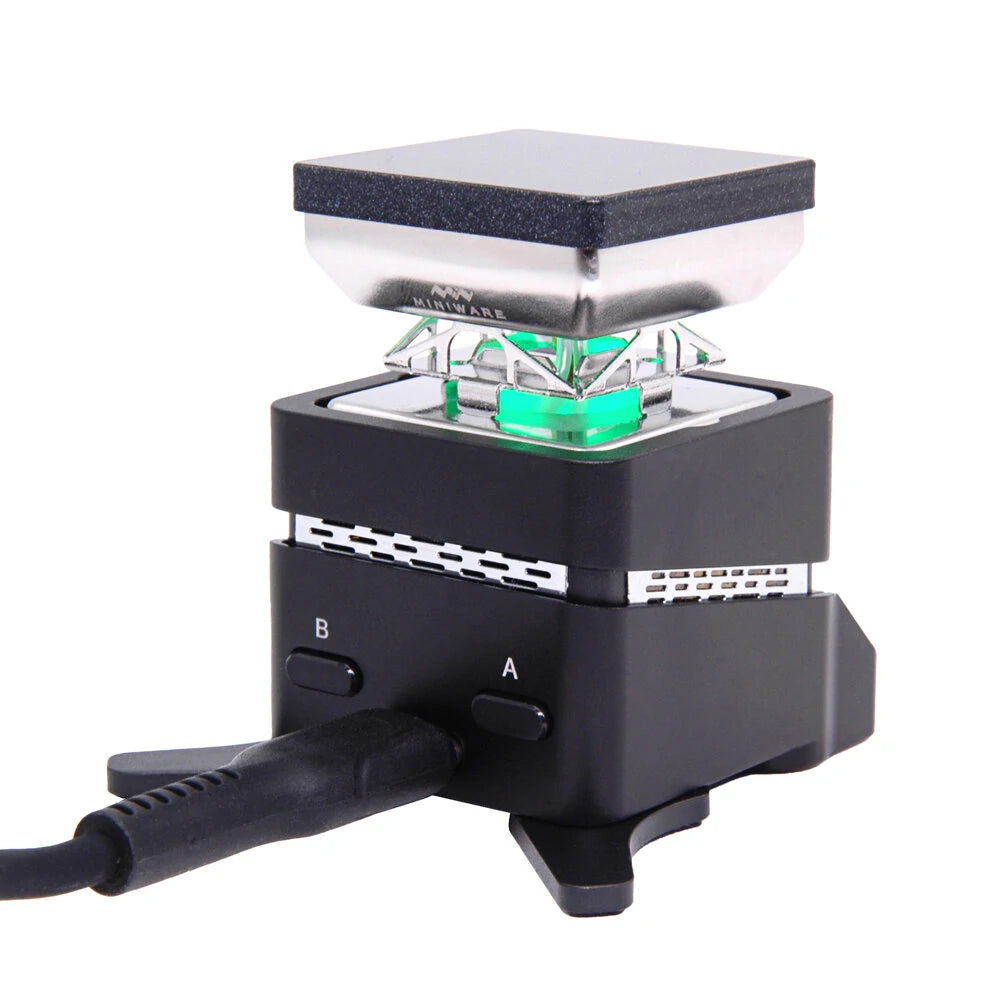

Experience exceptional thermal performance with the MHP30. With a 65W PD power supply, the device can heat from 26°C to 300°C in just 150 seconds. The controller includes a true color LED that shifts colors with temperature changes, offering an intuitive glance at the device's status. Enhanced with firmware upgrade capabilities and smart modes like preset temperature, tilt protection, power wake-up, and automatic sleep, the MHP30 allows for customized operations to suit your preferences.

Key Features

• Ultra-miniature size for easy portability.
• Detachable controller and hot plate for flexibility and convenience.
• Robust aluminum alloy shell with efficient stainless steel heat dissipation.
• OLED display and true color LED indicator that varies with temperature.
• Supports up to 60W PD power supply input.
• Heats to 300°C in just 150 seconds using 65W power.
• Energy-efficient and eco-friendly design.
• Equipped with multiple smart operational modes.

Applications

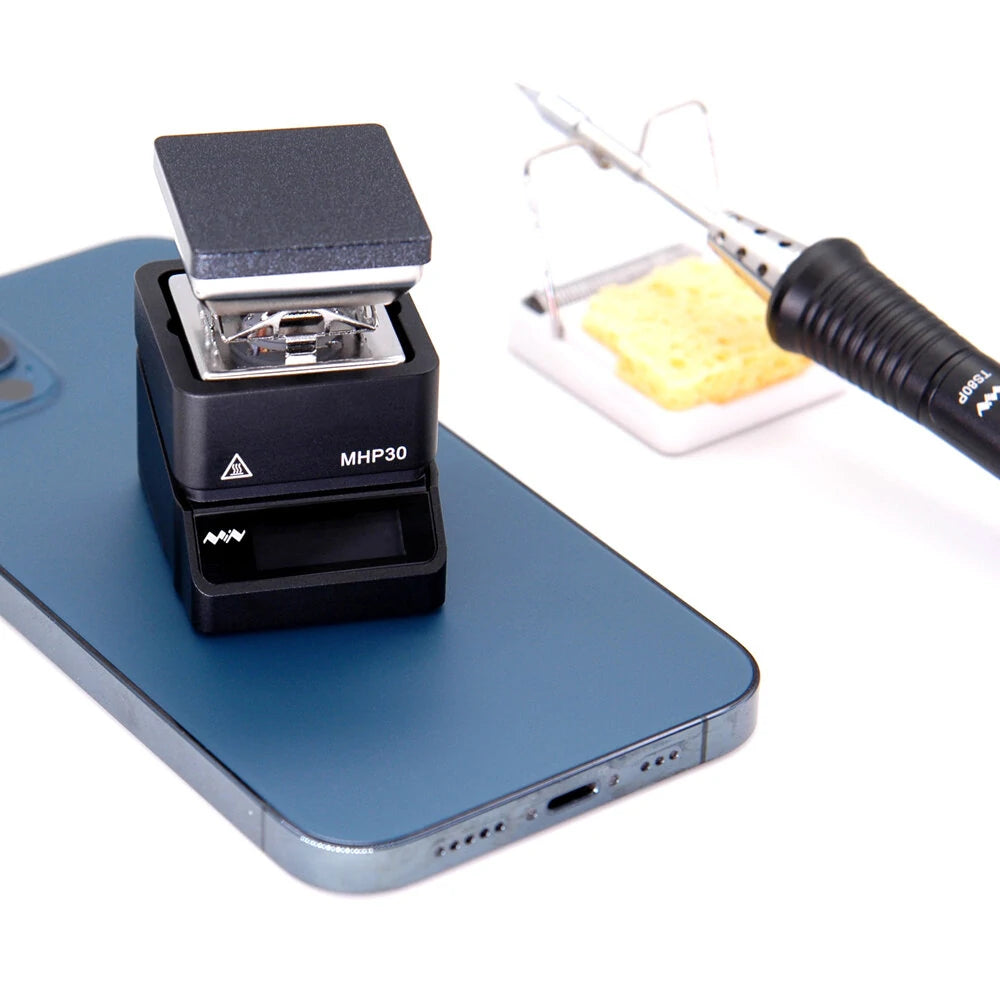

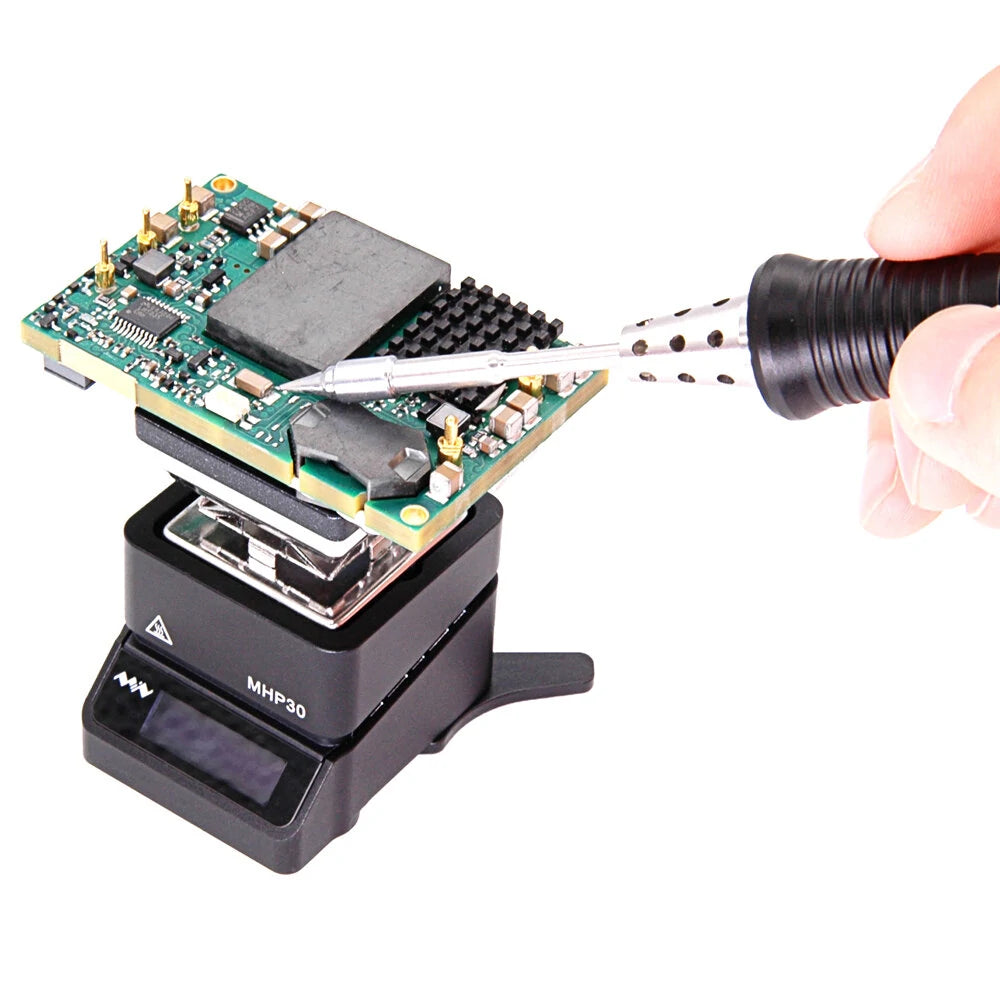

The portable MHP30 is ideal for use in various fields such as preheating, desoldering boards, components, LED beads, and more.

Specifications

• Heating area: 30mm x 30mm
• Temperature range: 100-350°C
• Temperature stability: ±3%
• Maximum power: 60W
• Power input: PD
• Controller dimensions: L43mm x W35mm x H31mm
• Hot plate dimensions: L31mm x W31mm x H28mm
• Weight: 82g (Including Controller and Hot Plate)

Package Includes

• 1 x MHP30 Controller
• 1 x Hot Plate (BS30)
• 1 x Type-C to C Cable
• 1 x PD Power Plug (US)
• 1 x Plug Adaptor (EU)
• 1 x Safety Instructions Sheet
