Orange Pi 5 MAX RK3588 SBC: 64-bit WiFi, Bluetooth, 2.5G Network

Orange Pi 5 MAX RK3588 SBC: 64-bit WiFi, Bluetooth, 2.5G Network

Regular price $212.99 USD
Regular price $0.00 USD Sale price $212.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

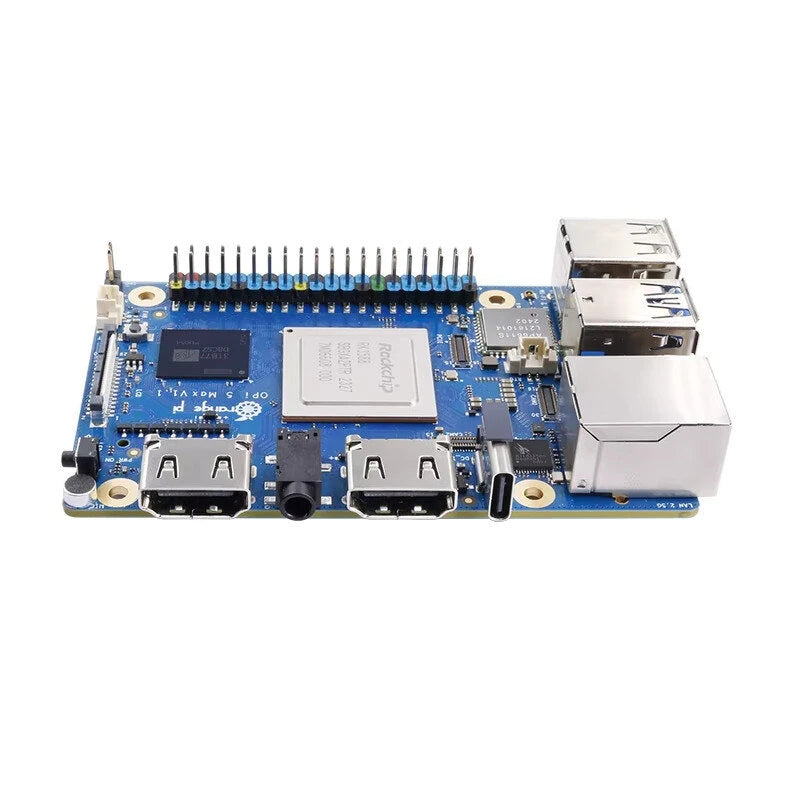

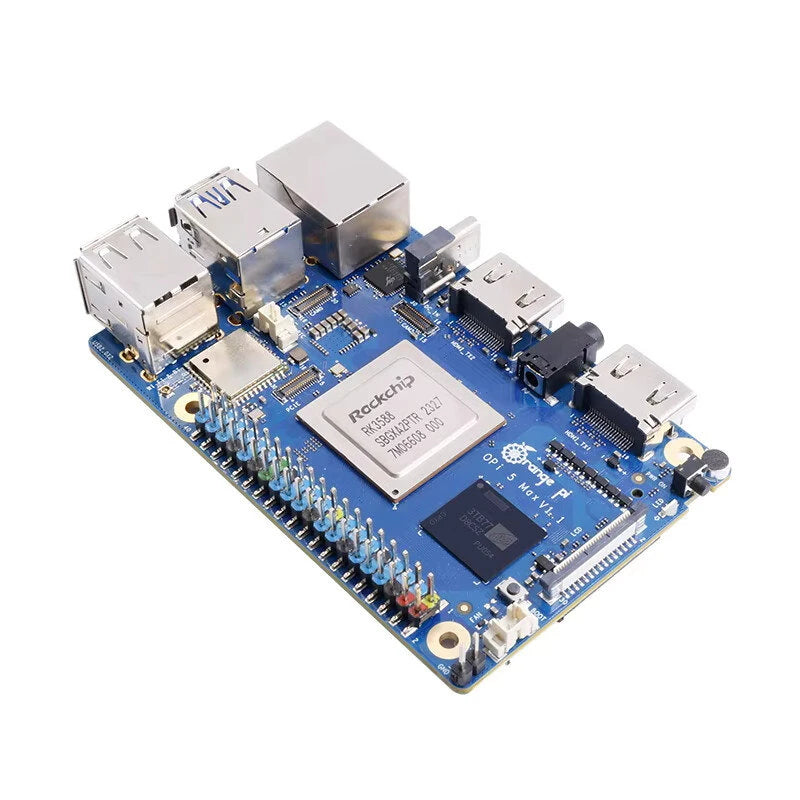

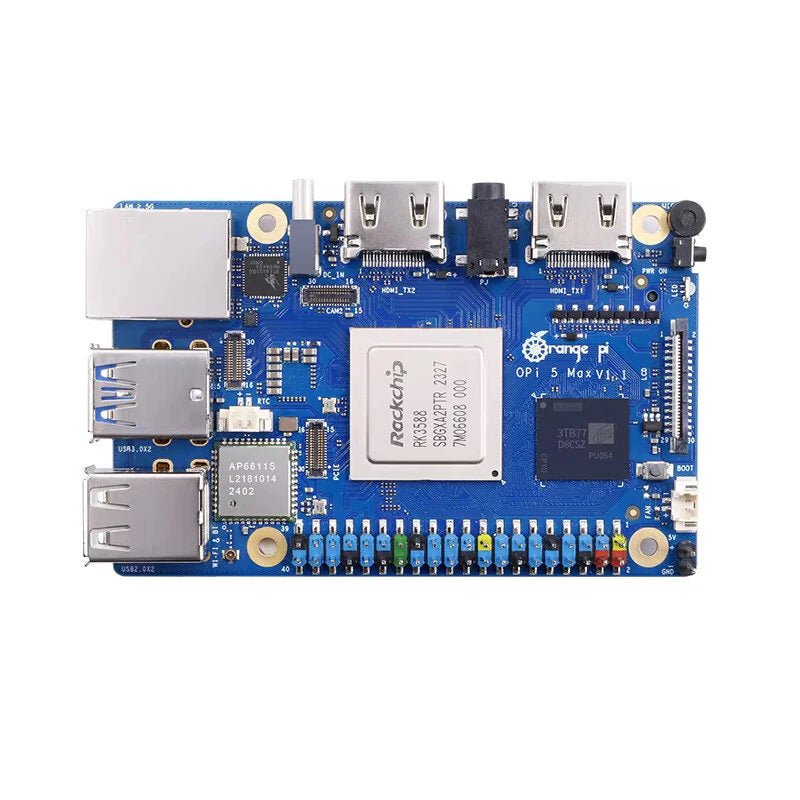

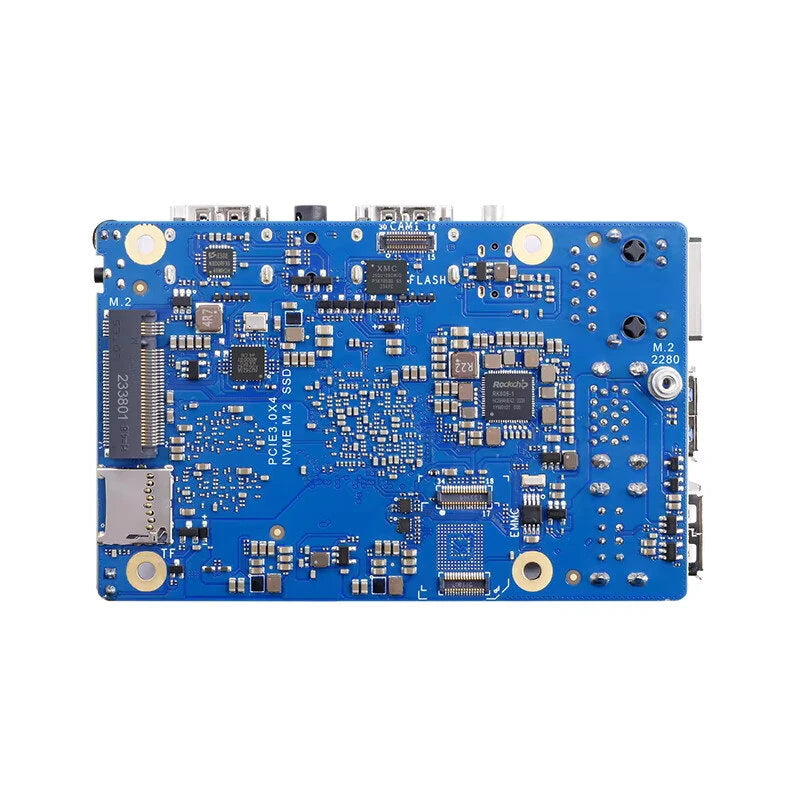

Orange Pi 5 MAX Development Board

Discover unparalleled performance and flexibility with the Orange Pi 5 MAX, engineered for demanding applications. Experience advanced processing capabilities, robust memory options, and versatile connectivity.

Key Features

  • Master Chip: Rockchip RK3588 (8nm LP process)
  • CPU:
    • 8-core 64-bit processor
    • 4 Cortex-A76, 4 Cortex-A55 with independent NEON coprocessor
    • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
  • GPU: Integrated ARM Mali-G610
    • 3D GPU with OpenGL ES1.1/2.0/3.2, OpenCL2.2, and Vulkan 1.2 compatibility
  • NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS
  • RAM: LPDDR5 496PIN: 16GB
  • Memory Options:
    • QSPI Nor FLASH: 16MB
    • MicroSD card slot
    • M.2 M-KEY slot: Supports NVMe SSD (PCIe 3.0 4Lane)
    • eMMC Flash Sockets (default)
    • Onboard eMMC customizable (32GB, 64GB, 128GB, or 256GB)
  • USB Connectivity: 2 x USB 3.0, 2 x USB 2.0
  • Video Output:
    • 2 x HDMI 2.1, up to 8k@60FPS
    • 1 x MIPI DSI TX 4 Lane
  • Camera Support:
    • 2 x MIPI CSI 4 Lane
    • 1 x MIPI D-PHY RX 4 Lane
  • Audio Codec: ES8388
    • 1 x Audio 3.5mm jack with mic
    • 1 x MIC In
    • 1 x HDMI 2.1 eAC
  • Network:
    • 1 x PCIe 2.5G LAN (RTL8125BG)
    • Onboard Wi-Fi 6E + BT 5.3/BLE module: AP6611
  • Expansion Port:
    • Dual-row pin: 2.54mm 40Pin
    • Supports DC 5V and 3.3V power output
    • Configurable UART, PWM, I2C, SPI, CAN, GPIO, and other functional interfaces
  • Buttons:
    • 1 x BOOT key
    • 1 x On/Off key
  • Power Source: Supports Type-C power supply, 5V @ 5A
  • Additional Features:
    • RGB LED Side Illumination
    • FAN: 5V 2PIN 1.25mm socket
    • RTC: 3V 2PIN 1.25mm socket
    • Debug serial UART included in 40PIN expansion port

Supported Operating Systems

Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android 12

Package Includes

  • 1 x Orange Pi 5 MAX Development Board
