Raindrop Detection Sensor Kit

Description

• This kit is a perfect solution for monitoring weather conditions using a raindrop and rain sensor system. It works effectively in various weather scenarios and provides both digital and analog outputs.
• Constructed with high-quality FR-04 double-sided materials, the sensor features a King Size (5.0 x 4.0 cm) surface with nickel plating, ensuring excellent conductivity and resistance to oxidation.
• The sensor offers both digital switching outputs (0 and 1) and analog AO voltage outputs.
• It provides TTL-level output, where a valid TTL signal is low. With a driving capability of 100mA, it can directly drive relays, buzzers, and small fans.
• The sensitivity of the sensor can be adjusted using a potentiometer.
• The LED indicator will be lit when there is no rain, indicating a high output, and turns off as raindrops increase, indicating a low-level output.

Specification

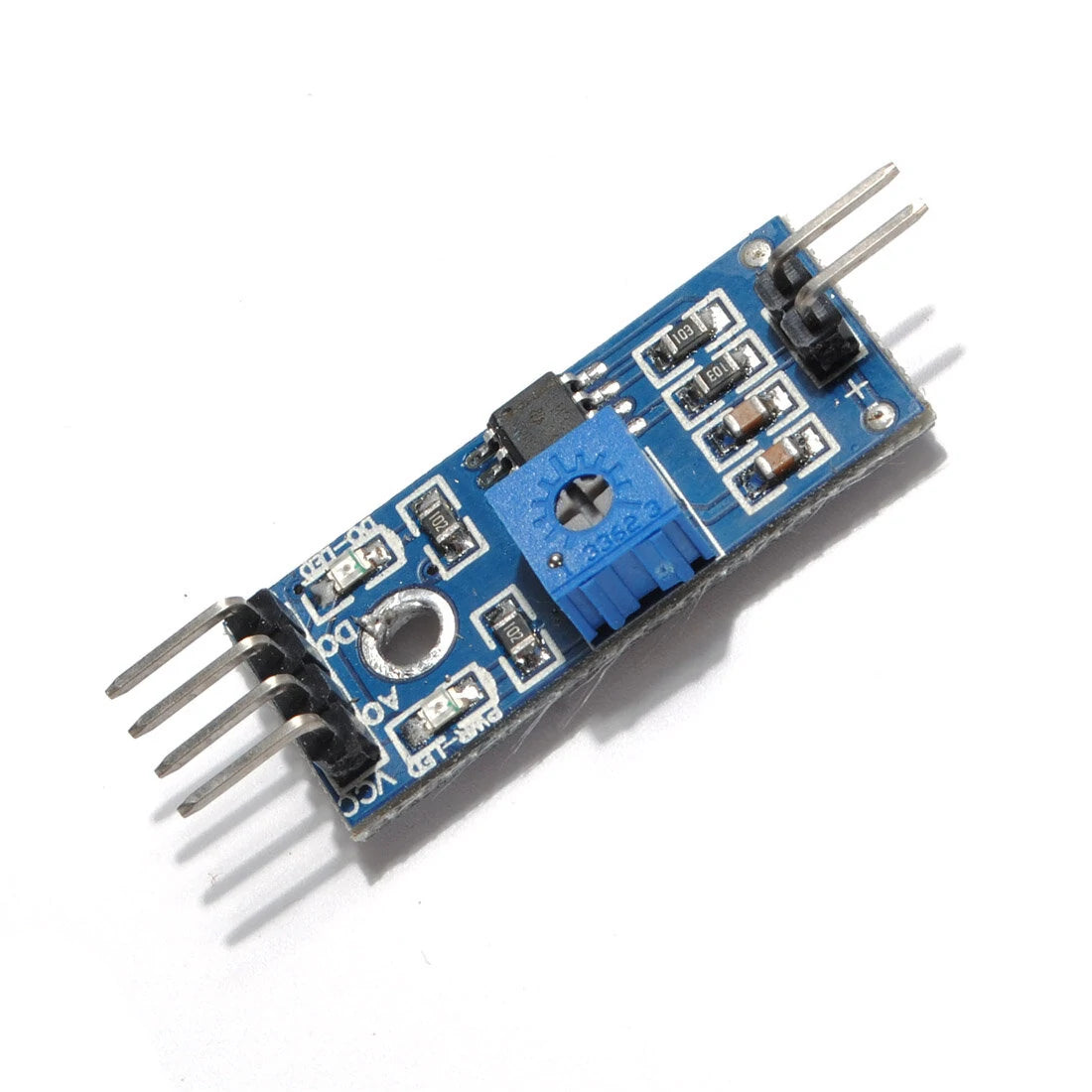

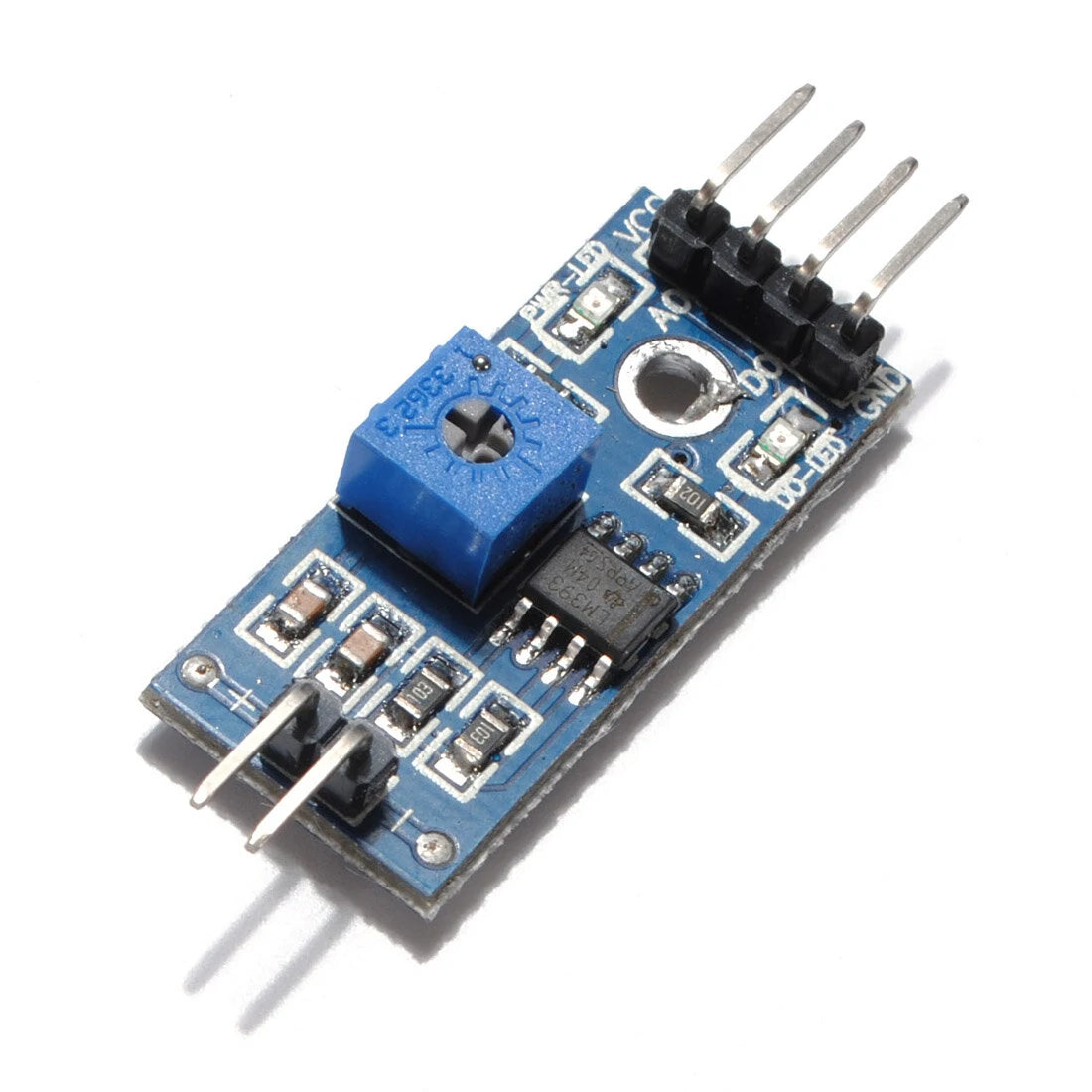

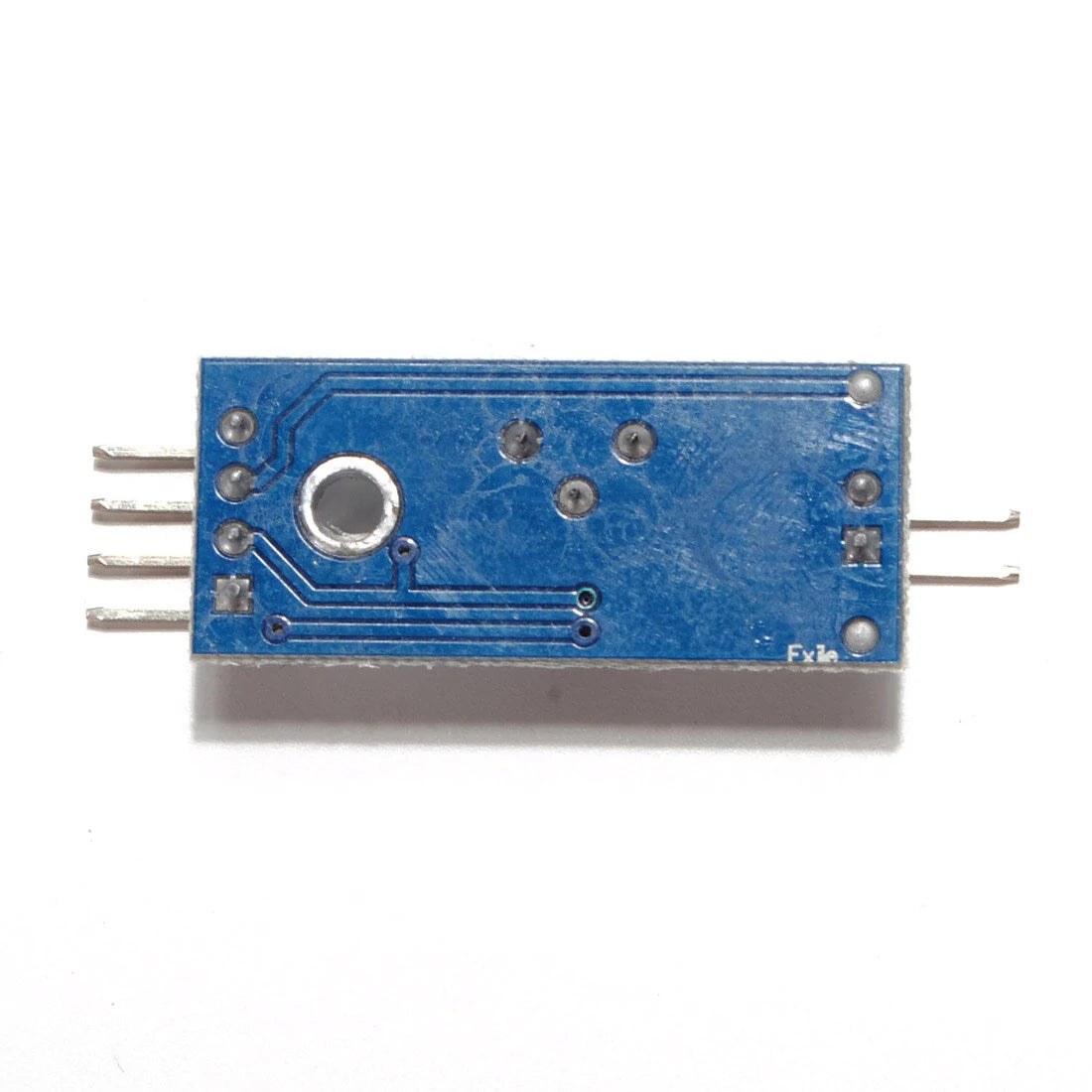

• Small board PCB size: 3.2 cm x 1.4 cm
• Operating voltage: 3.3V-5V
• Voltage: 5V

Features

• Adjustable sensitivity
• Easy installation with a fixed bolt hole
• Includes power indicator and output signal LED indicator
• Comparator output offers clean signals with a driving capability over 15mA
• Wide voltage LM393 comparator used
• Large raindrop detection board for enhanced rain measurement
• Positioning holes on board for easy setup
• Separate raindrop and control panels for easy wiring

How to Use

1. Connect the sensor to a 5V power supply. The power indicator light will illuminate. If the sensor board is dry, the DO output remains high, and the switch is off. Adding a water droplet will switch the DO output low, activating the indicator switch. Removing the water returns it to a high state.
2. The AO analog output can be connected to the microcontroller's AD port to measure the raindrop size.
3. DO TTL digital outputs allow microcontroller connection to detect rain presence.

Connection Mode

• VCC: Positive power supply (3-5V)
• GND: Ground connection
• DO: TTL switching signal output
• AO: Analog signal output

Package Includes

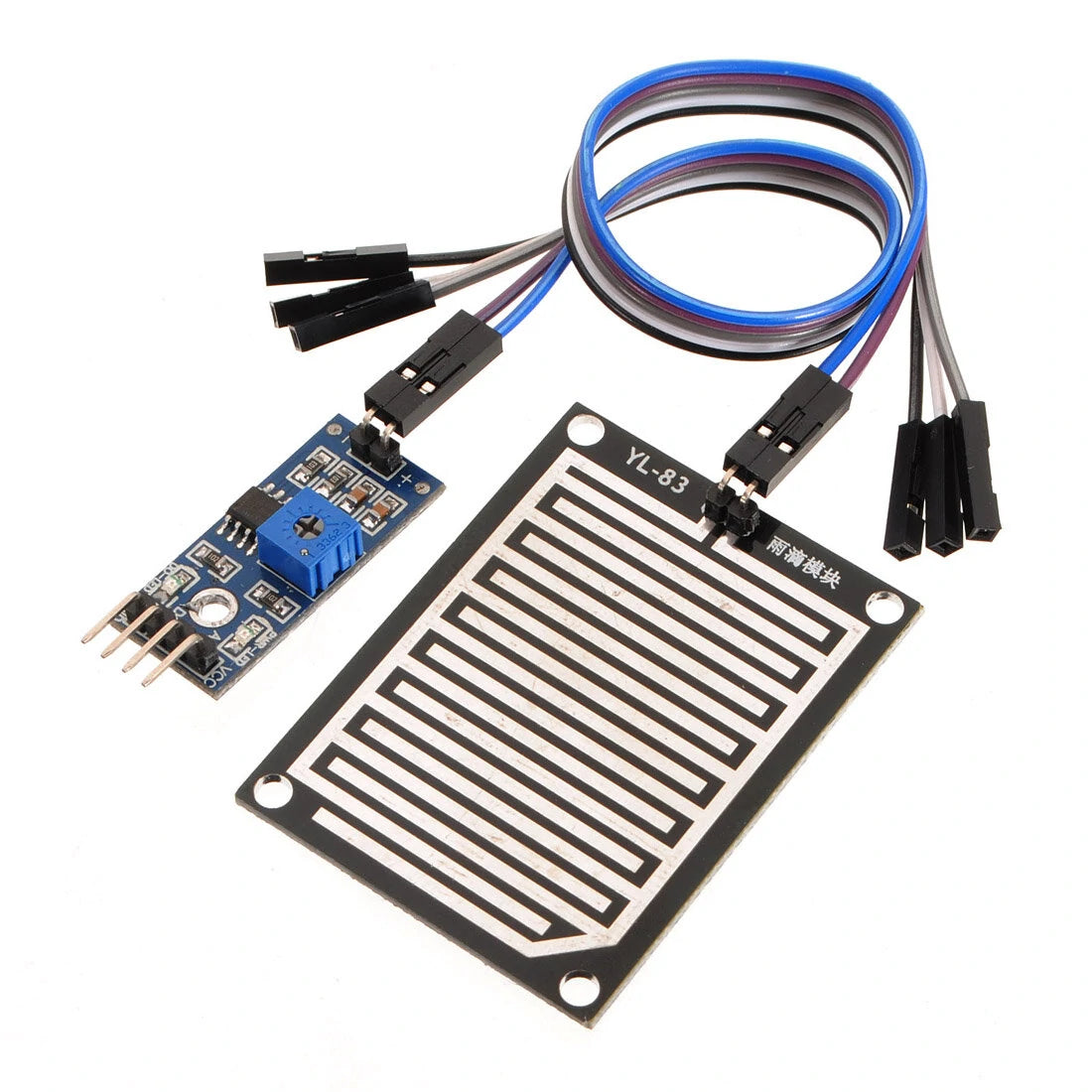

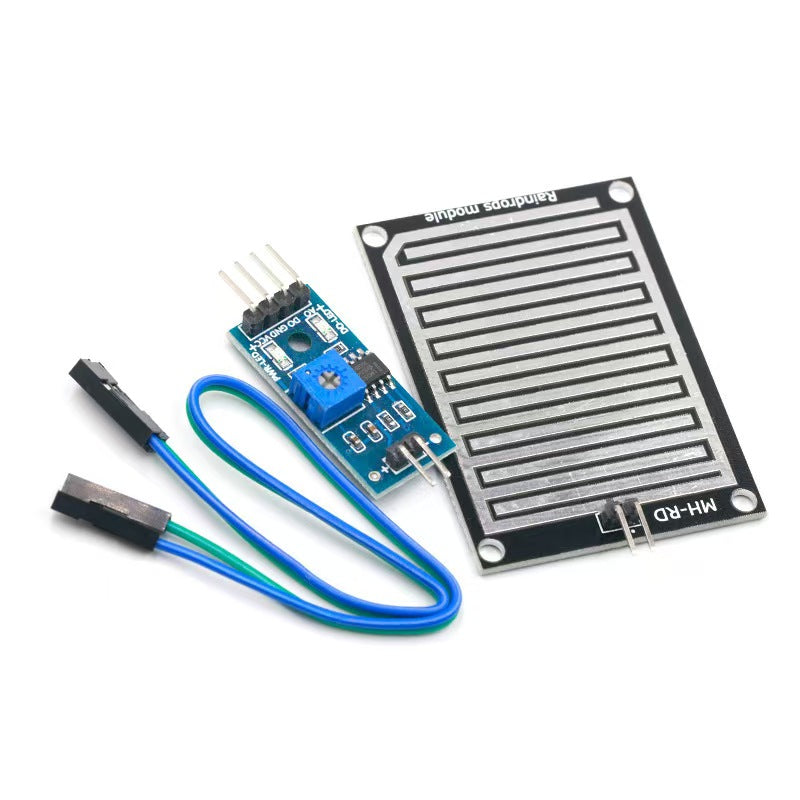

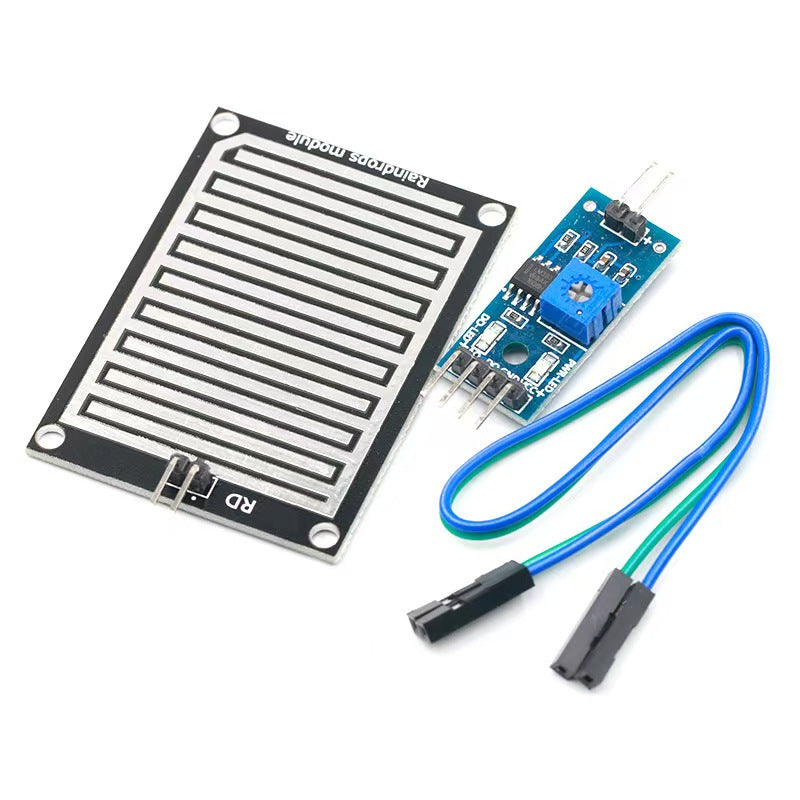

• 5x Rain Sensing Boards
• 5x Control Boards

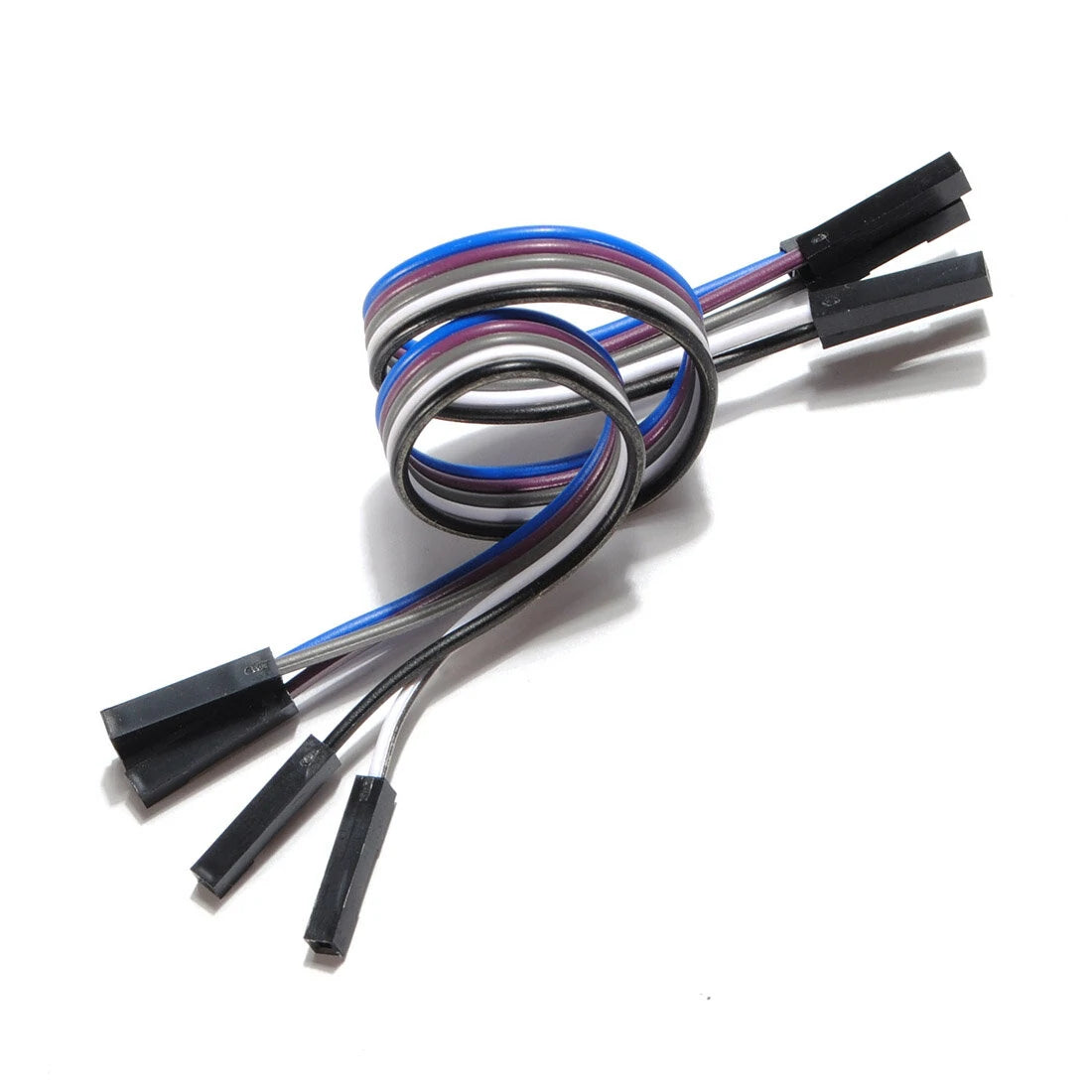

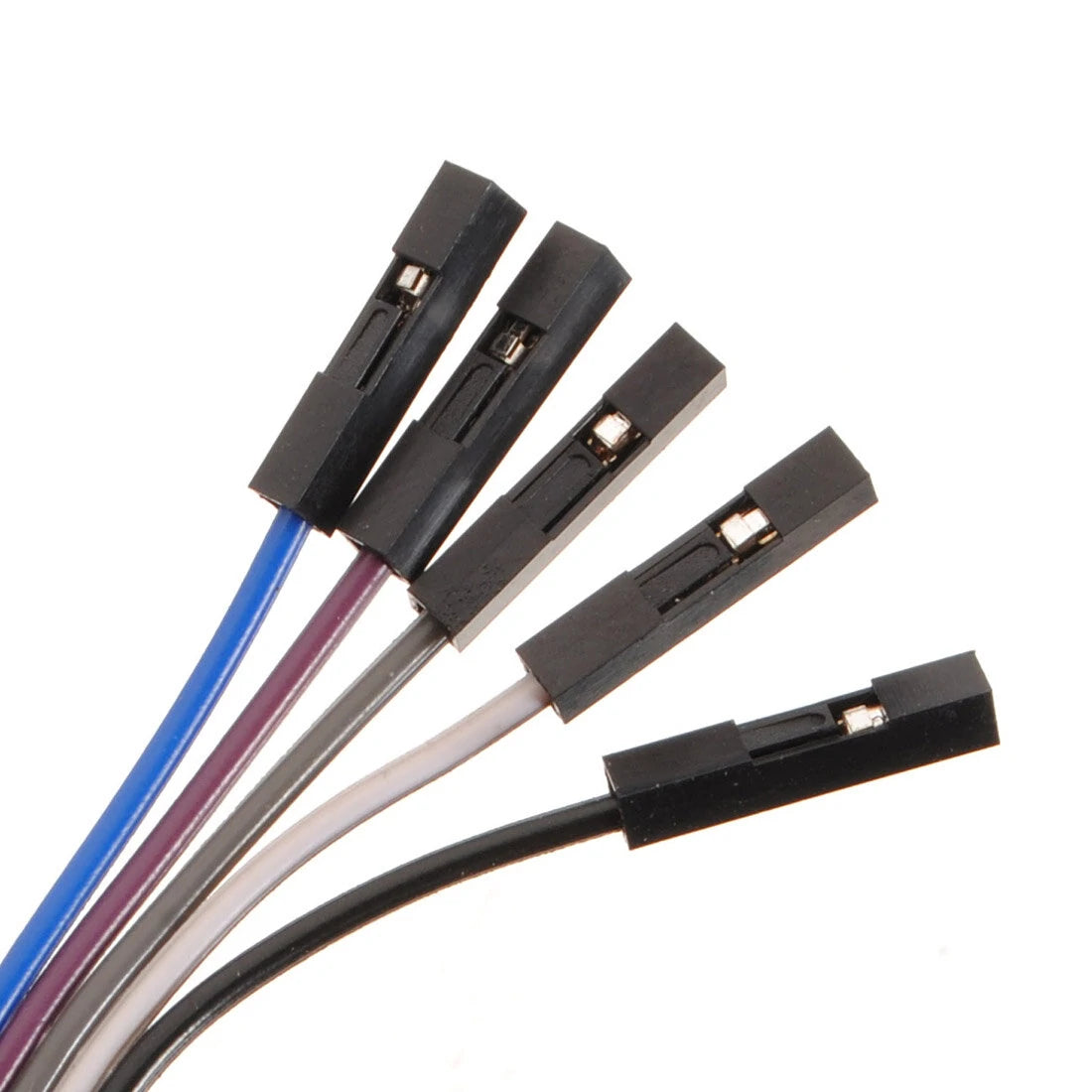

• 5x 20cm Dupont Cables
