Comprehensive Home Security Solution

Protect your home with our 2G WiFi Home Security System, a versatile alarm system designed for top-notch security. It can learn up to 100 wireless detectors, allowing you to customize names for the first 40 wireless zones, ensuring effective monitoring across every corner of your house.

Easy Setup and Control

Our DIY Smart Home Alarm System is easy to set up with the intuitive TY App. Enjoy the convenience of controlling and monitoring your security system with voice commands via Alexa and Google Assistant or directly through your smartphone app.

Advanced Features for Enhanced Protection

This wireless GSM alarm system provides maximum protection with advanced features, including support for up to 5 sets of alarm dialing and SMS phone numbers. It also includes external wireless and wired sirens, low battery alerts for sensors, and open door/window prompts to prevent security breaches.

Multilingual Support and Customization

Our home alarm system supports 11 languages for displays, voice prompts, SMS, and push notifications. It offers 5 different zone modes - normal, delay, internal, 24-hour, and 24-hour silent - to cater to various security needs. Customize accessory names and settings for your wireless detectors.

Convenient Remote Control and Monitoring

Remotely arm, disarm, listen in, and communicate through your phone, offering peace of mind even when you're away. The system stores up to 50 alarm records and 20 arm/disarm records, providing access to crucial information. It’s backed by TY App's cloud services for reliable and secure remote access to your home security.

Specifications

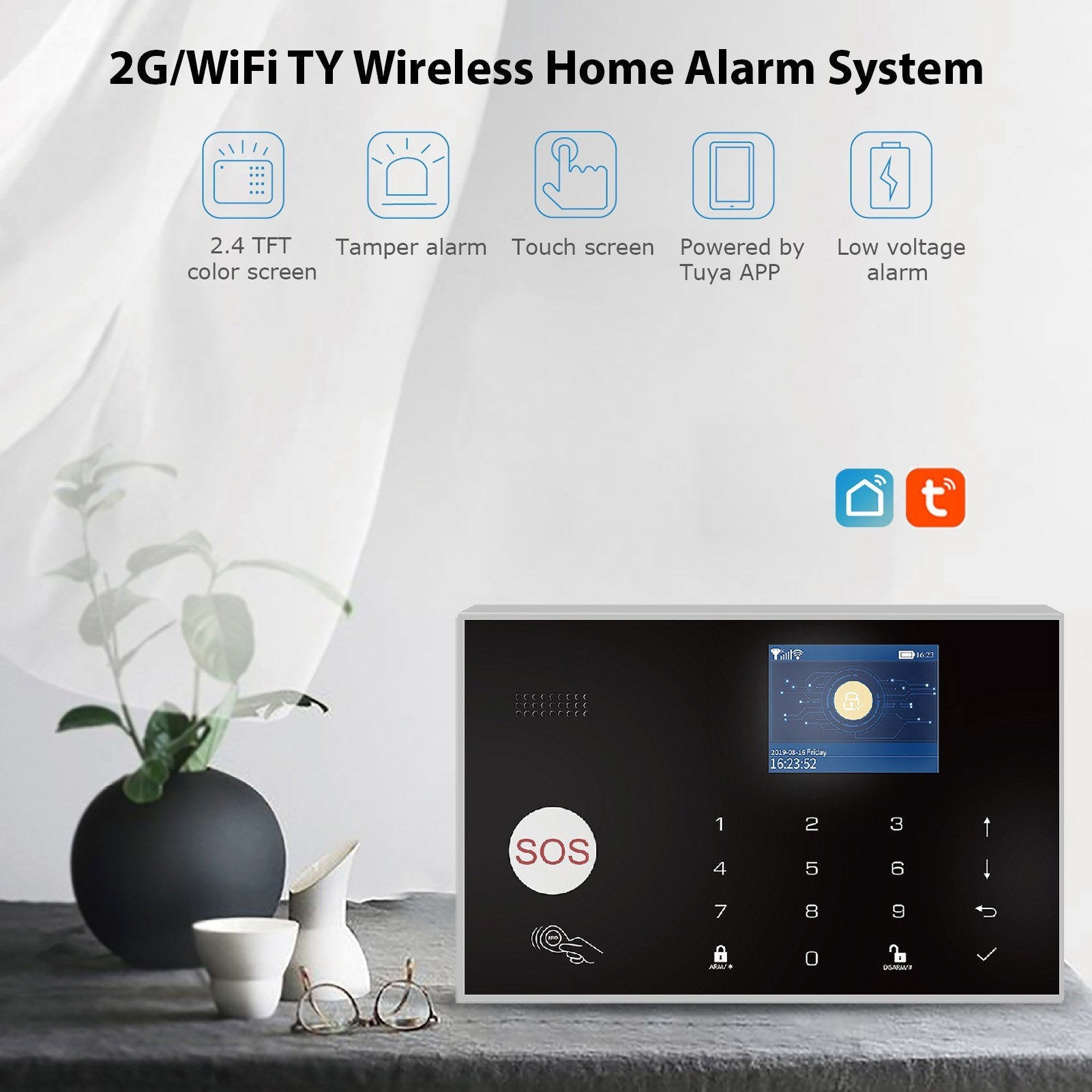

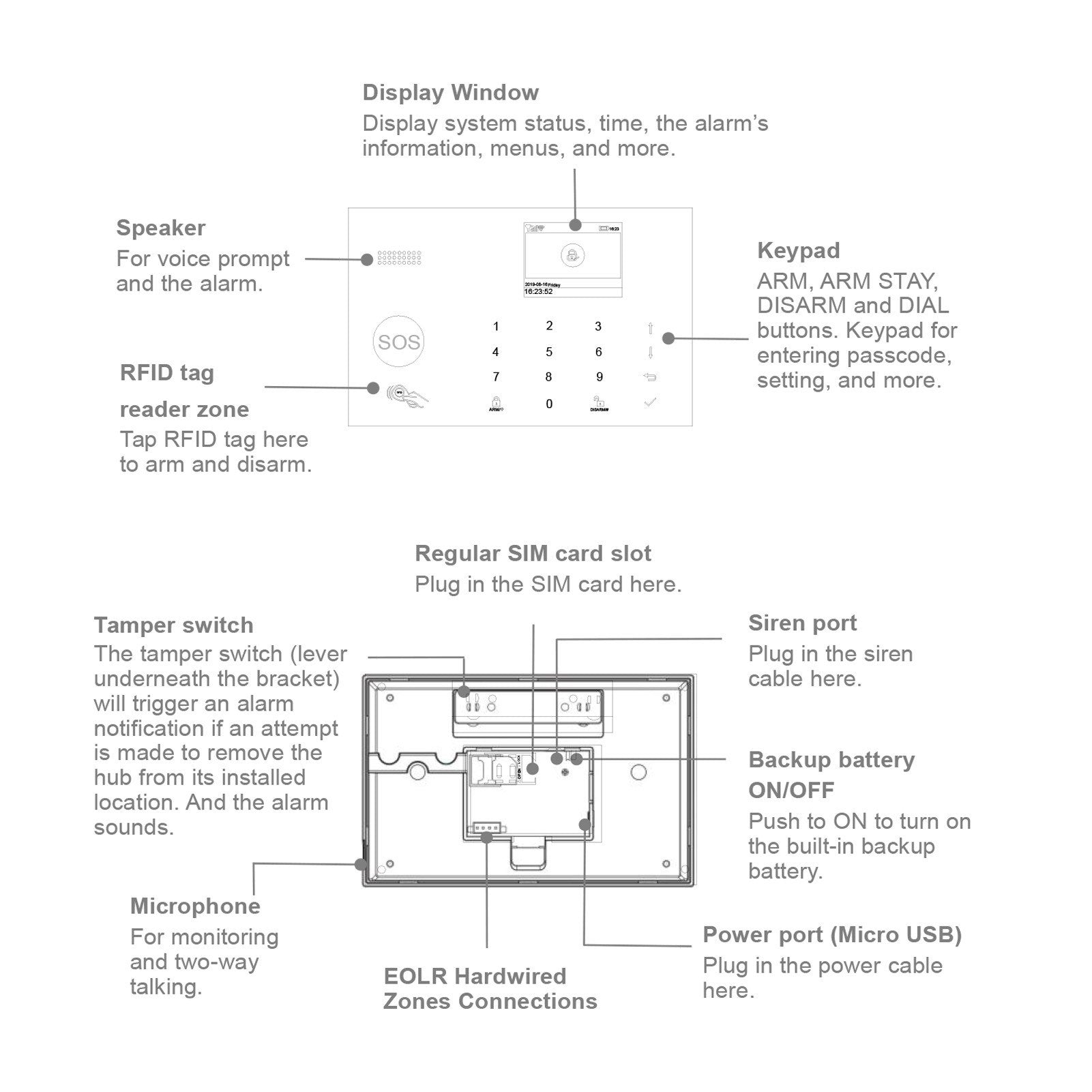

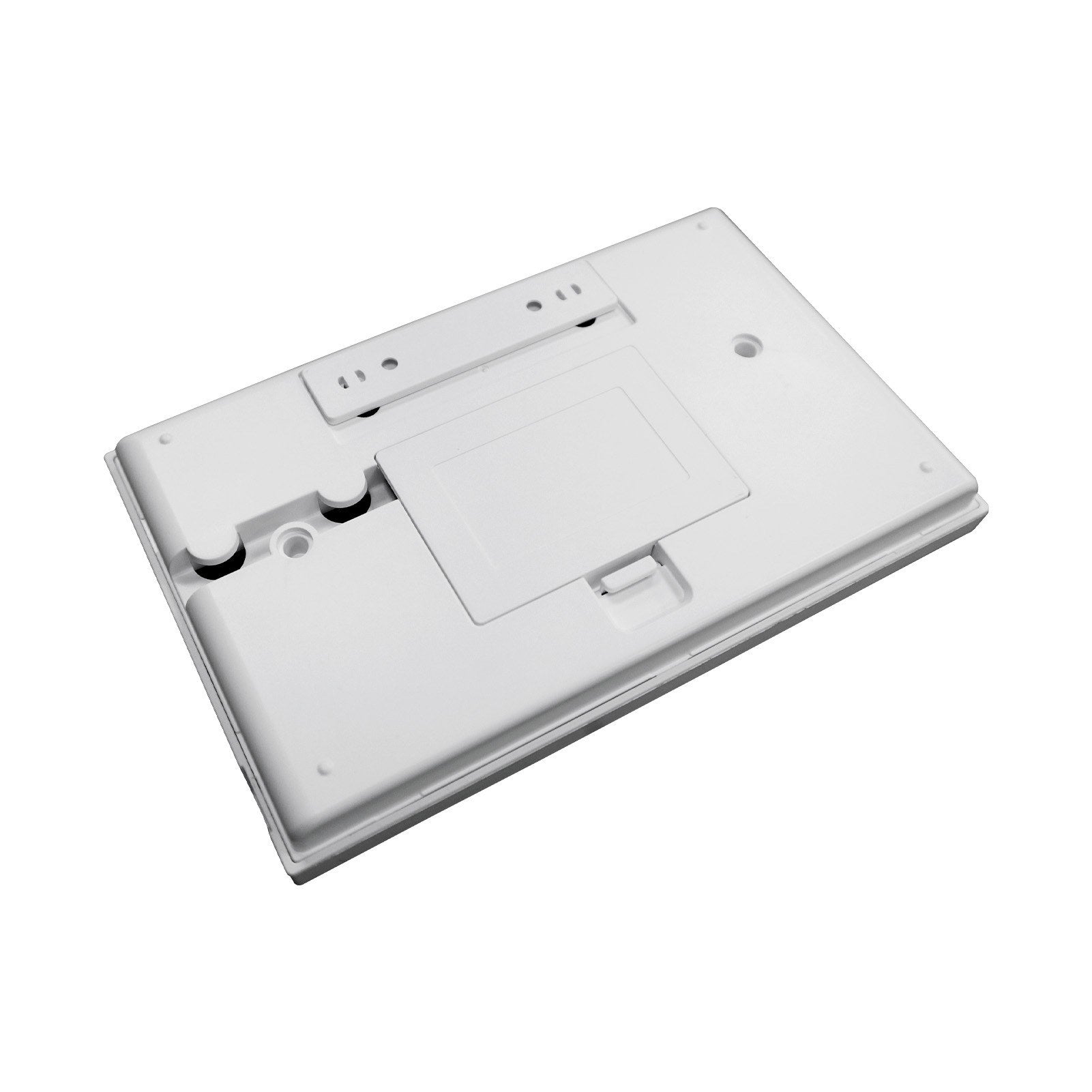

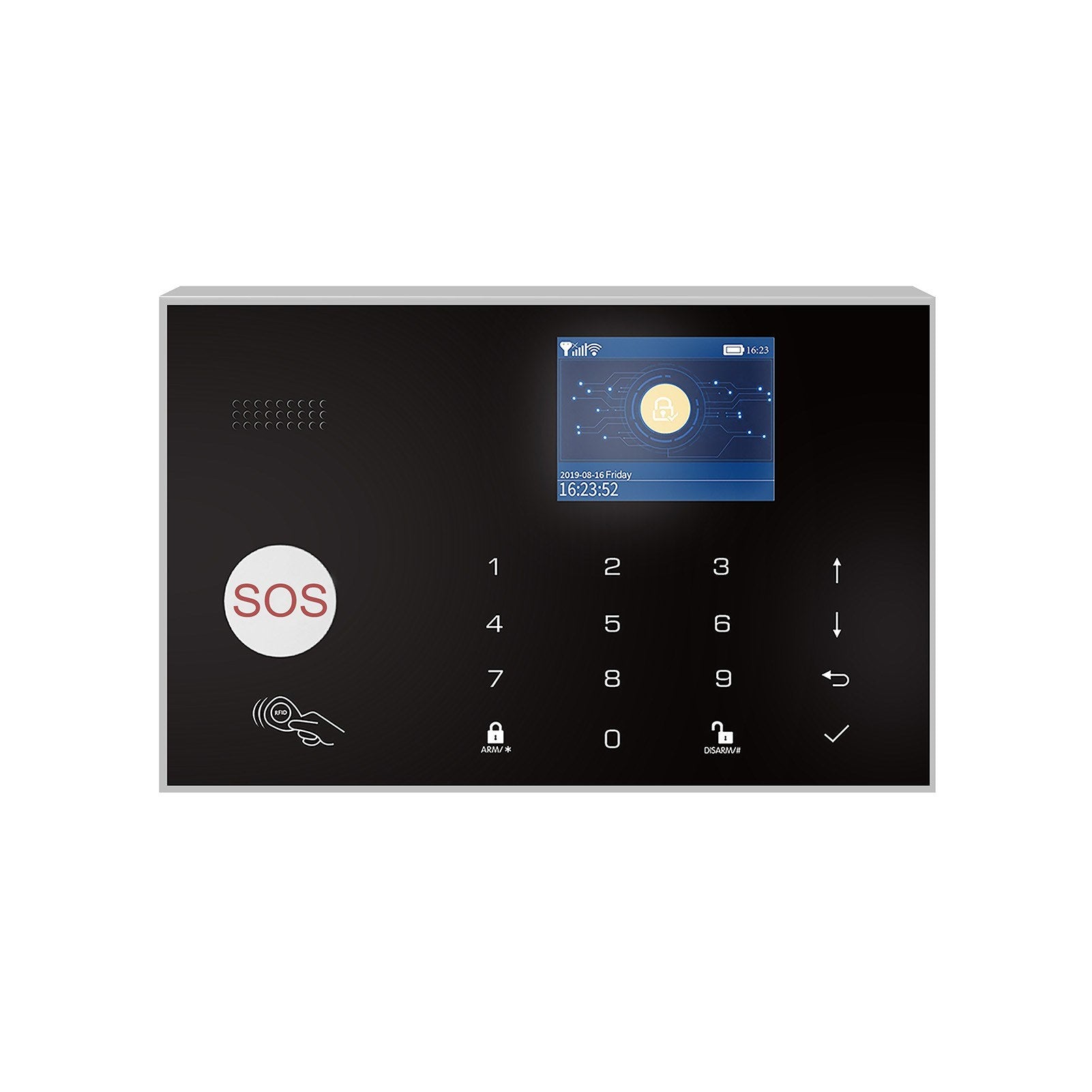

• Smart Hub Panel:
  Power Supply: Micro USB 110/220VAC to 5V, 1000mA
  Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
  Consumption: <55mA@normal
  Siren Output: <500mA
  Radio Frequency: 433MHz
  GSM: 850/900/1800/1900MHz
  Wi-Fi: IEEE802.11b/g/n
  WiFi Frequency: 1~ 14@2.4GHz
  Operating Temperature: -10~55°C

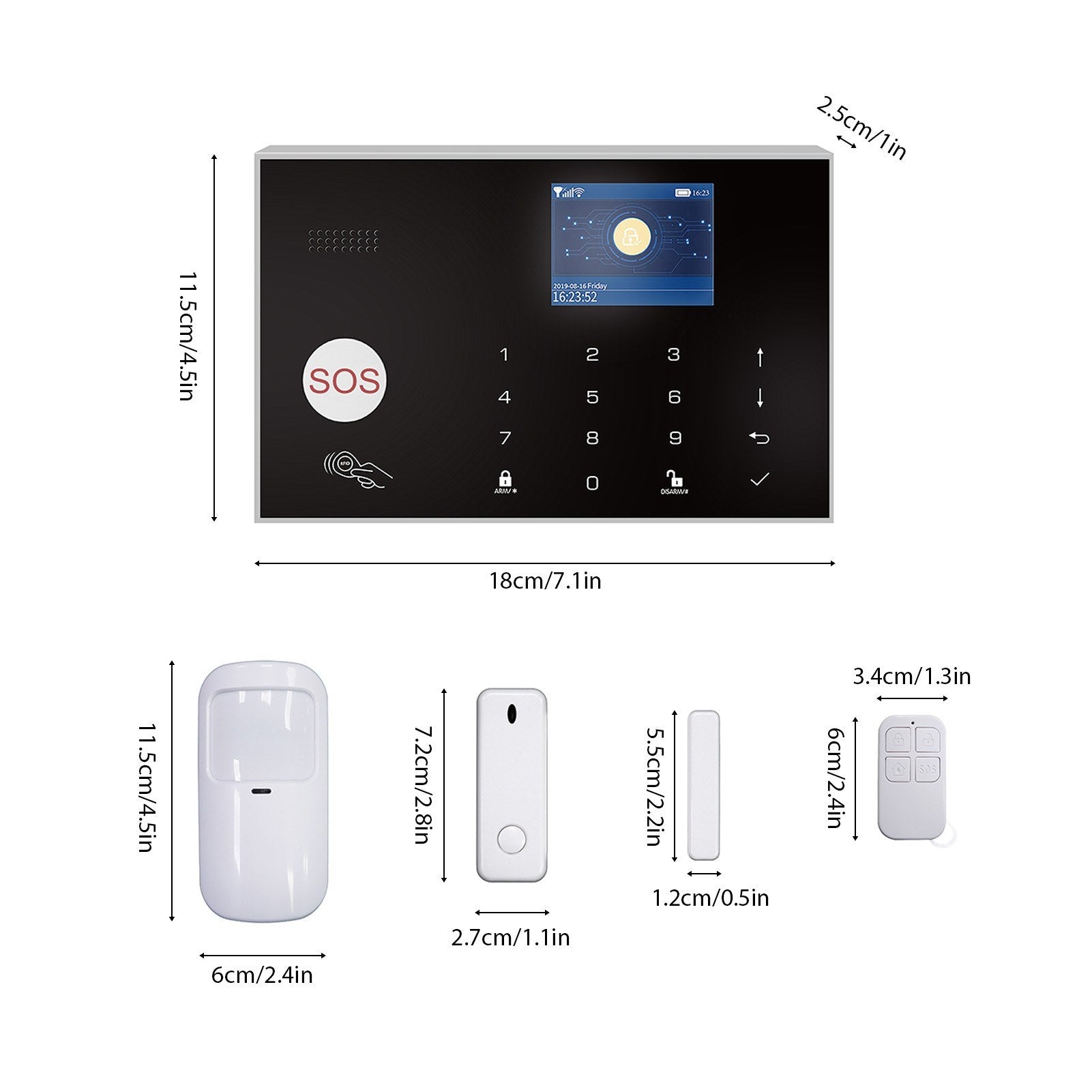

  Size: 18x11.5x2.5cm/7.1x4.5x1inch
• Remote Control:
  Power Supply: DC 3V (CR2025 Lithium Battery x1)
  Standby Current: <5µA
  Alarm Current: <15mA
  Transmitting Distance: <80m (Open Area/No Interference)
  Radio Frequency: 433MHz
  Operating Temperature: -10~55°C
  Size: 3.4x6x1cm/1.3x2.4x0.4inch
• Door/Window Sensor:
  Power Supply: DC 3V (CR2032 Lithium Battery x1)
  Standby Current: <8µA
  Alarm Current: <15mA
  Transmitting Distance: <80m (Open Area/No Interference)
  Radio Frequency: 433MHz
  Operating Temperature: -10~55°C
  Magnetic Sensor Size: 7.2x2.7x1.2cm/2.8x1.1x0.5inch
  Magnetic Stick Size: 5.5x1.2x1.3cm/2.2x0.5x0.5inch
• PIR Motion Sensor:
  Power Supply: 1.5V 3*AA Battery (not included)
  Standby Current: <15µA
  Alarm Current: <25mA
  Detection Scope: <12m/110°
  Transmitting Distance: <80m (Open Area/No Interference)
  Radio Frequency: 433MHz
  Operating Temperature: -10~55°C
  Size: 11.5x6x3.8cm/4.5x2.4x1.5inch

Note: Due to different display screens and lighting effects, the actual color of the item may slightly differ from the images shown.

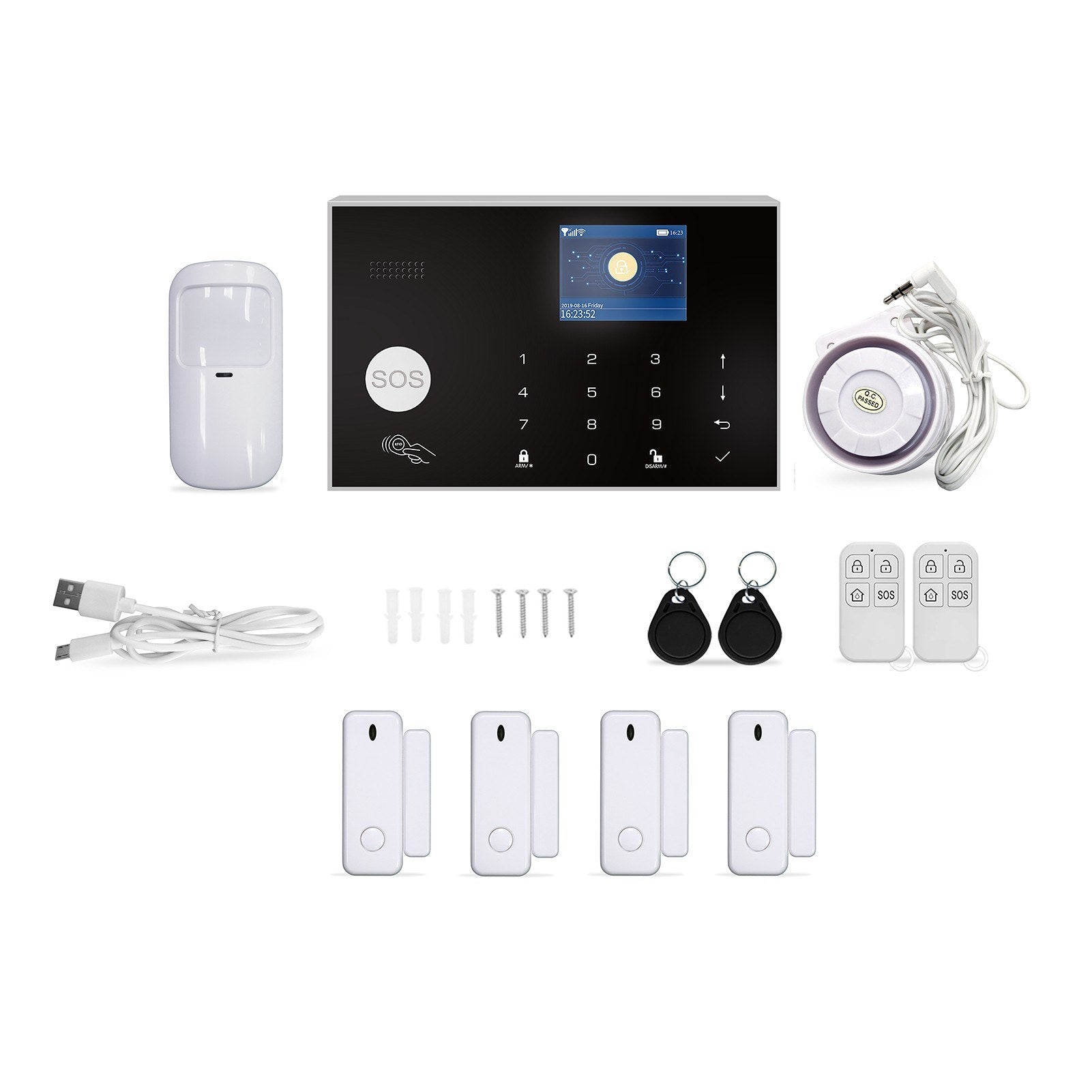

Package List

• 1 x Smart Hub Panel
• 4 x Door/Window Sensor
• 1 x PIR Motion Detector
• 2 x RFID Key
• 2 x Remote Control
• 1 x External Siren
• 2 x Screw Pack
• 1 x Charging Cable
• 1 x Instructions
