ANENG A3007 6000-Count Digital Pen Multimeter - LCD Backlit Display, NCV, Auto-off, Multifunction Testing for Voltage, Current, Resistance, Capacitance & Diode Continuity

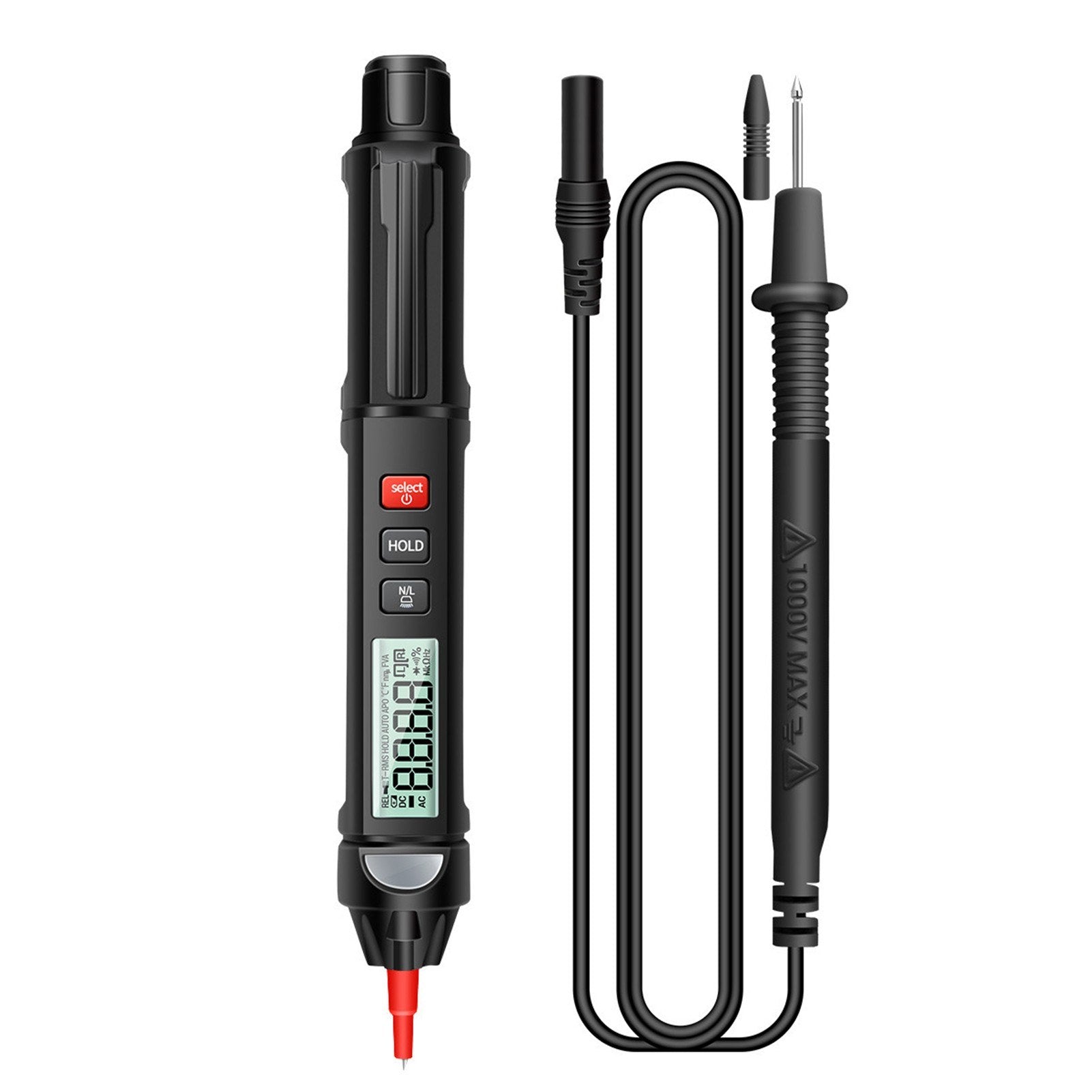

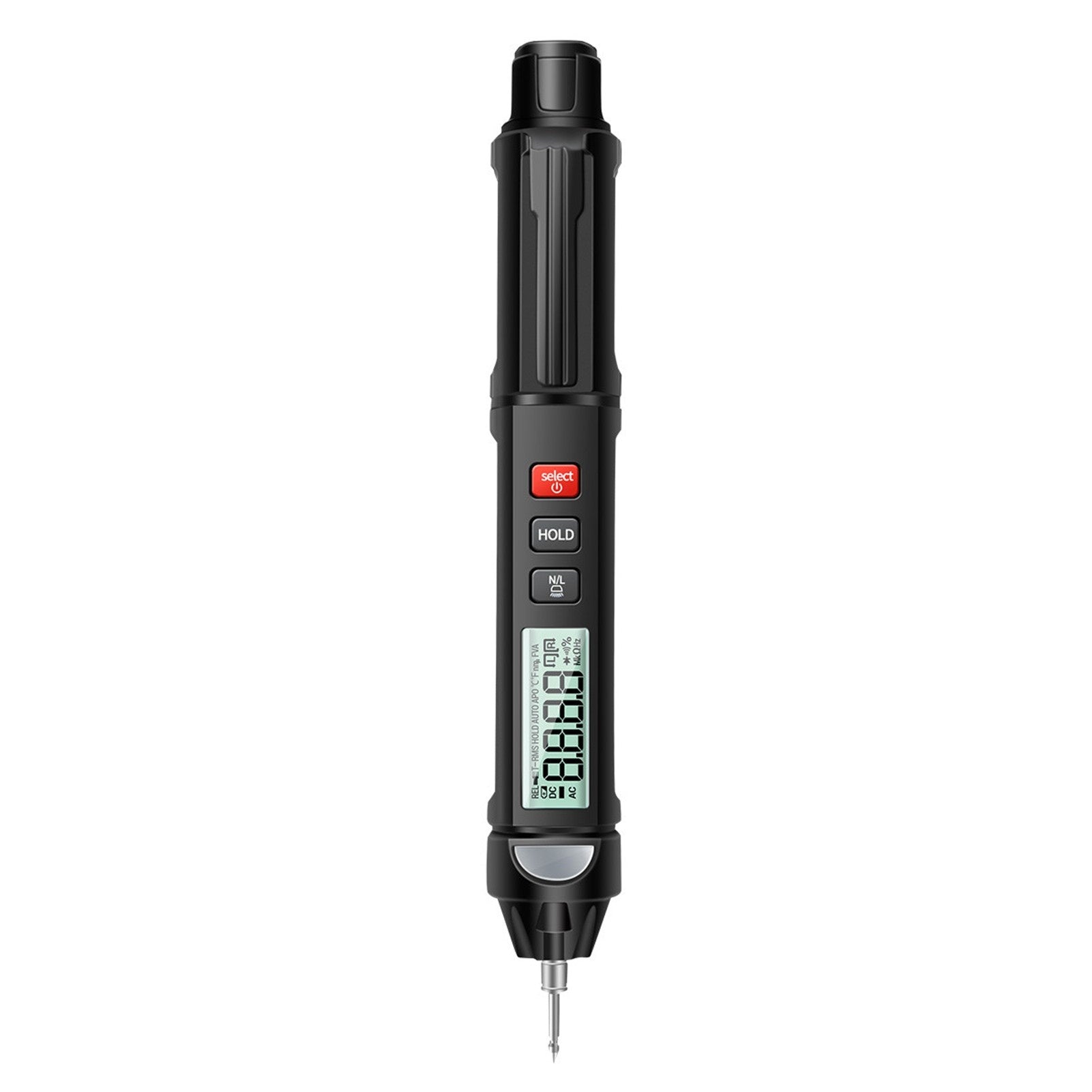

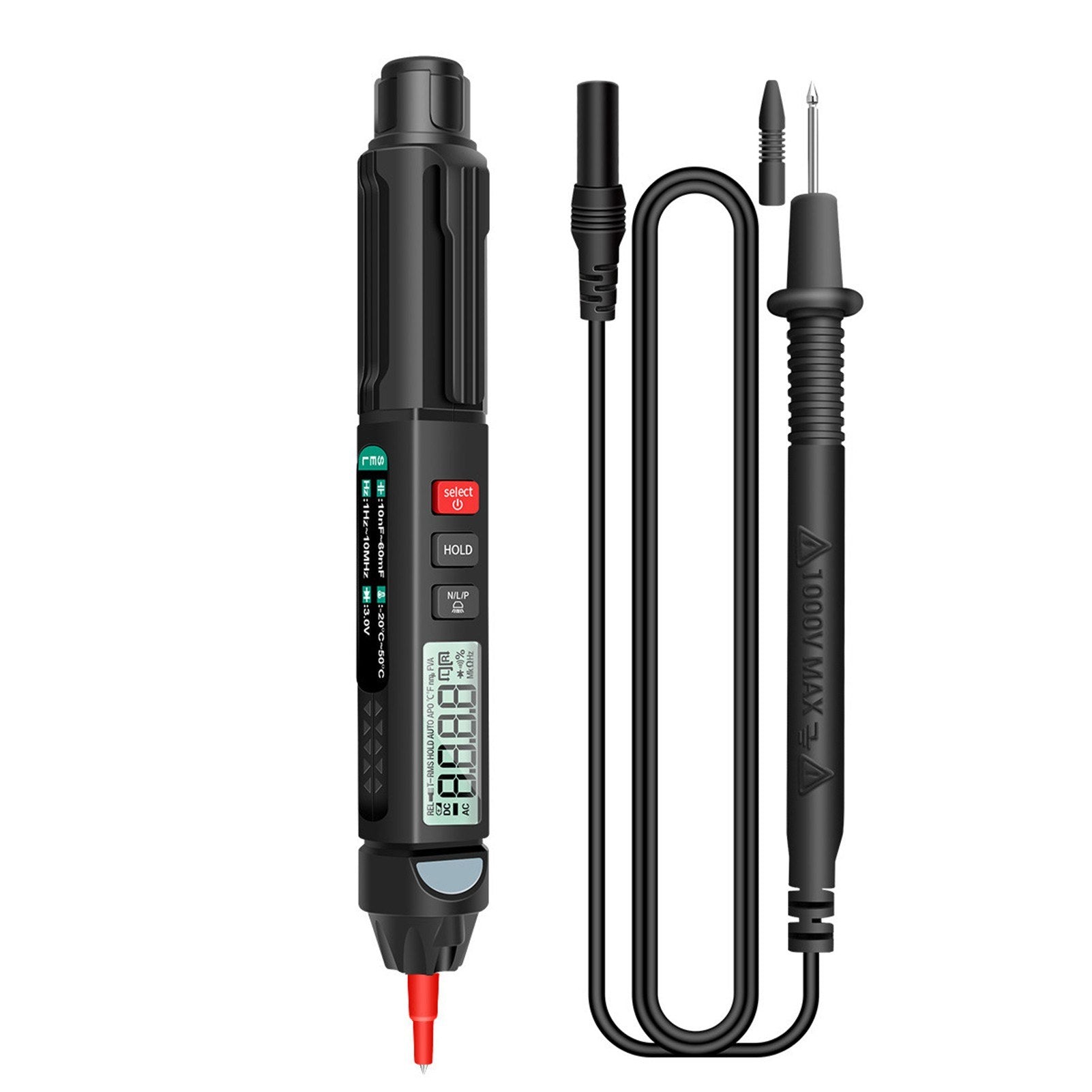

Discover the Versatile ANENG A3007 Smart Pen Multimeter

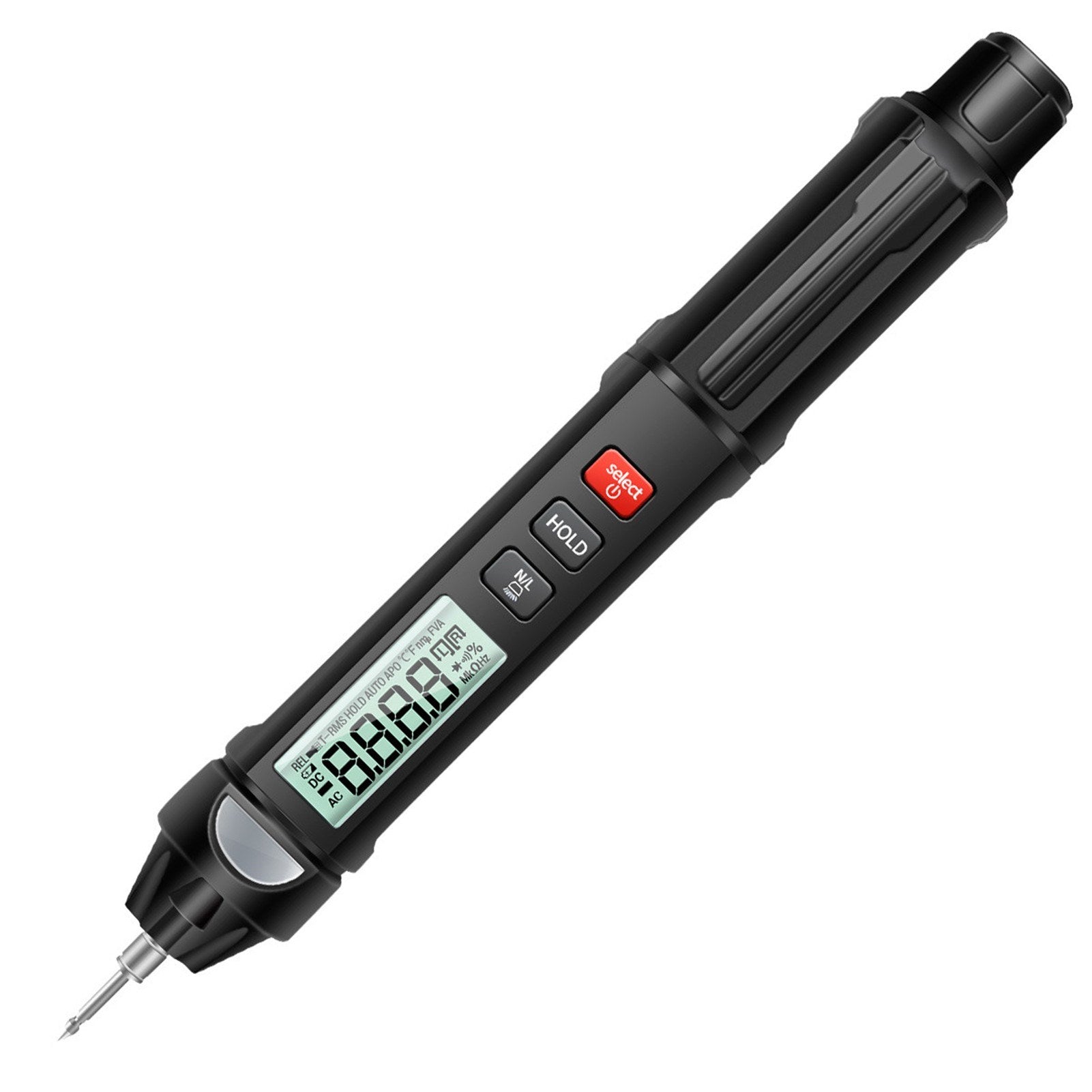

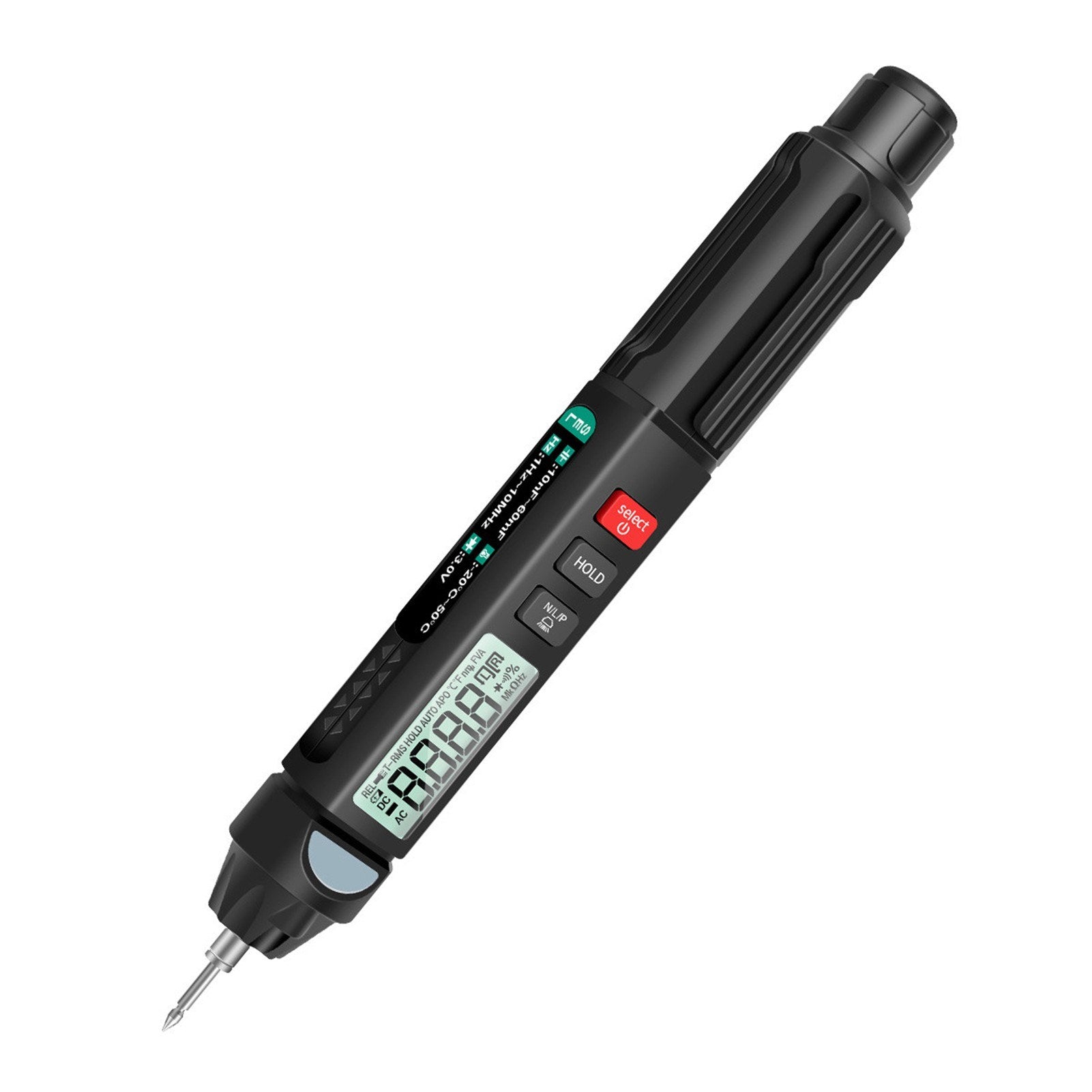

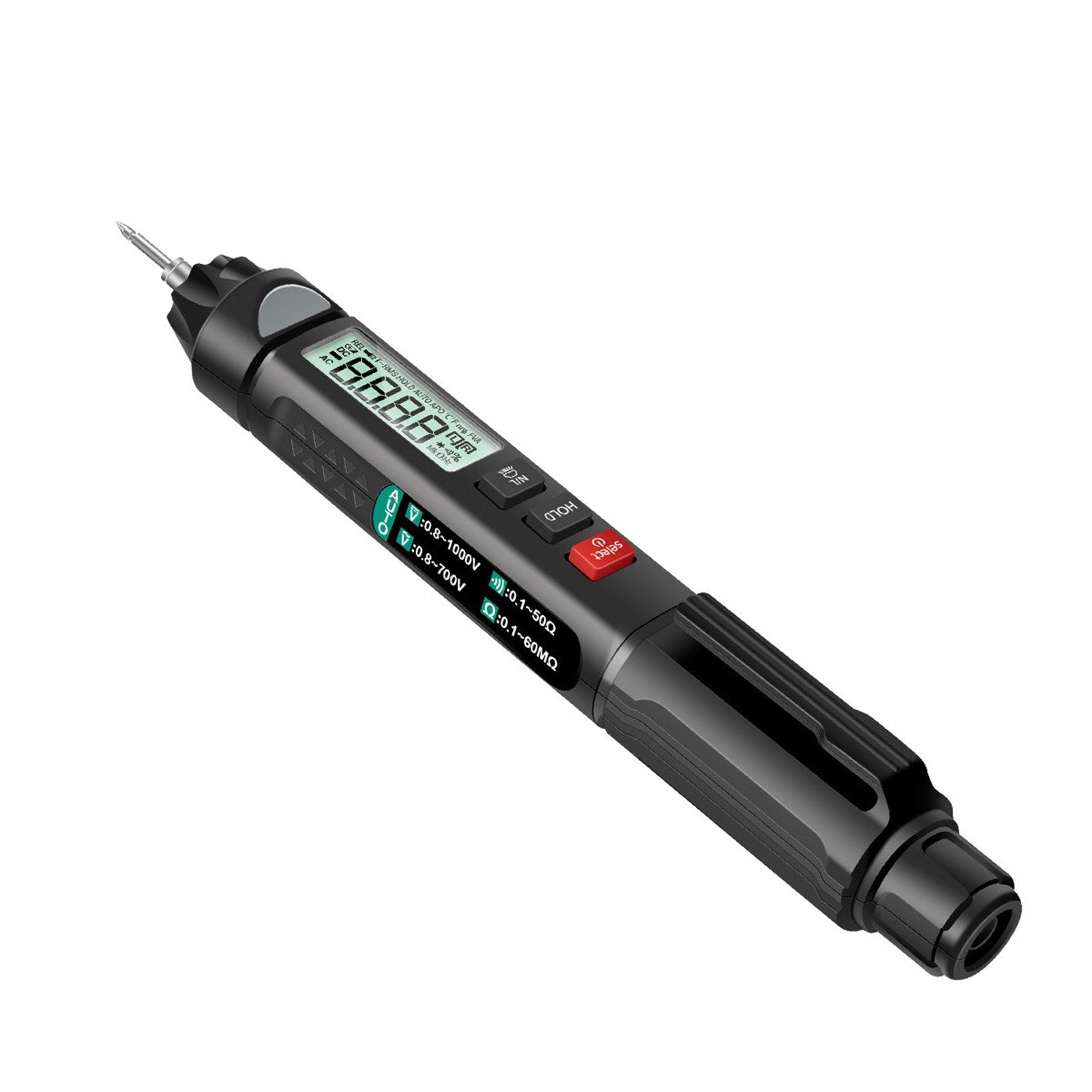

The ANENG A3007 is a compact, pen-type smart multimeter with 3 5/6 digits and true RMS functionality. Its intelligent design allows automatic identification of DC voltage, AC voltage, and resistance, eliminating the need to adjust any dials manually. Ideal for quick and easy operation, this multimeter is perfect for professionals, DIY enthusiasts, and families alike.

Key Features:

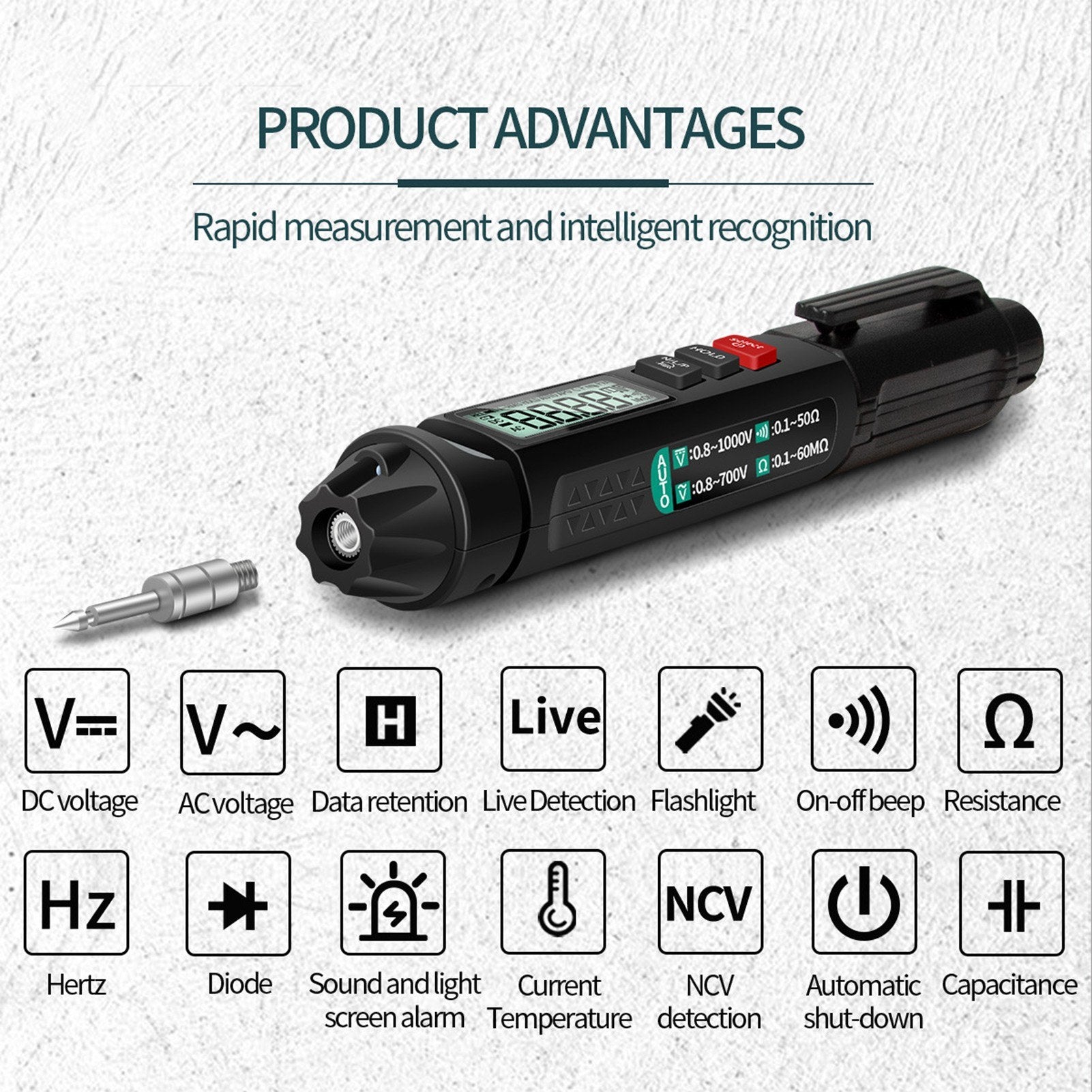

• All-in-One Testing Capabilities: Efficiently test voltage, resistance, capacitance, diode, frequency, temperature, continuity, and perform non-contact voltage detection and zero line measurements.
• High Accuracy & Fast Sampling: Enjoy high precision measurements with a sampling speed of 3 times per second.

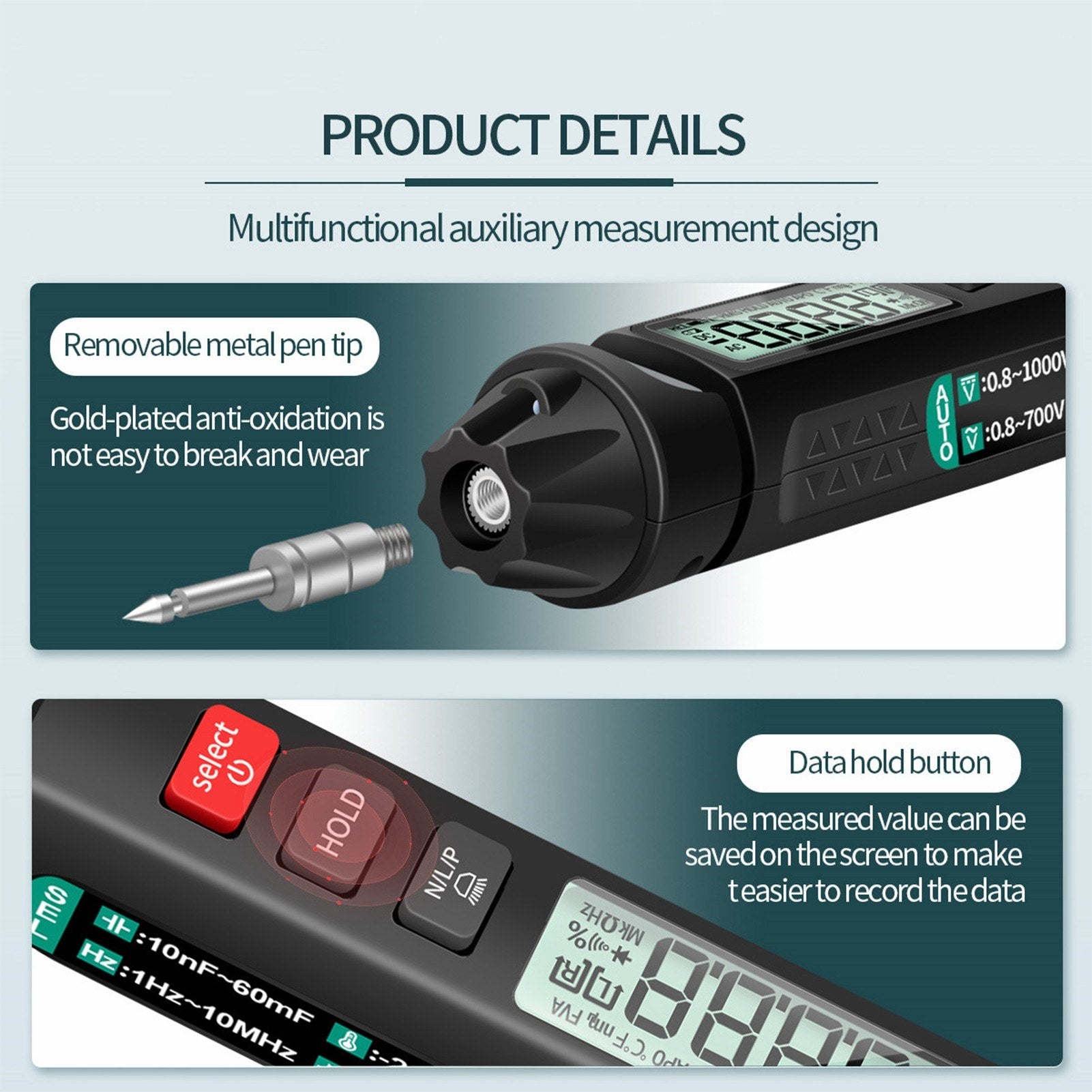

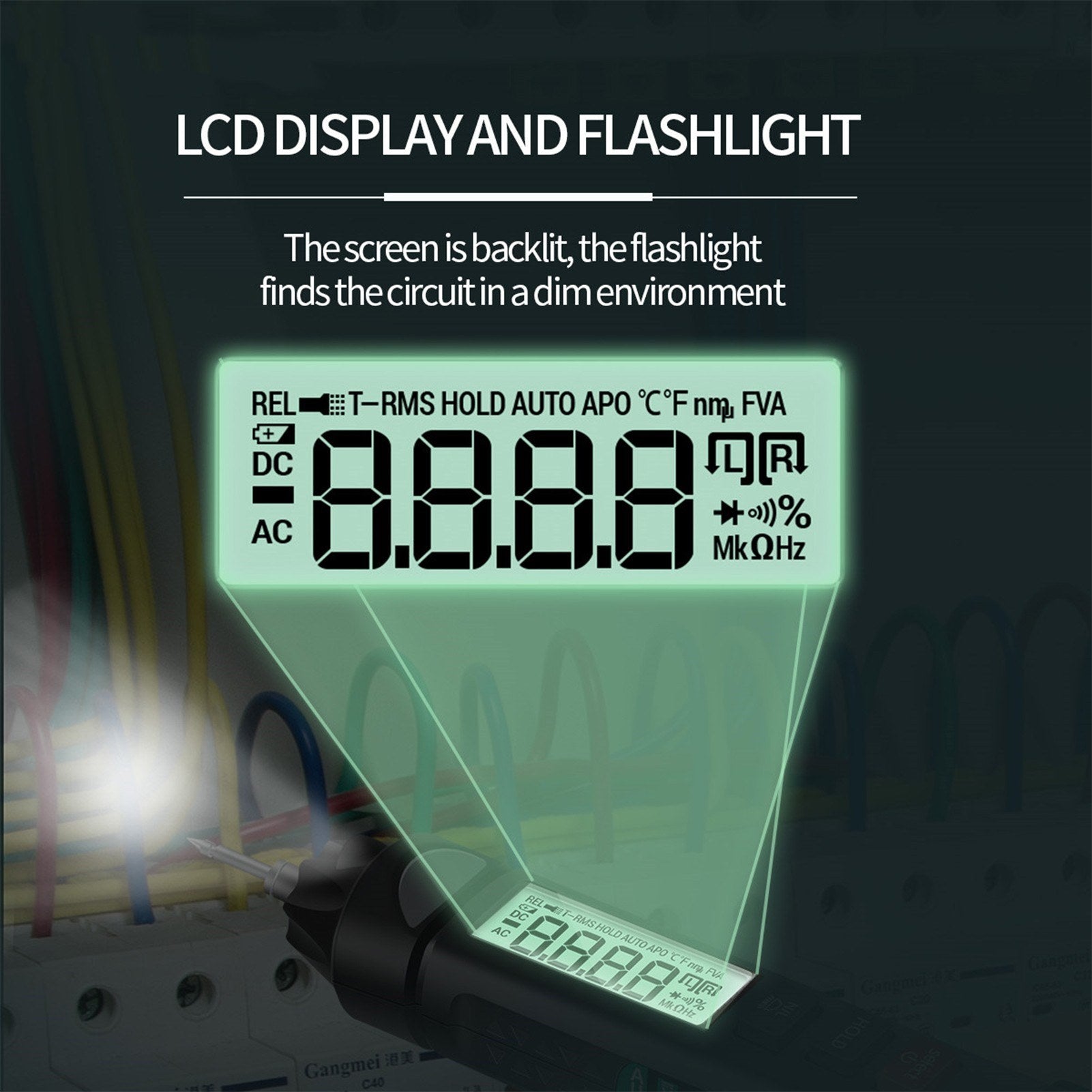

• User-Friendly Design: A clear LCD screen displays measurements prominently, while a built-in flashlight and data retention function enhance usability.
• Durable & Portable: Made from robust electronic components and housed in sturdy plastic, this lightweight tool fits comfortably in your pocket for easy transportation.

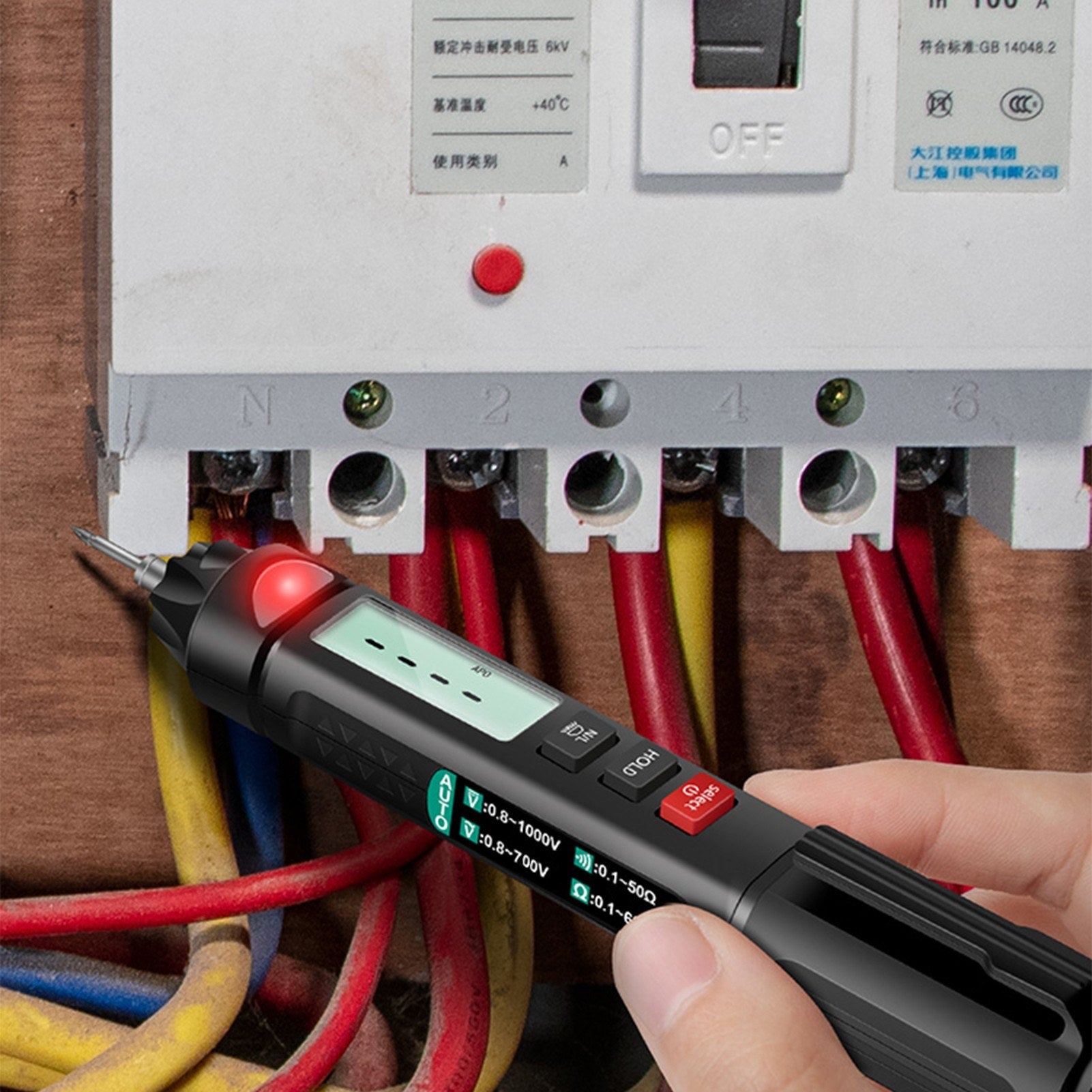

• Wide Range of Applications: This digital multimeter is an essential tool for diagnosing and resolving various automotive and household electrical issues with accuracy and safety.

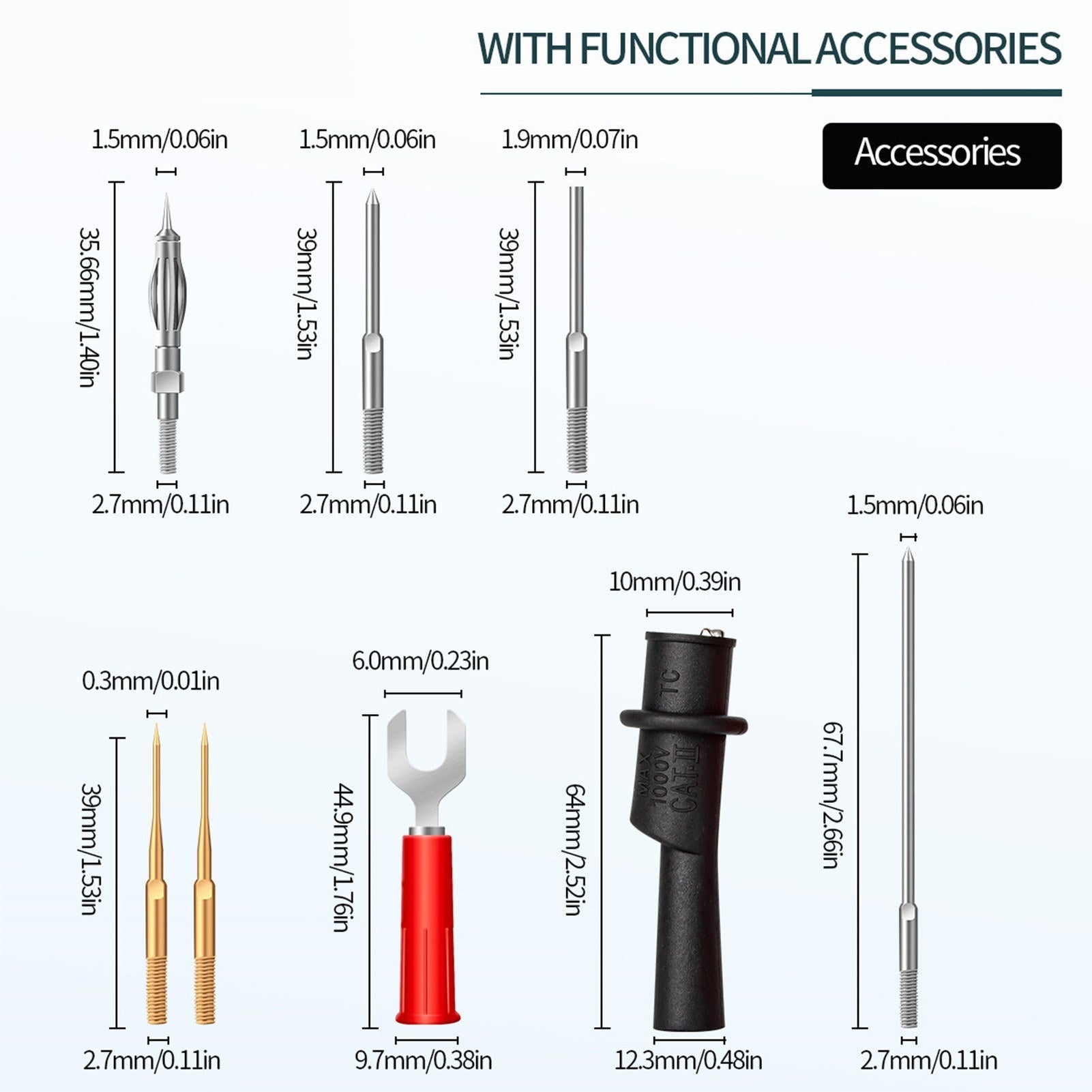

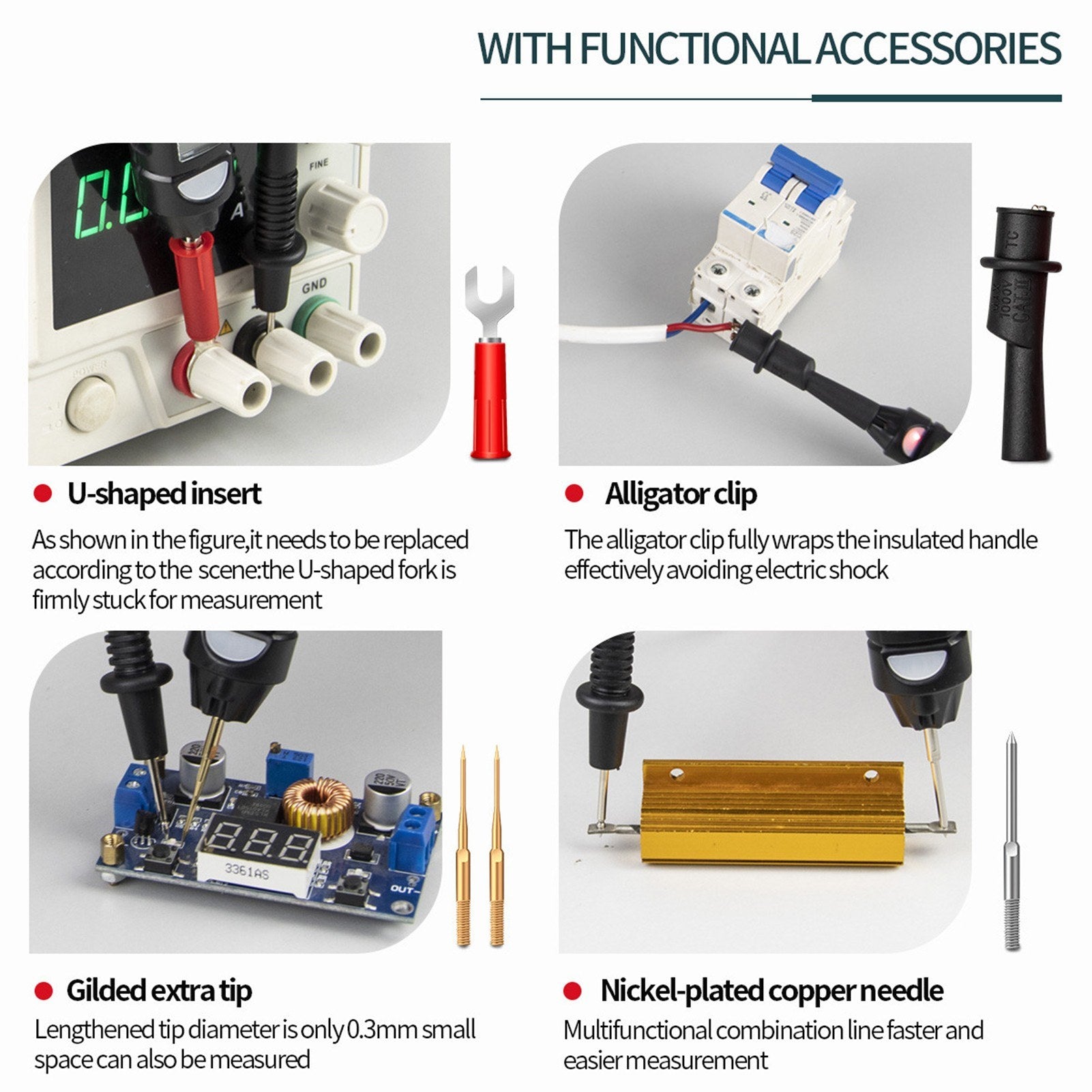

• Essential Accessories Included: Comes with a U-shaped insert, alligator clip, gilded extra tips, nickel-plated copper needles, a tapered needle, and a banana tip for diverse testing needs.

Measurement Range & Accuracy:

• DC Voltage: DC6V/DC60V/DC600V ±(0.5%+4); DC1000V ±(0.8%+10)
• AC Voltage: AC6V/AC60V/AC600V ±(0.5%+4); AC700V ±(0.8%+10)
• Resistance: 600Ω ±(0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(2.5%+3)
• Capacitance: 10nF to 60mF with varying accuracy (see full specs for details)
• Temperature: -20~50℃, ±(1.0%+5)＜50℃; 0~122℉, ±(0.75%+5)＜122℉

Specifications:

• Brand: ANENG
• Model: A3007
• Material: ABS
• Screen: LCD display, 5999 maximum display
• Sampling Time: Approx. 3 times/second
• Over-range Indication: "OL" displayed
• Power Supply: 1 x 1.5V AAA battery (not included)

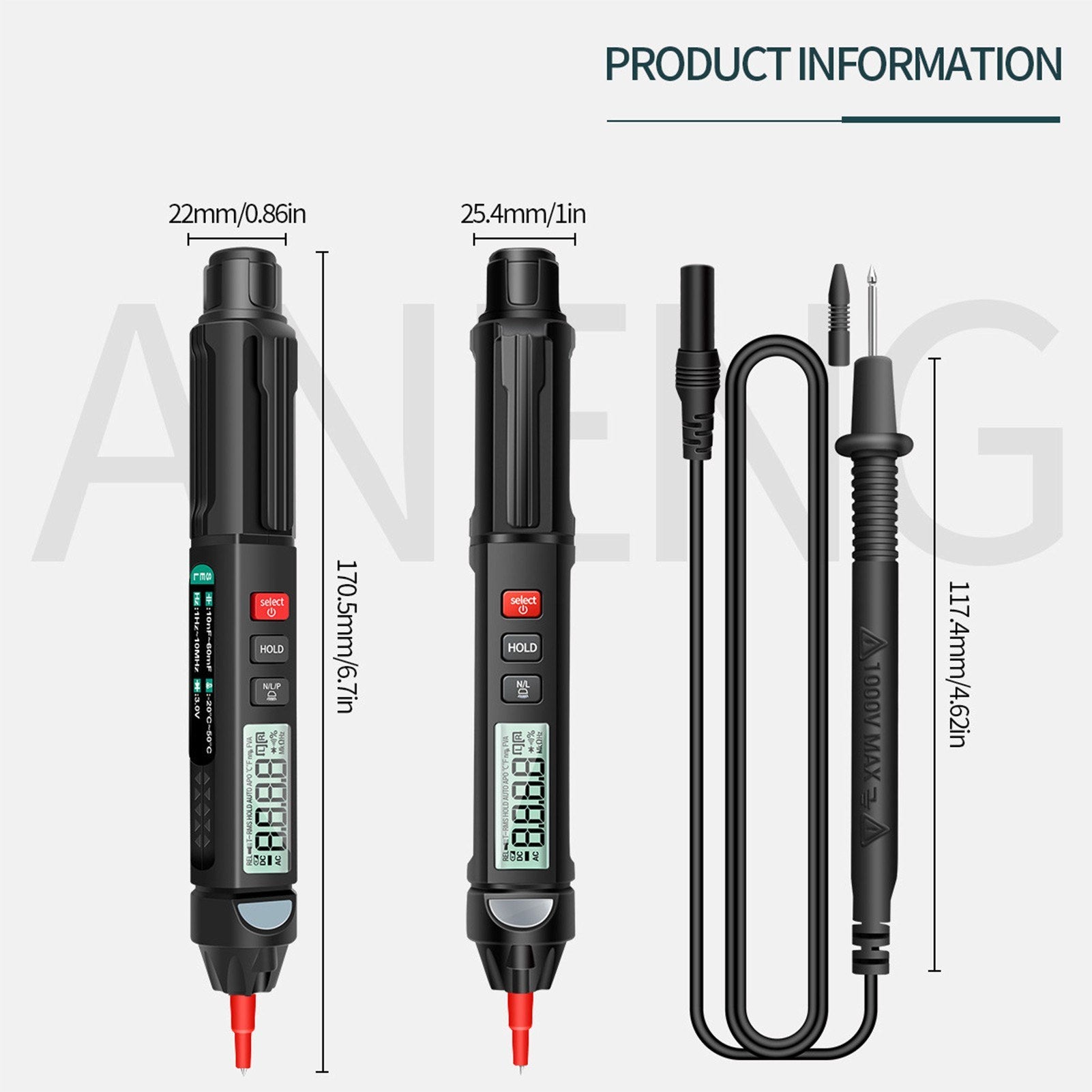

• Product Size/Weight: 170.5*25.4*22mm / 50g

Note:

• This kit includes only the multimeter and the described accessories.
• Please refer to the user manual for detailed instructions and ensure safety before operation.
• All measurements are subject to a minor deviation due to manual calculation and environmental factors.

Packing List:

• 1 x Multimeter

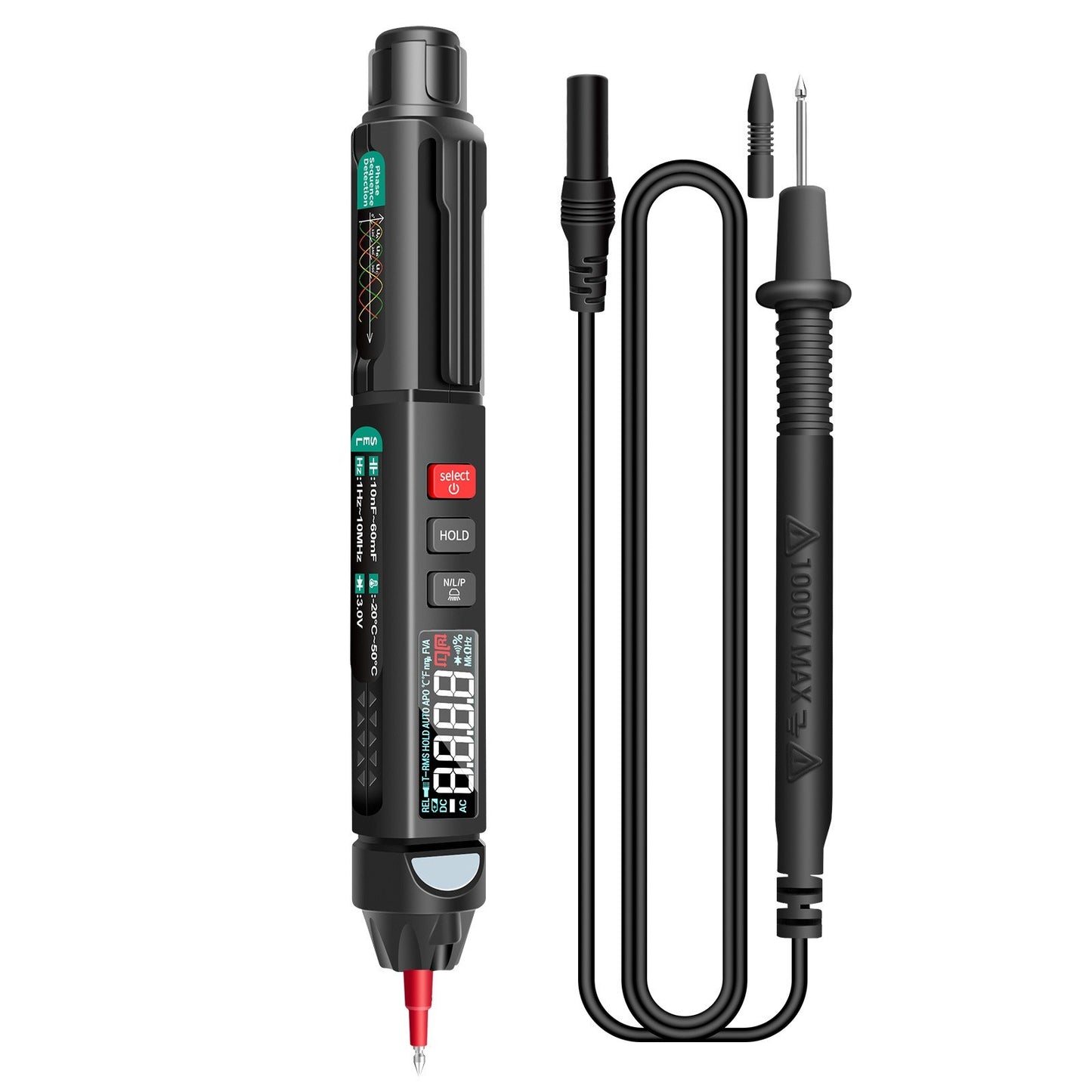

• 1 x Test Lead
• 1 x User Manual
• 1 x U-shaped Insert
• 1 x Alligator Clip
• 2 x Gilded Extra Tip
• 1 x Nickel-plated Copper Needle
• 1 x Tapered Needle
• 1 x Extended Nickel-plated Copper Needle
• 1 x Banana Tip
