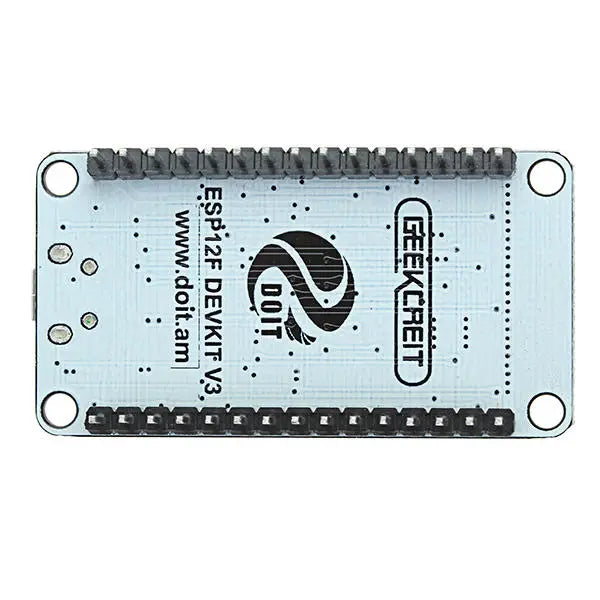

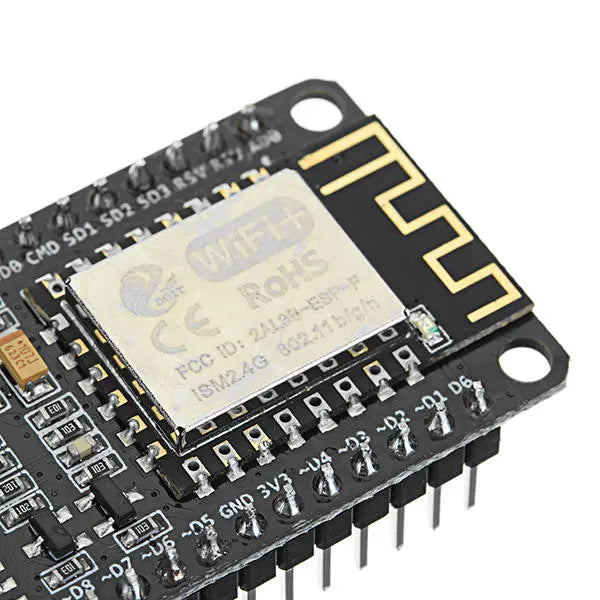

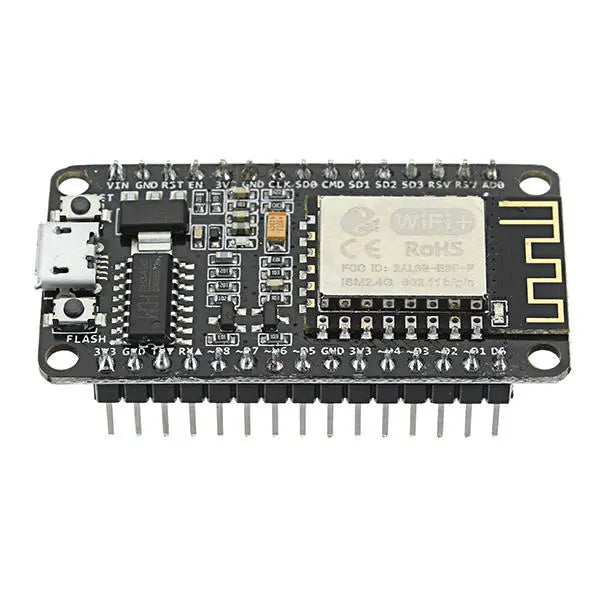

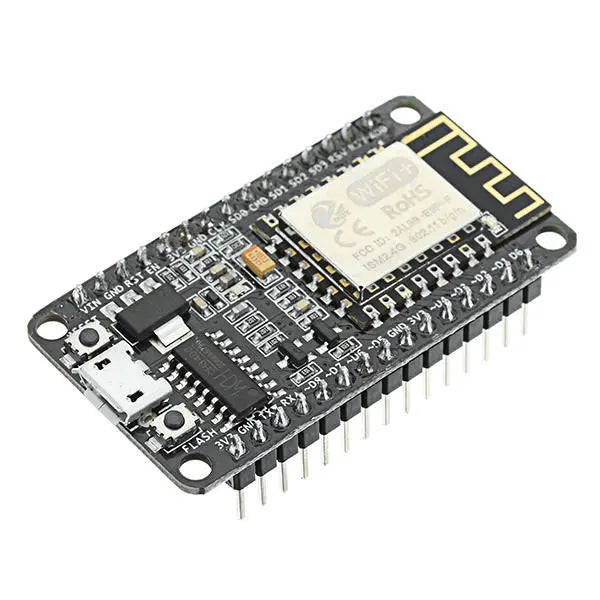

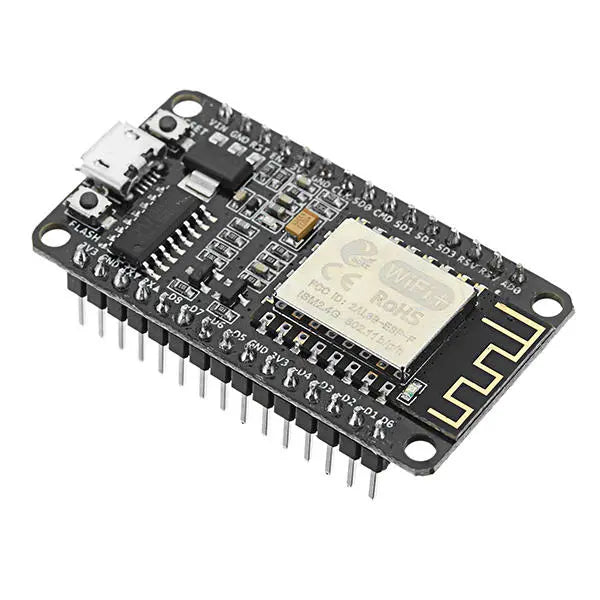

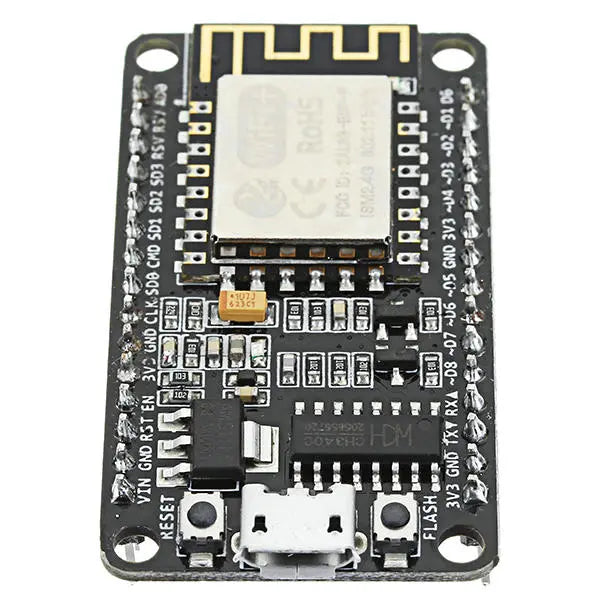

Geekcreit® NodeMcu Lua ESP8266 ESP-12E WiFi Dev Board - 3 Pack

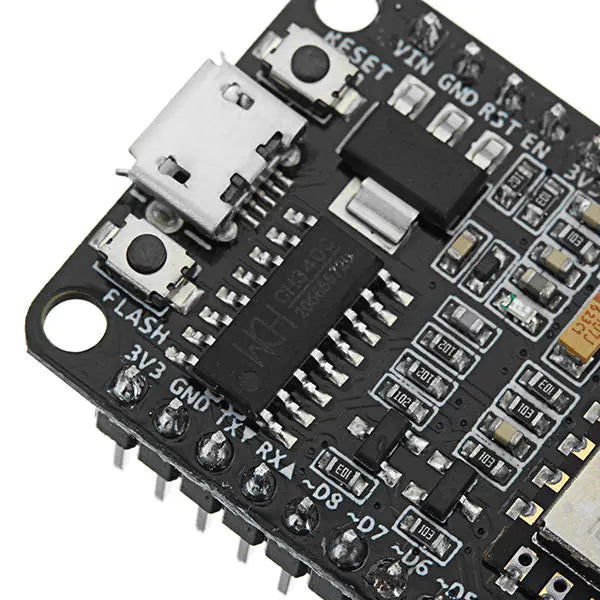

CH340 Chip-Driven Product Description

Windows Driver: USB to serial CH341/CH340 installation package available.

• Supports Windows 98/ME/2000/XP/Server 2003/VISTA/Server 2008/Win7/Win8/Win8.1 (32 Bit/64 Bit) and MAC.
• Validated with Microsoft’s digital signature authentication.
• Emulates USB device at the computer end as a standard Serial COM device.
• Includes a serial number and identification CH34X monitoring equipment swap library.

Features

• Complies with Wireless 802.11 b/g/n standards.
• Supports STA/AP/STA AP in three operating modes.
• Contains a built-in TCP/IP protocol stack supporting up to 5 simultaneous TCP Client connections.
• Ports D0 ~ D8, SD1 ~ SD3 can be used as GPIO, PWM, IIC, etc., with a driver capability of 15mA.
• AD0 offers 1 channel ADC.
• Power input: 4.5V ~ 9V (10VMAX), USB-powered.
• Current consumption: Continuous transmission ≈70mA (200mA MAX), Standby.

Note: Unfortunately, we do not offer support. Sorry for the inconvenience.

Package Includes:

• 3 x NodeMcu Lua ESP-12E WIFI Development Board
