BSIDE TechMaster TM-2000 Digital Multimeter - Auto-Range Electrical Tester with LCD Display, 6000-Digit Accuracy

Multimeter Features

• Versatile Functionality: This multimeter offers automatic identification of AC voltage, DC voltage, resistance, and continuity. It effectively eliminates the need for multiple tools, making it a versatile solution for various electrical measurement needs.
• Wide Measuring Range: With a maximum display value of 6000 digits and full range overload protection, the meter provides accurate measurements for voltage, current, resistance, or capacitance.
• User-Friendly Design: Equipped with an LCD display for clear readings and self-indicating polarity, it simplifies the measurement process. The over-range display and automatic range selection enhance convenience and ease of use.
• Reliable and Precise: The meter assures high accuracy with specified tolerances, ensuring reliable measurements under various conditions. The quick sampling time of approximately 0.4 seconds boosts productivity.
• Compact and Portable: Weighing only 95g and having compact dimensions (146 x 44 x 25.2mm), this meter is easy to carry, making it ideal for both professionals and DIY enthusiasts.

Specifications

Feature	Specification
Automatic range	Yes
Full measuring range overload protection	Yes
Auto mode	Automatic identification of AC voltage, DC voltage, Resistance, and Continuity
Display	LCD
Maximum display value	6000 digits
Polarity indication	Self-indicating, '-' means Negative polarity
Over-range display	'OL' or '-OL'
Sampling time	Approximately 0.4 seconds
Automatic Power off time	15 minutes
Battery low voltage indication	LCD display Ca symbol
Operational temperature and humidity	0–40℃, ≤80%RH
Storage temperature and humidity	-10–60℃, ≤70%RH

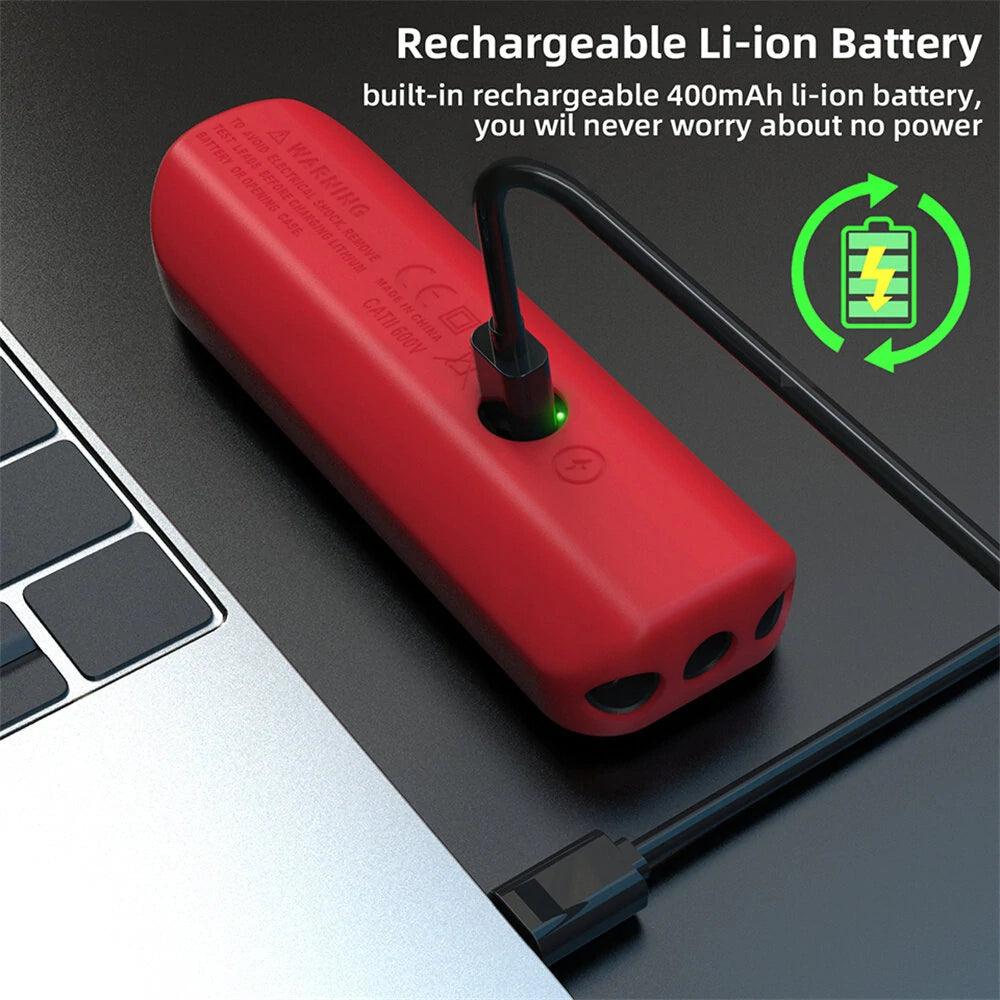

Battery	3.7V Li-ion battery inside
Operating altitude	≤2000m

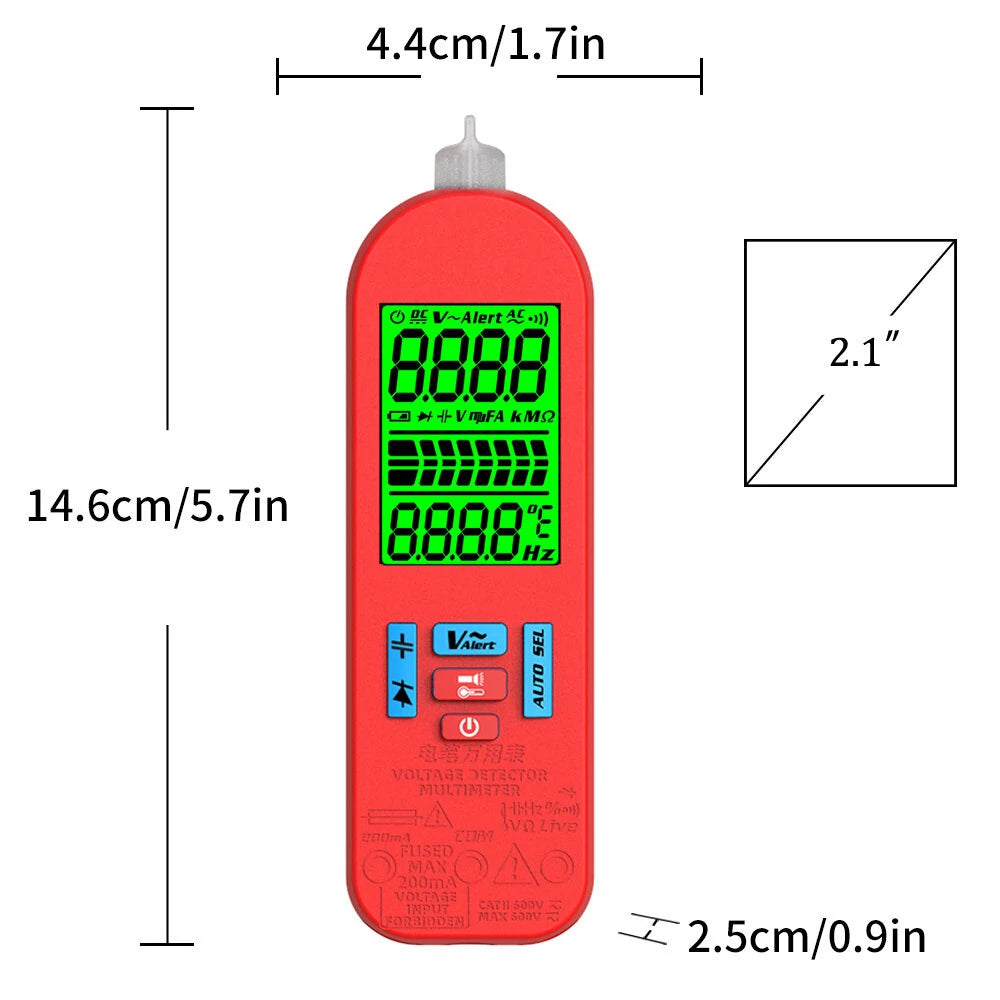

Boundary dimension	146 x 44 x 25.2mm
Weight	95g

Technical Index

Test Condition	Specification
Environmental temperature	18°C to 28°C
Relative humidity	80%

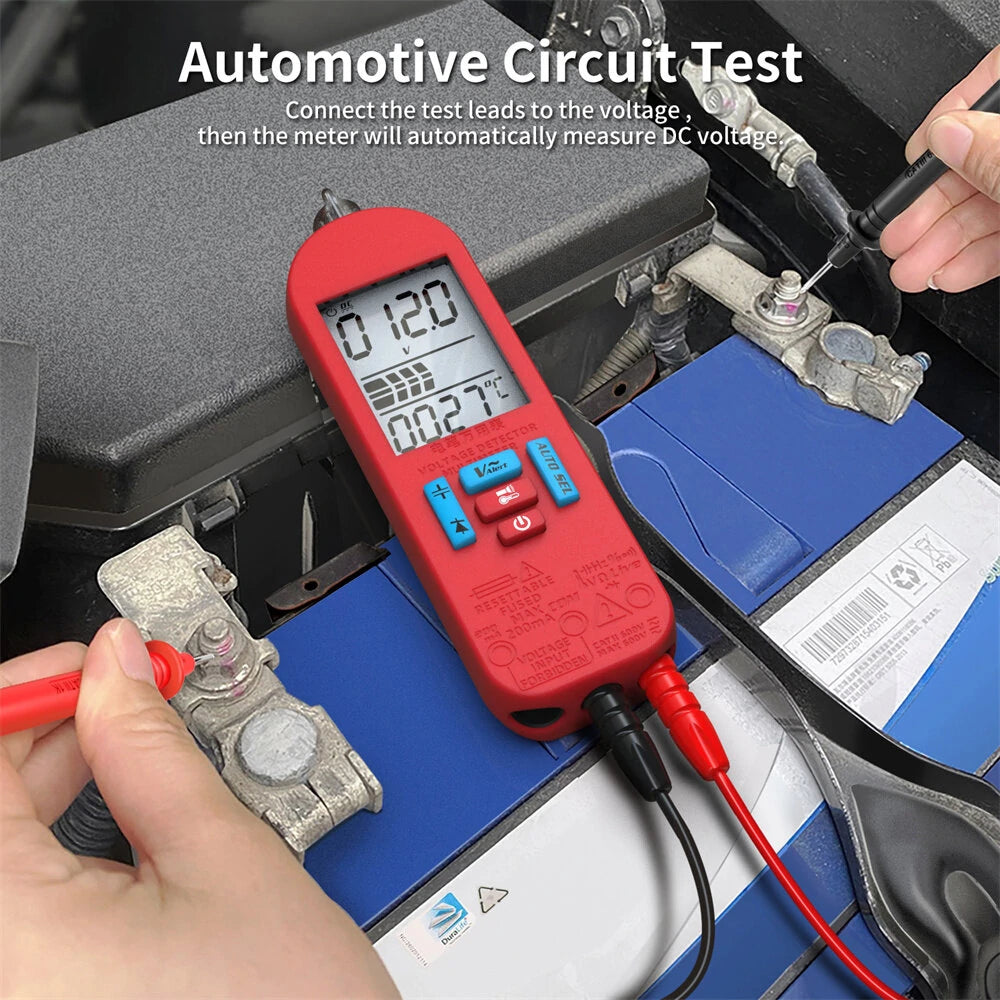

DC voltage	Resolution: 0.01V Range: 0V–620V (DC mode), 0.8V–620V (Auto mode) Accuracy: ±(0.8% +3 counts)

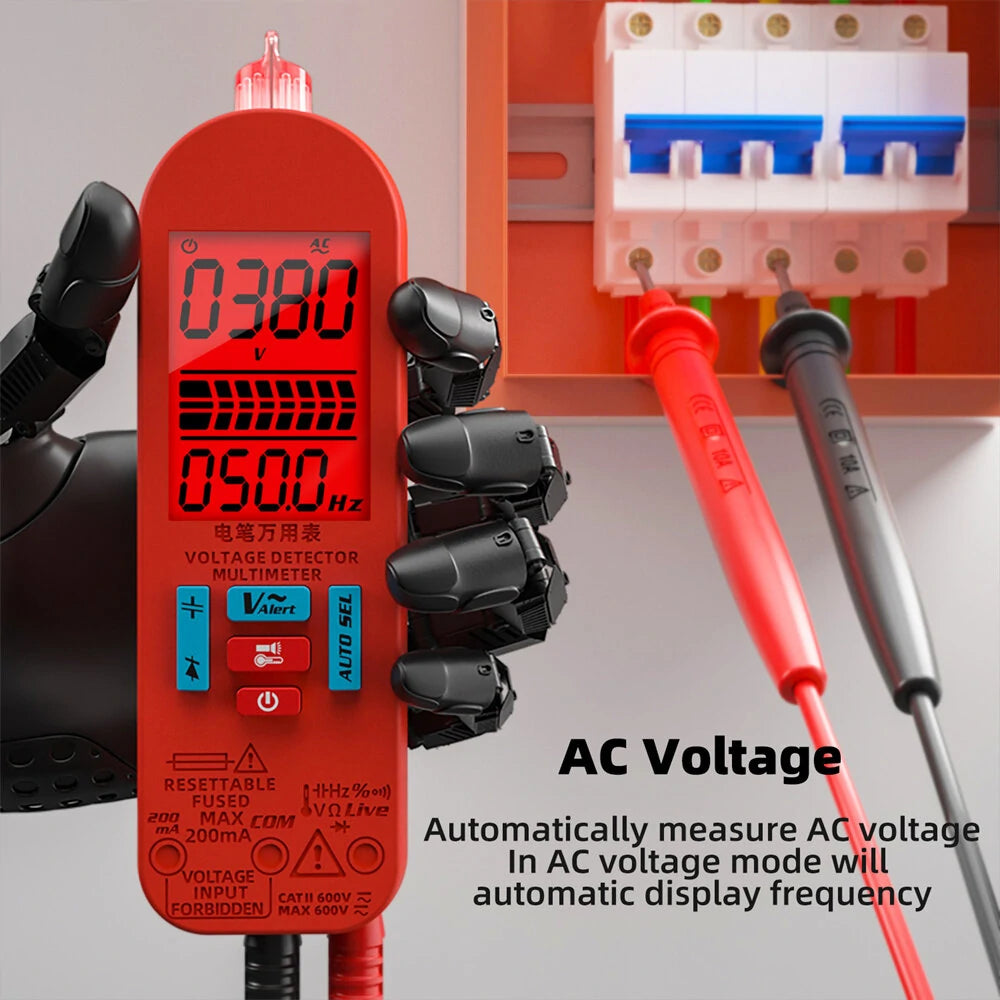

AC voltage	Resolution: 0.01V Range: 60mV–620V (AC mode), 0.8V–620V (Auto mode), 10V–620V (VFC mode) Accuracy: ±(1.2% +5 counts) for 60mV–620V (AC mode), ±(4.0% +3 counts) for 0.8V–620V (Auto mode), ±(4.0% +3 counts) for 10V–620V (VFC mode) Frequency range: 10Hz–1000Hz (2V–620V)
DC Current	Resolution: 0.1mA Range: 1.0–610mA Accuracy: ±(1.5% +3 counts)
AC Current	Resolution: 0.1mA Range: 1.0–610mA Accuracy: ±(1.5% +3 counts)
Resistance	Resolution: 0.1Ω Range: 0Ω–6.000MΩ, 6.000MΩ–60.00MΩ Accuracy: ±(1.2% +3 counts) for 0Ω–6.000MΩ, ±(2.0% +10 counts) for 6.000MΩ–60.00MΩ
Capacitance	Resolution: 0.001μF

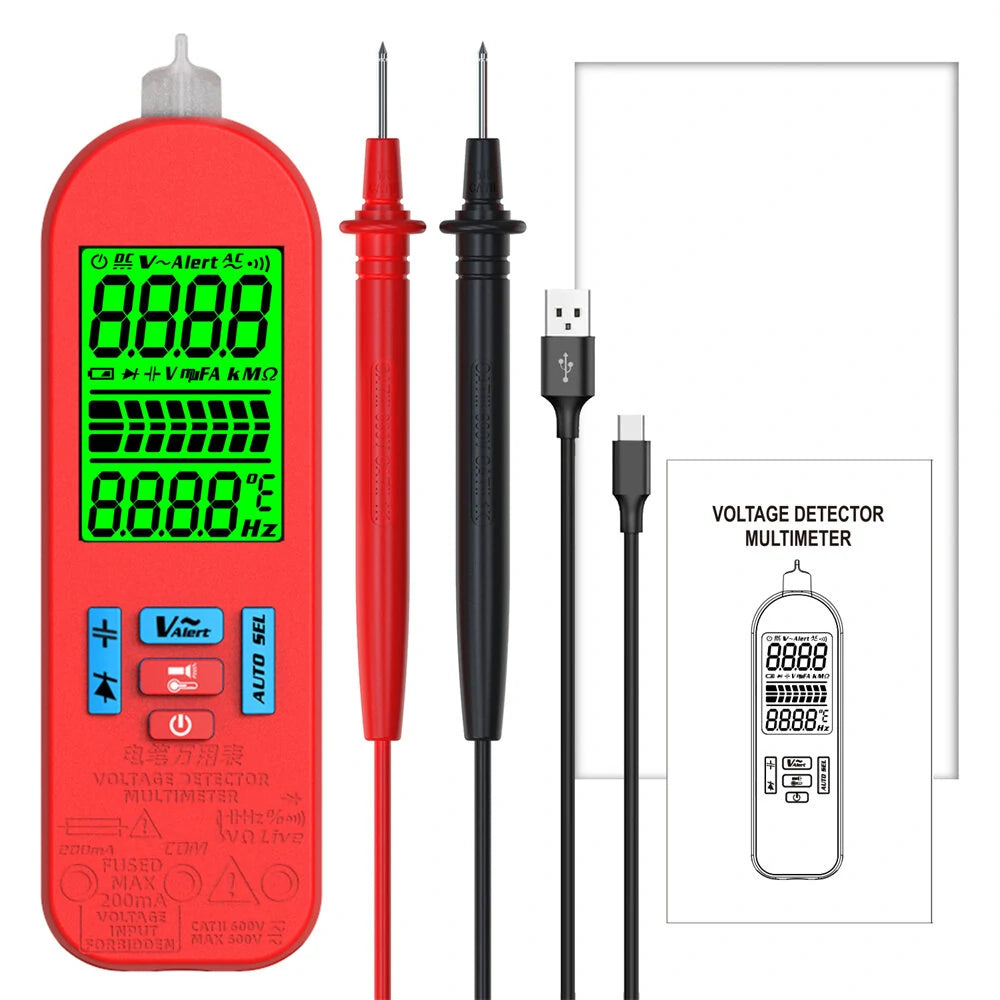

Package Included

• Type A:
  • 1 x Multimeter
  • 1 x Test Lead
  • 1 x USB Cable
  • 1 x Manual

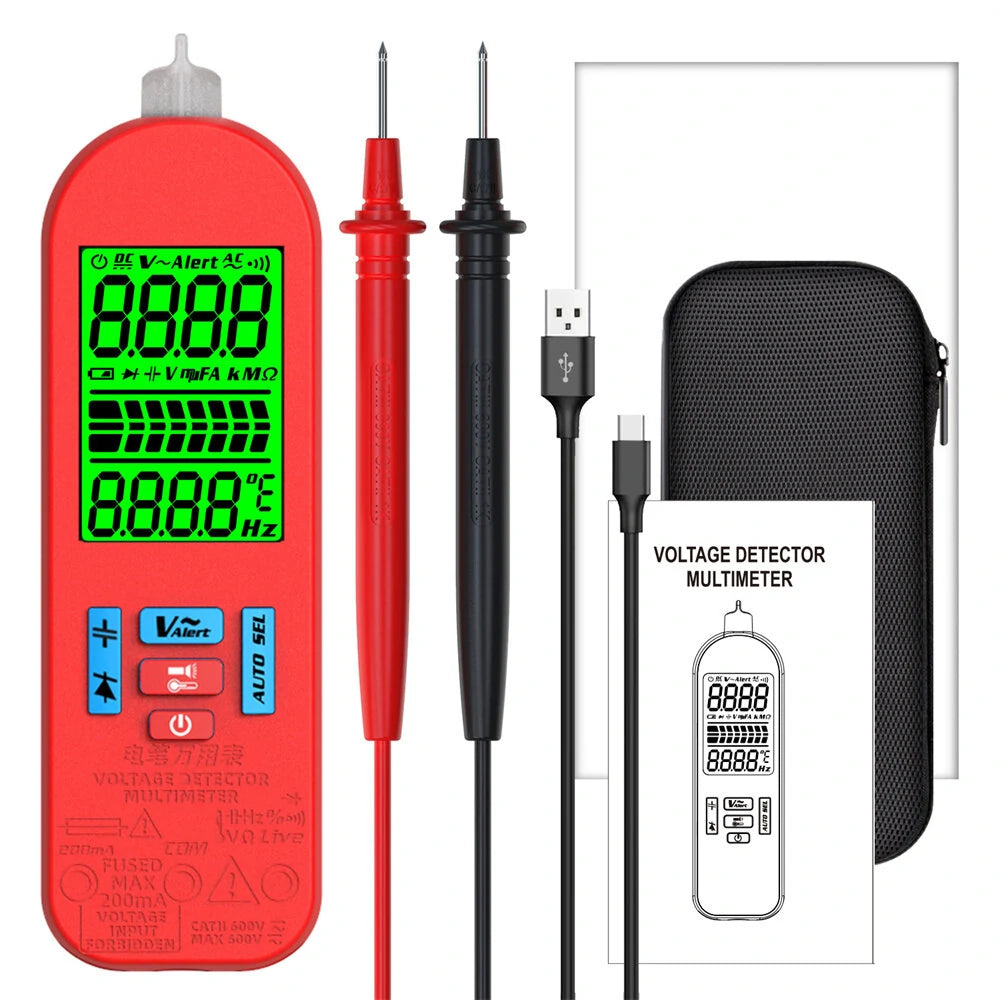

• Type B:
  • 1 x Multimeter
  • 1 x Test Lead
  • 1 x USB Cable
  • 1 x EVA Box
  • 1 x Manual
