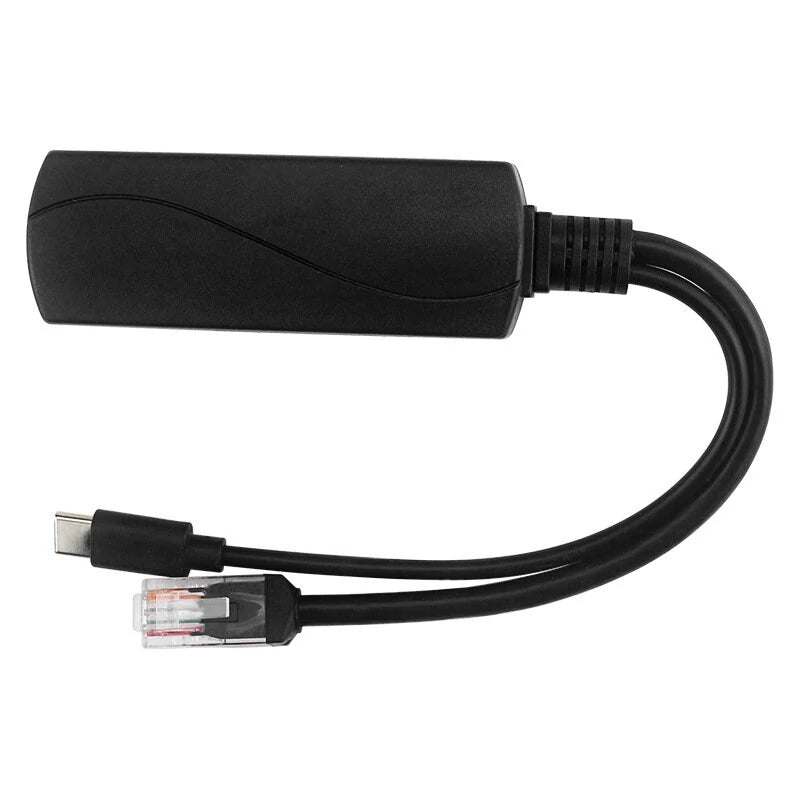

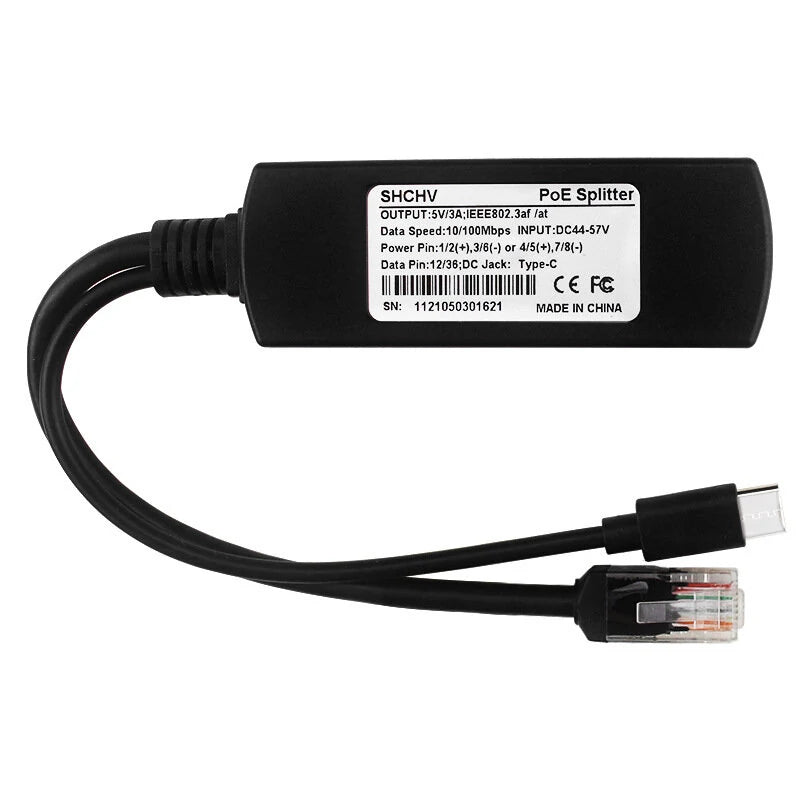

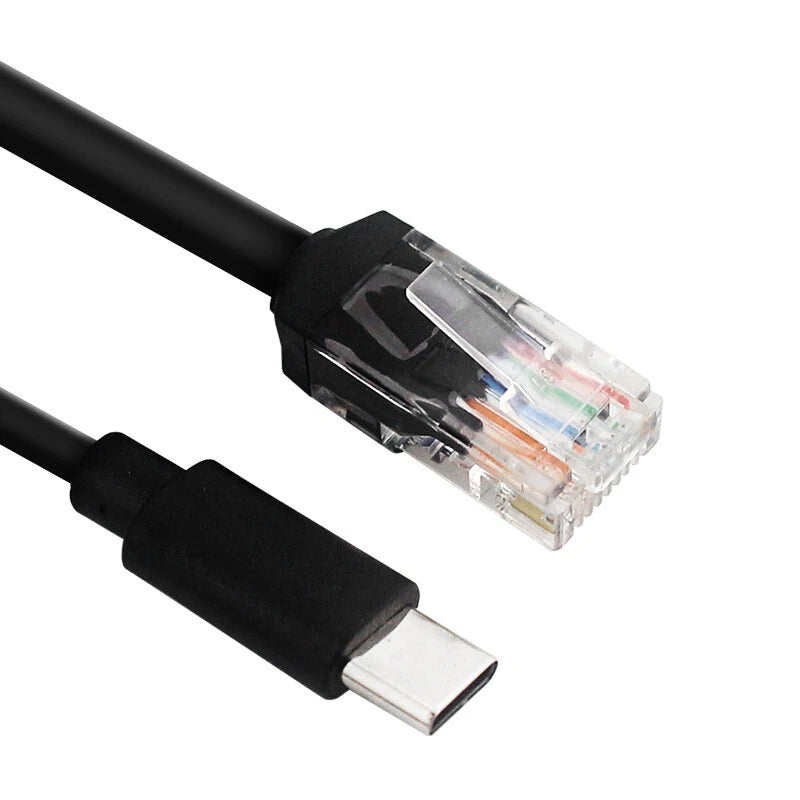

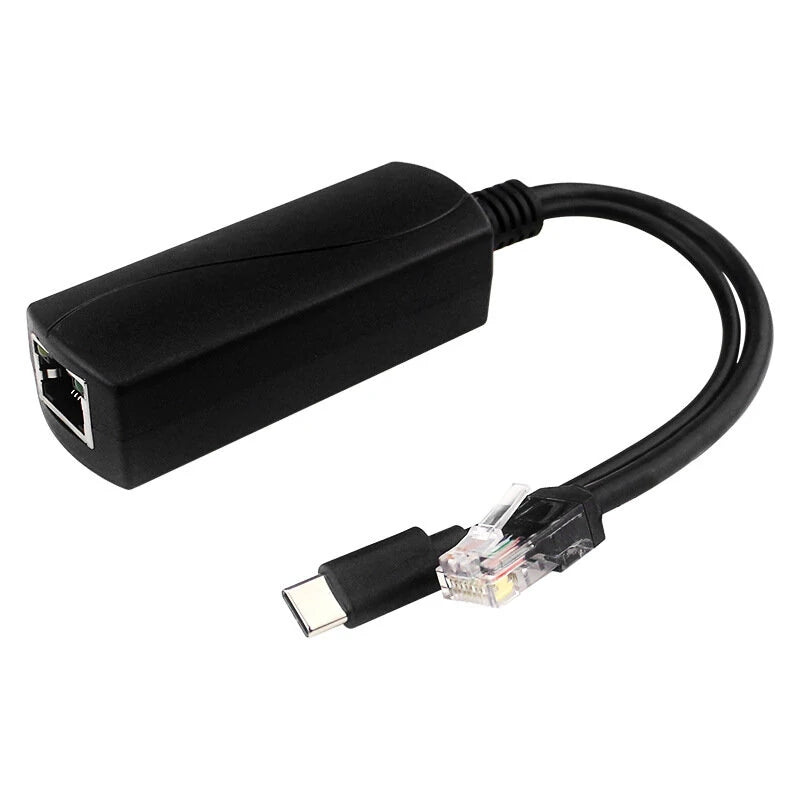

Type-C Power Over Ethernet Active POE Splitter, 100/1000Mbps, 5V 3A for Raspberry Pi 4B

Product Description

Our 5V USB-C Power over Ethernet (POE) Splitter is designed to transform the POE signal into a 5V USB-C power supply, alongside gigabit Ethernet via RJ45. This allows non-POE devices to be powered using Ethernet.

• Standards Compliance: Meets IEEE802.3af/at standards for reliable DC 5V power up to 15W for your network devices.
• Functionality: Efficiently separates power and data signals transmitted through network cables, making it suitable for devices with no POE support when used with compatible POE power supplies.
• Flexibility: Provides a 5V output, enabling you to broaden your home or office network without the constraints of existing power line infrastructure.
• Important Note: Ensure connection to a POE switch or a 48V-52V POE injector for proper functionality.

Specifications

• Item Type: 5V/3A Type C POE Splitter
• Color: Black
• Material: ABS
• Standards: IEEE802.3af/at Compliance
• Isolation: 2.5kV
• Power Input: DC 44~57V
• Power Output: DC 5V Type-C
• Ports: RJ45 female for data and power input (Compliant with IEEE802.3af/at POE)
• Data Output Port: RJ45 Male
• Max Transmission Distance: 150 Meters (Depending on the quality of the RJ45 Cable)
• Data Transfer Rate: 100Mbps/1000Mbps
• POE Input Detection: Devices will be detected before POE input
• Power Pins Supported: 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
• LED Indicator: Displays POE input power status
• Operating Temperature: 0~55℃
• Operating Humidity: 90%, non-condensing
• Storage Temperature: -20~70℃
• Storage Humidity: 95%, non-condensing
• Dimensions: 80 x 29 x 22mm
• Weight: 150g

Package Includes

• 1 x 5V/3A Type C POE Splitter
