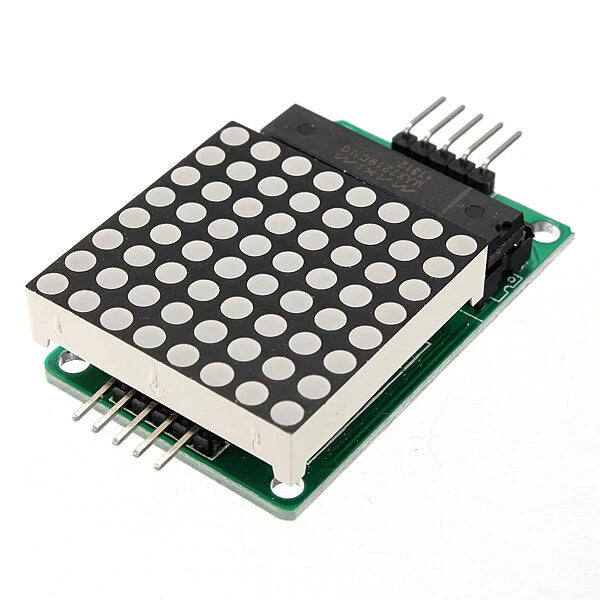

MAX7219 LED Dot Matrix Display Module Kit with Dupont Cables for MCU Control

Product Details:

Specifications:

• Drives an 8 x 8 common cathode lattice
• Operating Voltage: 5V
• Dimensions: 5 x 3.2 x 1.5 cm (L x W x H)
• LED Color: Red
• Four mounting holes with 3mm aperture
• Includes input and output interfaces; supports cascading multiple modules

Wiring Instructions:

1. The left side of the module is the input port; the right side is the output port.
2. To control a single module, connect the input port to the CPU.
3. For multiple modules in a cascade, connect:
   • First module's input port to the CPU
   • First module's output port to the input port of the second module, and so on.

Connections for 51 MCU:

• VCC → 5V
• GND → GND
• DIN → P22
• CS → P21
• CLK → P20

Important Notes:

1. Ensure VCC and GND are not reversed to avoid damaging the chip.
2. If using a 51 microcontroller P0 port, connect a pull-up resistor (recommended: 4.7K–10K).

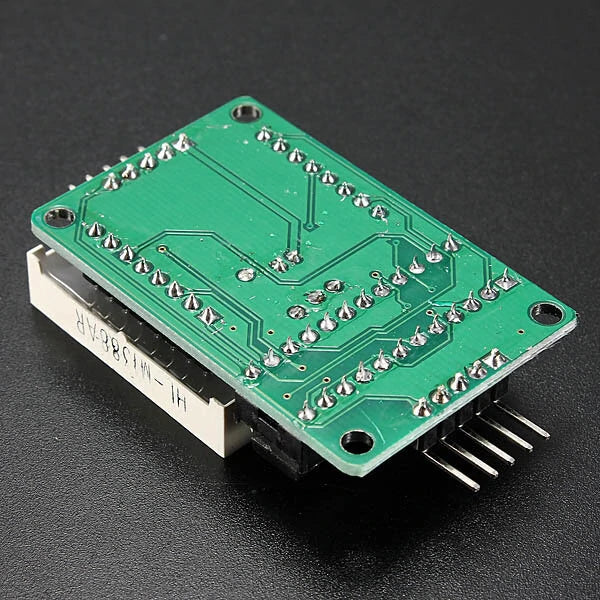

3. Install the lattice first into the round hole, then into the PCB board, and solder it. Align the lattice face with words from left to right with pin order 123456; PCB board's 1st pin is a square pad.
4. For electrolytic capacitors, the long pin is positive, and the short pin is negative. Ceramic capacitors have no polarity.

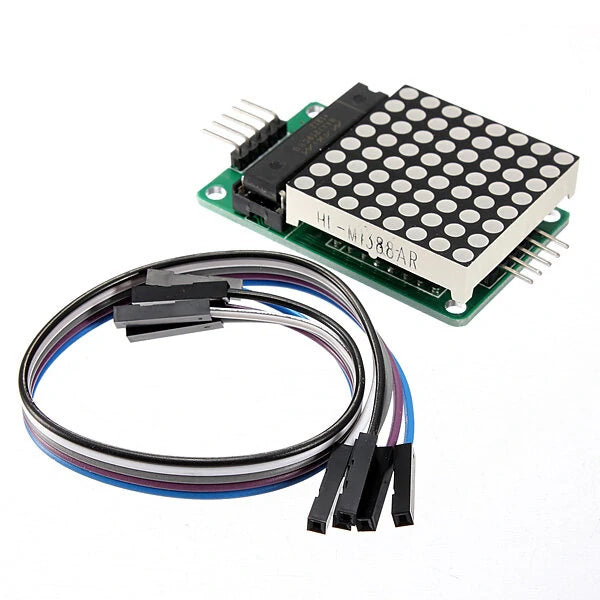

Package Includes:

• 1 x LED module

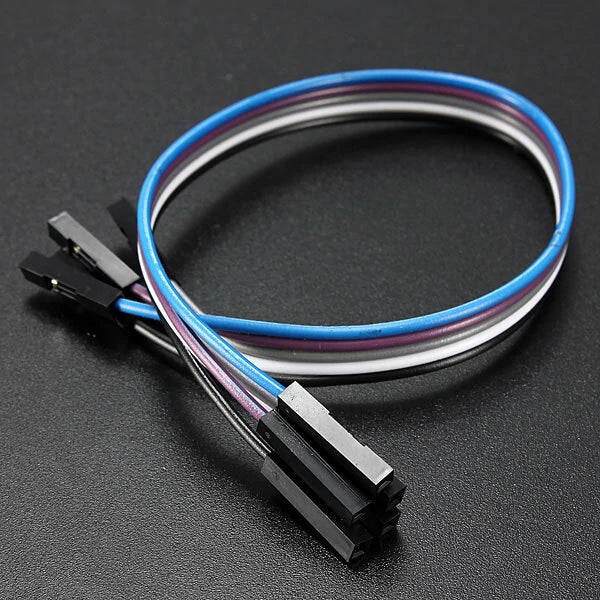

• 5 x Dupont lines (20cm each)
