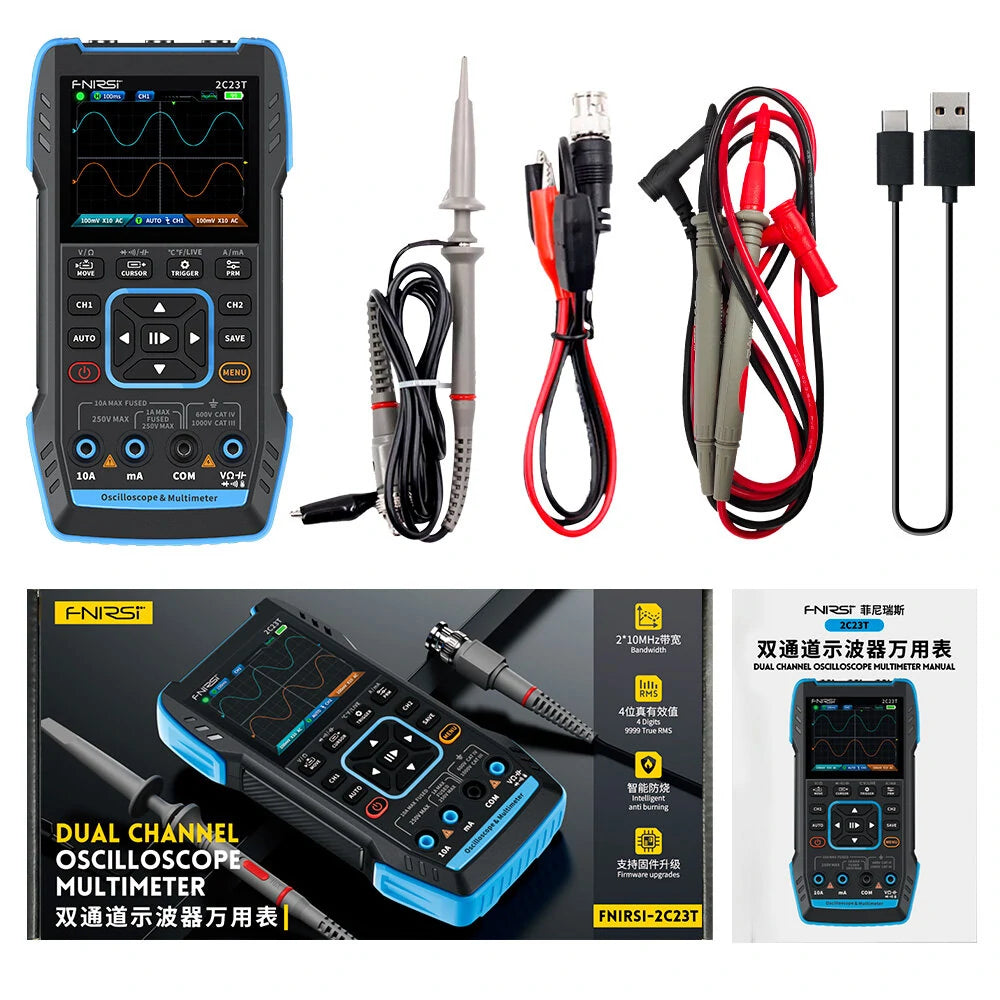

FNIRSI 2C23T 3-in-1 Handheld Oscilloscope Multimeter & Signal Generator - Dual Channel 10MHz*2, 50MS/s

$73.99 USD

~~$0.00 USD~~ $73.99 USD

Sale Sold out

Shipping calculated at checkout.

Model Advanced model Standard Style

Estimated Delivery: -

Quantity

Product Description

FNIRSI Handheld Digital Oscilloscope Multimeter

Dual-channel 2X10MHz bandwidth with a 50MS/s real-time sampling rate for precise, stutter-free waveform capture.
Measures voltages up to ±400V, suitable for various electrical applications.
High-performance FPGA+ADC+MCU hardware architecture for superior waveform analysis.
Includes a complete set of trigger functions like auto, single, and normal mode to capture specific events.
One-click self-tuning and waveform screenshot saving for easy analysis and export.

Attribute	Details
Display Screen	2.8 inch HD color screen
Resolution Ratio	320x240
Charging Specifications	TYPE-C (5V/1A)
Battery	3000mAh lithium battery
Support Functions	Oscilloscope, Signal generator, Multimeter
Standby Time	6 hours (laboratory theoretical maximum)
Language	English
Product Volume	167x89x35mm
Weight	300g
Channel	Dual channel
Sample Rate	50M
Analog Bandwidth	10M (dual channel independent 10M)
Storage Depth	32kb
Impedance	1MΩ
Time Base Range	50ns-10s
Vertical Sensitivity	20mV/div-10V/div (×1)
Maximum Measured Voltage	±400V
Trigger Mode	AUTO/Normal/Single
Trigger Type	Rising edge, Falling edge
Display Mode	YT/Scroll/XY
Coupling Method	AC/DC
Save Waveform Screenshot	Yes
Computer Viewing Waveform	Yes
Frequency	1Hz-2MHz
Amplitude	0.1-3.3V

DC Voltage: 9.999V/99.99V/999.9V ±(0.5%+3)
DC Current: 9.999V/99.99V/750.0V ±(1%+3)
AC Current: 9999μA/99.99mA/999.9mA/9.999A ±(1.2％+3)
Temperature: 9.999MΩ/999.9kΩ/99.99kΩ/9.999kΩ/999.9Ω ±(0.5％+3), 99.99MΩ (1.5％+3)
Diode: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF ±(2.0%+5), 9.999mF/99.99mF ±(5.0％+20)
Resistance: (-55~1300℃)/(-67~2372°F) ±(2.5%+5)
Capacitance Test, Continuity Test, Live Line Detection
