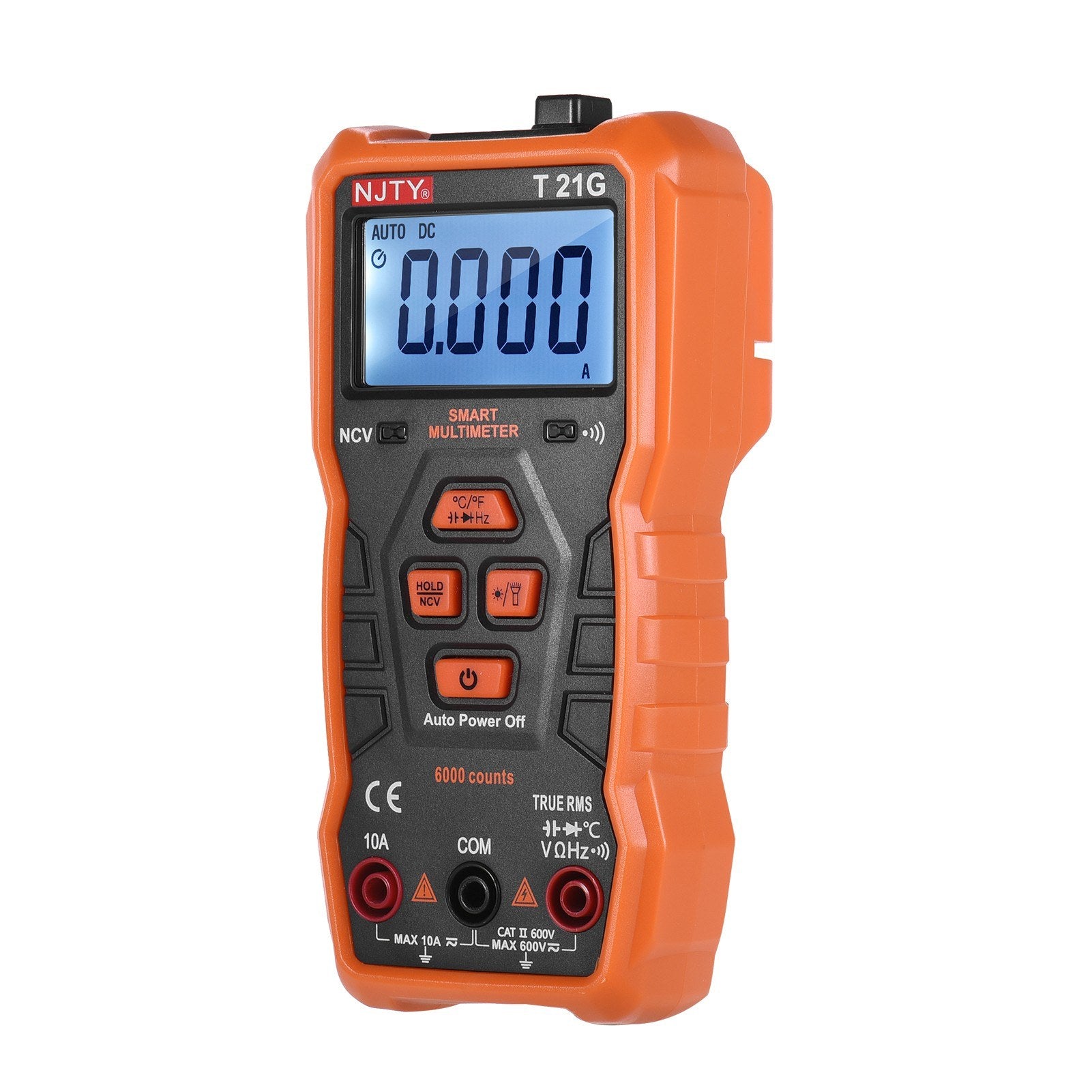

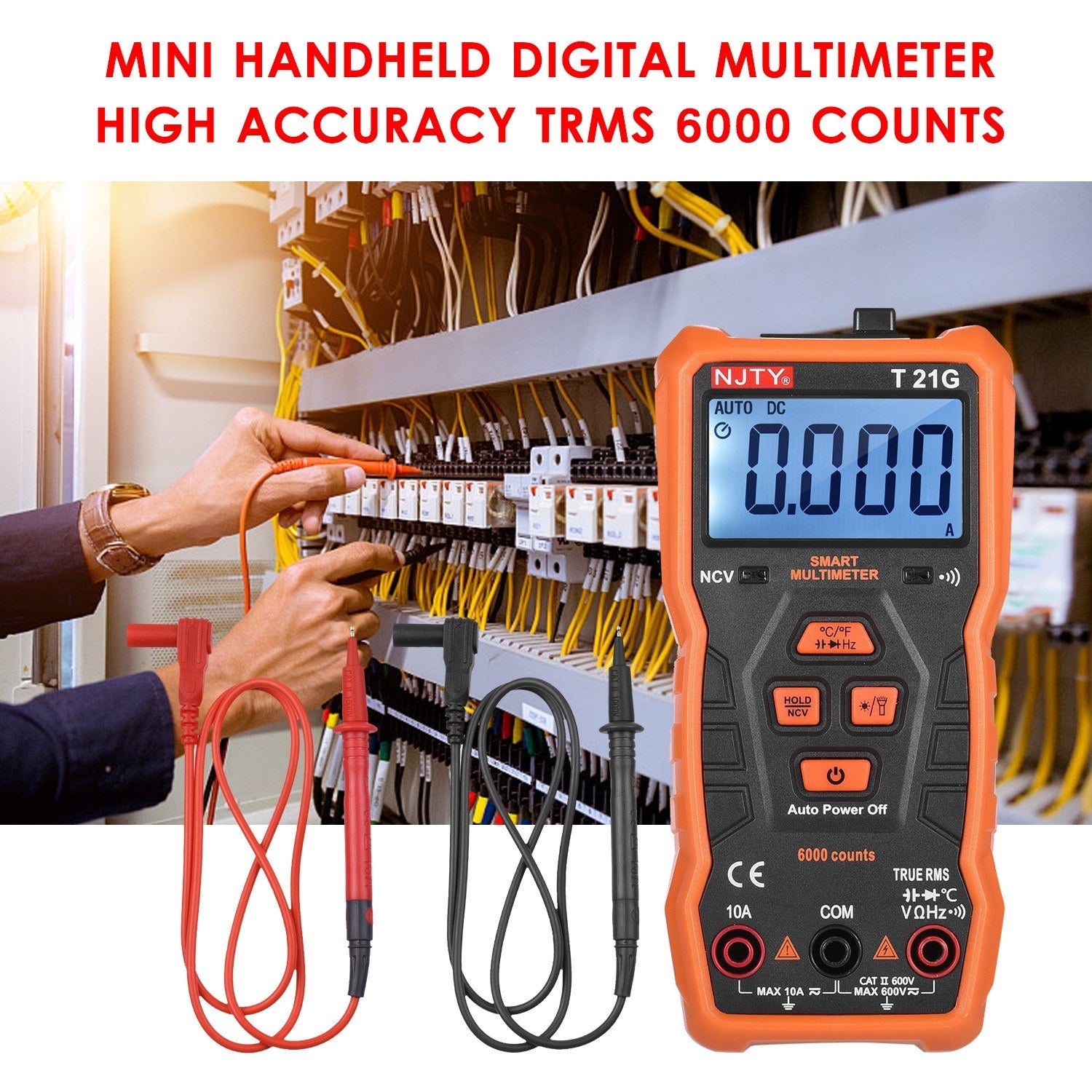

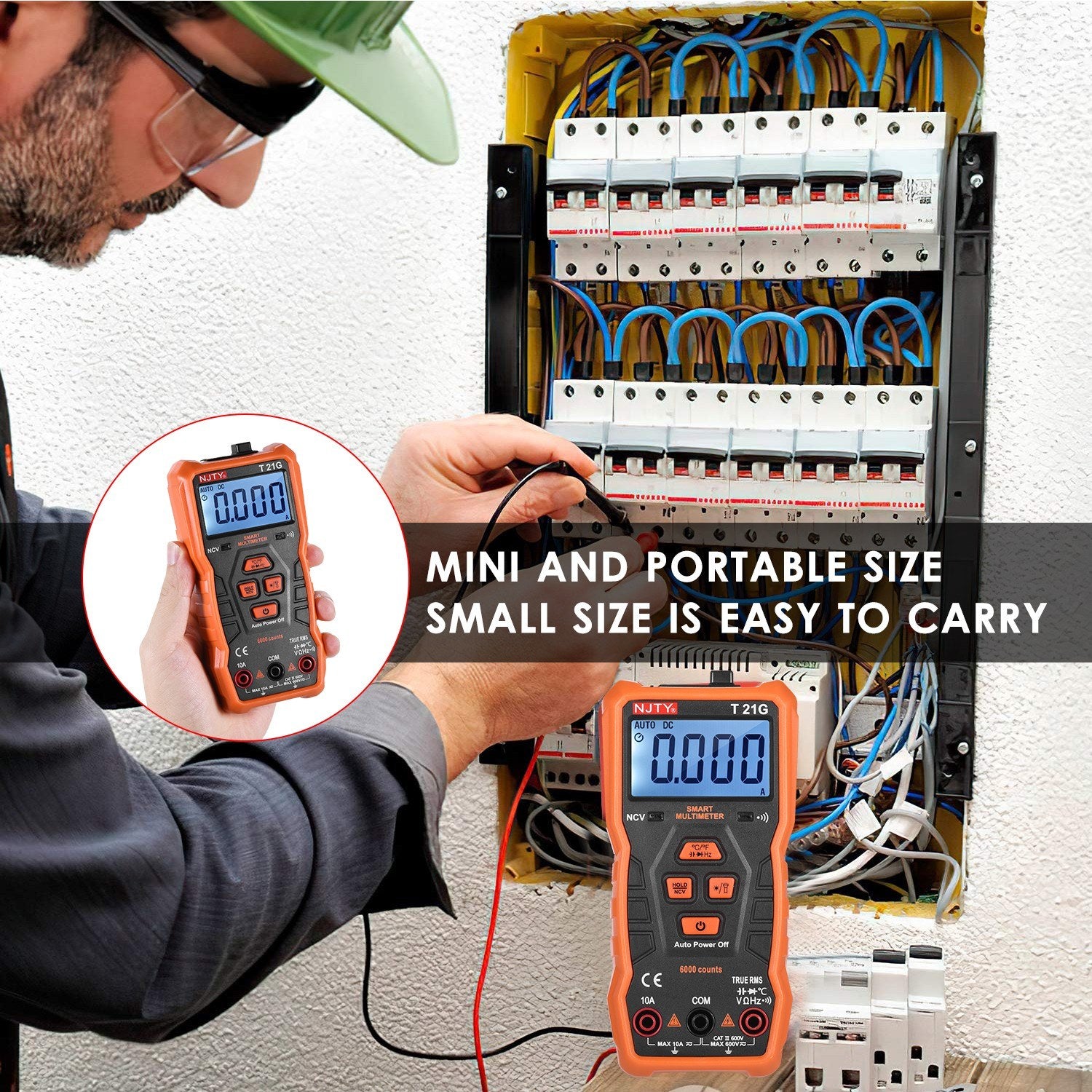

Mini Smart Multimeter 6000 Counts True RMS Universal Meter NJTY T21G

The Meter is a versatile, portable, and intelligent device designed to automatically detect and select the appropriate range for AC/DC voltage, resistance, capacitance, and more. It empowers users without advanced technical knowledge to effortlessly measure electrical appliance data.

Key Features:

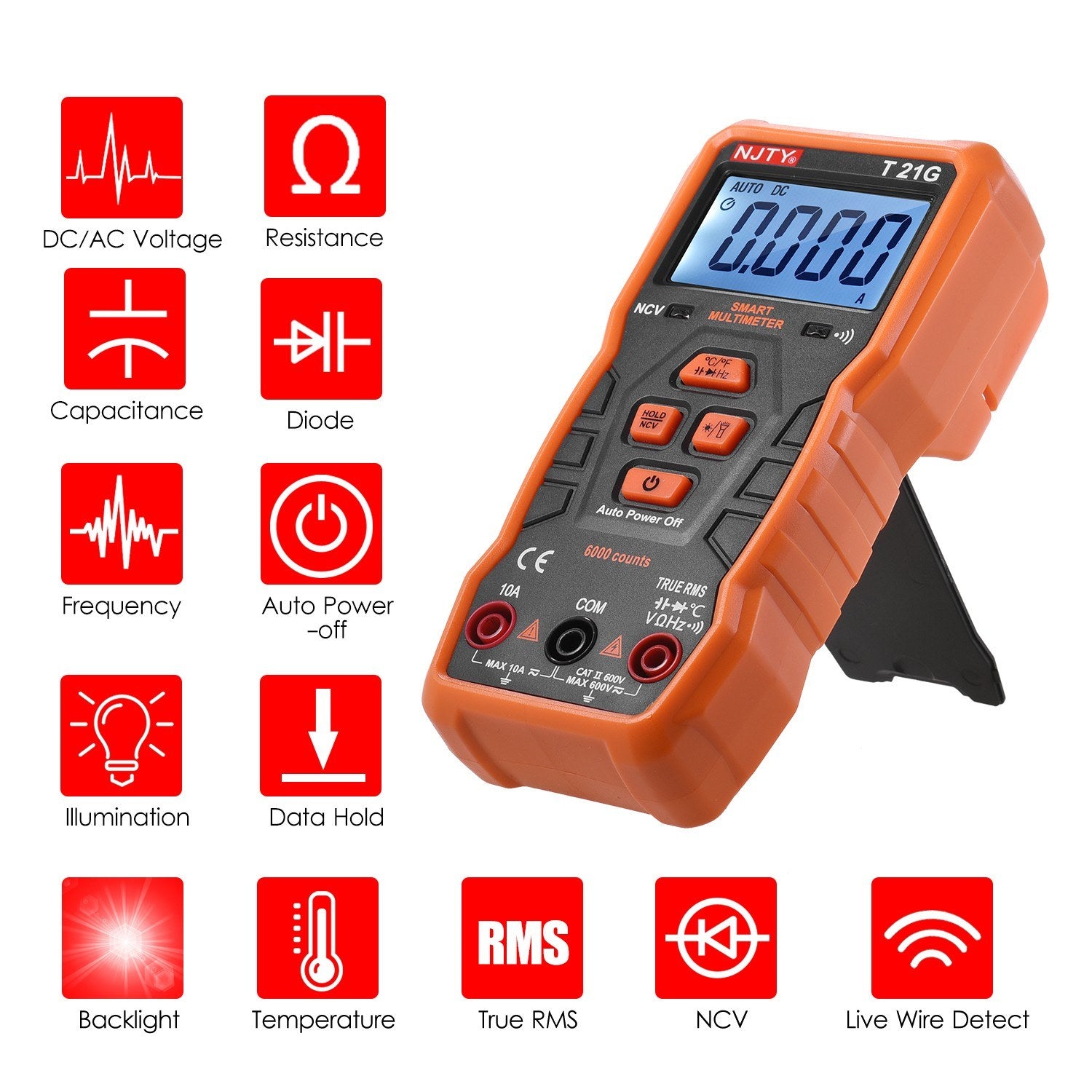

• Multipurpose Measurement: Efficiently measures AC/DC voltage, current, temperature, resistance, capacitance, frequency, and more. Features live line identification and continuity buzzer for added functionality.
• Safety Assurance: Equipped with overload protection up to 250V AC/DC on all ranges and complies with IEC 61010 600V CAT II standards, ensuring safe operation.

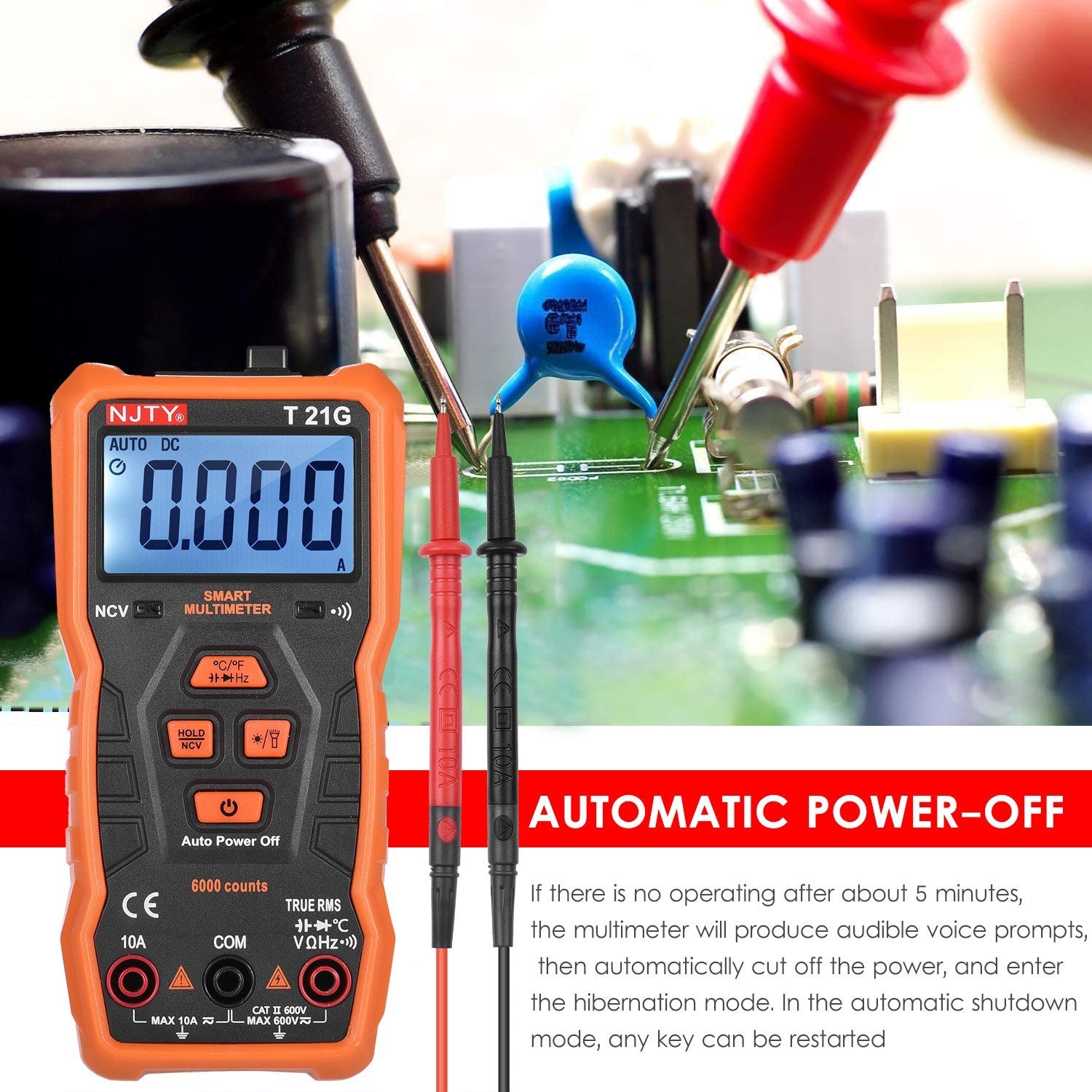

• Auto Power-Off: Automatically shuts down after 5 minutes of inactivity to conserve battery. The backlight and flashlight turn off after 30 seconds of inactivity.

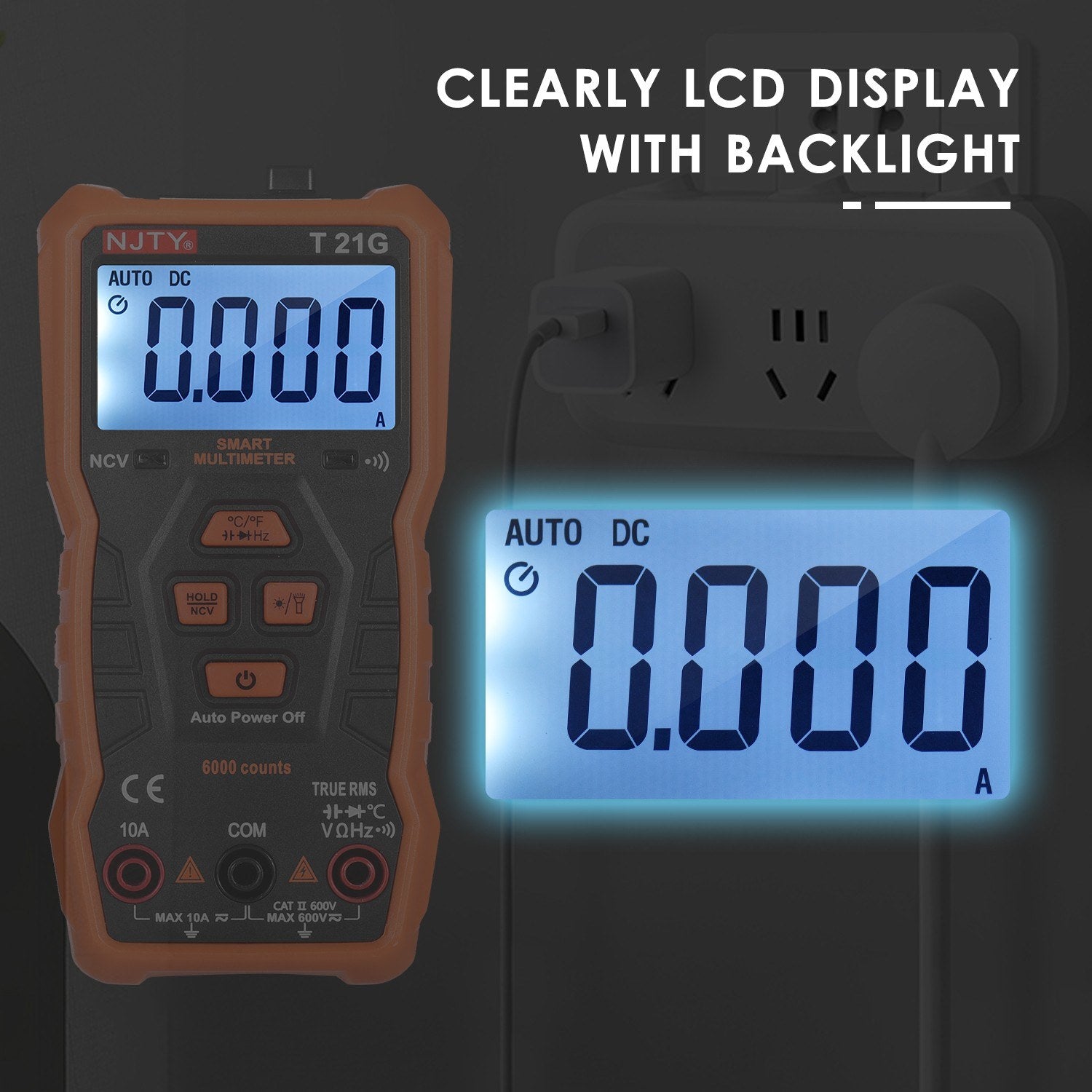

• Clear Digital Display: A 2.1-inch LCD screen with 6000 counts display ensures precise readings, featuring an analog display for monitoring measurement variations.

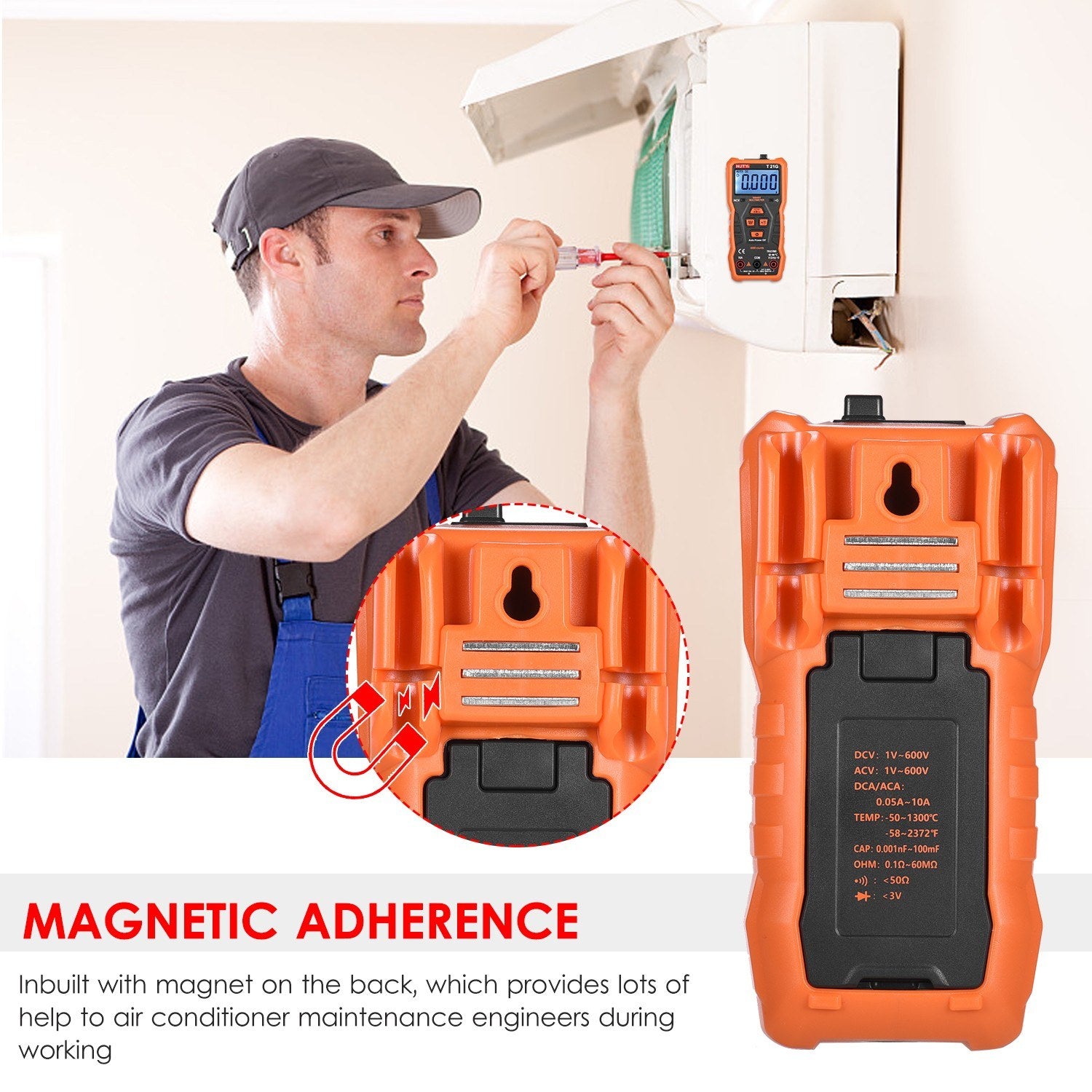

• Magnetic Adherence: Built-in magnet on the back, ideal for air conditioning maintenance engineers for hands-free operation.

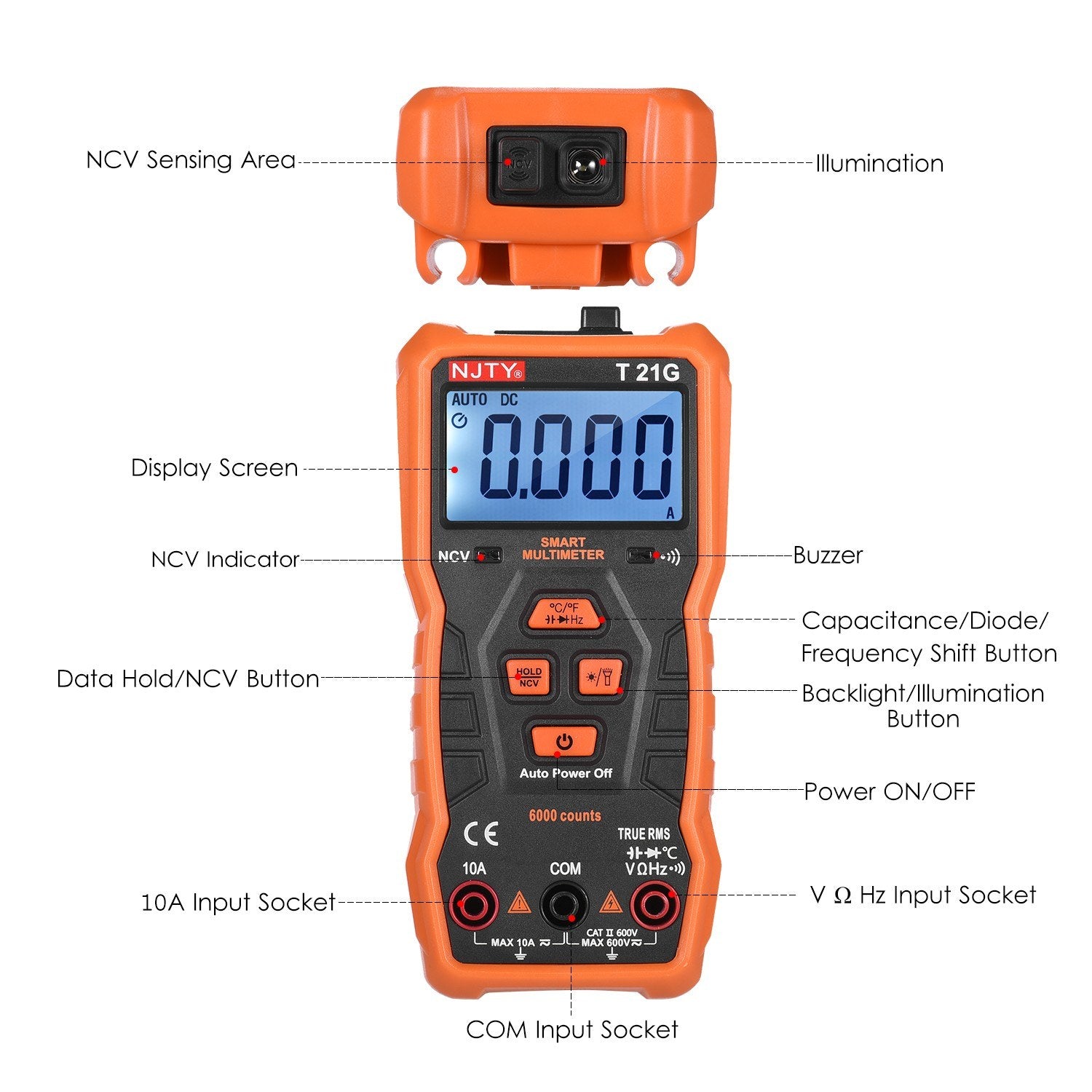

• Additional Functionalities: Includes data hold, backlight, NCV test, low battery indicator, and buzzer alarm.

Specifications:

• DC Voltage Range/Resolution/Accuracy: 1~600V / 0.001~0.1V / ±(0.8%+5)
• AC Voltage Range/Resolution/Accuracy: 1~600V (45Hz~2kHz) / 0.001~0.1V / ±(1.0%+5)
• Current Range/Resolution/Accuracy: 0.050~10A / 0.001A / ±(2.0%+5)
• Temperature Range/Resolution/Accuracy: -50~1300℃ (-58~2372℉) / 1℃(℉) / ±(3.0%+5)
• Resistance Range/Resolution/Accuracy: 0.1Ω~60MΩ / 0.1Ω~0.01MΩ / ±(1.0%+5)
• Capacitance Range/Resolution/Accuracy: 0.001nF~100mF / 0.001nF~0.1mF / ±(4.0%+5)
• Frequency Range/Resolution/Accuracy: 10~2000Hz / 0.01Hz~0.001kHz / ±(2.0%+5)

Product Details:

• Material: ABS
• Display: Maximum 6000 counts LCD display
• Safety Level: 600V CAT II overvoltage protection
• Conversion Rate: Approximately 3 times/second
• Overload Indicator: Displays "OL"
• Operating Conditions: 0~40℃ (<80%RH)
• Storage Conditions: -10~60℃ (<70%RH, without battery)
• Altitude: <2000m

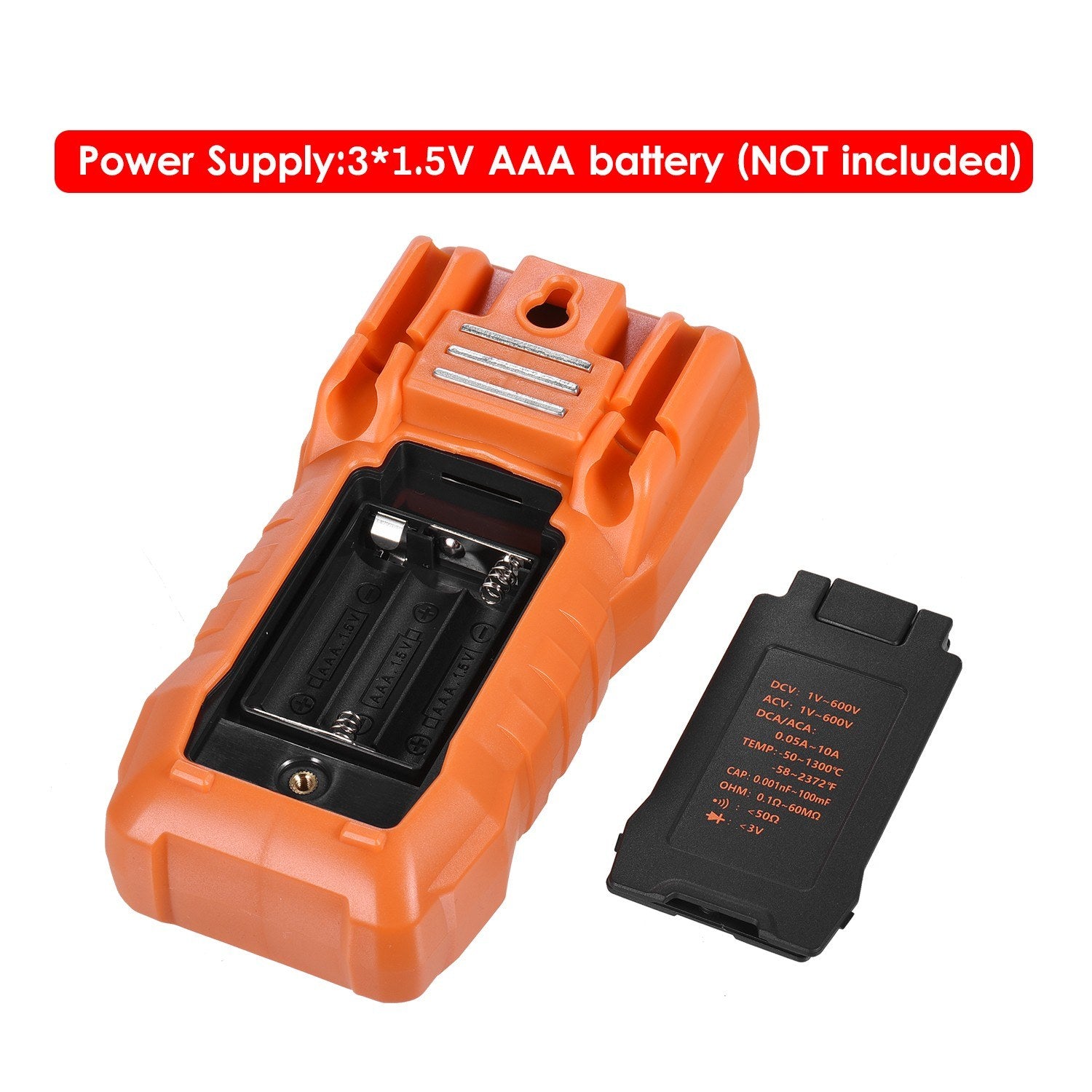

• Power Supply: 3 x 1.5V AAA batteries (not included)

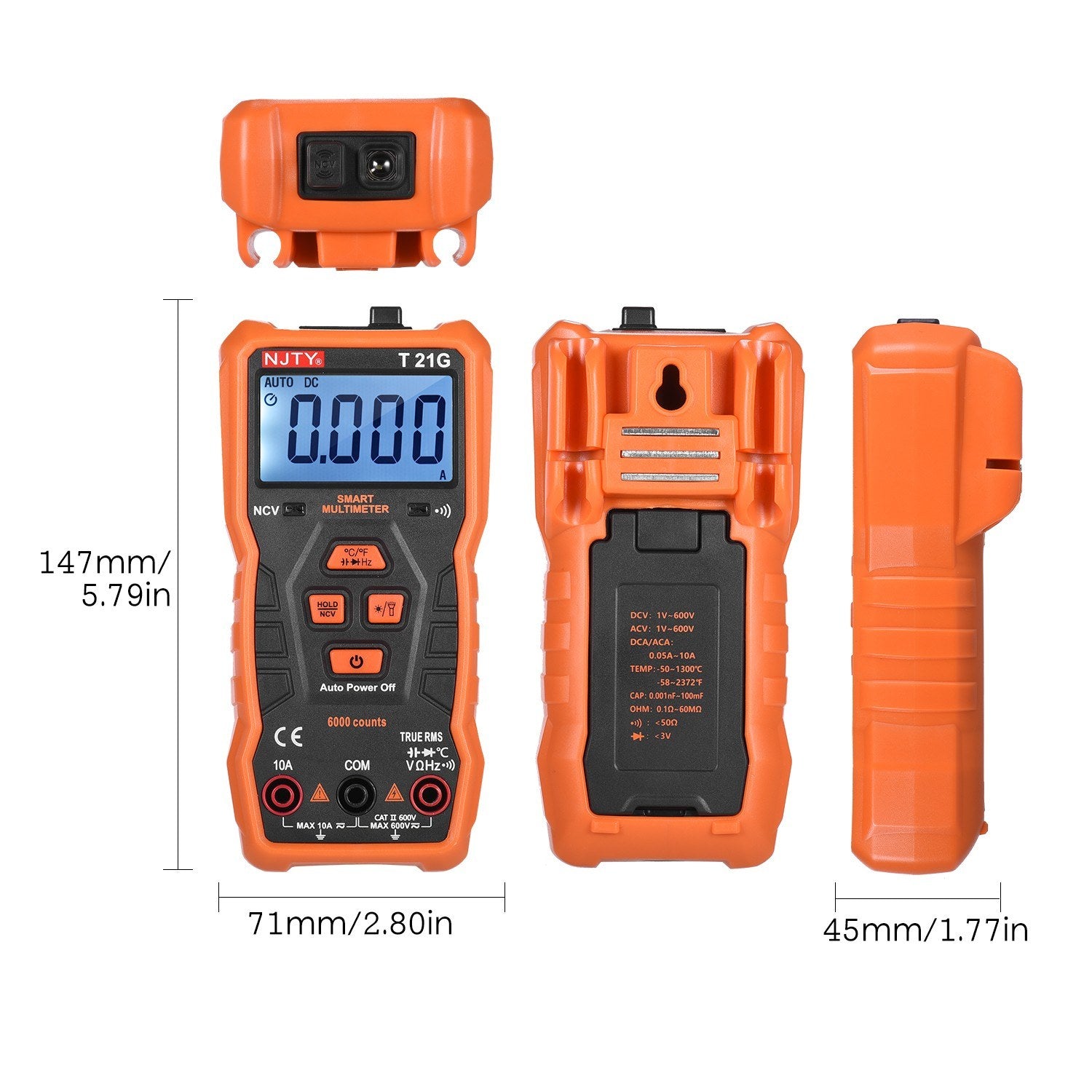

• Dimensions: 147 x 71 x 45mm / 5.79 x 2.80 x 1.77in
• Weight: 216g / 7.61oz
• Package Weight: 321g / 11.33oz
• Package Size: 16.8 x 11.2 x 5.2cm / 6.61 x 4.41 x 2.05in

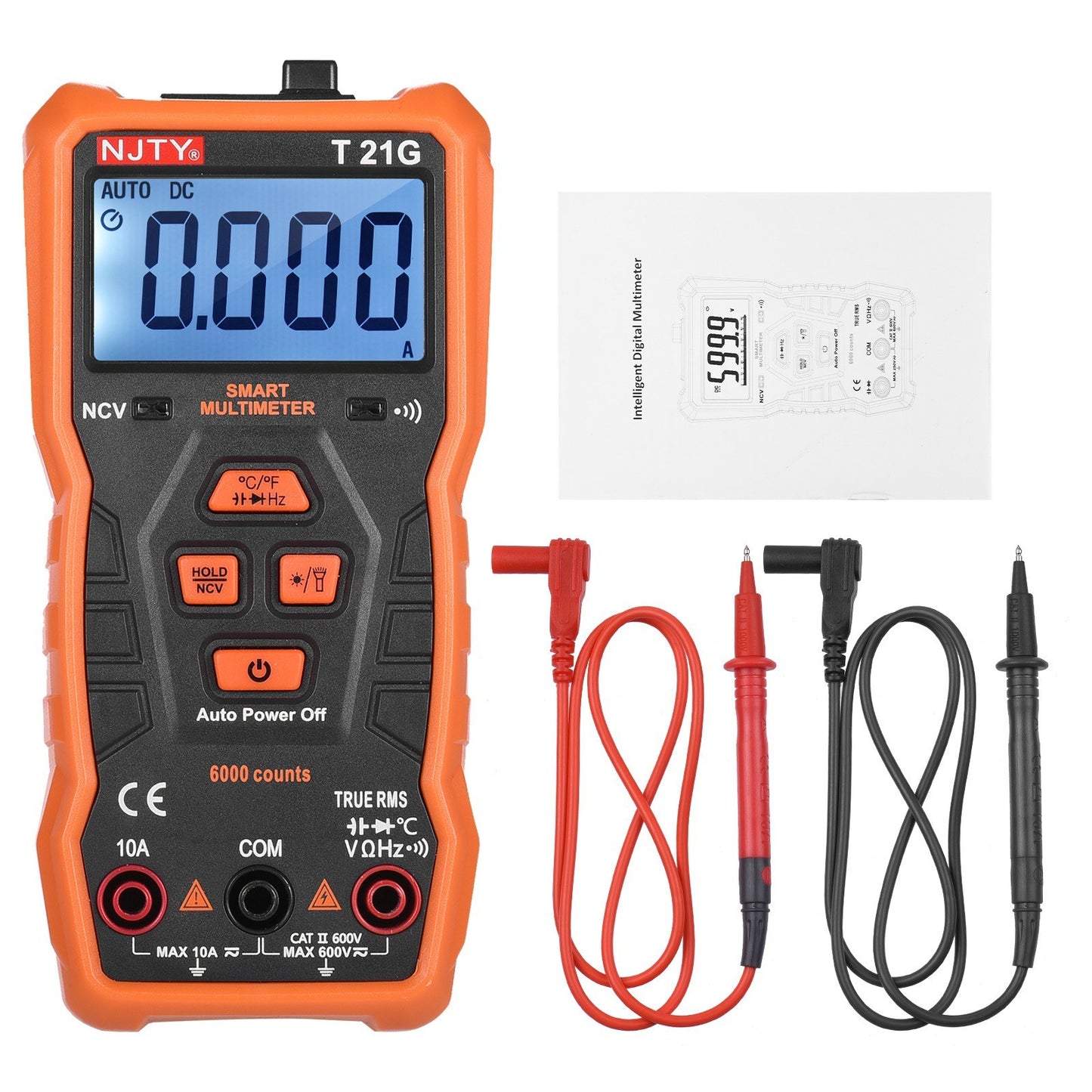

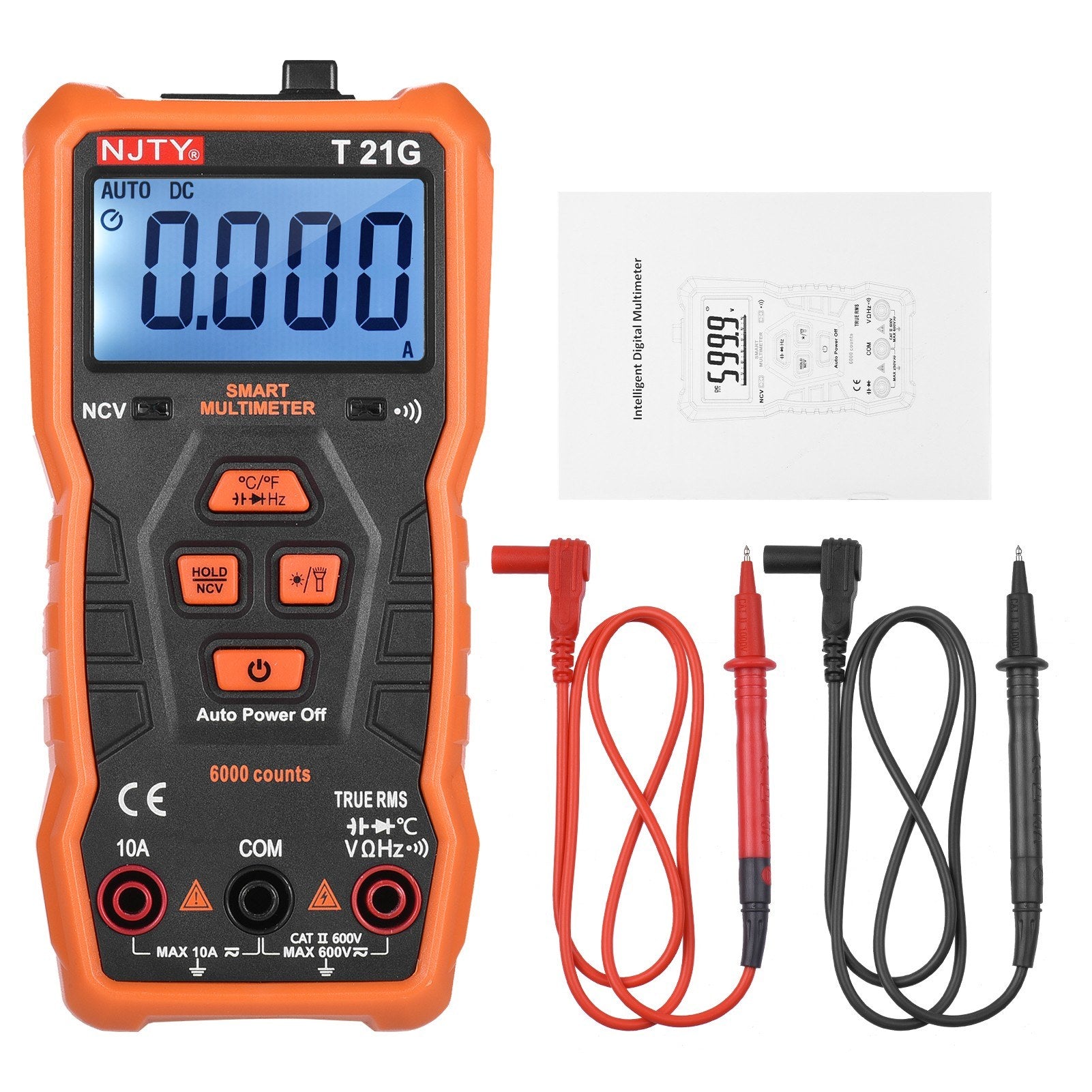

Packing List:

• 1 x Multimeter

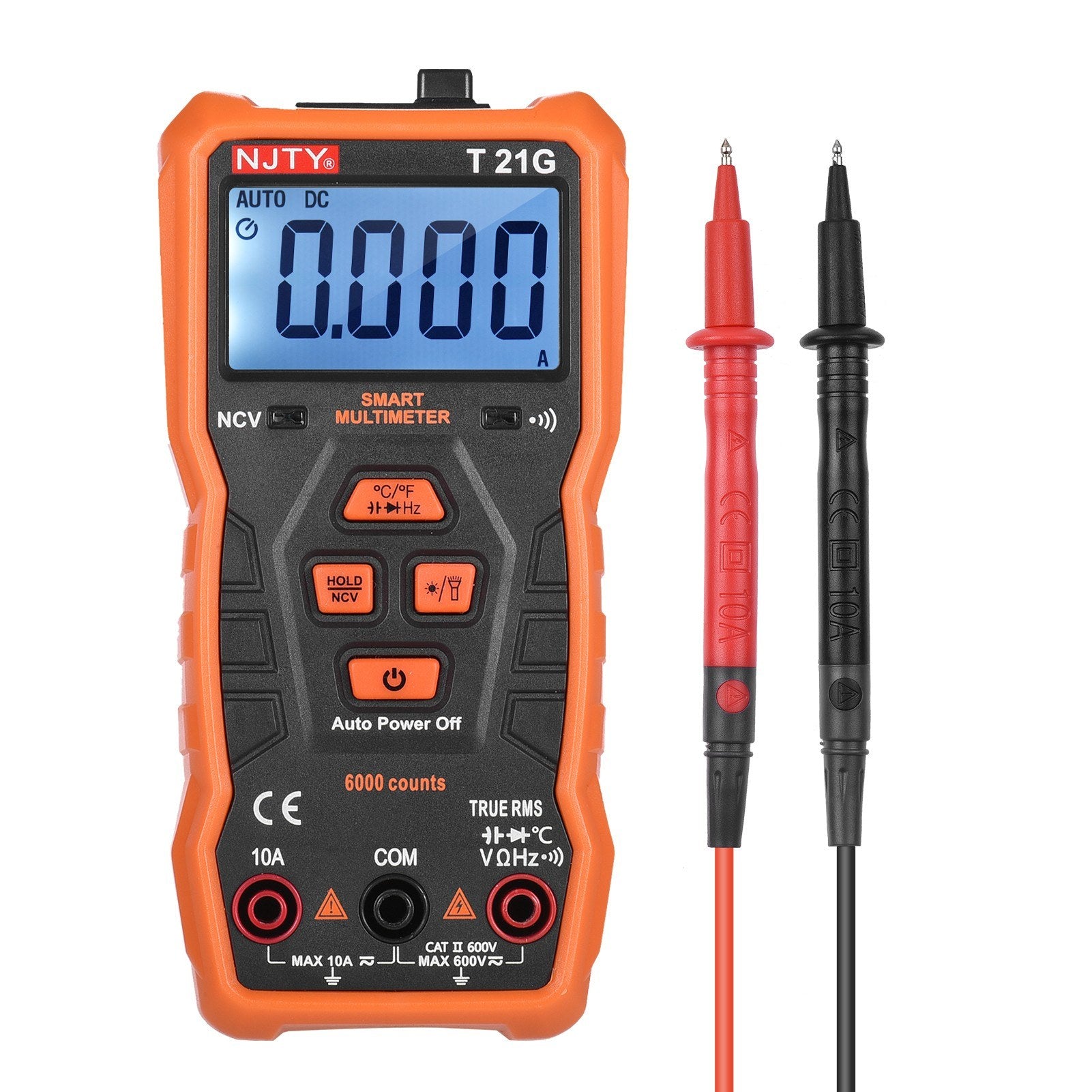

• 1 x Pair of Test Leads
• 1 x Temperature Probe
• 1 x Manual (English)
