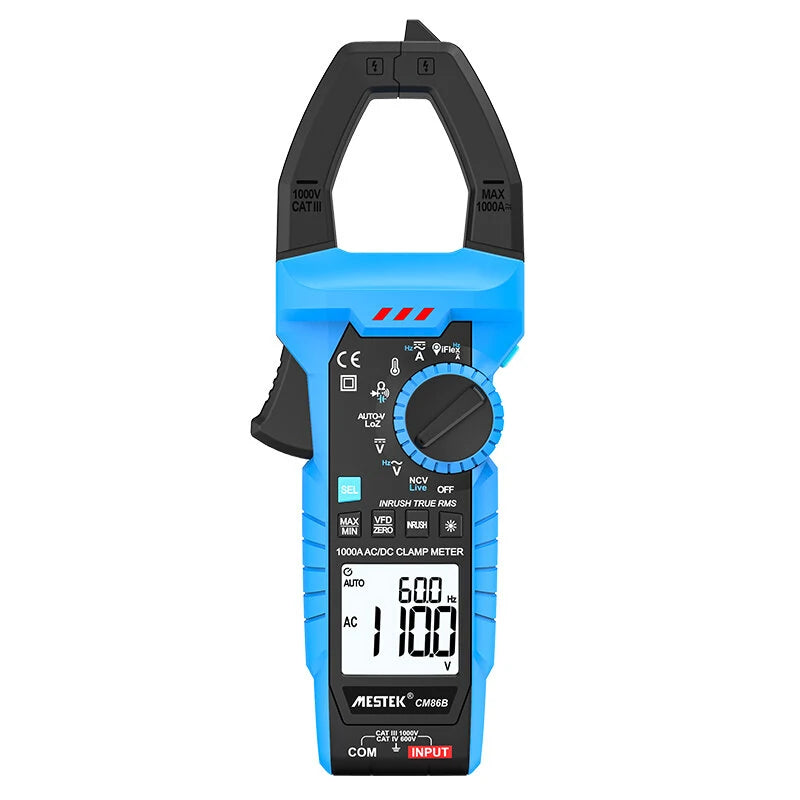

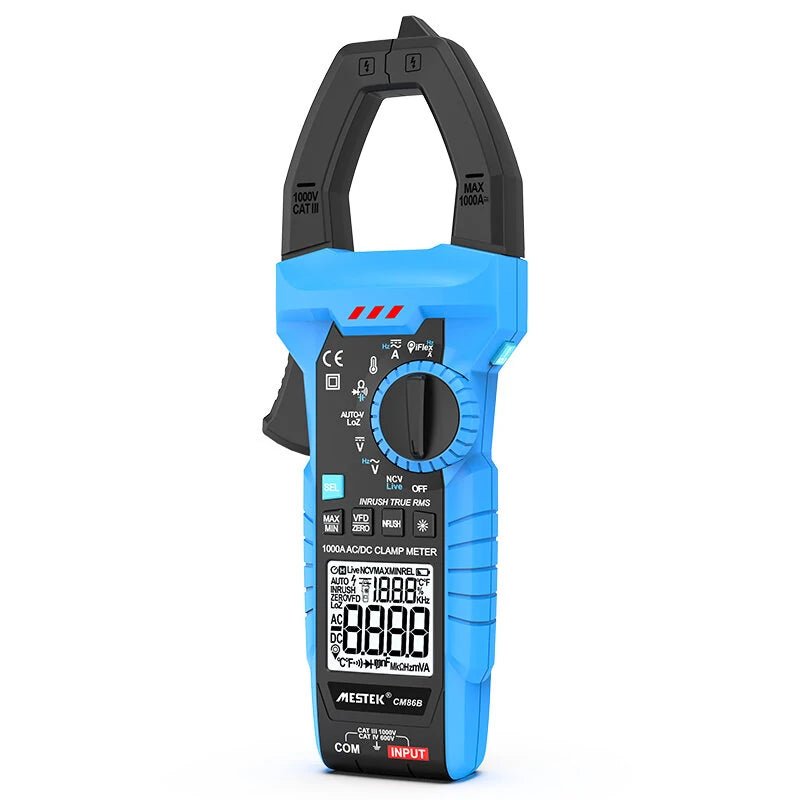

Mestek CM86B High Precision 1000A True RMS Digital Clamp Meter Multimeter for DC/AC Current Voltage Testing

Product Features

• Multipurpose Display: Versatile use in electric power, communication, railway, construction, oil field, metering, scientific research and teaching, industrial and mining enterprises, and more.
• DC Current Measurement: Screen flickers when less than 0.4A, stable display when ≥0.5A.

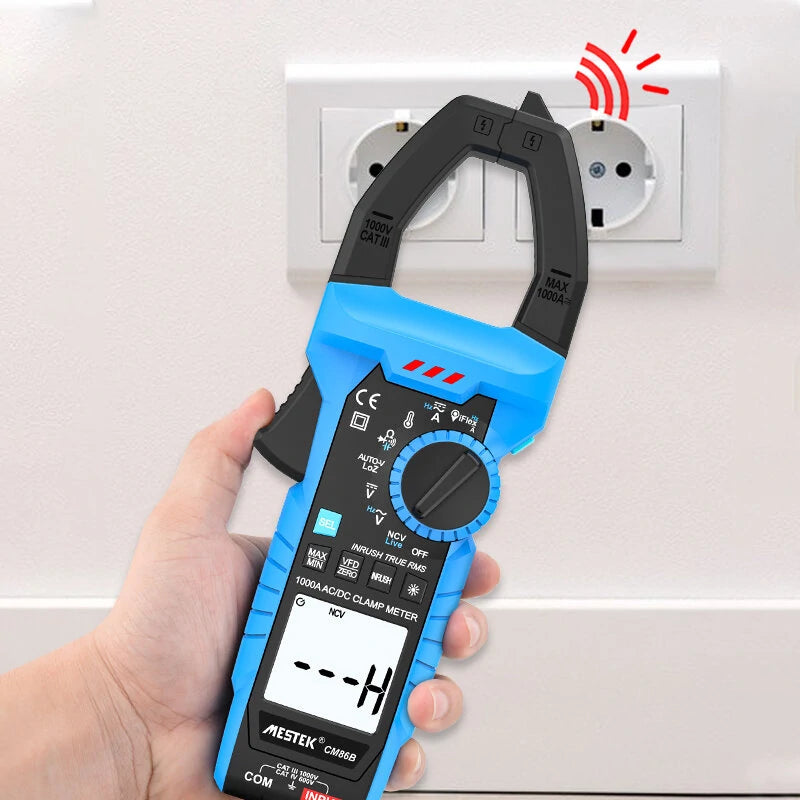

• NCV Non-contact Measurement: Near the test circuit, the induction probe issues different alarms based on voltage intensity.
• Live Firewire Recognition: Insert the red test lead into the neutral wire port; buzzer alarms for live wire detection, no response for neutral or ground wire.

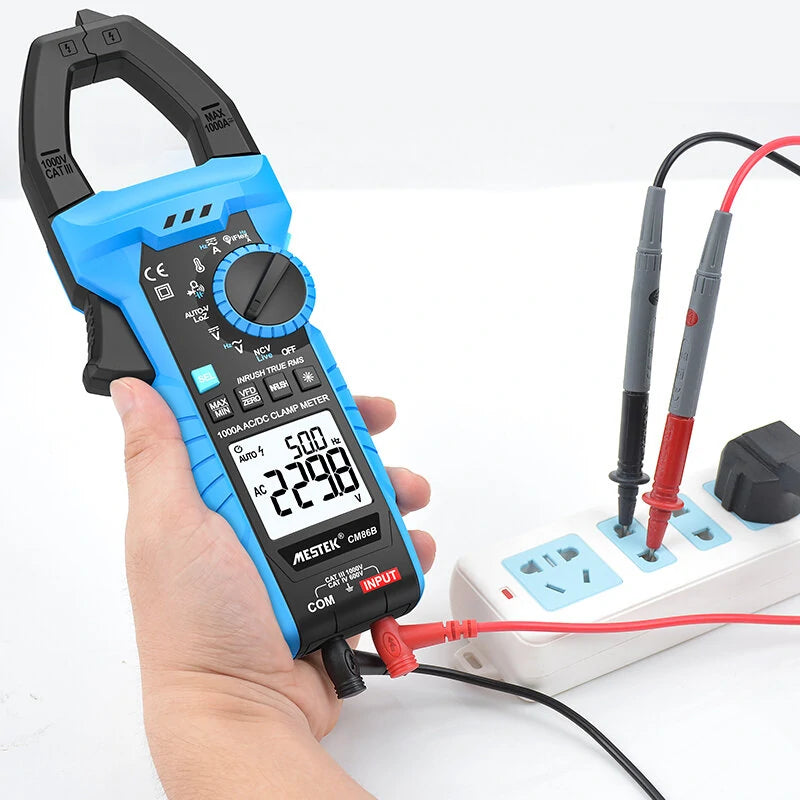

• AC Voltage Measurement: In AC voltage mode, press the VFD key to switch to variable frequency measurement.
• Contact Temperature Measurement: Switch to temperature mode, use the temperature probe, and press SEL to toggle between Celsius and Fahrenheit.
• Inrush Current Measurement: Detects maximum current when the machine starts. Set gear to AC and DC current, press for INRUSH measurement.
• HD Backlight: Ensures visibility for measurements day or night.
• DC Current Clear to Zero: ZERO function resets DC current measurement affected by magnetic fields; long press before measuring.
• 42mm Large Jaw: Suitable for cable measurement up to 42mm.
• Data Retention: Press data hold key; screen flashes every 3 seconds, press again to cancel.

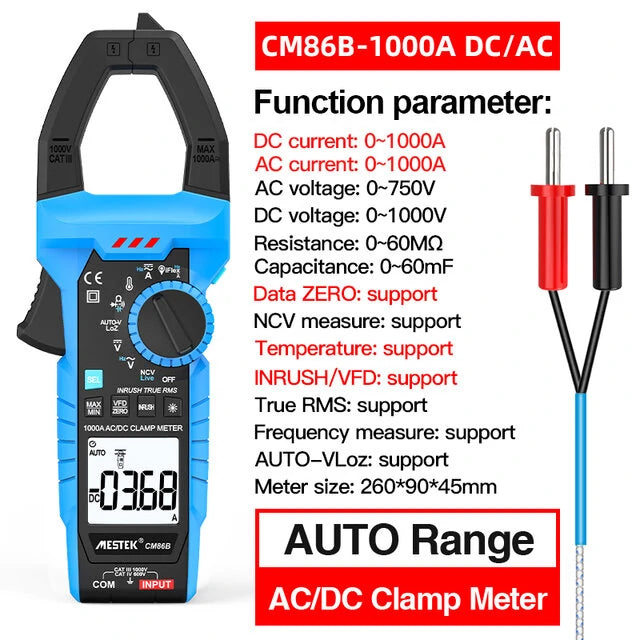

Specifications

• Function: Auto-ranging clamp meter with multiple functionalities.
• Color: Blue and Black.
• Material: ABS.

Detailed Functions

• Capacitance Measurement
• Resistance Measurement
• Diode Measurement
• Continuity Test
• Flashlight Function
• DC Voltage Measurement

Package Includes

• 1 x Digital Clamp Meter (Batteries not included)

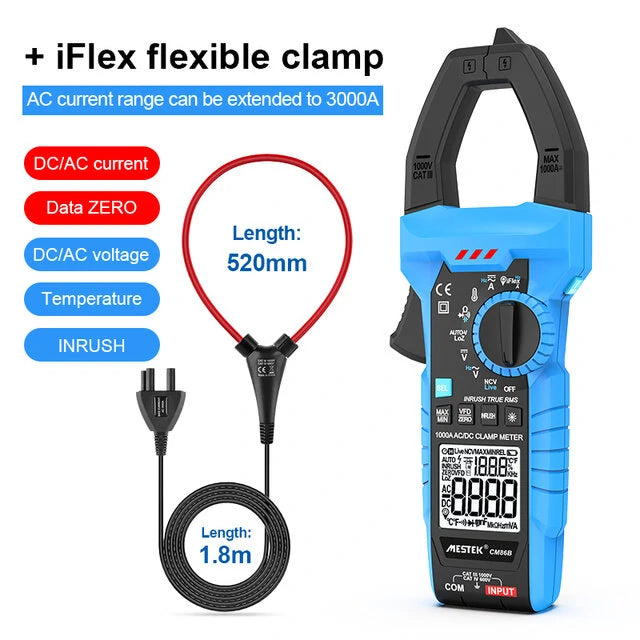

• 1 x iFlex Flexible Clamp (Optional)
• 1 x Thermocouple
• 2 x Test Leads
• 1 x User Manual
• 1 x Cloth Bag
• 1 x Packing Box

Notes

• Only the items listed in the package content are included.
• Light shooting and display differences may affect item color slightly.
• Measurement allowed error is +/- 1-3cm.
