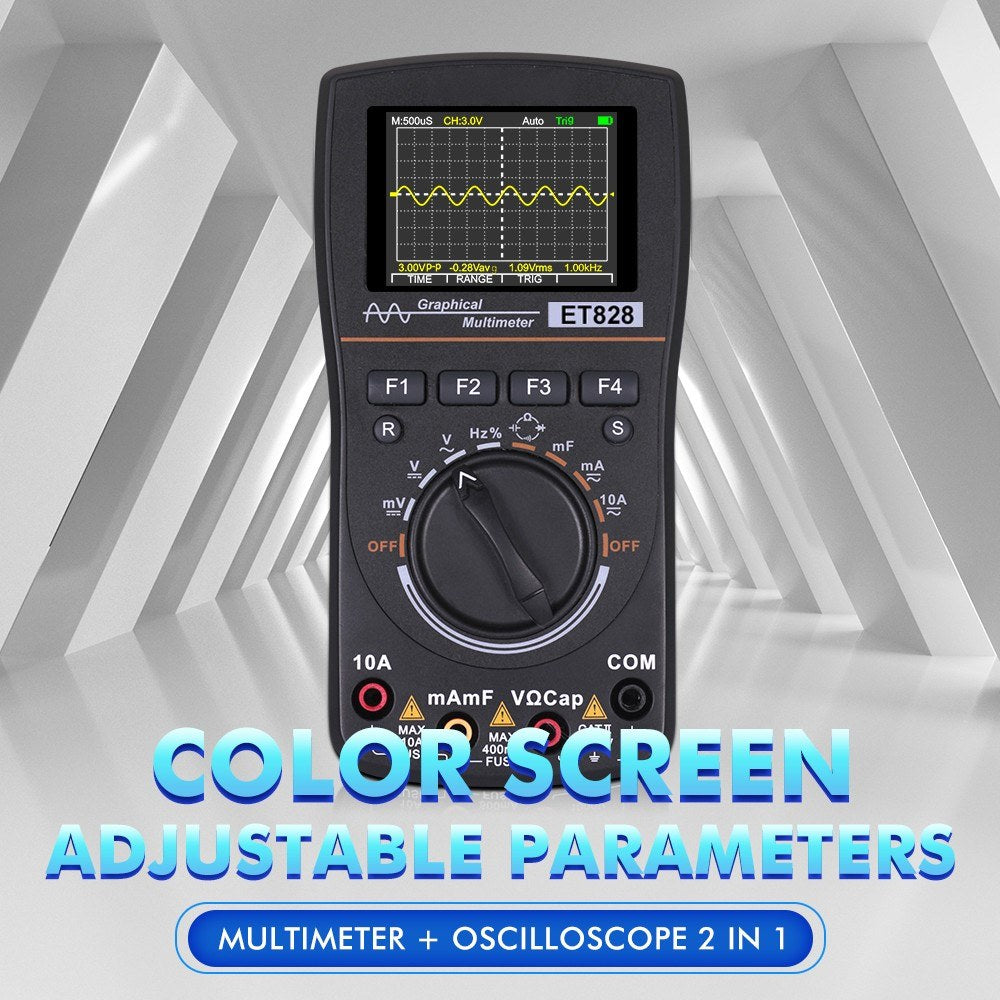

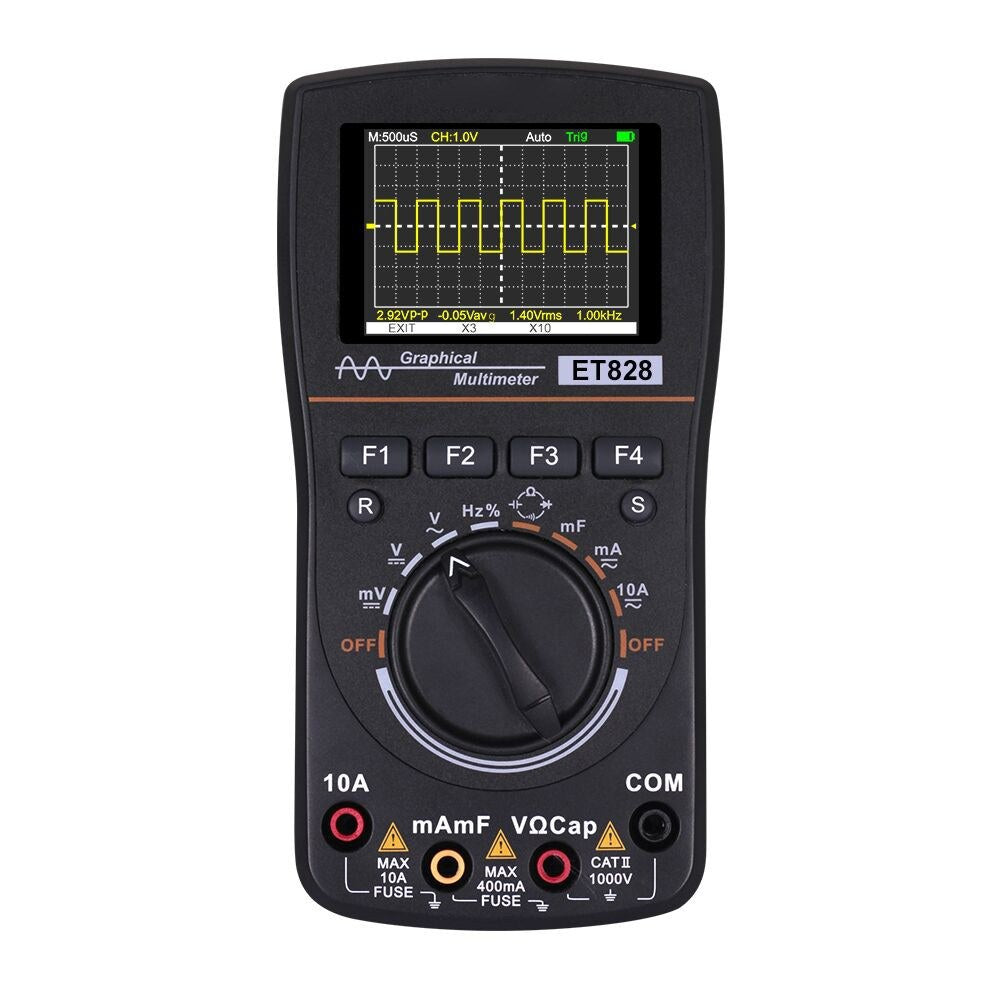

ET828 2-in-1 Digital Oscilloscope Multimeter, 1MHz, 2.5Msps, 2.4 Screen for DIY & Electronics

Product Overview

Our Graphical Multimeter is crafted from high-quality materials, offering practicality, ease of use, and a wide range of applications. It boasts exceptional longevity and reliability.

Key Features

• 2-in-1 Functionality: Combines the capabilities of an oscilloscope and a multimeter to enhance work efficiency.

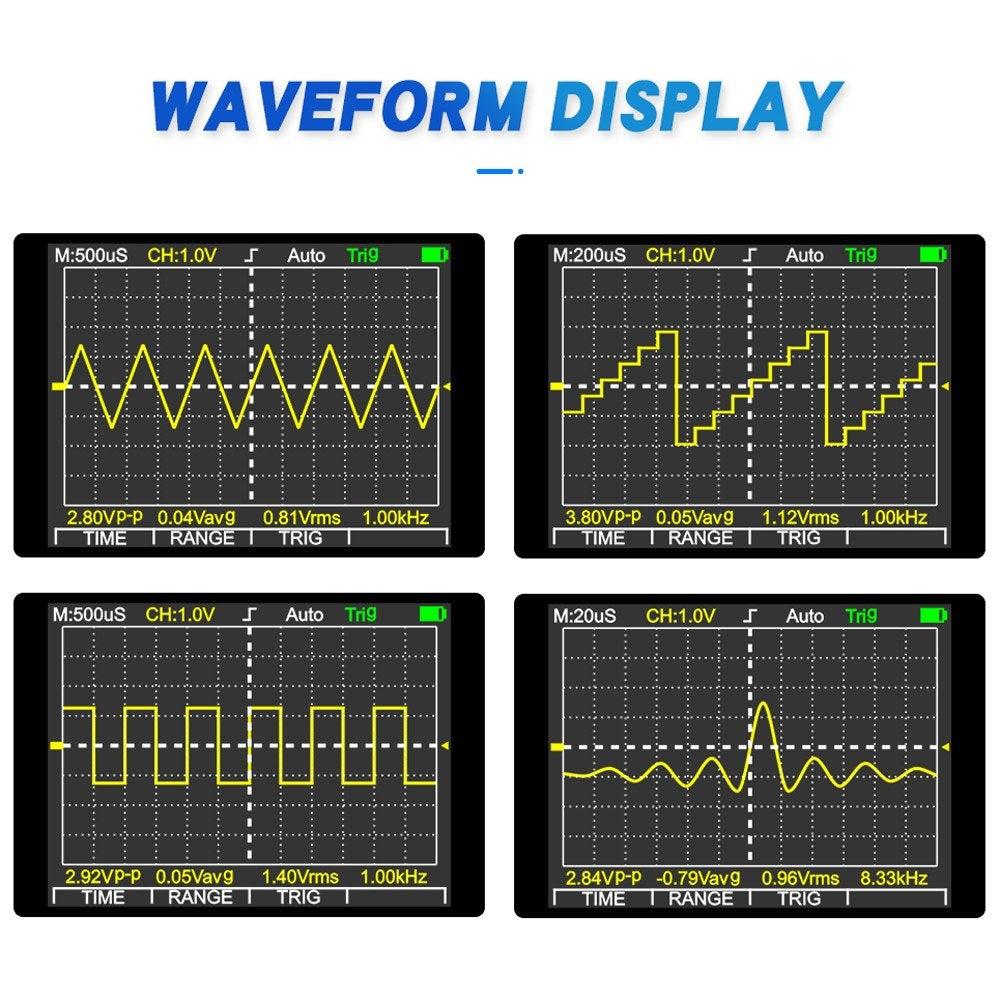

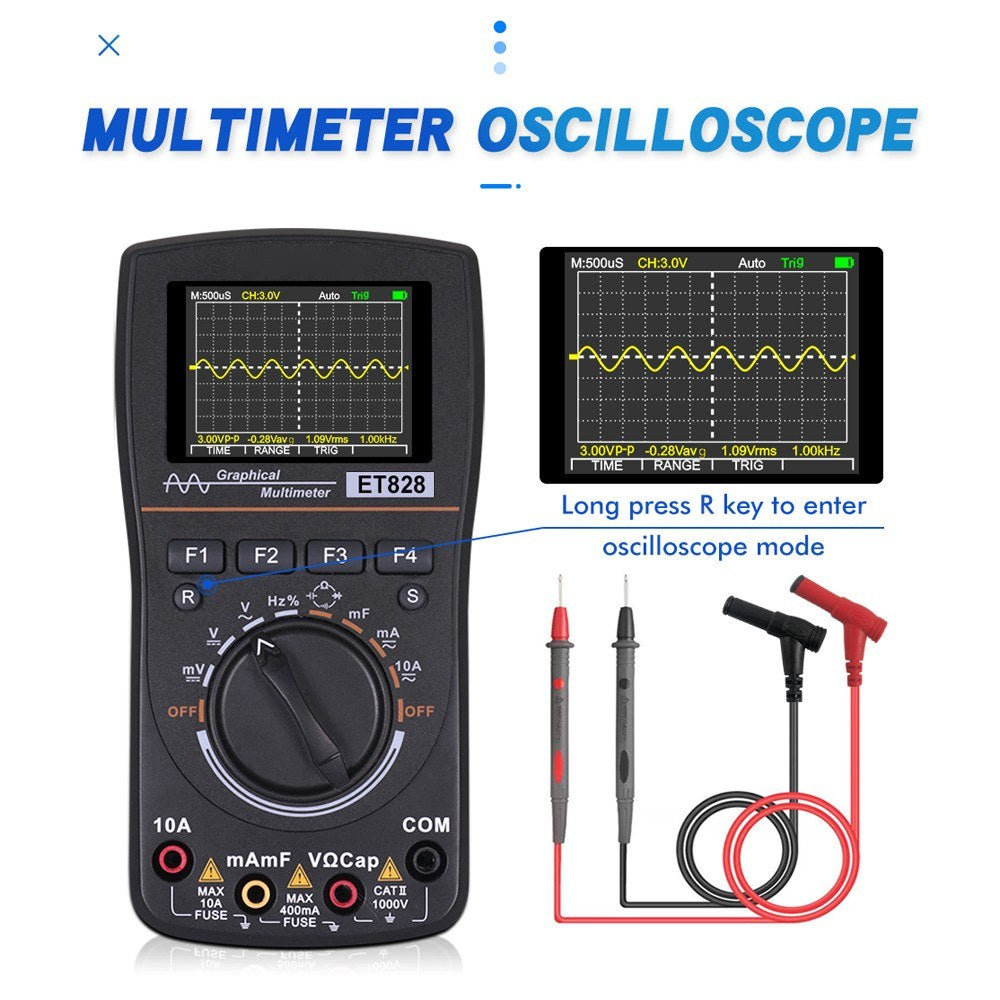

• One-Button Oscilloscope: Direct waveform measurement without the need for an oscilloscope probe. Provides fast, accurate measurements with a clear display.

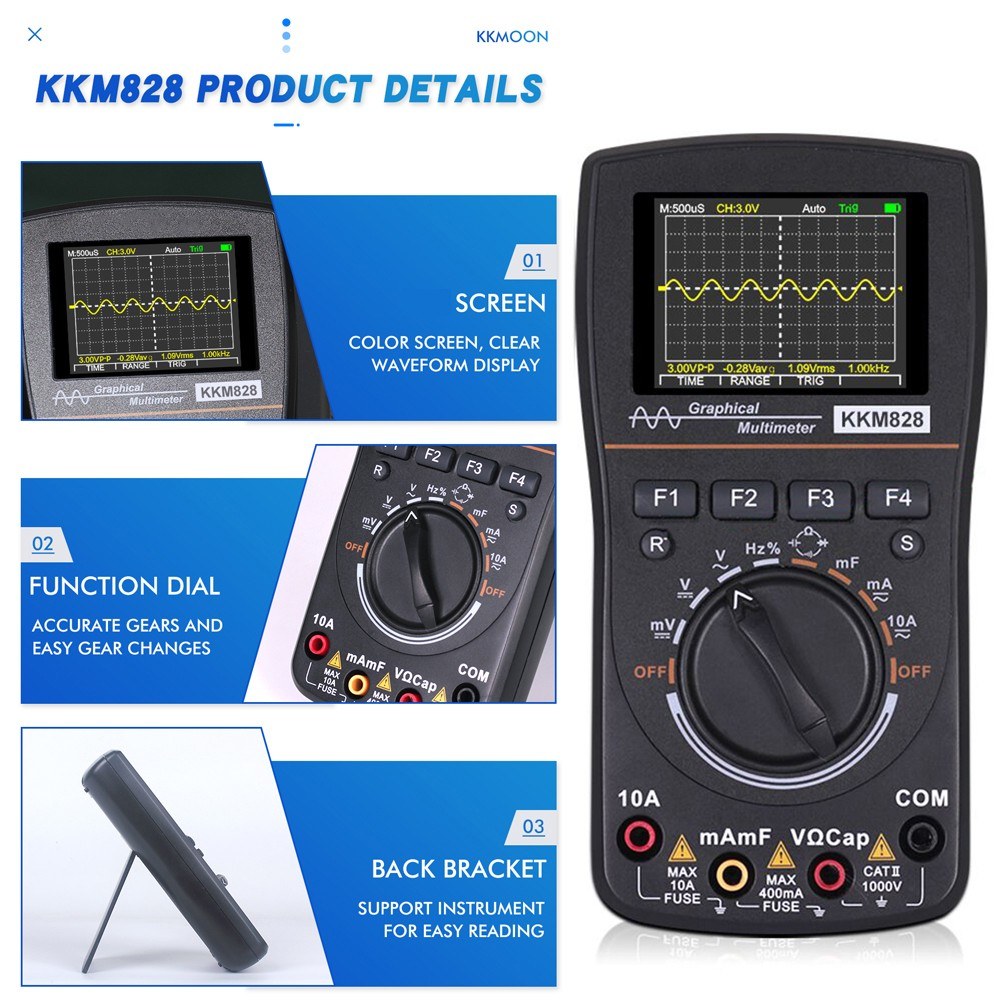

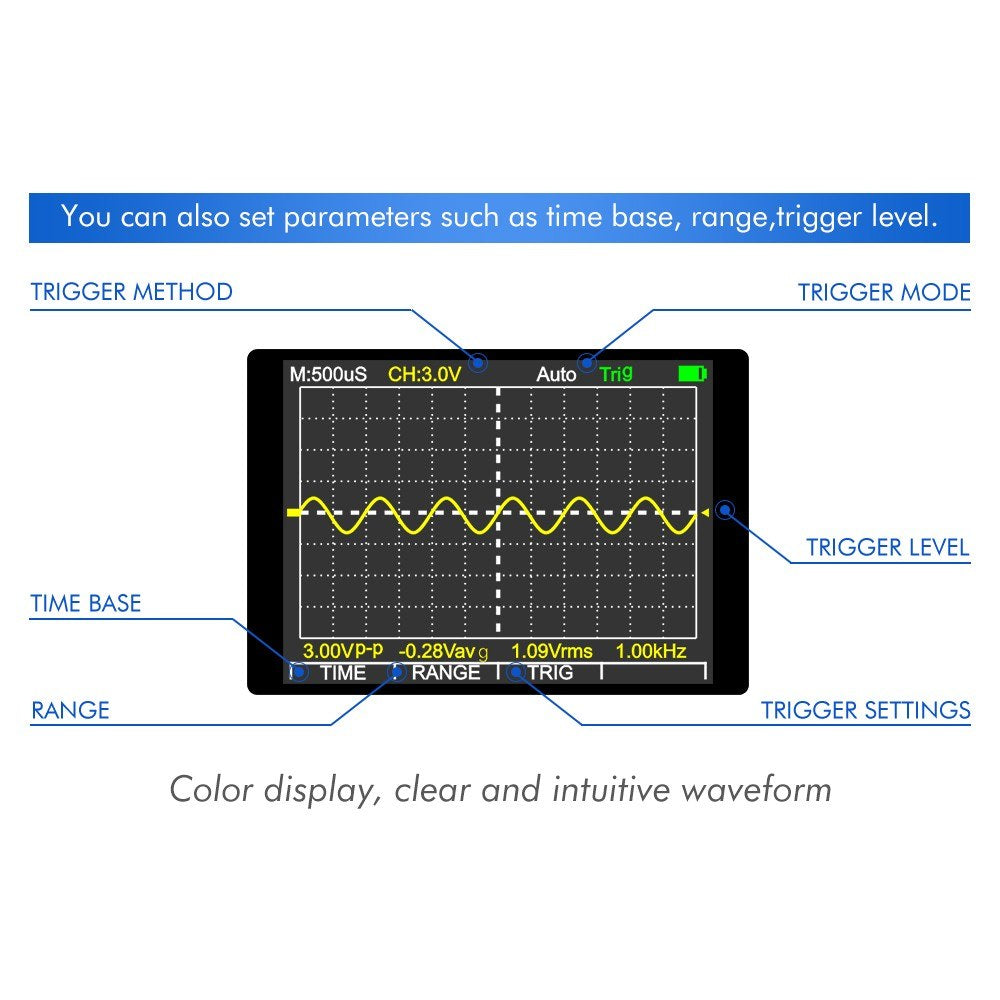

• Vibrant Display: Features a 240x320 color screen for clear visualization, with a secondary display for additional function menus.

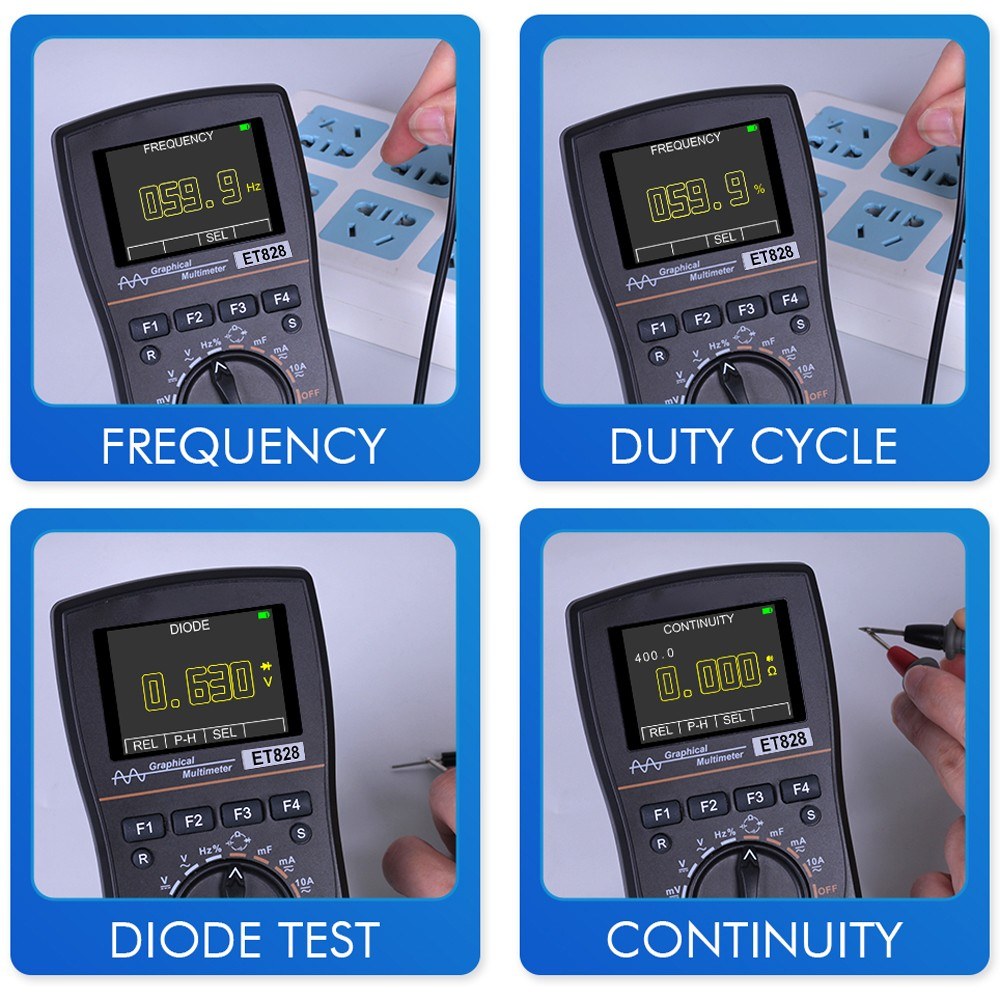

• Comprehensive Measurement Functions: Supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode testing, and continuity testing.

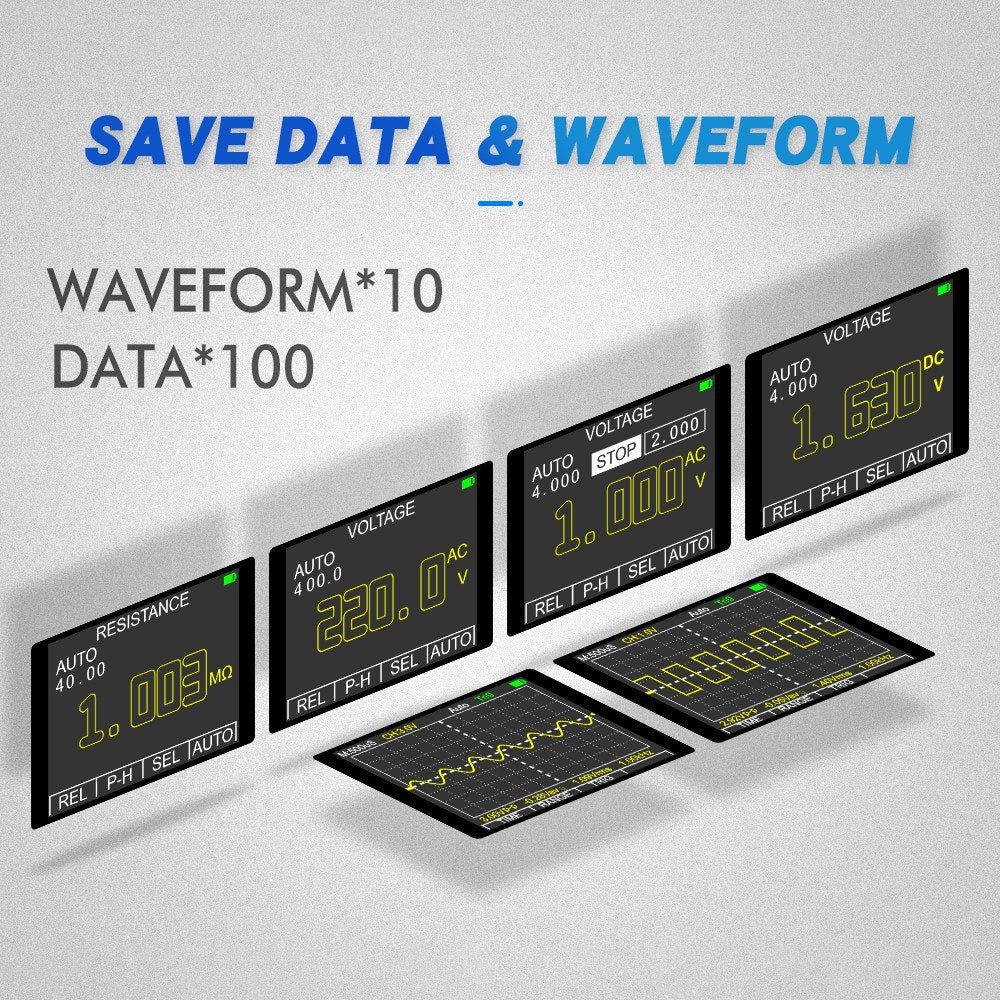

• Ample Storage: Includes mass storage capacity for 100 data entries or 10 waveforms.

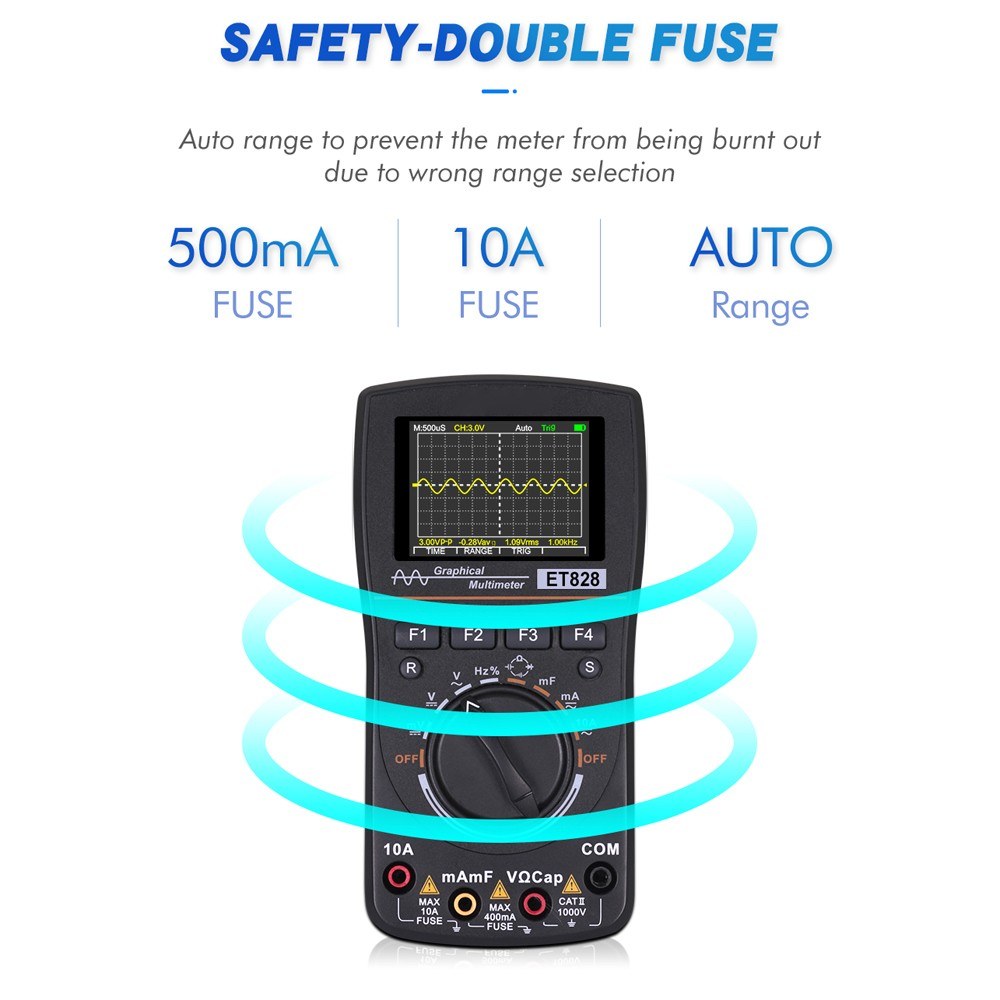

• Triple Safety Features: Equipped with double insurance tubes (500mA/250V, 10A/250V) and beep warnings for input voltage over 24V or over-range situations.

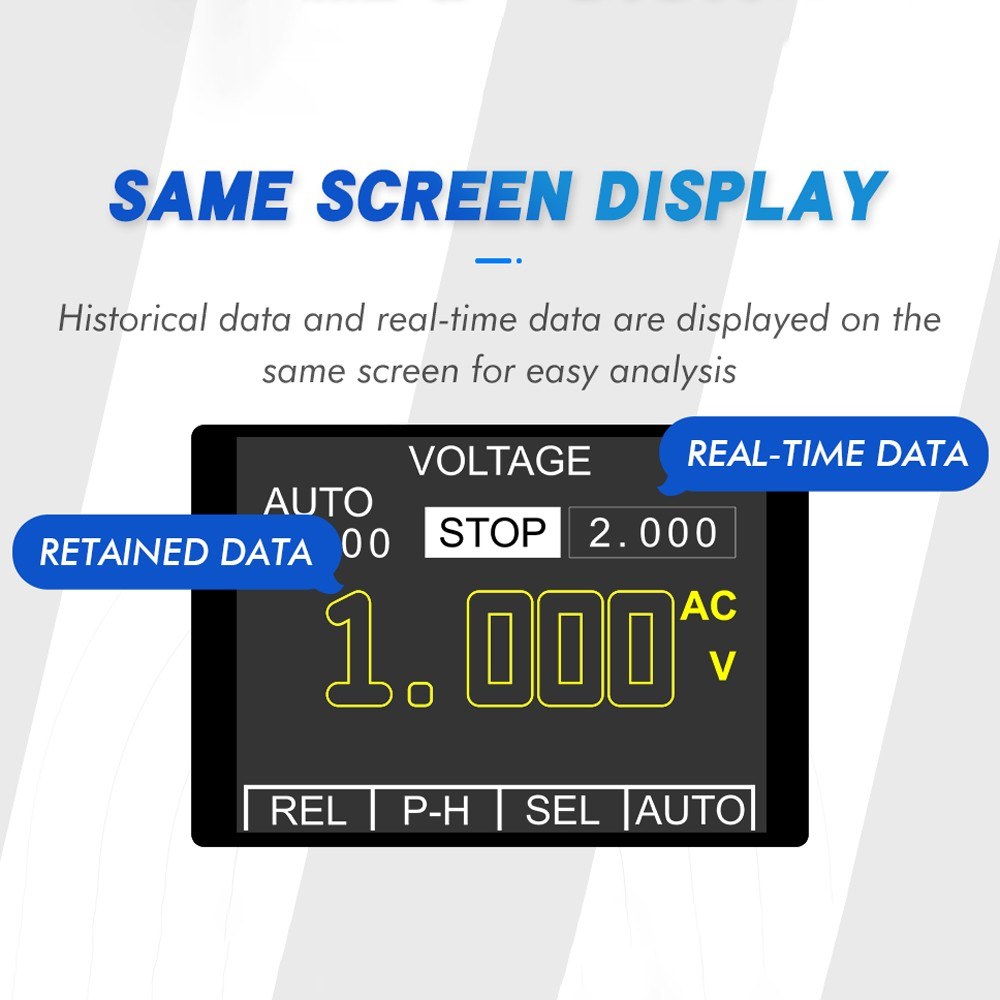

• Dual View Display: Displays historical records and real-time data concurrently for easy data comparison and analysis.
• User-Friendly Controls: Features silicone buttons and a sensitive function dial for accurate gear settings.

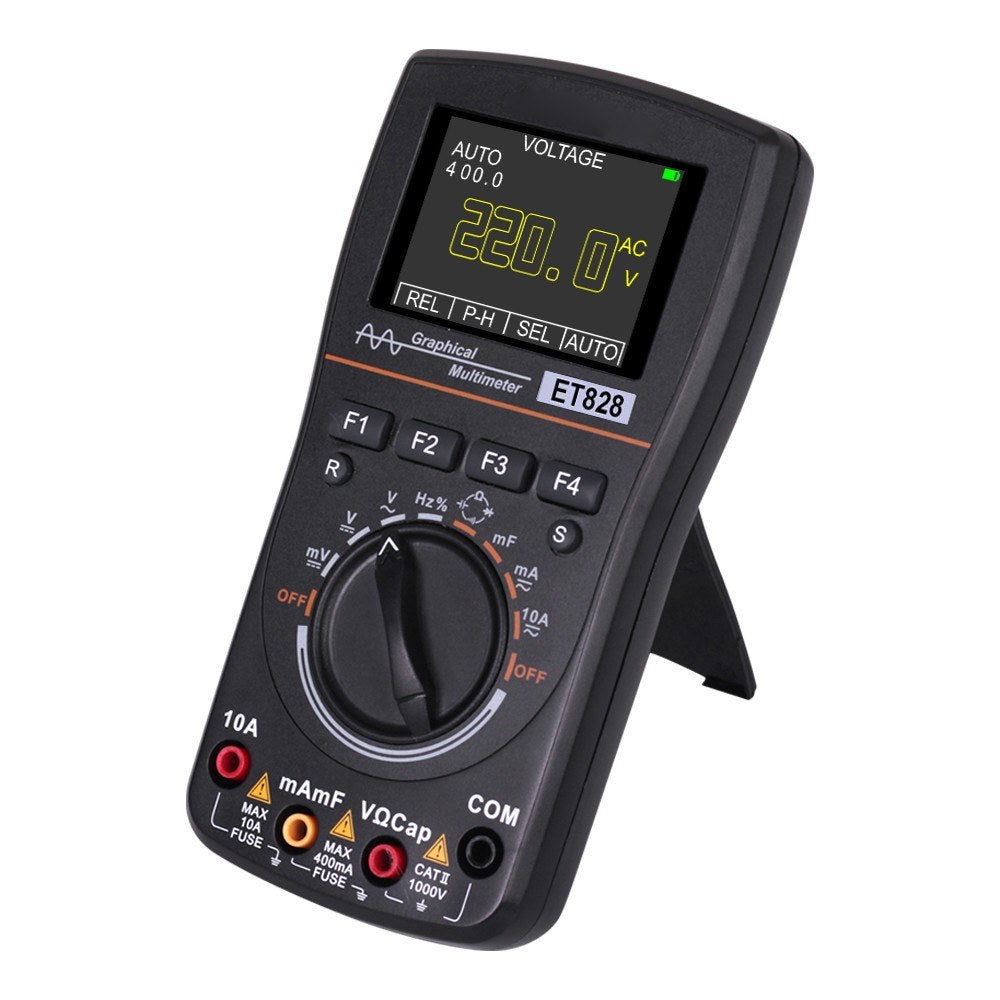

• Ergonomic Design: Comes with a 60° tilted back bracket for convenient viewing.

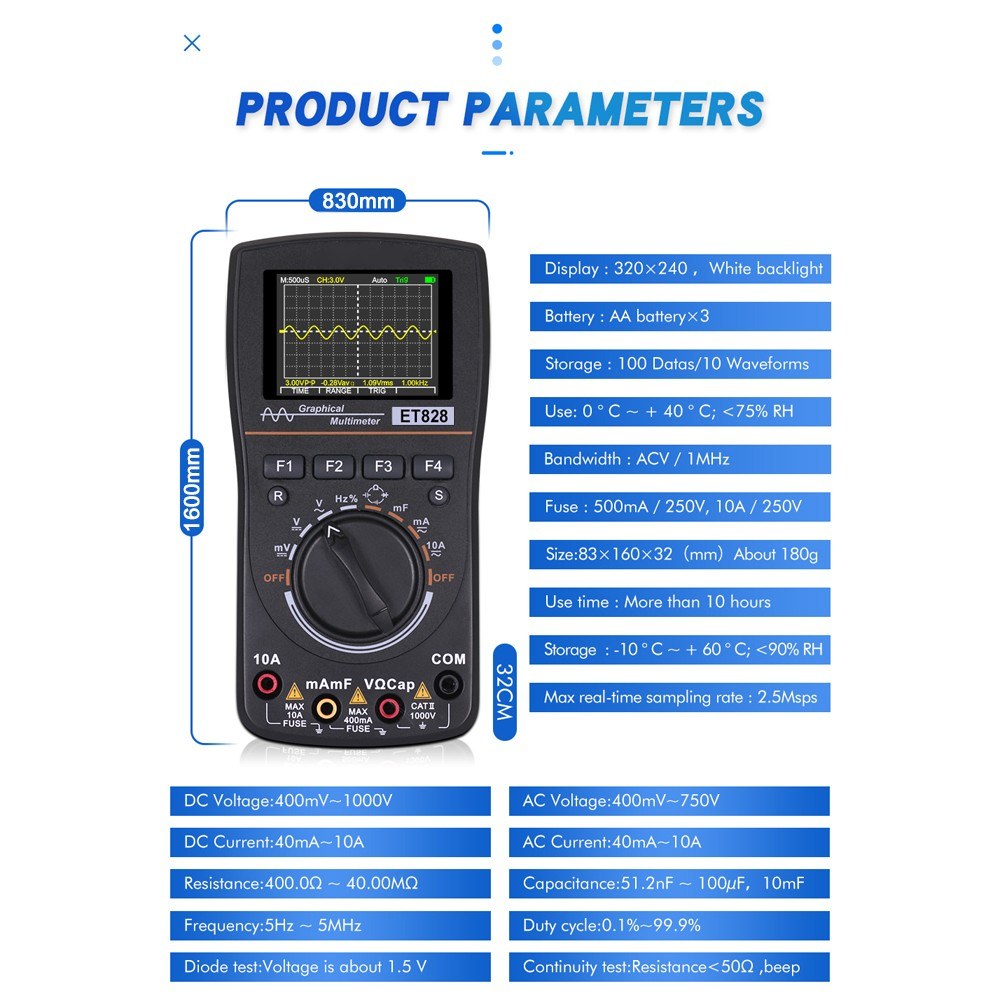

Specifications

• Material: ABS
• Color: Black
• Display: 320x240 LCM, 2.4 inches
• Backlit: White
• Input Resistance: 10MΩ
• Battery: 3 x AA battery (not included)
• Power Consumption: Approximately 80mA
• Usage Time: Approximately 5 hours in low light
• Storage Capacity: 100 data entries or 10 waveforms
• Operating Environment: 0~40℃, < 75% RH
• Storage Environment: -10~60℃, < 90% RH
• Bandwidth: ACV/1MHz, ACA/5KHz
• Max. Real-Time Sampling Rate: 2.5Msps

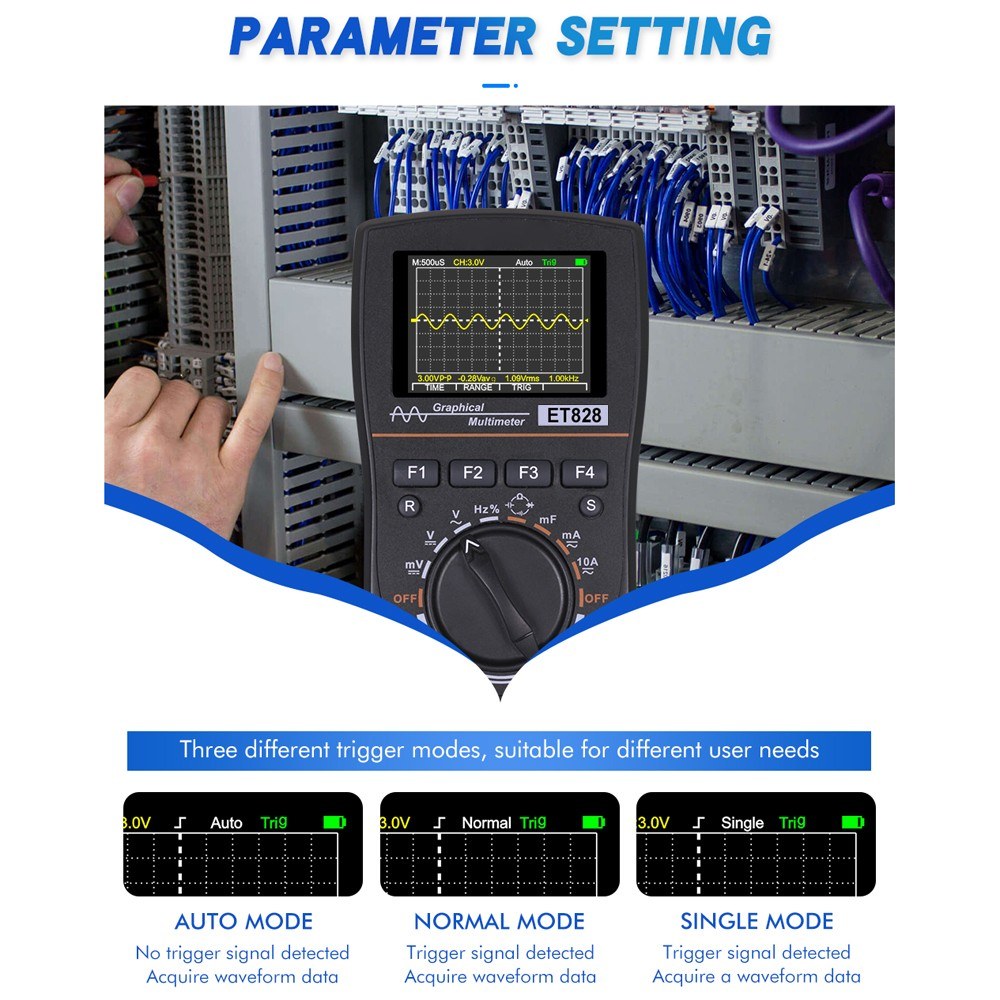

• Measurement Modes: Normal, Automatic
• Size: 160 x 83 x 32 mm / 6.3 x 3.3 x 1.3 in
• Weight: 195g / 6.9 oz
• Package Size: 190 x 140 x 45 mm / 7.5 x 5.5 x 1.8 in
• Package Weight: 370g / 13.1 oz

Multimeter Specifications

• DC Voltage: Range: 400mV/4V/40V/400V/1000V, Uncertainty: 0.75% rdg+10dgt
• AC Voltage: Range: 400mV/4V/40V/400V/750V, Uncertainty: 1.0% rdg+10dgt
• DC Current: Range: 40mA/400mA/4A/10A, Uncertainty: 1.2% rdg+10dgt
• AC Current: Range: 40mA/400mA/4A/10A, Uncertainty: 1.5% rdg+10dgt
• Resistance: Range: 400.0Ω~40.00MΩ, Uncertainty: 1.0% rdg+5dgt
• Capacitance: Range: 0.1nF~10.00mF, Uncertainty: 2.0% rdg+10dgt
• Frequency: Range: 5Hz~10MHz, Uncertainty: 1.0% rdg+5dgt
• Duty Cycle: Range: 0.1%~99.9%, Uncertainty: 1.0% rdg+5dgt
• Diode Test: Voltage: ~5V, Current: ~1.5mA
• Continuity Test: Resistance: <50Ω (beep indication)
• Fuse Specifications: 500mA/250V, 10A/250V

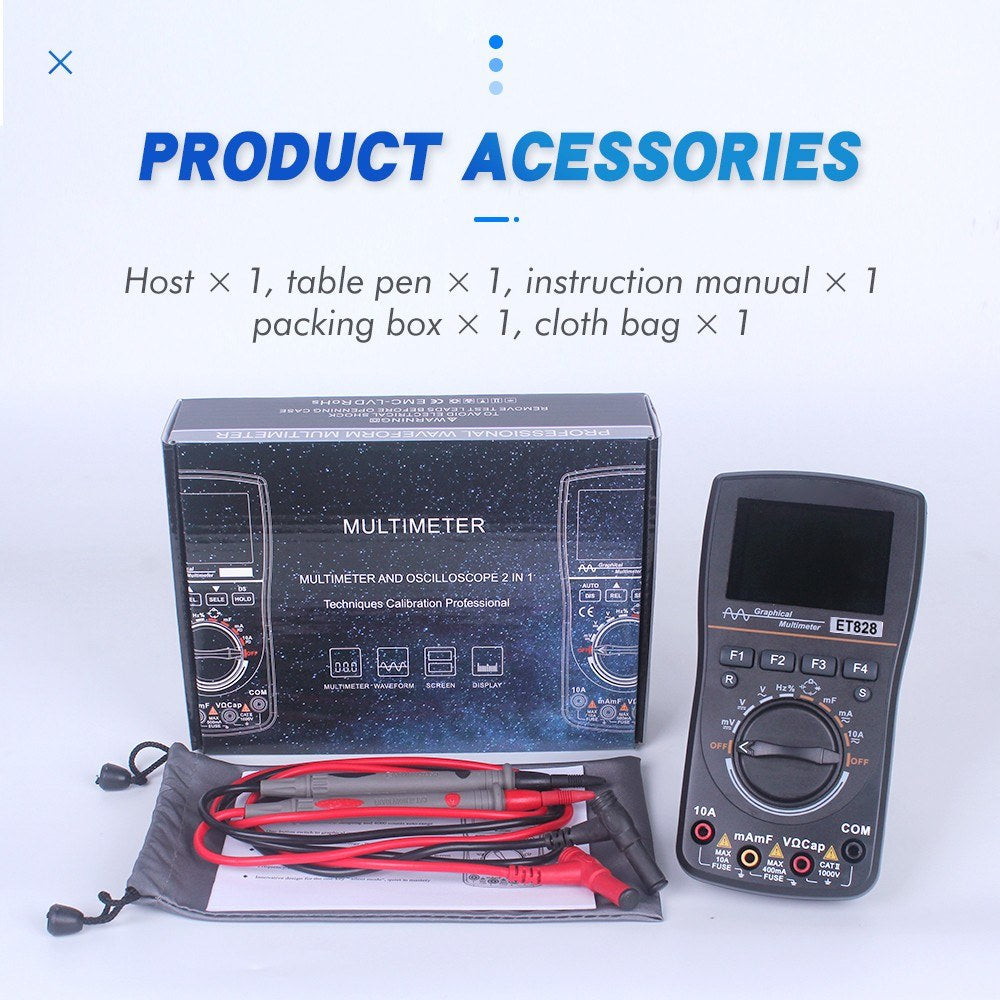

Packing List

• 1 x Graphical Multimeter
• 1 x Pair of Test Pens
• 1 x Protective Bag
• 1 x User Manual
