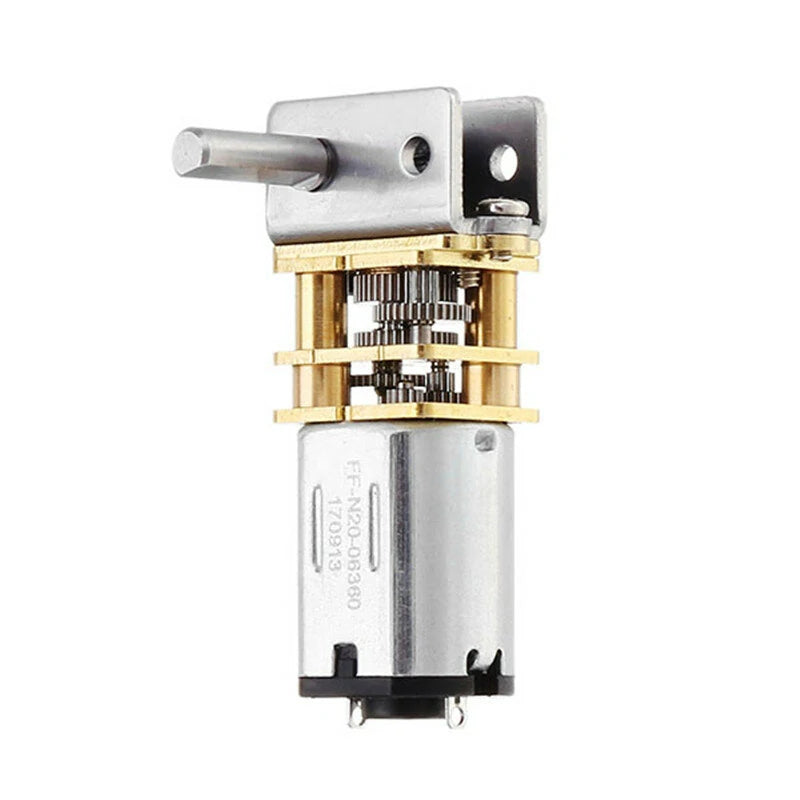

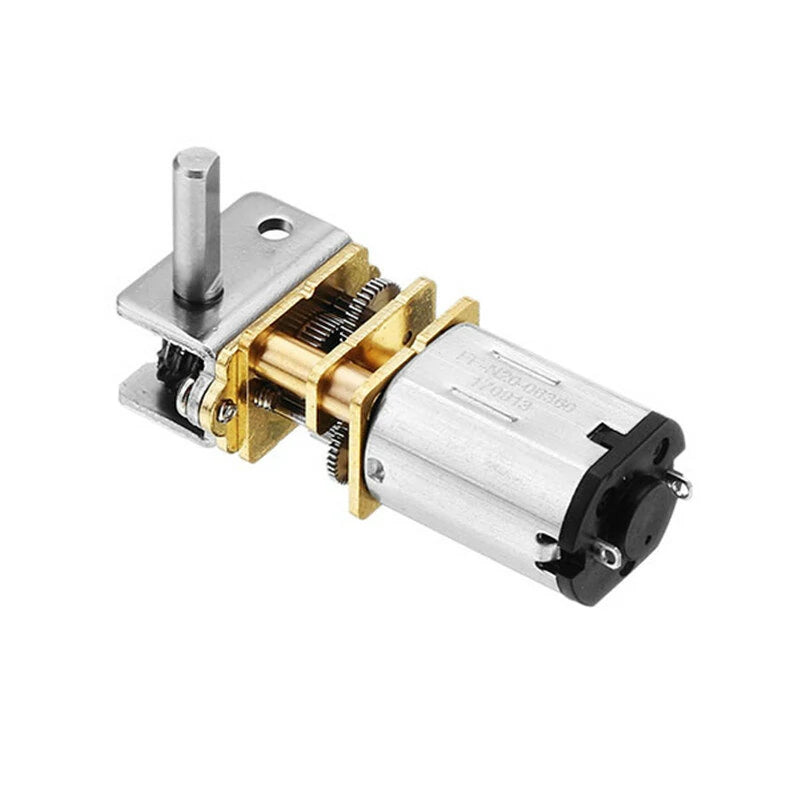

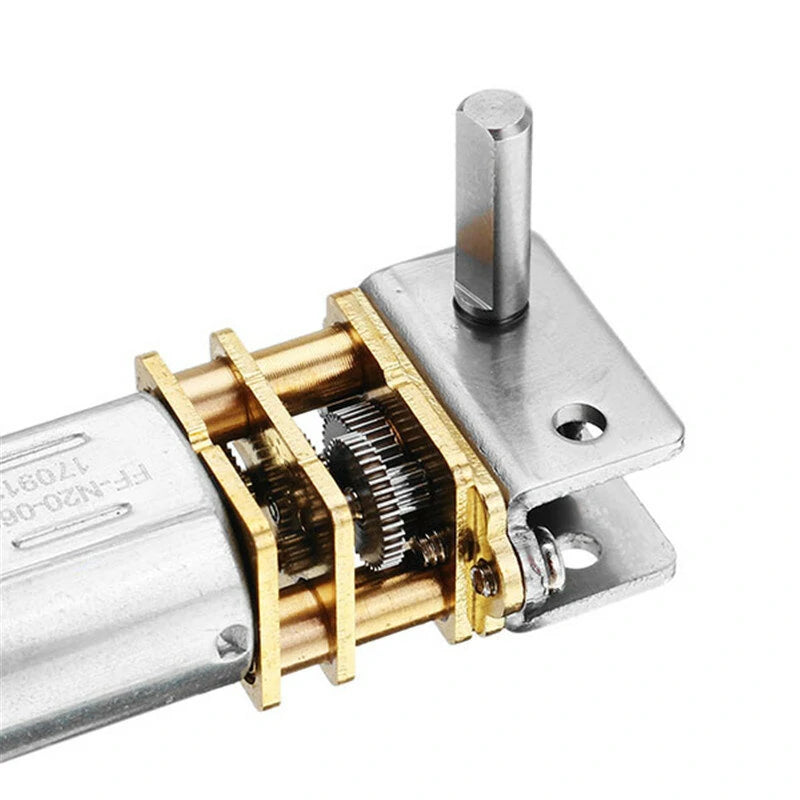

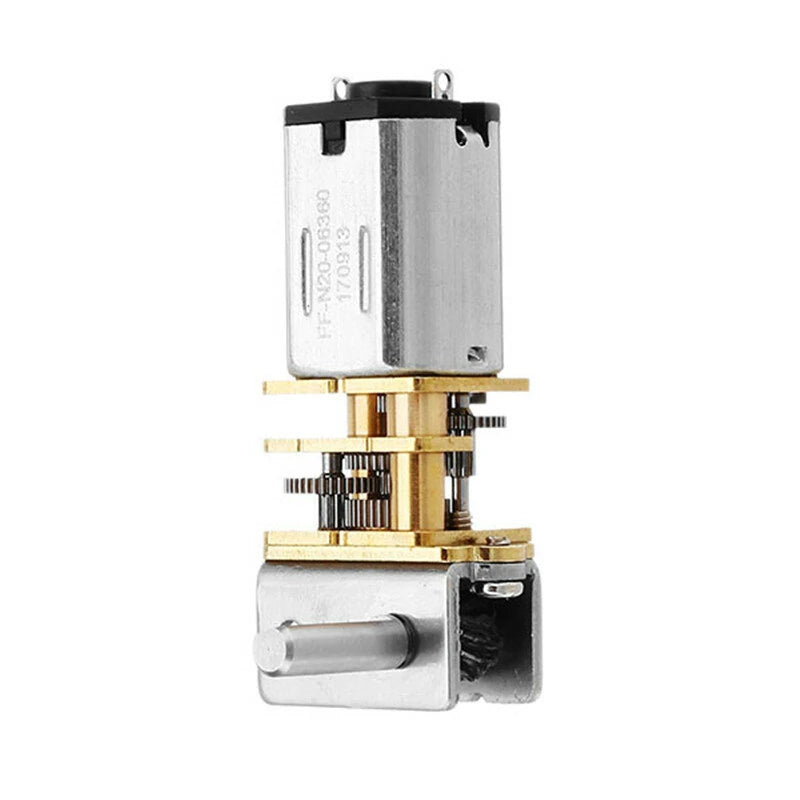

DC 6V 18rpm GM12-N20VA Worm Gear Reducer Electric Motor

Description:
Enhance your projects with the GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor. This powerful and compact motor is ideal for a variety of applications, providing reliability and performance.

Specification:

• Model: CHW-GM12-N20VA
• Voltage: DC 6V
• Max Power: 0.6W
• Ratio: 1:900
• No-load Current: ≤ 70mA
• No-load Speed: 18rpm
• Rated Torque: 3.0kg.cm
• Rated-load Speed: 12rpm
• Rated-load Current: ≤ 0.25A
• Stall Torque: ≥ 4.0kg.cm
• Stall Current: ≤ 0.65A

Features:
This miniature DC worm gear motor is reversible, versatile, and equipped with a self-locking feature, preventing the output shaft from rotation when powered off. The 90-degree angle configuration between the gearbox output shaft and motor shaft allows for installation in compact spaces.

Owing to these attributes, the motor is perfectly suited for applications such as:
windows and doors automation, household electronics, model cars, boats, and robots, DIY engines, industrial tasks, home automation, mini winches, and many other innovative uses.

Note:
The motor exhibits high torsion; therefore, frequent start-ups or blockages are not recommended.

Package Includes:
1 x GM12-N20VA Worm Gear Motor
