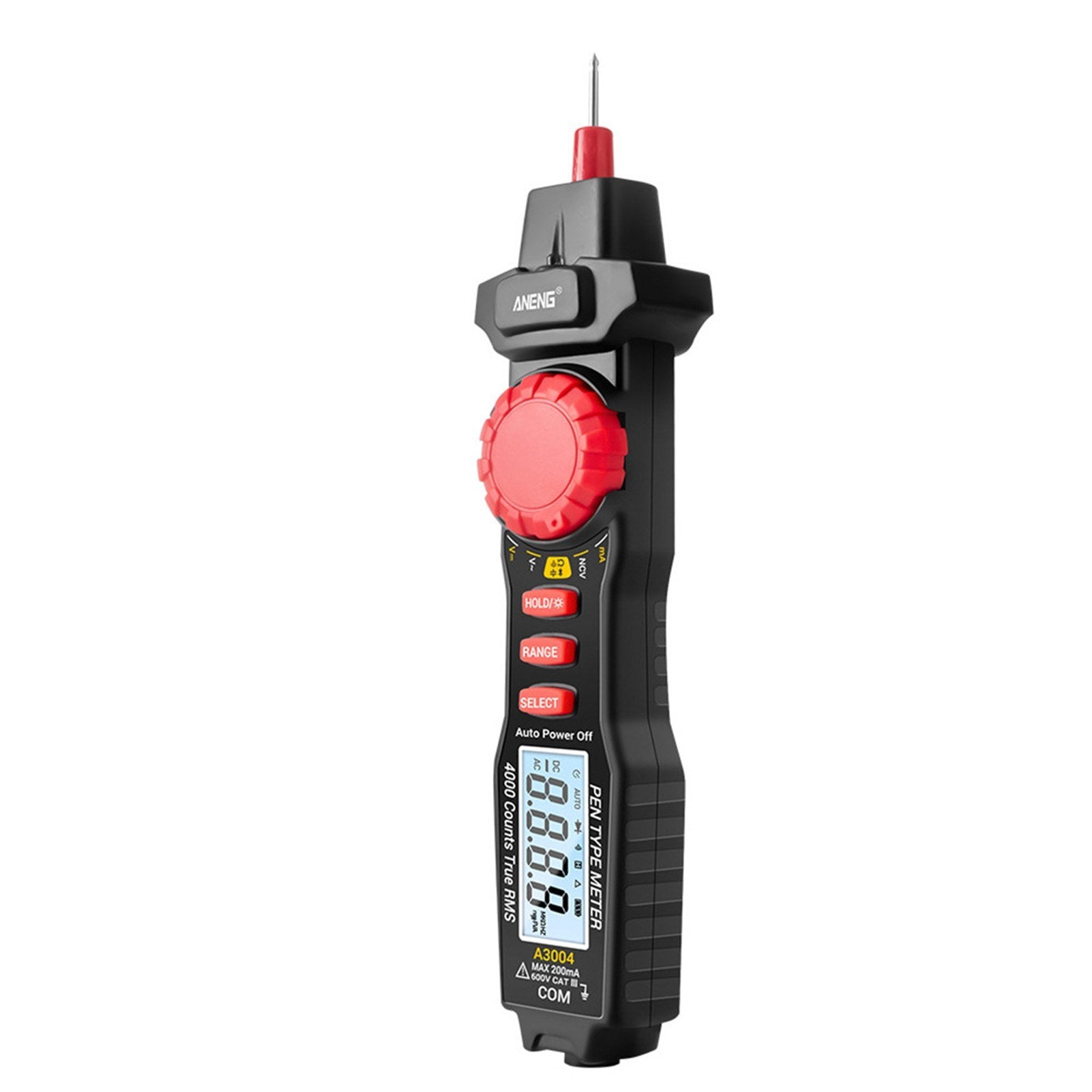

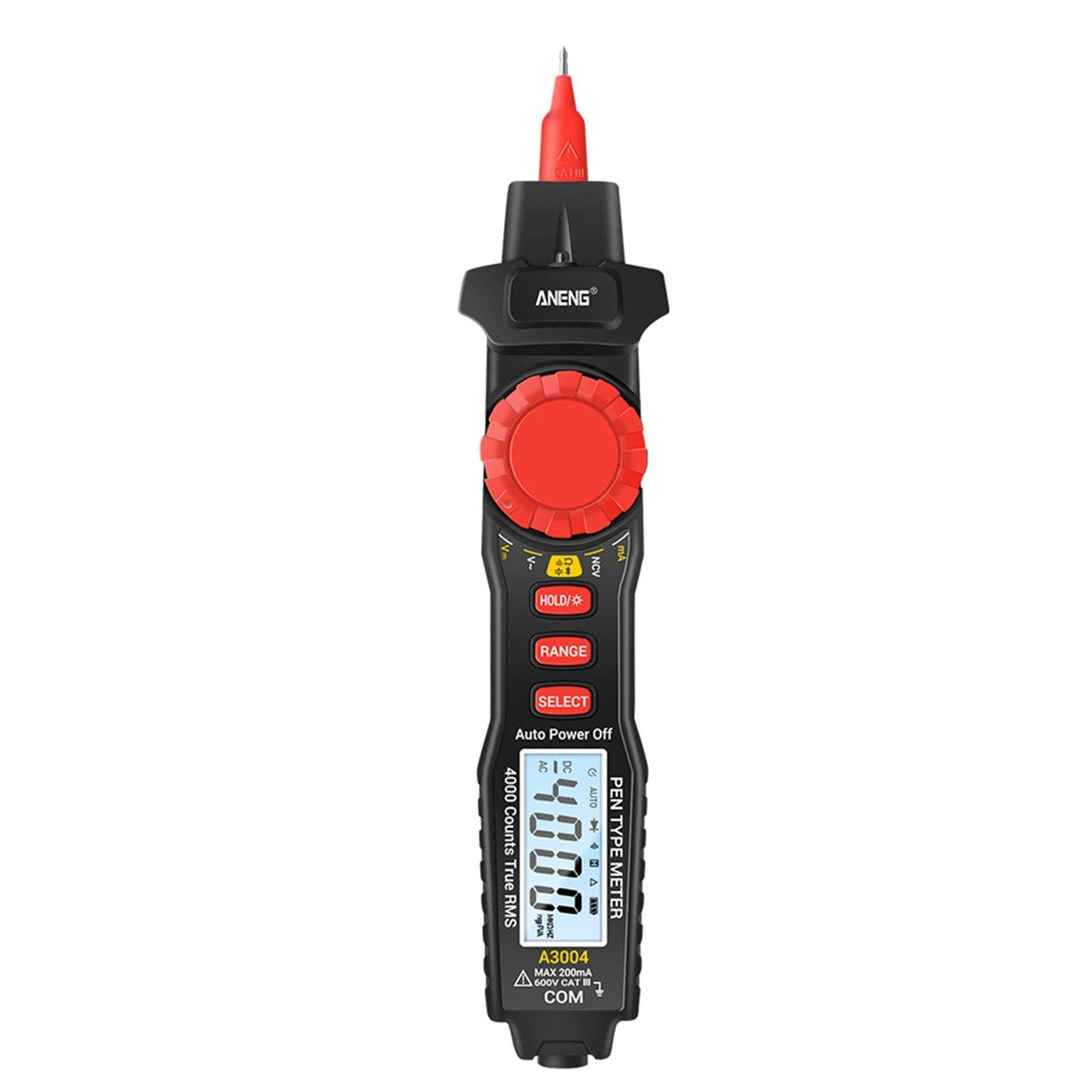

ANENG A3004 Digital Pen Multimeter

Discover precision and convenience with the ANENG A3004, a 4000 Counts Auto Range Pen Type Digital Multimeter. Equipped with advanced features including NCV, AC/DC Voltmeter, Ammeter, and Ohmmeter functions, this tool also tests resistance, capacitance, and live wires. The multimeter features an EF Function, Continuity Buzzer Detection, and supports Data Hold.

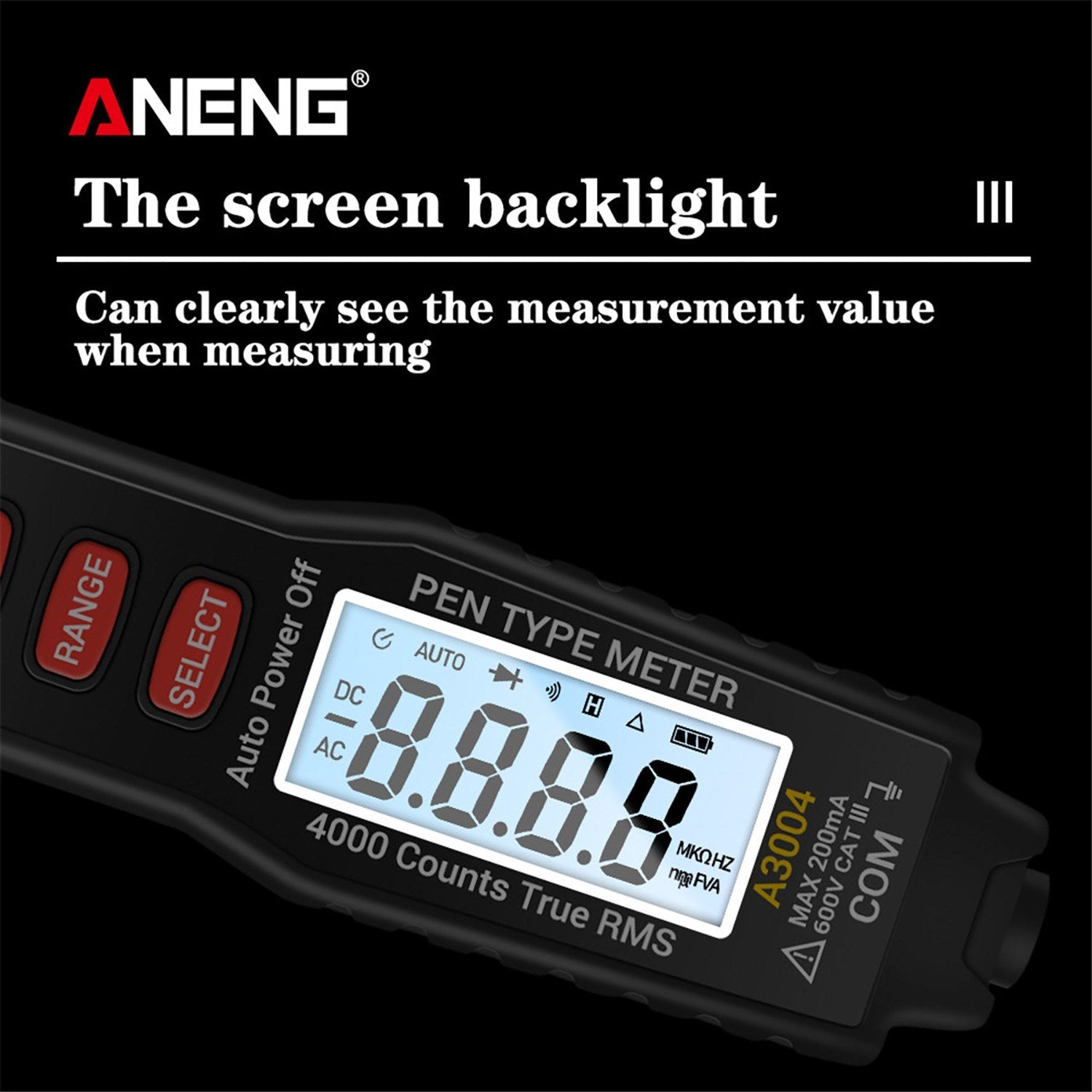

Designed with a built-in flashlight and a large backlit LCD screen, it ensures effortless reading even in dark environments. The auto-off function provides significant power savings.

Features:

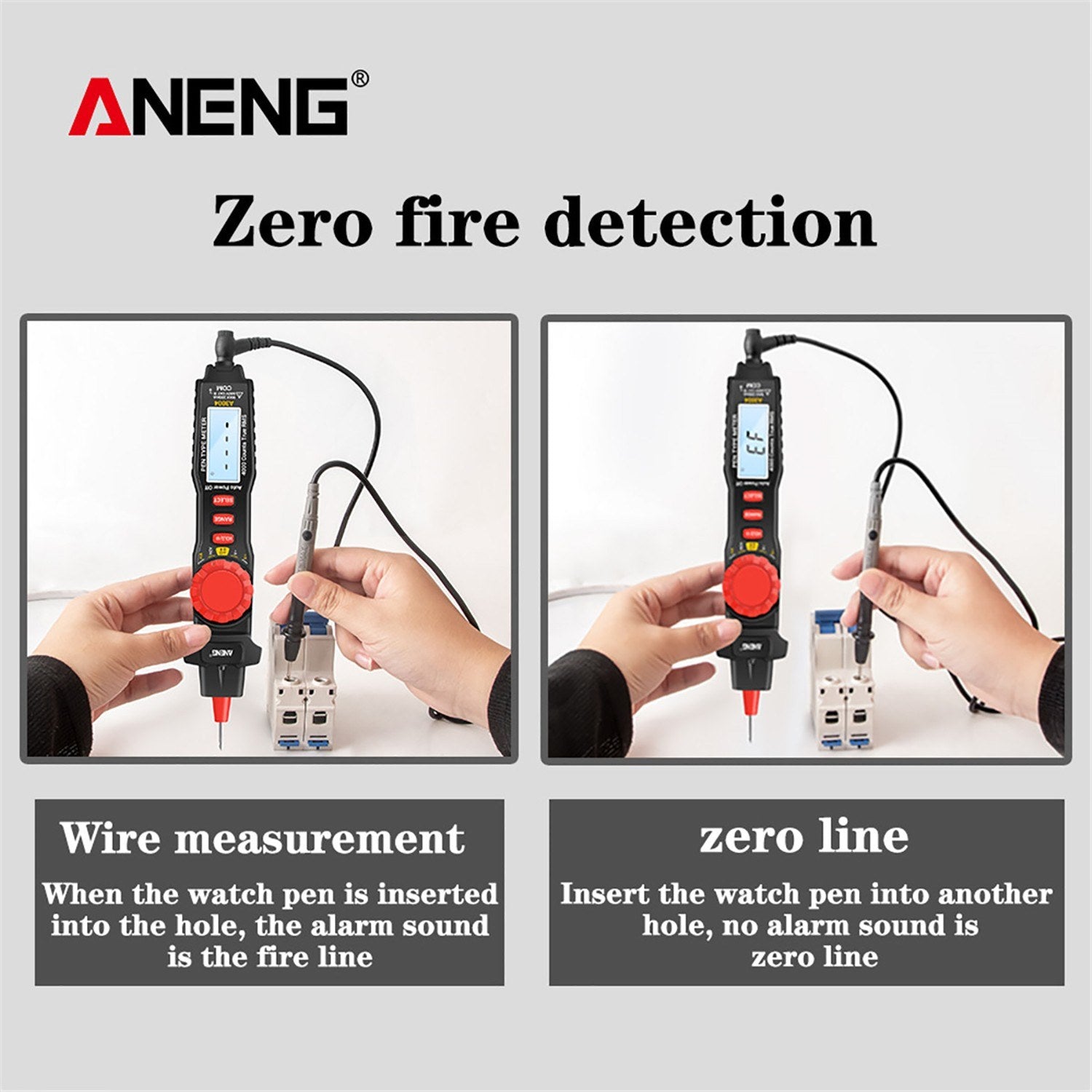

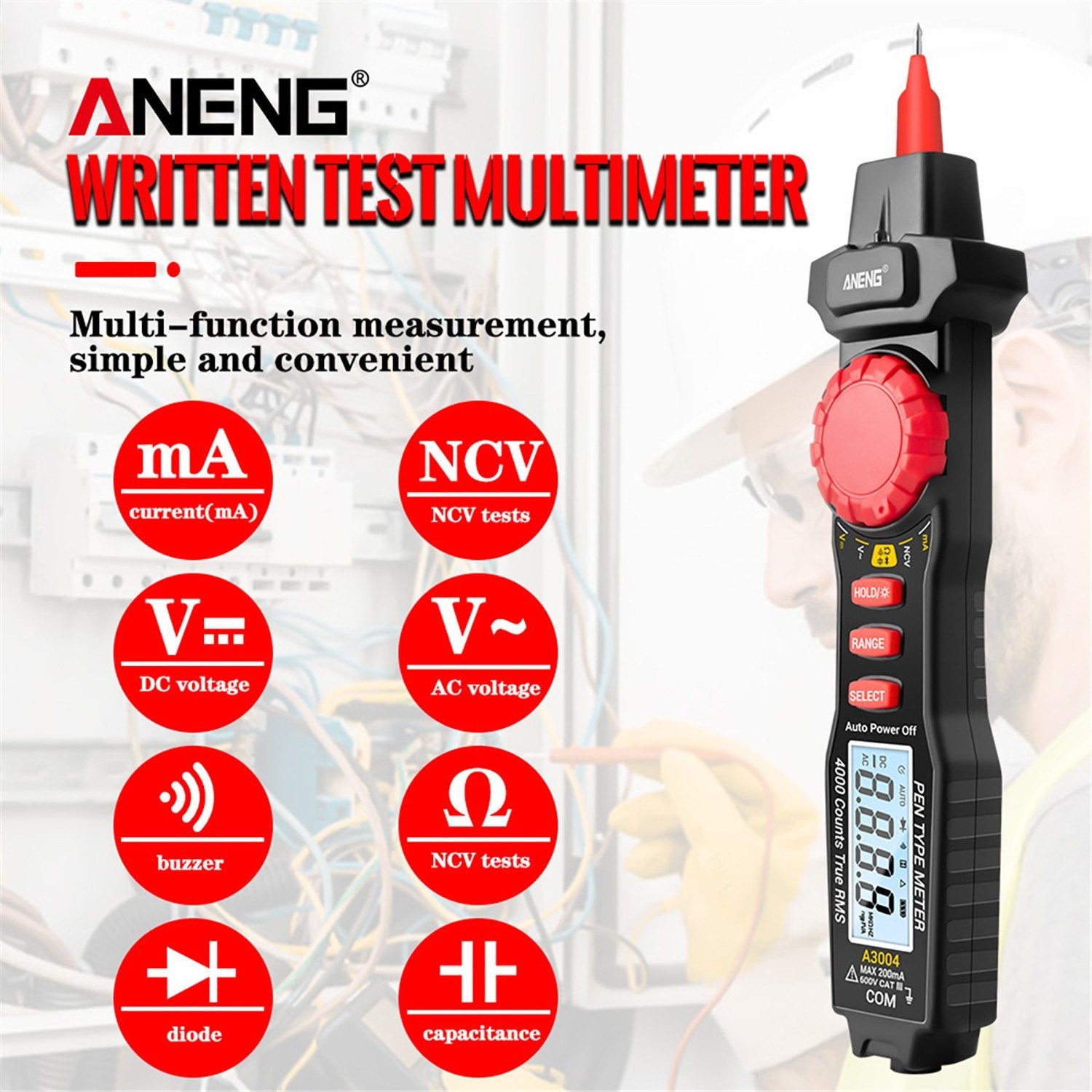

• Multifunction Pen Multimeter: Measures 4V-600V AC/DC voltage, 40mA-200mA AC/DC current, resistance from 400Ω-40MΩ, and capacitance. Includes diode measurement, continuity buzzer, and zero fire detection.

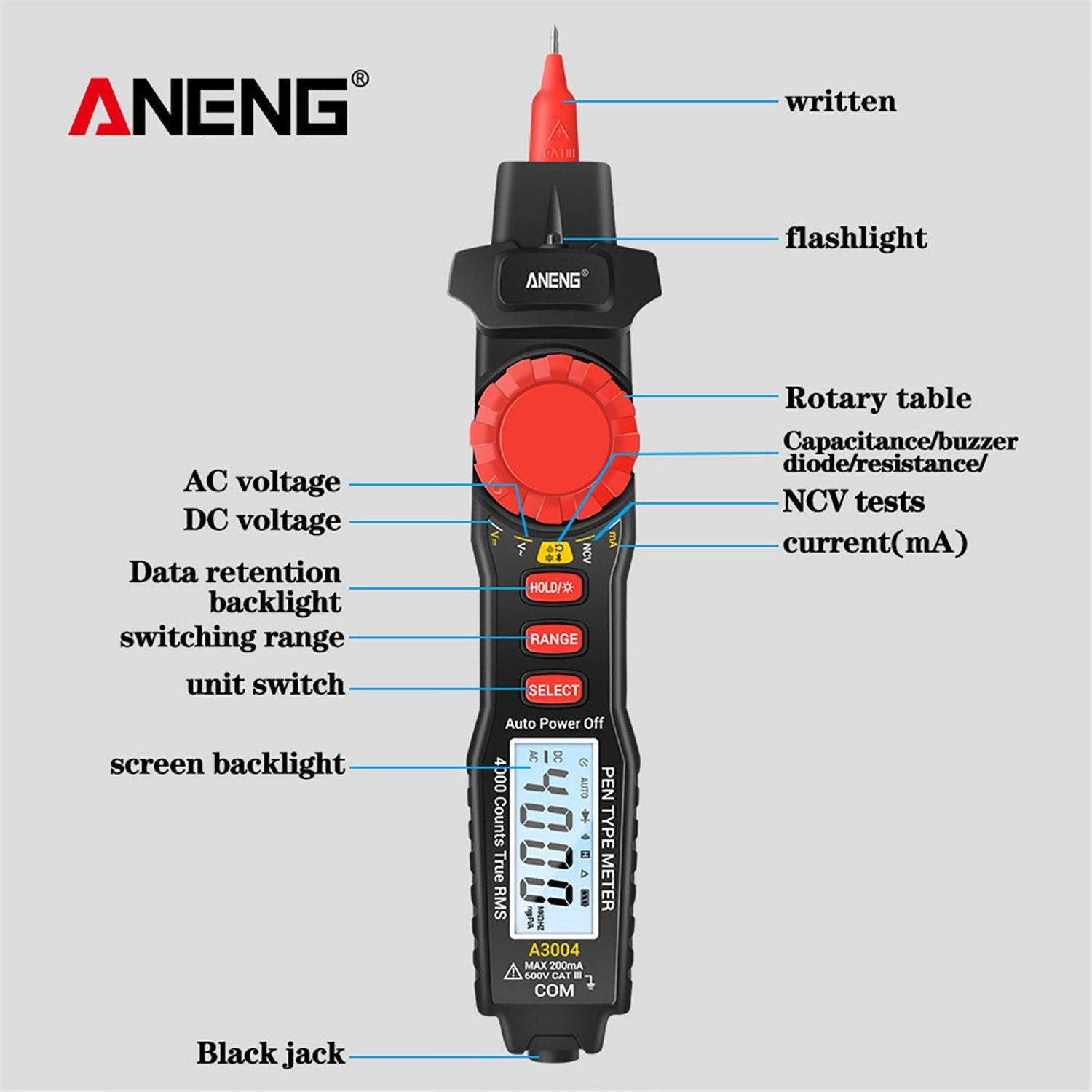

• Convenient Use: Features a 4000 count large backlight LCD screen and flashlight function for clarity in low-light situations. The data hold function allows easy data retention.

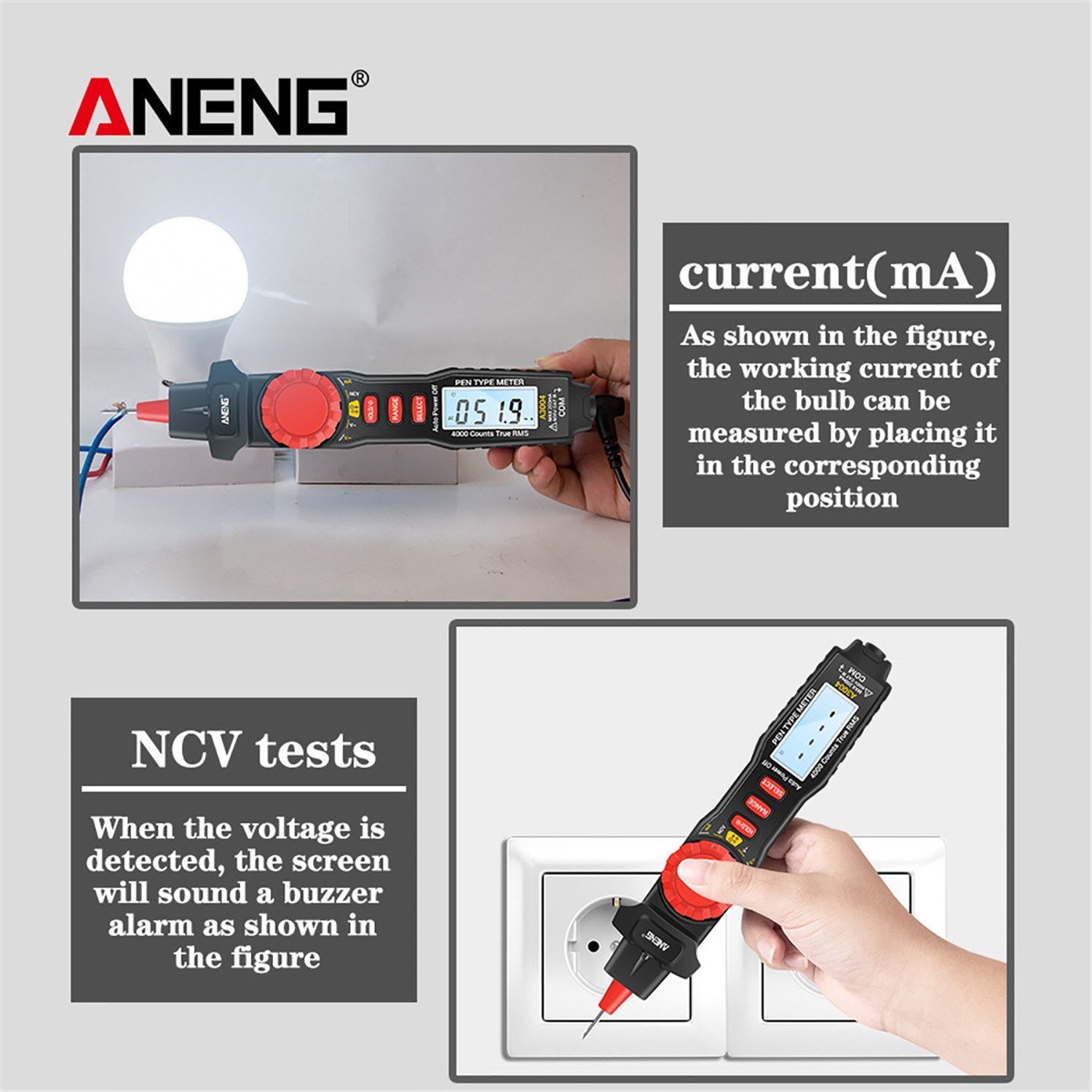

• Non-Contact Measurement: Supports NCV non-contact voltage detection, capable of distinguishing null lines from fire wires, ensuring safety and reliability.

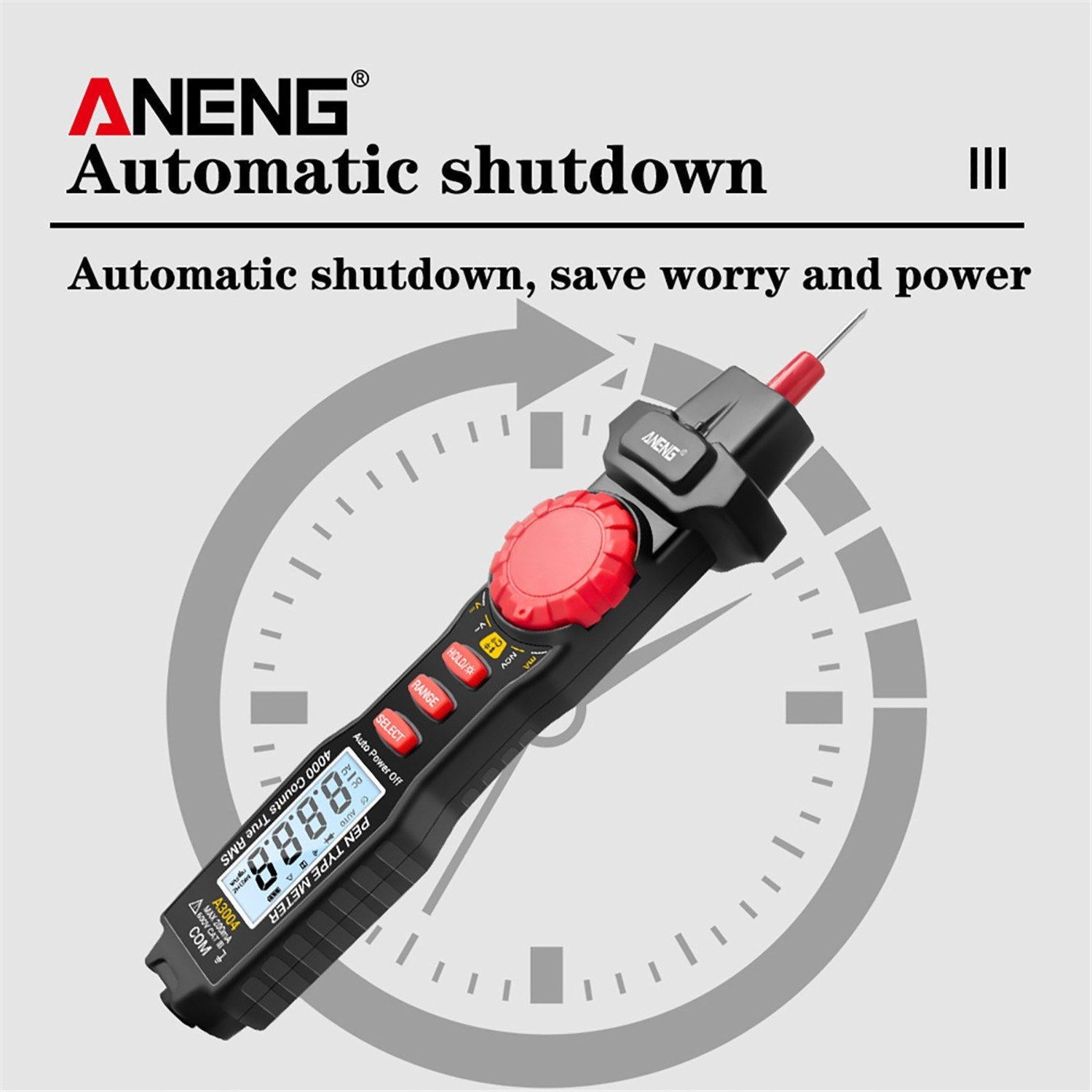

• Auto Power Off: Automatically shuts down after a period of inactivity to conserve power with low energy consumption.

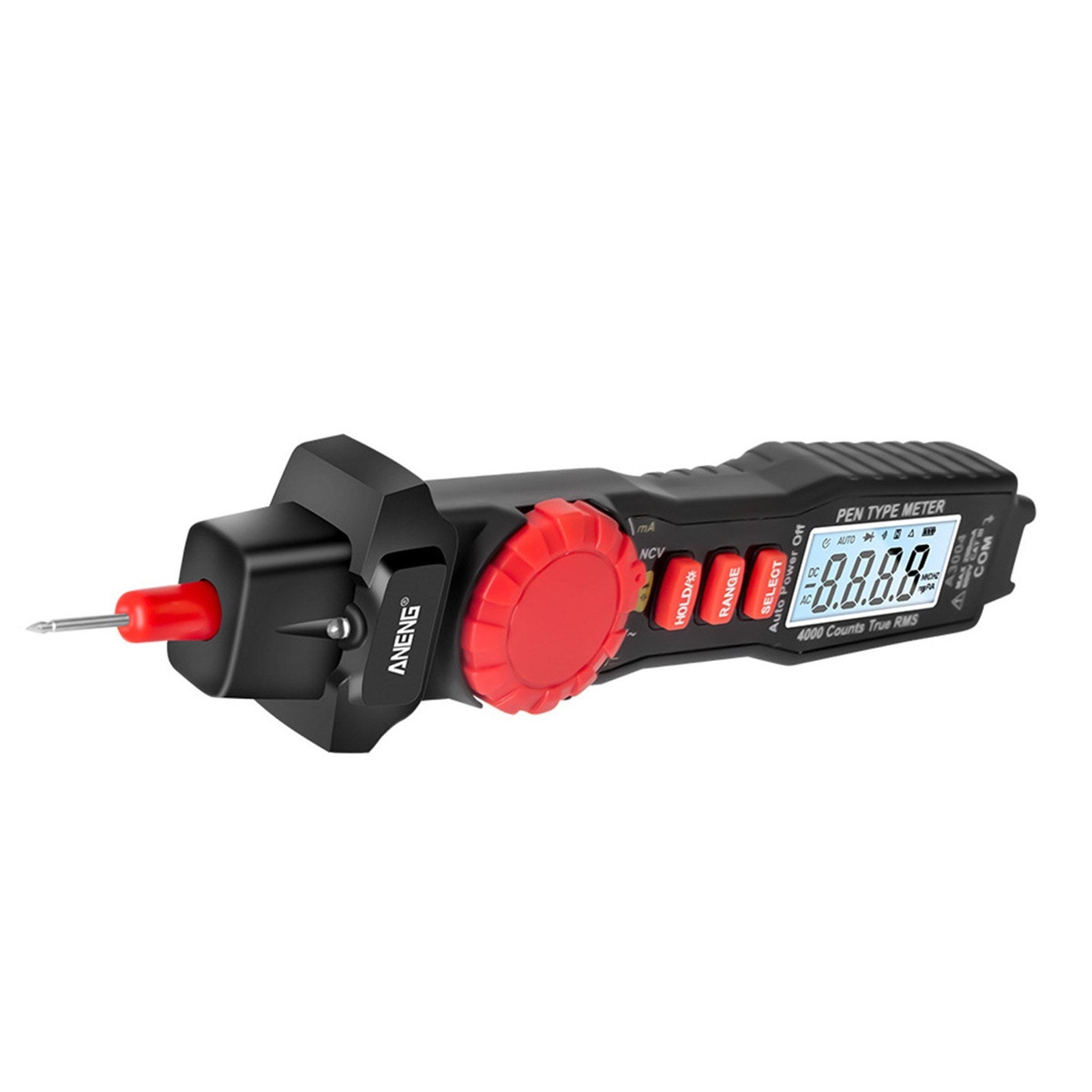

• Easy Carry: Compact pen-type design for one-handed operation, easy to carry and use, perfect for home, school, laboratory, and industrial applications.

Specifications:

• Brand: ANENG
• Color: Black
• Material: ABS + Brass + PVC
• Maximum Display: 4000 Count
• Power Supply: 2 * AAA (Not Included)
• Auto Off: Yes
• Auto Range: Yes
• LCD Screen: With Backlight
• Flash Light: Yes
• Data Hold: Yes
• EF Function: Yes
• Date Retention Function: Yes
• Buzzer Function: Yes

Measurement Capabilities:

Function	Range	Accuracy
DC Voltage	400mV	± (0.8%+5)
	4V/40V/400V	± (0.8%+3)
	600V	± (1%+3)
AC Voltage	4V/40V/400V	± (1%+3)
	600V	± (1.2%+5)
DC Current	40mA/200mA	± (1%+3)
AC Current	40mA/200mA	± (1.2%+5)
Capacitance	4nF/40nF/400nF/4uF/40uF/400uF	± (3%+5)
	4mF	± (5%+10)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	± (1.0%+5)
	40MΩ	± (1.2%+8)

Dimensions:

• Pen Length: 119mm/4.68in
• Item Size: 225.4*46.3*28.7mm/8.87*1.82*1.13in
• Item Weight: 77.5g

Note:

1. Due to different monitor and light effects, the actual color of the item may vary slightly from the pictures shown.
2. Please allow a 1-2cm measurement deviation due to manual measurement.

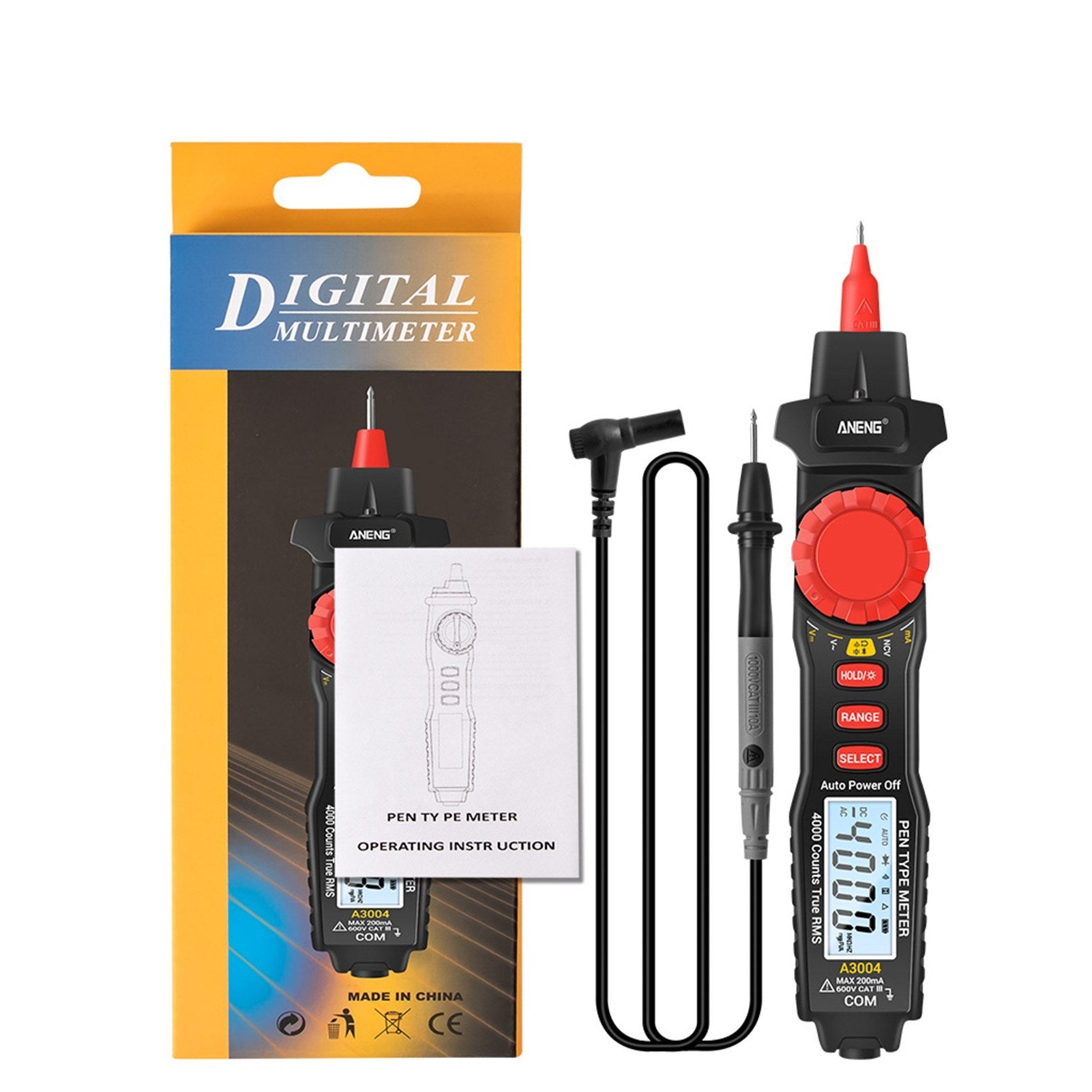

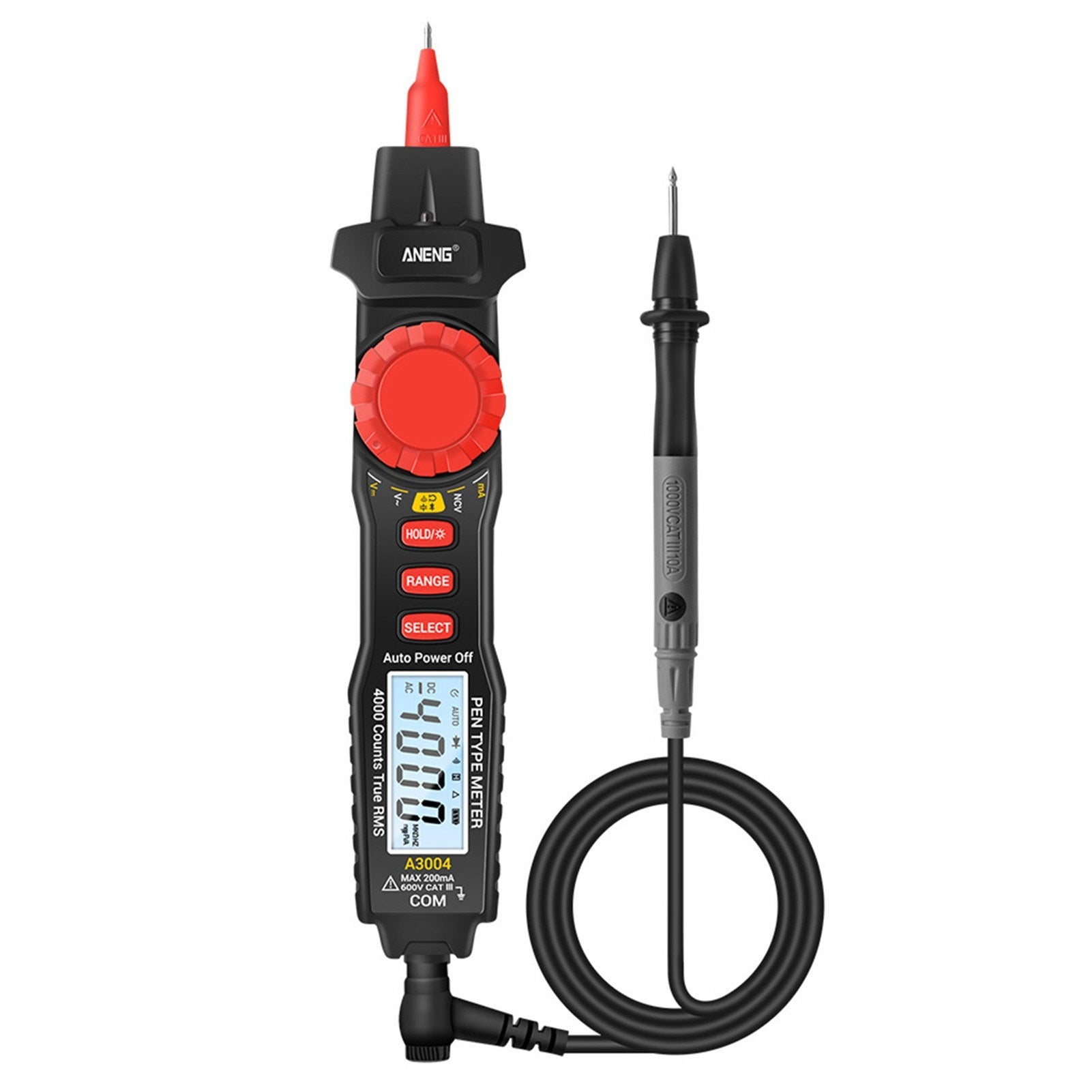

Packing List:

• 1 * Pen Type Digital Multimeter
• 1 * Pen Lead
• 1 * User Manual
