FNIRSI Multi-Purpose Transistor Tester & LCR Meter - 128x160 Display, Diode, Thyristor, Capacitance, Resistor, Inductance, MOSFET, ESR Analysis

Package Includes:

• 1 x Transistor Tester (battery not included)

Models Available:

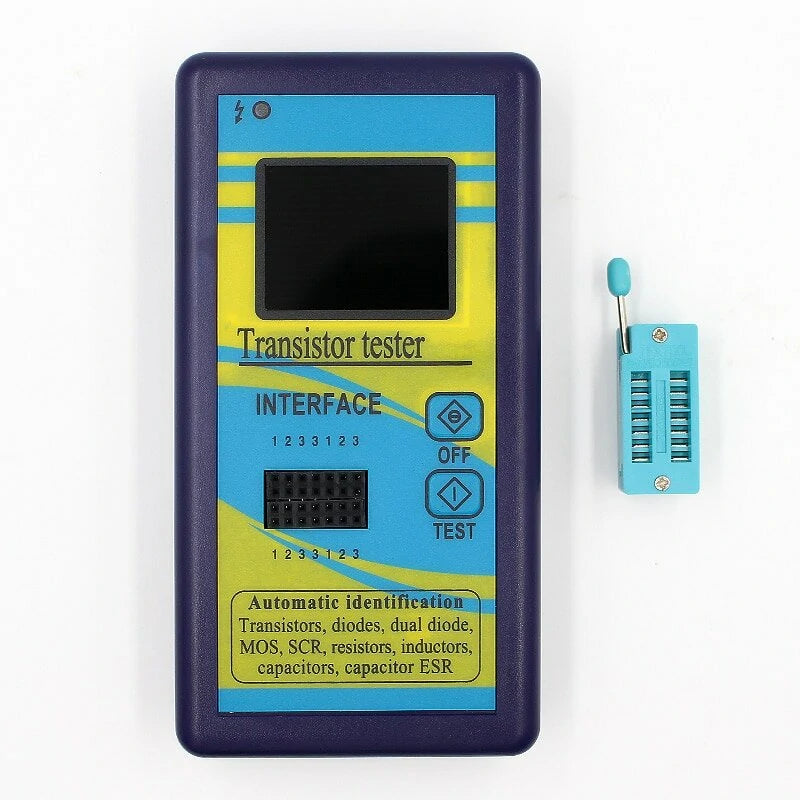

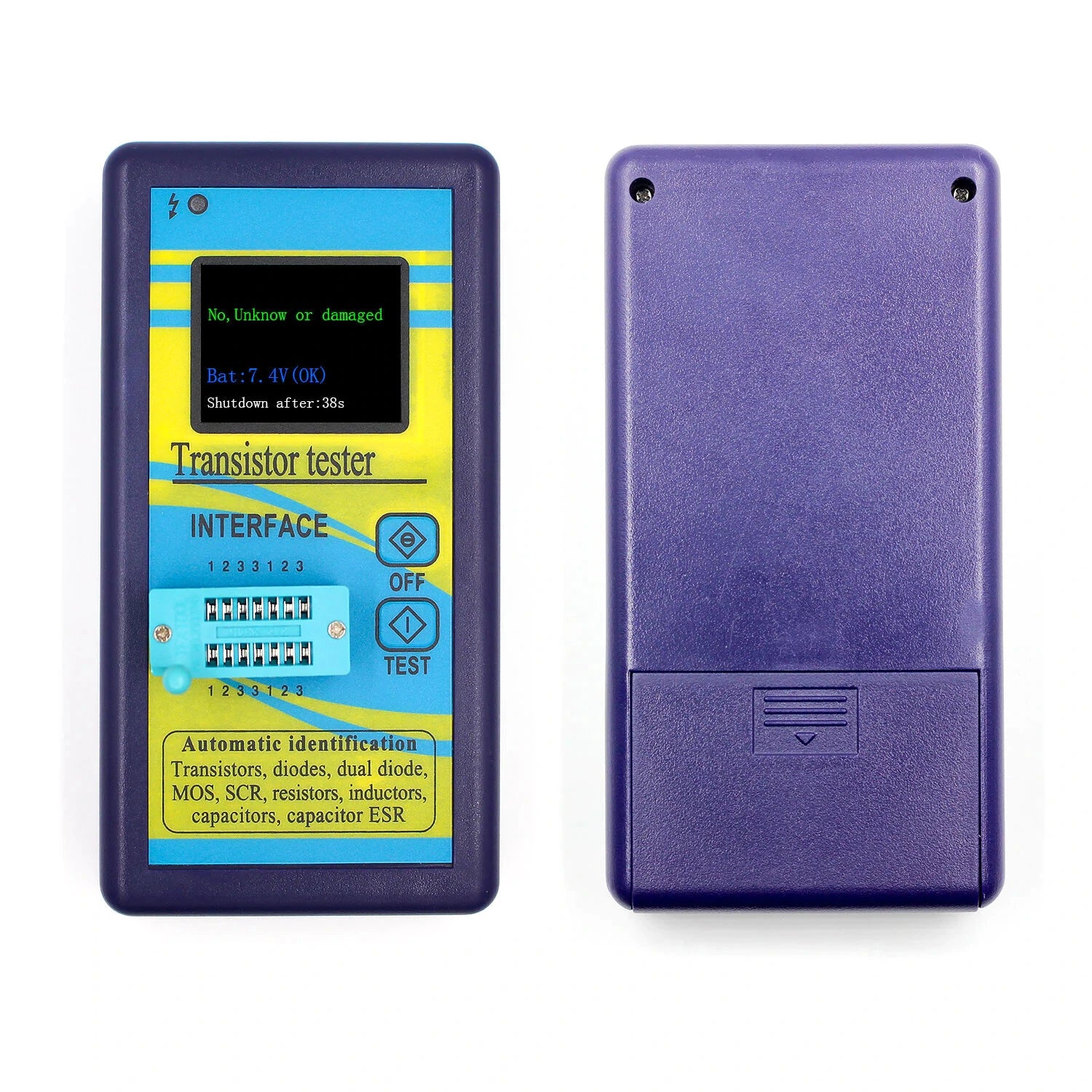

• Model 1: Case Color: Colorful

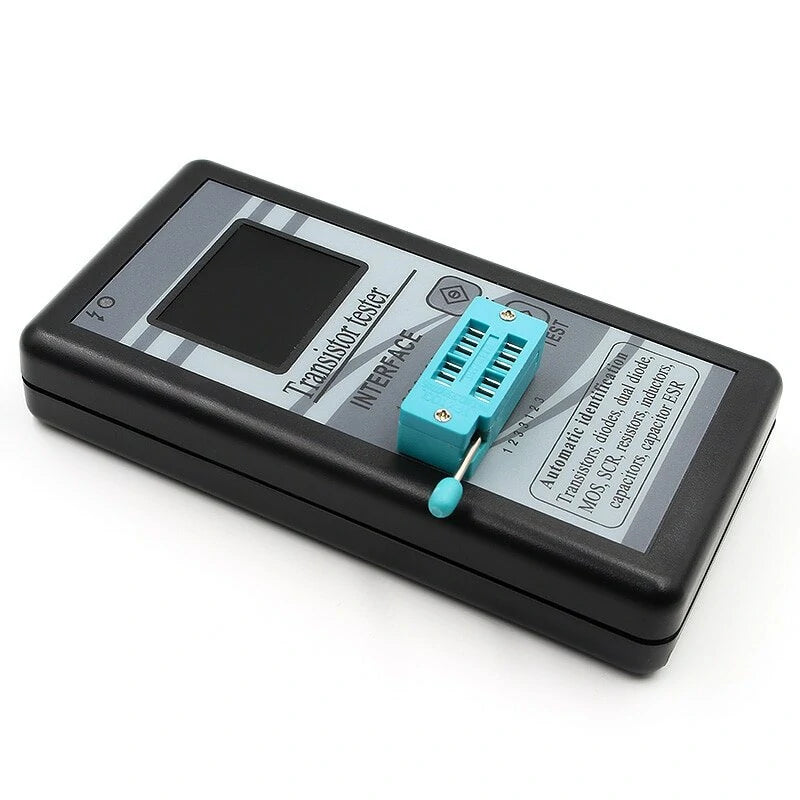

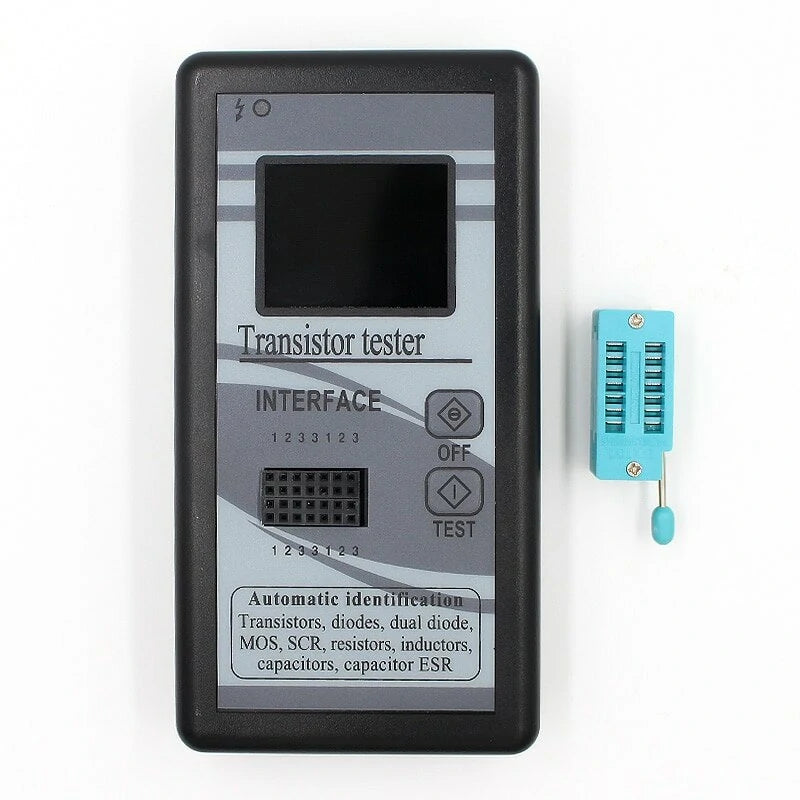

• Model 2: Case Color: Gray

Key Features:

• 128 x 160 TFT color display for easy readings, displaying both measured data and graphics
• Powered by a 9V battery (not included)
• Compact and portable with all components protected by a plastic case
• Automatically detects NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors, and other devices
• Displays test results and pin configuration on the LCD
• Measures gate threshold voltage and gate capacitance of MOSFETs
• Evaluates bipolar transistor current amplification factor and base-emitter threshold voltage
• Easy two-button operation with automatic shutdown to conserve battery life
• Quick detection time: Only 2 seconds (note: checking large capacitors may take up to 1 minute)

Notice: Ensure capacitors are fully discharged before testing.

Specifications:

• Case Color Options: Gray/Colorful
• Display: 1.8" TFT color display
• Material: PCB, Plastic
• Shutdown Current: 20nA
• Resistor Test Range: 0.5Ω – 50MΩ
• Inductor Test Range: 0.01mH – 20H
• Capacitor Test Range: 25pF – 100,000uF

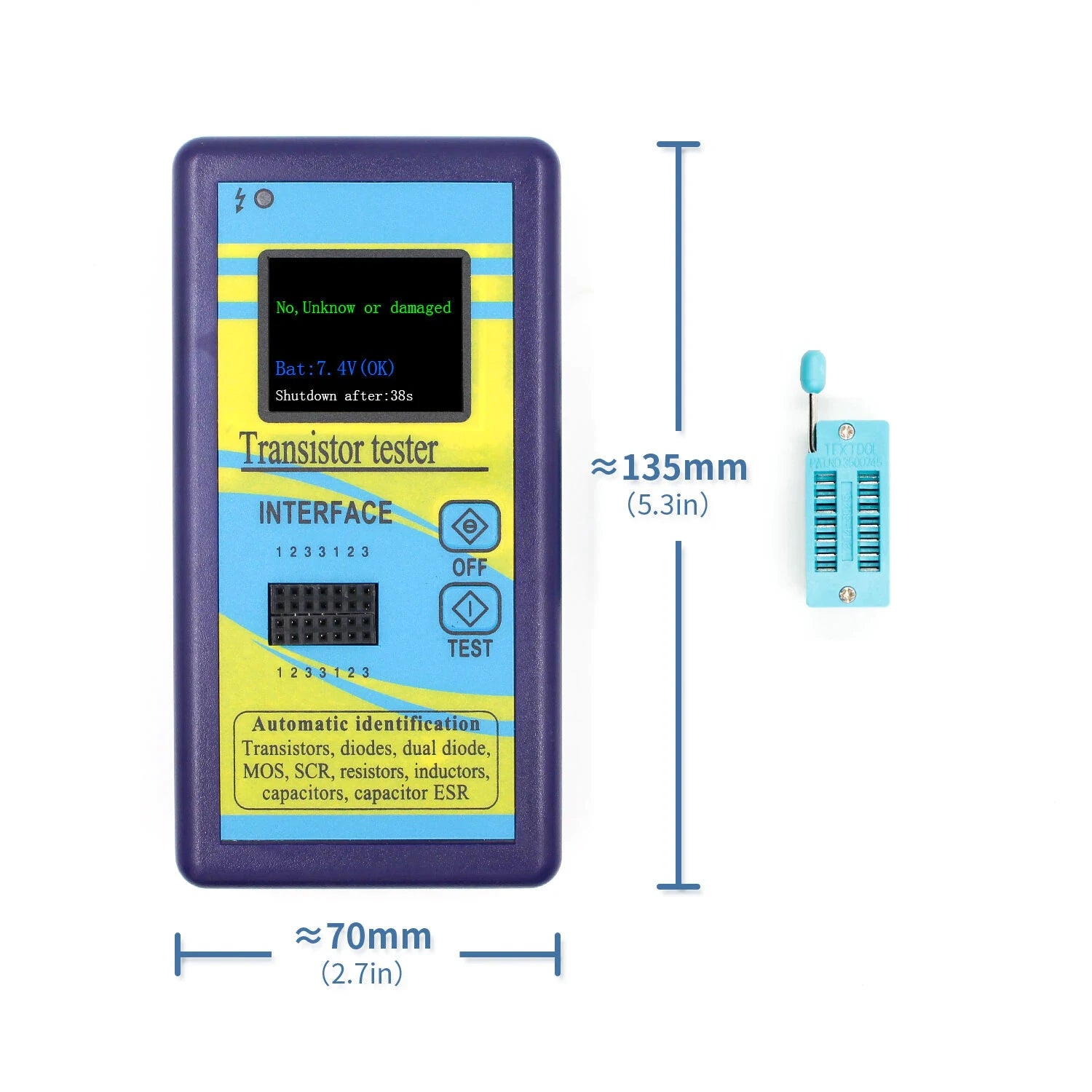

• Item Dimensions: 13.5 x 7 x 2.2 cm (5.3 x 2.76 x 0.86 in)
• Item Weight: 99 grams (3.5 oz)
• Package Dimensions: Approx. 16 x 8 x 2.5 cm (6.3 x 3.15 x 0.98 in)
• Package Weight: 102 grams (3.61 oz)
