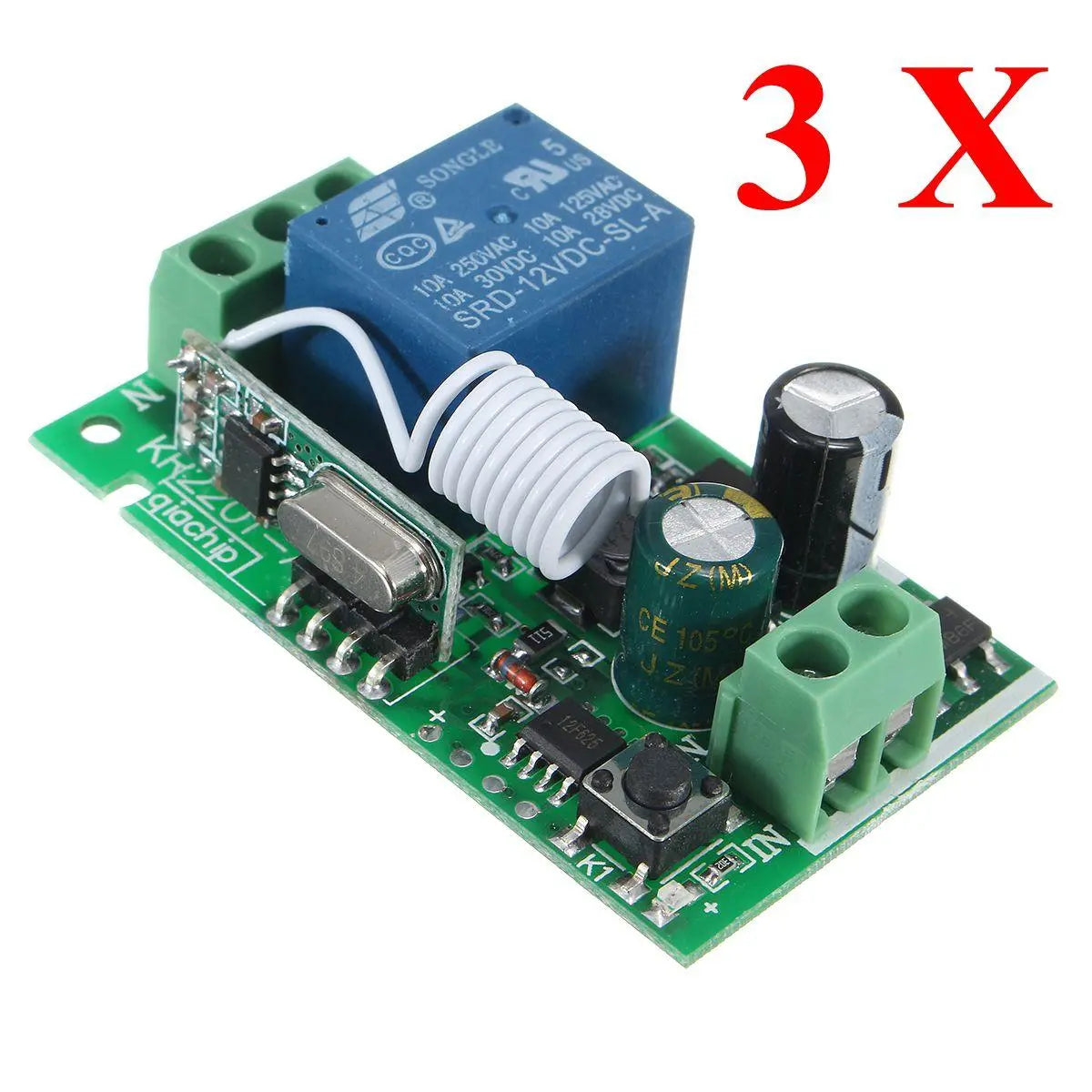

3PCS 315MHz 220V 10A 1-Channel Wireless Relay Remote Control Switch Receiver

Product Compatibility

To ensure this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 matching vehicle.

This part is not compatible with:

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specifications

• Input Voltage: AC85V-AC220V
• RF Frequency: 315MHZ
• RF Working Mode: Super heterodyne receiver
• Receiver Sensitivity: -107dBm
• Remote Control Distance: Over 100 meters (in open environment)
• Decoding Way: MCU Software decoding
• Store Capacity: Up to 32 remote controls
• Remote Control Type Compatibility: Fixed code, learning code
• Channel: 1CH
• Multiple Working Modes: Jog/Non-Latched, Inter-lock/Latched, Self-lock/Self-Latched
• Wiring Method: Fixed wiring terminal
• Rated Load: 10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC
• Dimensions: 5.4cm x 3.1cm x 1.4cm

Working/Output Methods

Jog/Non-Latched

Press a button to switch ON/Working. Release to switch OFF/Stop. One channel switch requires one button on the remote control.

Self-lock/Self-Latched

Press a button once to switch ON/Working. Press again to switch OFF/Stop. One channel switch requires one button on the remote control.

Inter-lock/Latched

Press one button to switch ON/Working. Press a different button to switch OFF/Stop. One channel switch requires two buttons on the remote control.

Clear & Learn Code

Clear Function

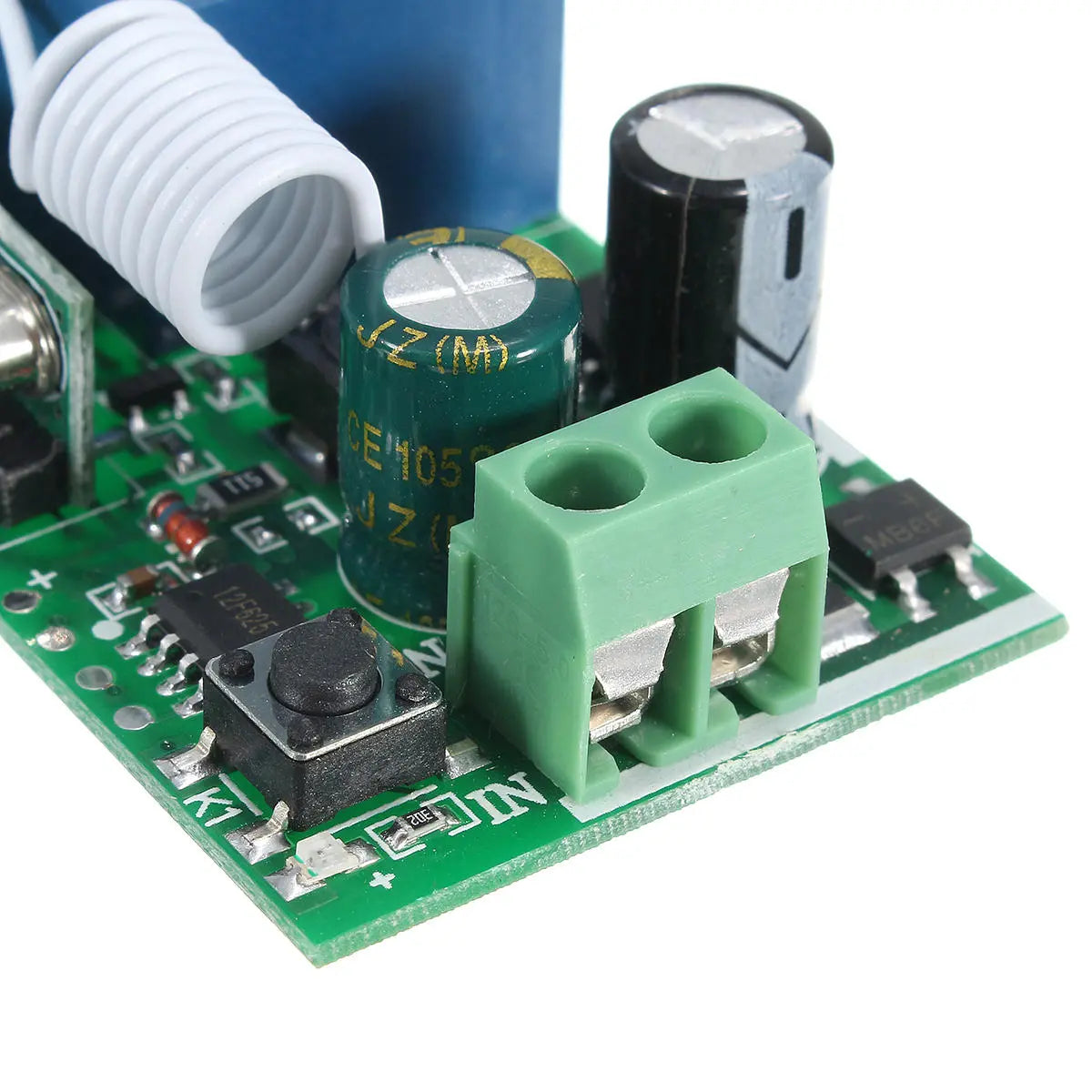

Press the "KEY" button 8 times to clear all remote control data. The LED flashing 5 times indicates completion.

Learning Function

Press the "KEY" button. When the LED lights up, press the desired button on the remote. The LED flashing 3 times indicates a successful code match.

LED Flash Indications

• 1 Flash - Jogging function
• 2 Flashes - Self-locking function
• 3 Flashes - Inter-lock function

Note

Before initial use, clear both the factory code and the remote control code.

Package Includes

• 1 x 220V 1 Channel Wireless Relay Switch
