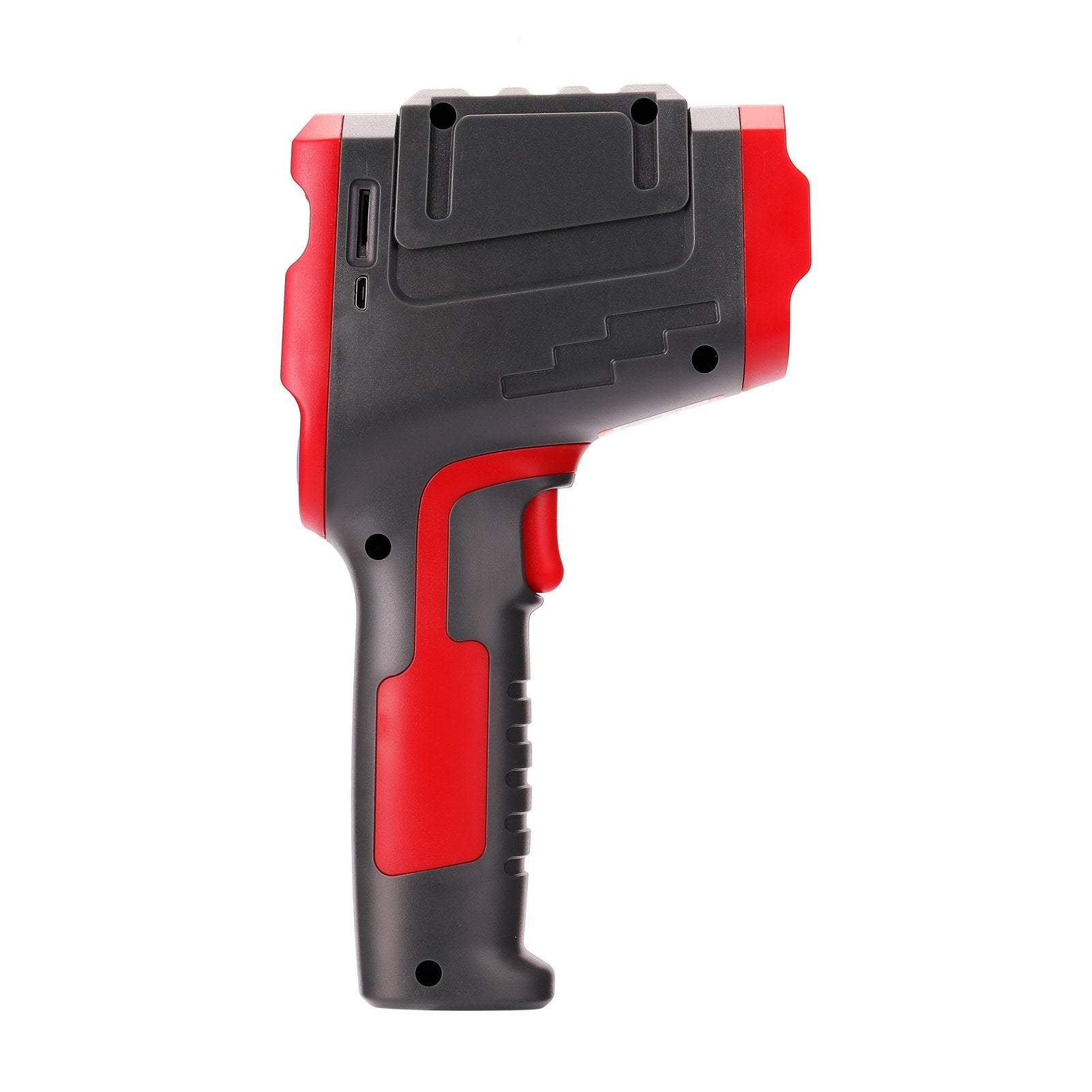

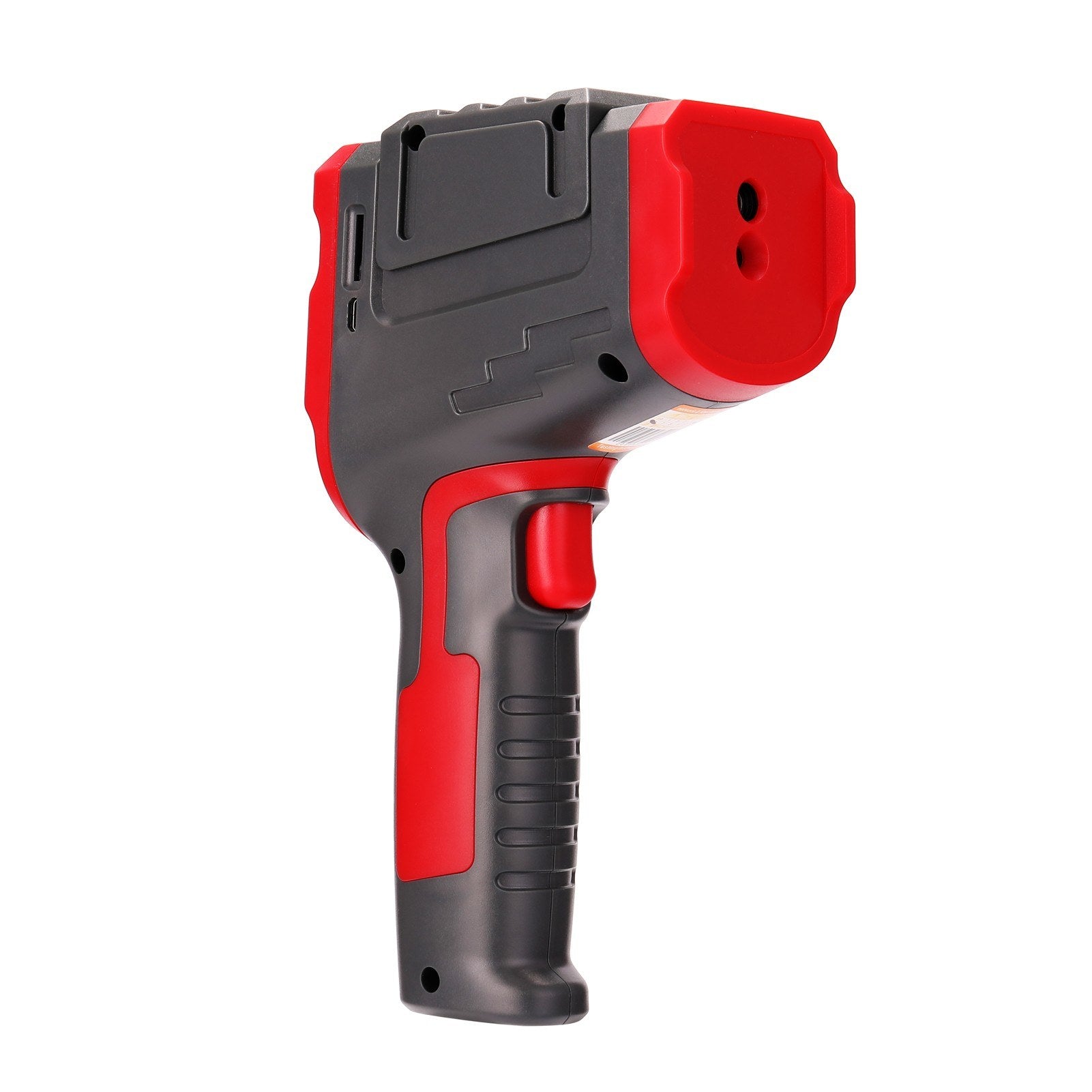

NF-521 Thermal Imager

Introducing the NF-521, a cutting-edge thermal imager designed to enhance your ability to monitor temperature changes effectively. With its thermal imaging function, the NF-521 identifies hot and cold spots, enabling you to quickly pinpoint target areas. Capture and store high-quality infrared images using the standard 8GB memory card, making it an indispensable tool for fault maintenance.

Key Features:

• High Resolution: Combine visible light with 2 million pixels and see clearly with 1024 thermal imaging pixels.

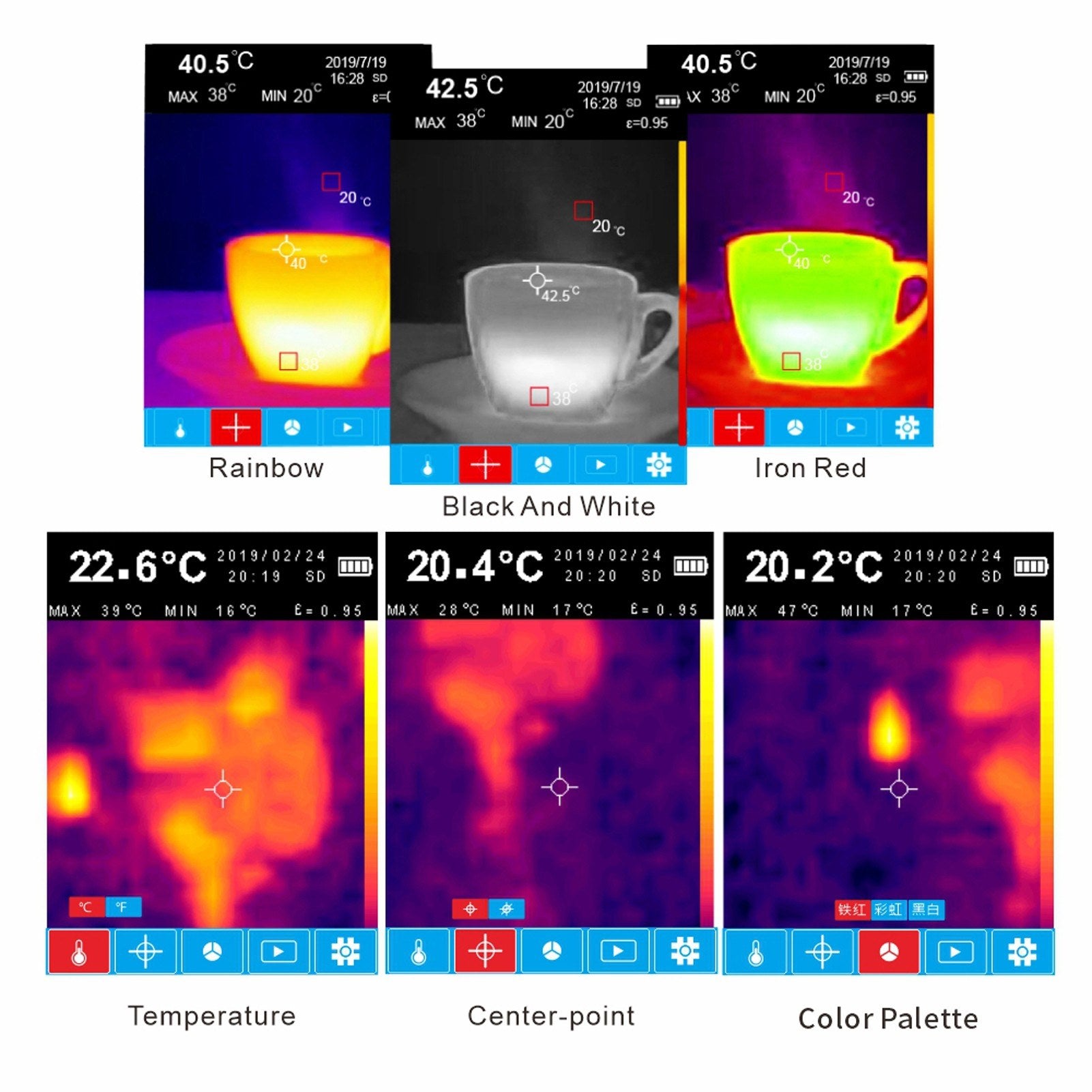

• Three Color Imaging Modes: Choose from iron red, rainbow, or grey color palettes to highlight object details effectively.
• Dual Image Fusion: Utilize contour line and thermal imaging fusion, as well as visible light and thermal imaging fusion.
• Versatile Visual Mode Switching: Compare two measurement diagrams to efficiently locate fault points, perfect for electricians and maintenance technicians.
• Ample Image Storage: The included 8GB mini memory card provides extensive storage for various measurement images.
• Quick Image Access via USB: Easily view and export captured images by connecting the device to a computer.

Specifications:

Technical Indexes:

• Infrared Temperature Measurement:
• Measurement Range: -10~400℃
• Basic Accuracy: ±2% or ±2.0℃
• Emissivity: Adjustable 0.1~0.99
• Measuring Resolution: 0.1℃
• Response Time: 150ms
• Spectral Band: 8~14μm

Thermal Imaging Technique:

• Resolution: 32x32 (1024 pixels)
• Visible Light Camera: 2 megapixels
• Display Modes: Thermal Imaging, Thermal Mixing, Digital Camera
• Color Palettes: Iron Red, Rainbow, Grey
• Infrared Spectral Bandwidth: 8~14μm
• Field of View (FOV): 33° Horizontal
• Instantaneous Field of View (IFOV): 18 mrad
• Thermal Imaging Sensitivity: 150mk
• Frame Rate: ≤9Hz
• Image Format: BMP

General Parameters:

• Display Resolution: 320x240 pixels
• Battery: 3.7V, 2600mAh
• Memory Card: 8GB
• Operating Temperature: -10℃ to 45℃ / 14℉ to 113℉
• Drop Proof: 1 meter
• Main Color: Black and Red
• Main Material: Plastic
• Item Size: 210 x 120 x 60mm / 8.3 x 4.7 x 2.4in
• Package Size: 230 x 140 x 80mm / 9.1 x 5.5 x 3.1in
• Package Weight: 500g / 1.1lb

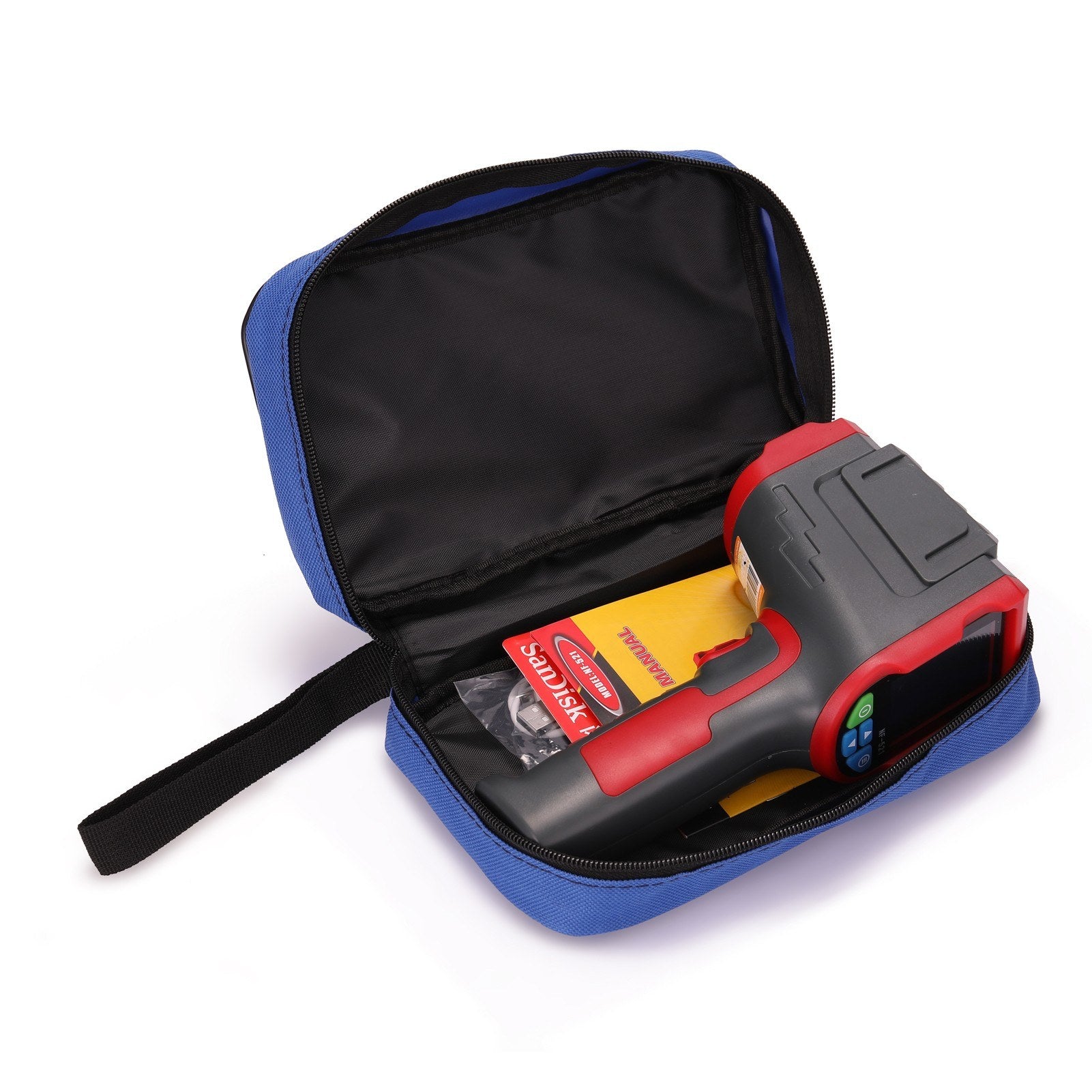

Packing List:

• 1 x Thermal Imager
• 1 x USB Cable
• 1 x Memory Card
• 1 x User Manual
