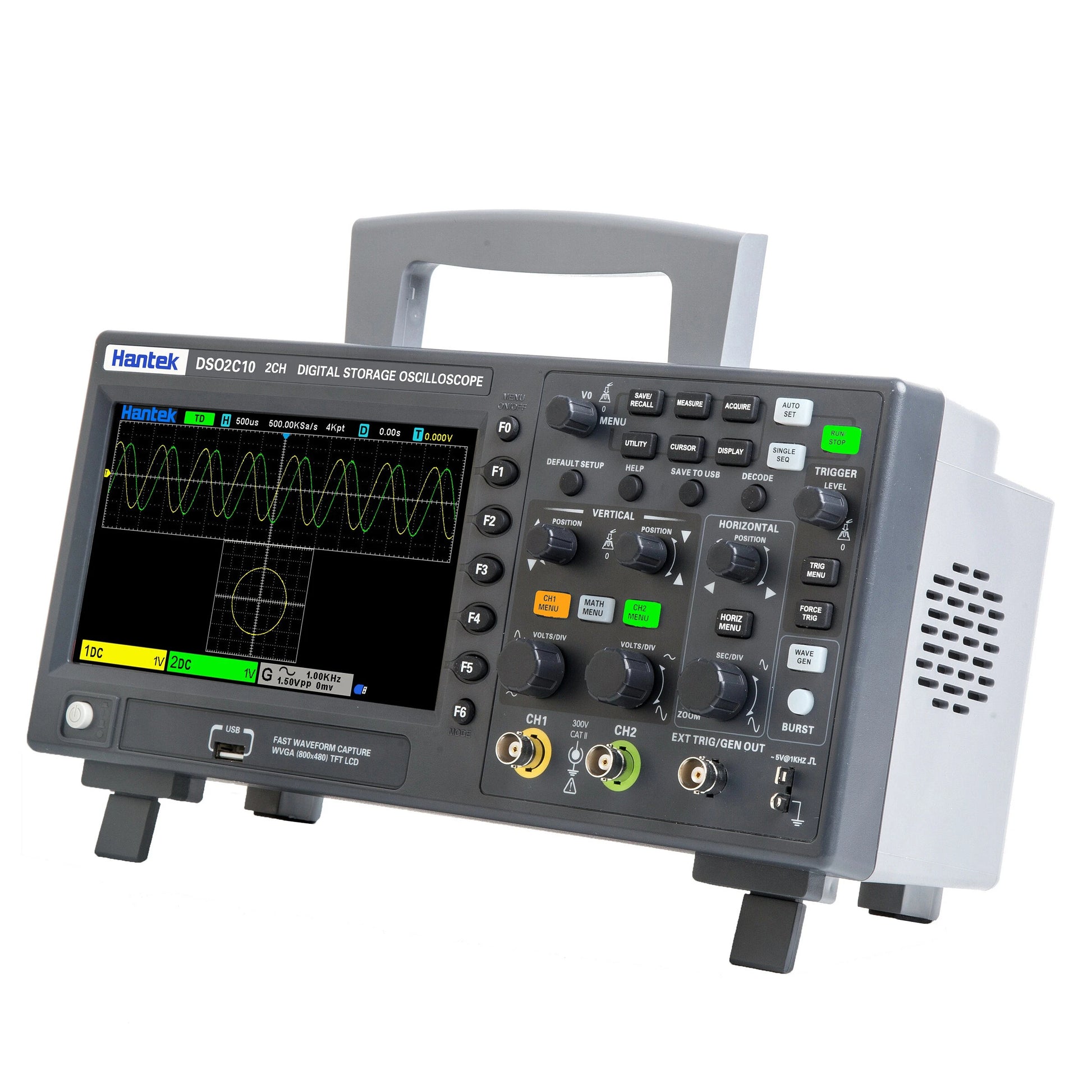

Features

• Dual channels with independent control for each.
• Analog bandwidth of 100MHz.
• Maximum sampling rate of 1 GSa/s.
• Storage depth of 8Mpts.
• Vertical range from 2mV/div to 10V/div.
• 8-bit vertical resolution.
• Advanced triggering options: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC.
• Bus decoding and protocol analysis for RS232/UART, I2C, SPI, CAN, LIN.
• Capability to save settings, waveforms, reference waveforms, CSV, pictures, and more.
• Incorporates a 3-digit digital voltmeter and a 6-digit frequency meter.

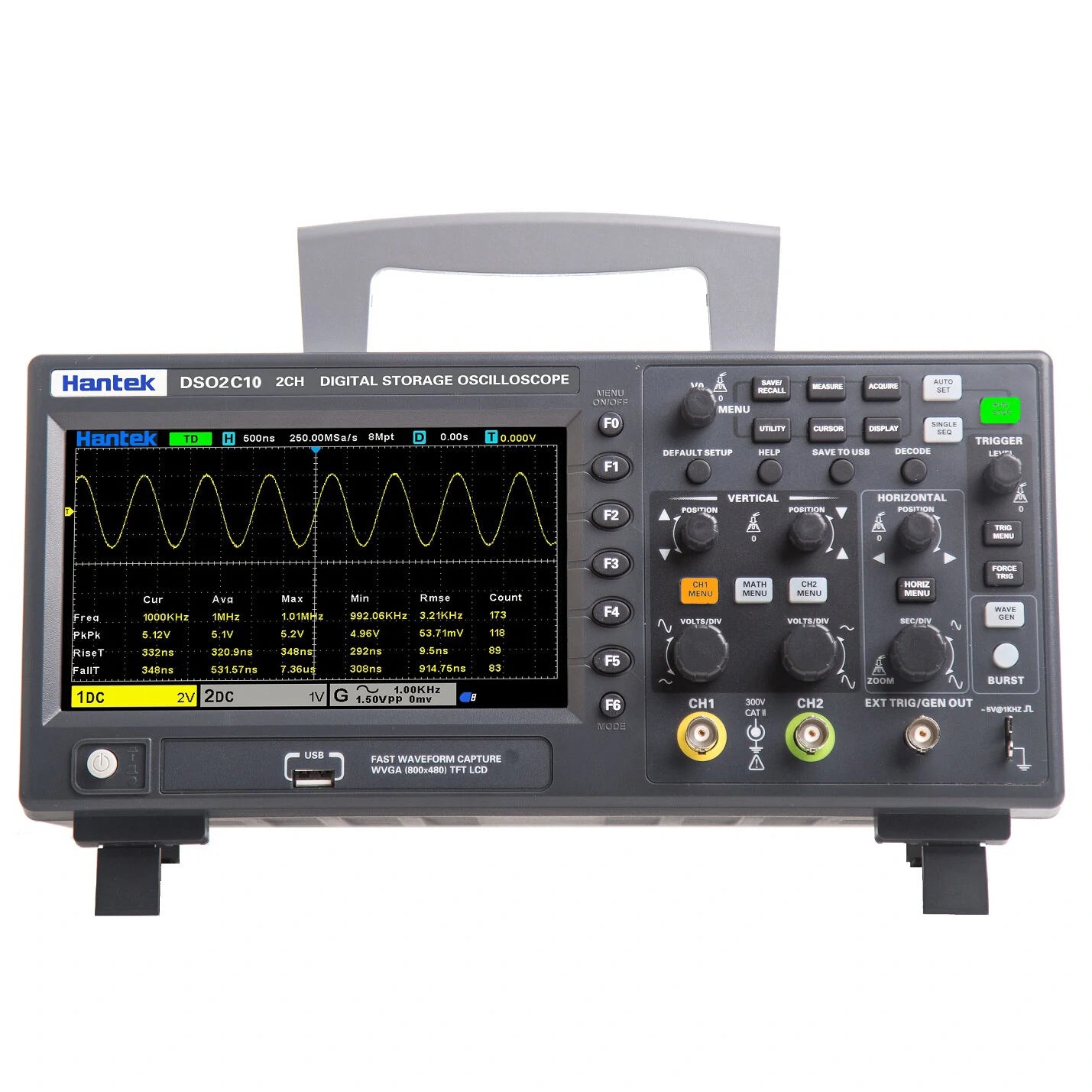

• Supports 32 automatic measurement and statistical functions, providing real-time statistics like minimum, maximum, standard deviation.
• Dual digital voltmeter functions.
• Threshold test support for screen measurement flexibility.
• Comprehensive SCPI remote control commands.

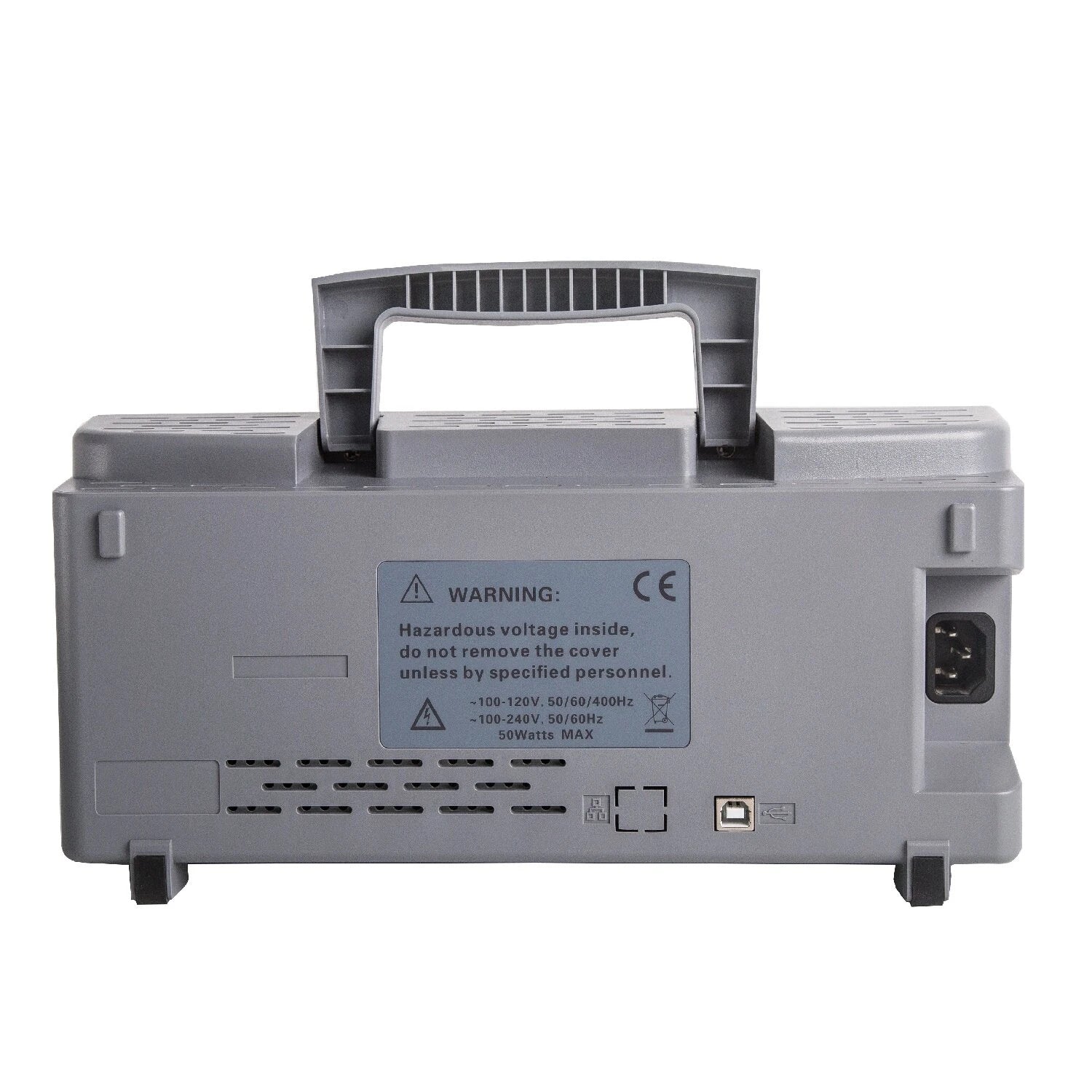

• Multiple peripheral interfaces: USB Host/Device.

Product Models

Note: Click on the model to reach the purchase link of the corresponding model

Specifications

General Specifications

• Display: 7" TFT LCD, 800x480 pixels, 16 million colors
• Standard Interface: USB Host, USB Device
• Power: 100-240VAC RMS, 45-66Hz, CAT II
• Operating Temperature: 0~50°C (32~122°F)
• Storage Temperature: -40~+71°C (-40~159.8°F)
• Humidity: ≤90% relative humidity at 104°F
• Size: 318 x 140 x 150mm
• Weight: 2900g

Performance Parameters

• Sampling Rate: Up to 1GSa/s single channel, 500MSa/s dual channel
• Vertical Sensitivity: 2mV/div to 10V/div
• Horizontal Scale Range: 2ns/div to 100s/div
• Trigger Types: Edge, pulse, video, slope, etc.
• Built-in Signal Source: Standard sine, square, pulse, triangle waves, and noise

Measurement Capabilities

Includes automatic frequency, period, peak-to-peak, RMS, minimum, maximum measurements, and more with high precision and reliability, ideal for demanding tasks.

Advanced Features

• FFT Analysis: Various windows such as Rectangular, Hanning, and Hamming.
• Protocol Decoding: RS232/UART, I2C, SPI, CAN, LIN.
• Real-time Statistical Data: Minimum, maximum, average, standard deviation.
