Mini Infrared Thermal Imaging Tool for PCB Repair – SUNSHINE TB-03S, 256x192 HD Resolution

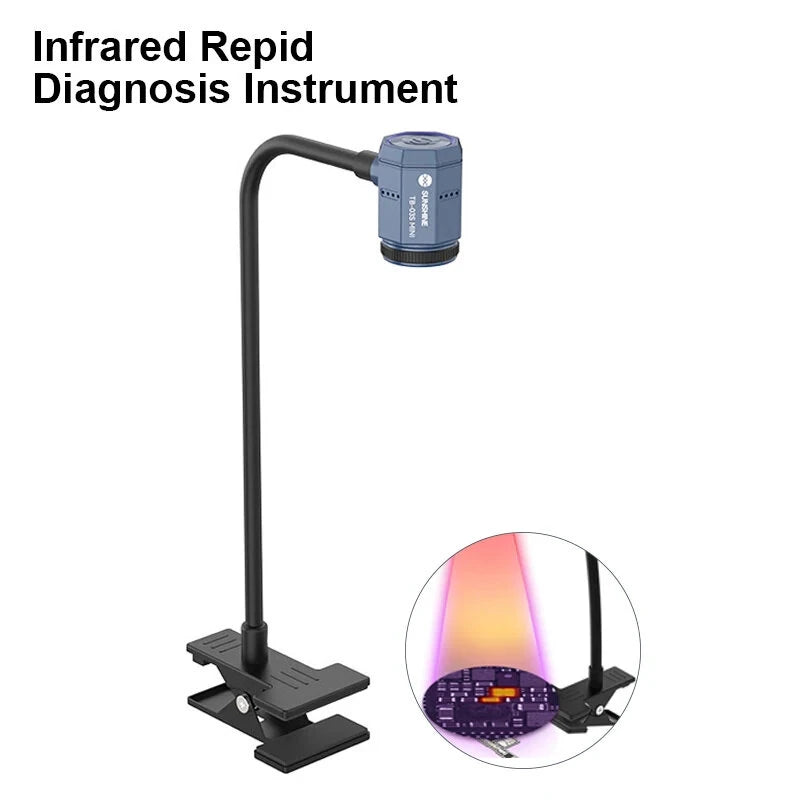

Infrared Rapid Diagnosis Instrument - Model TB-03S Mini

Specifications:

• Net Weight: 153g (Lens: 38g / Bracket: 115g)
• Lens Size: 32 x 37 x 48 mm
• Hose Length: 310 mm
• Package Size: 120 x 205 x 88 mm
• Resolution: 256 x 192
• Wavelength Range: 7.5 μm to 13.5 μm
• Camera Angle: 25° x 18°
• Display Mode: Infrared thermal imaging
• Connection Method: Type-C, USB 2.0
• Temperature Measurement Range: -20°C to 550°C
• Temperature Measurement Distance: 5 cm to 25 cm
• Support Platform: Desktop/laptop Windows 7/10/11
• Supporting Software: Supports online upgrade

Key Features:

• High-Resolution Imaging: 256 x 192 HD imaging for precise and detailed thermal diagnostics.
• Wide Temperature Range: Efficiently measures temperatures from -20°C to 550°C, suitable for various applications.
• Compact and Portable: Weighing only 153g and featuring a compact size of 32 x 37 x 48 mm for easy transport and storage.
• USB Connectivity: Equipped with Type-C and USB 2.0 interfaces for effortless connection to desktops and laptops.
• Multi-Platform Support: Compatible with Windows 7/10/11, with online upgrade support for enhanced functionality.

Package Includes:

• 1 x Lens
• 1 x Integrated Bracket
• 1 x Instruction Manual
• 1 x Certificate
