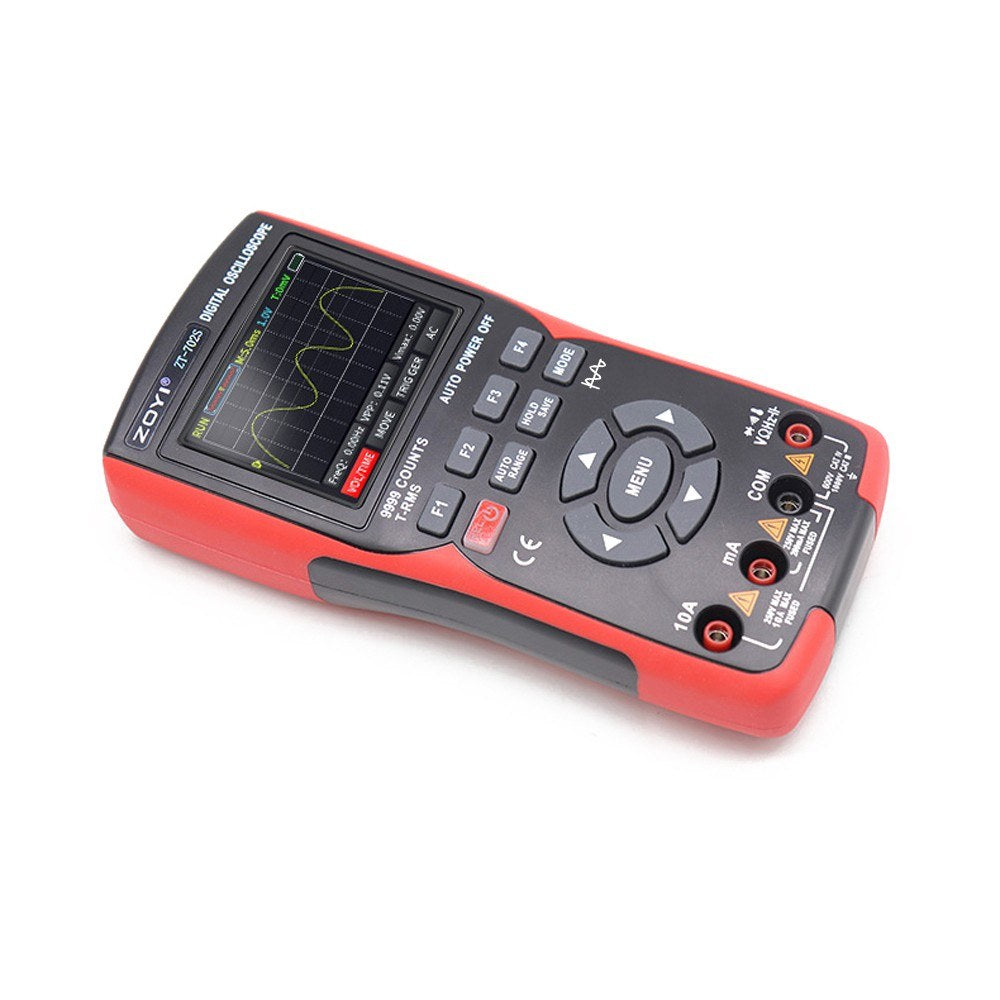

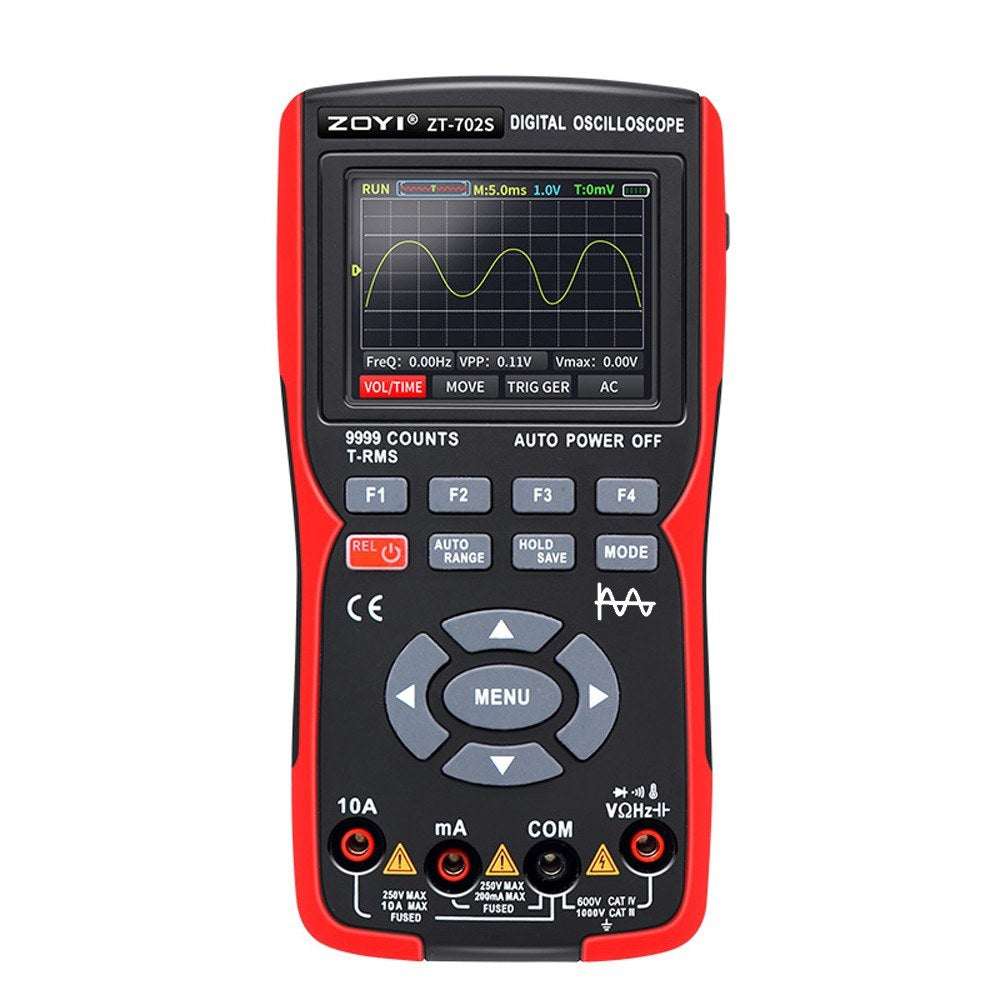

Oscilloscope Multimeter

Discover the ultimate convenience with the Oscilloscope Multimeter, which uniquely combines the functionalities of both an oscilloscope and a multimeter.

Key Features:

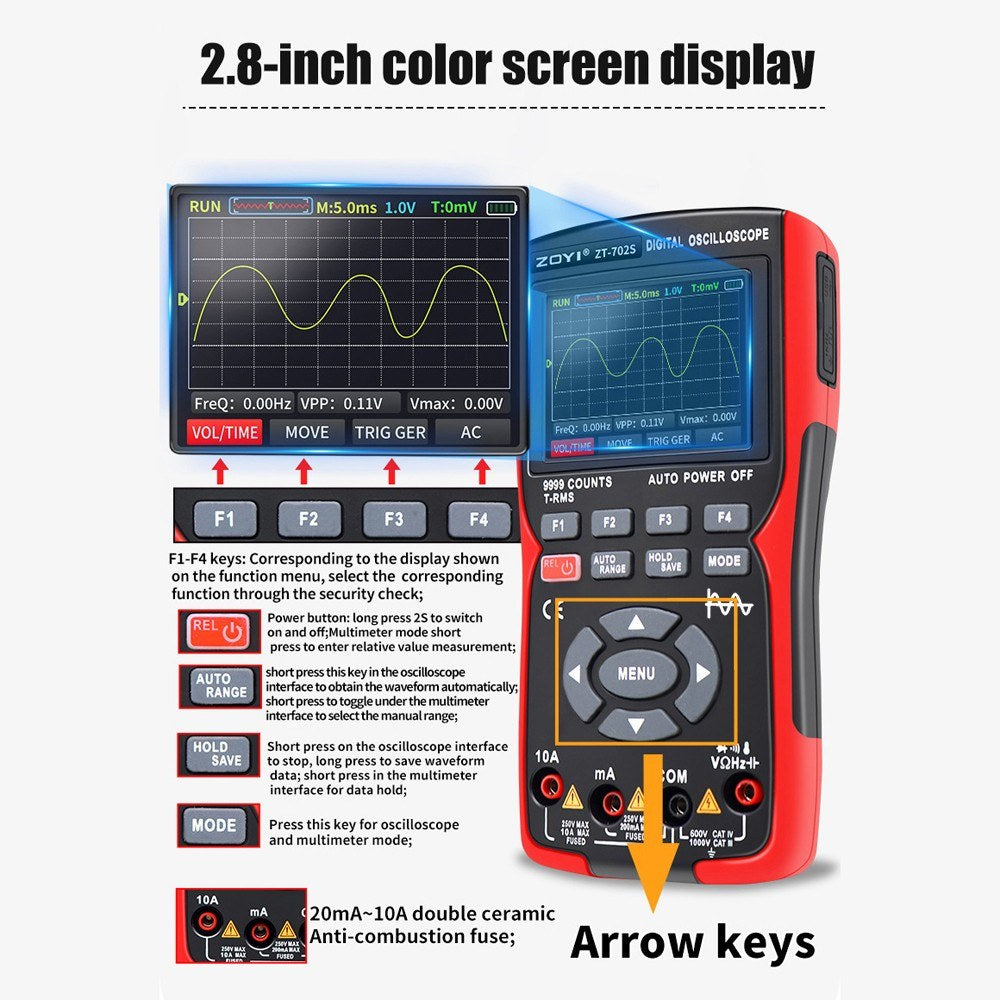

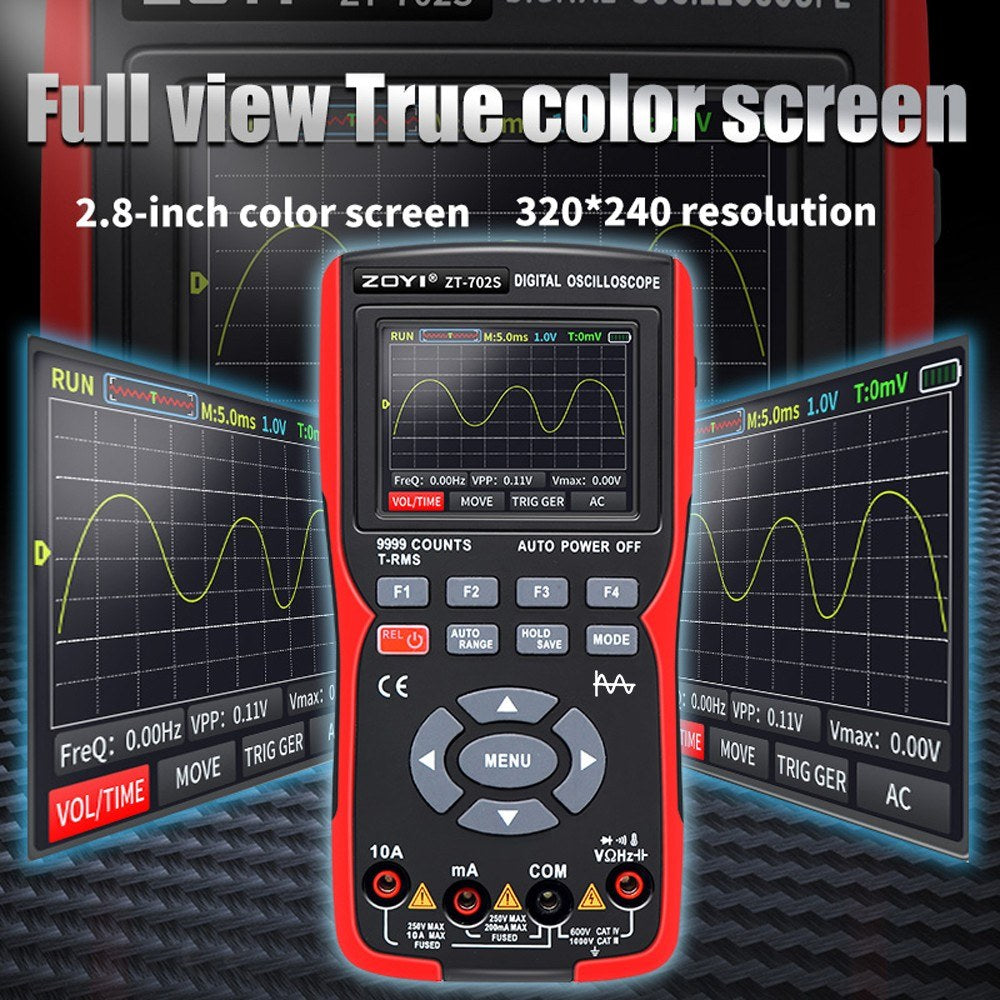

• 2.8" IPS Color Display: Experience clear and vivid readings on a 320x240 resolution screen with large fonts, ideal for a variety of measurement conditions. The brightness is adjustable for enhanced visibility.

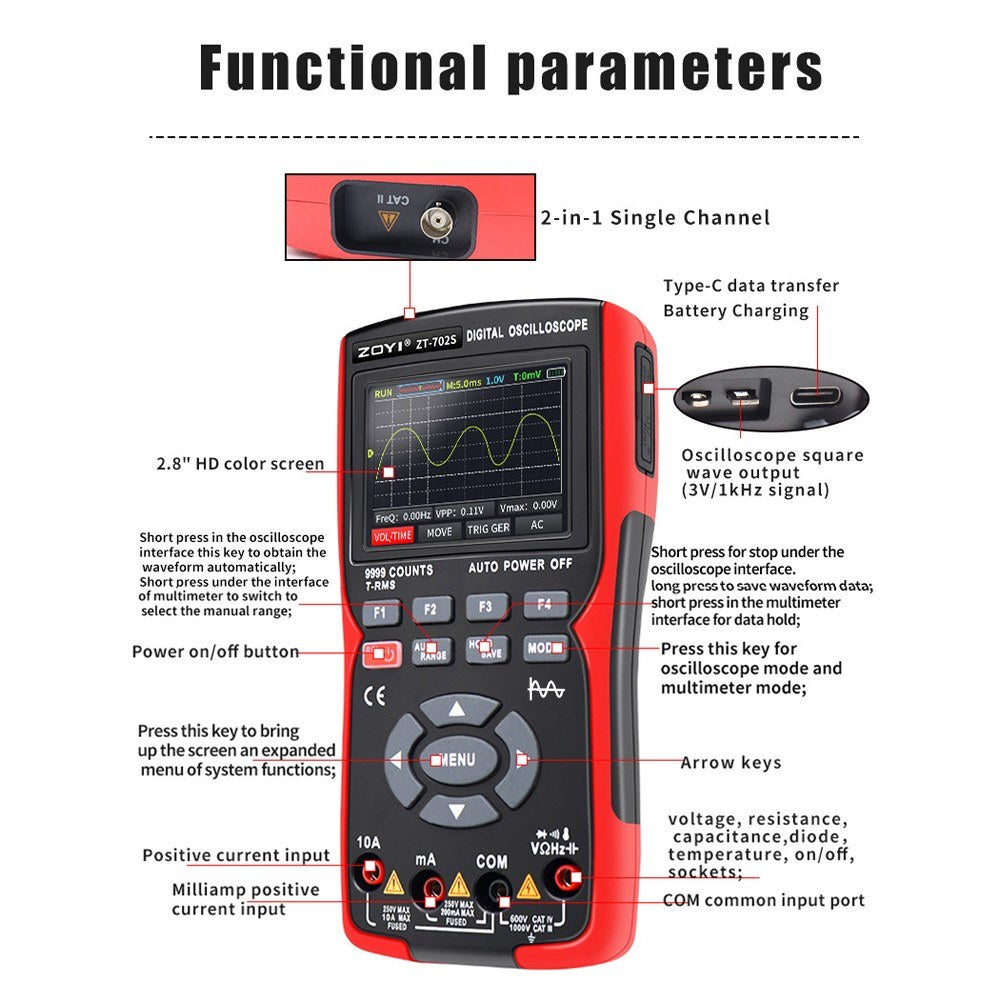

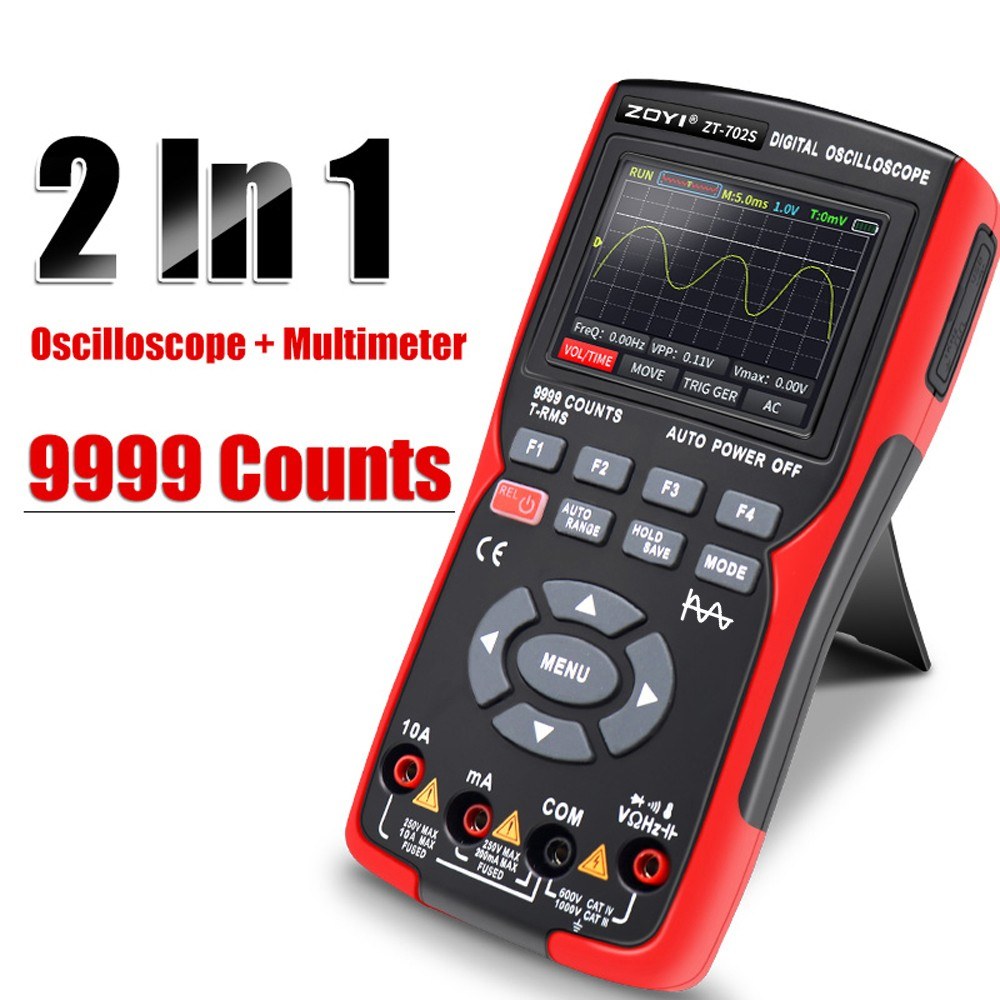

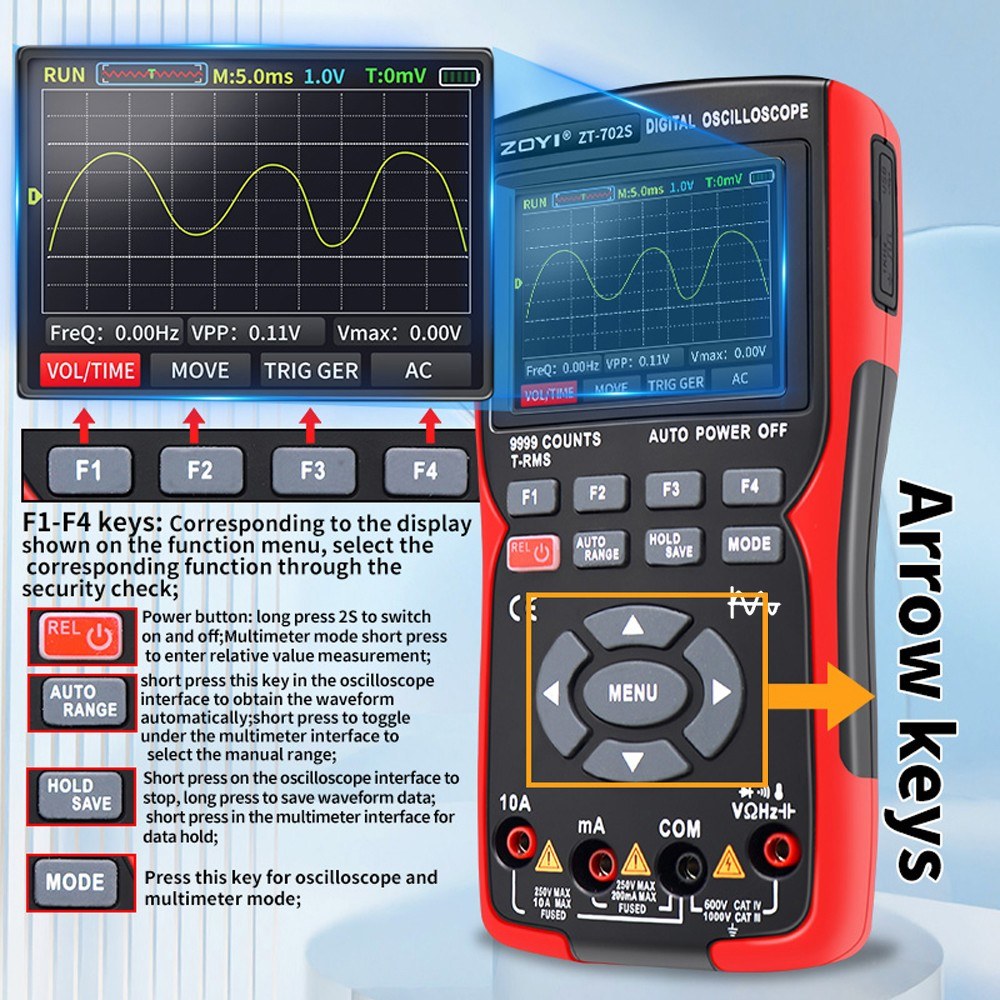

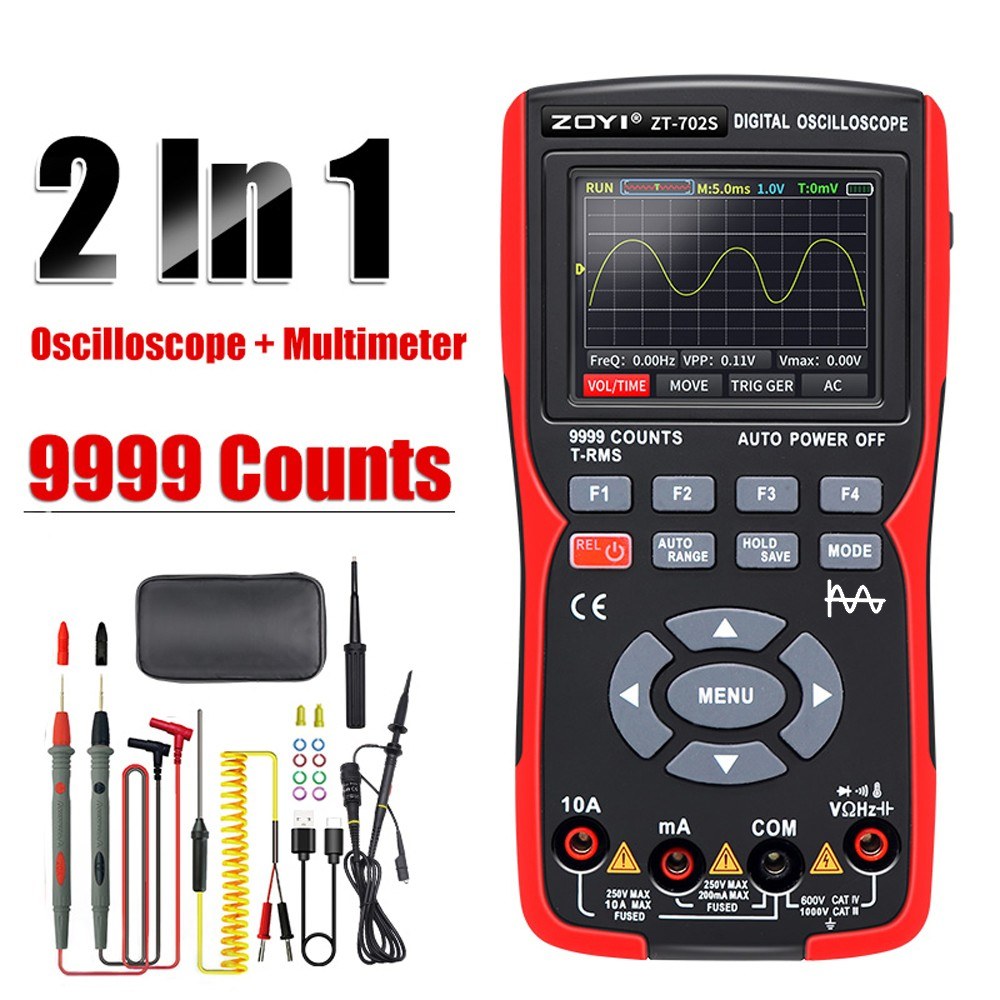

• 2-in-1 Design: Effortlessly switch between oscilloscope and multimeter modes. The intuitive interface adjusts for accurate measurements, whether manual or automatic.
• Comprehensive Multimeter Functions: Accurately measure AC/DC voltage and current, resistance, capacitance, diodes, frequency, temperature, and conduct continuity tests.
• Advanced Oscilloscope Capabilities: Auto-detect waveforms (sine or square) and seamlessly display input signals with a single-channel 10MHz bandwidth and 48MSa/s real-time sampling rate.
• Versatile Measurement Modes: Includes automatic and manual measurement switching, three trigger modes (automatic, normal, single), and intelligent burn-out protection.
• Waveform Storage and Review: Save waveforms as images, connect via USB-C to transfer data to a computer, making it easy to back up and analyze measurements.

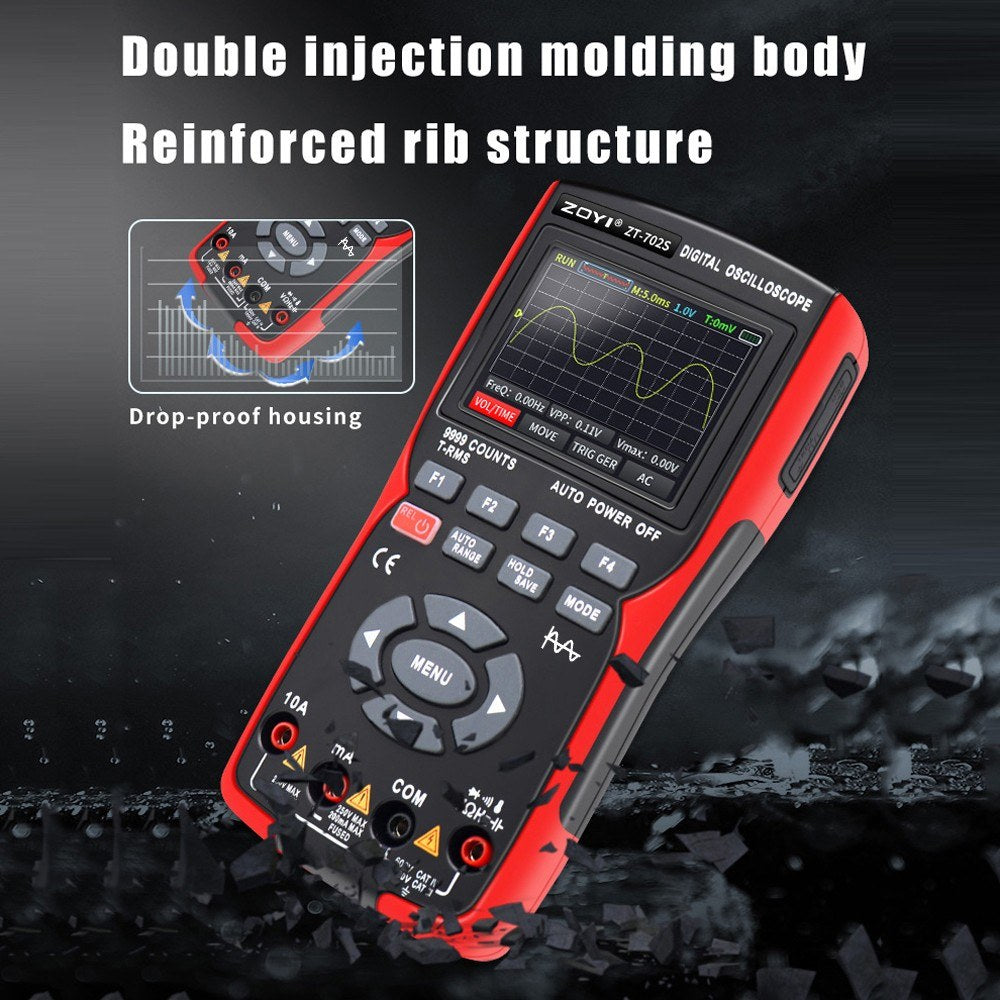

• Durable Build: Encased in a sturdy ABS and TPE housing with reinforced structure, designed to withstand impacts and provide long-lasting use.
• Convenient Automatic Shutdown: Customize the shutdown time to fit your usage - 15, 30, 60, or 120 minutes, or set to remain on indefinitely.

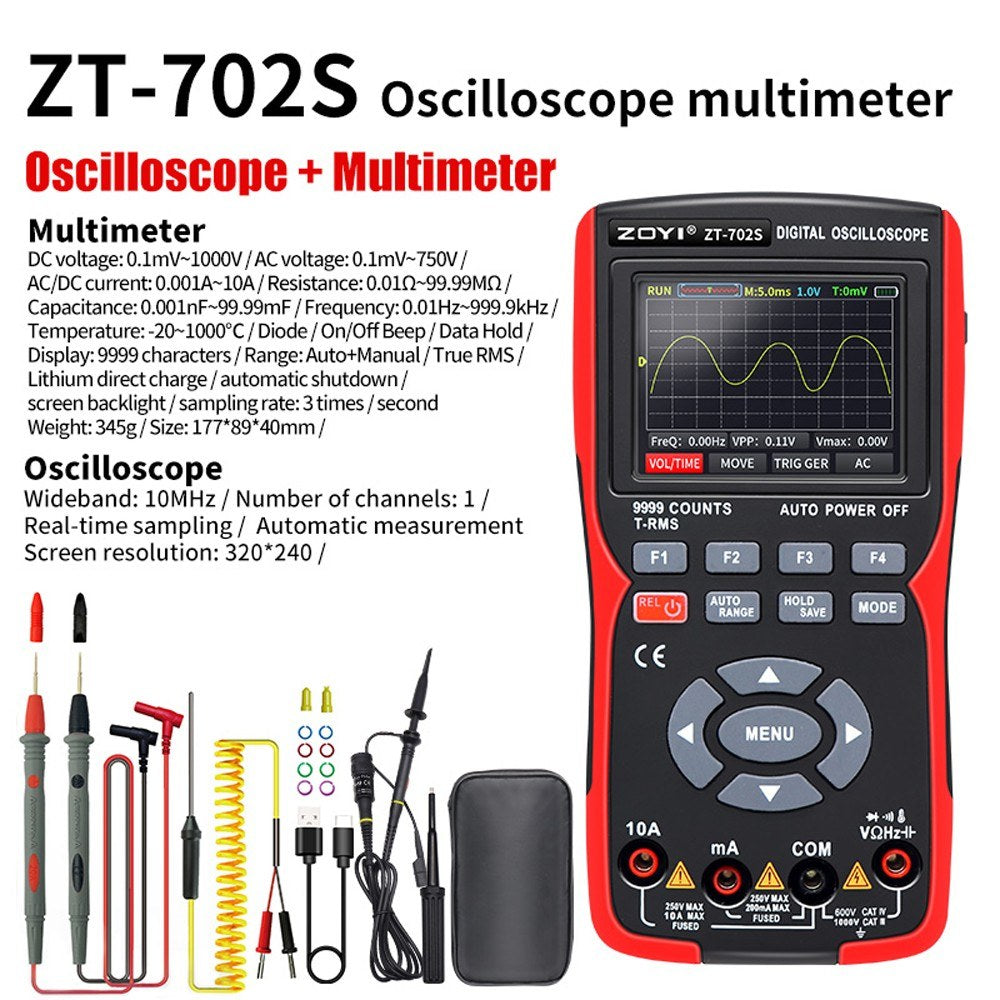

Specifications:

• Material: ABS + TPE
• Battery: 2000mAh built-in (not included)
• Display: 9999 Counts LCD
• Ranging: Auto/Manual
• Update Rate: 3 Times/Second
• True RMS, Data Hold, Backlight: Yes
• Low Battery Indication: Yes
• Auto Power Off: Yes

Measurement Range:

• DC Voltage, AC Voltage, DC Current, AC Current: Yes
• Resistance, Capacitance, Frequency: Yes
• Temperature: -20℃ to 1000℃ (-4℉ to 1832℉)
• Diode, Continuity: Yes

Environmental Conditions:

• Operating Temperature: 0℃ to 40℃
• Operating Humidity: <75%
• Storage Temperature: -20℃ to 60℃
• Storage Humidity: <80%

Dimensions:

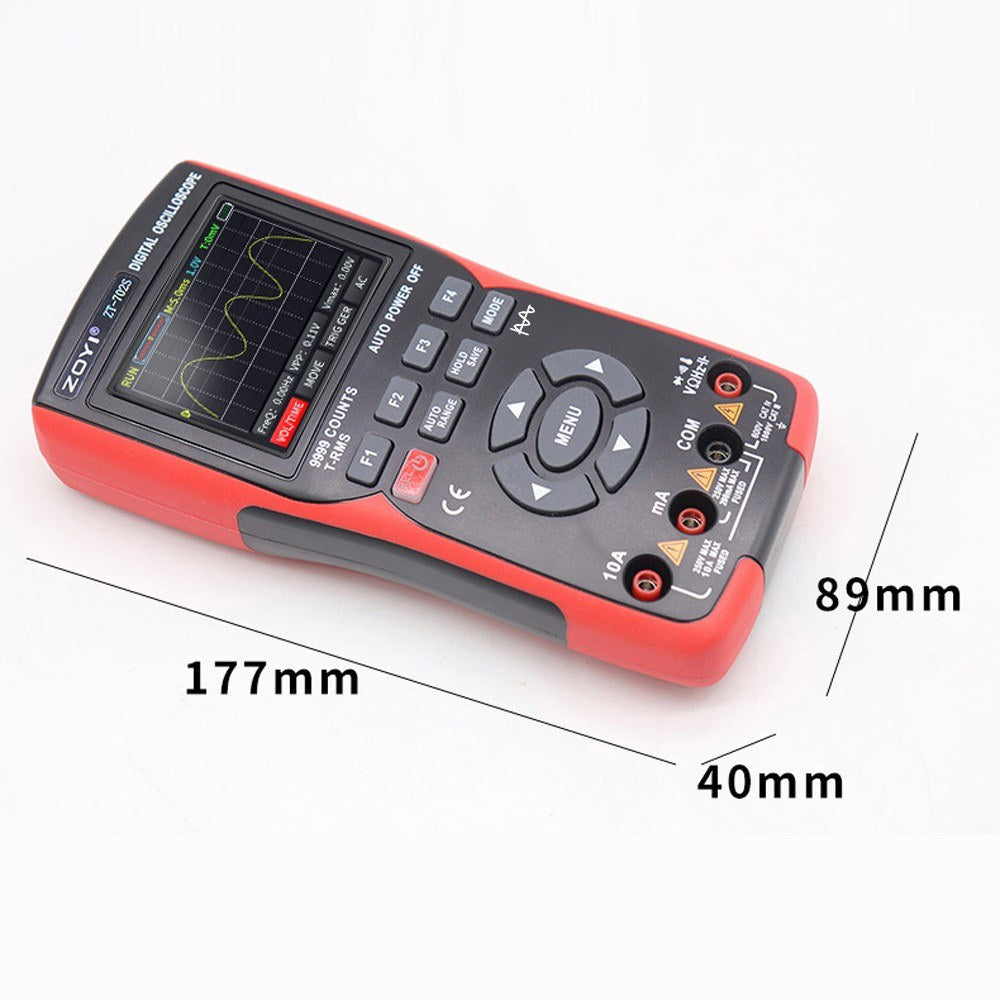

• Item Size: 177 x 89 x 40mm / 6.97 x 3.50 x 1.57in
• Item Weight: 345g / 0.76lb
• Package Size: 216 x 135 x 67mm / 8.50 x 5.31 x 2.64in
• Package Weight: 700g / 1.54lb

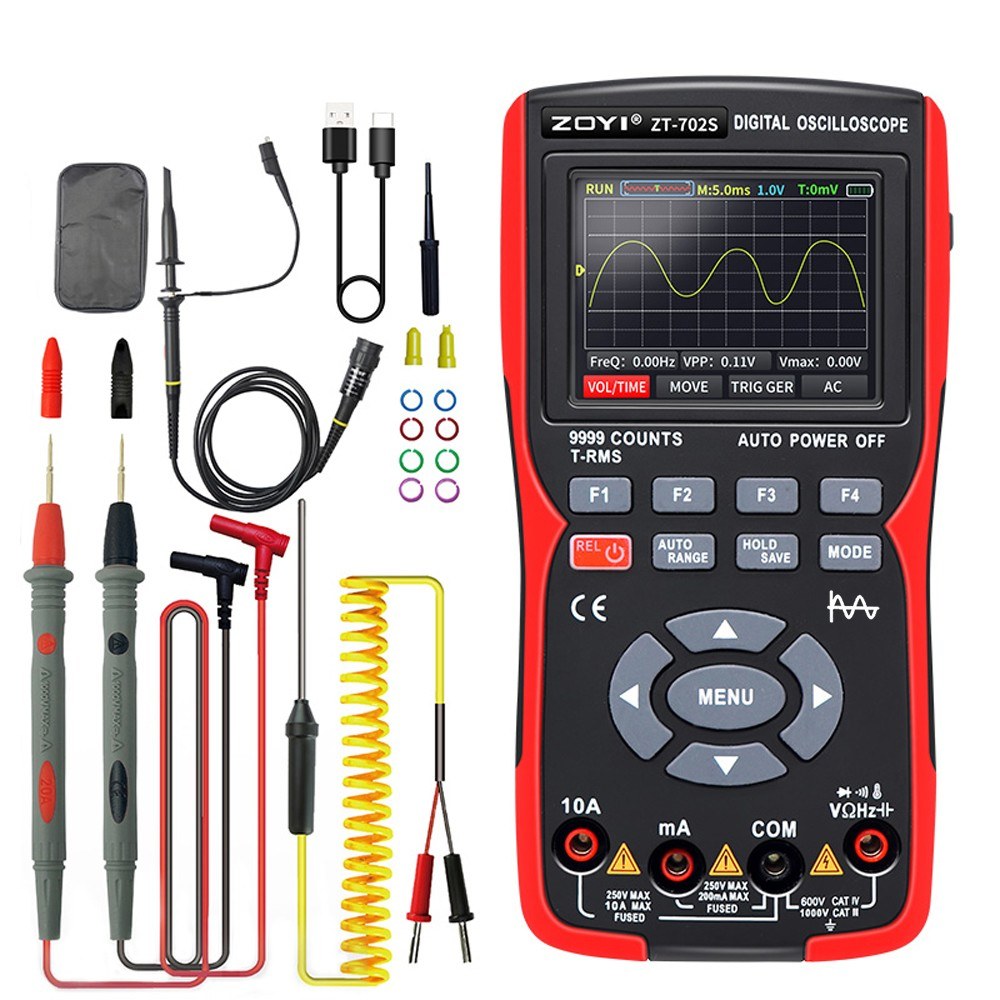

Packing List:

• 1 x Oscilloscope Multimeter
