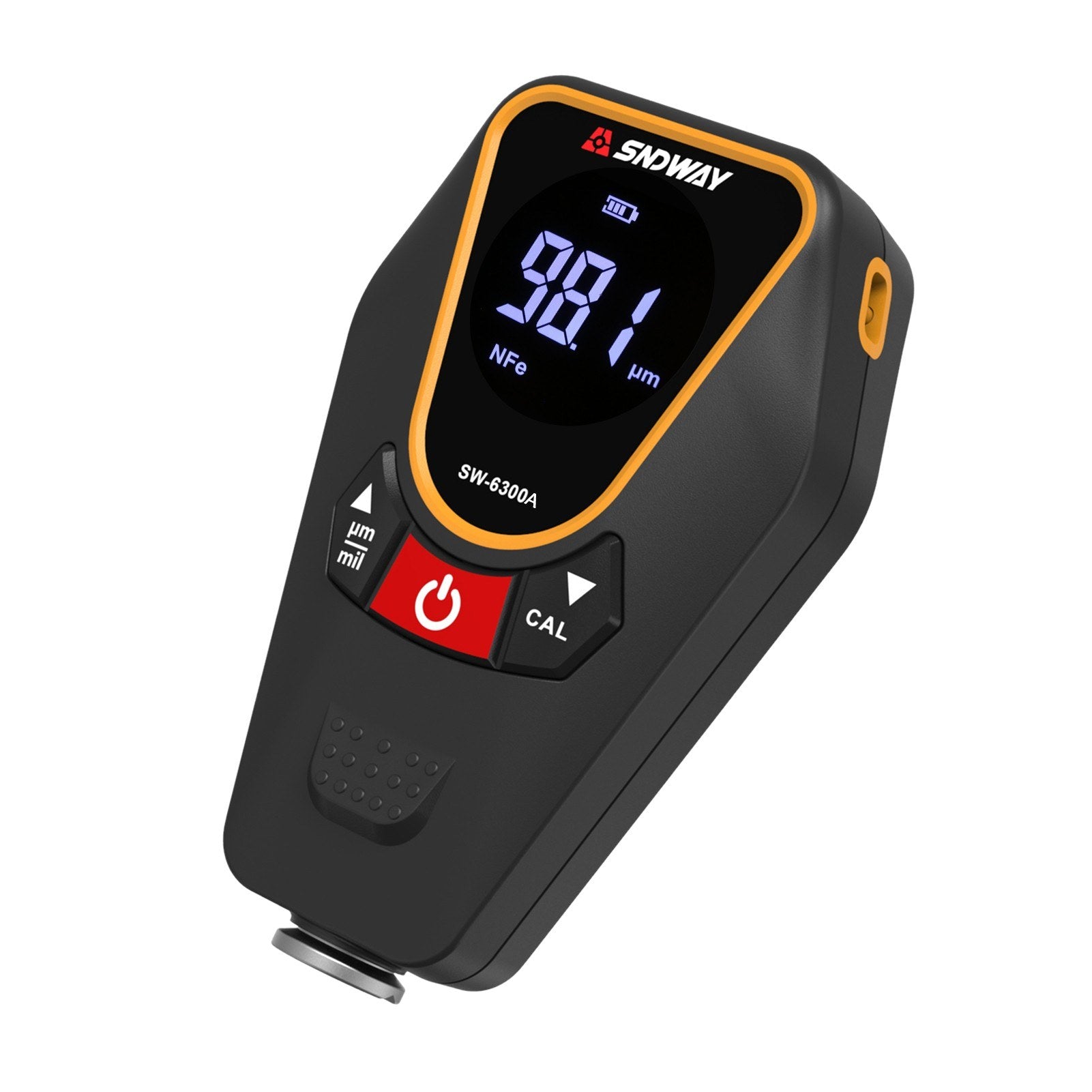

SNDWAY Car Paint Coating Thickness Gauge, Handheld Backlit LCD Meter, 0-1200μm Range, 0.01μm Resolution, Fe/NFe Detection, µm/mils Conversion, Auto-Off

Coating Thickness Gauge

Experience precision with our Coating Thickness Gauge, a reliable and high-quality instrument designed for accurately measuring coating thickness on metal surfaces. Perfect for applications in manufacturing, the metal processing industry, commodity inspections, car inspections, and laboratory testing. Easy to use and maintain, this tool is ideal for both professional and personal use.

Key Features

• Advanced Detection: Utilizes magnetic and eddy current properties to detect substrate characteristics accurately.

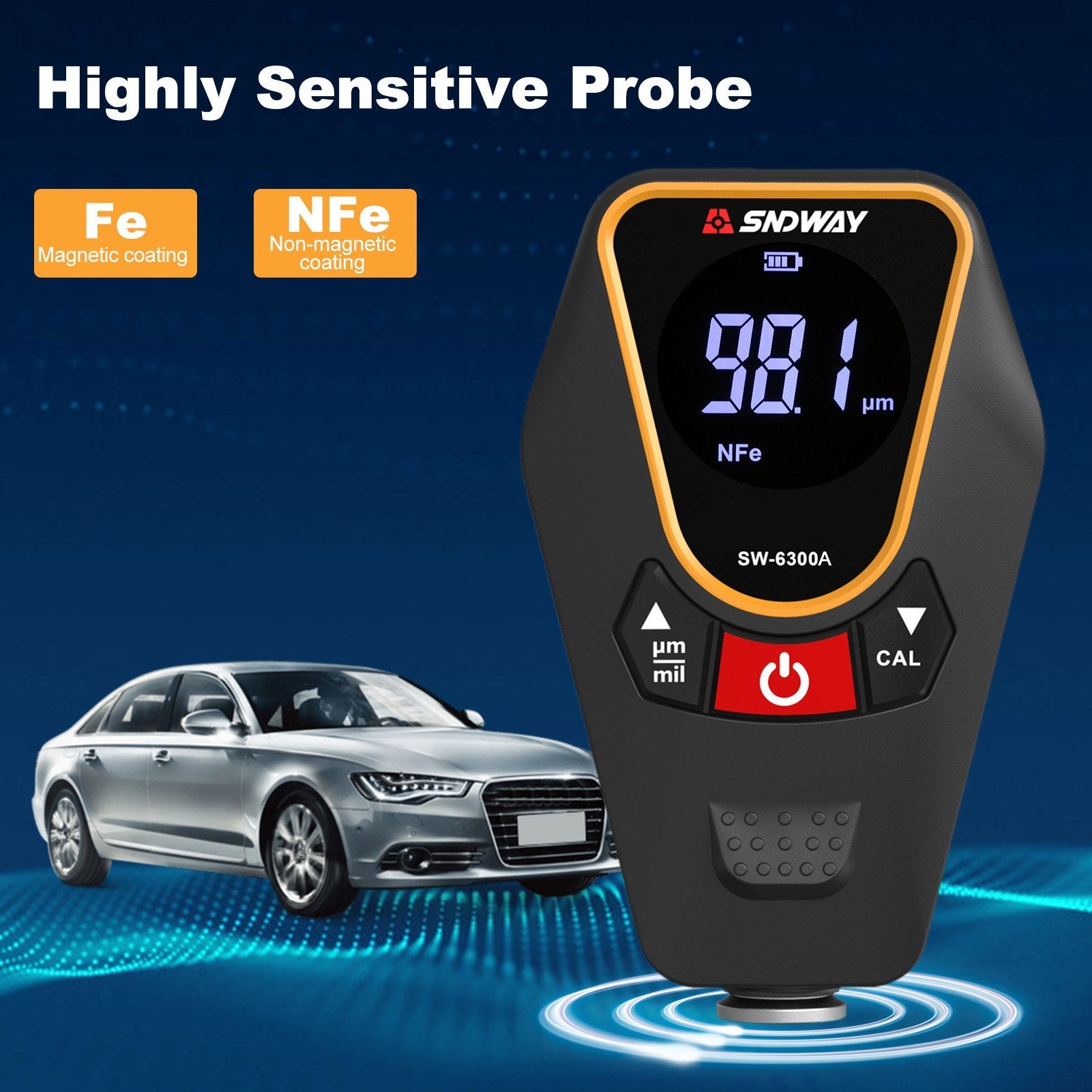

• High Precision Probes: Accurately measure non-magnetic coverings on magnetic substrates and non-conductive coverings on non-magnetic metal substrates.
• Versatile Surface Measurement: Measures accurately on smooth, rough, thin, and curved surfaces; displays cladding thickness and substrate material in mils/μm.

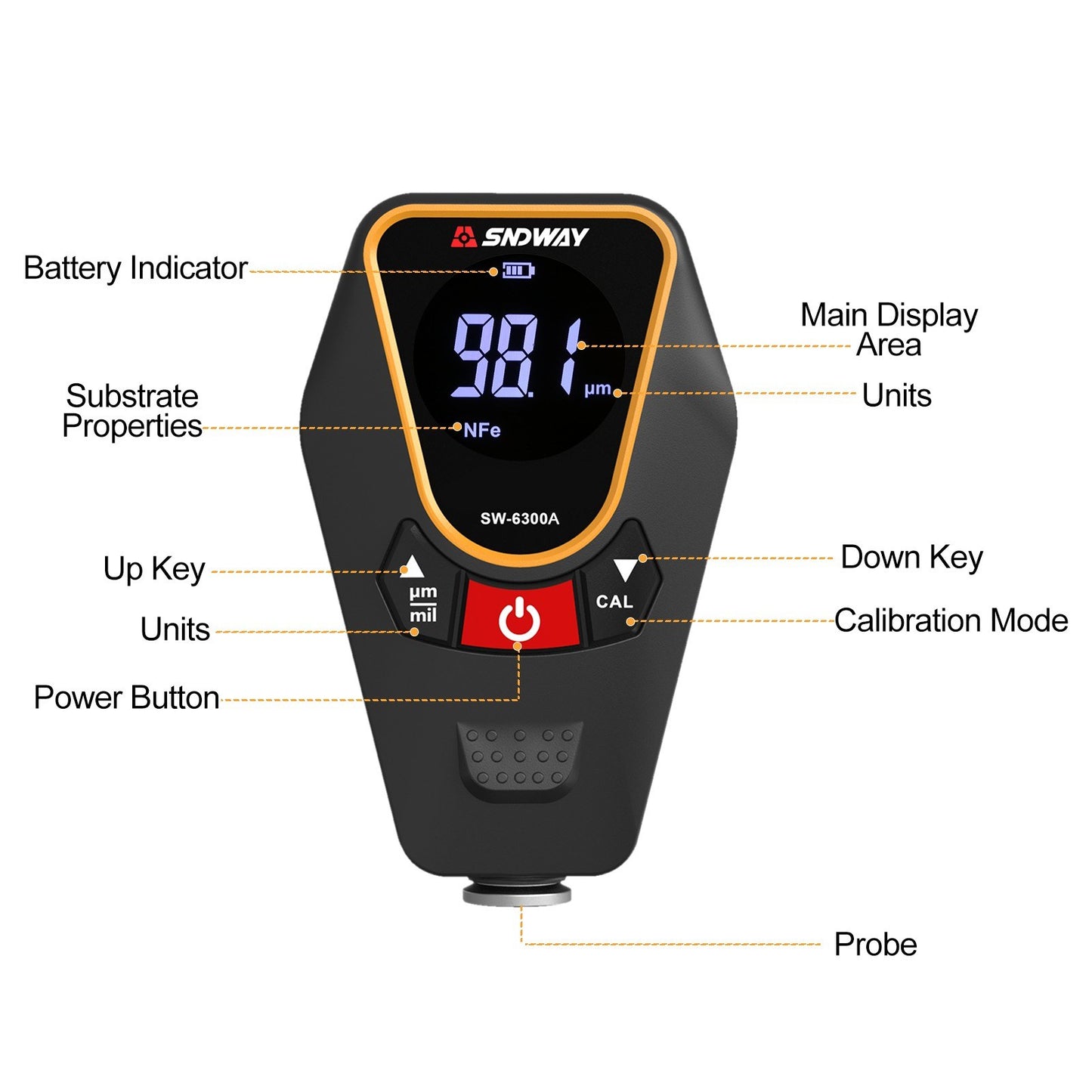

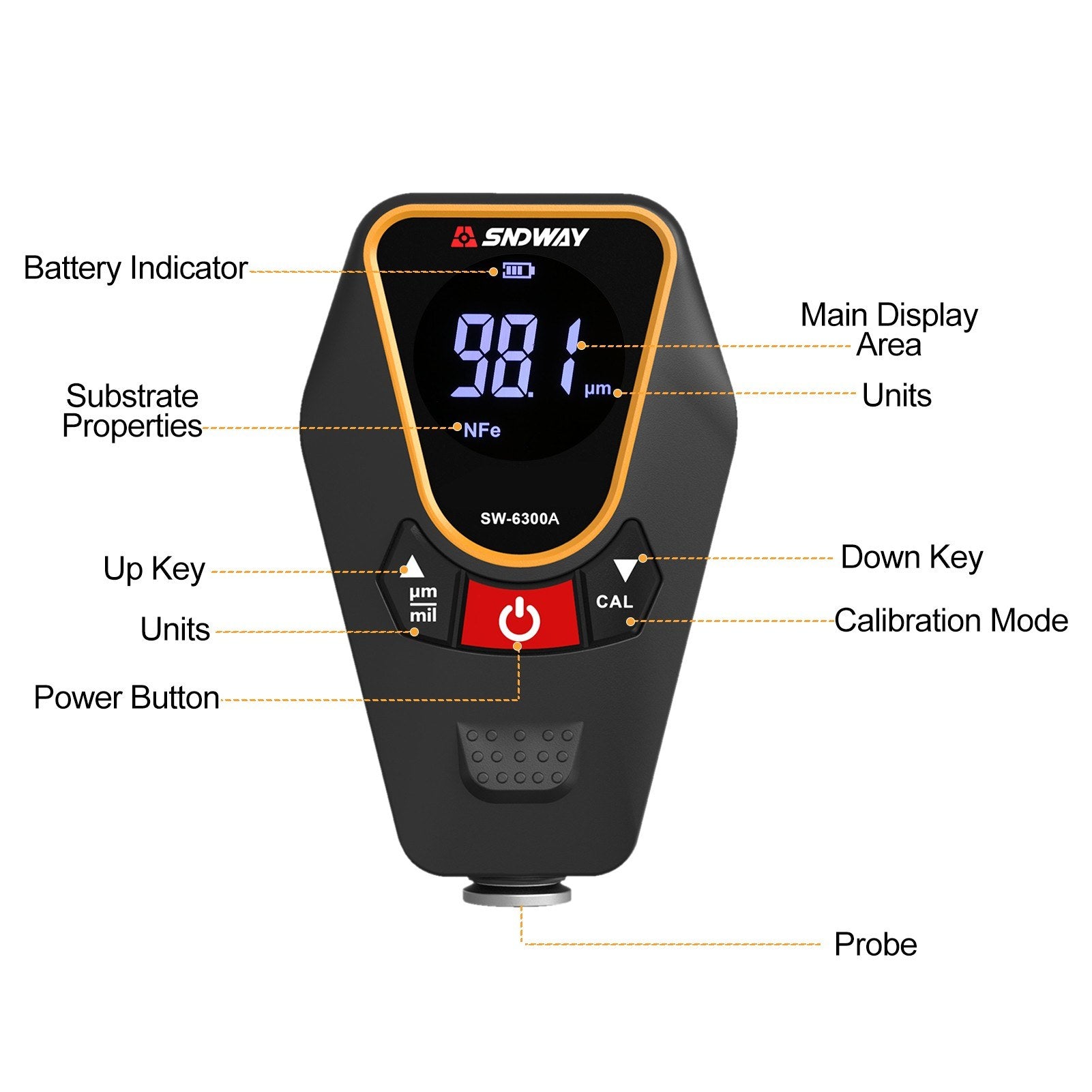

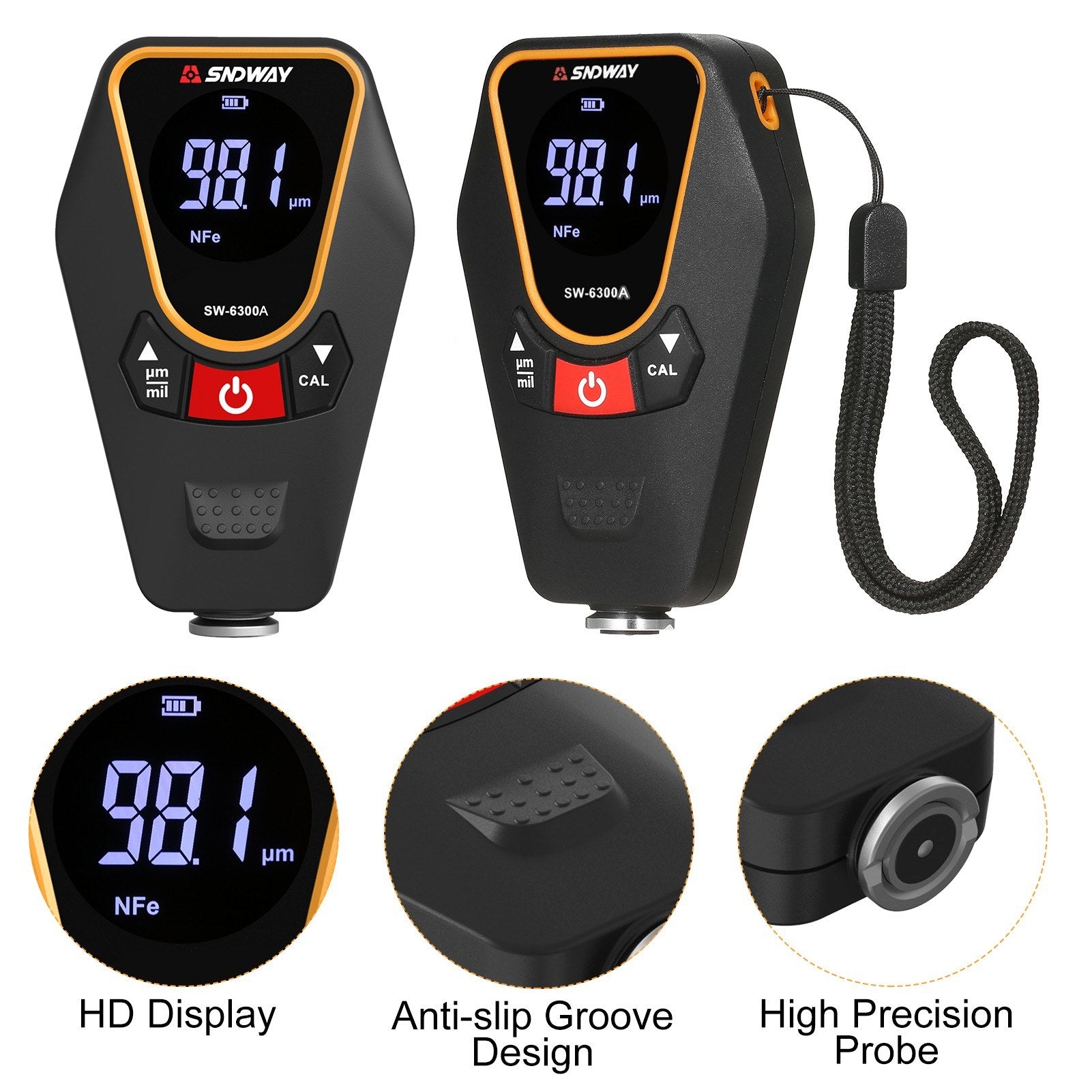

• User-Friendly Display: Large backlit screen displaying metal type, mode, battery status, and readings in μm or mils.

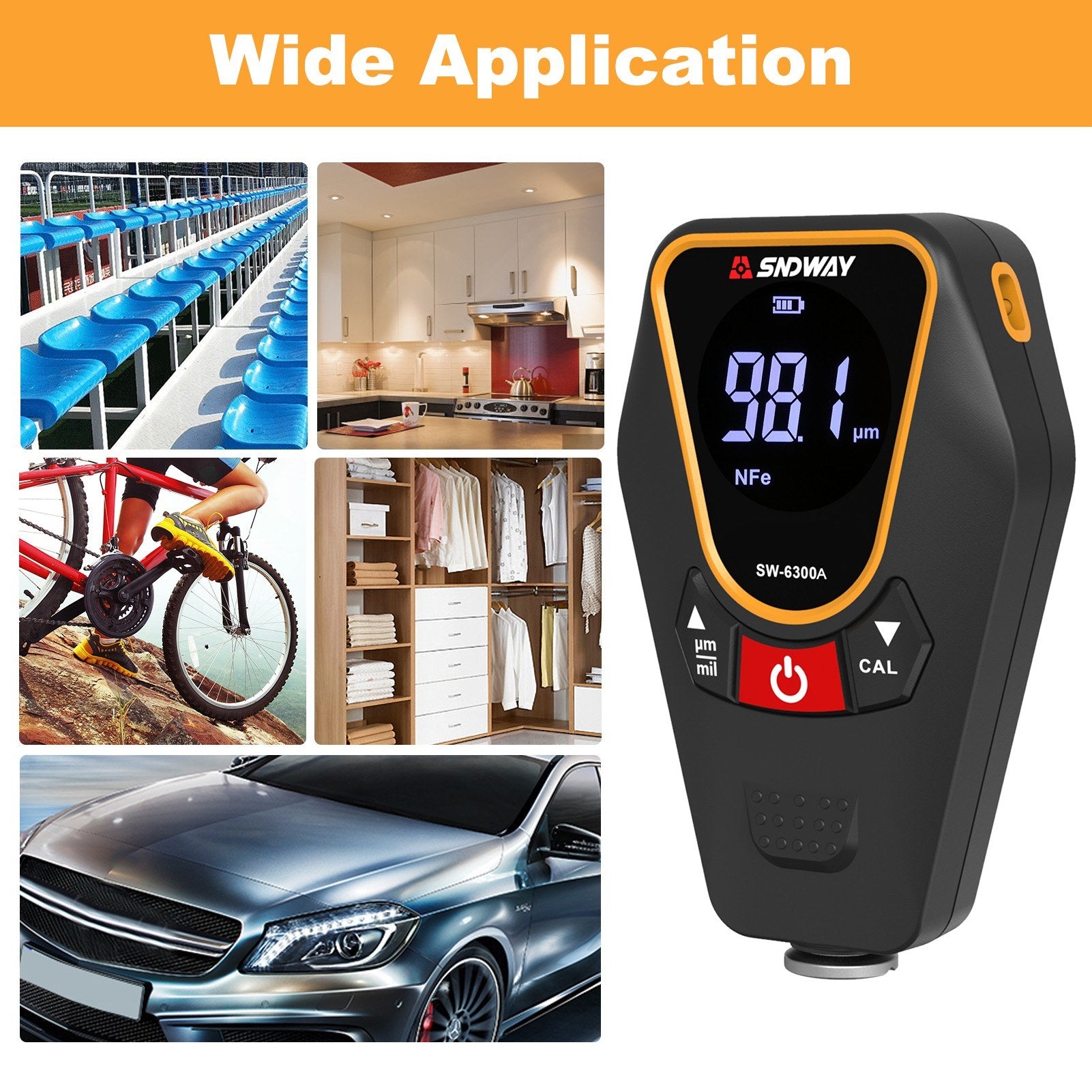

• Wide Range of Uses: Ideal for used car paint, powder coating, anodized aluminum, and more household or industrial areas.

Specifications

• Material: ABS
• Measuring Range: Magnetic 0~1200μm; Non-magnetic 0~1200μm
• Resolution: 0.1μm (0~99.9μm); 1μm (100~1700μm)
• Sensitivity Error: ±(2+2%*H)μm (0~500μm); ±(2.5%*H)μm (500~1700μm)
• Minimum Measurement Area: Magnetic 25x25mm; Non-magnetic 25x25mm
• Minimum Curvature: Convex 5 mm; Concave 30 mm
• Minimum Substrate Thickness: Magnetic 0.2mm; Non-magnetic 0.05mm
• Display: Reverse display segment code screen
• Battery Type: 3.7V, 850mAh lithium battery
• Charging Specification: DC 5V/0.8A, Type-C interface
• Operating Temperature & Humidity: 0˚C~50˚C, 10%~80%RH
• Storage Temperature & Humidity: -10˚C~60˚C, 10%~70%RH

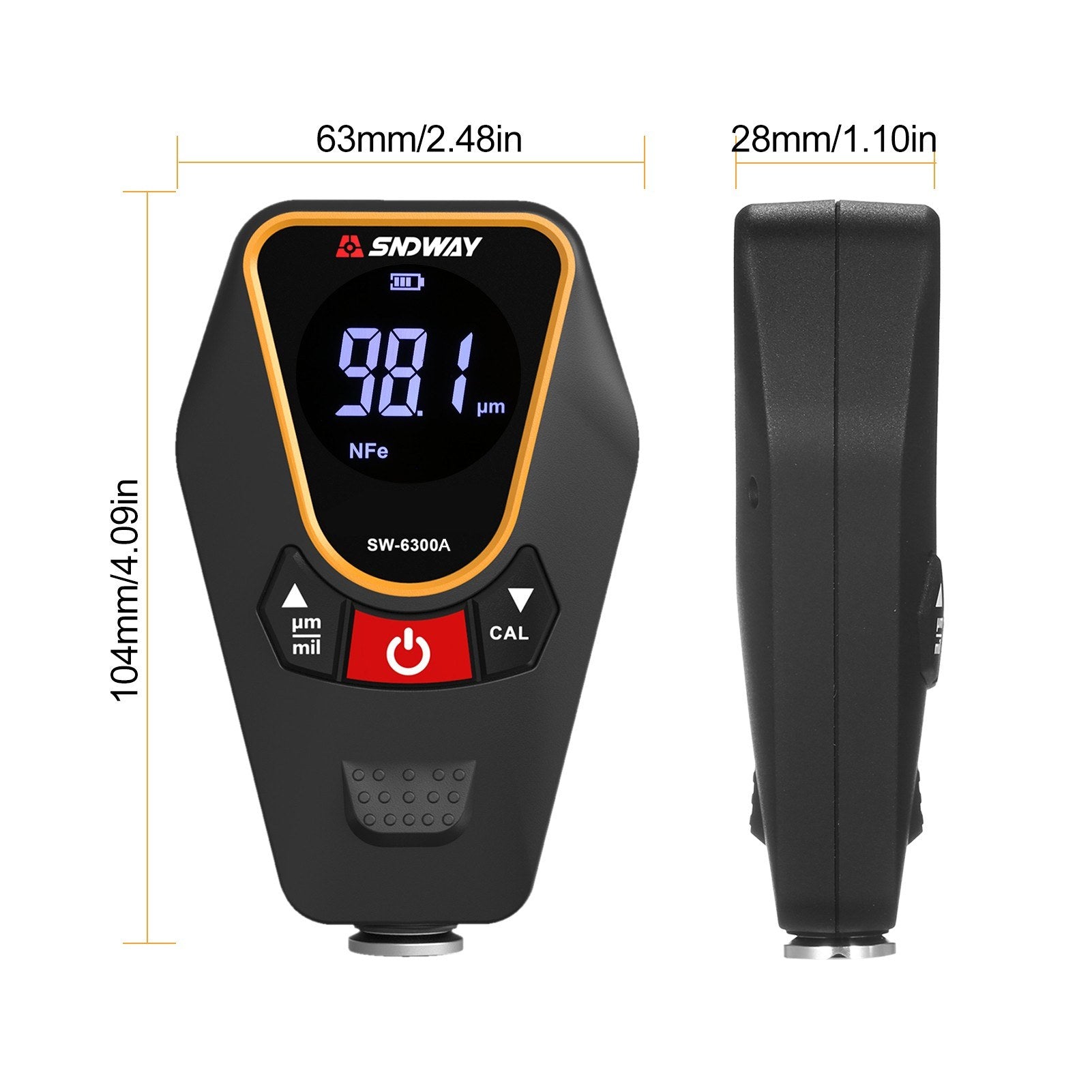

• Item Size: 10.4 x 6.3 x 2.8cm / 4.09 x 2.48 x 1.10in
• Item Weight: 94g / 3.32oz
• Package Weight: 325g / 11.46oz
• Package Size: 20.7 x 10.5 x 5.4cm / 8.15 x 4.13 x 2.13in

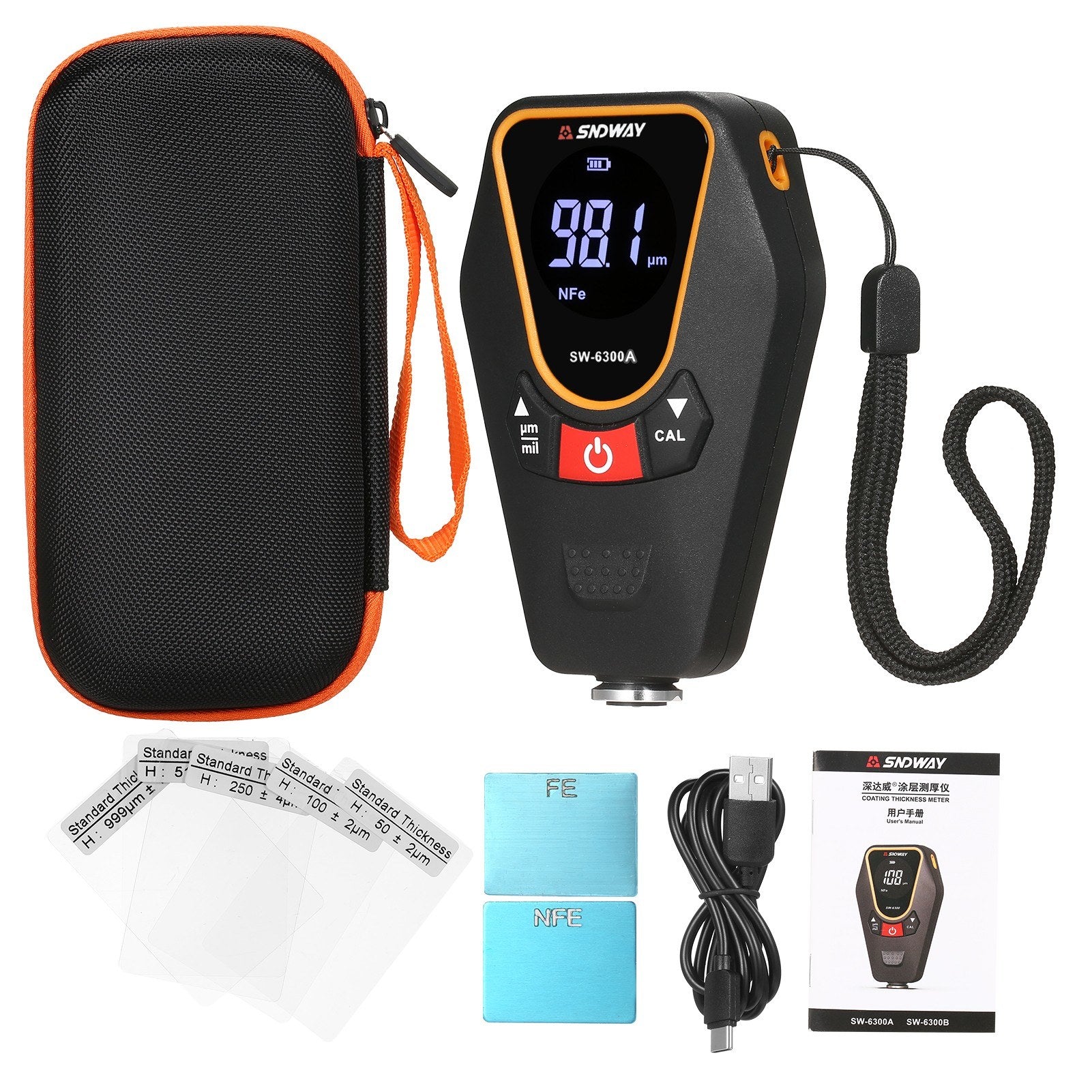

Package Includes

• 1 x Coating Thickness Gauge
• 1 x Cloth Bag
• 1 x Type-C Cable
• 1 x Iron Substrate
• 1 x Aluminum Substrate
• 5 x Calibration Sheets
• 1 x User Manual (English)
