Digital BME280 Temperature, Humidity & Pressure Sensor Module

Product Features

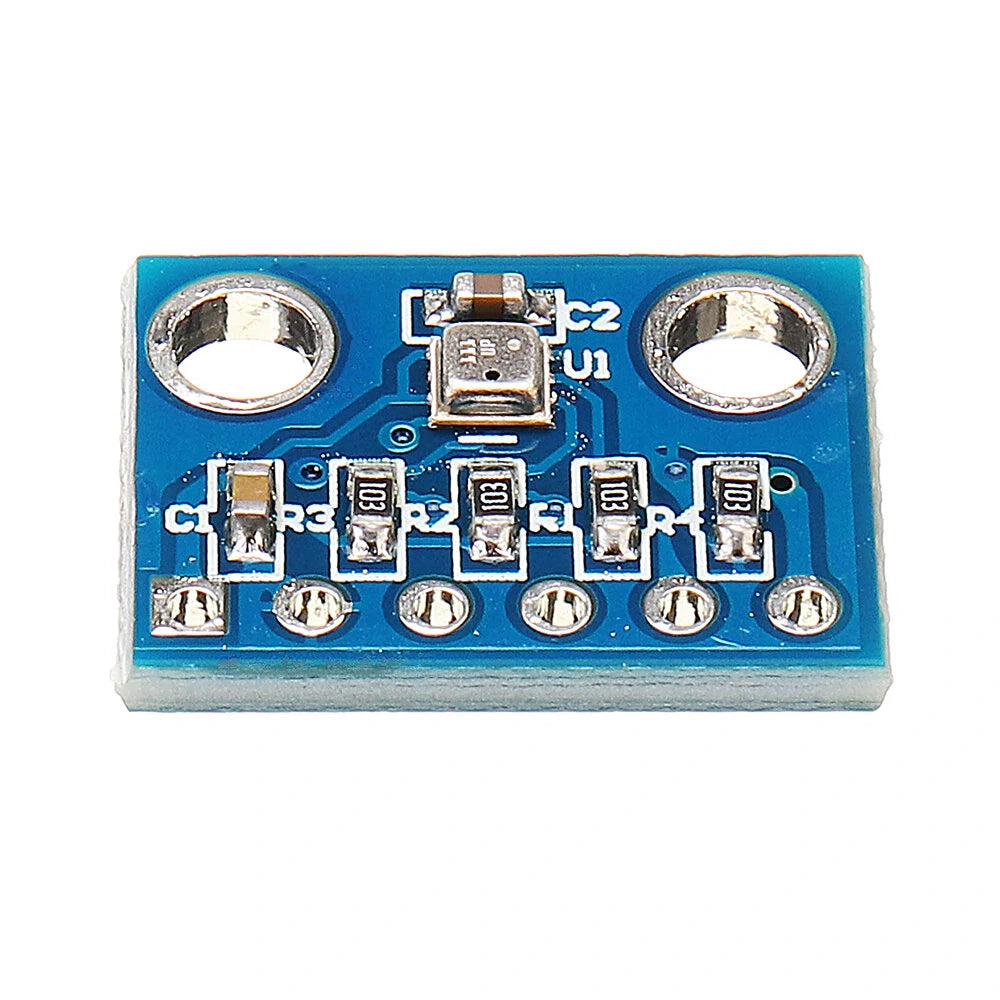

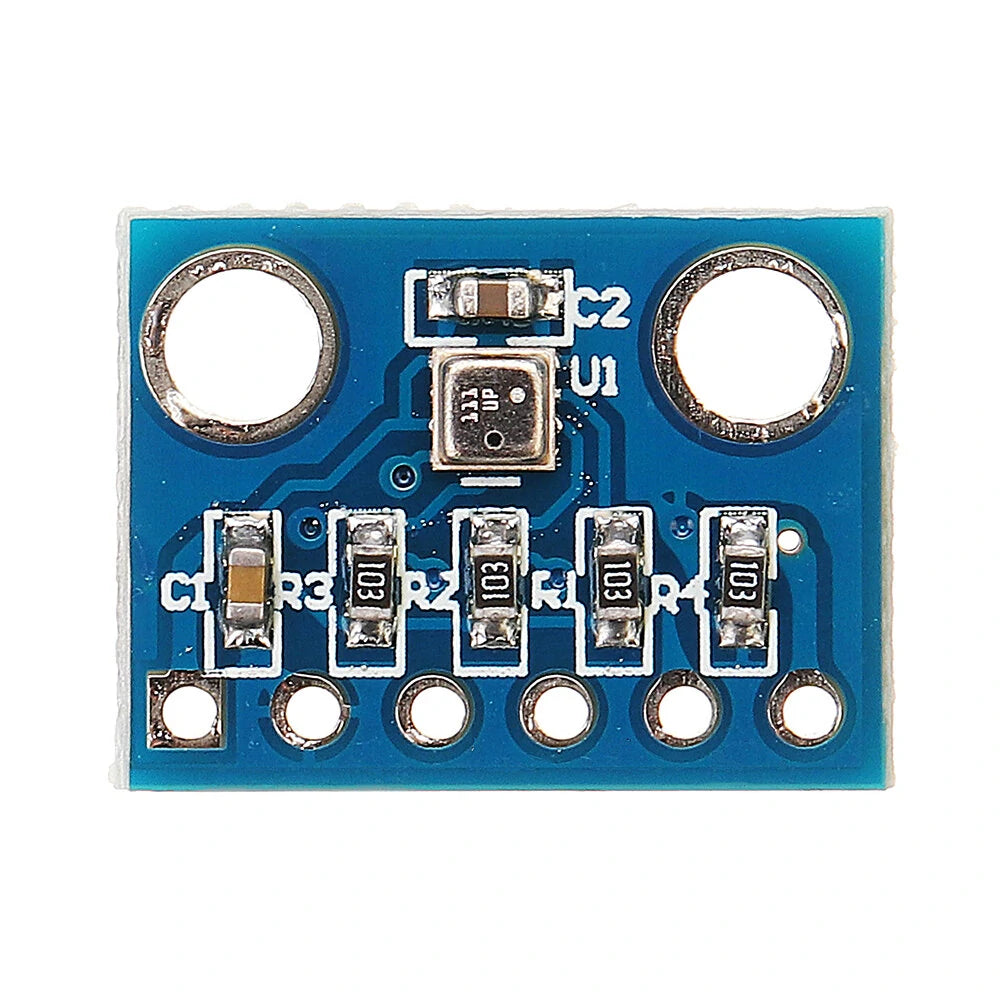

• Equipped with the BME280 precision sensor, pre-soldered onto a compact PCB.
• Capable of measuring pressure, temperature, and humidity for versatile applications.

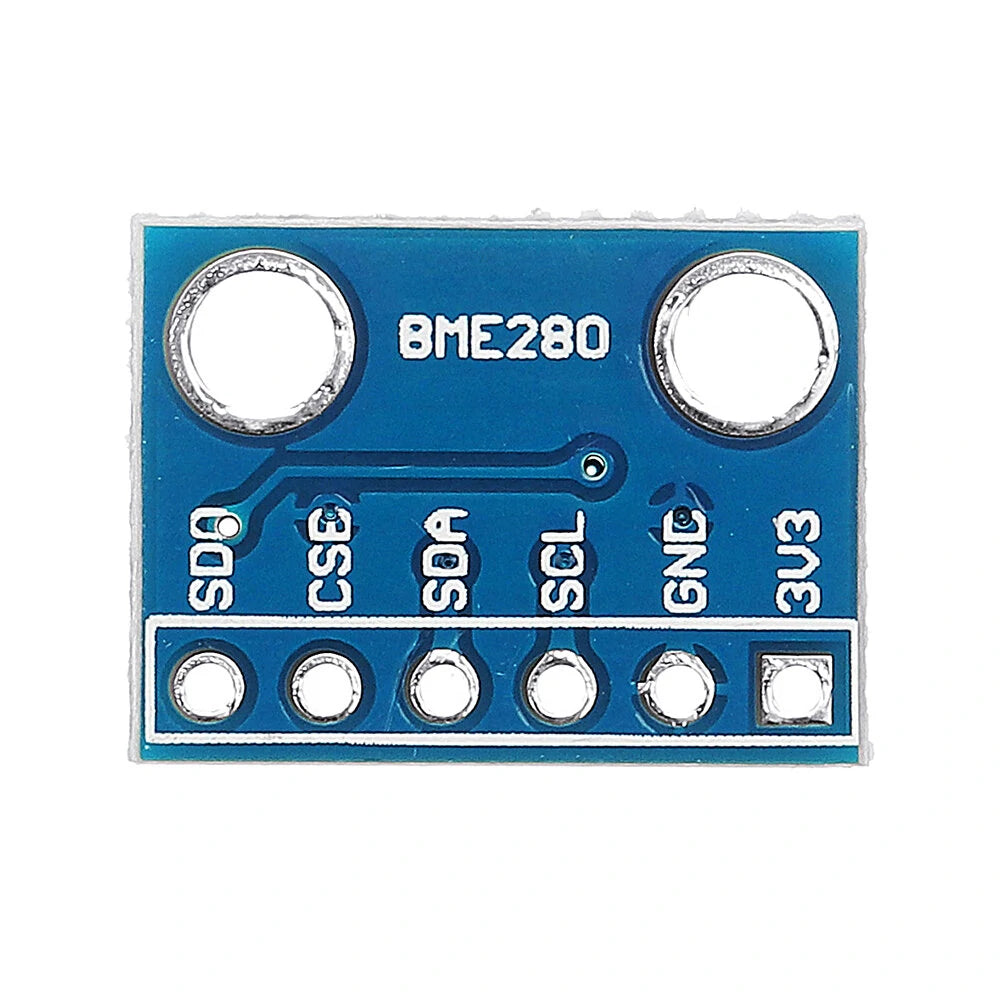

• Supports both I2C and SPI interfaces with 3- and 4-wire SPI compatibility.
• High precision and ultra-low power consumption make it ideal for mobile devices.

Specifications

• Operating Voltage: 3.3 V
• Pressure Ranges: 300-1100 hPa (equivalent to 9000 to 500 meters above/below sea level)
• Relative Accuracy: ±12 hPa (equivalent to ±1 meter at 950 ~ 1050 hPa @ 25°C)
• Absolute Precision: ±1 hPa (within 950 to 1050 hPa, 0 to +40°C)
• Offset Temperature Coefficient: 1.5 Pa/K, equivalent to 12.6 cm/K (25 to 40°C at 900 hPa)
• Temperature Range: -40 to 85°C

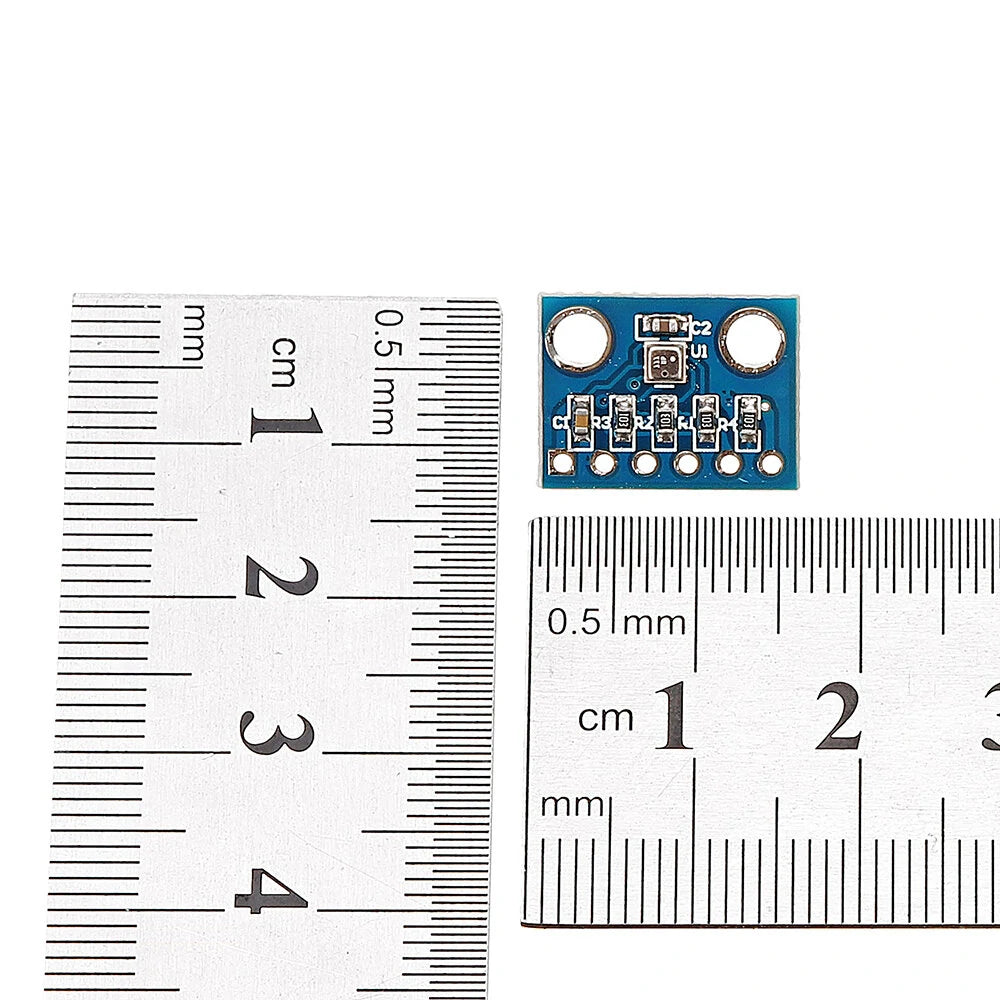

• PCB Size: 15.5 x 11.5 mm

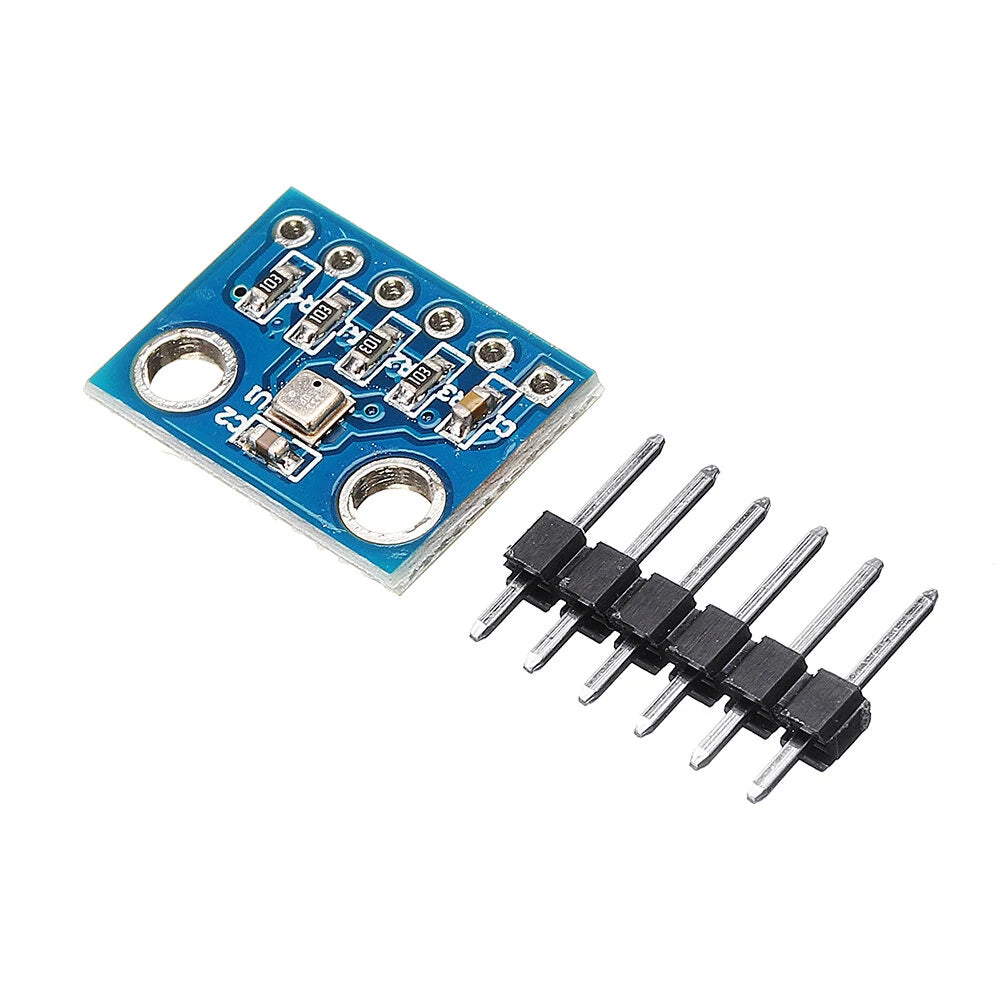

Package Includes

• 1 x BME280 Digital Sensor Module

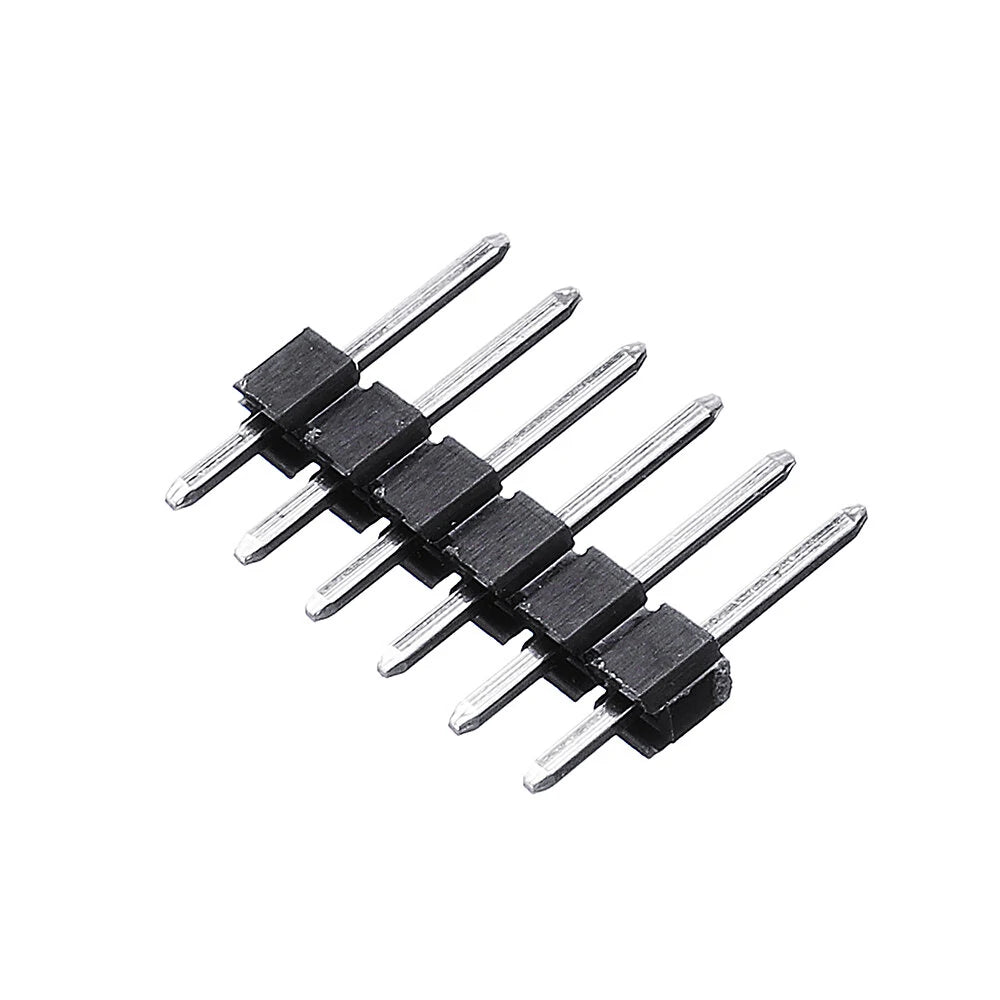

• 1 x 6P Pin
