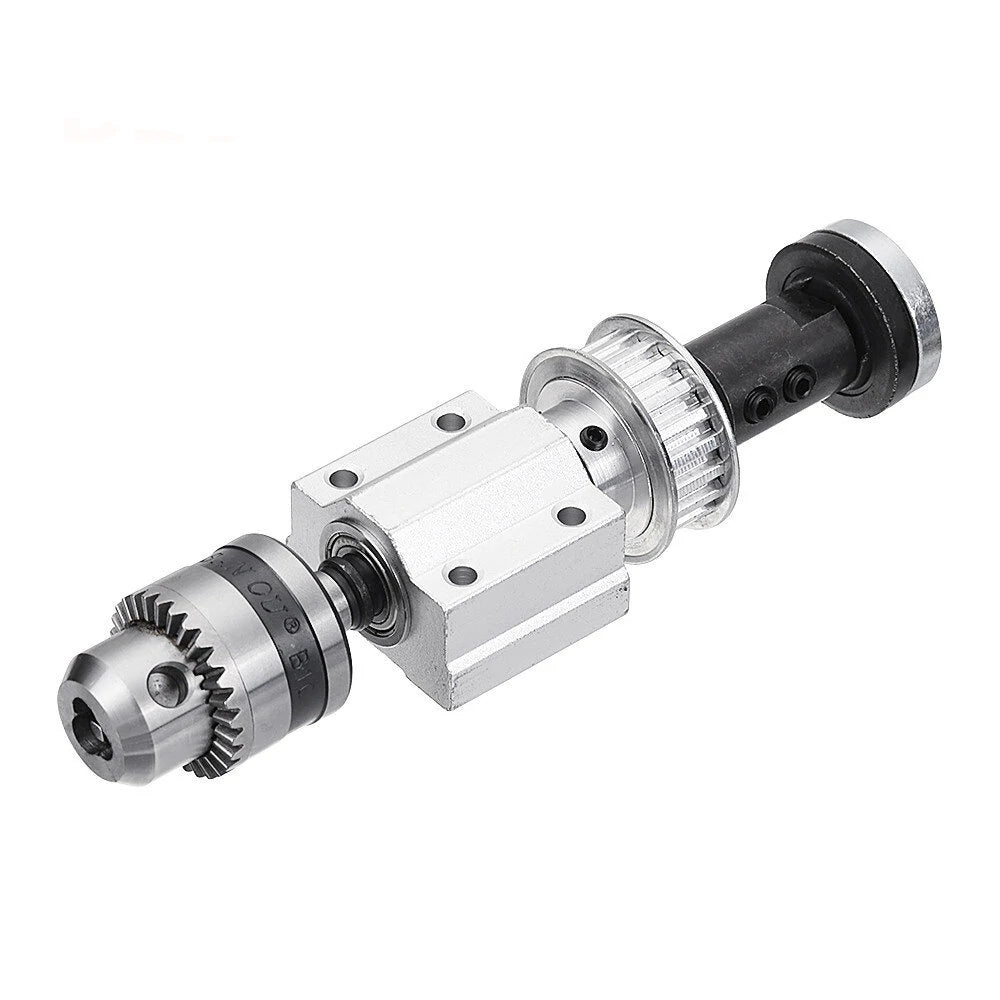

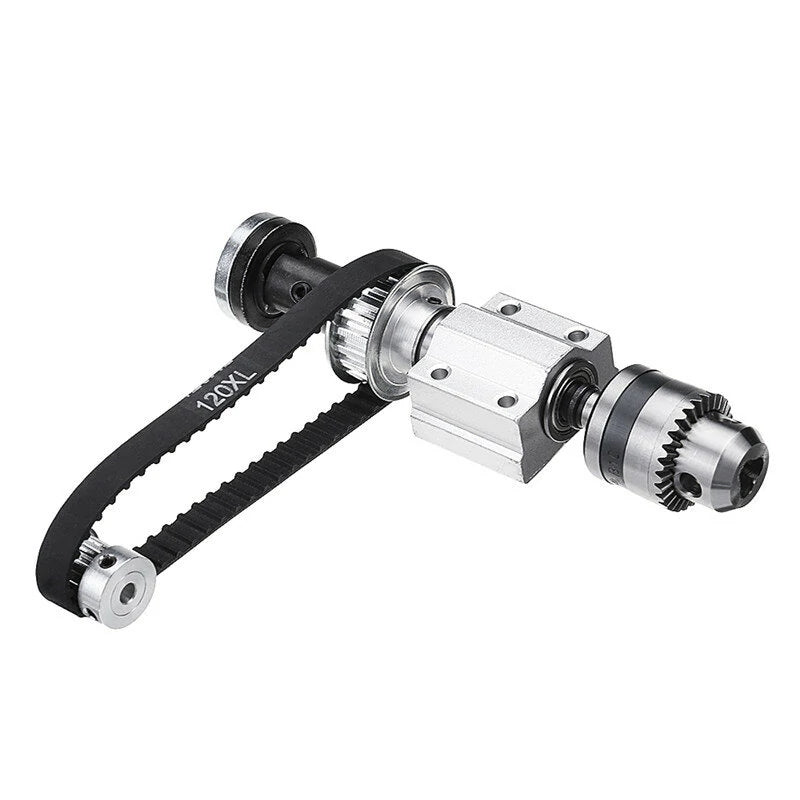

Product Description

Introducing the No Power Spindle Assembly, a perfect addition to your small lathe accessories for trimming. This set is designed for precision work with multiple drill chuck options to suit your specific needs.

Specifications

• Product Name: Drill Chuck Set

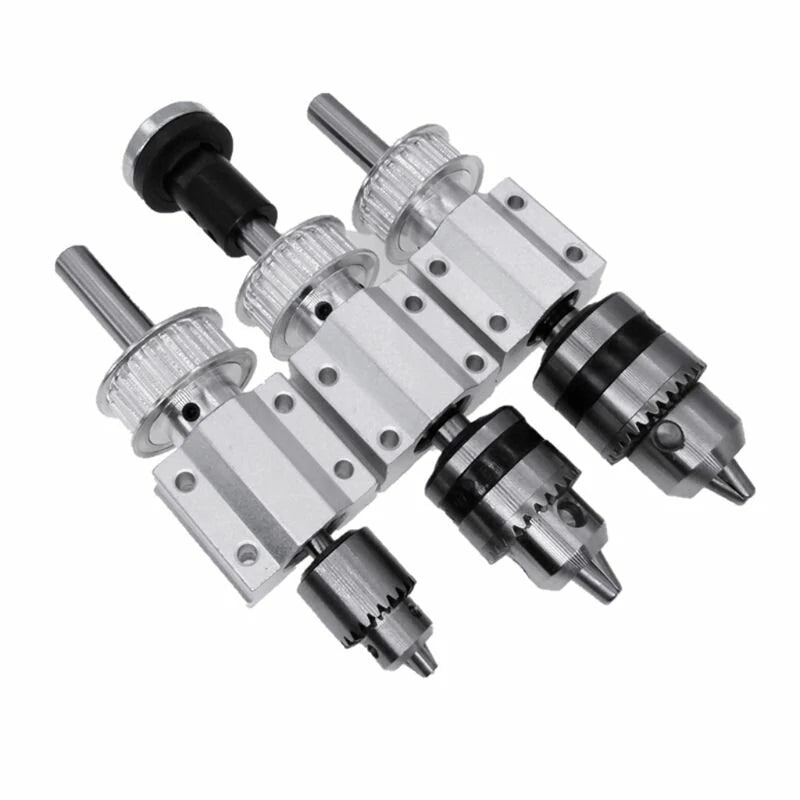

• Types:
  • B10 Drill Chuck

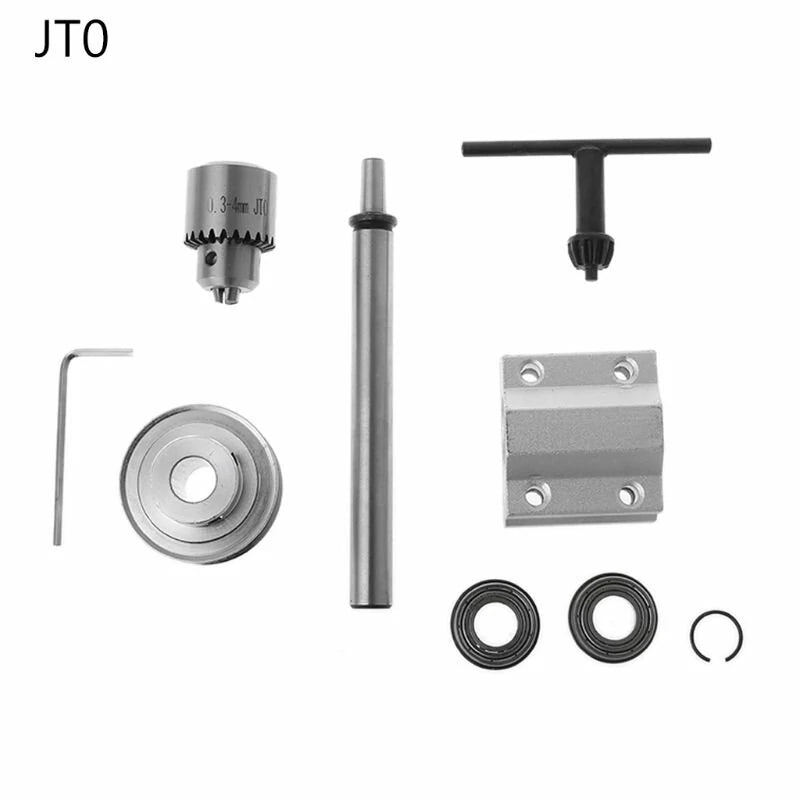

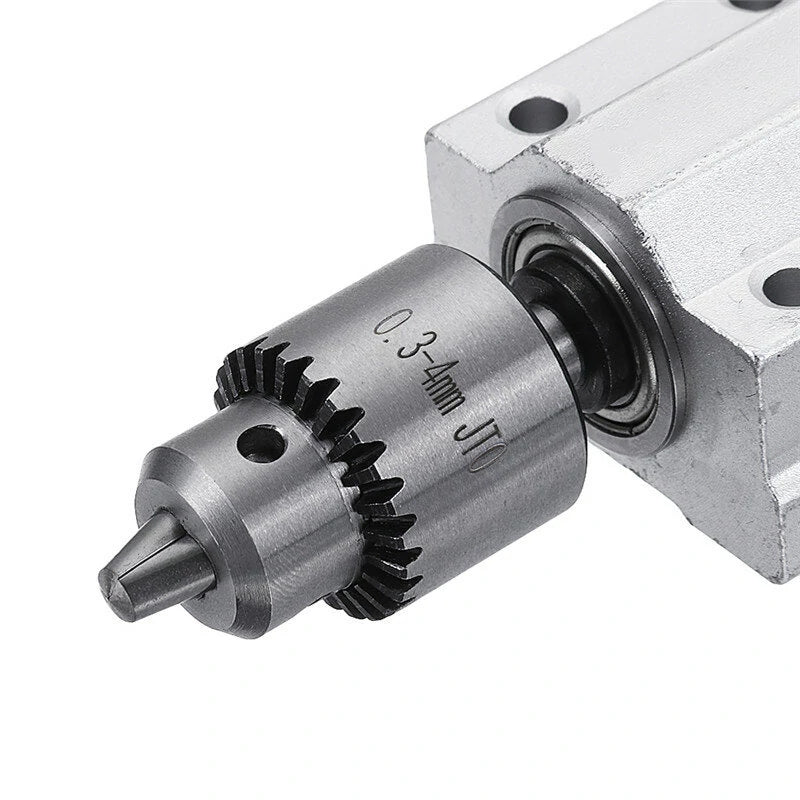

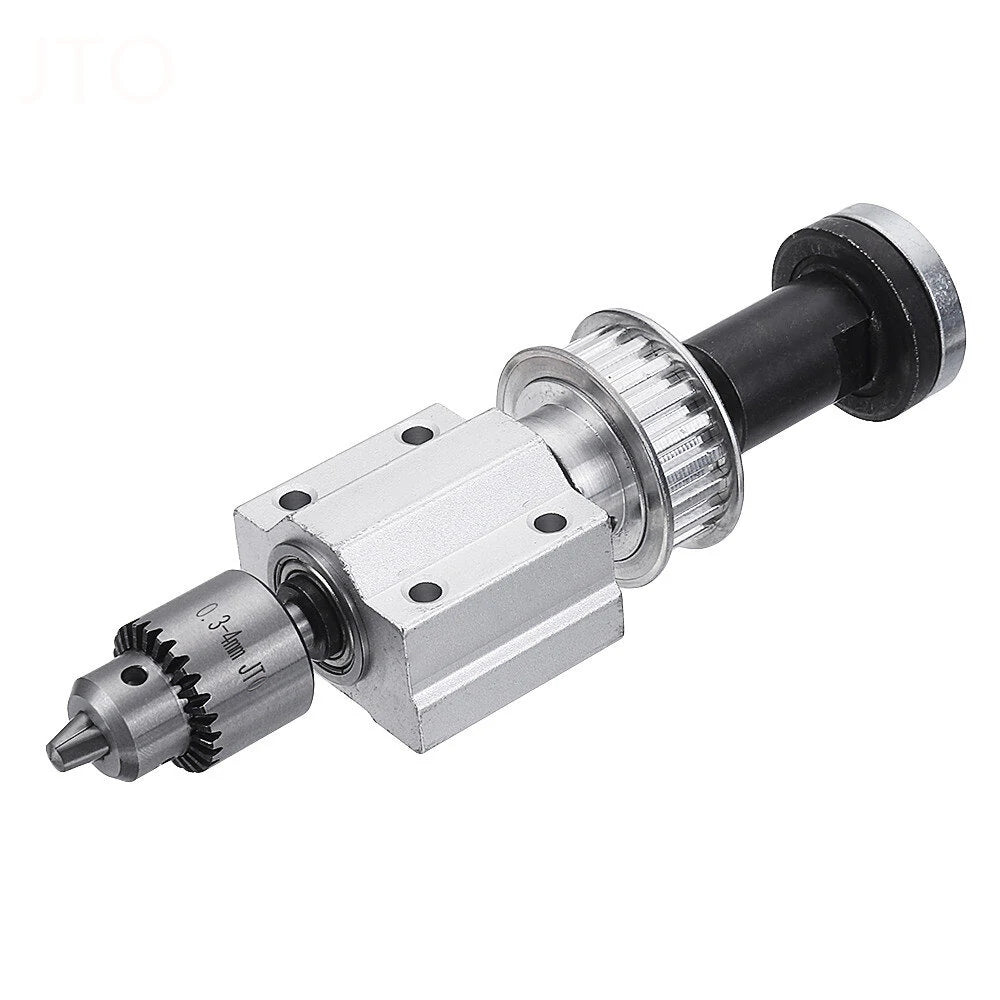

  • JTO Drill Chuck
  • B12 Drill Chuck

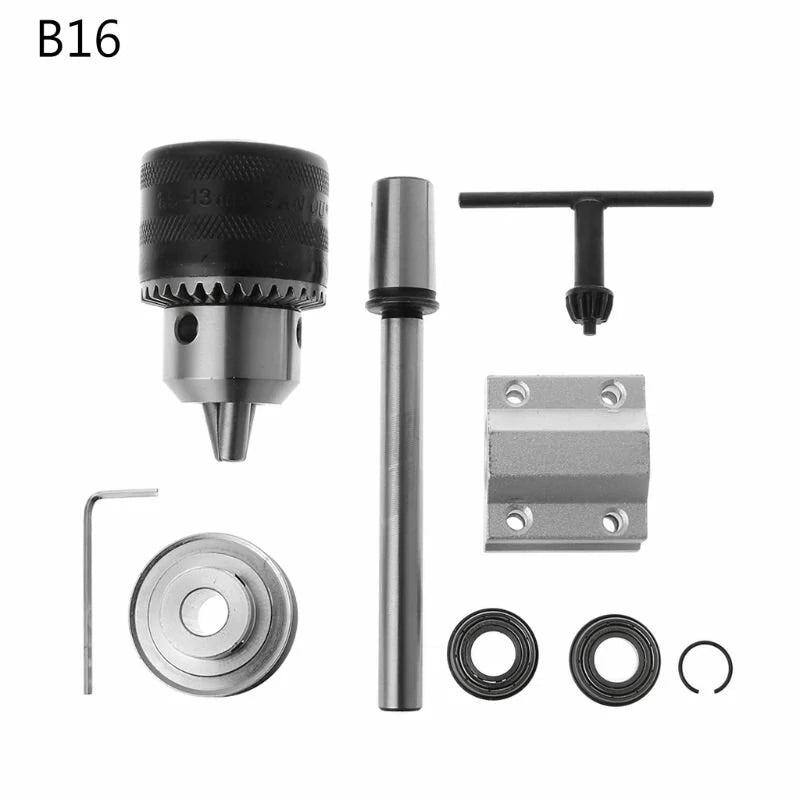

  • B16 Drill Chuck

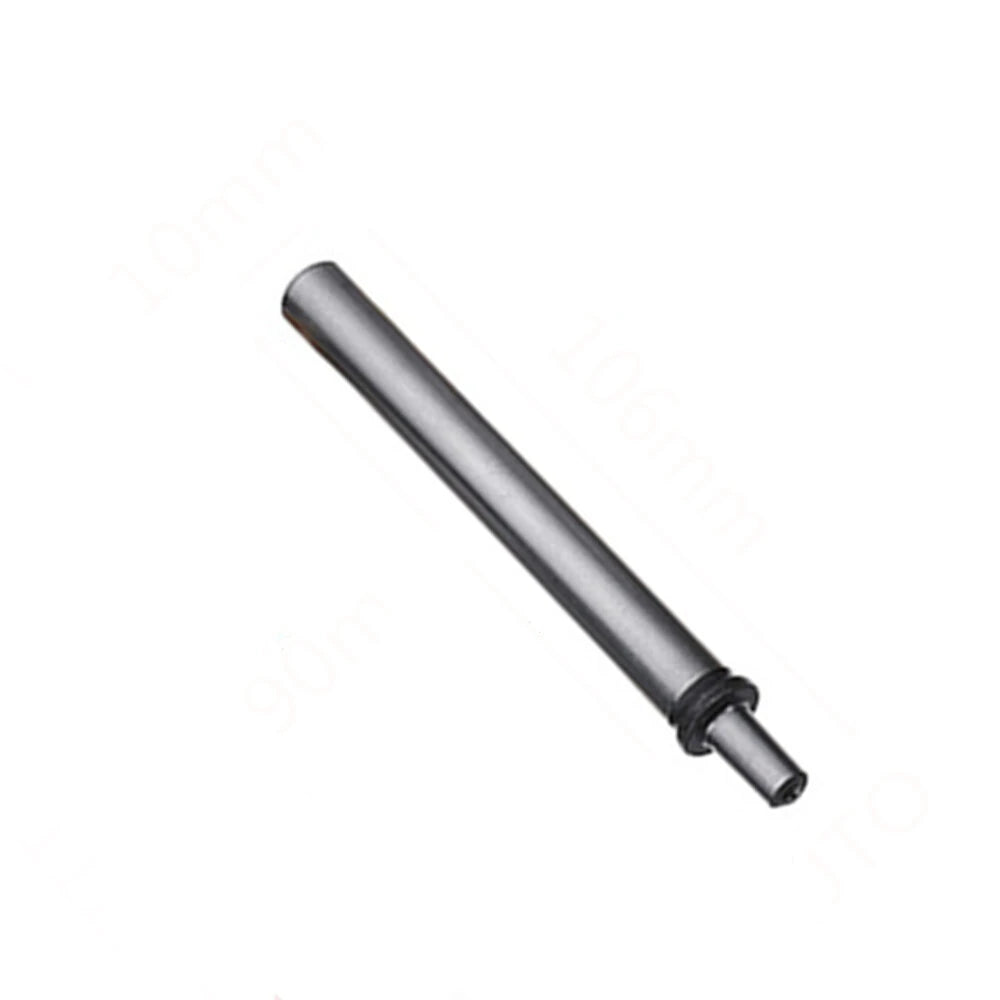

  • JTO Drill Chuck Connecting Rod

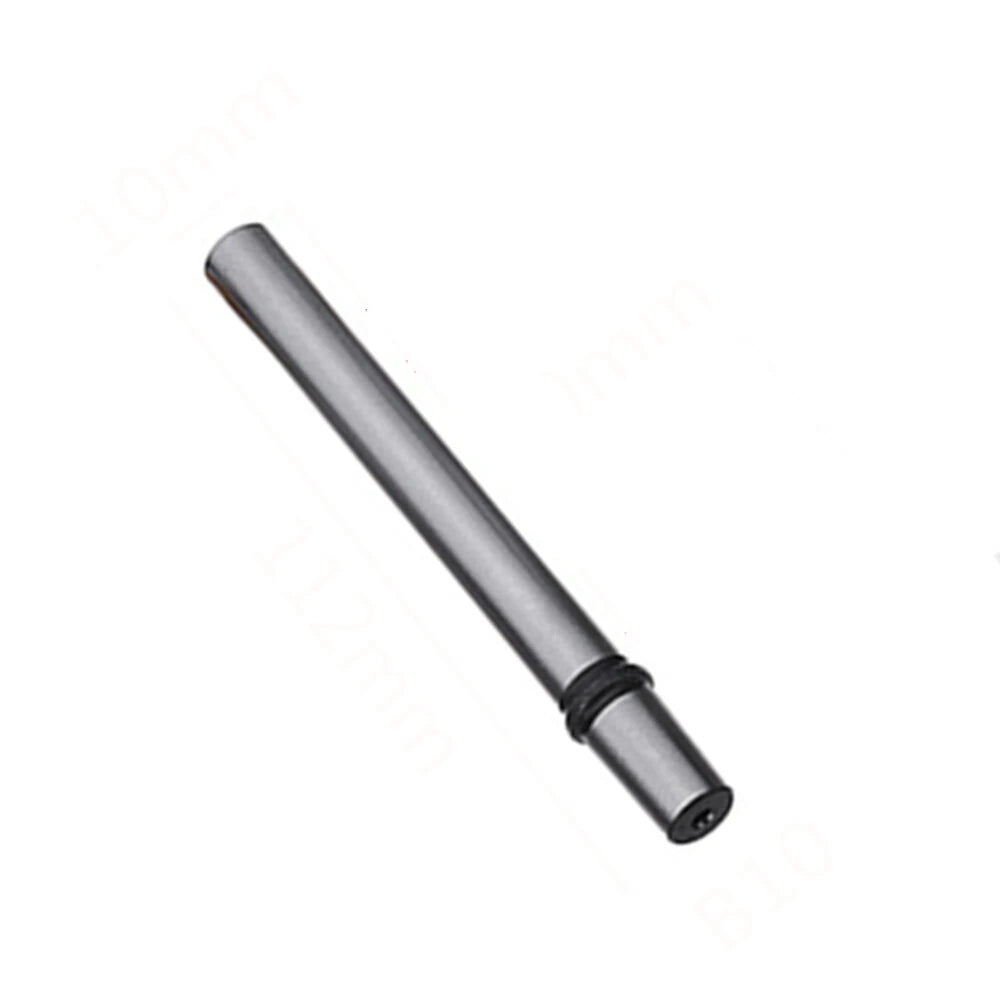

  • B10 Drill Chuck Connecting Rod
  • XL10T 5mm Hole Synchronization Wheel
• Cutting Ability: Unpowered spindle
• Cutting Depth: 10 mm
• Saw Blade Size/Diameter: 90 x 10 mm
• No Load Speed: 10000 RPM
• Scope of Application: Making small saws
• Power Type: No power
• Quantity: 1 Set x Drill Chuck Set

Features

• The shipper and synchronous wheel are equipped with a 1mm gasket for tight locking.
• Smooth rotation with high accuracy, achieved without phase grinding.
• Precision-machined non-powered spindle ensures less than 0.005mm deviation.
• Ideal for DIY bench drill, bench mill, and table saw setups.
• Higher accuracy due to direct drill clamp installation via the connecting rod.

Installation Tips

1. Pay attention to the mounting direction of the bearing. Consult the provided diagrams or videos.
2. Avoid damaging the bearing by working patiently and carefully.
3. Use creative methods to complete the assembly process effectively.
4. Ensure that the sliding block and the synchronous wheel contact surface are separated by the gasket to prevent grinding.

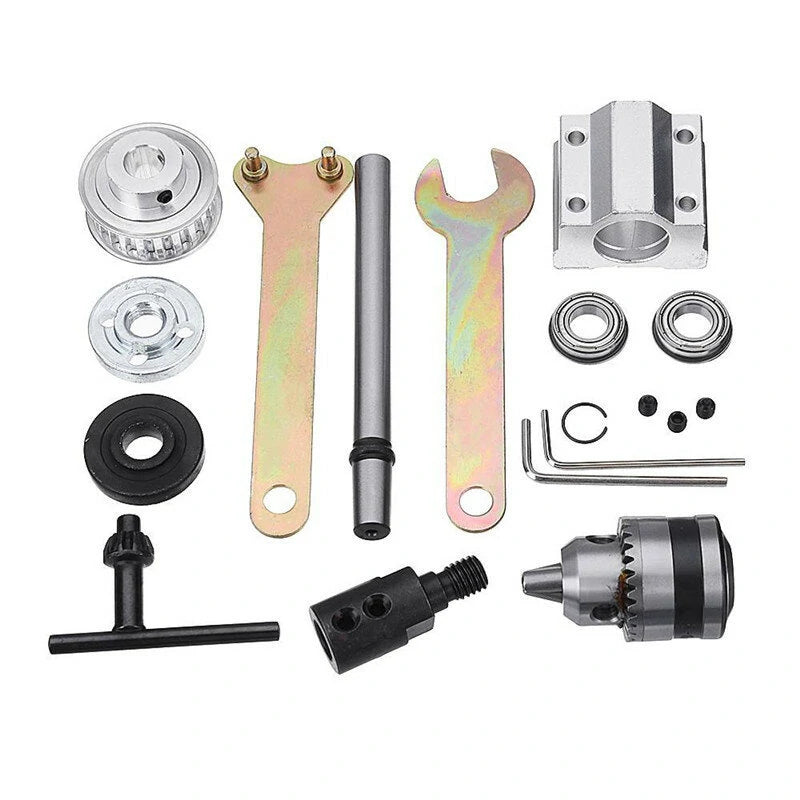

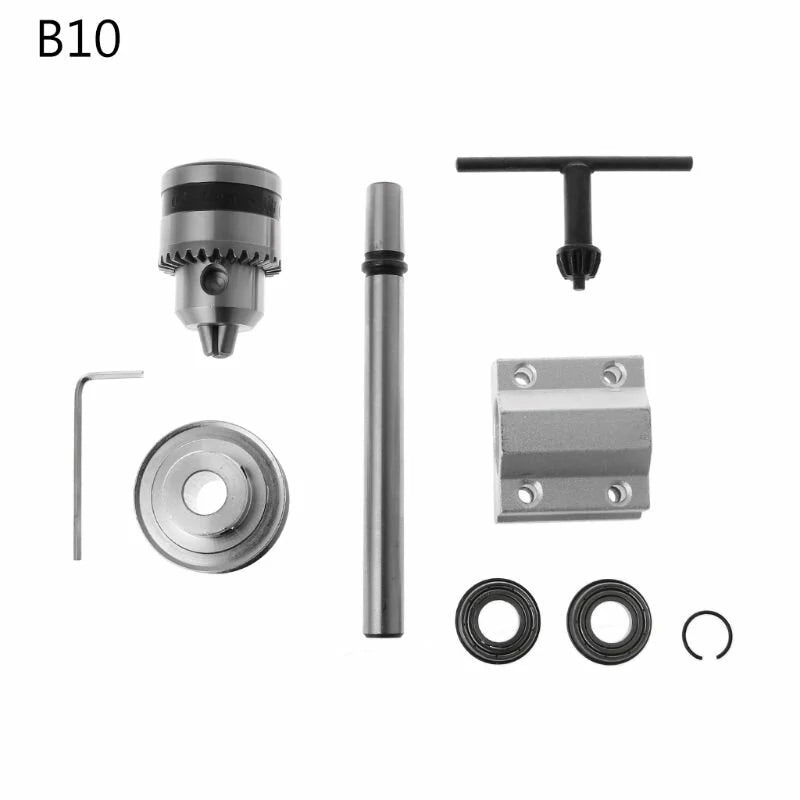

Package Included

• 1 Pc x XL10T 5mm Hole Synchronization Wheel

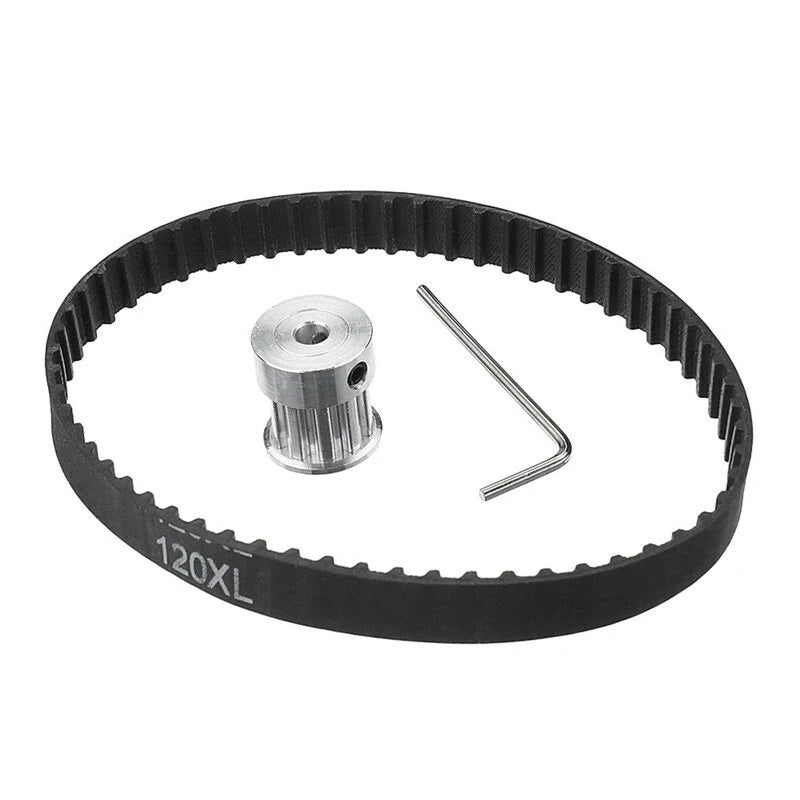

• 1 Pc x 120XL Timing Belt
• 1 Pc x Wrench
• 1 Pc x Drill Chuck Connecting Rod
• 1 Pc x XL20T 10mm Hole Synchronization Wheel
• 1 Pc x 10mm Hole Slider (including 2 bearings)

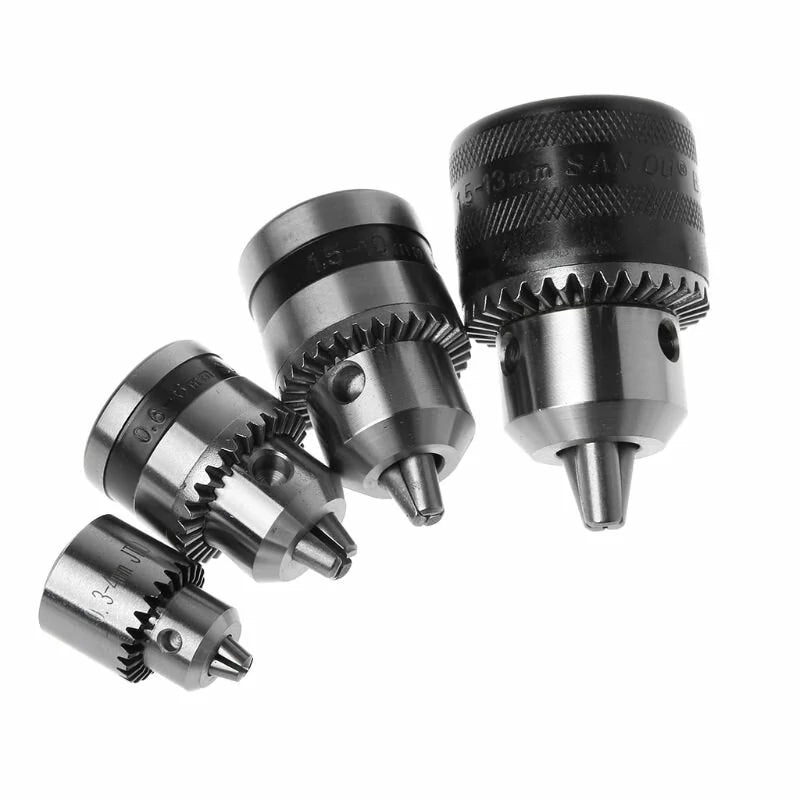

• 1 Pc x Drill Chuck (0.6-6mm B10, 0.3-4mm JTO, 1.5-10mm B12, 1.5-13mm B16)
• 1 Pc x M10 Shaft Sleeve (including relevant wrenches and drill clamp key)
