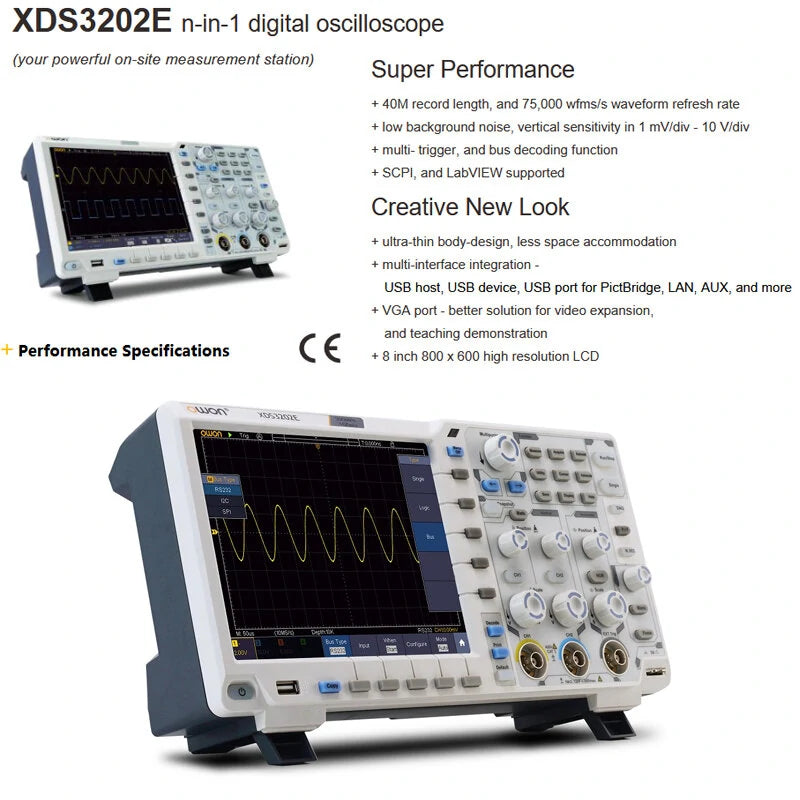

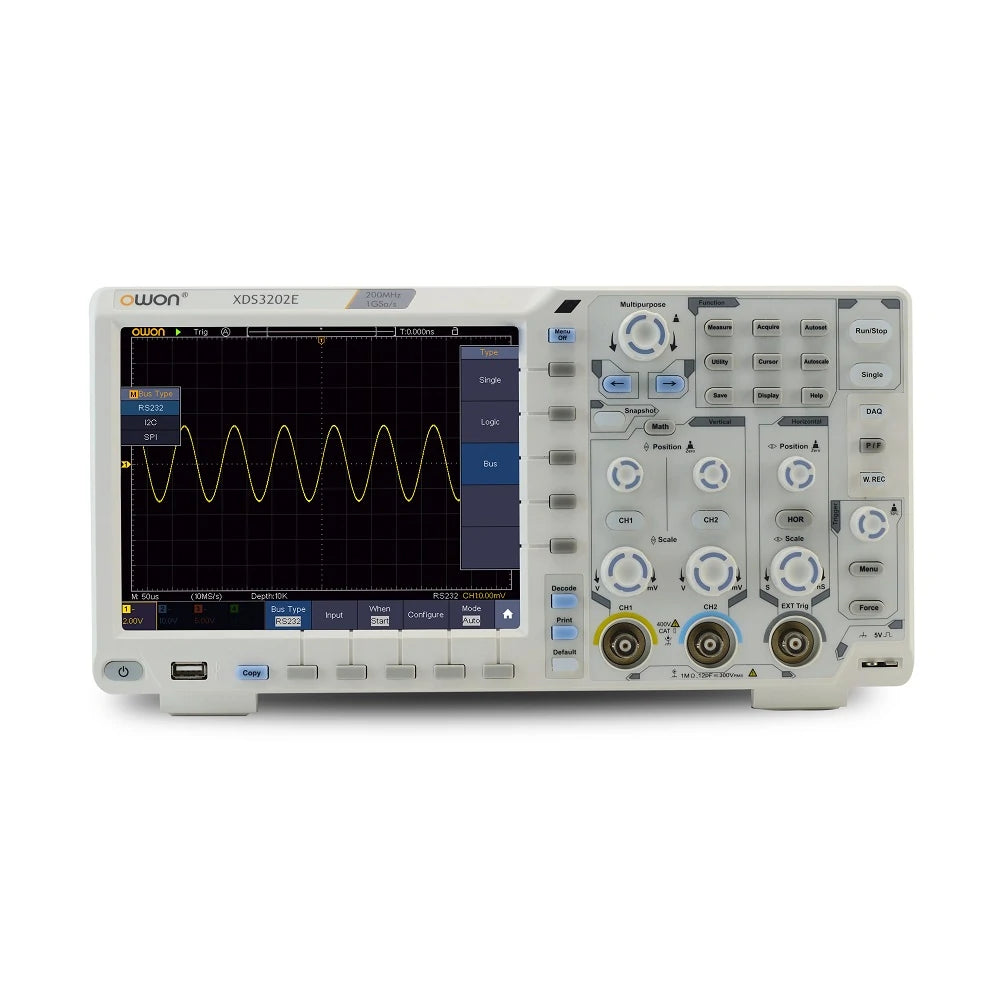

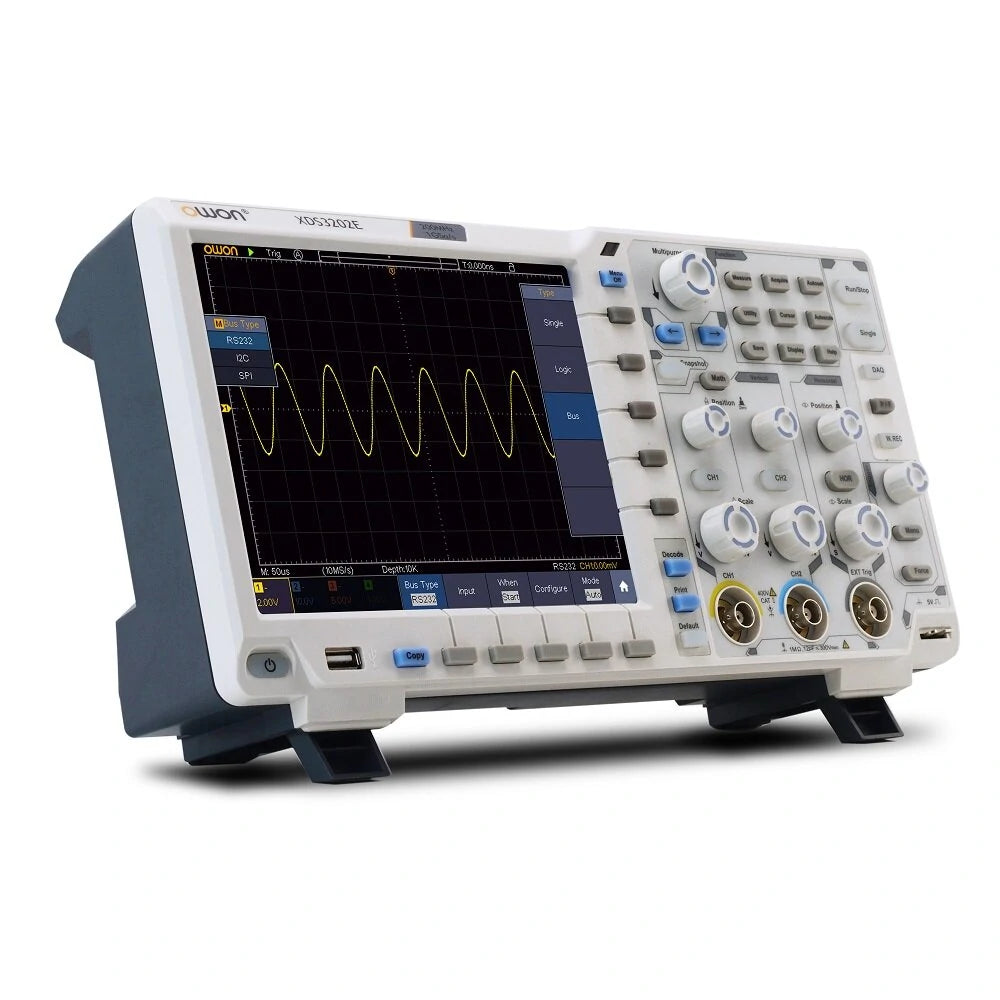

OWON Oscilloscope XDS3202E

Features

• High Performance: Experience the power of the OWON Oscilloscope XDS3202E with its impressive bandwidth of 200MHz and a sample rate of 1GS/s. This ensures reliable and accurate data analysis, enhanced by an 8-bit vertical resolution and a 40M record length for efficient performance.
• Comprehensive Display: The device is equipped with an 8-inch color LCD, with an optional upgrade to a 1024 x 768 pixels IPS display. Enjoy clear and expressive waveform representation to aid in accurate readings and ease your decision-making process.
• Multiple Trigger Types: Versatility is key with trigger types that include edge, video, pulse, slope, runt, windows, timeout, Nth edge, I2C, SPI, RS232, and the optional CAN. This variety provides flexibility and efficient debugging for your needs.
• Advanced Measurement Functions: The XDS3202E offers a suite of automated measurement functions like frequency, period, week RMS, cursor RMS, rise time, and fall time. These features deliver precise results and enhance productivity.

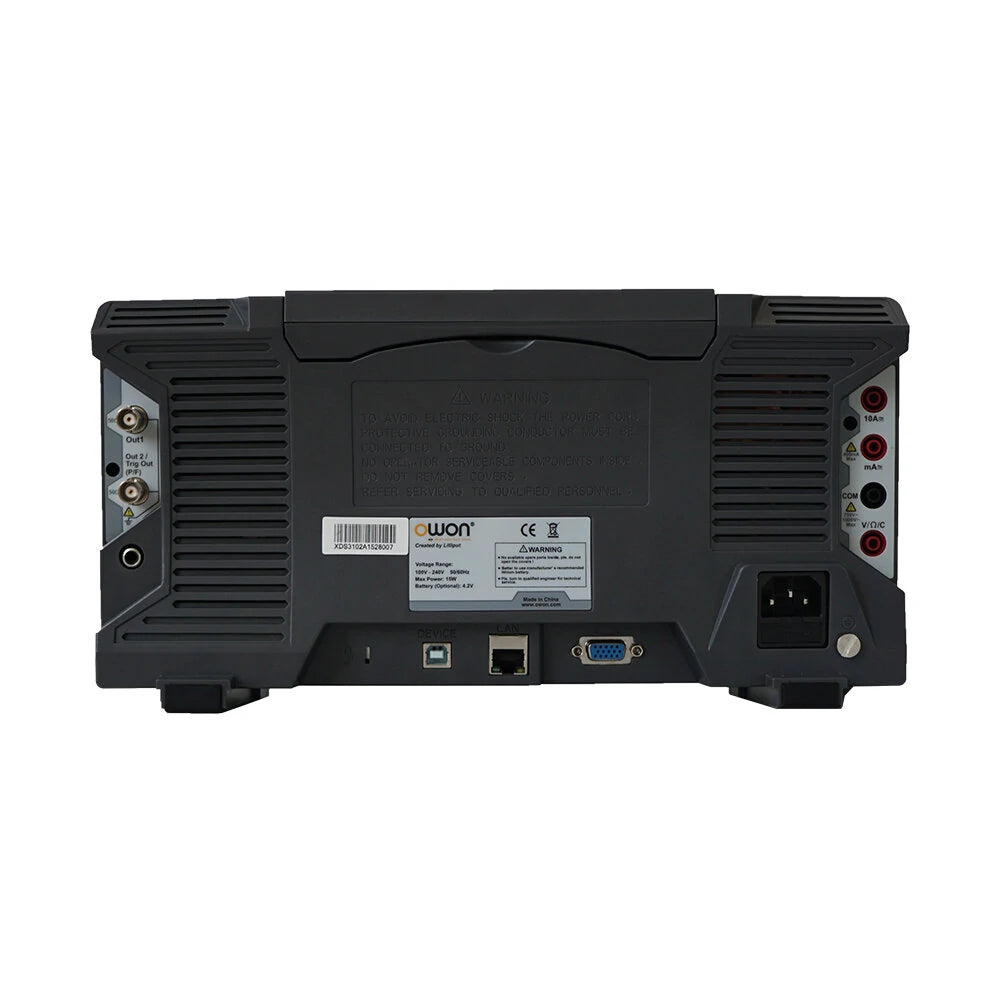

• User-friendly Interface: The built-in communication interface includes USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VG, allowing superior connectivity for data transfer and device interaction.

Specifications

• Brand: OWON
• Model: XDS3202E
• Bandwidth: 200MHz
• Sample Rate: 1GS/s
• Vertical Resolution (A/D): 8 bits
• Record length: 40M
• Waveform Refresh Rate: 75,000 wfms/s
• Rise Time: ≤1.7ns
• Channels: 2 + 1 (external)
• Display: 8" color LCD
• Probe Attenuation Factor: 0.001X - 1000X, step by 1 - 2 - 5
• Input Impedance: 1MΩ
• Max Input Voltage: DC Gain Accuracy ±3%
• DC Accuracy average: 216: ±3%
• Optional Plug Type: EU/US Plug

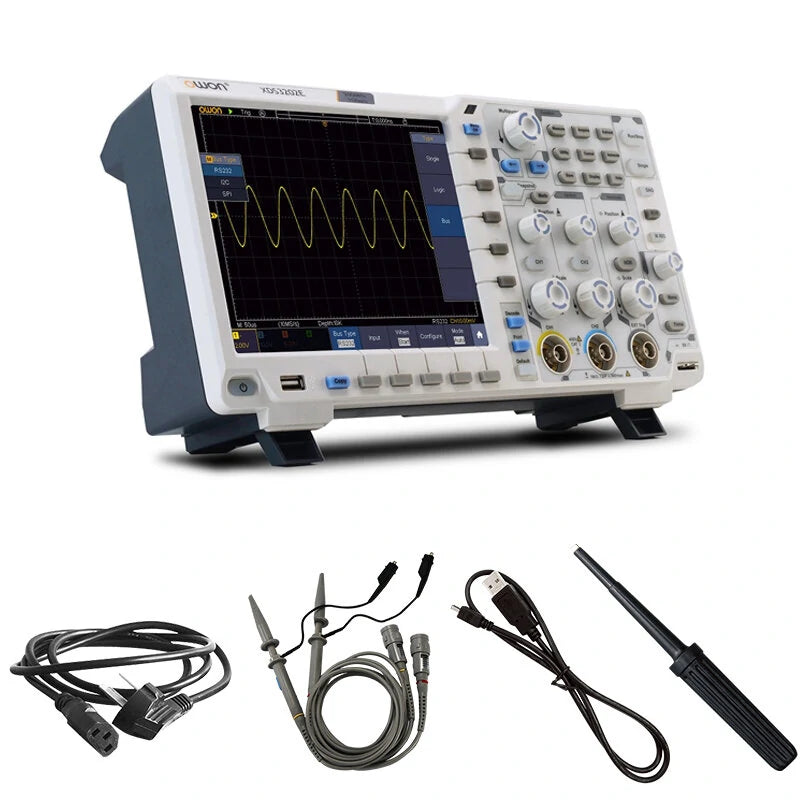

Package Includes

• 1 x OWON Oscilloscope XDS3202E (Plug Type As Your Choice)
• 1 x Power Cord
• 1 x Probe Adjust
• 1 x CD Rom Manual
• 1 x Probe
