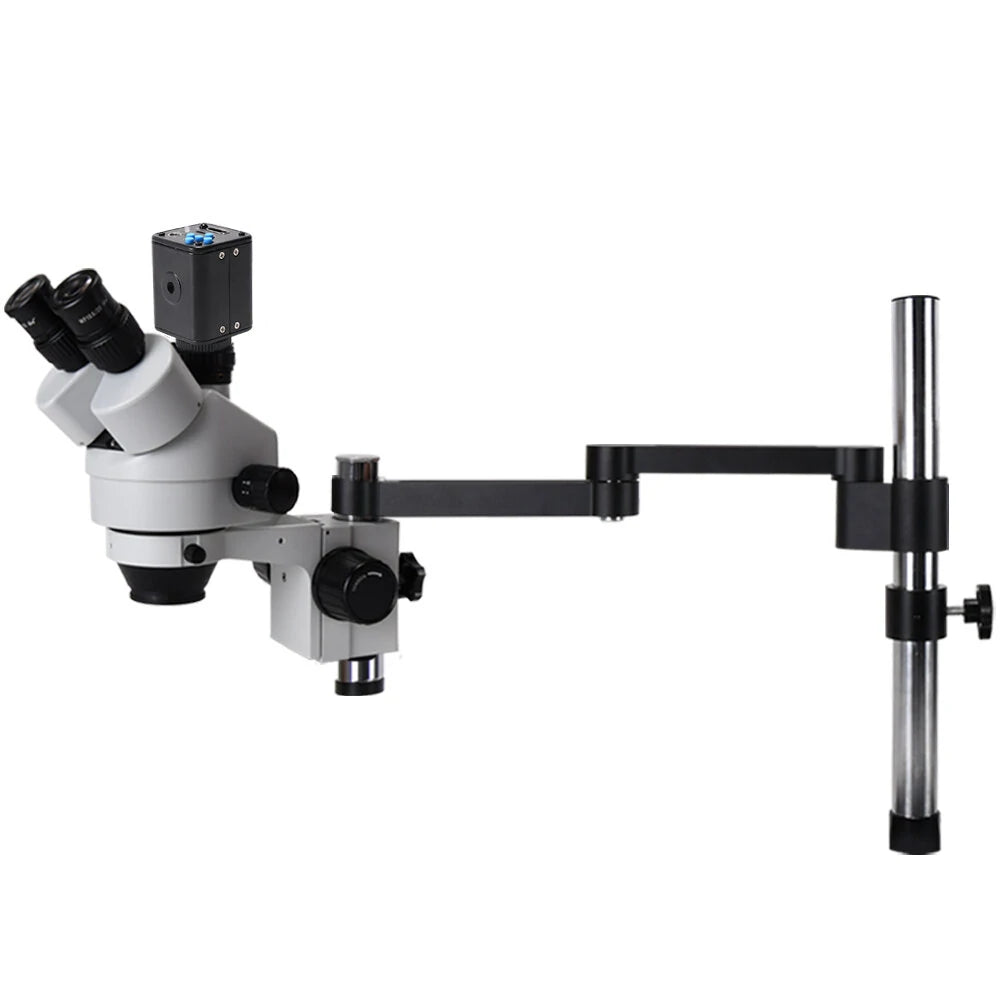

Desktop Folding Stand

Simul Focal 7X-90X Zoom Stereo Trinocular Microscope

Features:

• Trinocular Simul-focal Head with 45-degree inclination and 360-degree swiveling capability.
• 7X - 45X Continuous Zoom Magnification for diverse applications.
• SUPER WIDEFIELD High-Eyepoint Eyepieces for a comfortable viewing experience.
• Trinocular port enables photo or video capture.
• 30mm Super Widefield WF10X Eyepieces providing a 20mm Field of View.
• High Resolution with excellent Flatness and Contrast for sharp and clear images.
• Accurate Alignment for fatigue-free viewing.
• Manufactured under ISO 9001 Quality Standards with full optical glass elements and precise ground glass lenses.

Specifications:

Component	Specification
Head	45-degree inclined, 360-degree swiveling trinocular simul-focal
Eyepiece	30mm Super Widefield high-eyepoint WF10X/20
Objective	0.7-4.5X, Zoom Range 6.5:1
Field of View	33mm
Working Distance	Using 0.5x objective: 185mm, using 2.0x objective: 40mm

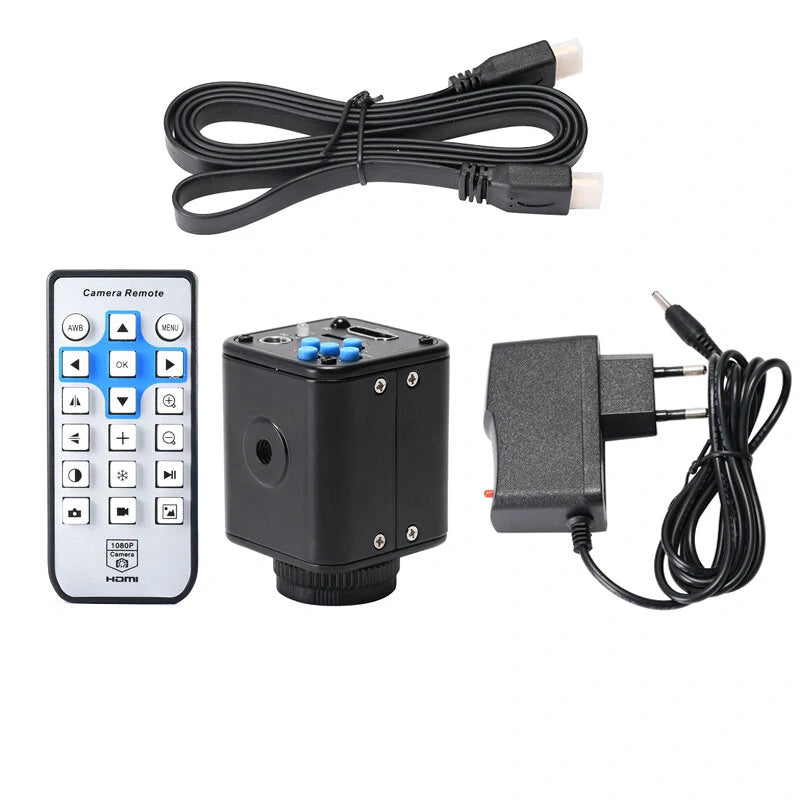

Camera Specifications:

• 24MP CMOS Sensor, high Definition Multimedia Interface (Type A)
• Supports video resolutions up to 2K at 60FPS and 1080p at 60FPS
• Allows screen ratios of 4:3, 16:9
• Supports memory card up to 64GB (not included)
• Offers versatile settings for RGB values, exposure, cross lines, and more

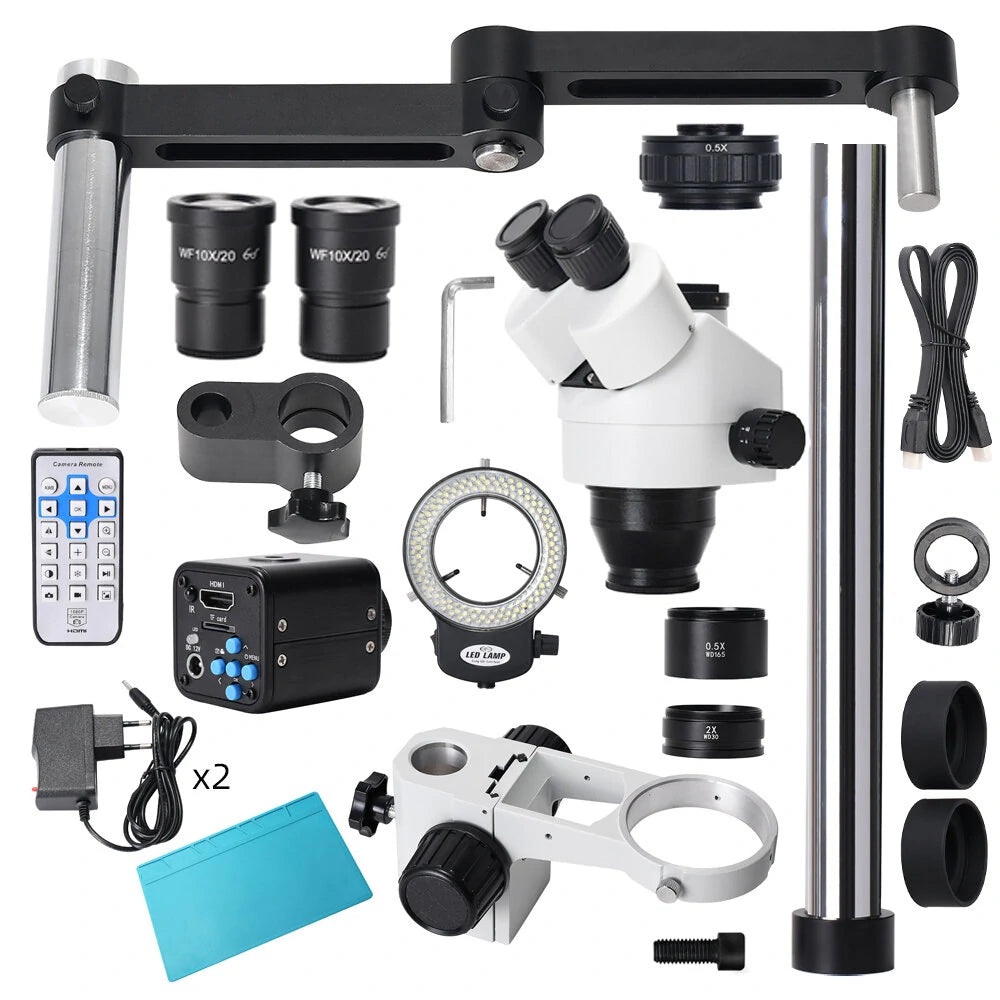

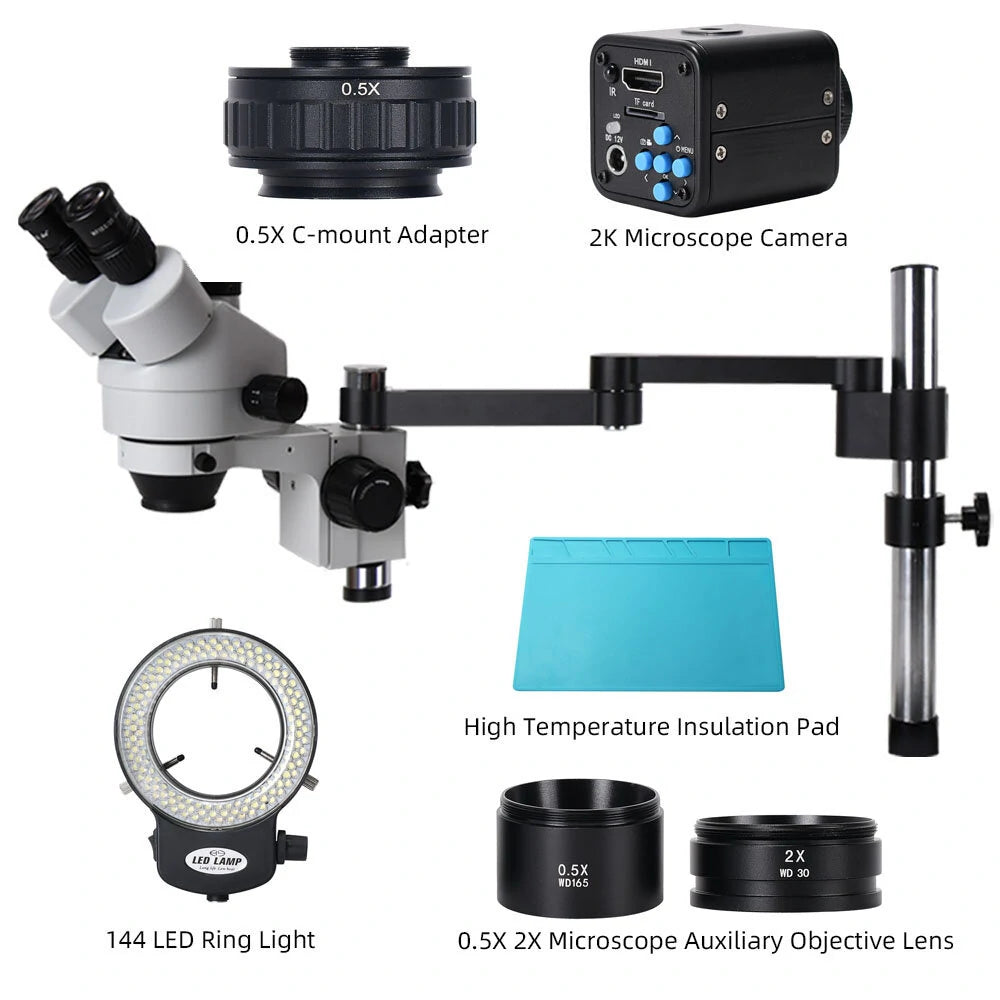

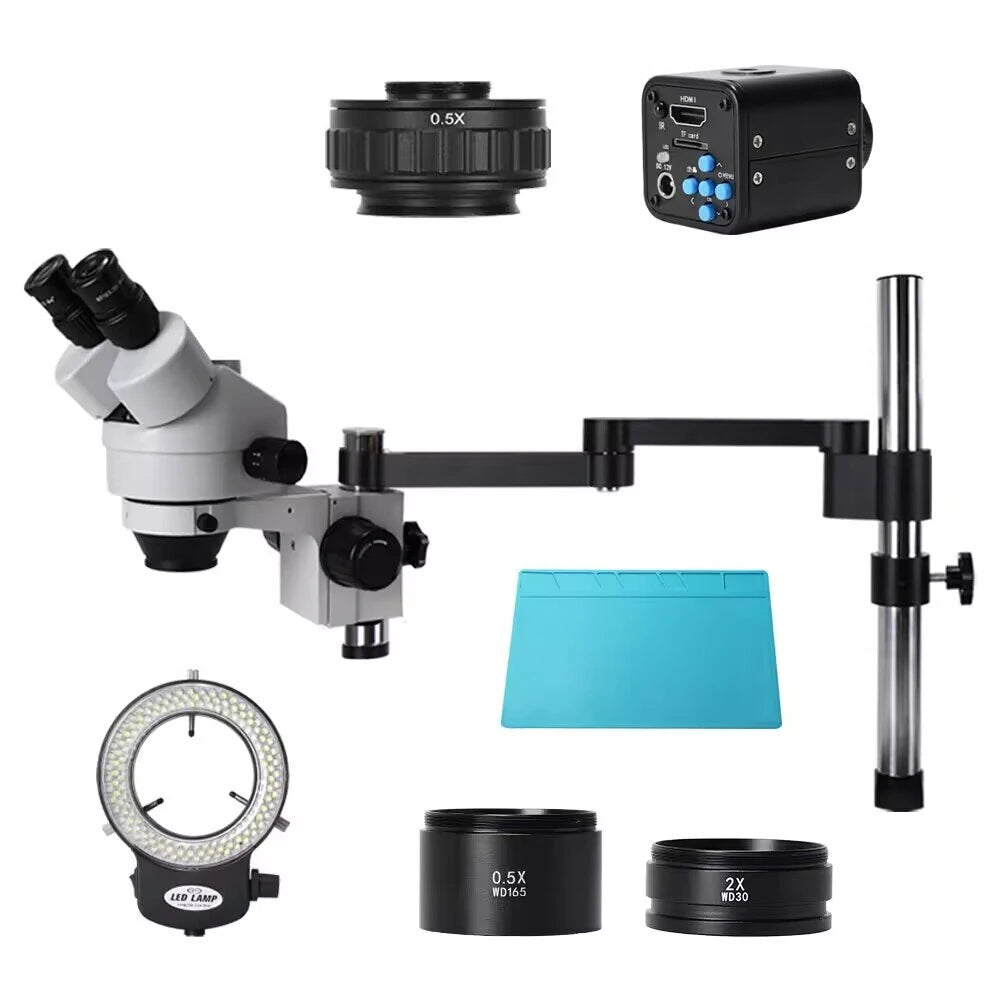

Additional Components:

• High Temperature Insulation Pad

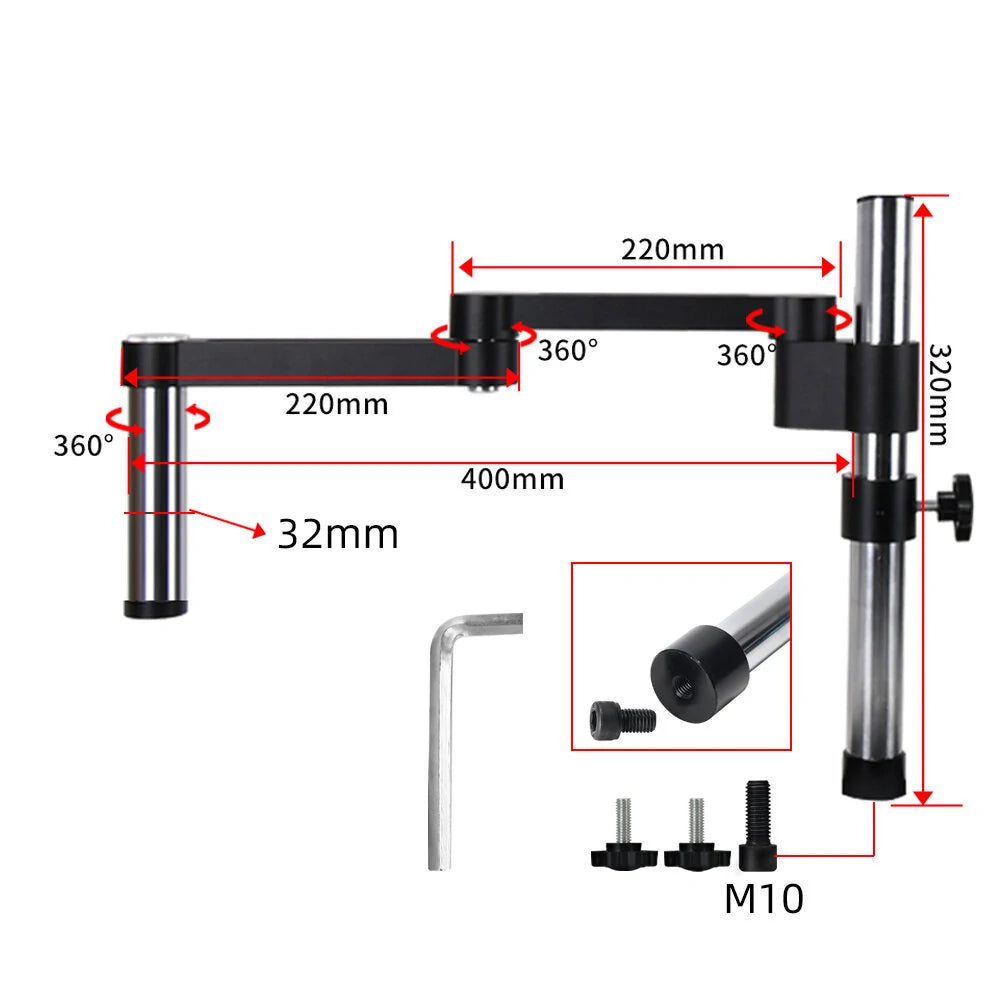

• Articulating Arm Set
• IR Remote Control
• Two 12V Power Adapters

Lighting Features:

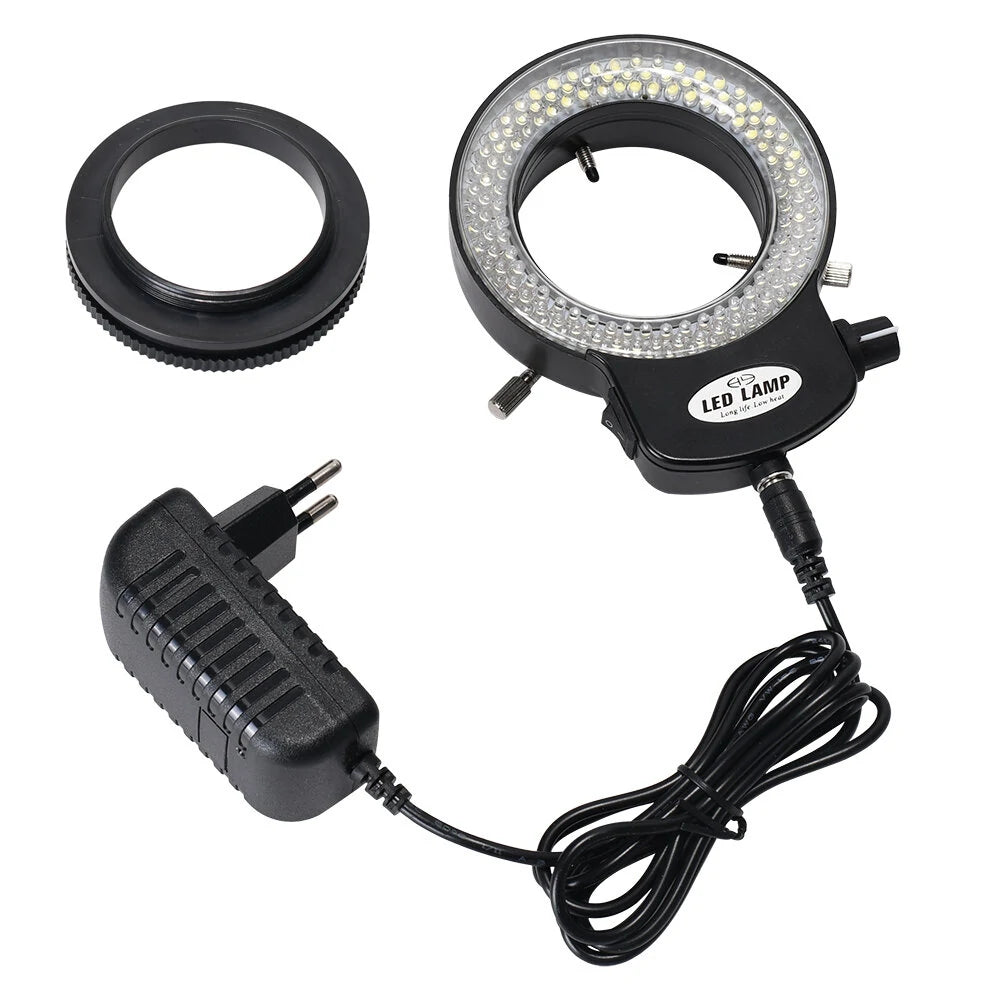

• 144 LED Adjustable Compact Microscope Ring Light
• Provides intense and focused shadow-free illumination with variable intensity control
