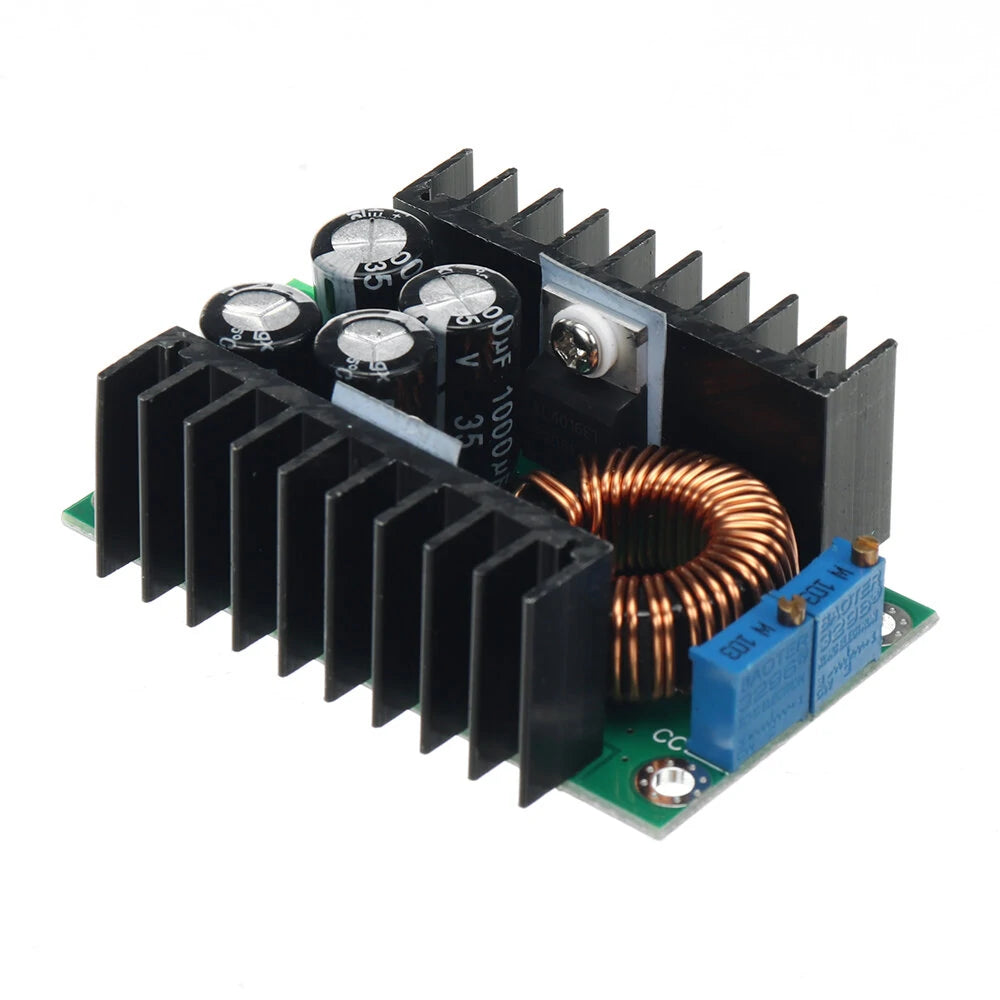

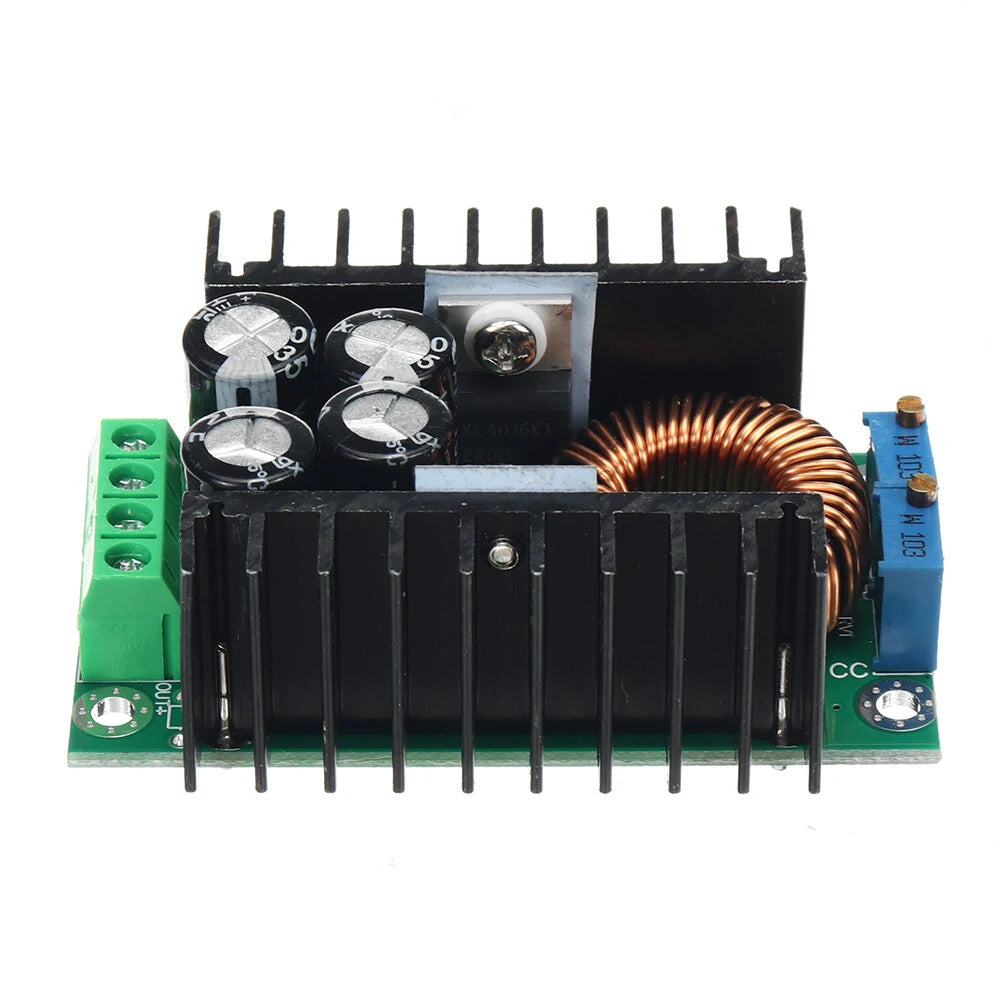

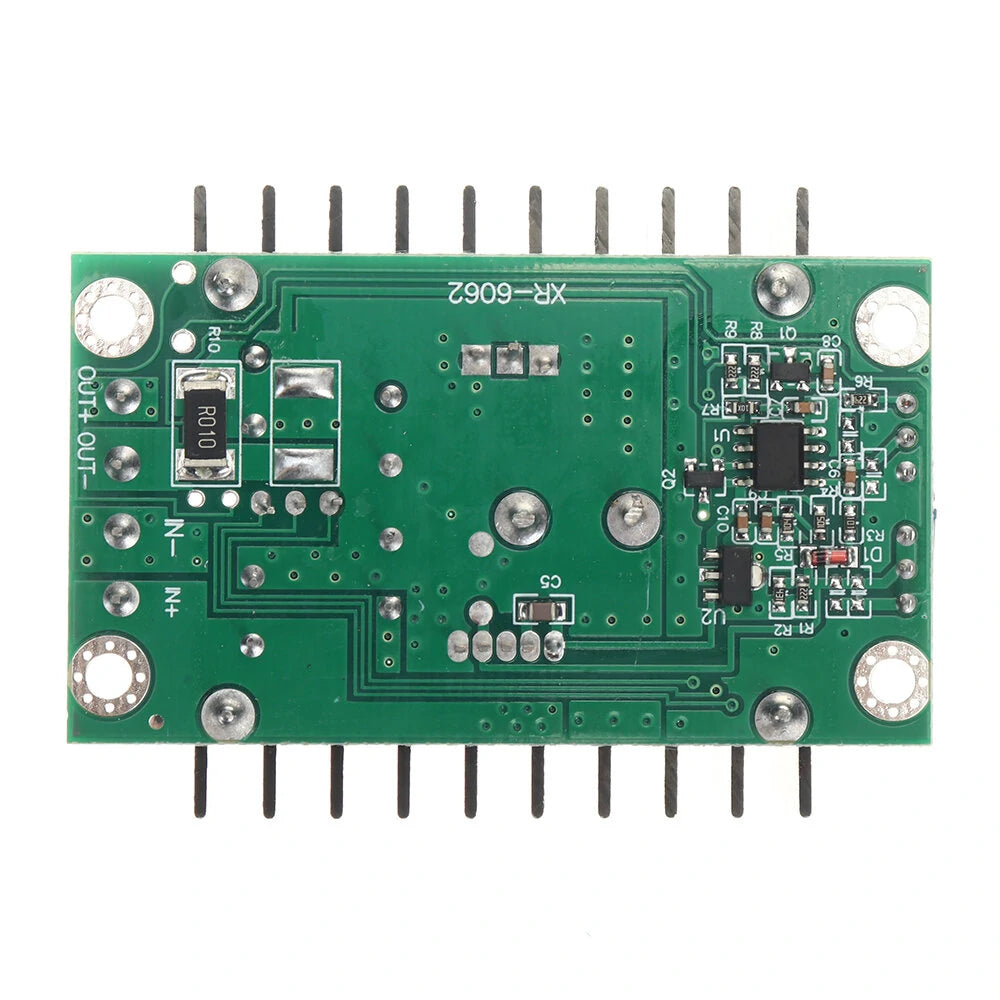

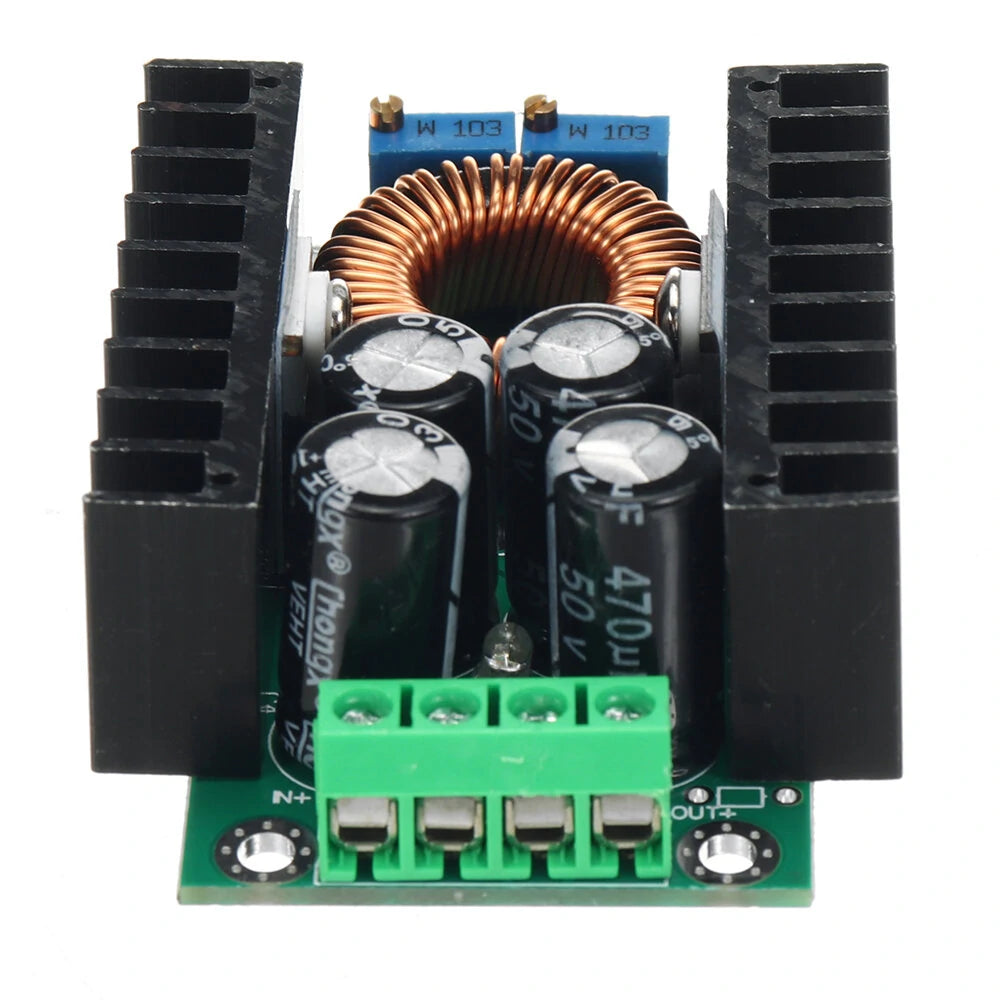

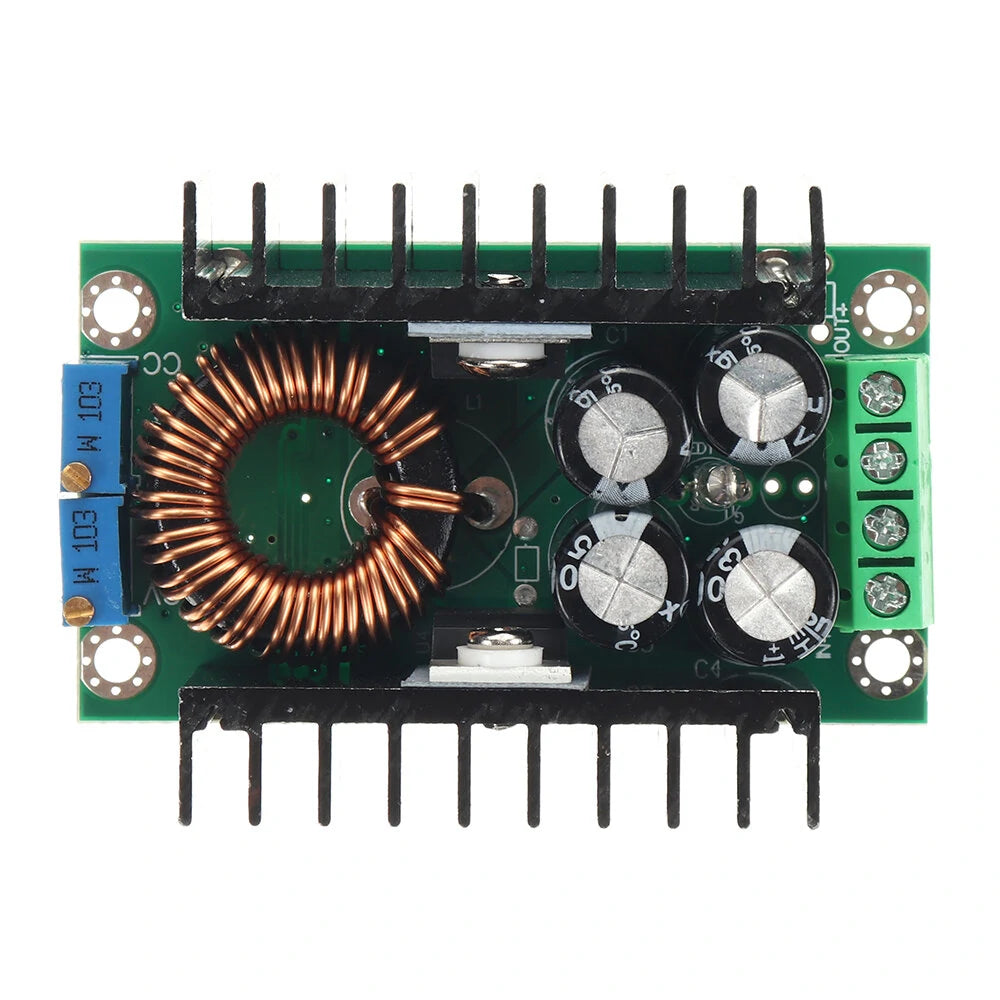

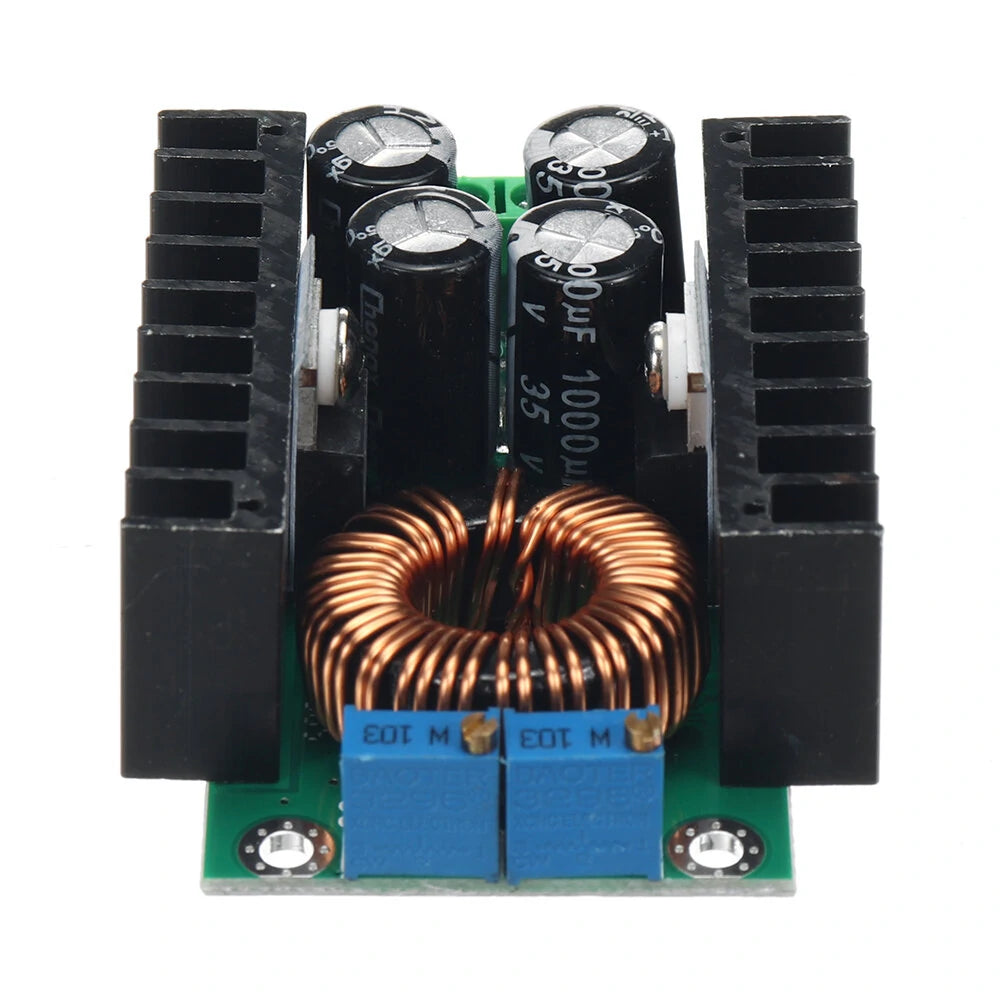

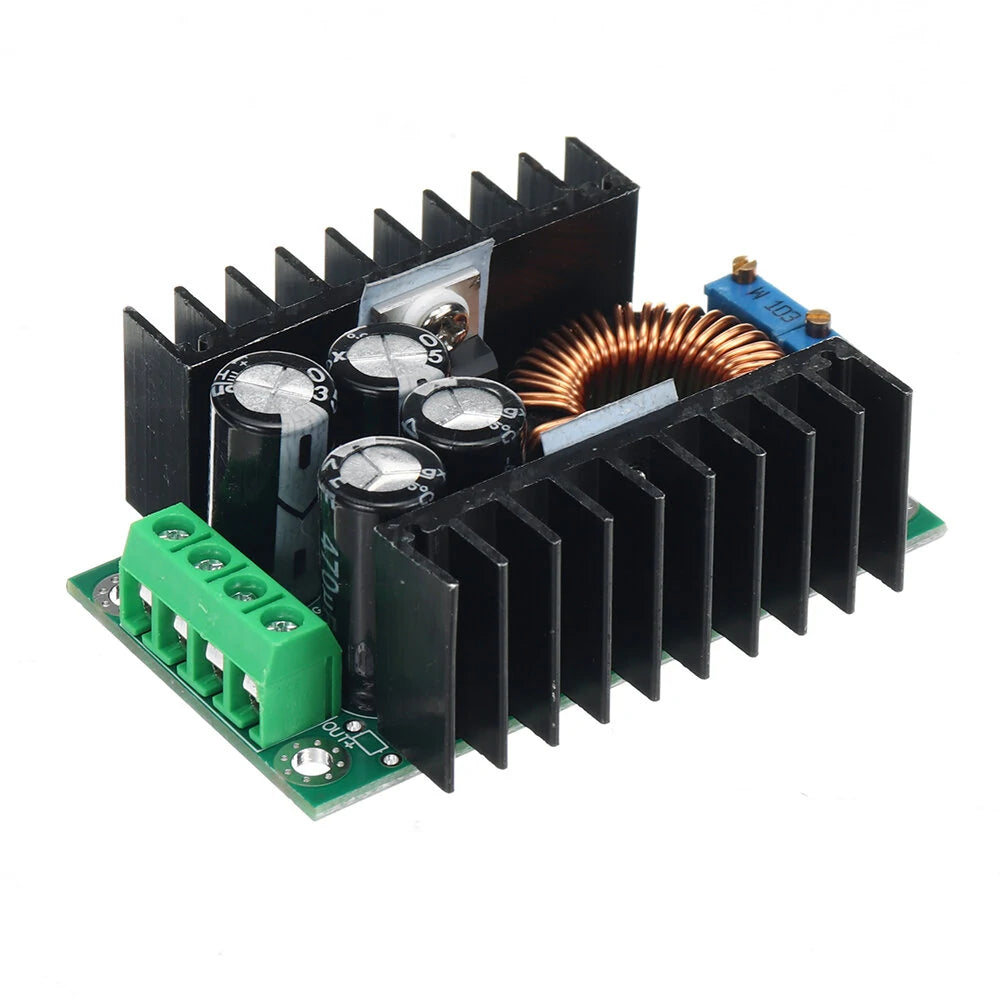

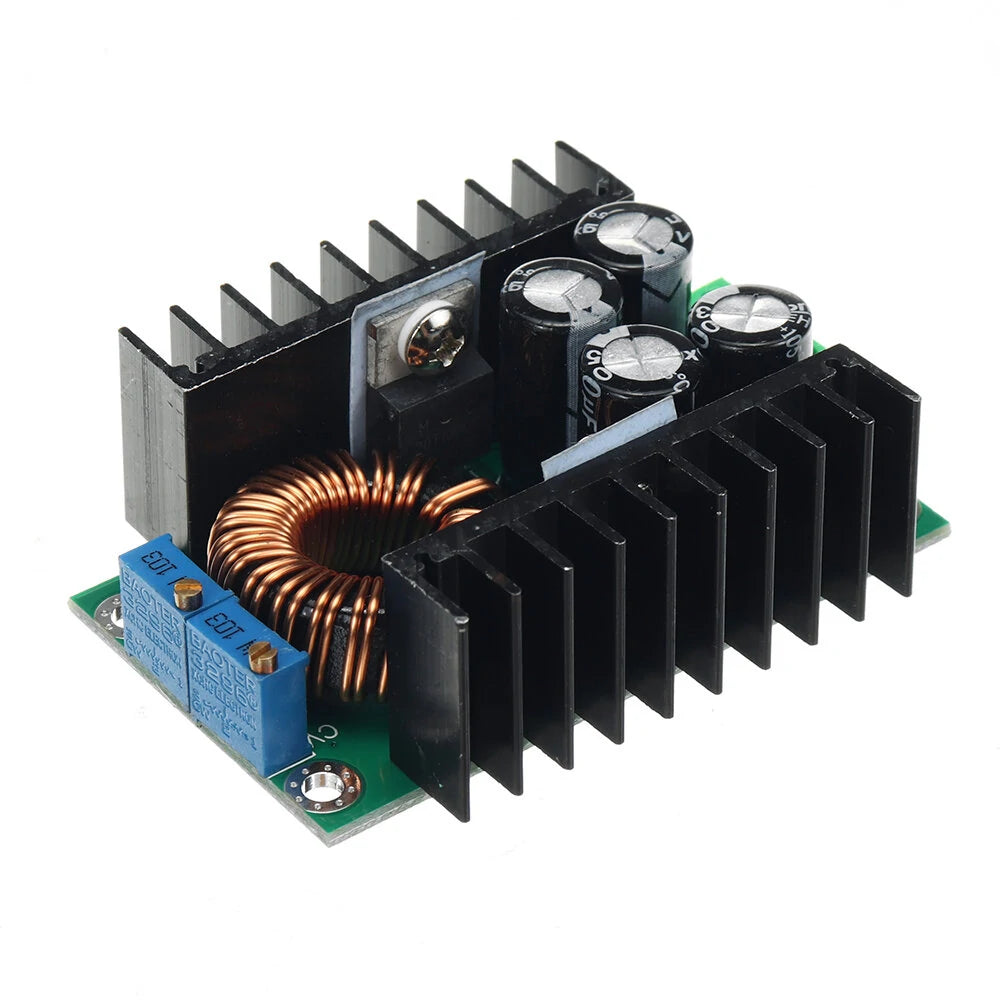

300W XL4016 DC-DC Buck Converter Module, 5-40V to 1.2-35V, Constant Current

300W XL4016 DC-DC Buck Converter Module, 5-40V to 1.2-35V, Constant Current

Regular price $3.69 USD
Regular price $0.00 USD Sale price $3.69 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Product Specifications

  • Module Properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module
  • Input Voltage: DC 7-32V
  • Output Voltage:
    • Adjustable: DC 0.8-28V
    • Fixed Output Option: 0.8V-28V
  • Output Current: 8A (Requires cooling fan if temperature exceeds 65°C)
  • Constant Current Range: 0.2-8A (Adjustable)
  • Turn Lamp Current: 10% of constant current value (e.g., 0.3A for 3A constant current)
  • Lowest Pressure: 1V
  • Output Power: Max 300W
  • Conversion Efficiency: Up to 95%
  • Operating Frequency: 300KHZ
  • Output Ripple: 20M bandwidth
  • Output Short Circuit Protection: Yes, constant current
  • Input Reverse Polarity Protection: No
  • Output Prevent Backflow: No
  • Wiring: Terminal
  • No-load Current: Typical 20mA (24V switch 12V)
  • Load Regulation: ± 1% (constant)
  • Voltage Regulation: ± 1%
  • Dynamic Response Speed: 5% 200uS
  • Potentiometer Adjustment:
    • Clockwise (increase), Counterclockwise (decrease)
    • CV for voltage regulation, CC for current regulation
  • Operating Temperature: -40°C to +85°C (monitor heat dissipation)
  • Indicator: Dual color, red for charging, green for fully charged (no load is green)
  • Size: 65 x 47 x 22 mm (L x W x H)
  • Precision: Change in constant current value is less than 5% between 25°C and 60°C
  • Wiring Method: Amphenol connector

Features

  • Fixed turn lamp current is 10% of the current value, useful for battery charge indication.
  • Stable constant current with a dedicated IC and high-precision resistor, minimal temperature drift.
  • High output current, up to 8A max.
  • Four high-frequency capacitors reduce output ripple and enhance stability.
  • Double heat sink for efficient heat dissipation.
  • Improved working efficiency and reduced heat with large Sendust Core and pure copper wiring.
  • 3296 multiturn potentiometer for accurate voltage and current regulation.
  • Dual color lamp for clear working condition indication.
  • Adjustable voltage and current settings with excellent performance.

Applications

  • High-power LED driver
  • Lithium battery or lead accumulator charging
  • Vehicle-mounted power supply
  • Low voltage system power supply
  • Battery charging for 6V, 12V, 14V, 24V
  • On-board laptop power supply
  • Regulated power supply
  • Low voltage power supply system

Battery Charging Instructions

  • Confirm the required battery float voltage, charging current, and module input voltage.
  • Set the output voltage to around 5V using the constant voltage potentiometer.
  • Measure the output short-circuit current using a multimeter in the 10A current scale, adjust to desired charging current.
  • Adjust the constant voltage potentiometer to achieve the float voltage.
  • Connect the battery and begin charging (Steps 1-4 require the power module to be connected, no-load for output).

LED Constant Current Drive Instructions

  • Identify the desired LED operating current and maximum operating voltage.
  • Set the output voltage to around 5V using the constant voltage potentiometer.
  • Measure the output short-circuit current and adjust to the desired LED operating current.
  • Adjust to the maximum LED operating voltage using the constant voltage potentiometer.
  • Connect the LED for testing (Steps 1-4 require power module input connection, no-load for output).

Package Includes

1× Buck Module
