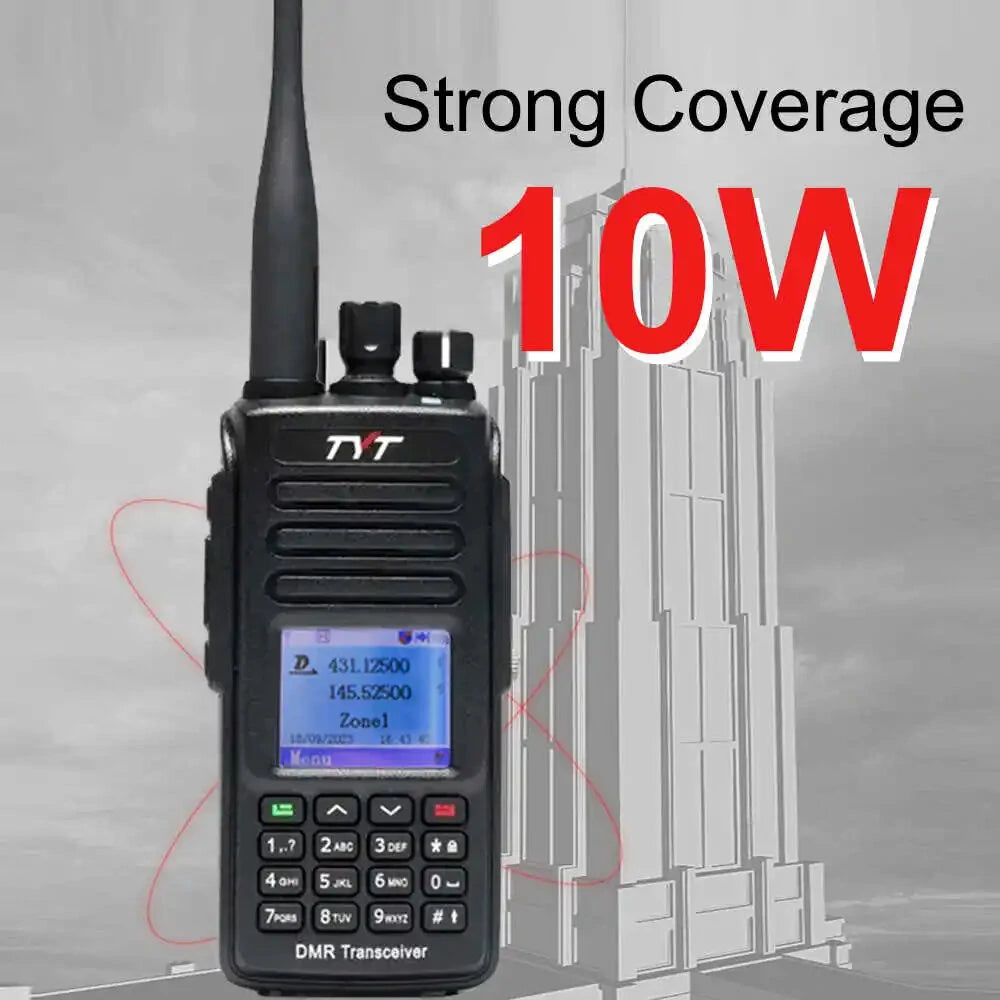

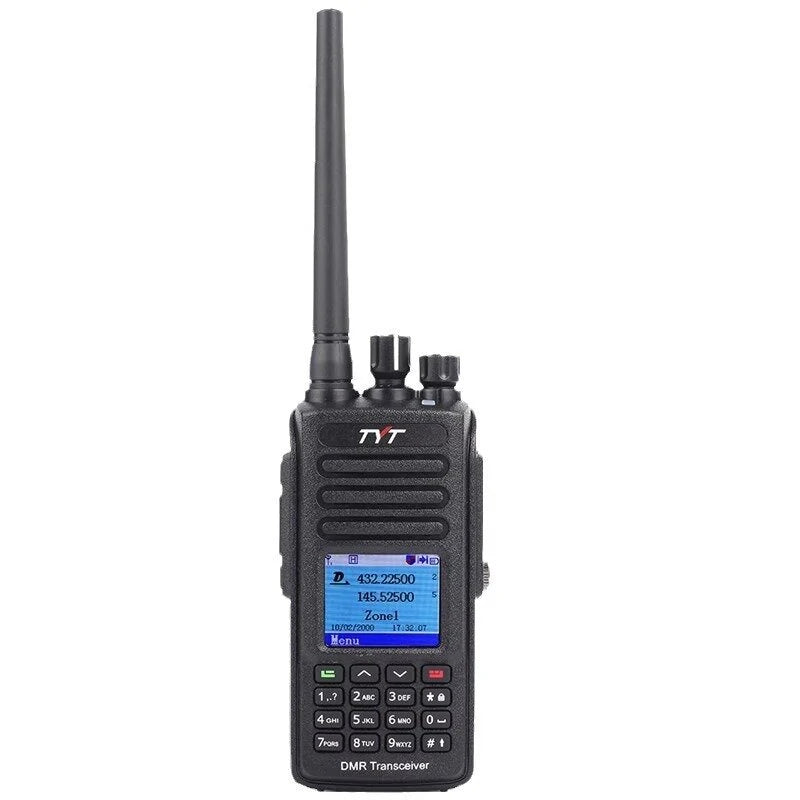

TYT MD-UV390 PLUS 10W Dual Band DMR Radio VHF UHF Walkie Talkie, Long Range, IP67, Portable Ham Transceiver with Encryption

Product Details

Item Number: MD-UV390

Frequency Range: 136-174MHz & 400-480MHz

Channel Capacity: 3000

Antenna Impedance: 50Ω

Operating Voltage: 7.4 V DC

Operating Temperature: -30°C to +60°C

Dimensions (W x H x D): 131 x 61 x 36mm

Battery: 2200mAh Li-ion

Performance Specifications

Output Power: ≤5W (H), ≤1W (L)

Vocoder Type: TDMA

Frequency Stability: ±1.0 PPM

Adjacent Channel Power: ≤-60dB

Spurious Radiation: ≤-36dBm (9KHz-1GHz), ≤-30dBm (1GHz-12.75GHz)

Hum and Noise: -40dB at 12.5KHz

4 FSK Digital Mode: 7k60FXD (data only), 7k60FXE (data+voice) at 12.5KHz

Digital Sensitivity: 0.25uV (BER 5%)

Audio Power: 1W

Audio Response: -1dB to +3dB

Adjacent Channel Selectivity: ≤-60dB at 12.5KHz

Main Functions

• Time-Division Multiple Access (TDMA) digital function
• Compatible with other brand Tier I and II
• Complies with digital protocol ETSI TS 102 361-1,-2,-3
• AES 256 encryption
• IP67 waterproof (MD-UV390PLUS)
• Analog and digital combined mode
• Dual band, dual display, dual standby
• Supports up to 3000 channels
• Store 10000 contacts
• Color LCD display
• Transmit interruption
• Group call and private call match (Promiscuous mode)
• Dual time slot for repeater and point-to-point
• Lone worker function
• Encryption capability
• Single call, group call, all call options
• Remote kill/stun and activation
• 8 hours of recording capacity
• Message function
• CTCSS/DCS coding
• Programmable functional keys for customization

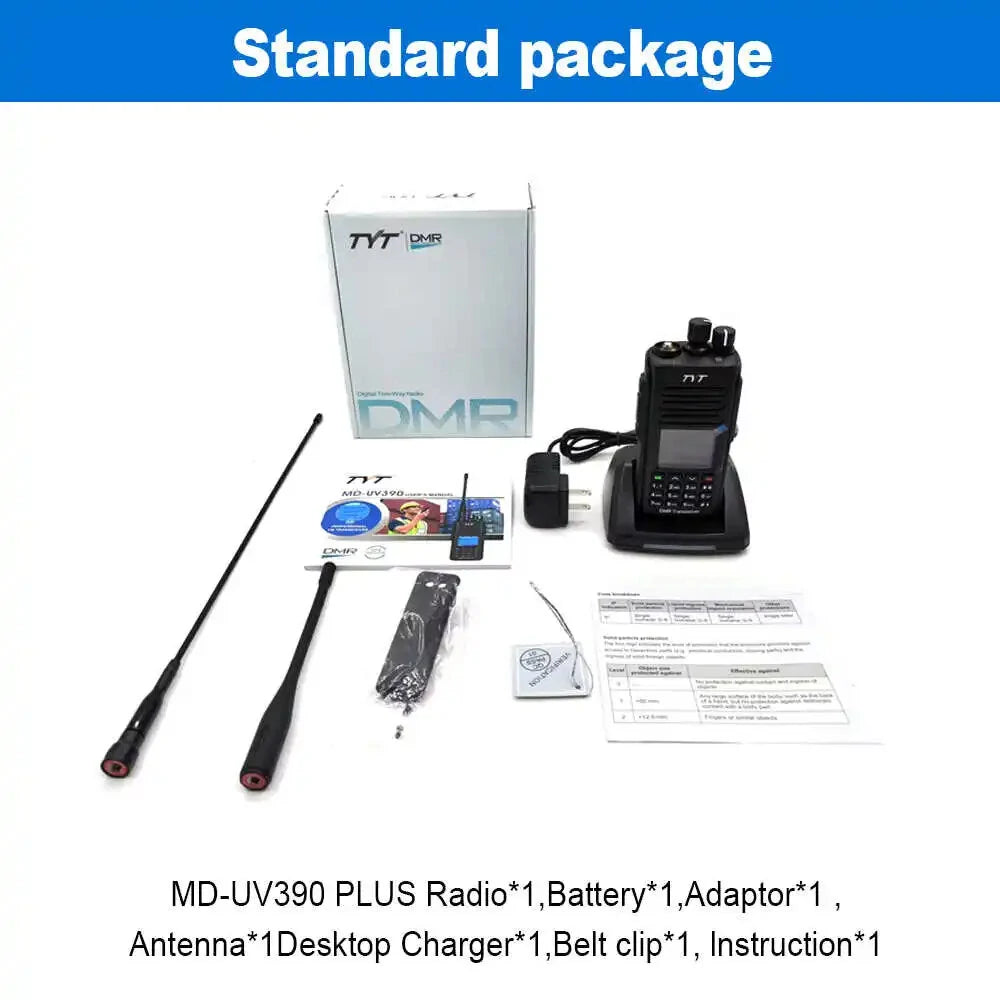

Package Includes

• 1x MD-UV390 Plus Radio
• 1x Battery
• 1x Adaptor (EU)
• 1x Antenna
• 1x Desktop Charger
• 1x Belt Clip
• 1x Instruction Manual
