65W Fast Charging Module, Type-C PD3.1 PPS QC3.0, Huawei SCP 8-30V Input for Smartphones & Laptops

Introducing the PD65W Fast Charging Module, the ultimate solution for all your fast-charging needs. Designed for efficiency, compatibility, and safety, this module is perfect for powering a variety of devices from smartphones to laptops.

Specifications:

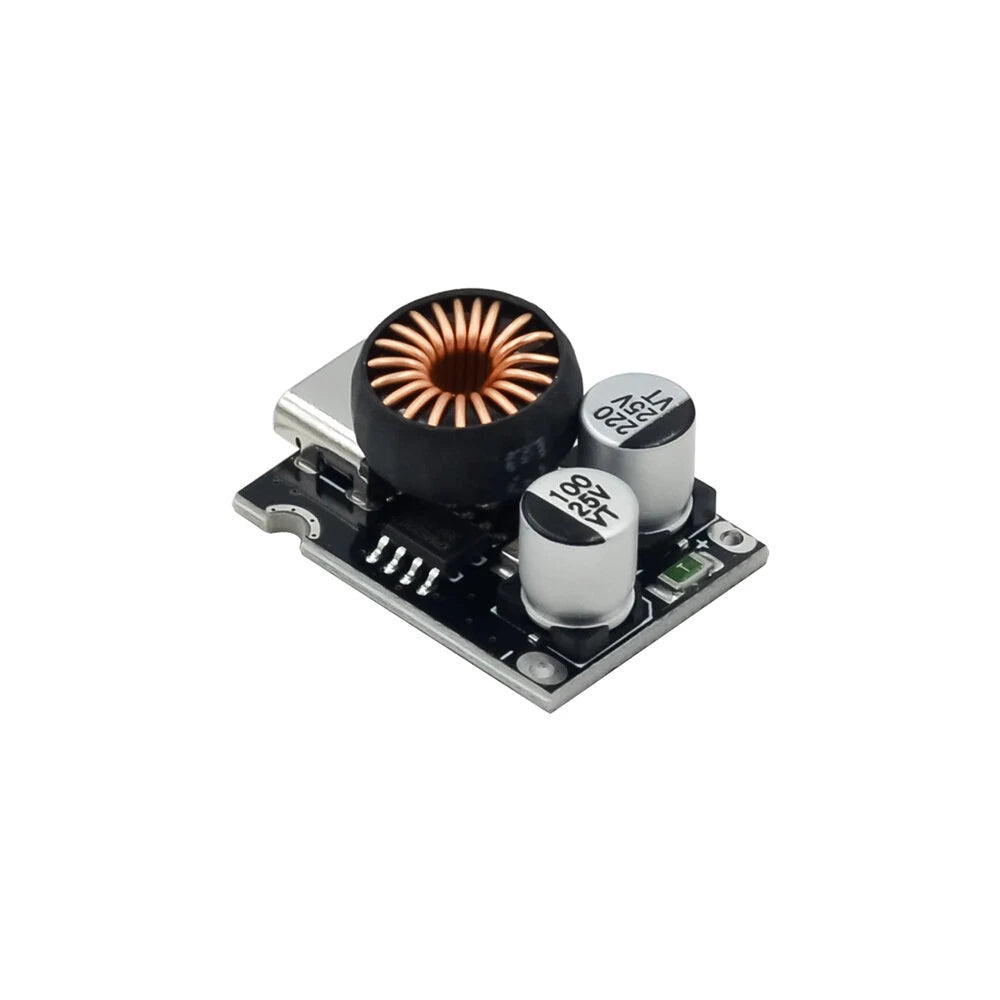

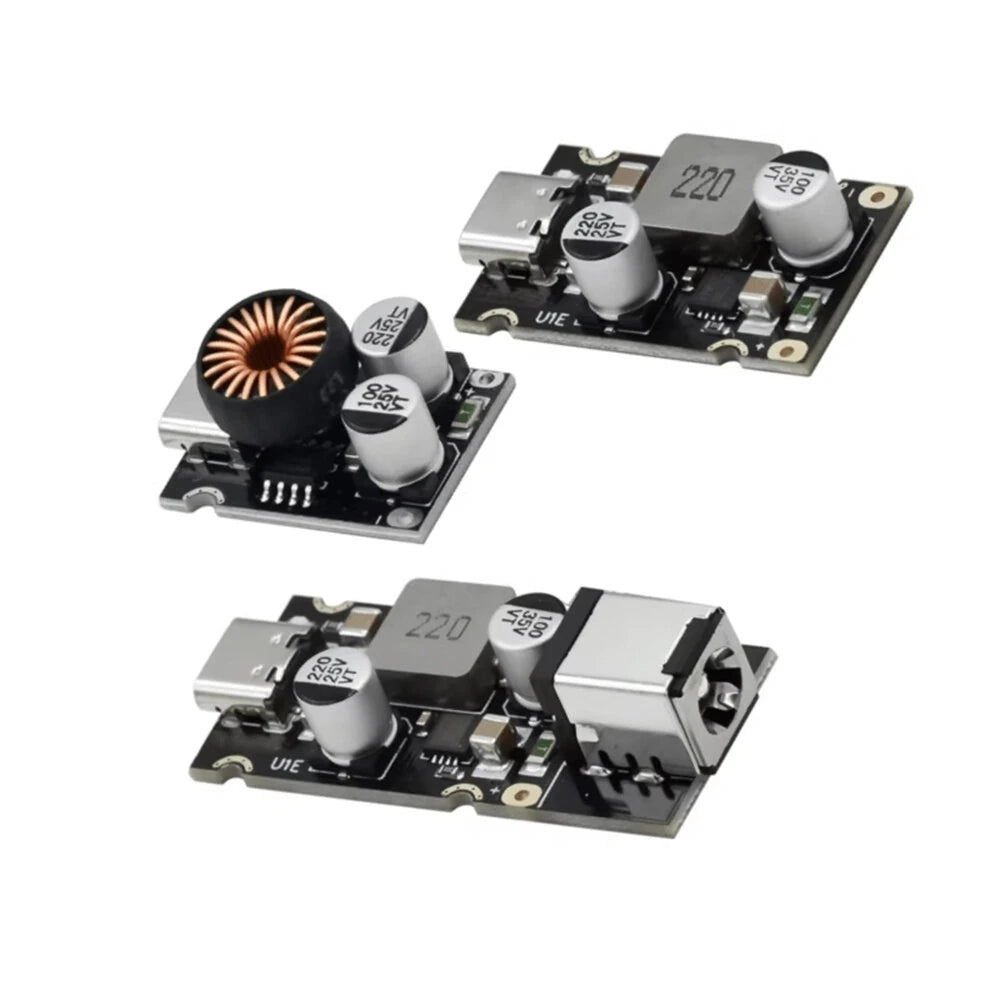

• Type: Standard, Mini, With DC 5.5X2.1 USB Interface (optional)
• Input Voltage: DC 8V-30V
• Output Voltage: Automatically adjusts between 3.3V-21V (input voltage must be higher than output voltage; for 20V quick charge, input must be higher than 20V)
• Maximum Output: 20V 3.25A
• Output Power: Up to 65W (5V3A, 9V3A, 12V3A, 20V3.25A)
• Conversion Efficiency: 92% to 97%
• Protection Features: Input Over-Voltage, Input Under-Voltage, Output Over-Current, Output Short-Circuit, Over-Temperature Protection
• Product Dimensions:

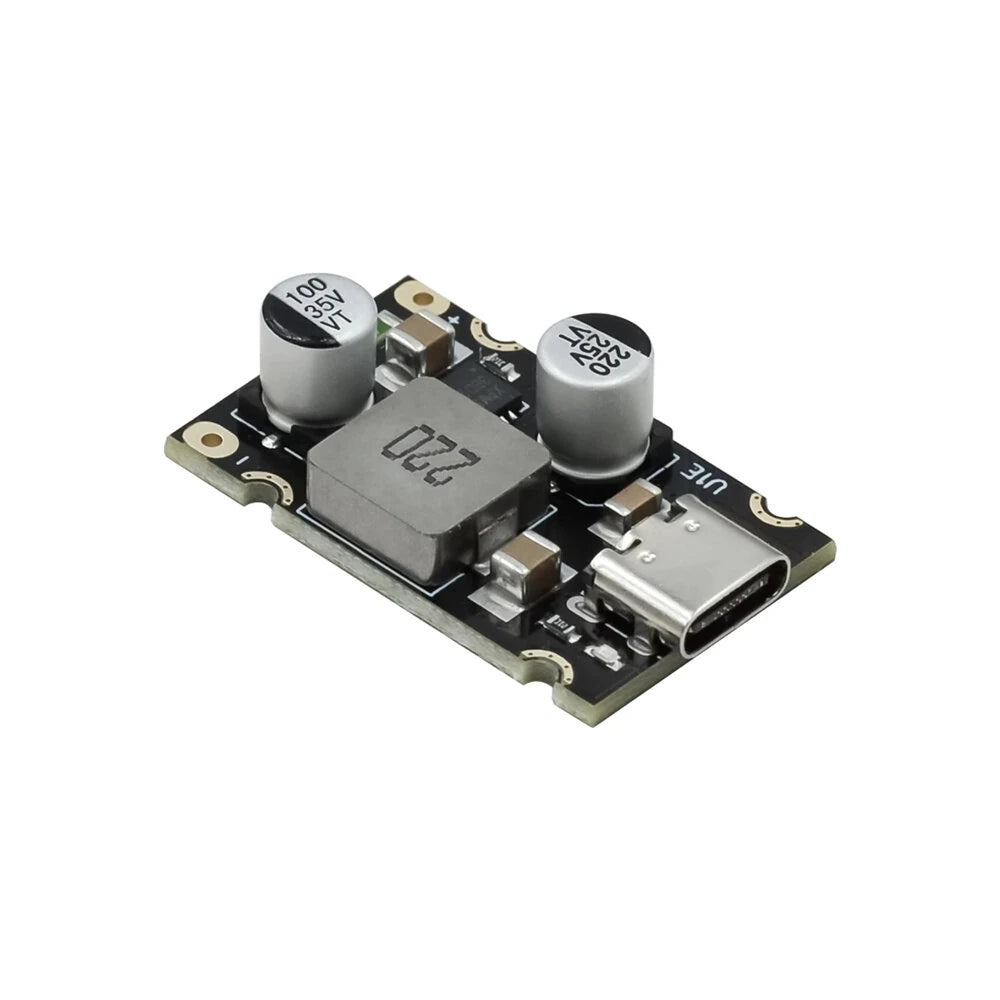

  • Standard Version: 32x20x10mm (excluding protruding Type-C port)

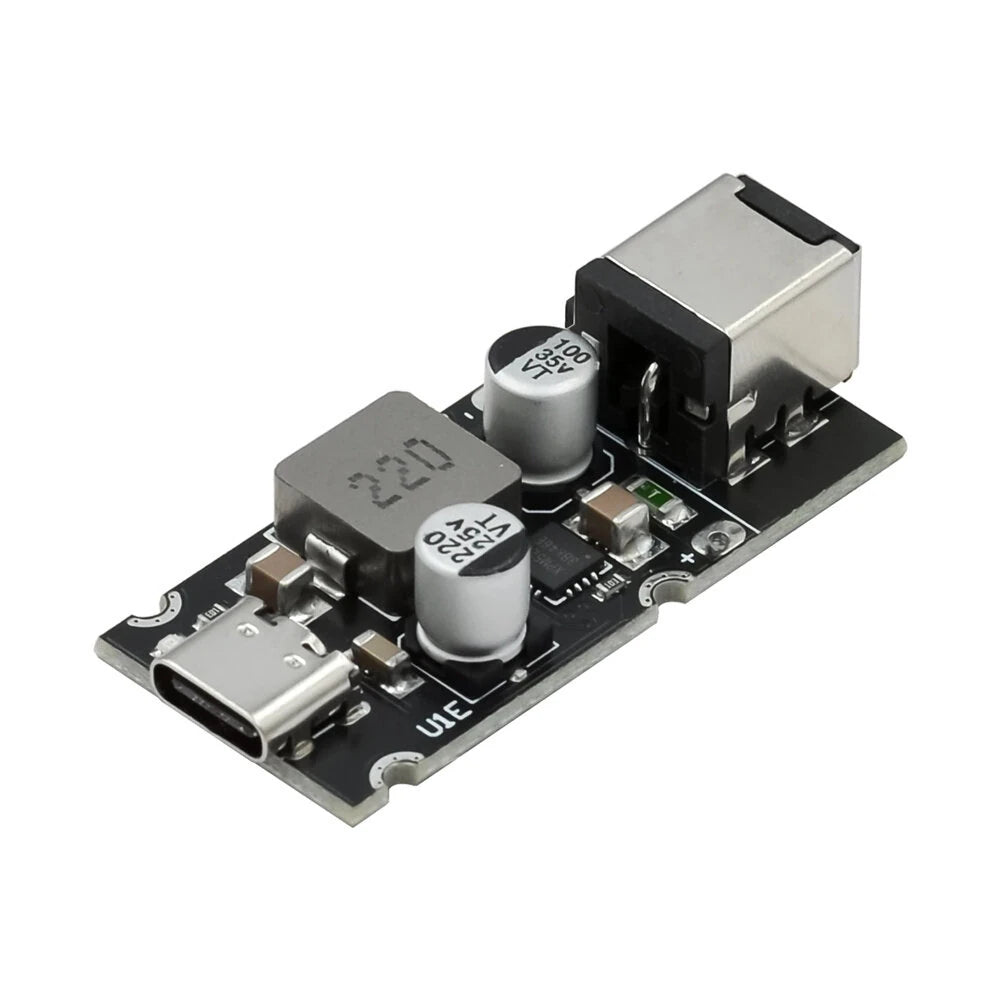

  • With DC Seat: 44x20x10mm (excluding protruding Type-C port)
• Supported Charging Protocols: PD3.1 (PPS), QC3.0, SCP, BC1.2, Apple 2.4A, Samsung 9V2A

Features:

1. High Compatibility with Charging Protocols
   The PD65W Fast Charging Module supports a range of charging protocols including PD3.1 (PPS), QC3.0, and SCP, making it suitable for various devices regardless of brand or type.
2. Efficient Power Conversion
   Achieving a conversion efficiency between 92% and 97%, this module optimizes power usage to deliver faster and reliable charging while minimizing energy waste.
3. Comprehensive Protection Mechanisms
   Equipped with numerous safety features, it ensures the protection of your devices from voltage fluctuations and potential damage.
4. Compact and Space-Saving Design
   The module's compact size of 32x20x10mm for the standard version ensures it can fit in tight spaces effectively without sacrificing performance.
5. Stable Output with Low Ripple
   Provides a stable output voltage with minimal ripple for consistent performance.

Package Included:

• 1 x PD65W Fast Charging Module (Type Optional)
