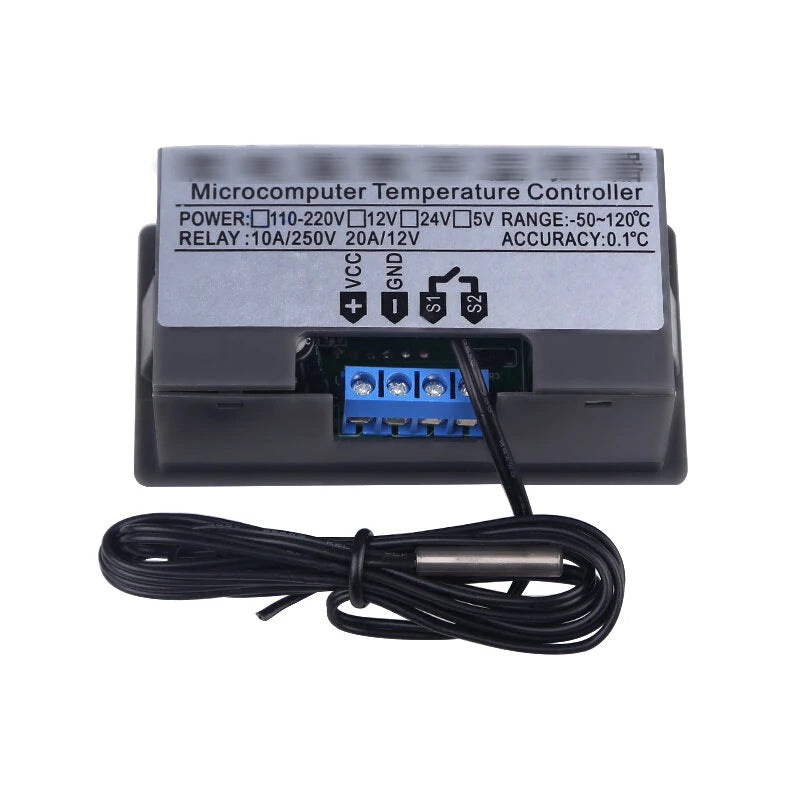

Digital Display Thermostat Module Temperature Controller Board

Product Details

Precise Details

Experience precision with our advanced temperature controller. Below you'll find detailed specifications for this reliable product.

Specifications

• Power Supply: DC 12V 24V / AC 110V-220V (Optional)
• Temperature Control Range: -55°C to 120°C
• Resolution Ratio: 0.1°C (-9.9°C to 99.9°C); 1°C (other ranges)
• Display Color: Red/Blue
• Measurement Accuracy: ±0.1°C
• Control Accuracy: 0.1°C
• Sensor: NTC10K Waterproof sensor
• Output: Relay Contact Capacity 20A 12V / 10A 220V
• Environmental Requirements: -10°C to 60°C, Humidity 20%-85%RH
• Dimensions: 79mm x 43mm x 26mm
• Cutting Size: 73mm x 39mm
• Sensor Wire: 1 meter

Function Description

• P0: Selects refrigeration or heating mode
• P1: Sets return difference
• P2: Sets maximum temperature upper limit
• P3: Sets minimum temperature lower limit
• P4: Adjusts temperature correction
• P5: Sets delay start time (unit: minute)

Package Includes

• 1 x Temperature Controller with NTC10K Waterproof Sensor
