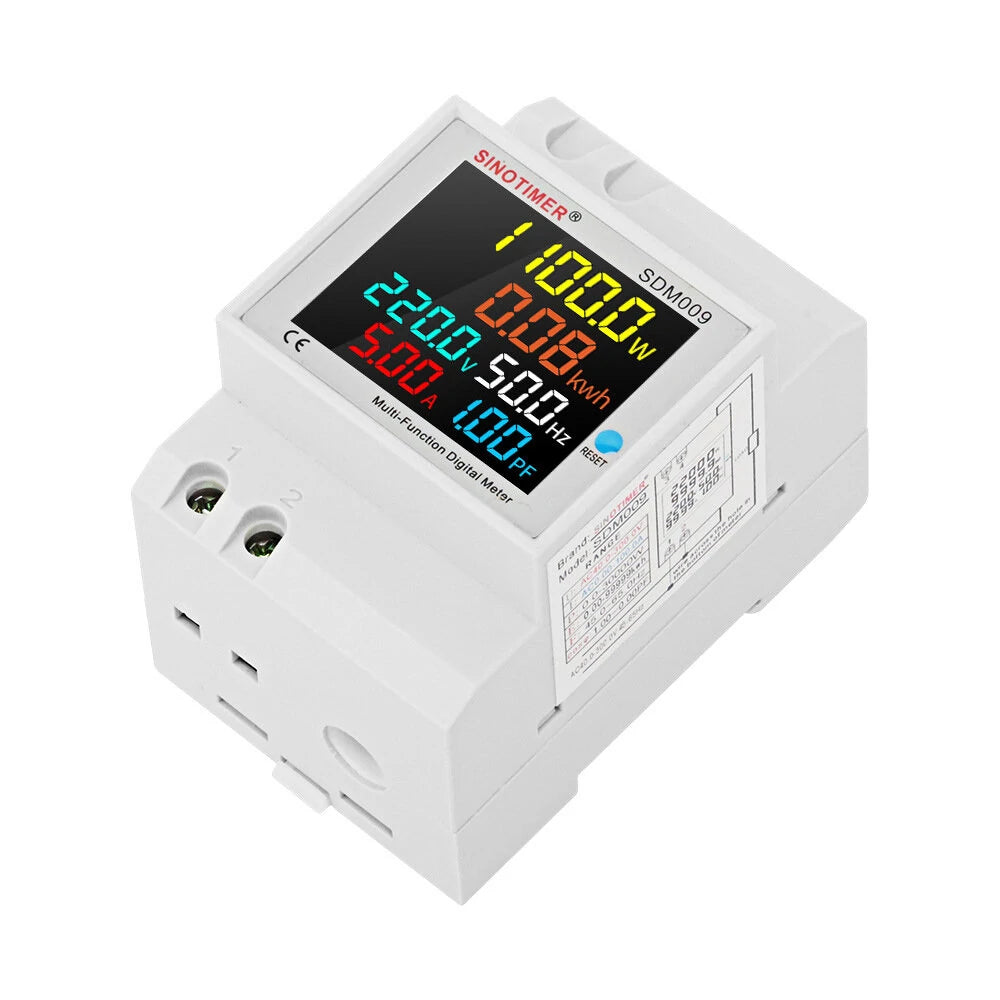

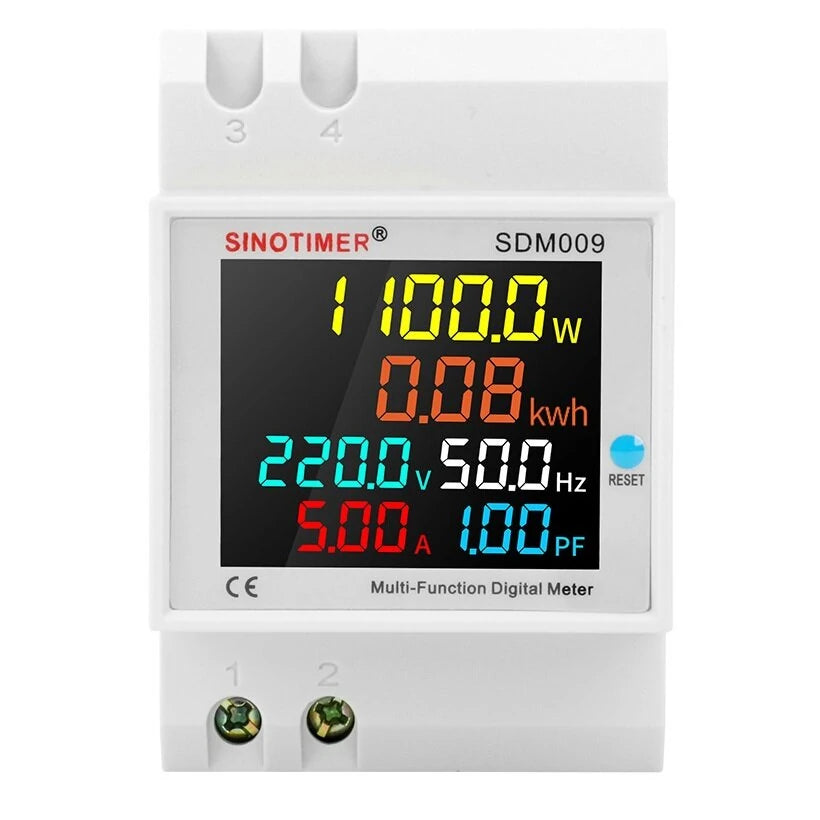

SINOTIMER SDM009 Single-phase Digital Multimeter: Voltage, Current, Frequency, Power Factor Measurement (AC40-300V)

Features:

• Constructed with high-quality materials, ensuring superior quality.
• Offers an AC voltage range of:
  - 80.0-300.0V
  - 300.0-450.0V
  (select based on your requirements)
• Automatic power-saving feature: Saves power during outages, and accumulates savings for future use.
• Compact and elegant design.
• High-definition LCD color display for clearer and intuitive reading.
• Versatile application range.

Specifications:

• Display Colors: Red, Orange, Yellow, White, Green, Blue

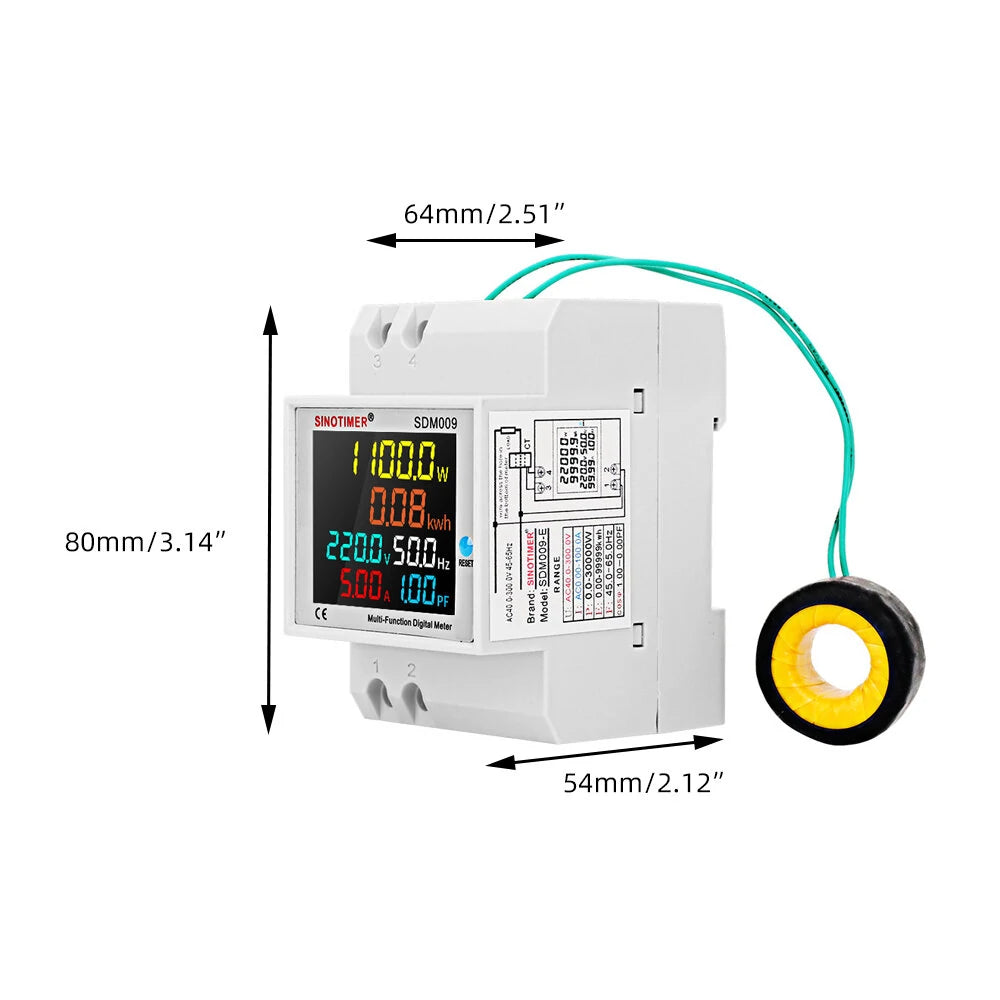

• Protruding Size: 45 x 16 mm
• Installation Method: Rail type
• Measurement Accuracy: 1% ± 2 words
• Measurement Speed: 2 times per second
• AC Current: 0-99.99A, with a minimum resolution of 0.01A
• Power Frequency: 45.0Hz to 65.0Hz
• Power Factor: 0.00-1.00pf
• Active Power: 0-45000W
  - Between 0 and 9999.9W: Display accuracy of 0.1W
• Electric Power: 0-999999 kWh
  - Between 0 and 999.99 kWh: Display accuracy of 0.01 kWh
  - Between 1000.0 and 9999.9 kWh: Display accuracy of 0.1 kWh
  - Between 10000.0 and 999999 kWh: Display accuracy of 1 kWh

Application Method:

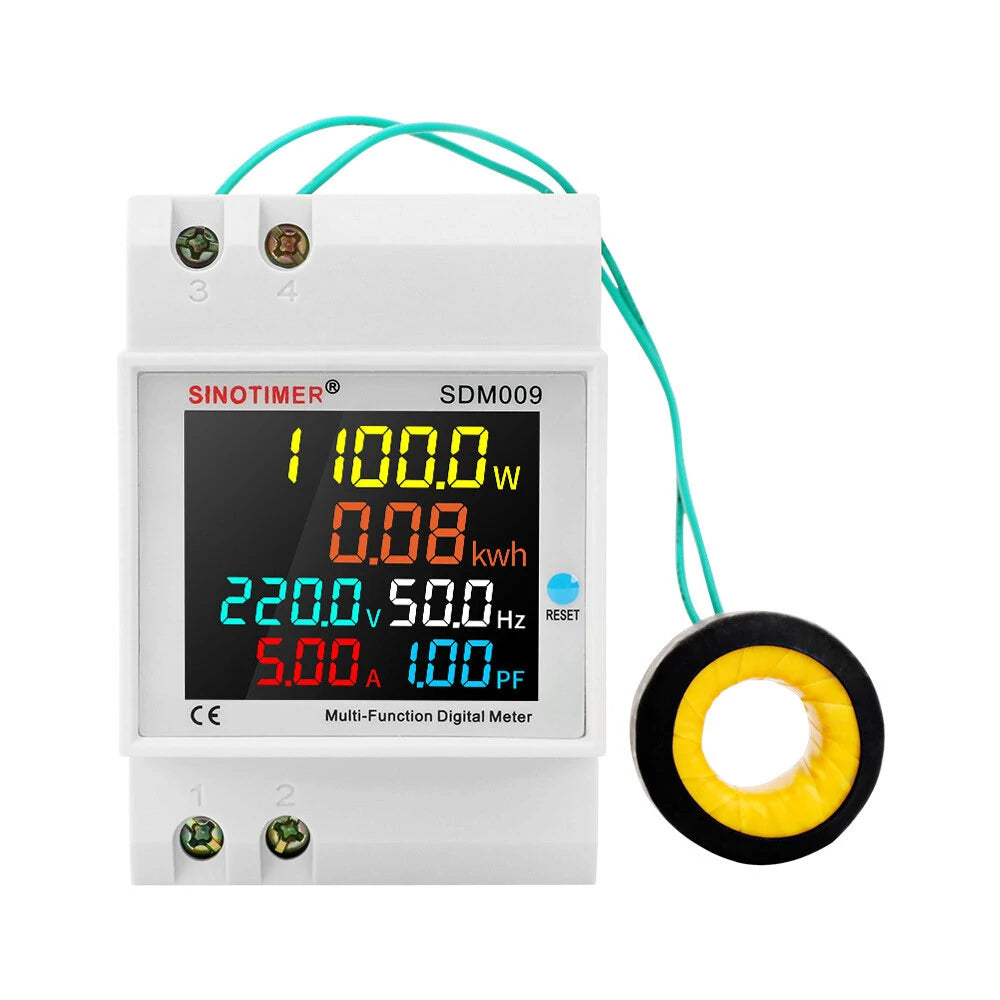

1. Refer to the wiring diagram and connect the green wire of the secondary current transformer to the blue end of the instrument. Ensure the measurement loop wire passes through the current transformer's hole.
2. Switch the instrument on to commence measurement and display results.
3. To reset the power, hold the button for 5 seconds.

Precautions:

• Incorrect voltage connections can damage the meter.
• The meter is designed to measure 50Hz AC mains only. Using it on square wave, inverter output, or calibrated sine wave can damage the input terminal (green) and secondary current transformer (blue).

Package Includes:

• 1 x Electricity Energy Meter
