IIC I2C Interface HW-060B 1602 5V Yellow-Green LCD Screen Display Adapter Module

Description:

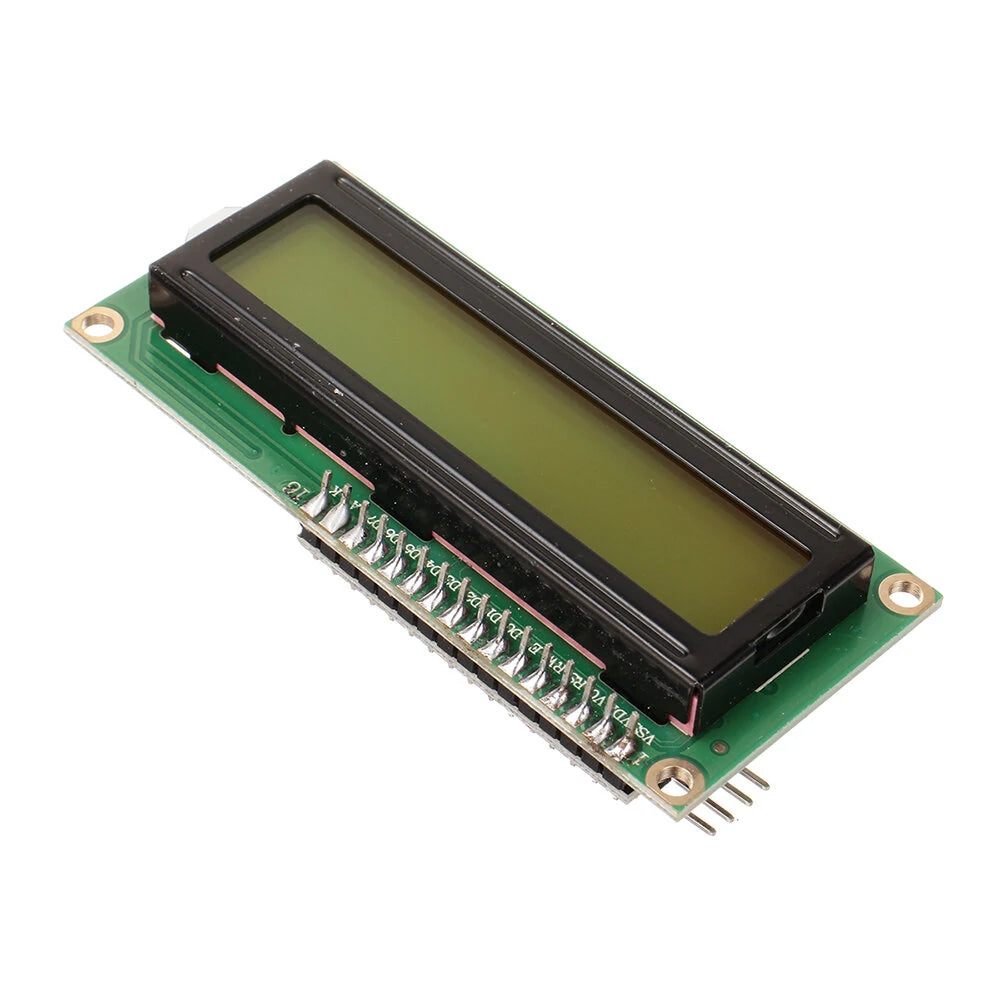

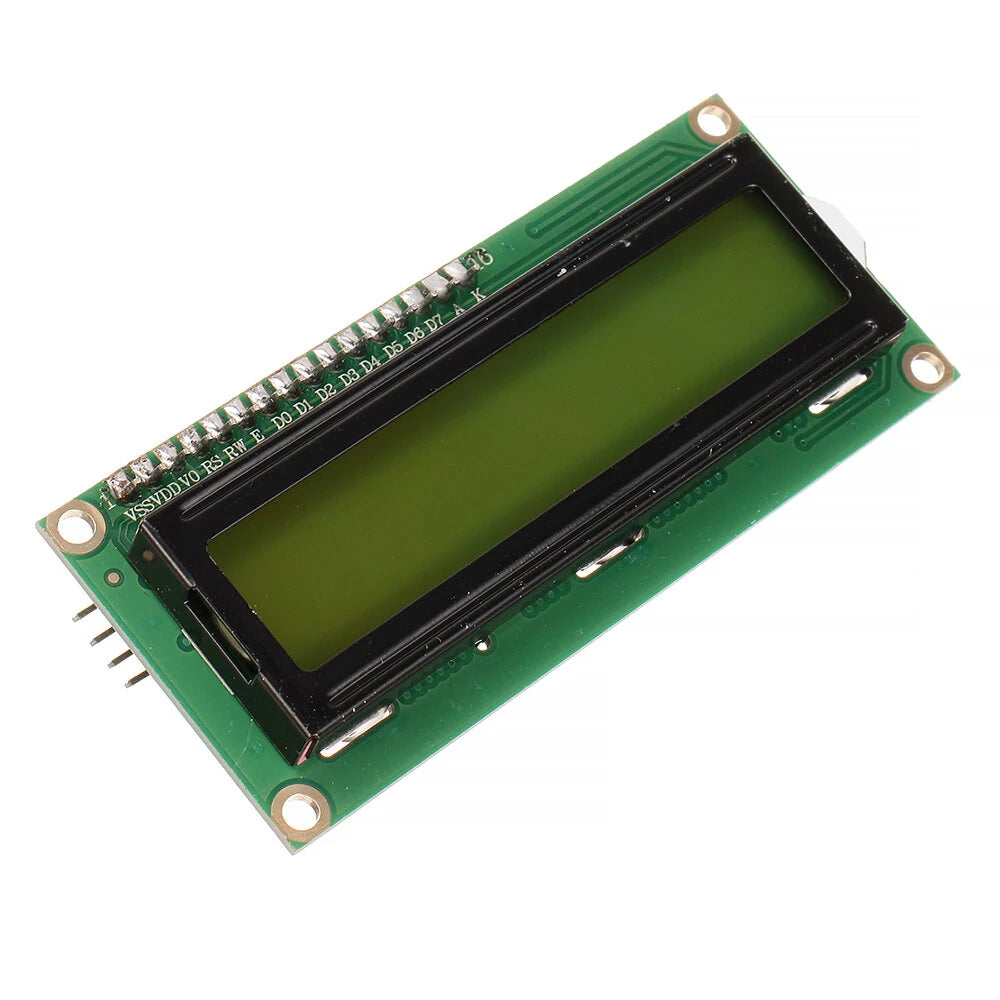

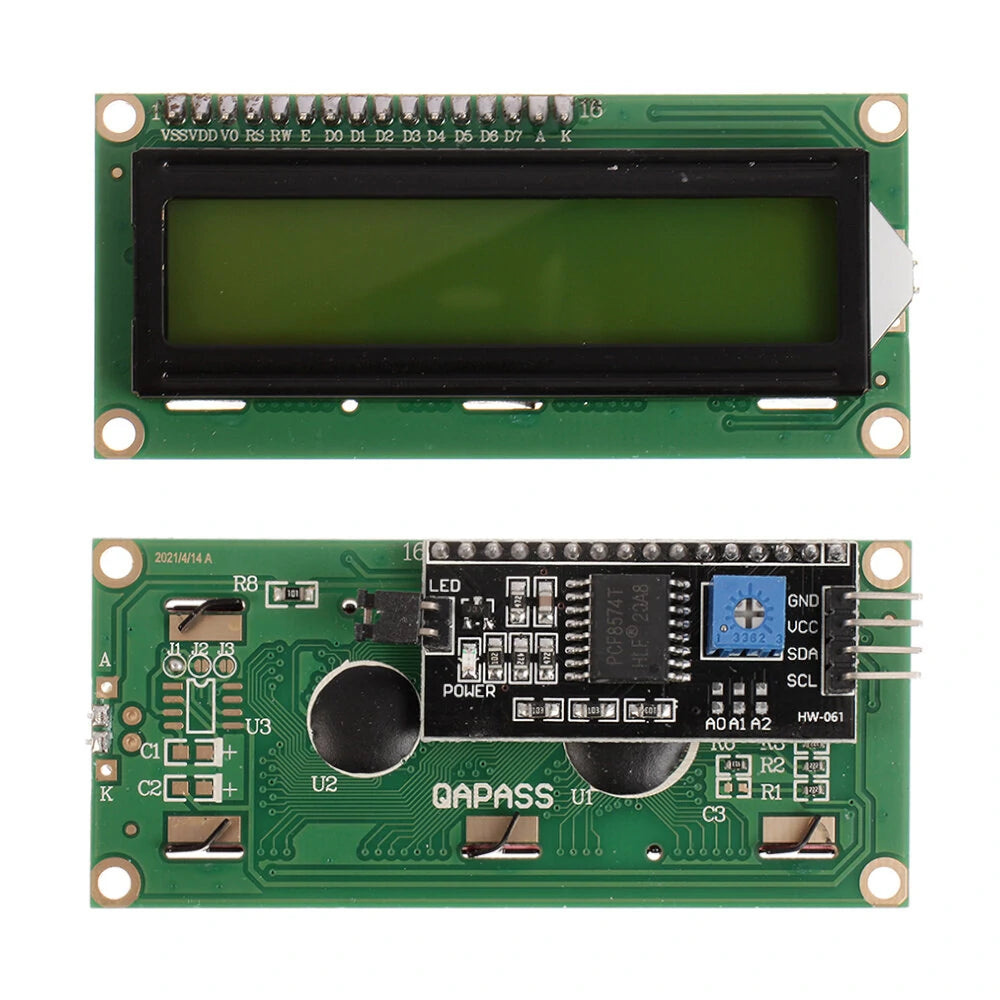

1602 LCD Features

• LCD display module with blue backlight.
• Wide viewing angle and high contrast.
• Built-in industry standard HD44780 equivalent LCD controller.
• Commonly used in copiers, fax machines, industrial test equipment, and networking equipment such as routers and storage devices.

LCM Type: Characters

Display: 2 lines x 16 characters

Voltage: DC 5V

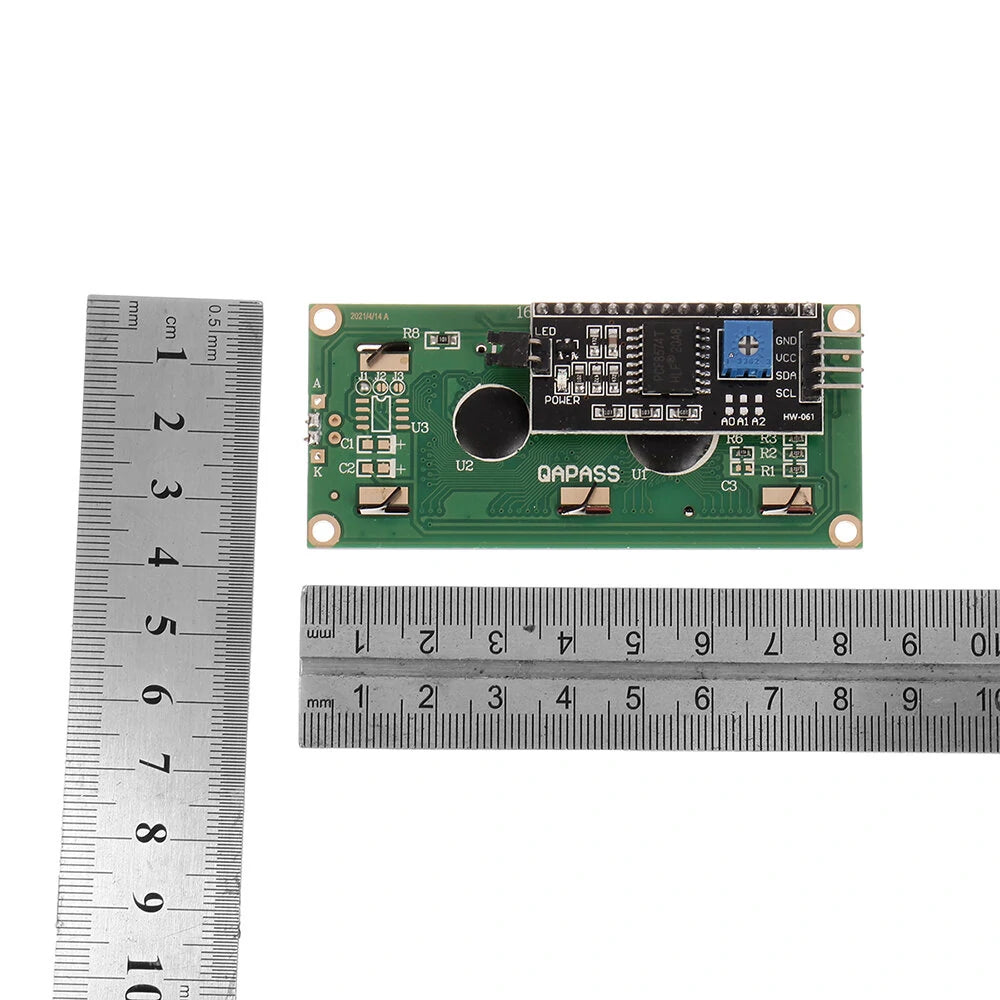

Module Dimensions: 80mm x 35mm x 11mm

Viewing Area Size: 64.5mm x 16mm

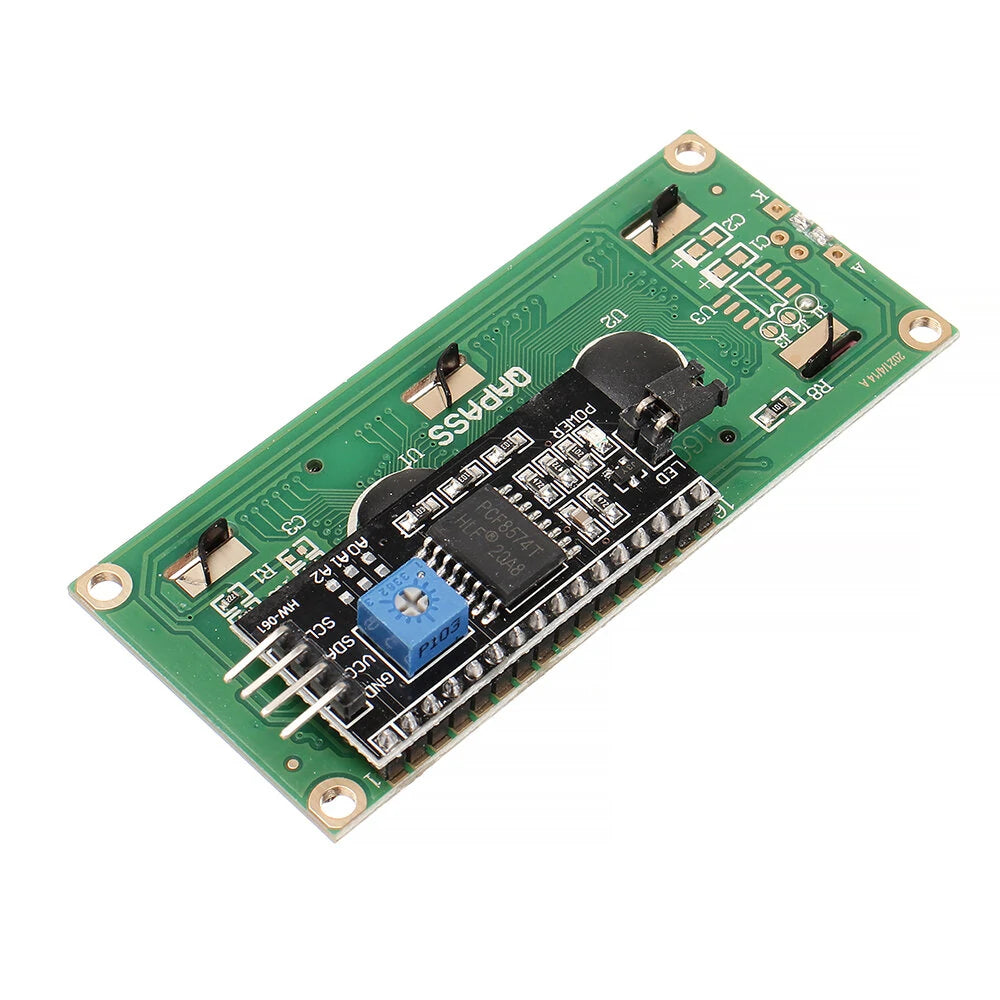

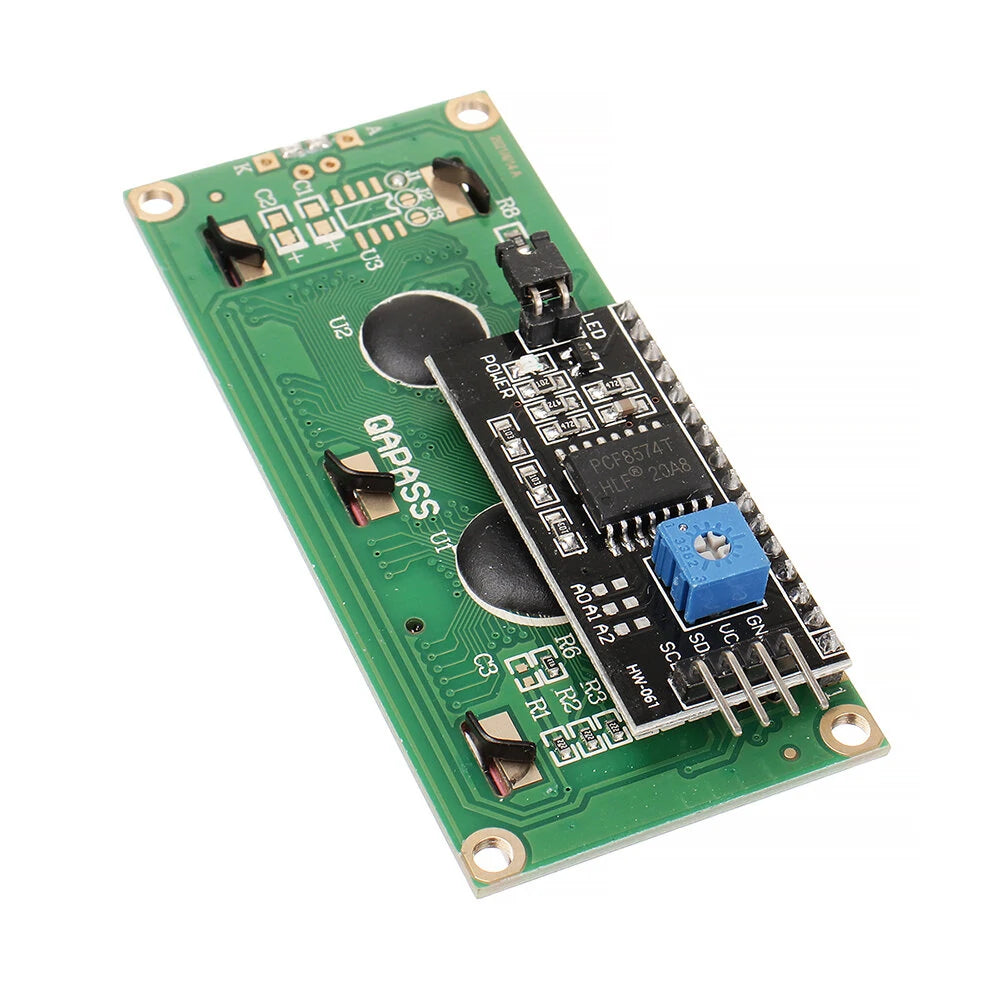

IIC/I2C Features for Arduino

• Designed for Arduino 1602 I2C interface.
• 4-wire 1602 screen suitable for Arduino projects.
• Optimizes IO port usage on Arduino control boards.
• The original 1602 screen requires 7 IO ports, while this module only uses 2, saving 5 IO ports.

Package Includes:

• 1 x 1602 LCD 5V Yellow-green Screen with IIC/I2C Interface Module
