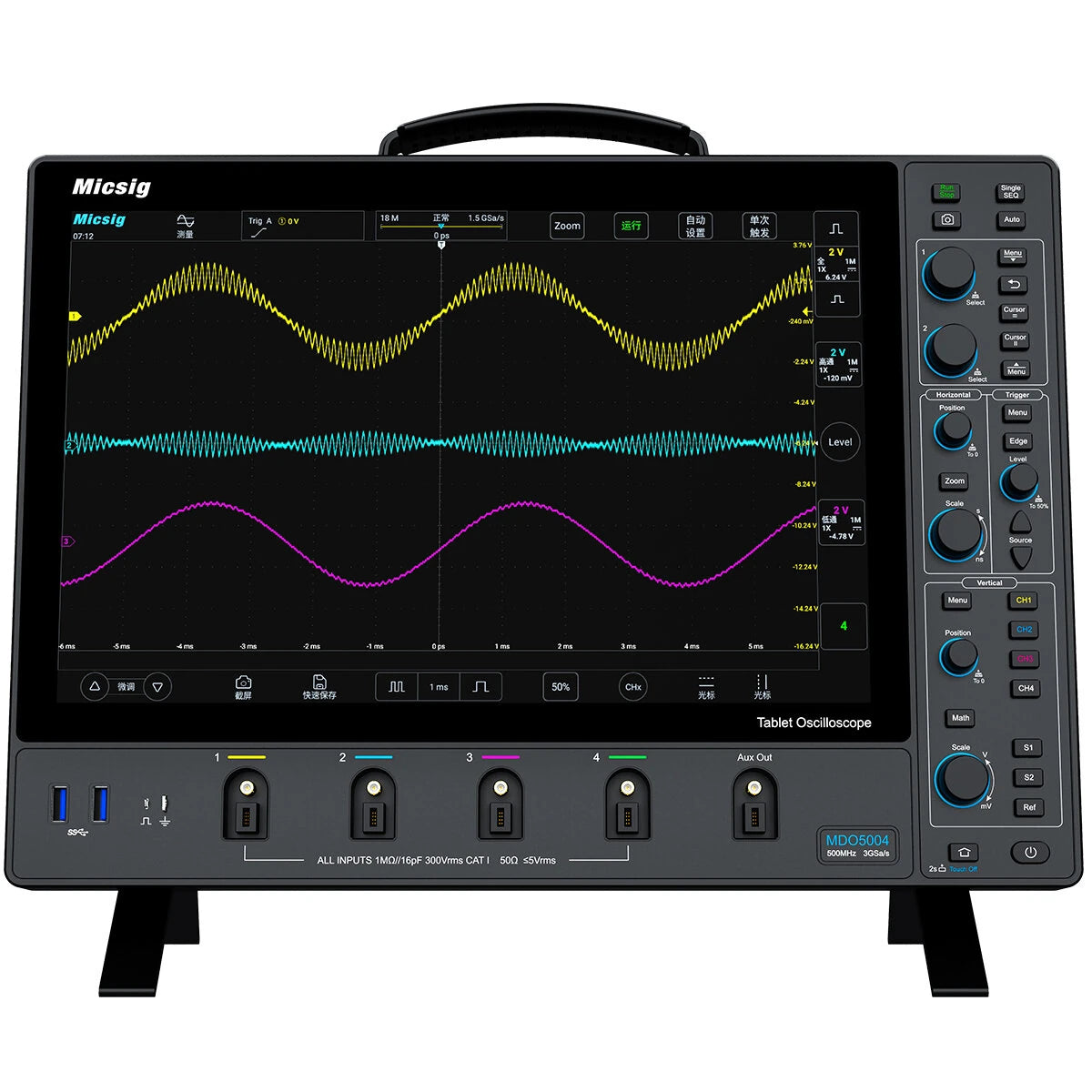

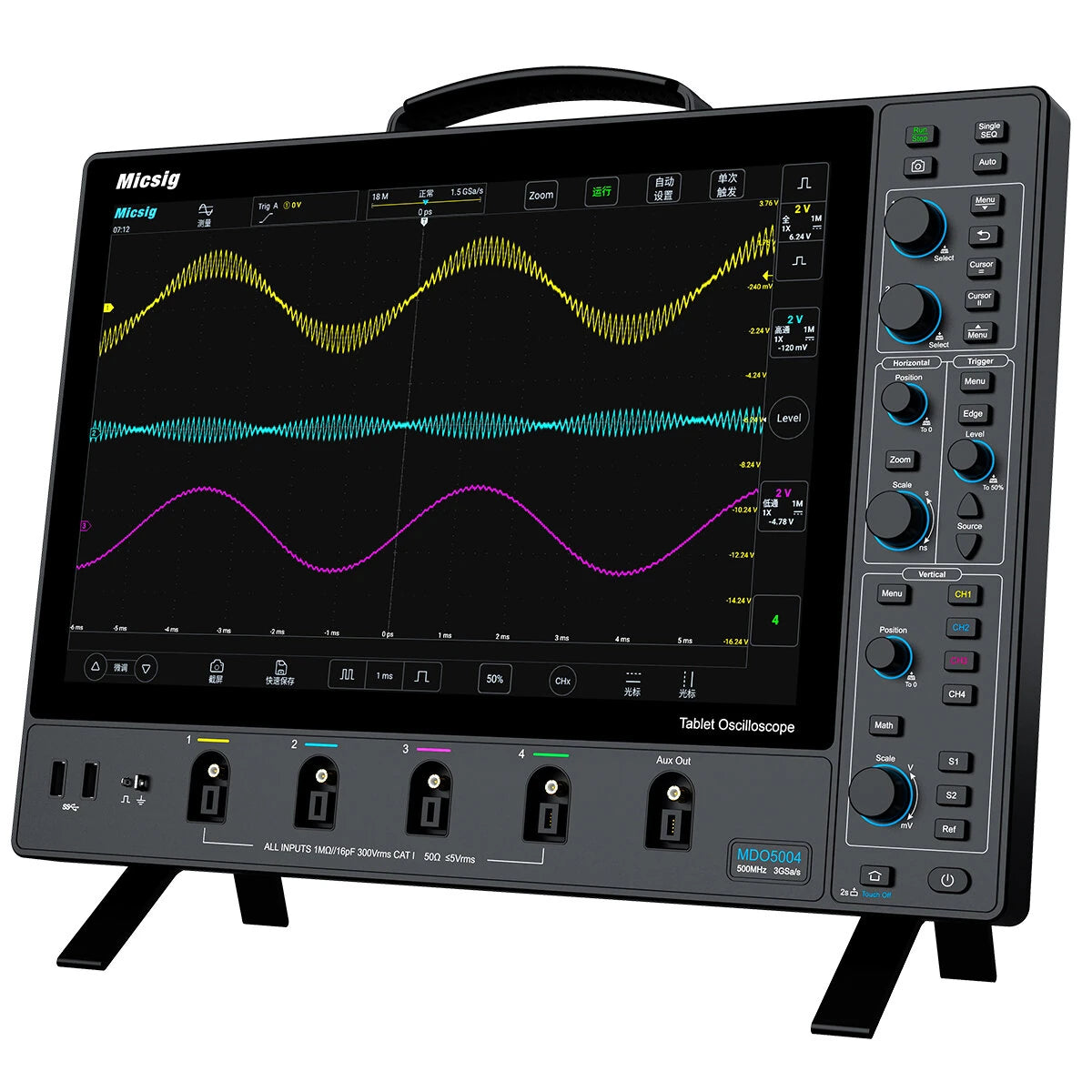

MICSIG MDO5004 Digital Oscilloscope: 500MHz, 4 Channels, 3GSa/s, 360Mpts, 14 Touchscreen, USB, LAN, HDMI

Features:

• High Bandwidth: Experience unparalleled signal fidelity with up to 500MHz bandwidth, ensuring precise measurements across a wide range of signals.
• Fast Sampling Rate: Capture detailed signal information at 3GSa/s, enabling accurate and exhaustive waveform analysis.
• Extensive Memory Depth: Handle complex waveforms effortlessly with 360Mpts memory depth, allowing extended data capture and analysis without sacrificing accuracy.
• User-Friendly Interface: Navigate and interact seamlessly on a 14" TFT LCD touch screen with 1920x1200 resolution, making waveform inspection intuitive and efficient.
• Versatile Connectivity: Connect and export data effortlessly via USB 3.0 Host, USB Type-C, LAN, HDMI, and Trigger out, ensuring versatile data handling and integration options.

Specifications:

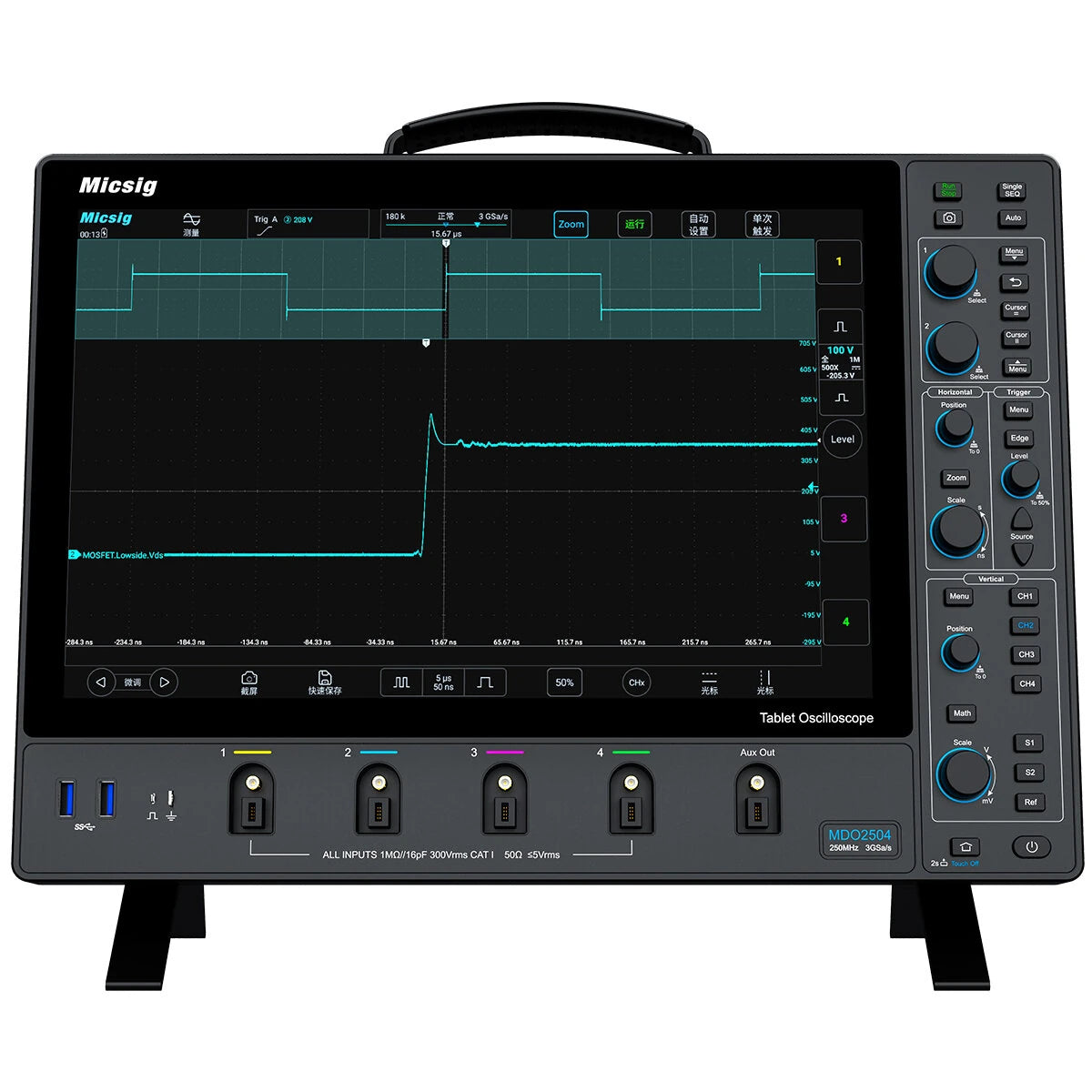

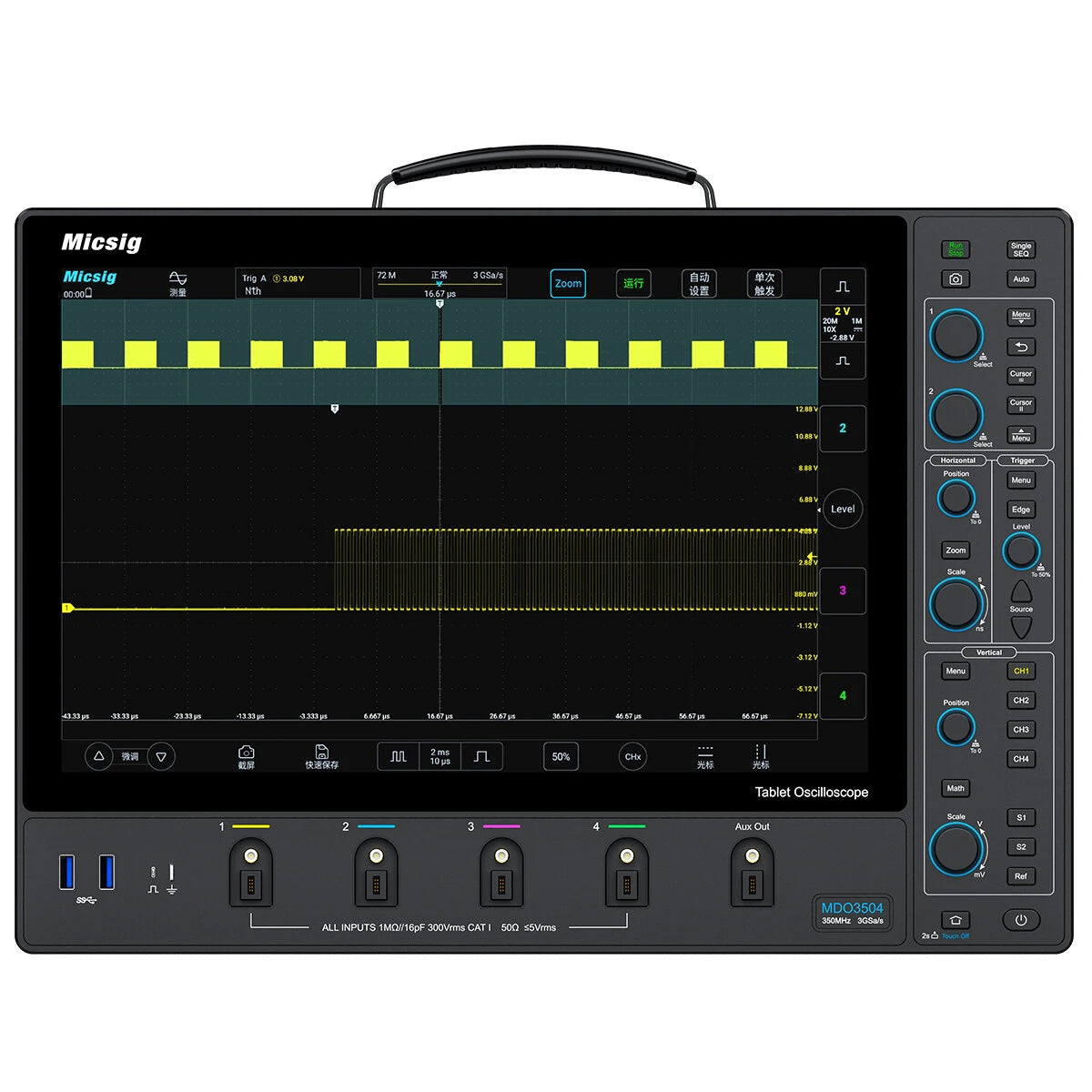

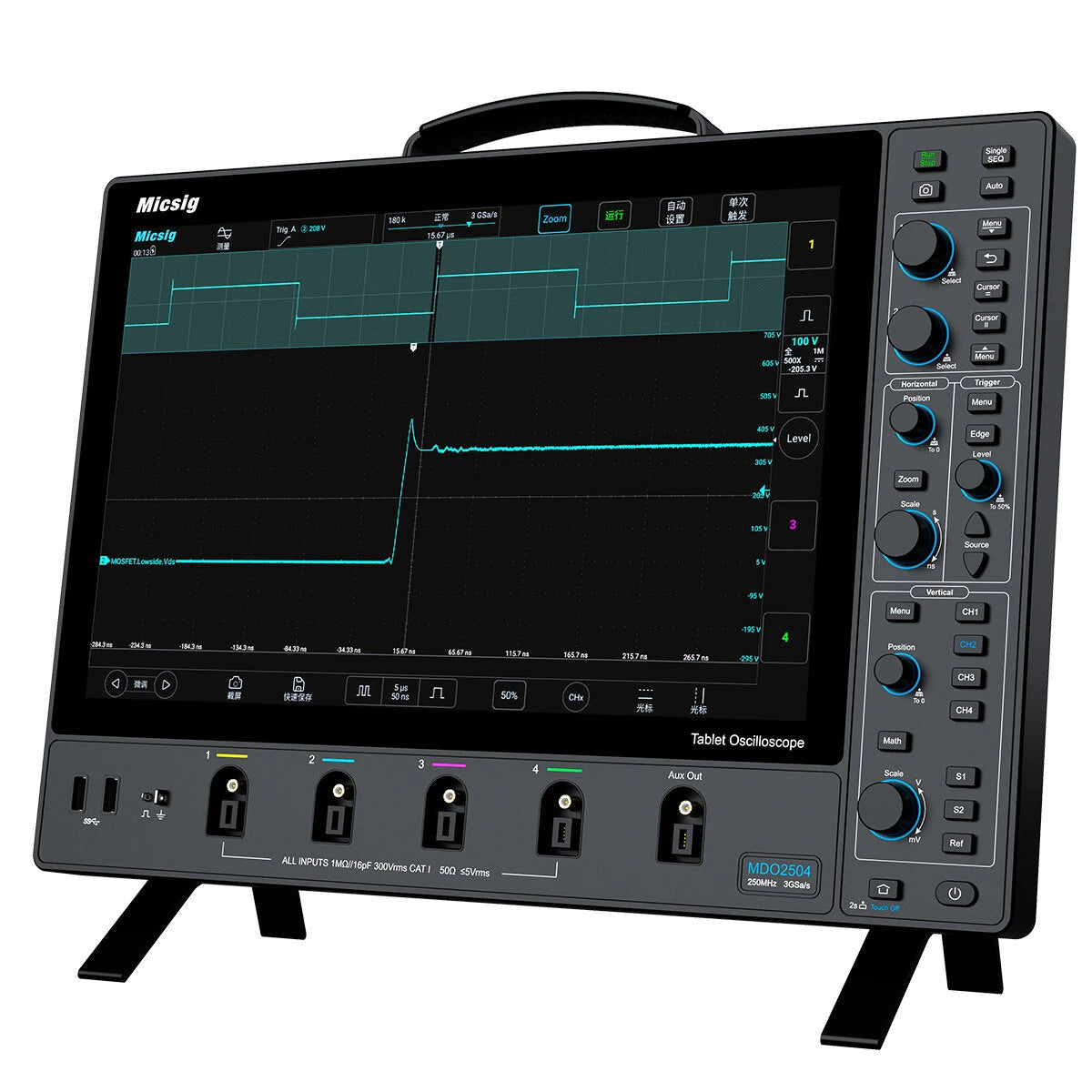

• Model Options: MDO5004, MDO3504, MDO2504
• Bandwidth: 500MHz (MDO5004), 350MHz (MDO3504), 250MHz (MDO2504)
• Rise Time: ≤ 0.7ns (MDO5004), ≤ 1ns (MDO3504), ≤ 1.4ns (MDO2504)
• Analog Channels: 4
• Sampling Rate: 3GSa/s
• Memory Depth: 360Mpts
• Waveform Capture Rate: 230,000 wfms/s
• Vertical Resolution: 8 bits
• Noise Bus Decoding (Standard): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
• Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out
• Display: 14" TFT LCD touch screen, 1920x1200 resolution
• Trigger Types: Edge, Pulse Width, Nth Edge, Runt, Slope, Time Out, Video, Serial

Package Included:

• 1 x Digital Oscilloscope (Model of your choice)
• 1 x Power Cord (EU Plug)
• 4 x Probes
• 1 x USB Cable
• 1 x LAN Cable
• 1 x HDMI Cable
• 1 x User Manual
