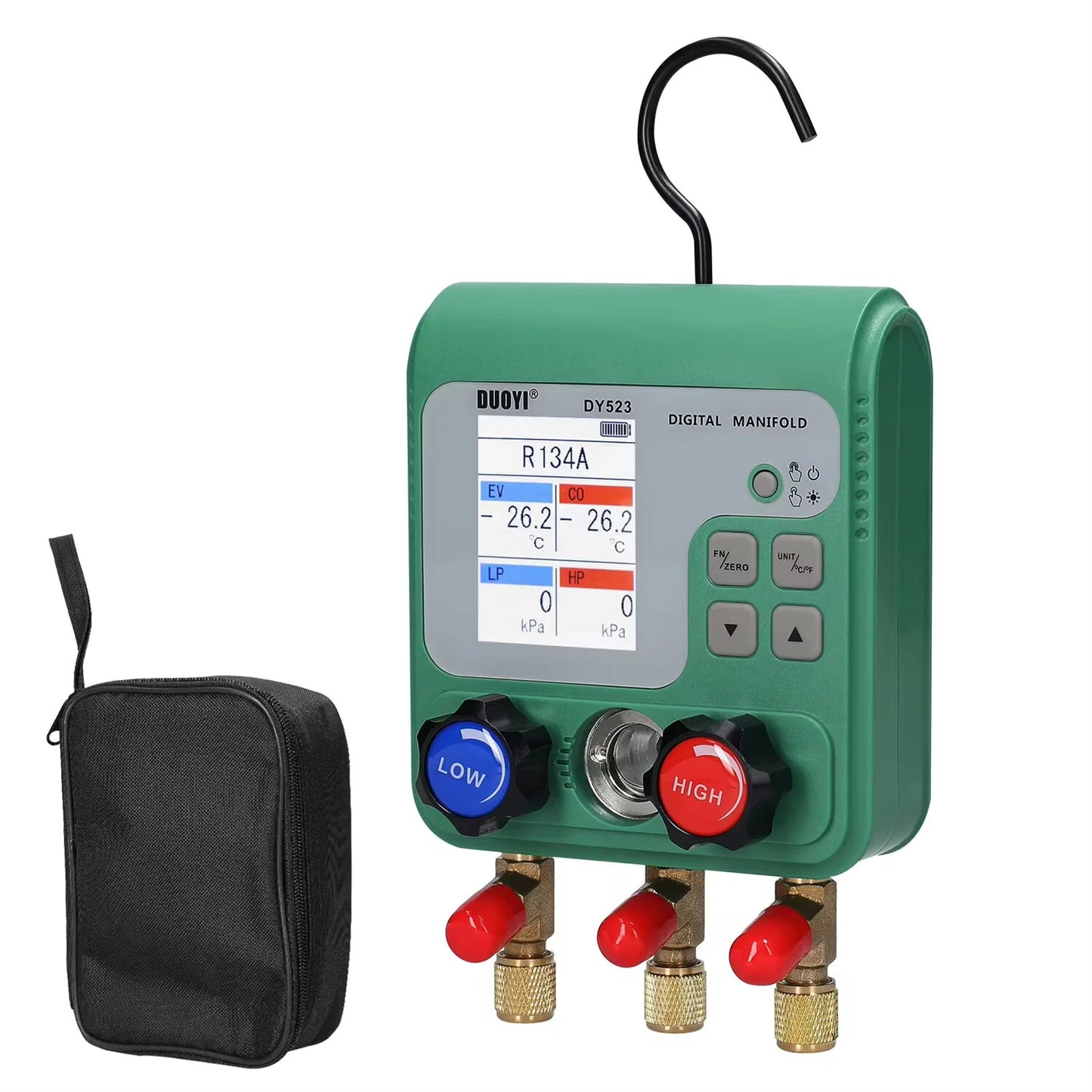

Refrigeration Pressure Gauge

Features

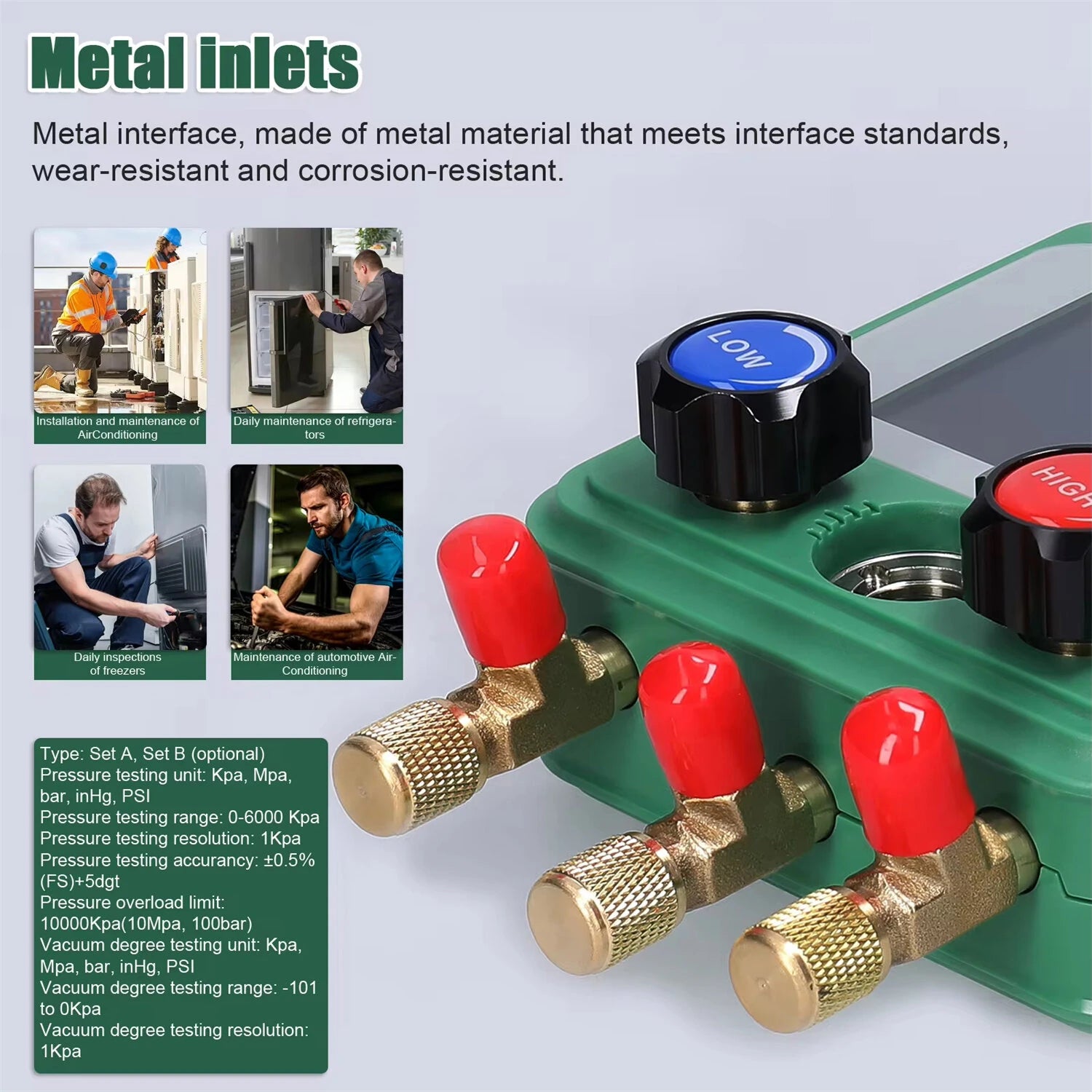

• Metal Interface: Crafted from high-quality metal materials that comply with interface standards, offering superior wear and corrosion resistance.
• High Stability Chip: Includes a 32-bit digital processing unit and a high-precision data acquisition unit for stable and accurate pressure measurements.

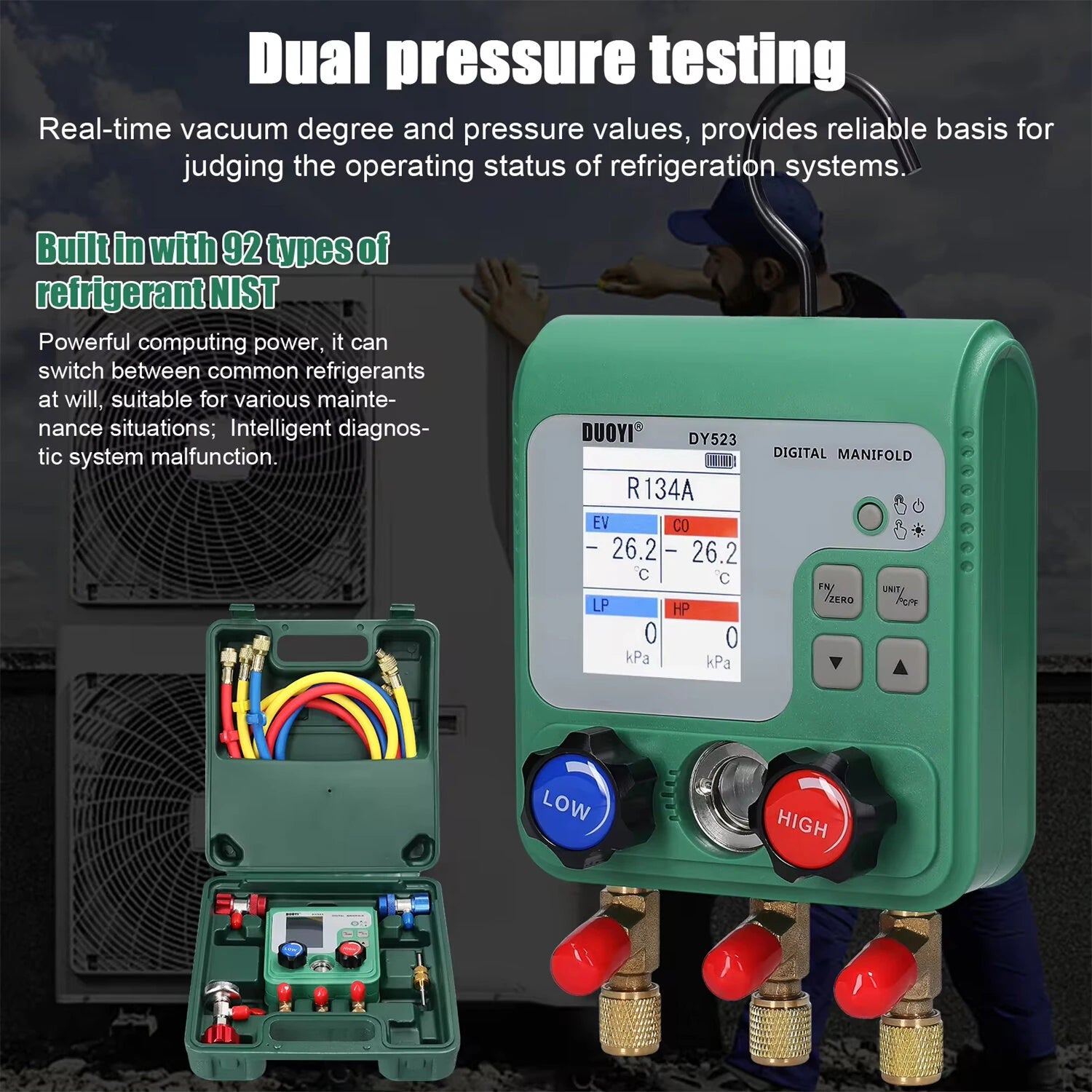

• Dual Pressure Testing: Provides real-time vacuum level and pressure values, ensuring reliable assessments of refrigeration system performance.
• 92 Refrigerant Types: Comes with a built-in database of 92 refrigerants as per NIST standards, allowing easy switching to match various maintenance needs with smart diagnostics.
• Recordable Leak Time and Speed: User-friendly interface for direct data readings, displaying evaporation and condensation temperatures to aid in system cooling capacity analysis and valve adjustments.

Specifications

Type:	Set A, Set B (optional)
Pressure Test Units:	Kpa, MPA, bar, inHg, PSI
Pressure Test Range:	0-6000 Kpa
Pressure Test Resolution:	1Kpa
Pressure Test Accuracy:	± 0.5%(FS)+ 5dgt
Pressure Overload Limit:	10000Kpa (10Mpa, 100bar)
Vacuum Degree Test Units:	Kpa, MPA, bar, inHg, PSI
Vacuum Degree Test Range:	-101 to 0Kpa
Vacuum Degree Test Resolution:	1Kpa
Battery:	3 AA batteries (not included)
Item Size:	165x110x60mm / 6.5x4.3x2.4in

Package Details

Set A

• Package Size: 190x160x80mm / 7.5x6.3x3.1in
• Package Weight: 900g / 2.0lb
• Included: 1 x Pressure Gauge

Set B

• Package Size: 278x250x100mm / 10.9x9.8x3.9in
• Package Weight: 2800g / 6.2lb

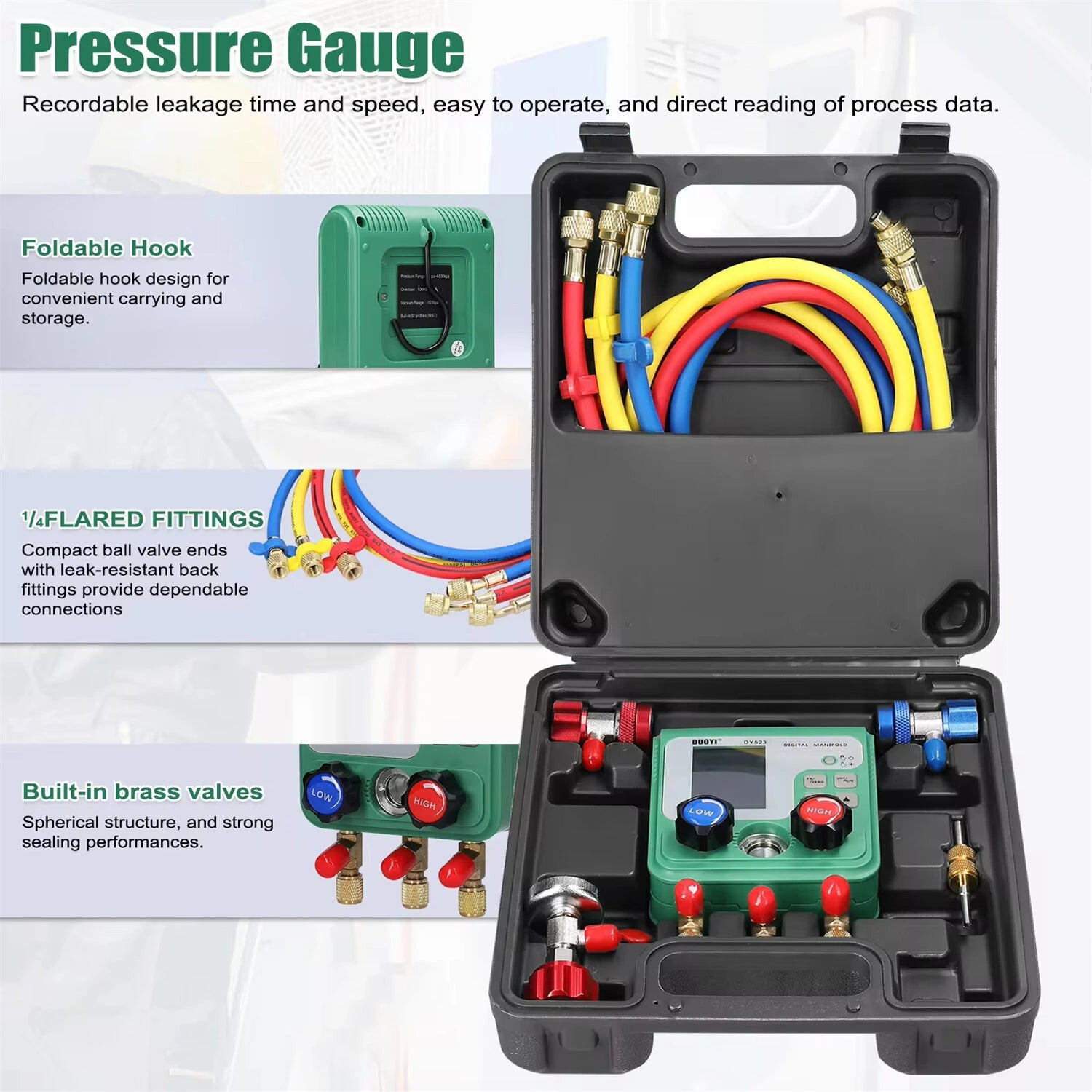

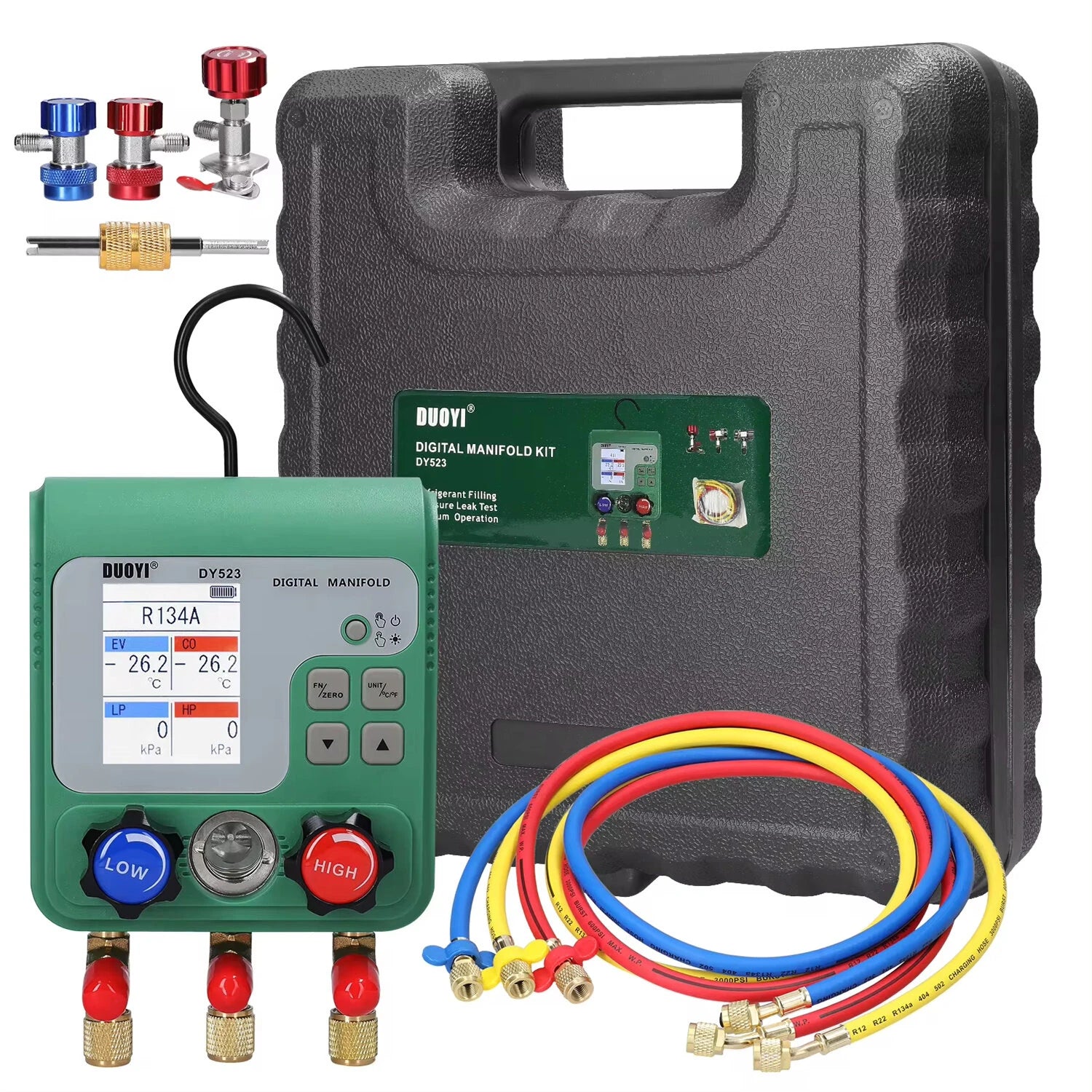

• Included: 1 x Pressure Gauge, 2 x Connector, 1 x Bottle Opener, 1 x Tube, 1 x Wrench, 1 x Storage Box
