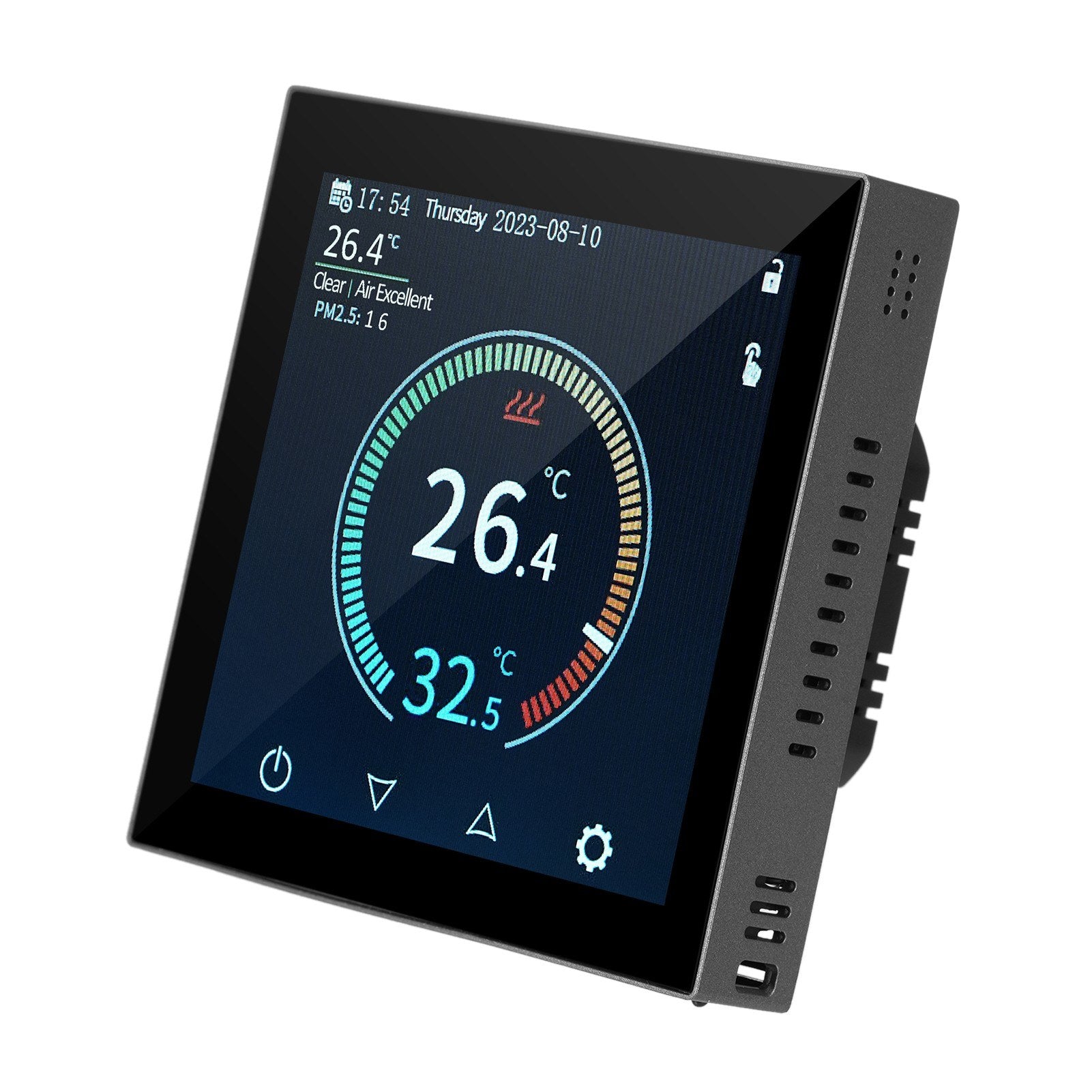

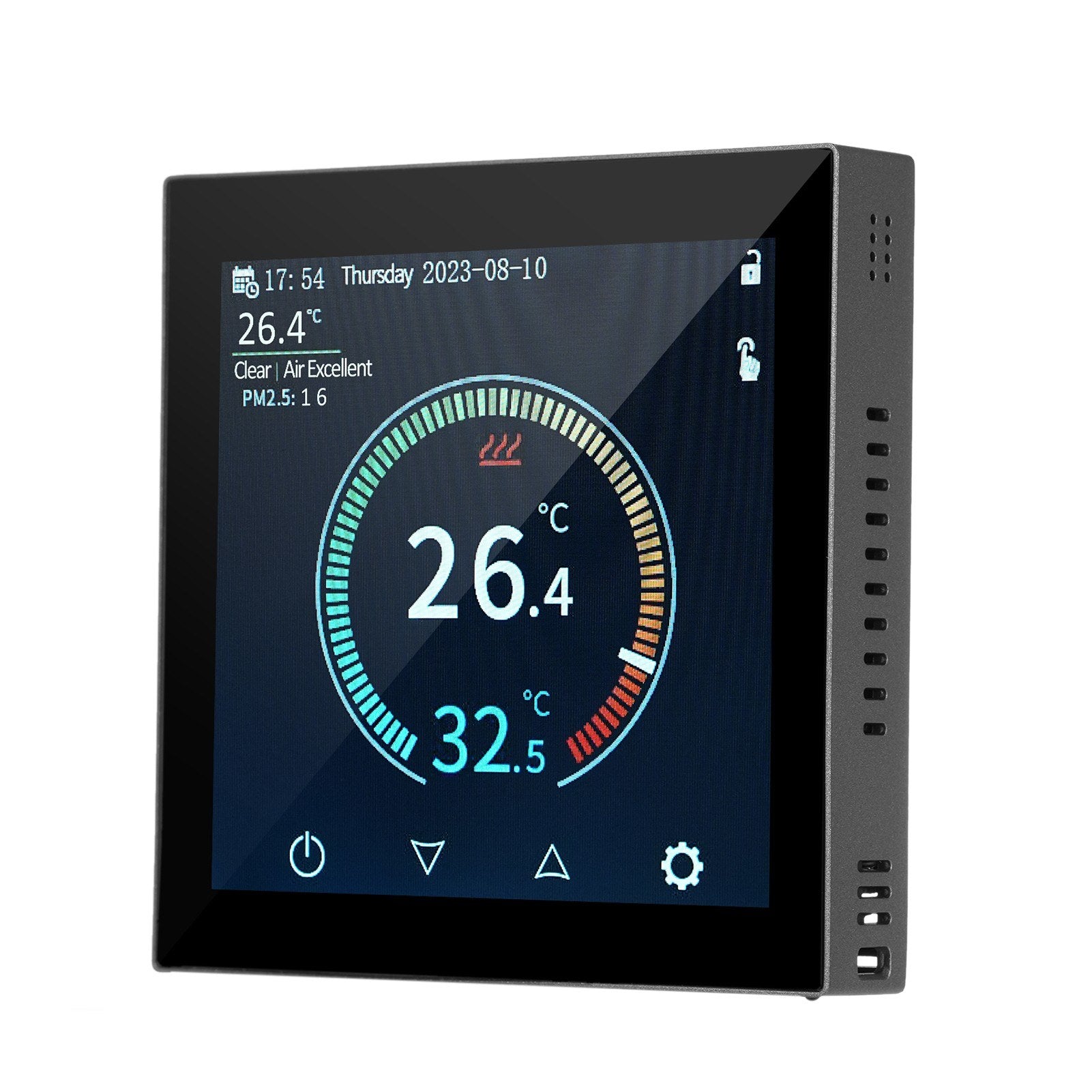

Smart Thermostat - Model HYT001

Features

• APP Control: Remotely manage your smart thermostat using your mobile devices (cell phone, tablet, or computer) with the Smart Life app. Ensure your phone is connected to 2.4GHz WiFi for seamless operation.

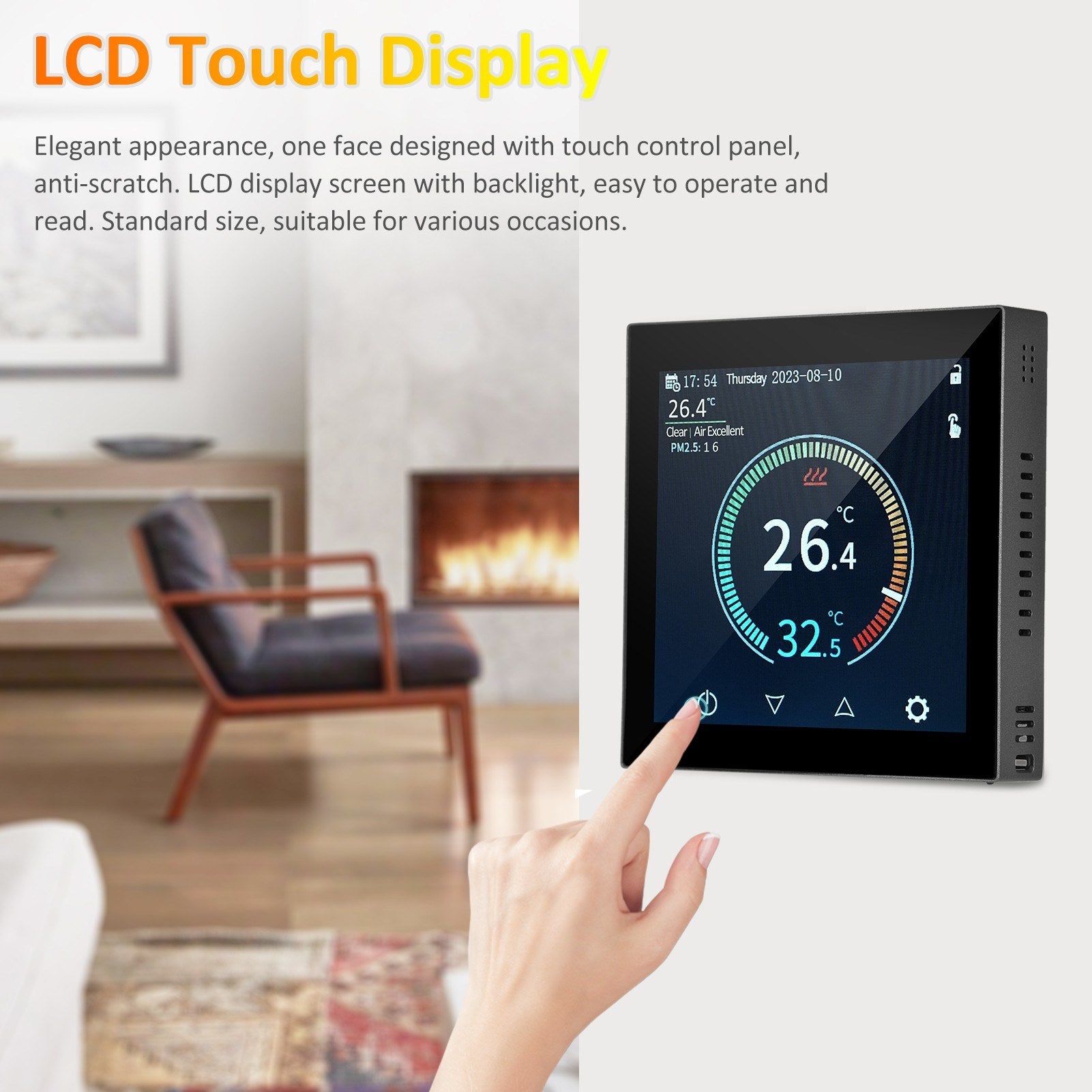

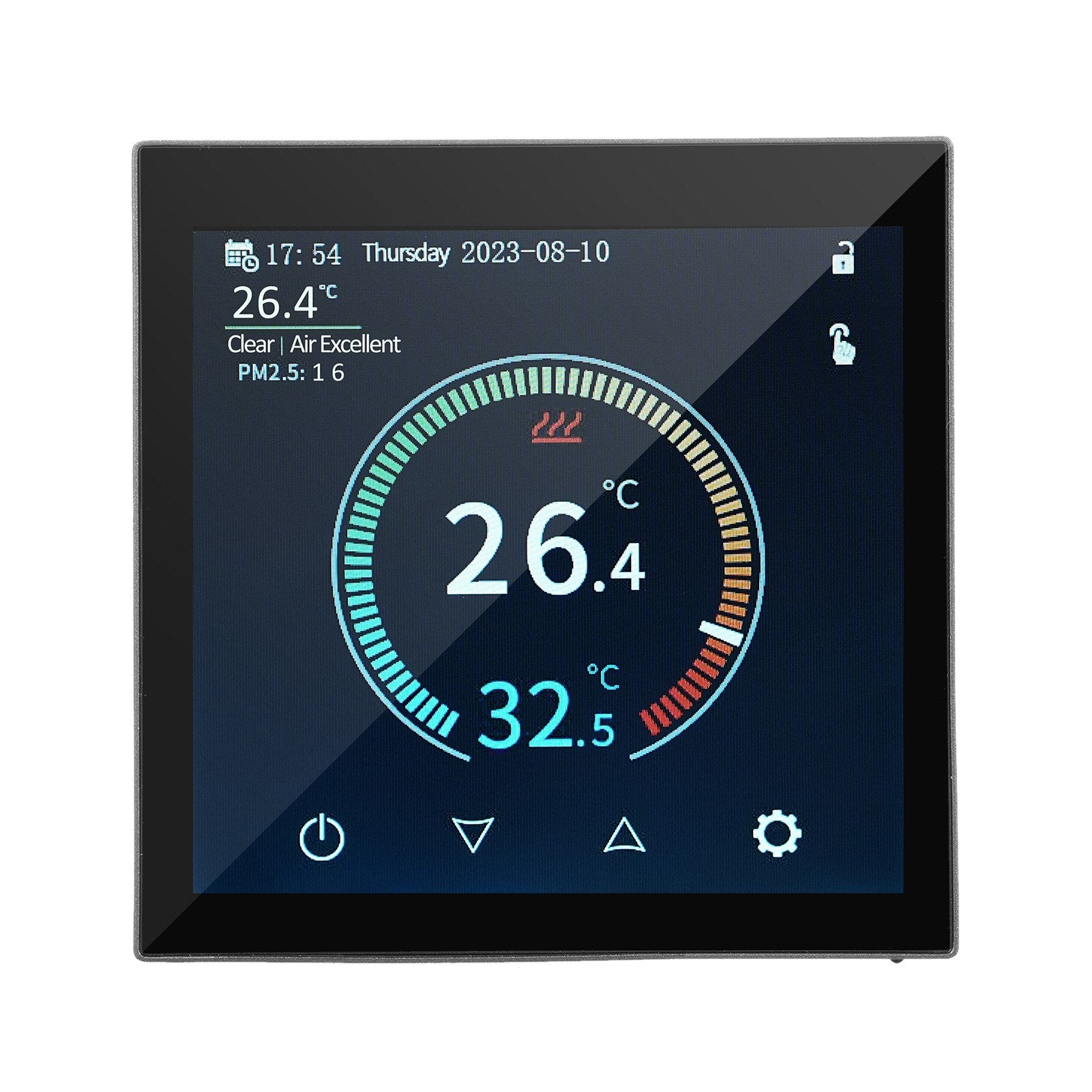

• LCD Touch Display: Features a high-resolution TFT IPS 480 x 480 screen. This elegant design includes a touch control panel with anti-scratch technology, and a backlight for easy operation and readability.
• Accurate Temperature: Equipped with high precision sensors that maintain temperature accuracy up to 0.5℃, ensuring a comfortable environment.
• Child Safety Lock: A keypad locking function prevents accidental changes by children.
• Memory Function: Retains settings and data during power outages, ensuring worry-free operation even after interruptions.
• Weekly Programmable: Customize temperature settings with up to 6 time-modes daily, plus a classic holiday mode for energy savings when you're away.
• External Sensor: Check external sensor temperatures easily with the press of a button.

Specifications

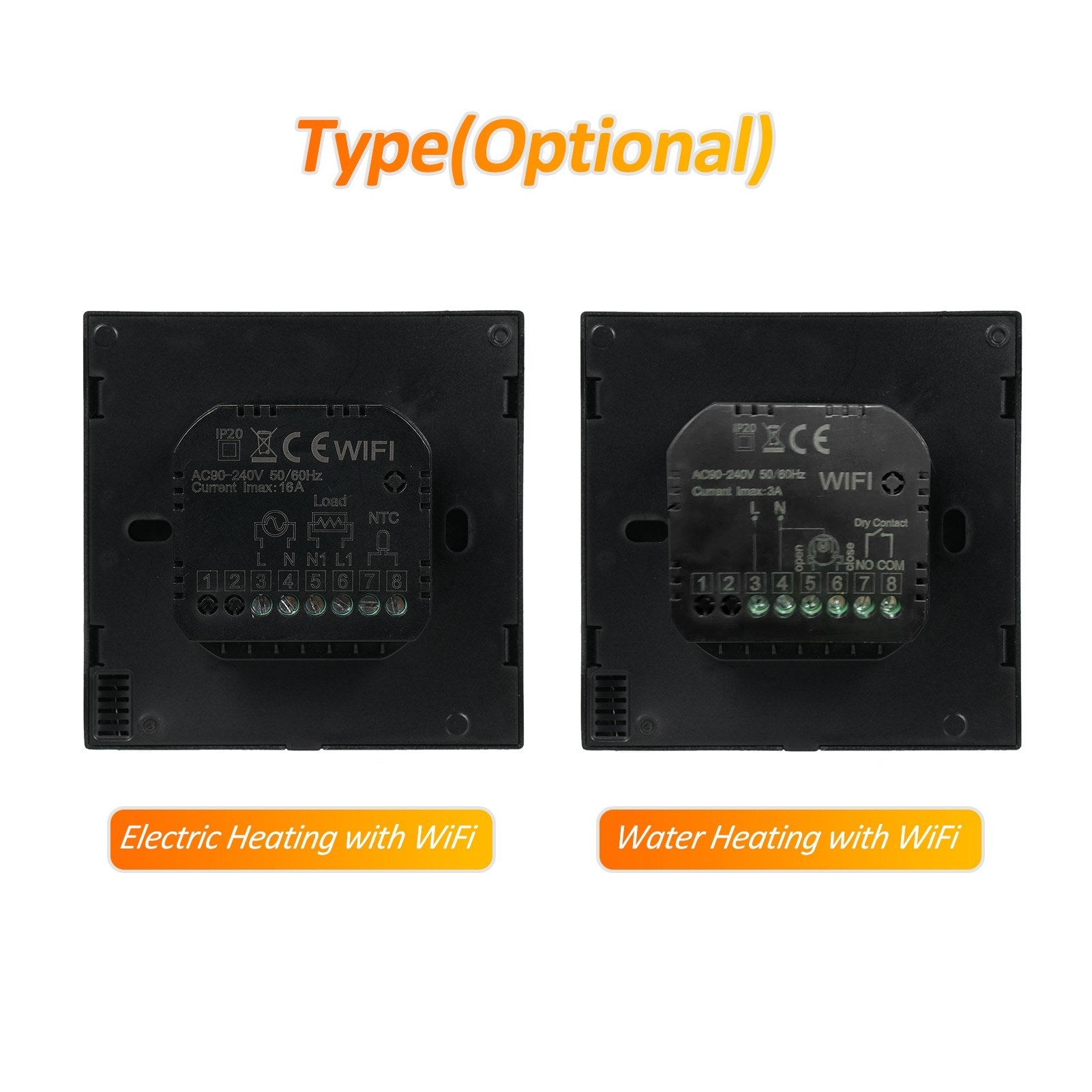

Type: Electric Heating / Water Heating (Optional)

Power: 90-240VAC 50/60HZ

Display Accuracy: 0.5℃

Probe Sensor: NTC (10k) 1%

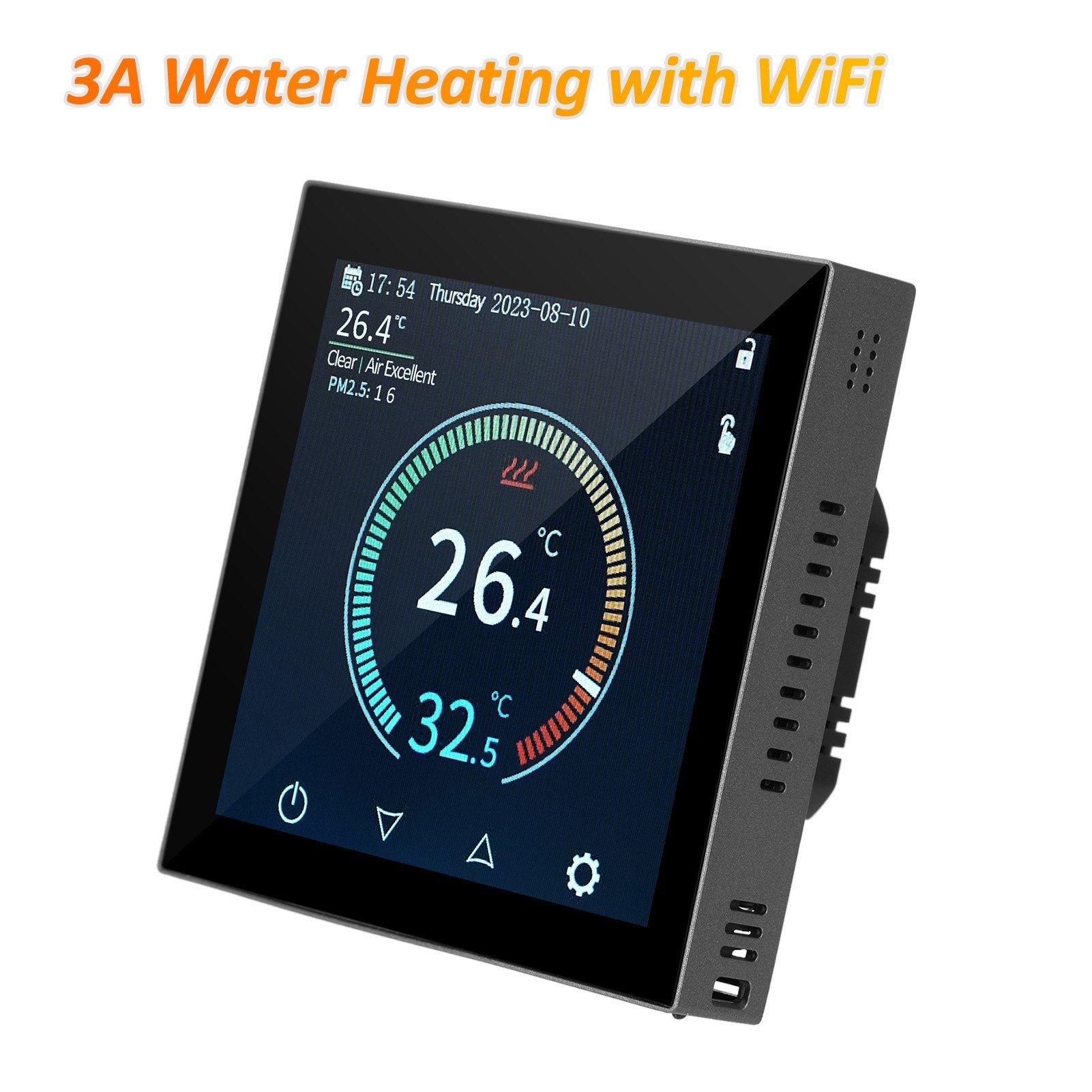

Contact Capacity: 3A (Water Heating) / 16A (Electric Heating)

Limit Temperature Range: 1~70℃

Temperature Adjustment Range: 5~35℃

Temperature Display Range: 1~70℃

Insulating Condition: Normal environment

Running Program: Set per 1 week cycle

Output: Switch relay

Installation: Recessed type (in the wall)

Material: Flame retardant PC

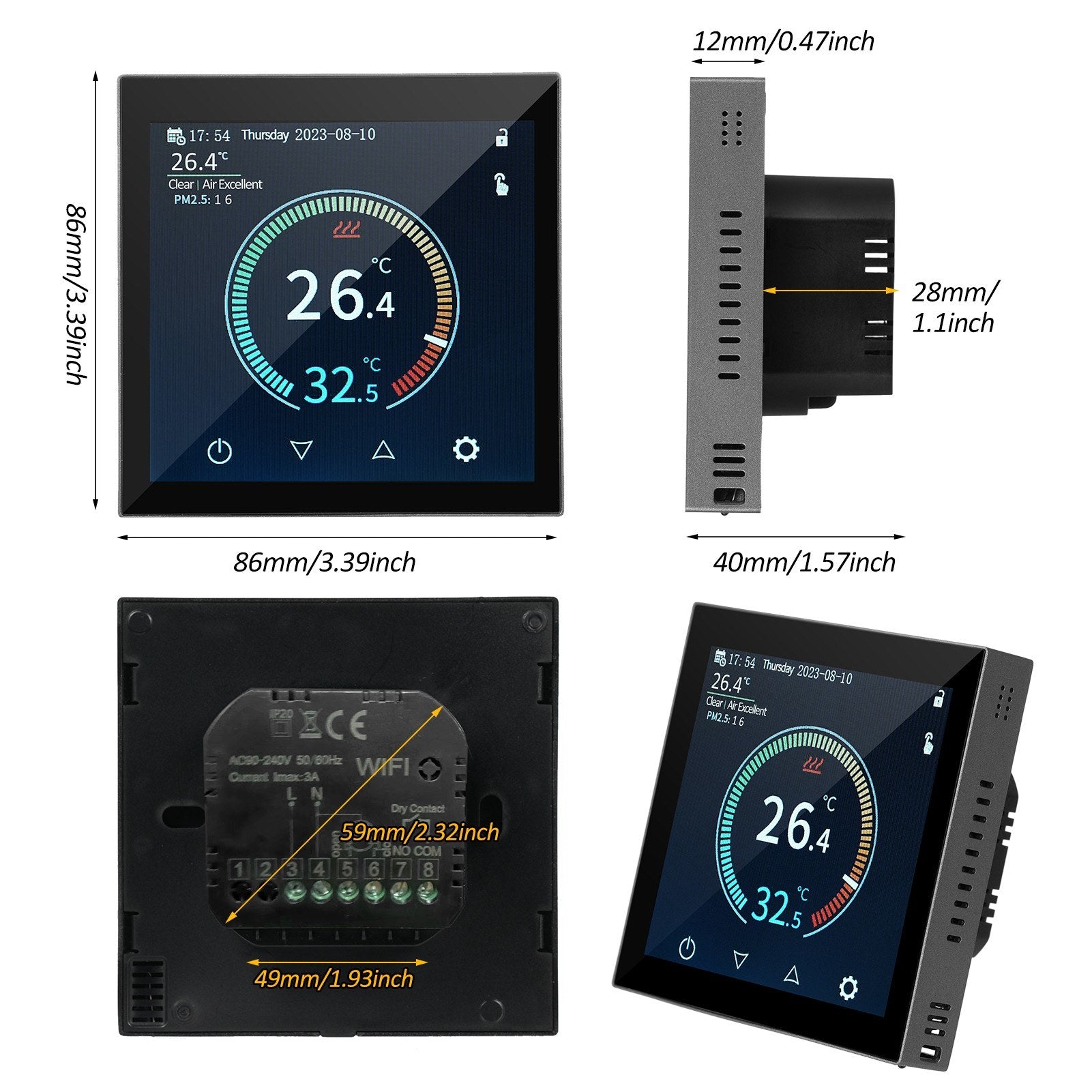

Item Size: 86 x 86 x 40 mm / 3.39 x 3.39 x 1.57 inch

Item Weight: 174g / 6.14oz

Package Size: 10 x 10 x 6 cm / 3.94 x 3.94 x 2.36 inch

Package Weight: 218g / 7.69oz

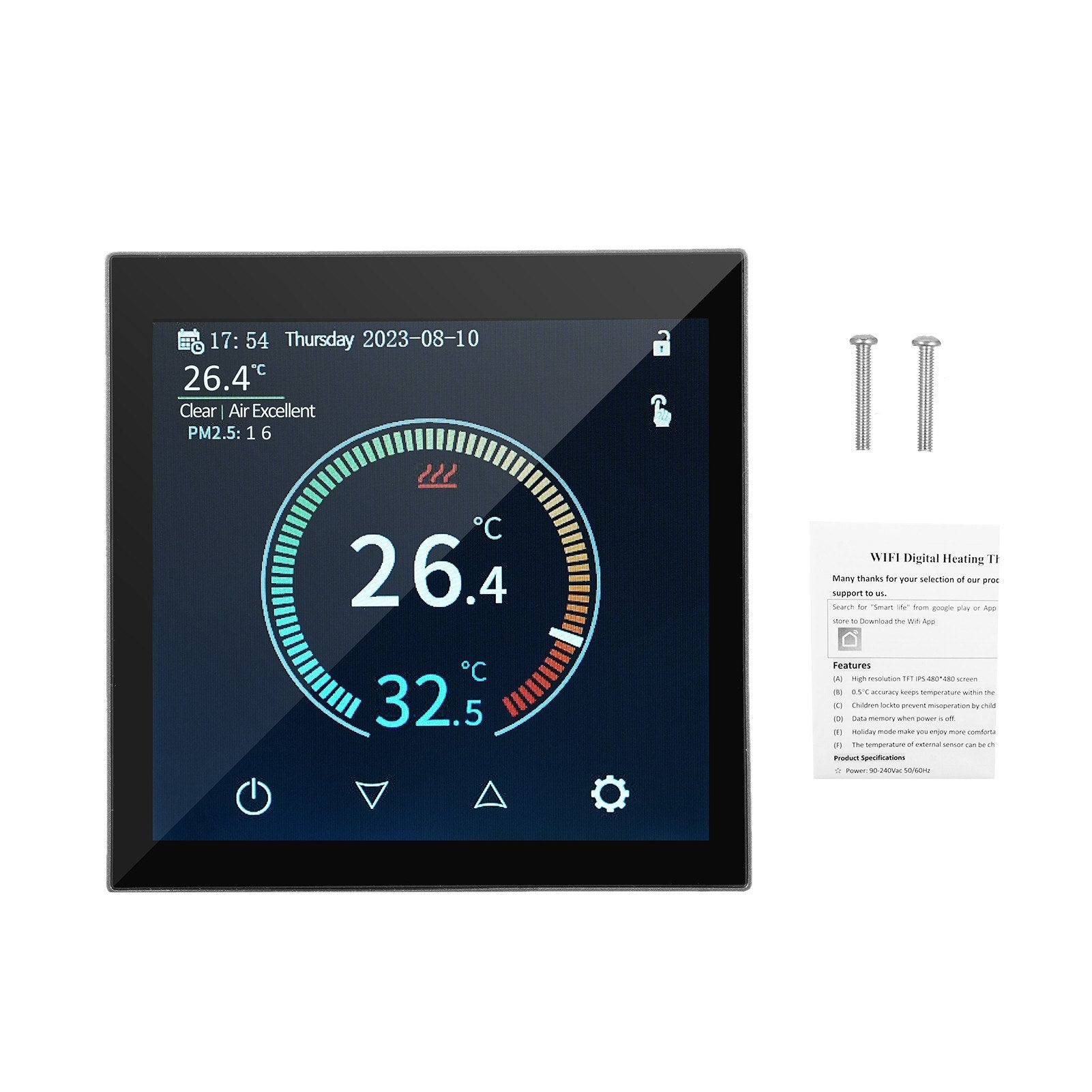

Package Includes

• 1 x Temperature Controller
• 1 x NTC Cable (Electric Heating standard configuration)
• 2 x Screws
• 1 x User Manual (English)
