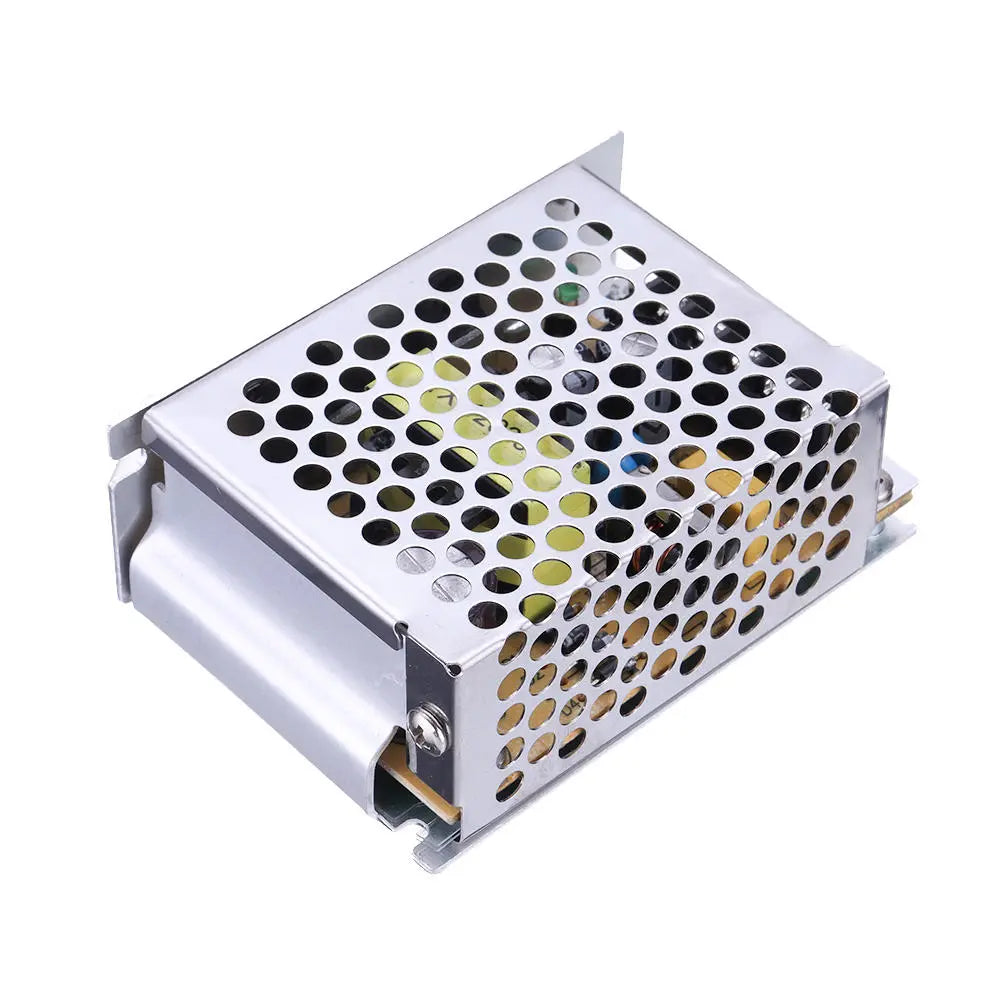

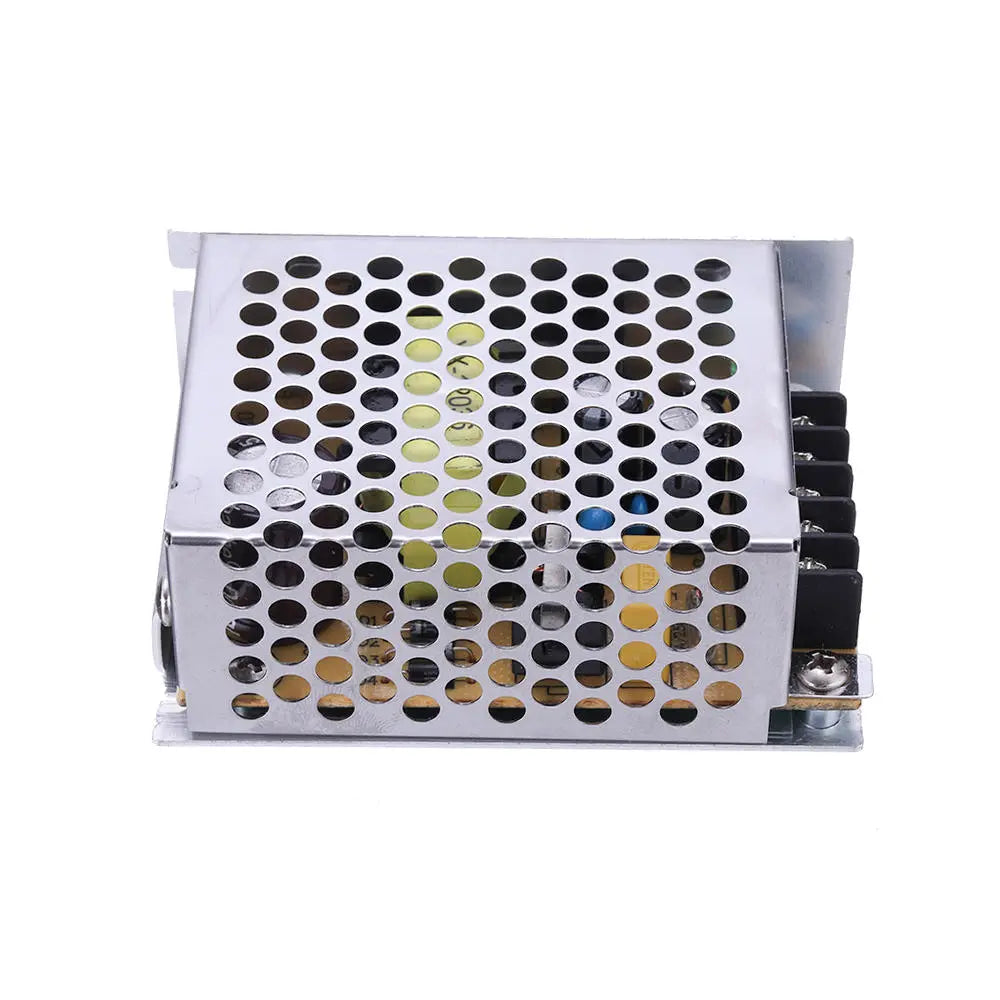

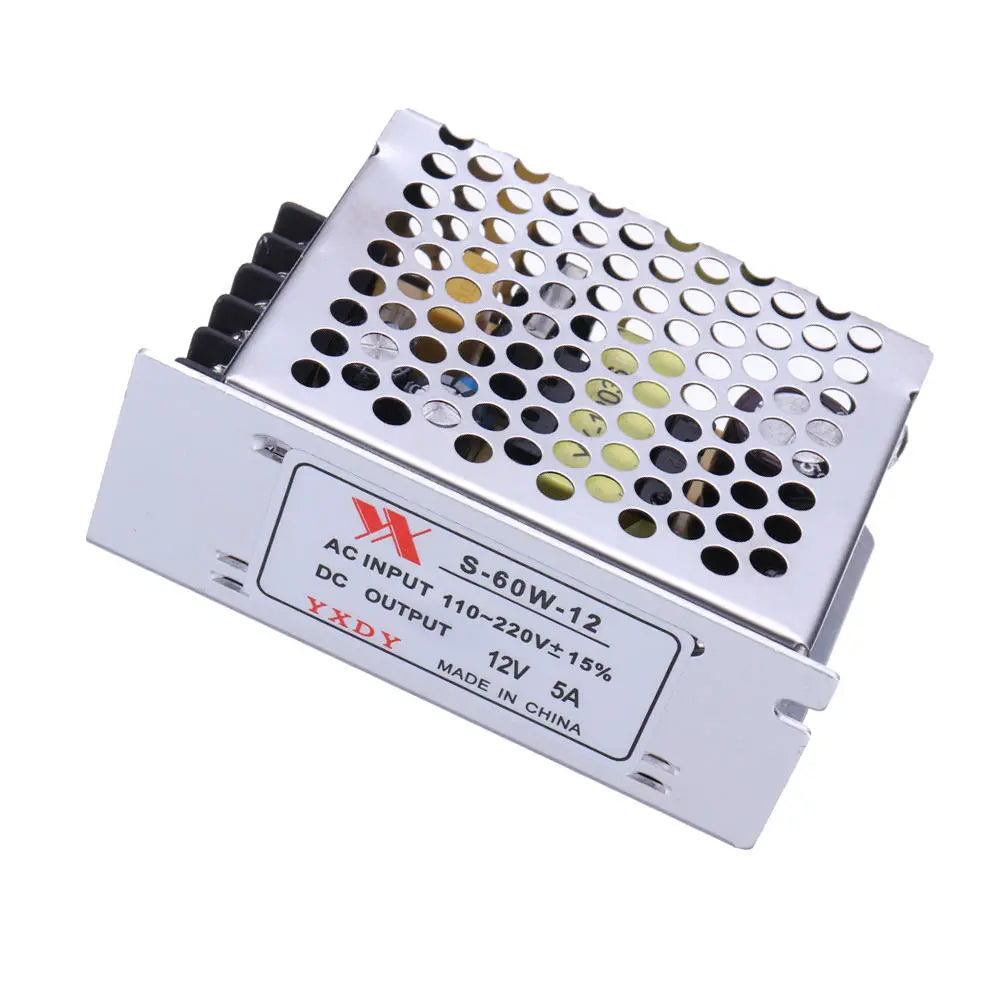

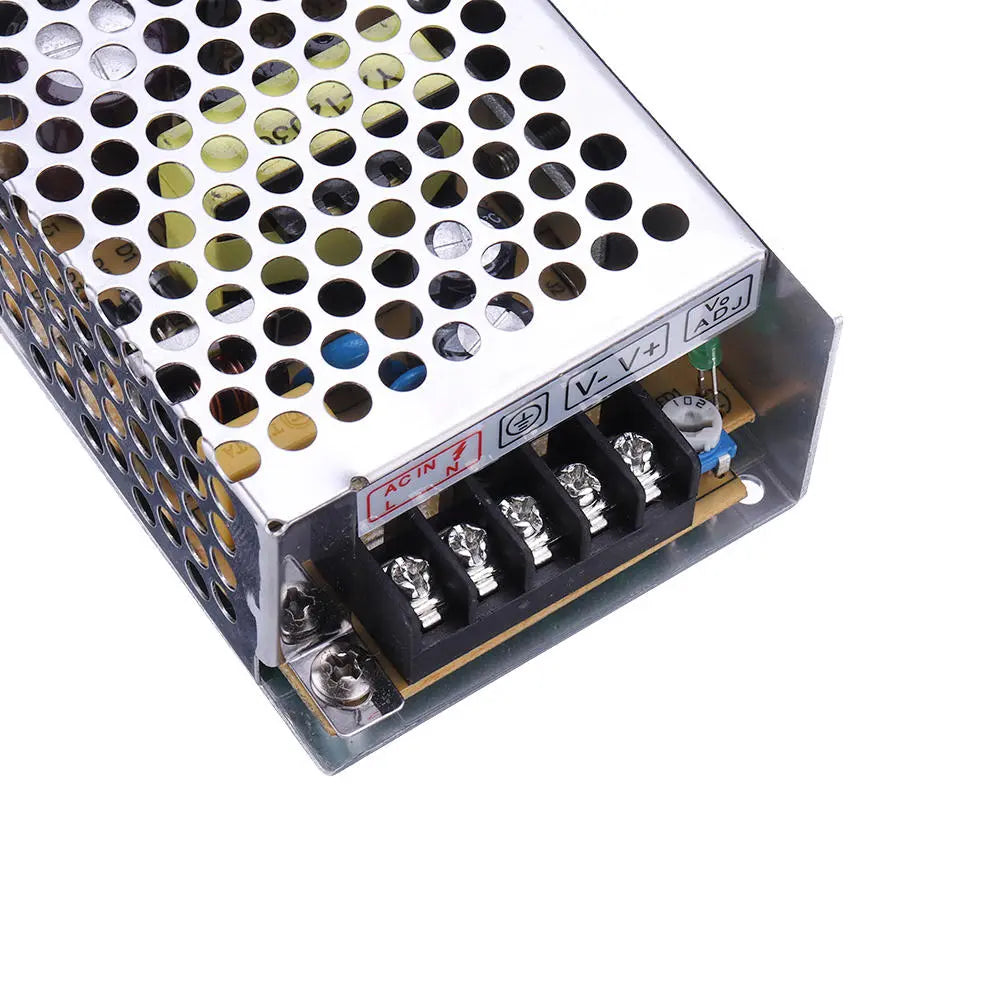

5-Pack 60W AC 100-240V to DC 12V 5A Power Supply Module Adapter for LED Strip Lights

Compatibility

To ensure that this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s). Show all compatible vehicles.

This part is compatible with 1 vehicle(s) matching your criteria.

This part is not compatible with the recent searches provided.

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:

1. Good anti-interference performance and high reliability.
2. Low operating temperature and long service life.
3. Wide input voltage range (100-240V), in line with global usage standards.
4. Good insulation performance and high electric strength.
5. Full load high temperature burning machine, 100% aging test.

Specifications:

• Model: HS-60-12
• DC output voltage: 12V
• Output voltage tolerance: ±1%
• Rated output current: 5A
• Output current range: 0 - 5A
• Ripple and noise: 100mVp-p
• Line stability: ±0.5%
• Load stability: ±0.5%
• DC output power: 60W
• Efficiency: 85%
• DC voltage adjustable range: ±10%
• Input voltage range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC
• Input current: 2A/115V 1A/230V
• Inrush current: cold start current 30A/115V 60A/230V
• Leakage current: (not specified)
• Overload protection: 105%~150%
• Overvoltage protection: 15%-135%
• Temperature coefficient: ±0.03%/°C (0-50°C)
• Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
• Shock resistance: 10 - 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axle
• Pressure resistance: input and output: 3KvAC; input and housing: 1.5KvAC; output and housing: 0.5KvAC
• Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ
• Working temperature, humidity: -10°C to +60°C, 20% - 90% RH
• Storage temperature, humidity: -20°C to +85°C, 10% - 95% RH
• Dimensions: 85 × 60 × 34mm

Package Included:

5 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
