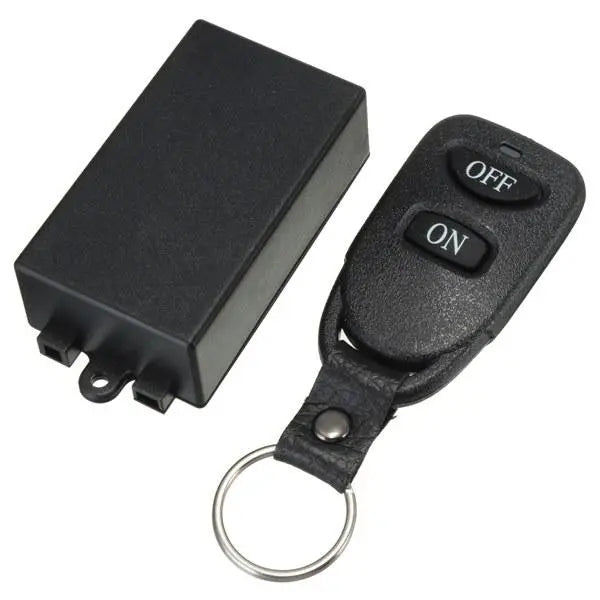

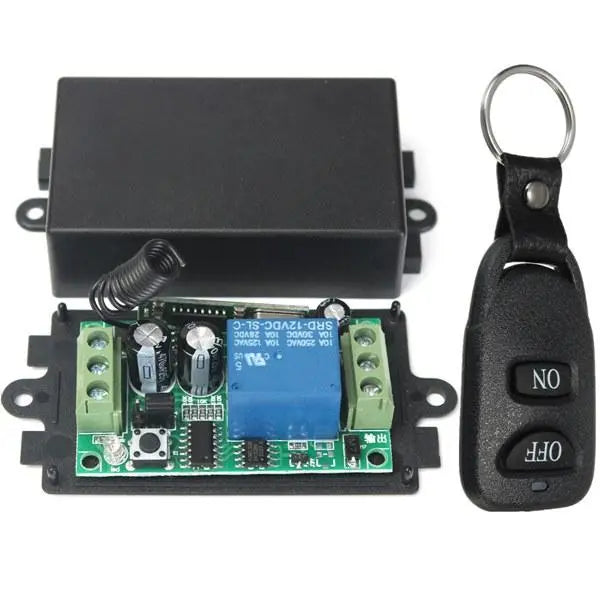

5-Pack Geekcreit DC 12V 10A Relay Wireless RF Remote Switch with Receiver

Product Compatibility

Ensure this part fits your vehicle by entering your vehicle details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Vehicle Compatibility Status:

• This part is compatible with 0 vehicle(s).
• Show all compatible vehicles.
• This part is compatible with 1 vehicle matching.
• This part is not compatible with the specified details.

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Product Features

• Easy to install and easy to carry
• Slidable cover on the remote control
• Includes a hook on the remote control
• Utilizes learning coding, ensuring stability and reliability
• Wireless signal can penetrate walls, floors, and doors
• Control the receiver via transmitter (remote control) from any reliable distance

Technical Specifications

• Operating Voltage: DC12V
• Maximum Load: 10A
• Operating Frequency: 433MHz
• Receiver Sensitivity: -100dBm
• Encoding Type: Learning code
• Board Size: Approx. 5.3x3.1cm (2.09x1.22 inches)

Output Working Modes

1. Jog: Press and hold one button to operate; release to stop. (requires one-channel switch and one-button remote control)
2. Self-lock: Press one button once to operate and again to stop. (requires one-channel switch and one-button remote control)
3. Inter-lock: Press one button to operate and another to stop. (requires one-channel switch and a two-button remote control)
4. Note: This is a 1-channel, 1-button wireless remote control. Choose between self-lock and jog mode, so pressing the button opens, and pressing again closes.

Learning and Removal Methods

1. Press the learning code button. The indicator will go from on to off. Release and press any remote control button; the indicator will flash twice and turn off, confirming successful learning.
2. Supports learning of more than 12 PCS 2262 or 1527 chip with different code wireless remote controls.
3. To Remove/Clean: Press the learning button for about 8 seconds until the indicator turns on and off, indicating successful removal of stored information.

Package Includes

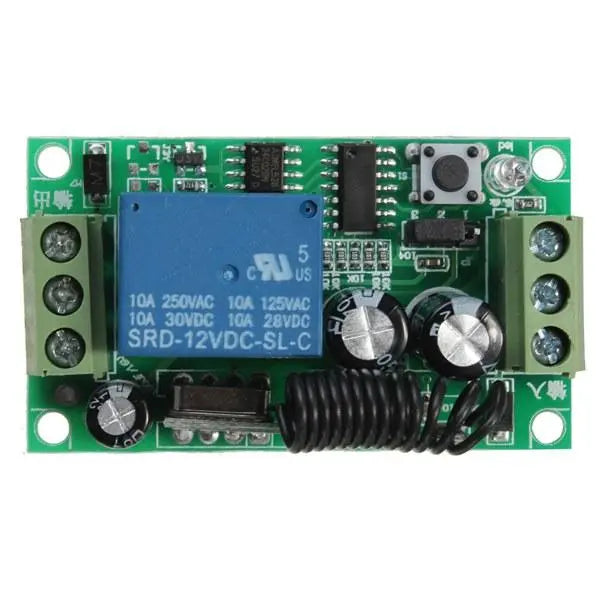

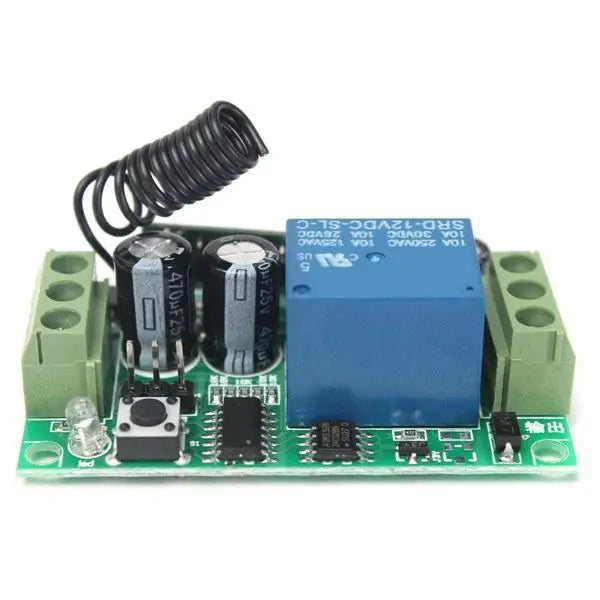

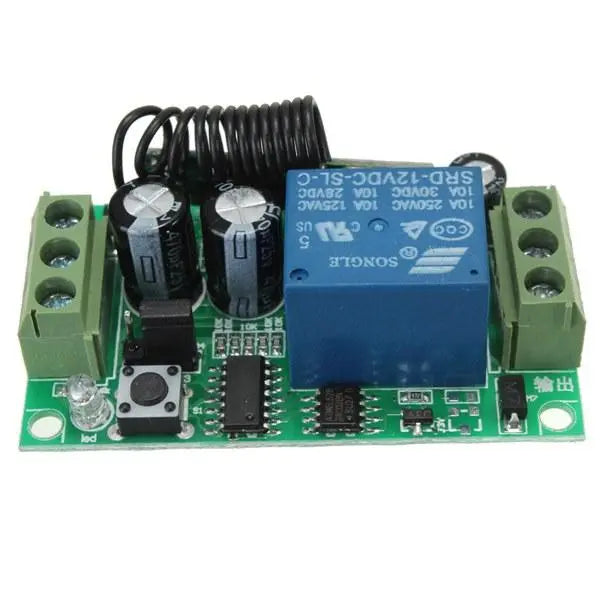

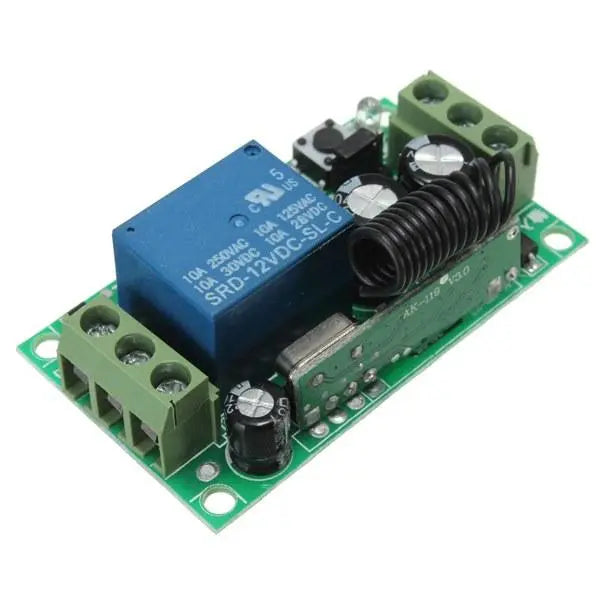

• 5 x Learning Code Receiver

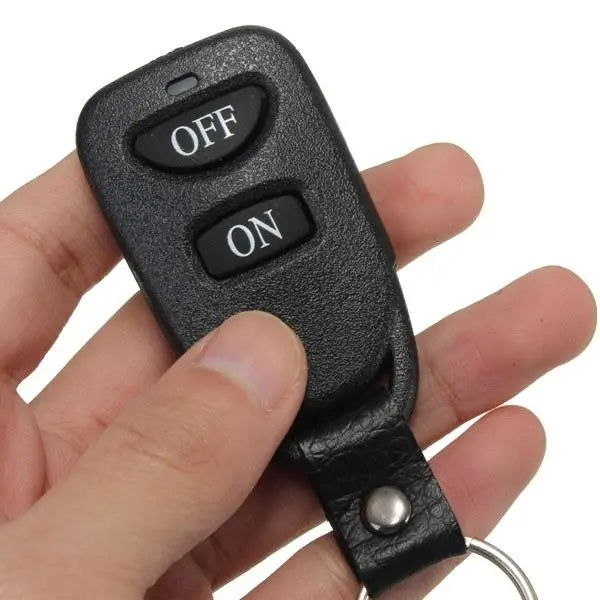

• 5 x Remote Control
