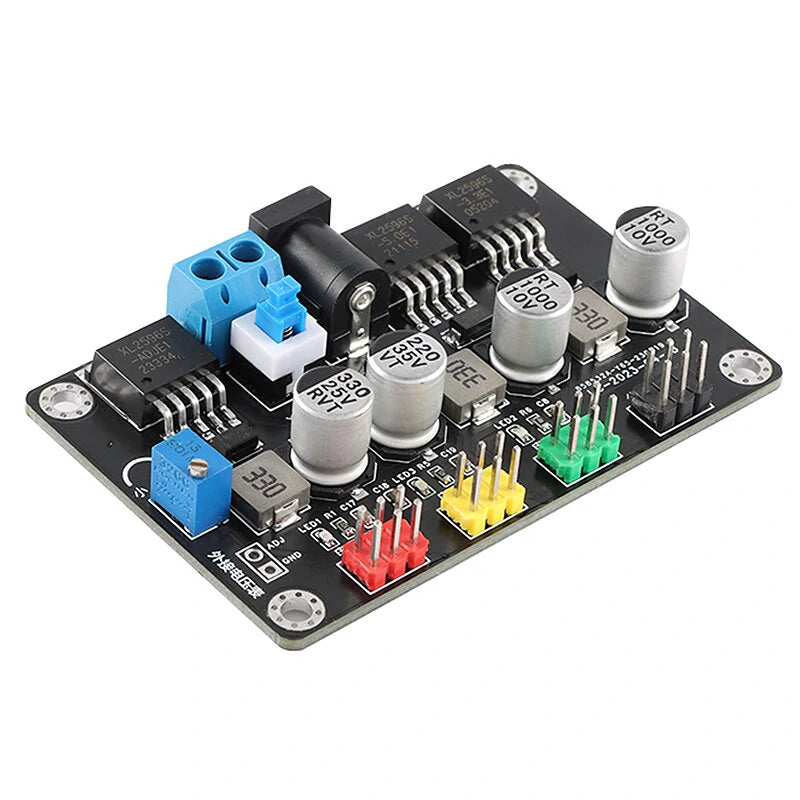

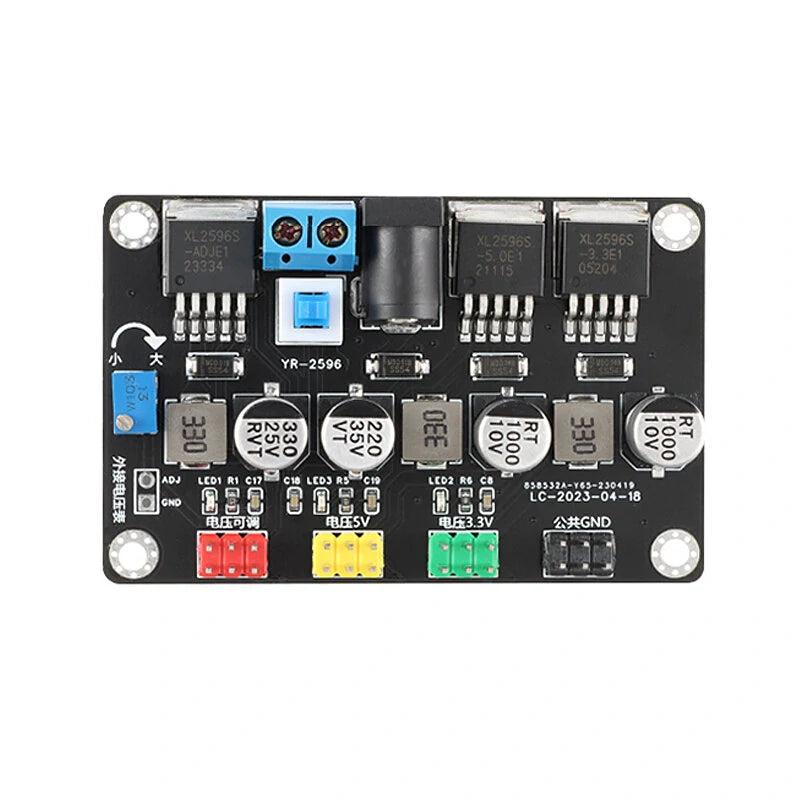

Adjustable LM2596 DC Power Converter Module 3.3V/5V for Intelligent Vehicle Experiments

Product Details:

Specifications:

• Model: YR-2596
• Input: Direct current 7-30V
• Output: 3.3V, 5.0V, ADJ adjustable voltage output
• Maximum Continuous Load: 1.5A
• Peak Load: 2A
• Size: 68mm x 44mm
• DC Interface: 5.5 x 2.1mm

Features:

1. Triple Output Channels: Offers 3.3V, 5.0V, and ADJ adjustable voltage outputs, supporting up to 1.5A continuous load and 2A peak load per channel.
2. Efficiency and Stability: The module is designed for efficiency and reliability, providing a steady supply for your circuit with up to 1500mA continuous load.

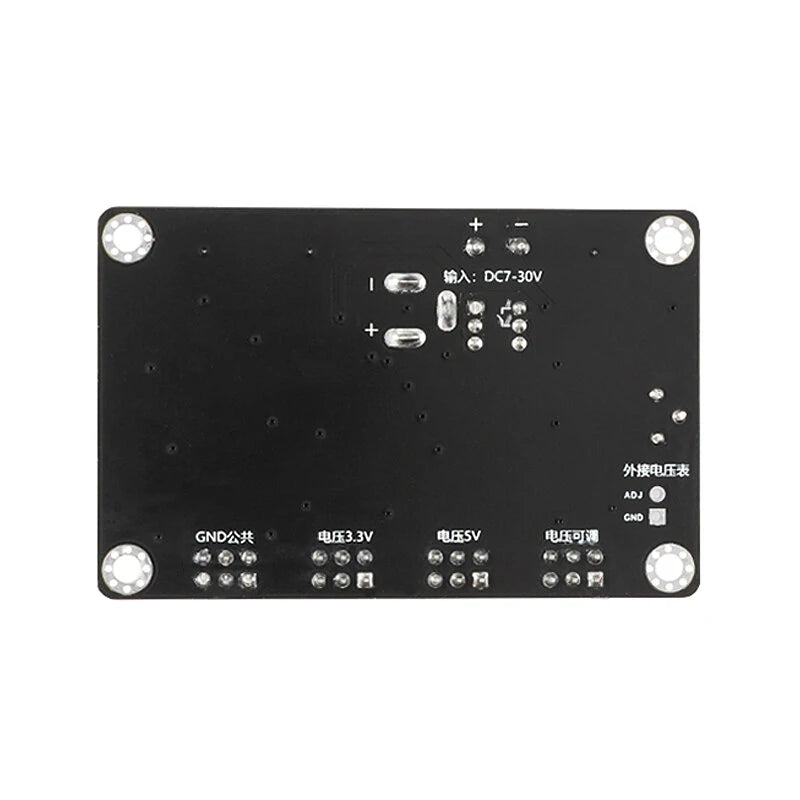

3. Two-Sided Board Design: Ensures a neat and organized layout for easy integration.
4. Easy Connect: Features multiple rows of pins for straightforward connections.
5. Clear Voltage Indication: Equipped with three red power indicator lights for clear visibility of voltage states.

Package Includes:

• 1x Power Converter Module
