2-Pack XL6009 Automatic DC-DC Boost Buck Converter for Solar Panels

2-Pack XL6009 Automatic DC-DC Boost Buck Converter for Solar Panels

Regular price $2.99 USD
Regular price $0.00 USD Sale price $2.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

DC-DC Boost Buck Adjustable Step Up Step Down Automatic Converter

Description:

Experience hassle-free voltage regulation with our automatic buck boost module. Designed to tackle issues with 12V electrical equipment, this module ensures stable output regardless of the input voltage. Whether your input is 5V, 12V, or 32V, achieve a consistent 12V output effortlessly. The device efficiently manages voltage fluctuations, with an auto start voltage that can be pulled down to 7V or less and allows the engine to run at high speed when the voltage reaches 15V or higher.

Powered by built-in 4A efficient MOSFET switches, the module offers up to 94% efficiency, significantly outperforming the LM2577's 3A current capacity. It features a high switching frequency of 400KHz, which results in reduced ripple and more compact dimensions compared to the LM2577's 50KHz frequency.

Applications:

  • Car regulators
  • Solar photovoltaic systems
  • Wind power systems
  • Other applications requiring stable voltage

Specifications:

  • Model Specification: DSN6000AUD Automatic Buck Module
  • Module Properties: Non-isolated boost (BOOST)
  • Rectification: Non-synchronous rectification
  • Input Range: 3.8V - 32V
  • Output Range: 1.25V - 35V
  • Input Current: 3A (max), no-load 18mA (5V input, 8V output)
  • Conversion Efficiency: Up to 94%
  • Switching Frequency: 400KHz
  • Output Ripple: 50mV (increases with voltage and current)
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Operating Temperature: -40°C to +85°C

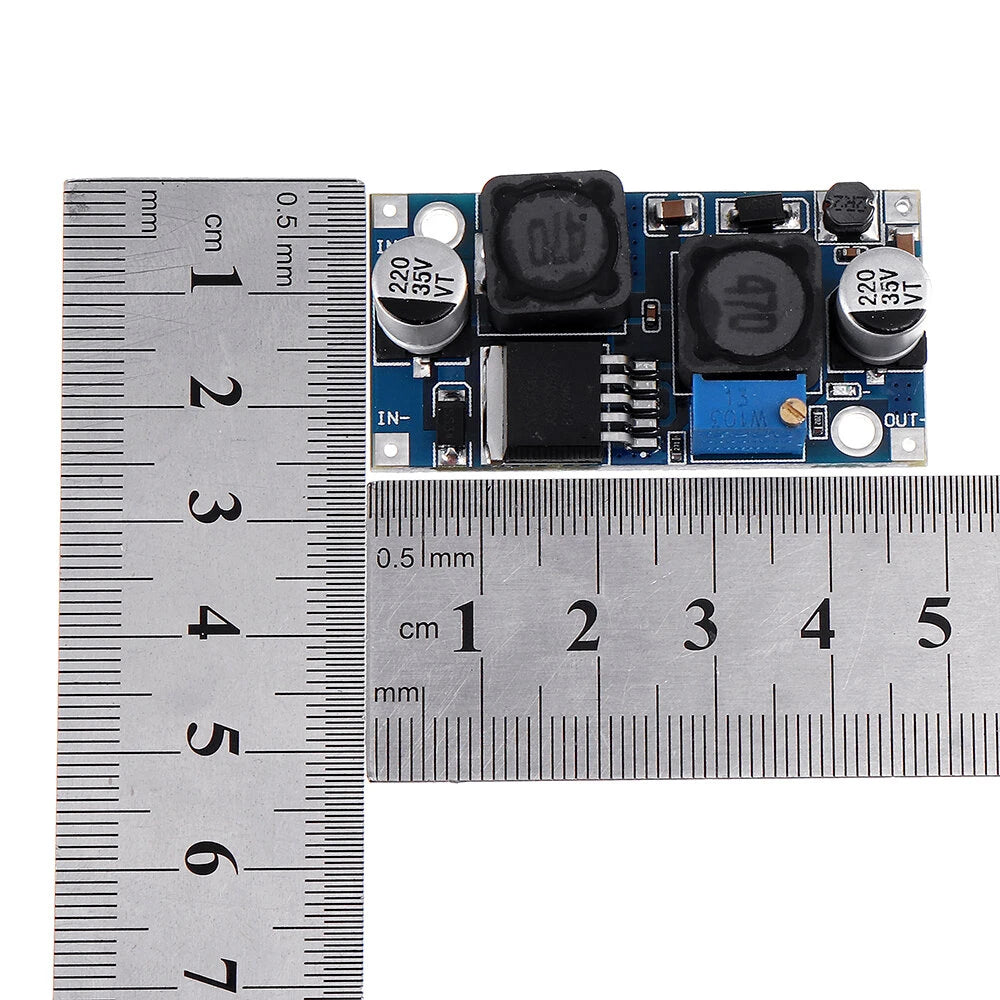

  • Dimensions: 48 x 25 x 14mm (L x W x H)

Package Includes:

  • 2 x DC-DC Boost Buck Adjustable Step Up Step Down Automatic Converter XL6009 Module
