Quicko T12-942 Mini OLED Soldering Station with T12-907 Handle & T12-K Tips Welding Tool

Product Specifications:

• Input Voltage:
• 19V, ≥2.38A, 45W, Speed of melt tin: 9S
• 20V, ≥2.50A, 50W, Speed of melt tin: 9S
• 21V, ≥2.63A, 55W, Speed of melt tin: 8S
• 22V, ≥2.75A, 61W, Speed of melt tin: 8S
• 23V, ≥2.88A, 66W, Speed of melt tin: 8S
• 24V, ≥3.00A, 72W, Speed of melt tin: 7S
• Perfect for use with DC 24V notebook power, car power, mobile power, and battery supply.

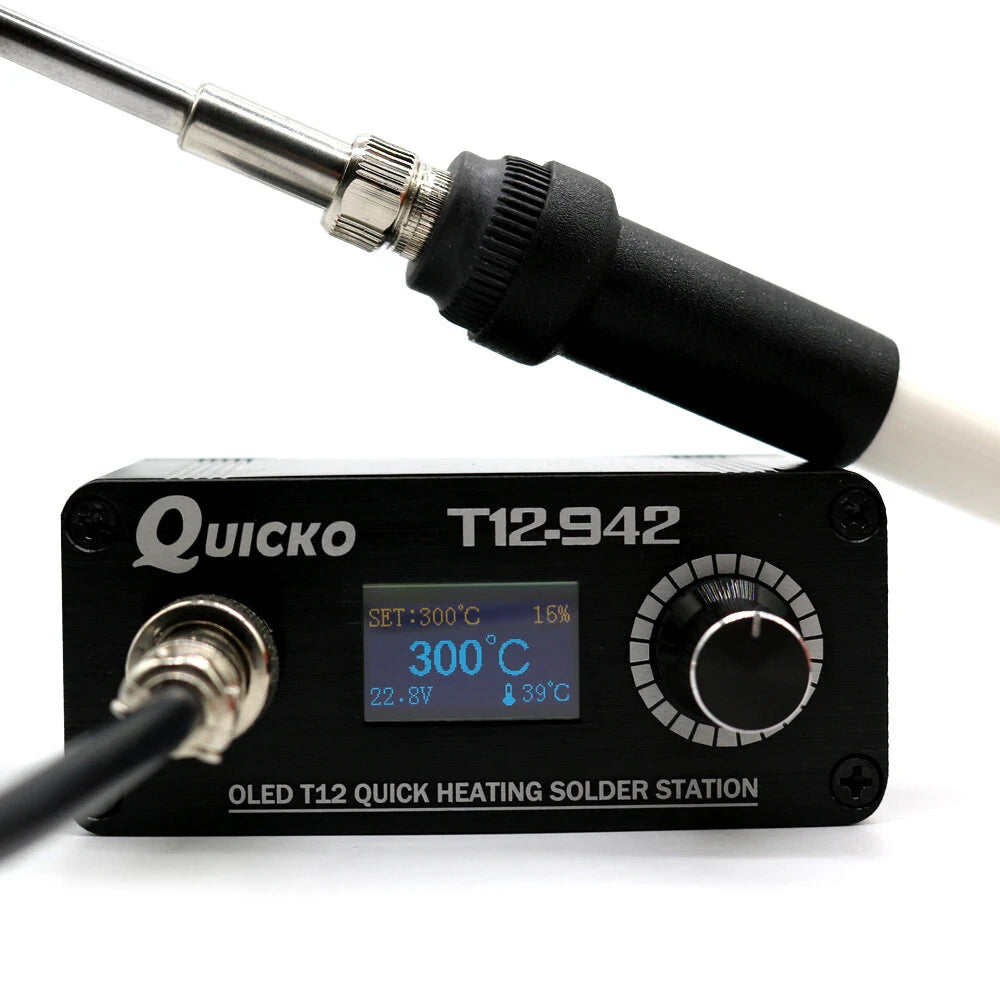

Mini Portable OLED T12 Solder Iron Station

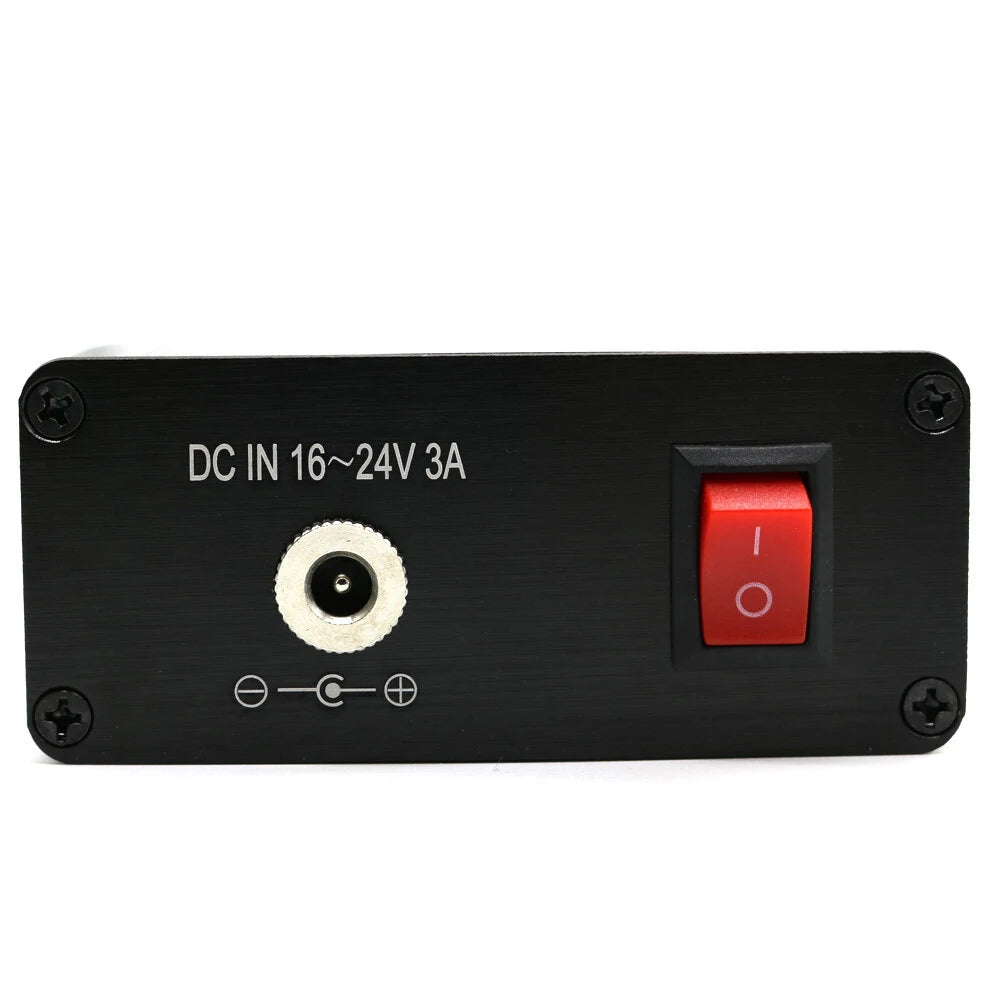

This compact soldering station requires a DC 24V 3A-5A power supply, which you need to procure separately.

Size: 88mm x 41mm x 38mm

Please Note:

• Avoid using the iron tip at high temperatures continuously to prevent damage.
• The solder melting point is 183°C, while lead-free solder has a melting point of 227°C.
• Optimal welding temperature is between 300-380°C.
• Temperatures above 380°C can cause rapid oxidation and wear of the iron tip and core, potentially shortening their lifespan.
• A temperature of 380°C acts as a critical threshold; above this, the temperature display could become unstable.
• It's recommended to maintain welding work within the 300-380°C range for stability and efficiency.

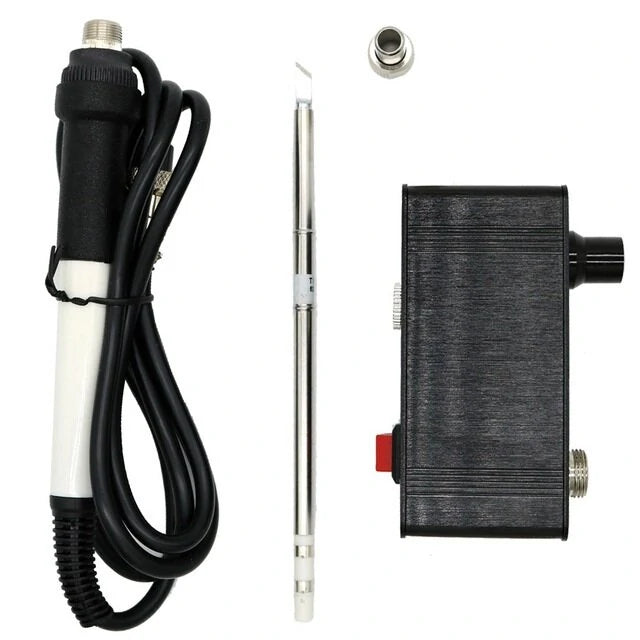

Package Includes:

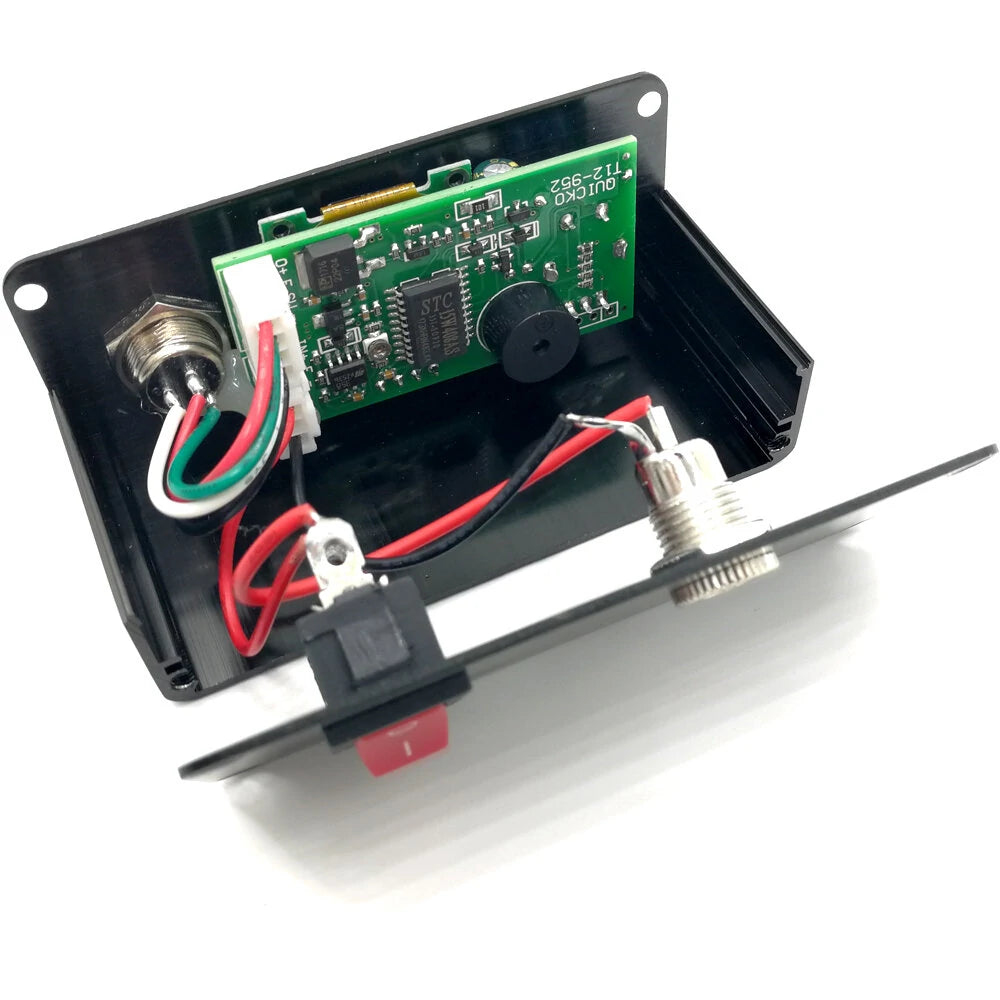

• 1 x Mini OLED T12 Controller
• 1 x T12 Iron Handle
• 1 x T12-K Soldering Iron
