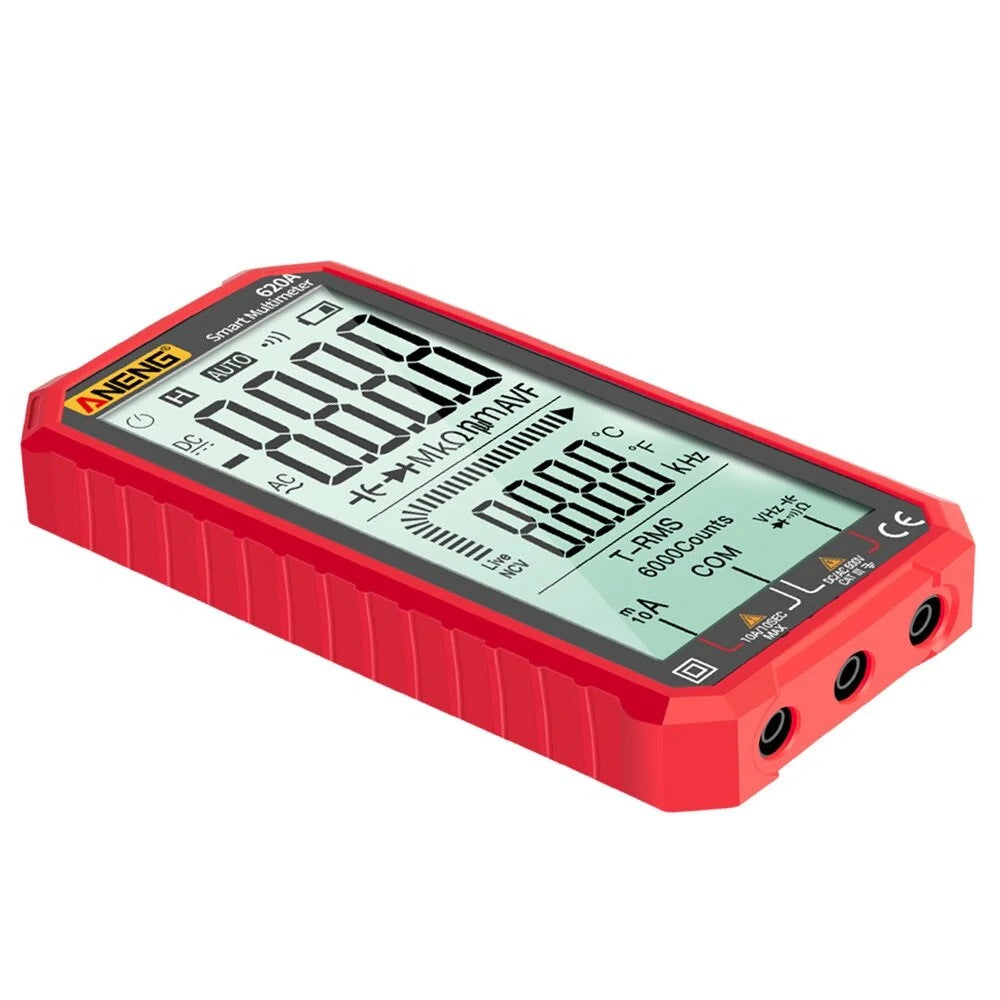

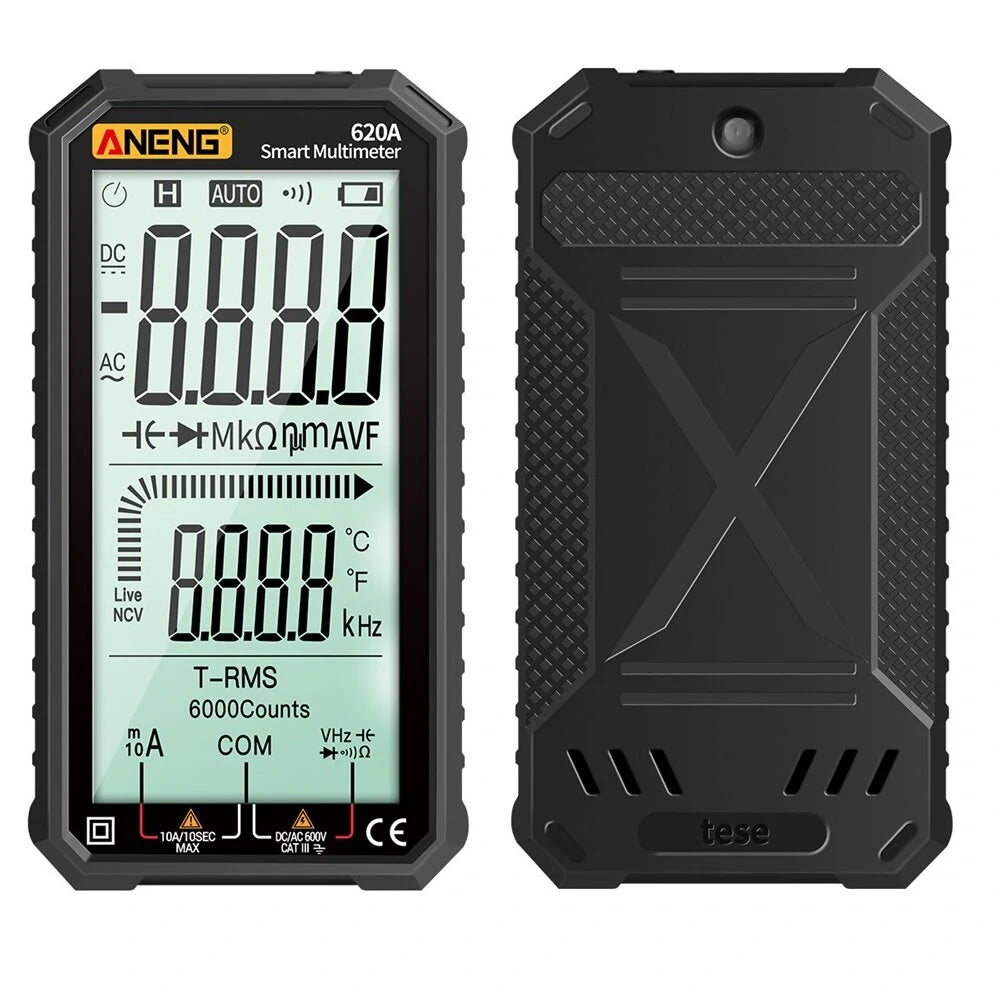

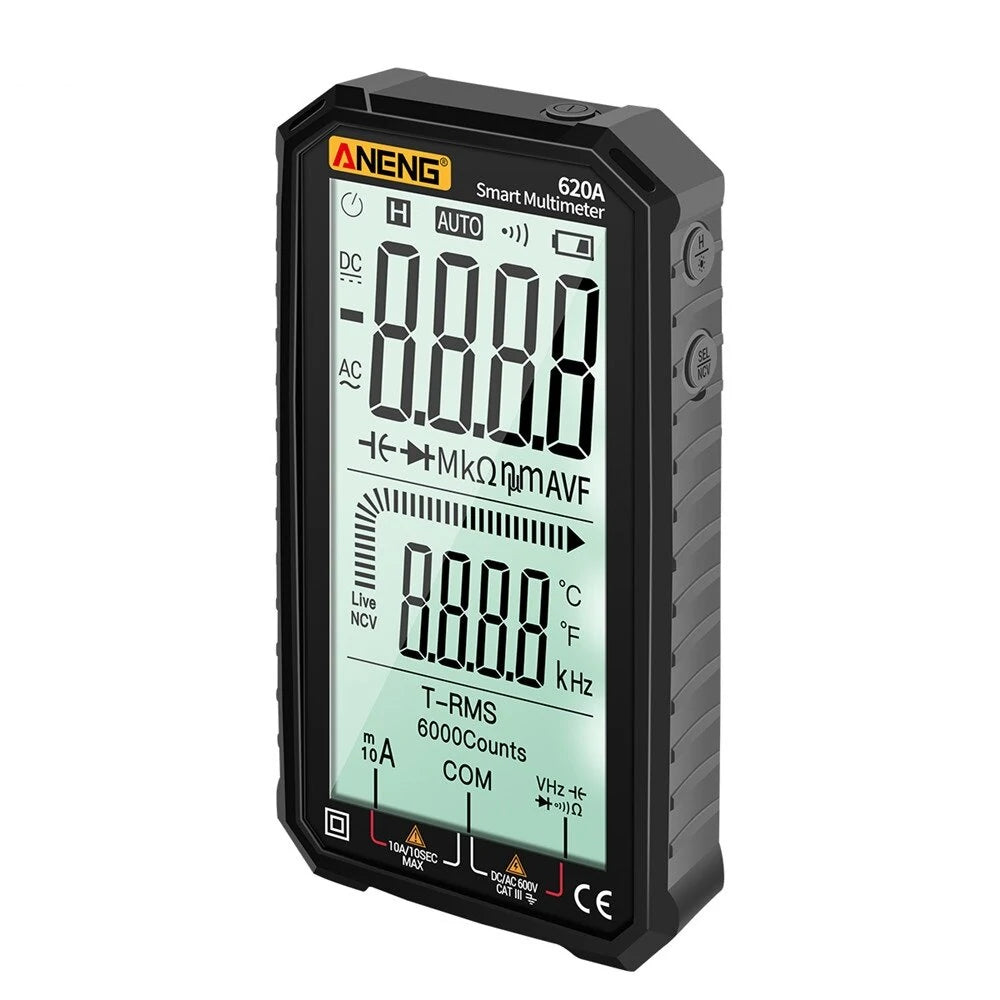

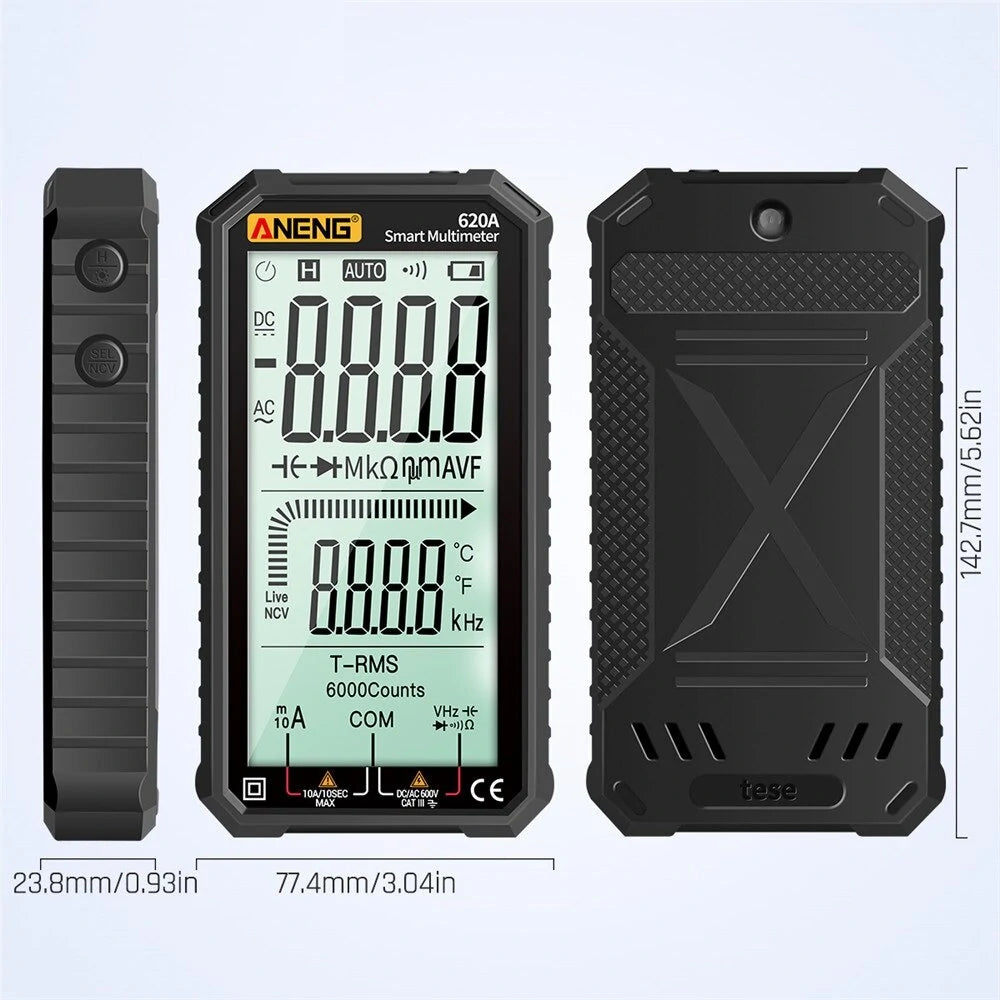

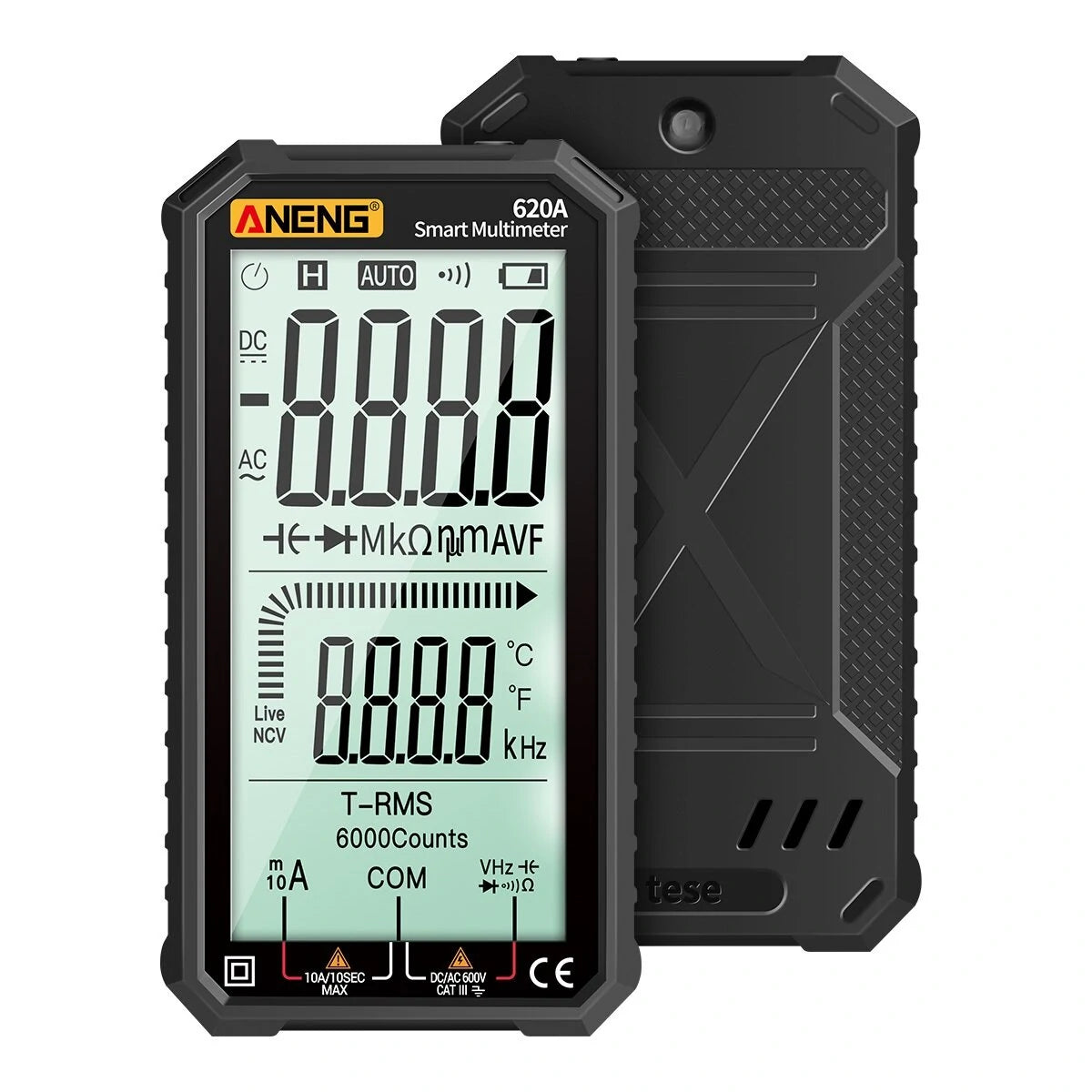

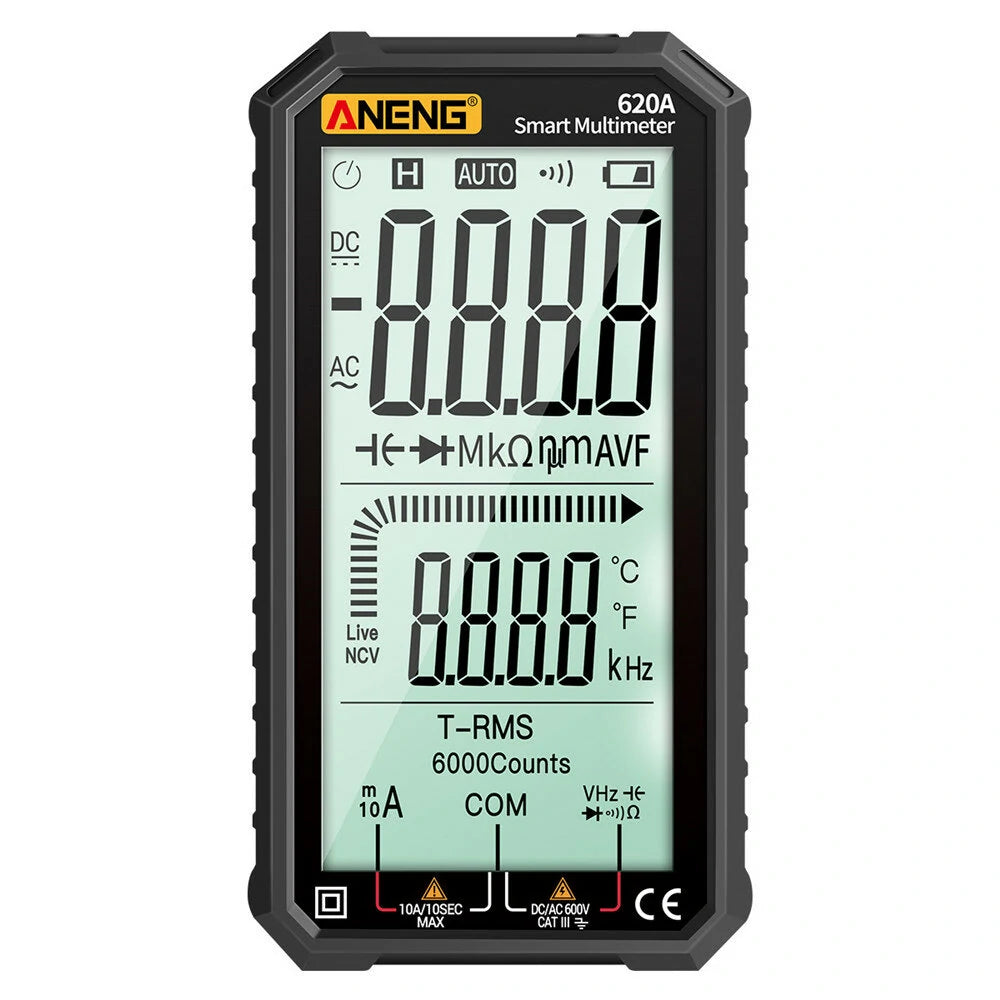

ANENG 620A True RMS Digital Multimeter - 4.7-inch LCD, Auto & Manual Modes, Test Resistance, Diode, Capacitance, Temperature, Frequency
ANENG 620A True RMS Digital Multimeter - 4.7-inch LCD, Auto & Manual Modes, Test Resistance, Diode, Capacitance, Temperature, Frequency
Regular price
$19.99 USD
Regular price
$0.00 USD
Sale price
$19.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Key Features
- Manual and Auto Test Capabilities
- 6000 Counts Digital Display
- True RMS for Accurate Measurements
- Measure AC/DC Voltage and Current
- Continuity and Resistance Measurement
- Diode and Capacitance Tests
- Temperature and Frequency Measurement
Specifications
- Automatic Measurement Function and Range Selection
- Comprehensive Overload Protection
- Max Voltage: 600V DC or 600V AC
- 4.7-inch LCD Display with 6000-Digit Max
- Automatic Polarity Indication
- Overrange Display: '0L' or '-0L'
- Sampling Rate: 3 times/second; Bargraph: 10 times/second
- Unit and Function Display
- Automatic Shutdown in 15 Minutes
- Powered by 2 x 1.5V AAA Batteries (not included)
- Battery Under-Voltage Indication
- Temperature Coefficient: <0.1% accuracy/℃
- Operating Temperature: 18℃ to 28℃
- Storage Temperature: -10℃ to 50℃
Measurement Ranges
- AC Current: 6000mA / 1mA ±1.0% + 8 digits, 10A / 0.01A
- DC Current: 6000mA / 1mA ±1.0% + 5 digits, 10A / 1mA
- DC Voltage: 6V / 0.001V ±0.5% + 3 digits, 60V / 0.01V, 600V / 0.1V
- AC Voltage: 6V / 0.001V ±0.8% + 5 digits, 60V / 0.01V, 600V / 0.1V
- Continuity Test: 1Ω, Buzzer sounds < 50Ω
- Resistance: 60MΩ max with multiple resolution levels
- Diode Test: Display forward voltage drop
- Temperature: -40 to 1000°C (±1% + 3°C), -40 to 1832°F (±1% + 3°F)
- Frequency: 1Hz to 1000Hz ±1.0% + 5 digits
- Capacitance: 6nF to 60mF with varying accuracy

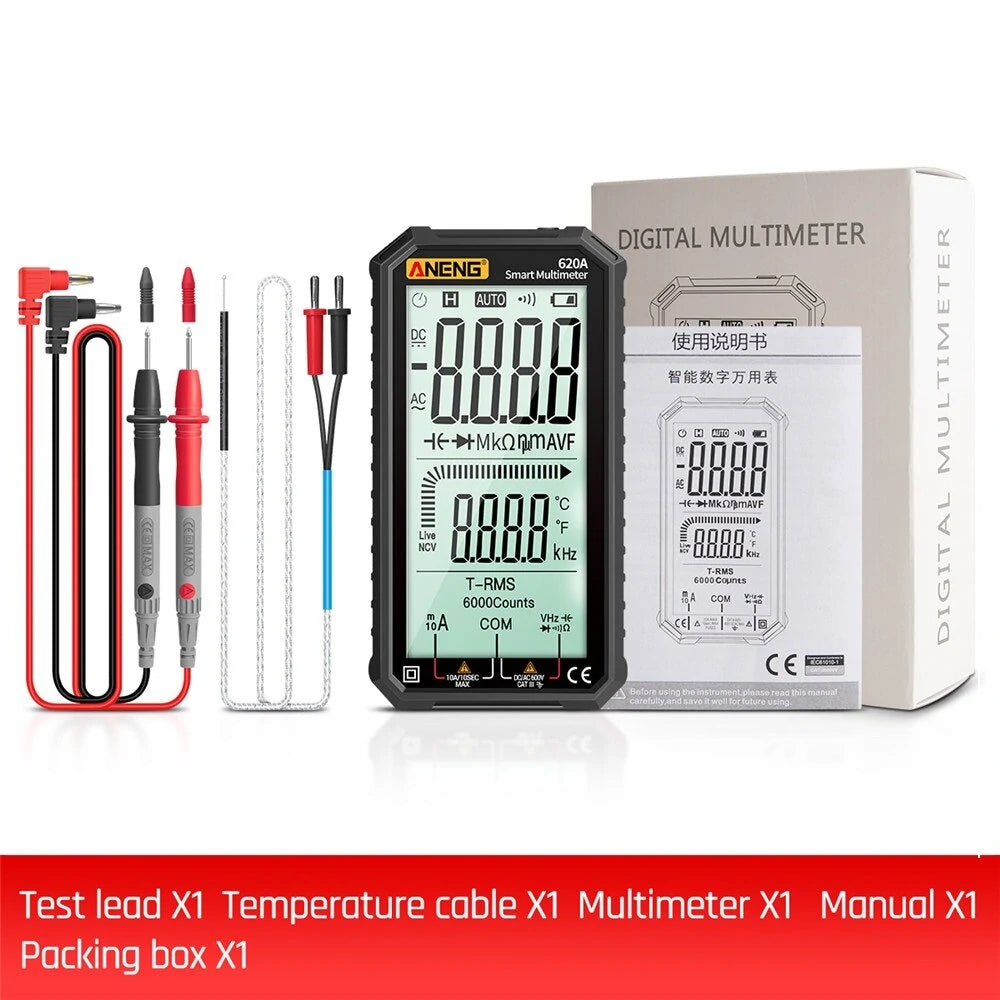

Package Includes
- 1 x Multimeter
- 1 x Pair of Test Leads
- 1 x Temperature Cable
- 1 x English User Manual
- 1 x Packaging Box
