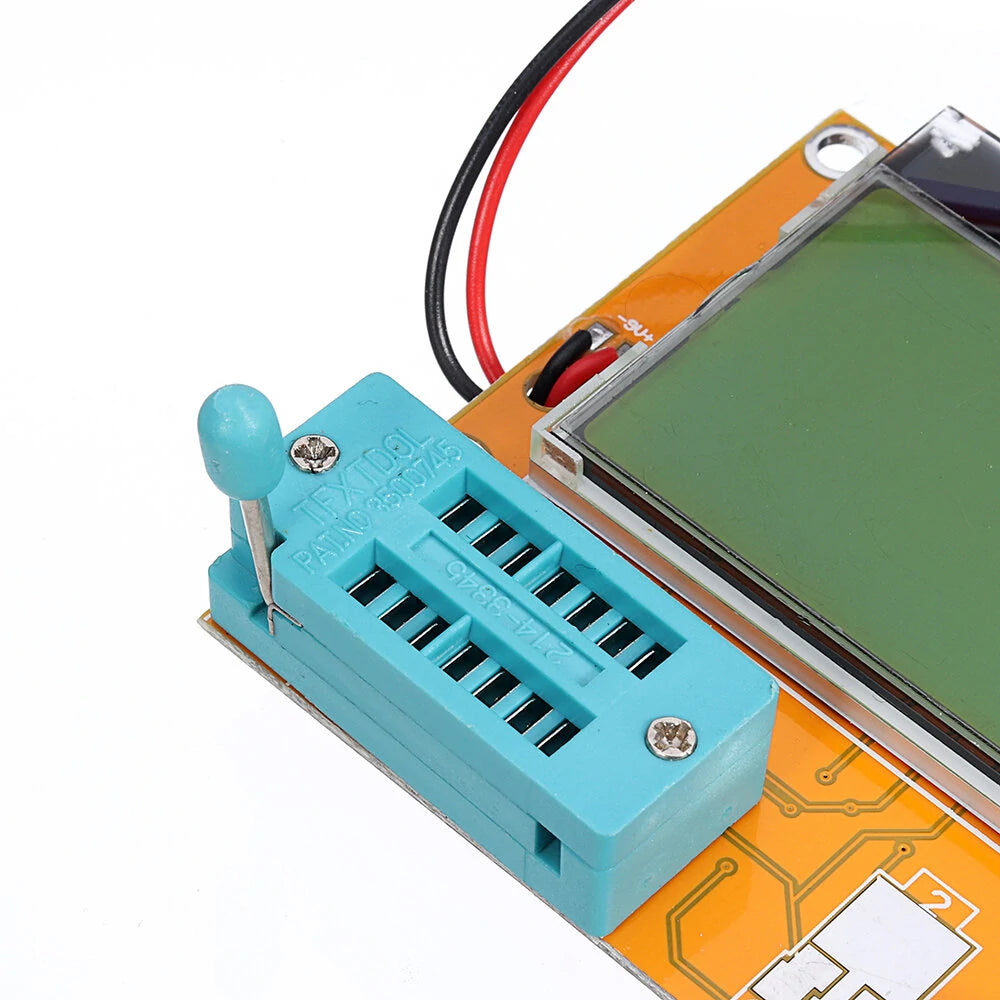

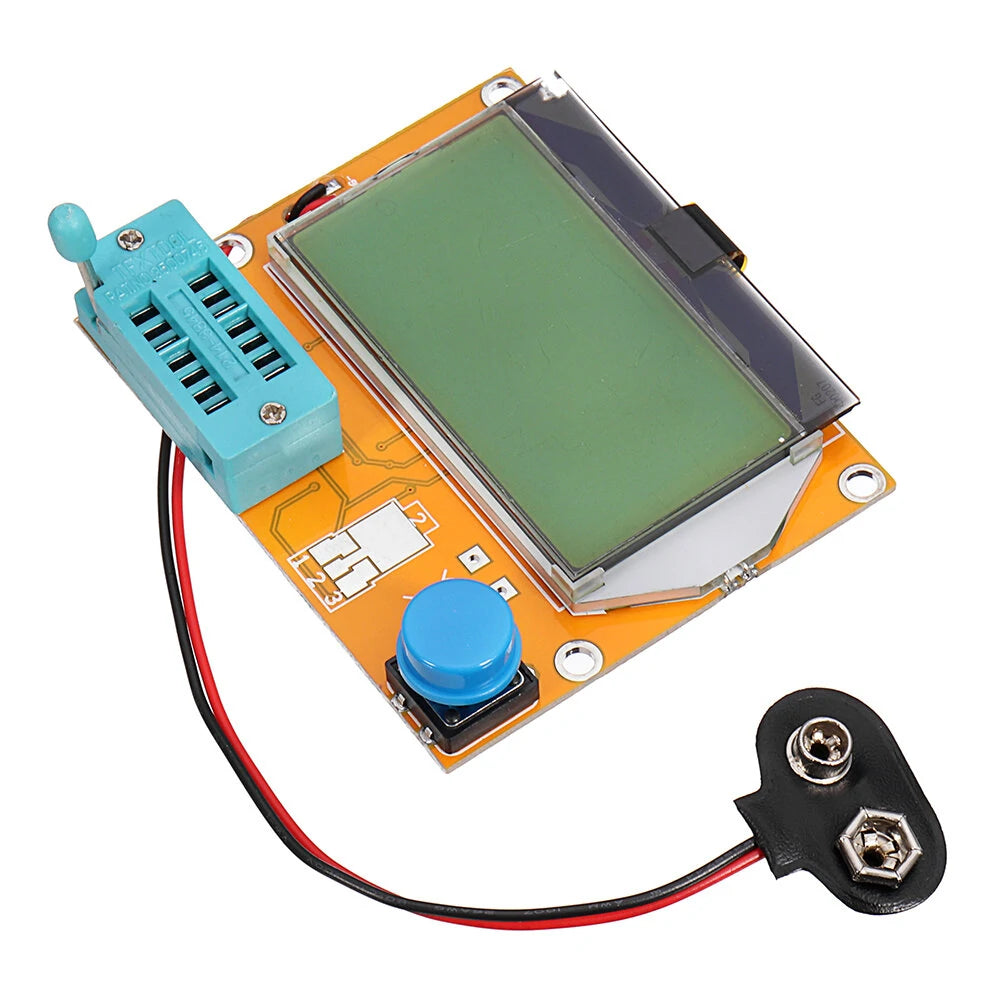

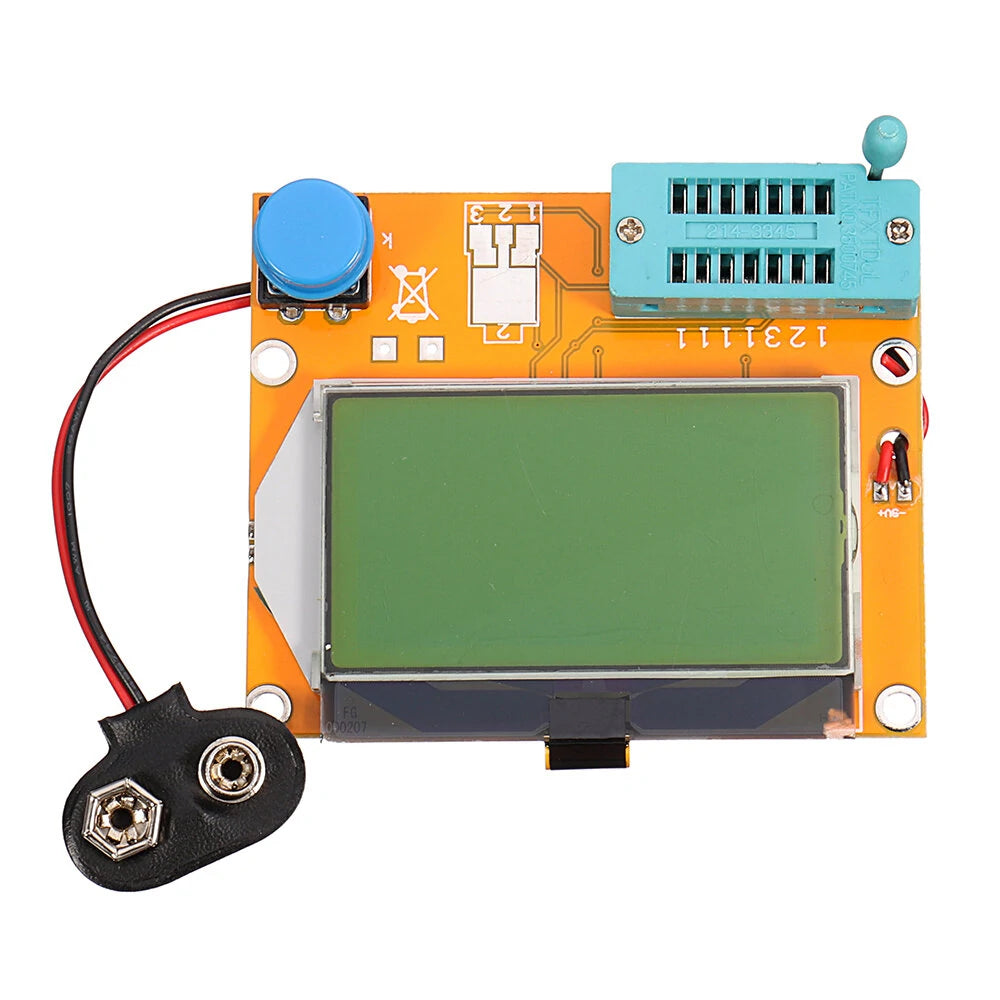

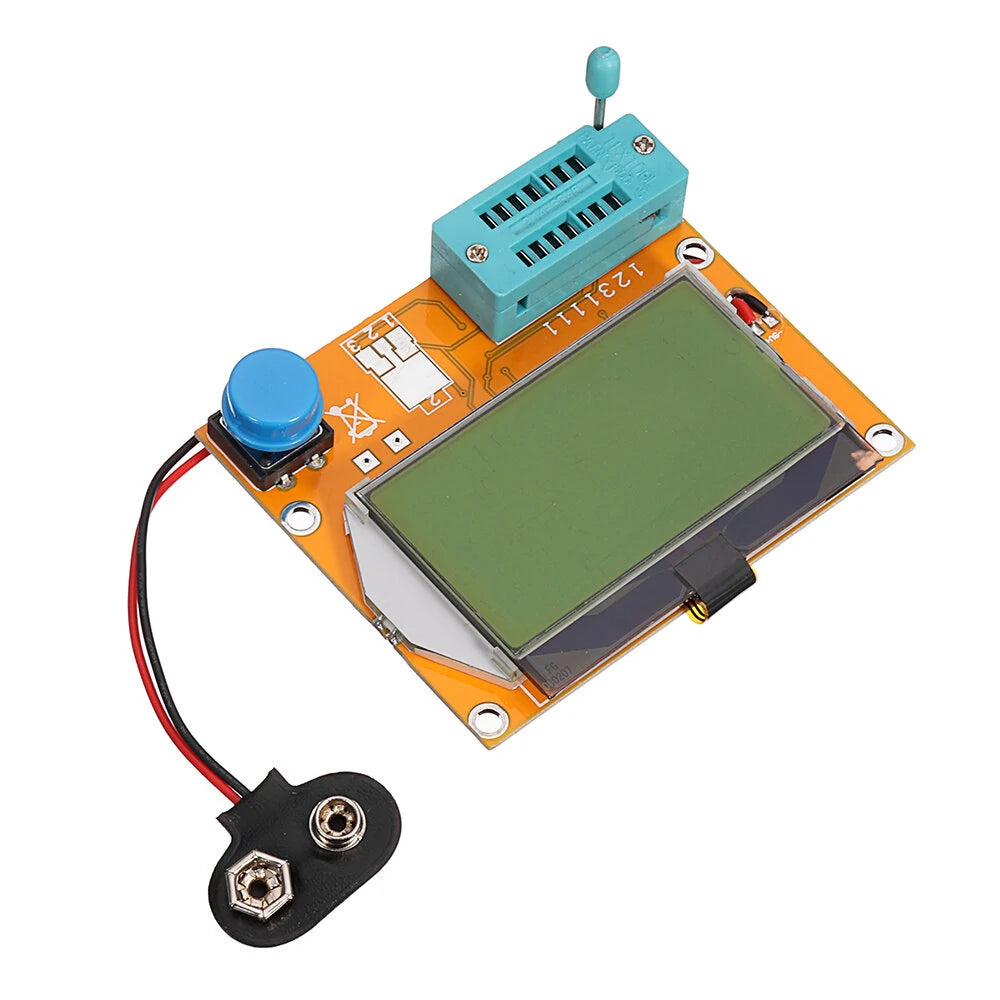

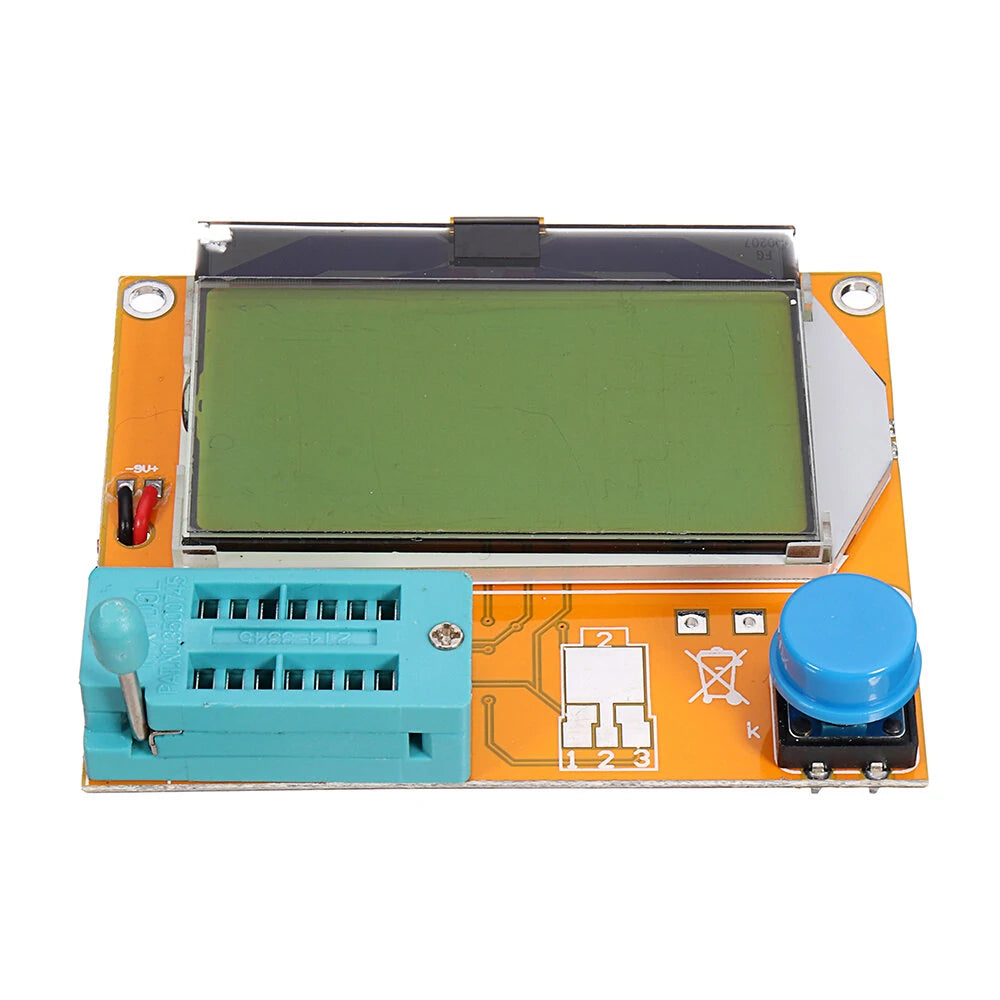

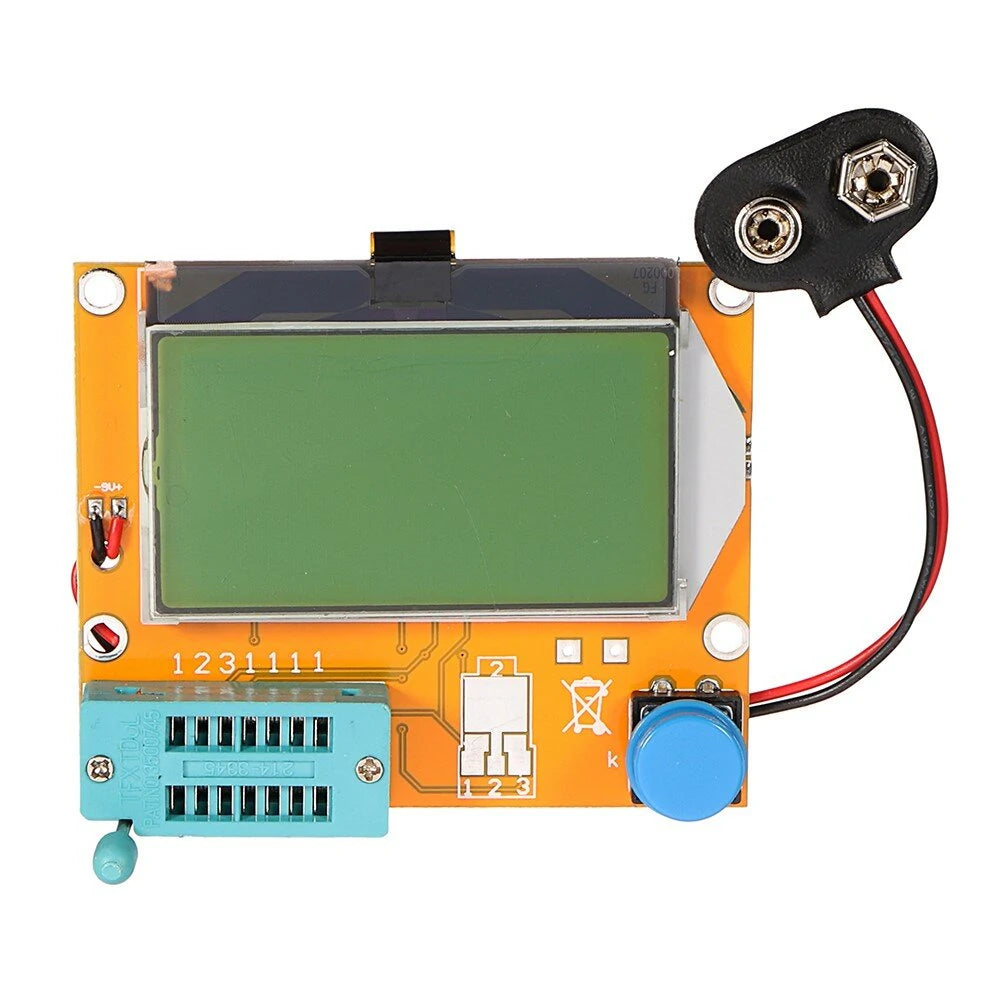

Geekcreit LCR-T4 Transistor Tester with 12864 LCD - Resistance, Capacitance, and ESR SCR Meter

Precise Details:

Note: Some units come with a USB interface and a small button for firmware upgrades. If you encounter a firmware issue, please contact customer service for assistance. The inventory might include versions with or without the upgrade feature, and shipments are made randomly. Please be aware before purchasing.

Specifications:

• Resistor: 0.1W - 50MW
• Capacitor: 25pF - 100,000uF
• Inductance: 0.01mH - 20H
• Working Power: DC-9V
• Standby Current: 0.02μA
• Operating Current: 25mA
• Material: Metal + Plastic
• Size: Approx. 11.1cm x 2.6cm x 8.5cm (4.37" x 1.02" x 3.34")
• [Conversion: 1cm = 0.3937 inch, 1 inch = 2.54 cm]

Features:

• Supports boot voltage detection feature.
• Automatically detects NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Component leads are automatically tested and displayed on the LCD.
• Detects the amplification factor and base number of transistors, enabling the determination of the forward bias voltage of the emitter transistor and MOSFET protection diode.
• Measures gate threshold voltage and gate capacitance of MOSFETs.
• Features a 128x64 LCD for clear display.
• High testing speed with valid component tests completed in 2 seconds (larger capacitors may take up to 1 minute).

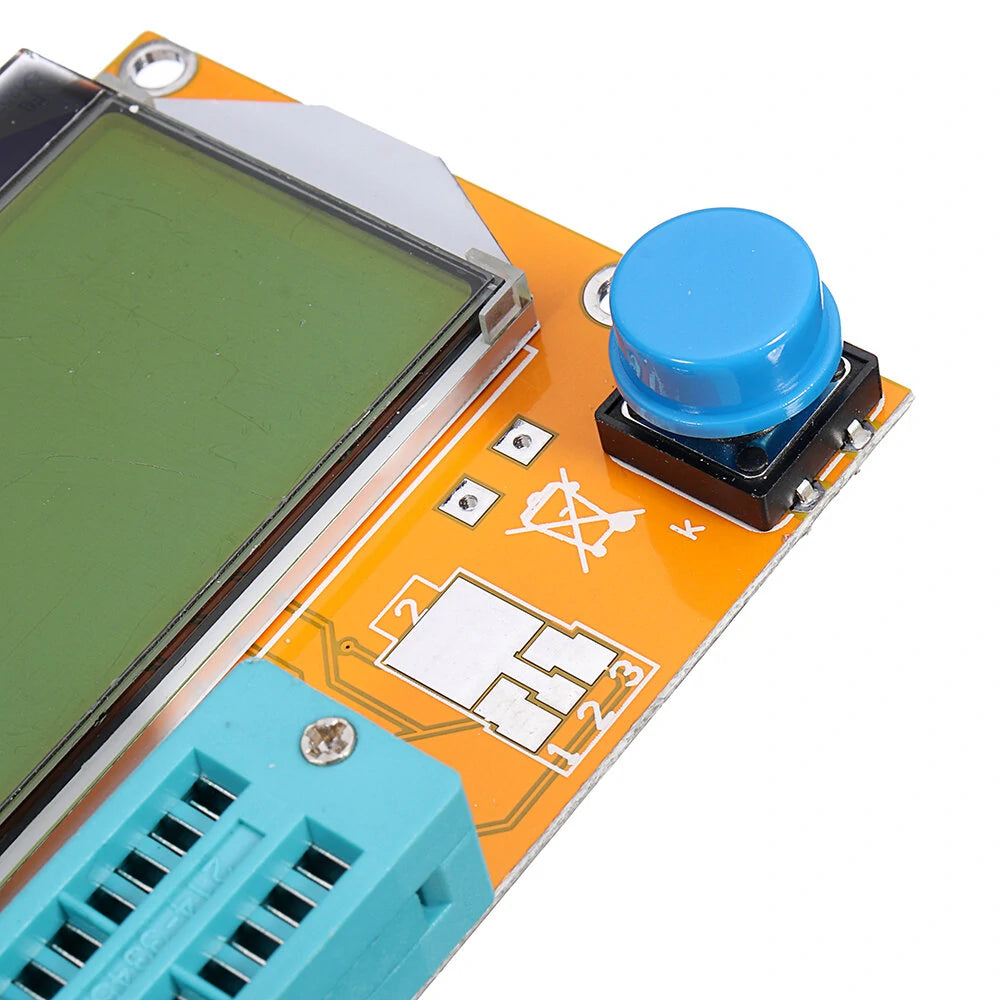

• One-button operation with power-on testing.
• Power consumption in shutdown mode is less than 20 nA.
• Automatic shutdown function to conserve battery life and prevent waste.

Package Includes:

• 1 x LCR-T4 12864 LCD Graphical Transistor Tester
