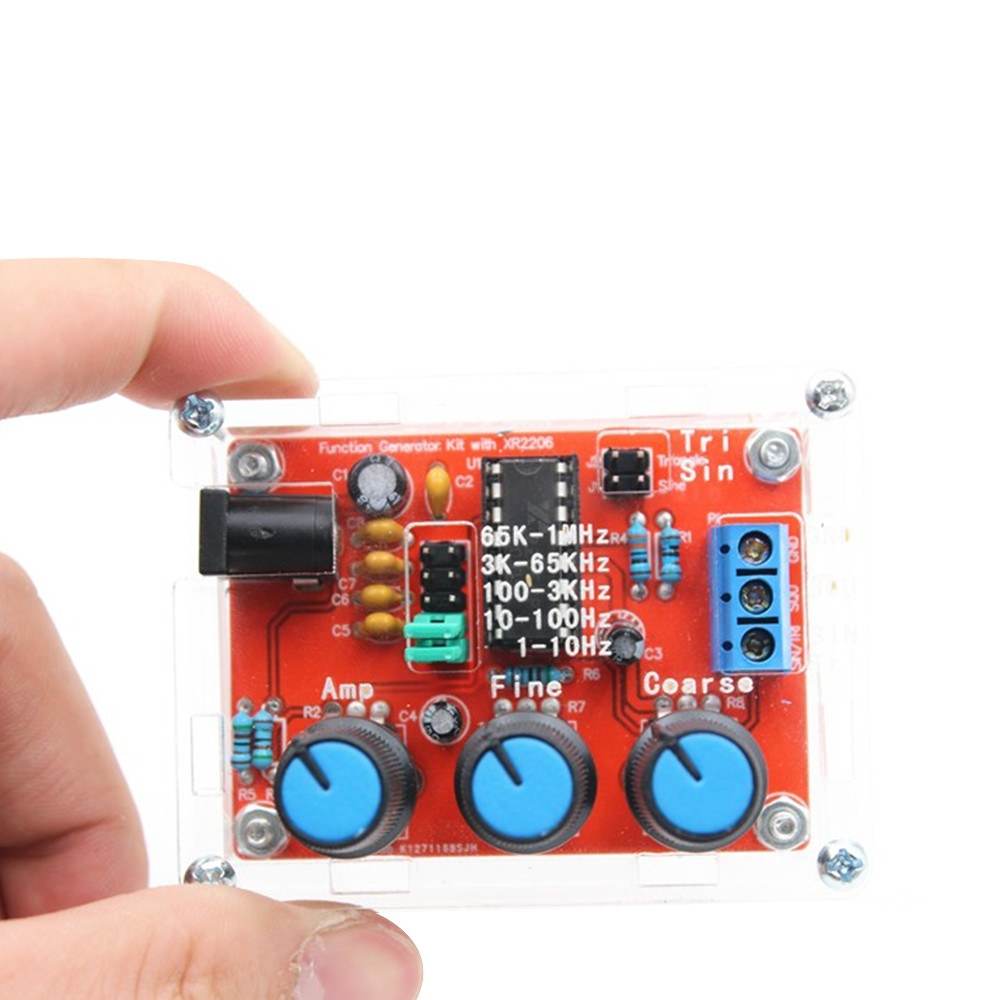

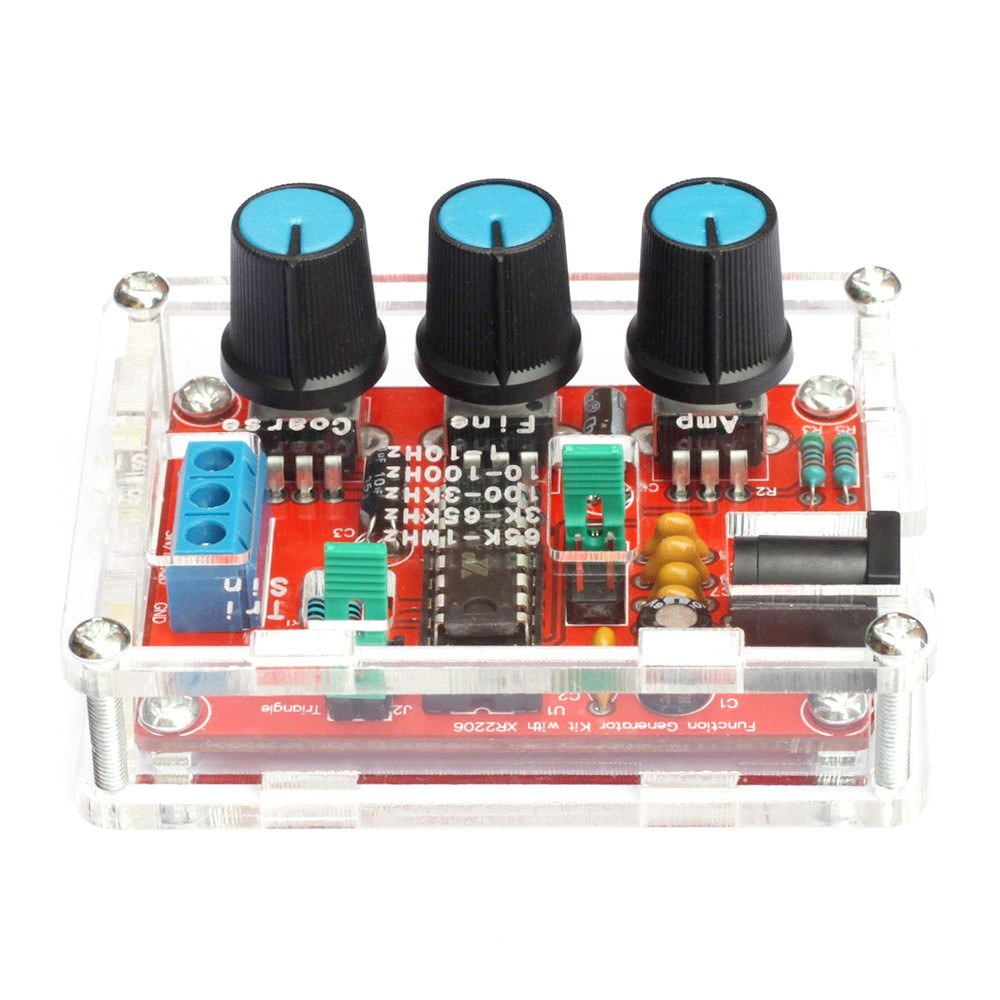

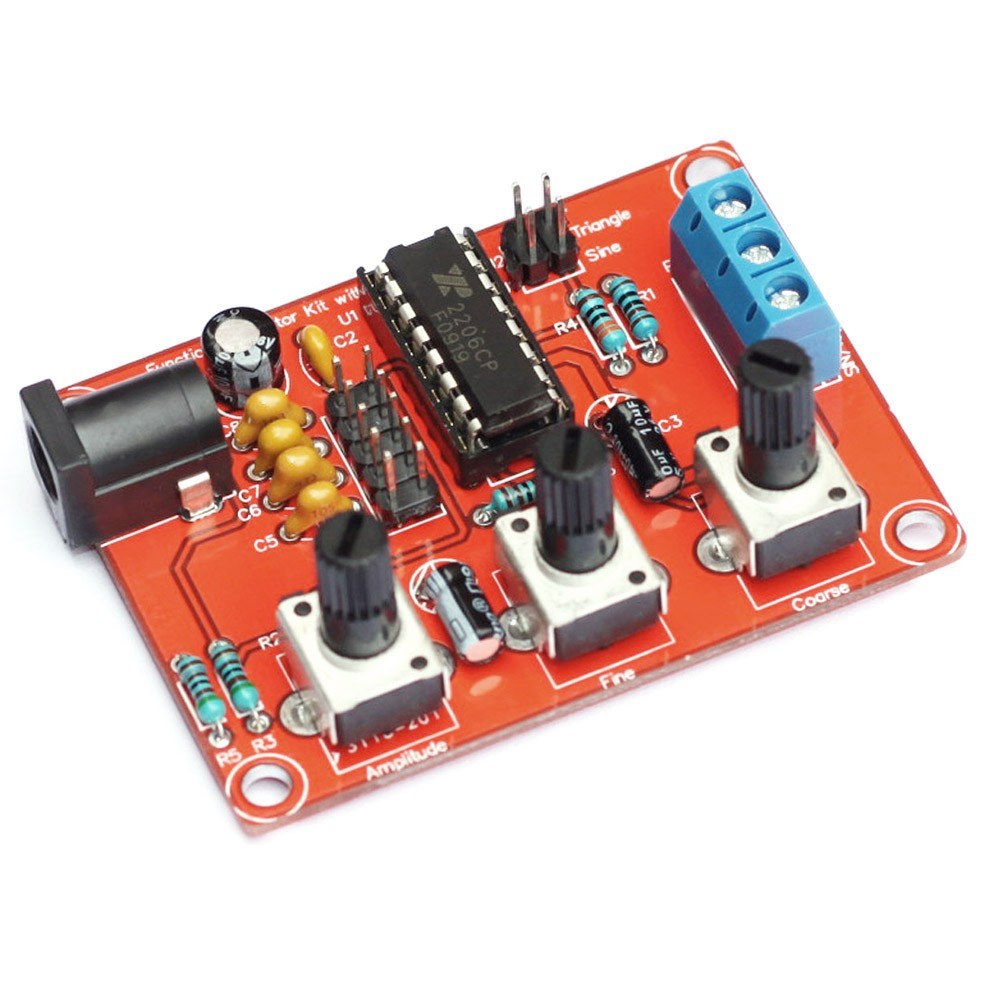

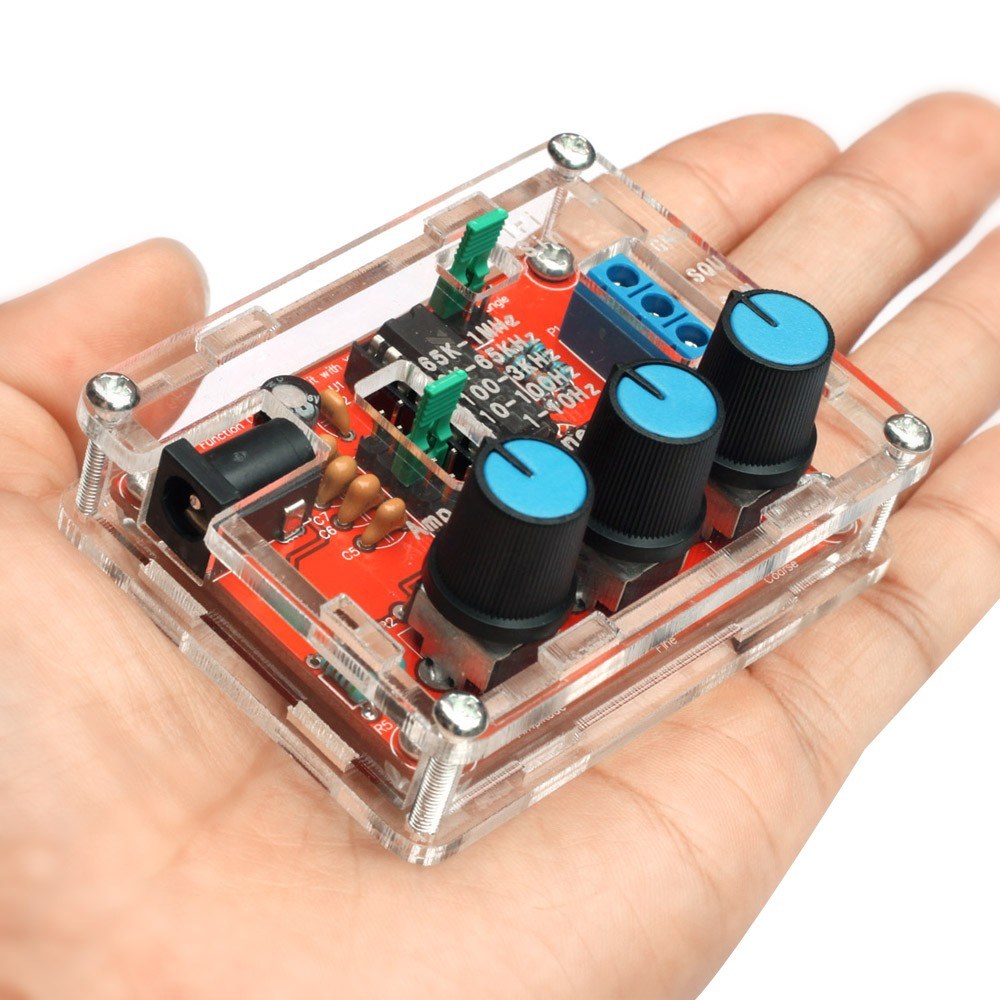

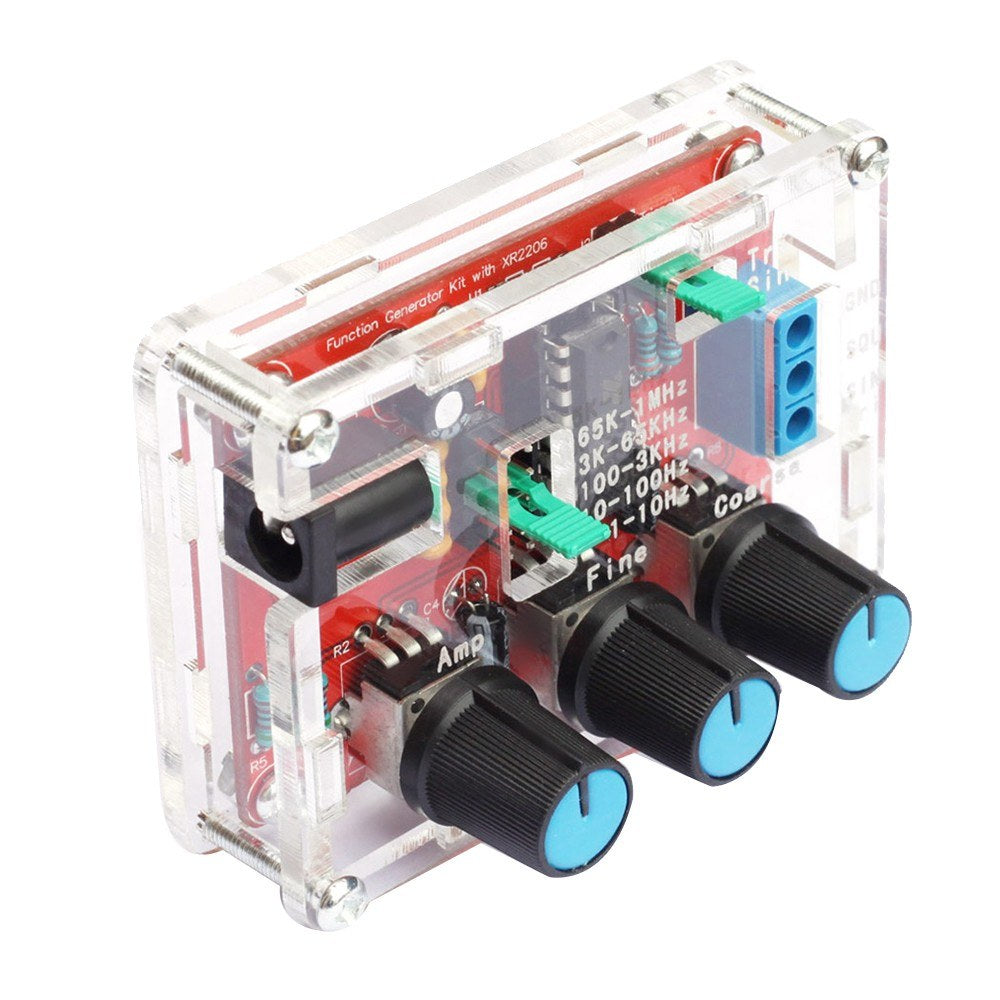

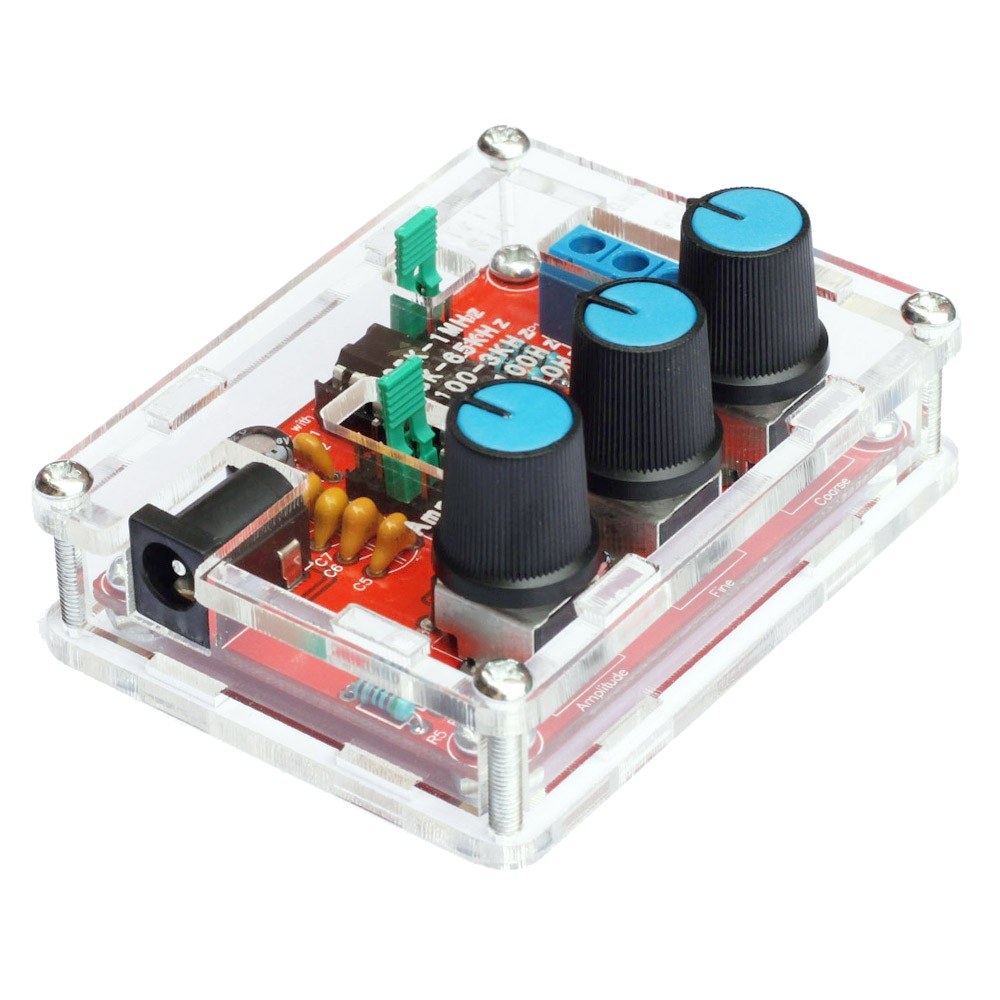

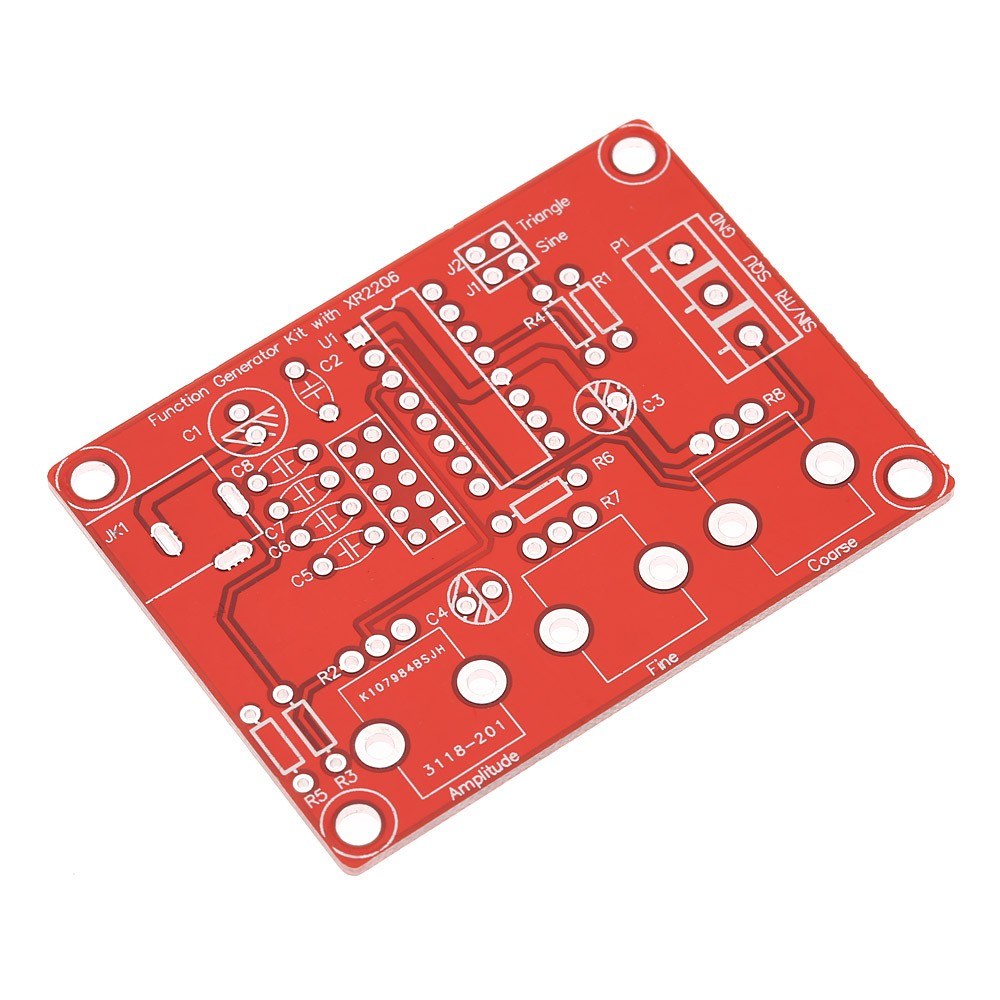

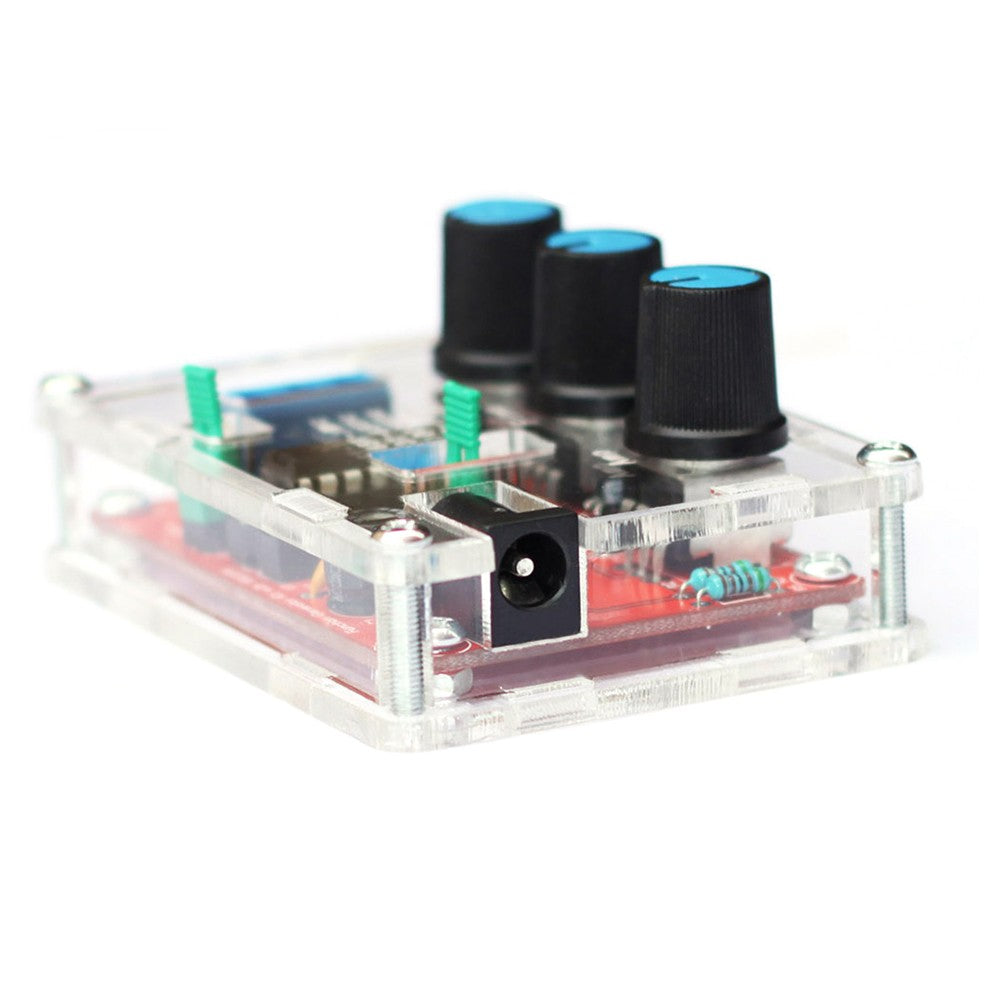

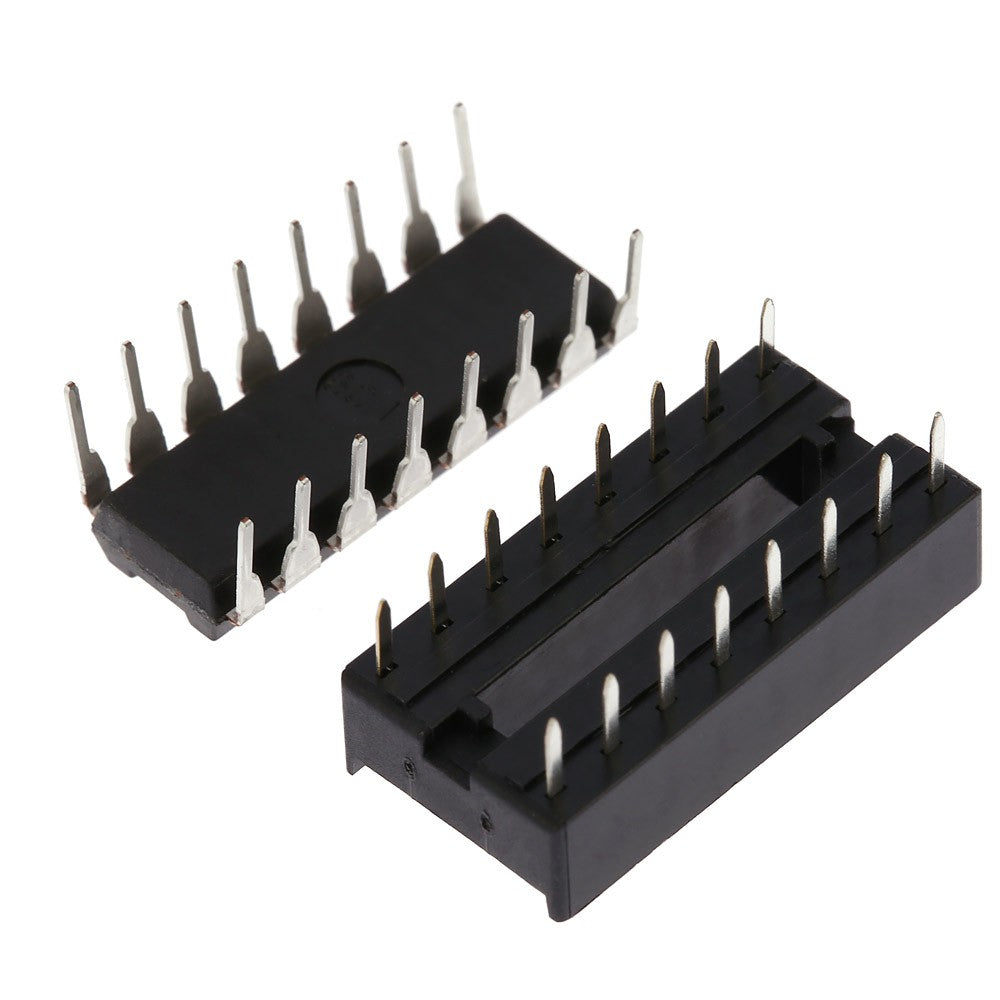

High Precision XR2206 Function Signal Generator - Adjustable Sine/Triangle/Square Output (1Hz-1MHz)

Discover the precision and versatility of our Signal Generator DIY Kit. This professional-grade kit is designed for enthusiasts who want to generate sine, triangle, and square waveforms. Perfect for DIYers, this kit offers a hands-on assembly experience.

Features:

• High resolution output for sine, triangle, and square waveforms.
• Wide frequency range from 1Hz to 1MHz.
• Adjustable frequency and amplitude for customized results.

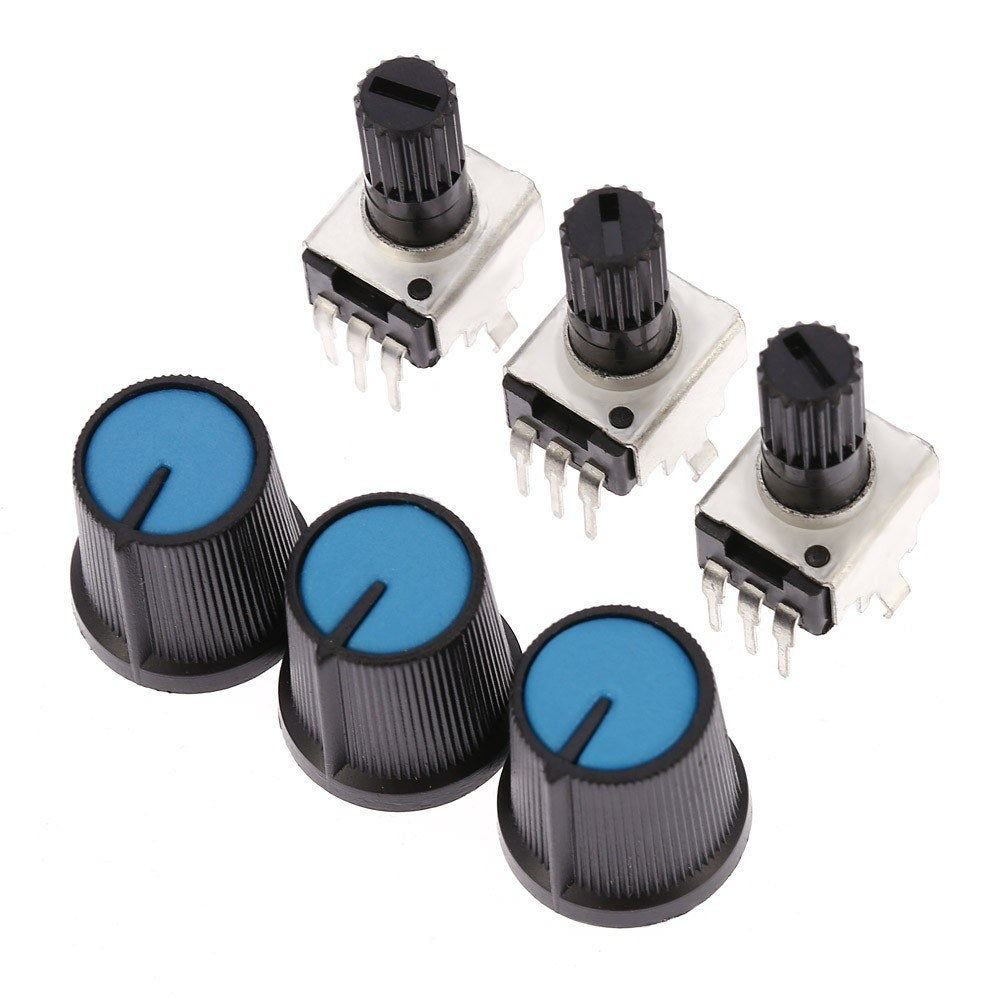

• Includes coarse and fine frequency tuning options.
• Operates with a 9-12V external power supply or a 9V battery (not included).

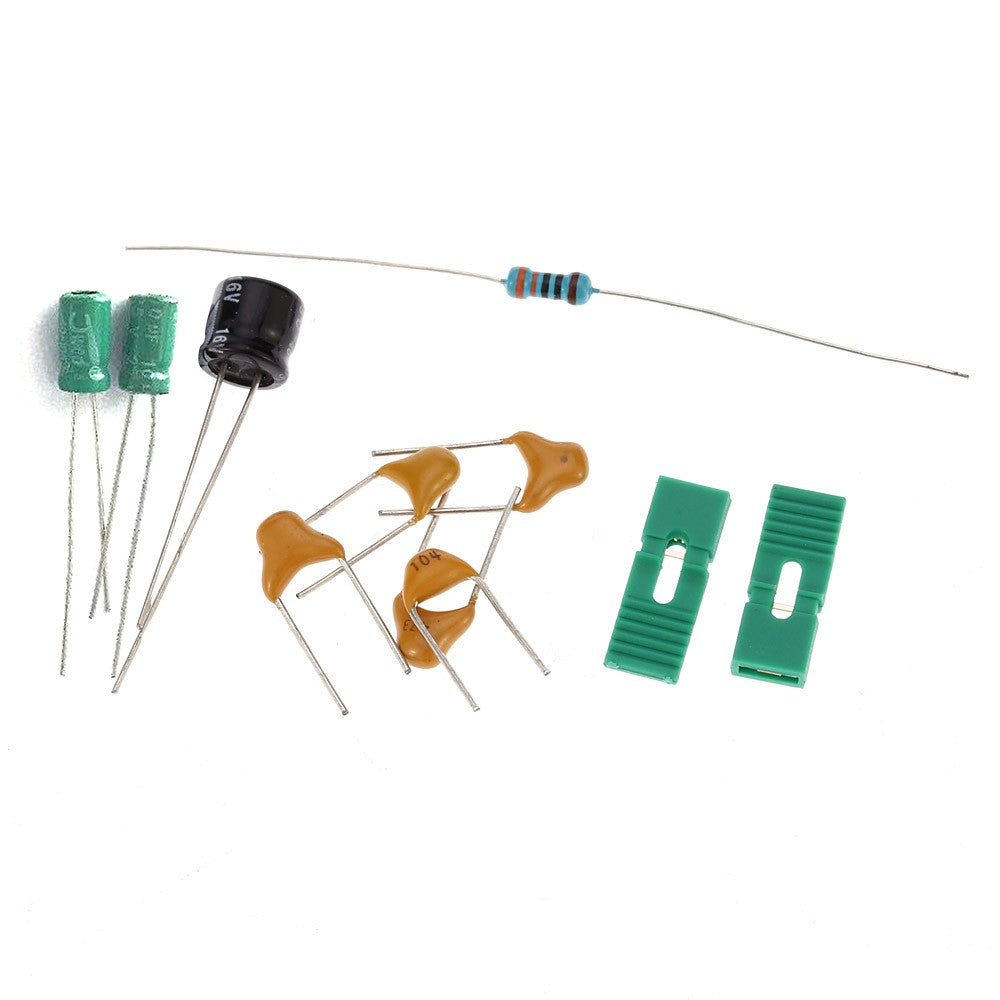

• All components are through-hole, making installation straightforward.

Specifications:

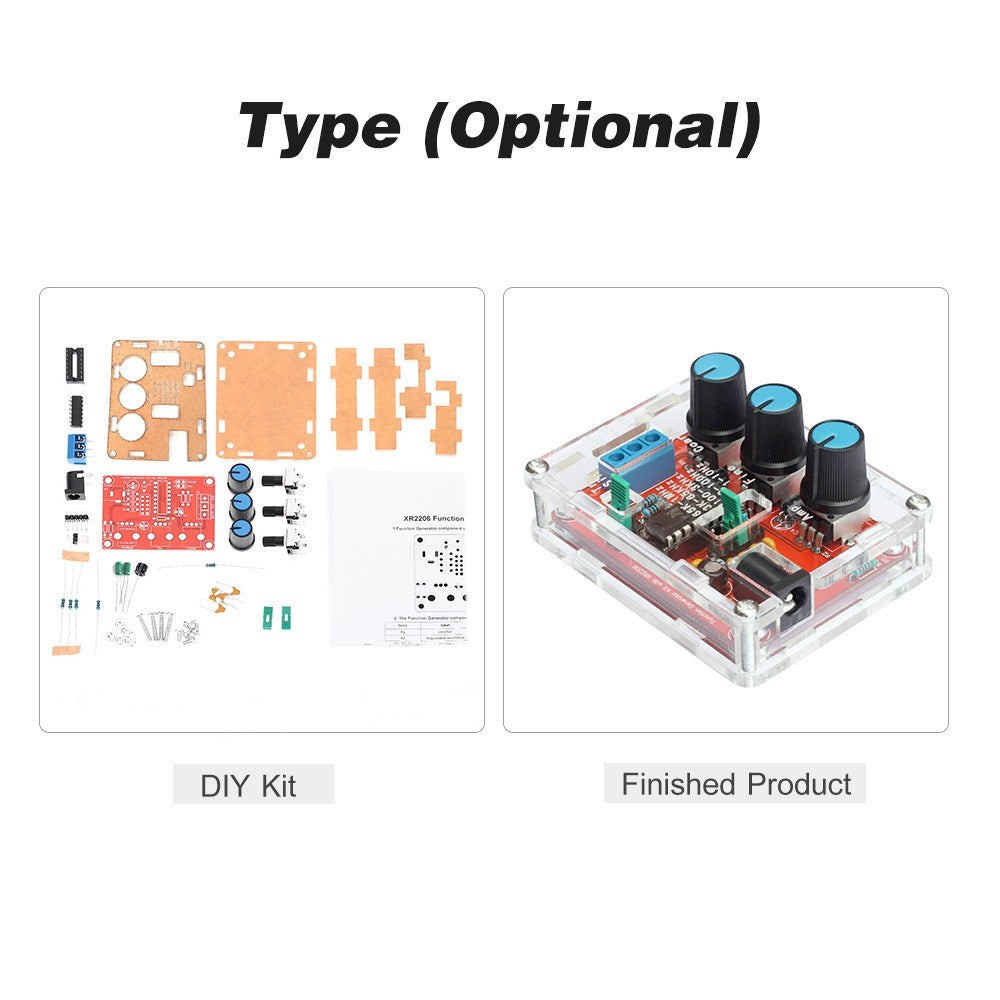

• Type: DIY Kit / Finished Product (Optional)
• Voltage Supply: 9-12V DC Input
• Waveforms: Square, Sine & Triangle
• Impedance: 600 Ohm ±10%
• Frequency Range: 1Hz-1MHz

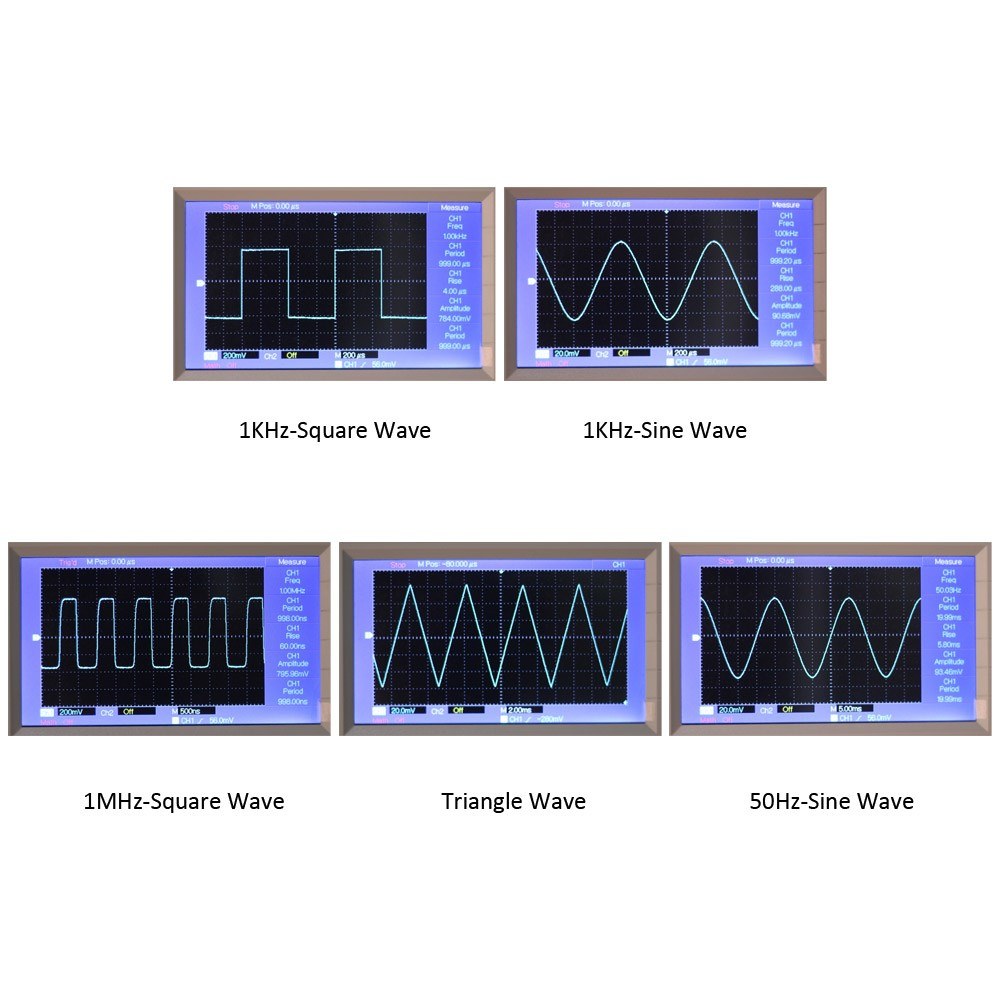

Sine Wave

• Amplitude: 0-3V at 9V DC Input
• Distortion: Less than 1% (at 1KHz)
• Flatness: ±0.05dB 1Hz - 100kHz

Square Wave

• Amplitude: 8V (no load) at 9V DC Input
• Rise Time: Less than 50ns (at 1KHz)
• Fall Time: Less than 30ns (at 1KHz)
• Symmetry: Less than 5% (at 1KHz)

Triangle Wave

• Amplitude: 0-3V at 9V DC Input
• Linearity: Less than 1% (up to 100KHz) 10mA

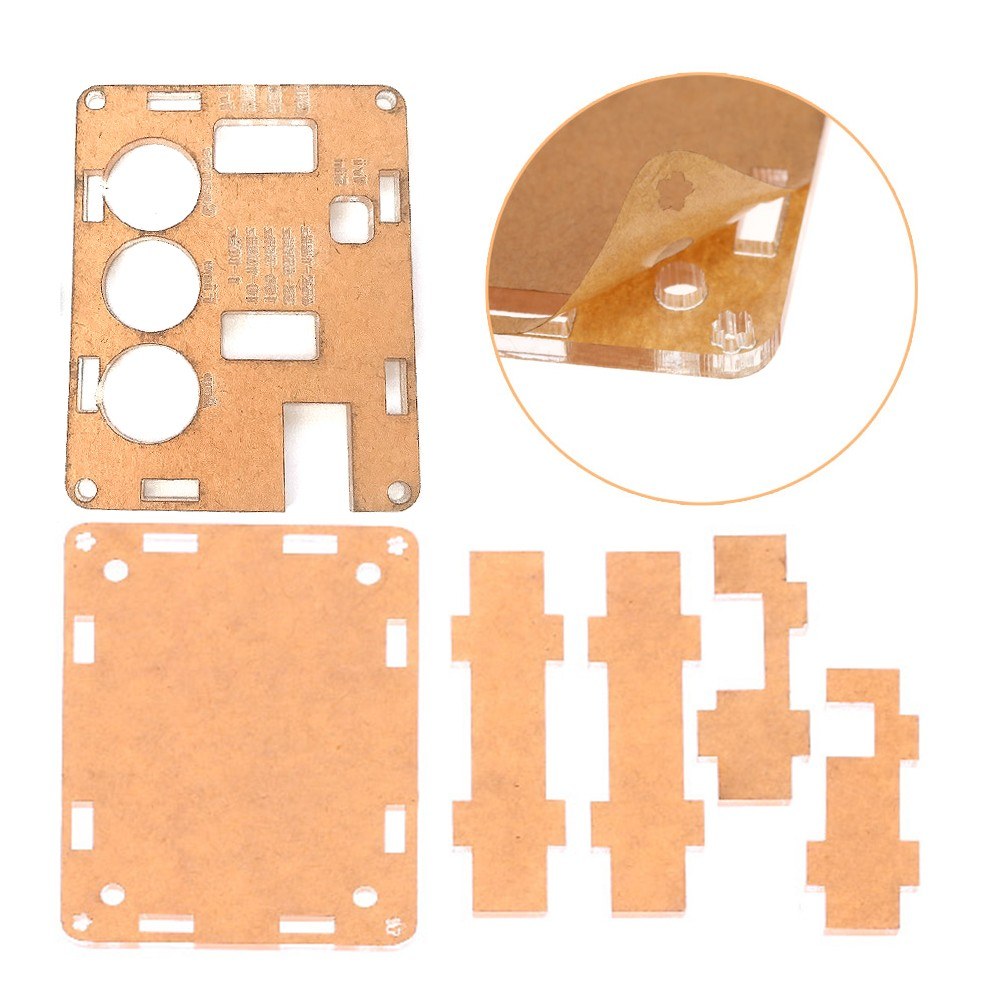

Package Includes:

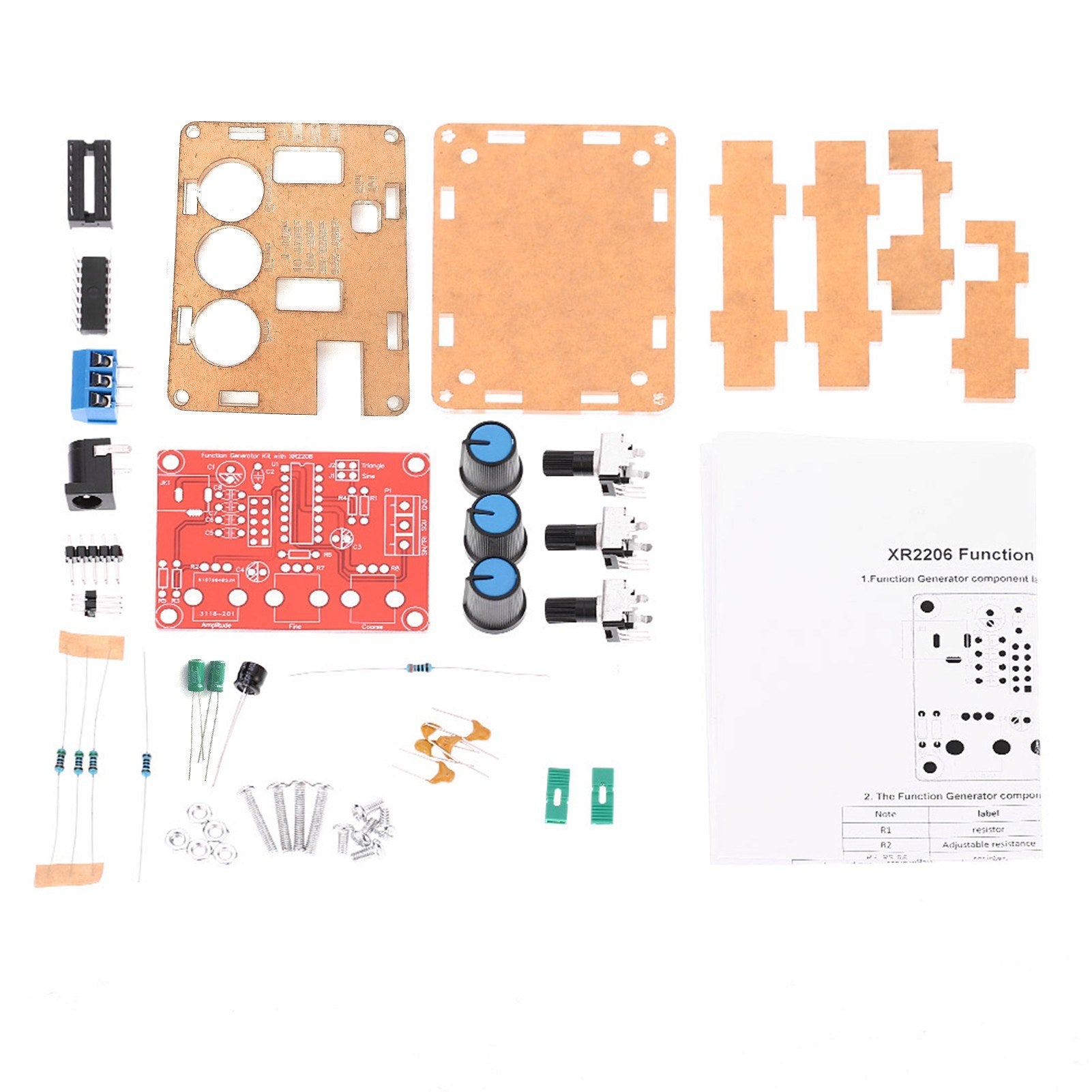

• 1 x Signal Generator DIY Kit
• 1 x User Manual (English)

Package Size: Approximately 12 x 8 x 2cm (4.72 x 3.15 x 0.8in)

Package Weight: 69g (2.46oz)
