Digital Timer Relay Module: AC 110V-220V Automation Delay Control Switch

Product Description

Specifications

• Timing Range: 0-999 seconds, 0-999 minutes, 0-999 hours

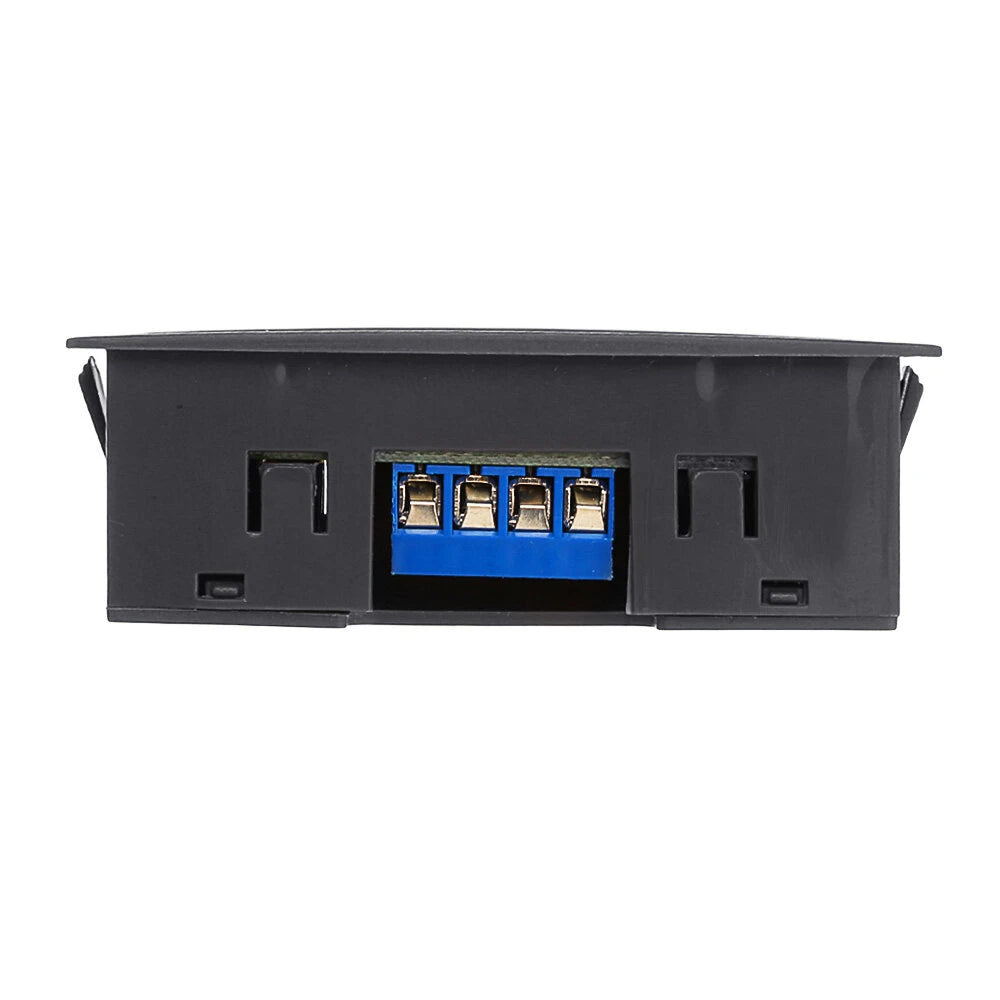

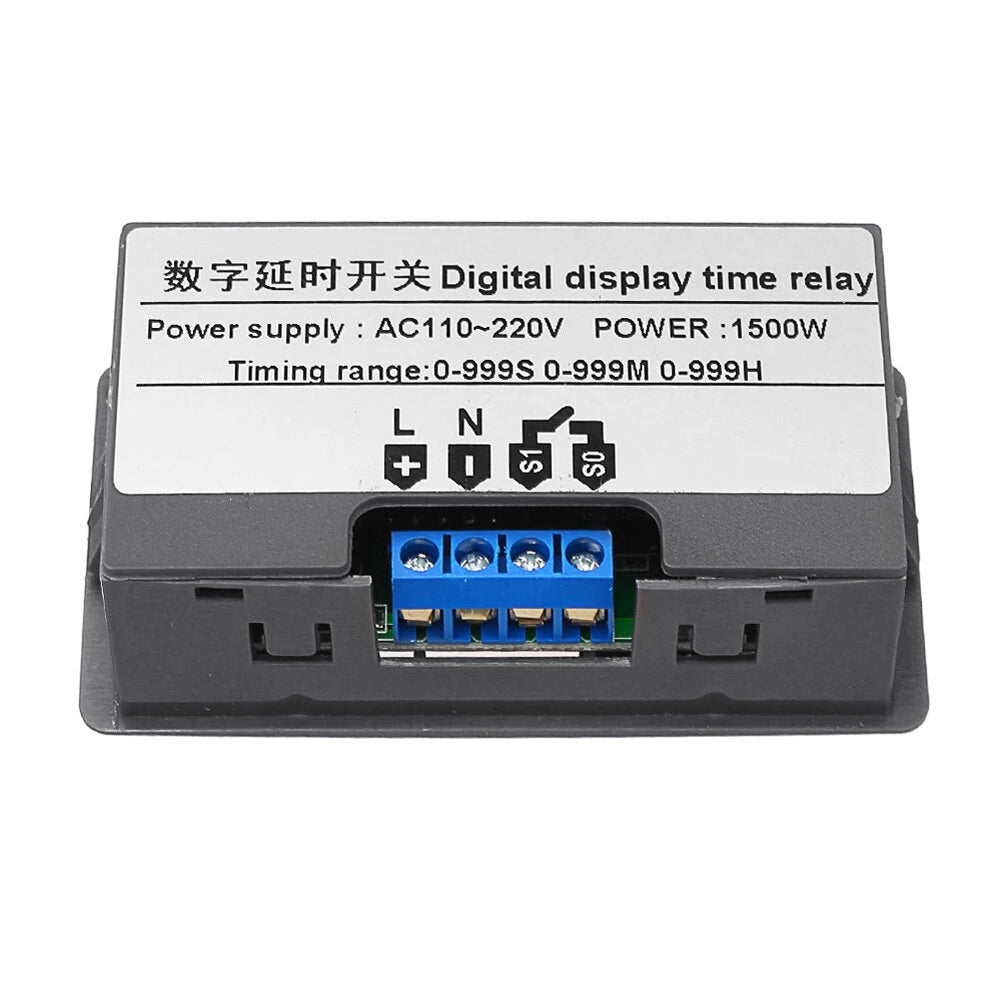

• Supply Voltage: AC 110V-220V
• Relay: 20A
• Working Current: 10A (max)
• Power: 500W (max)

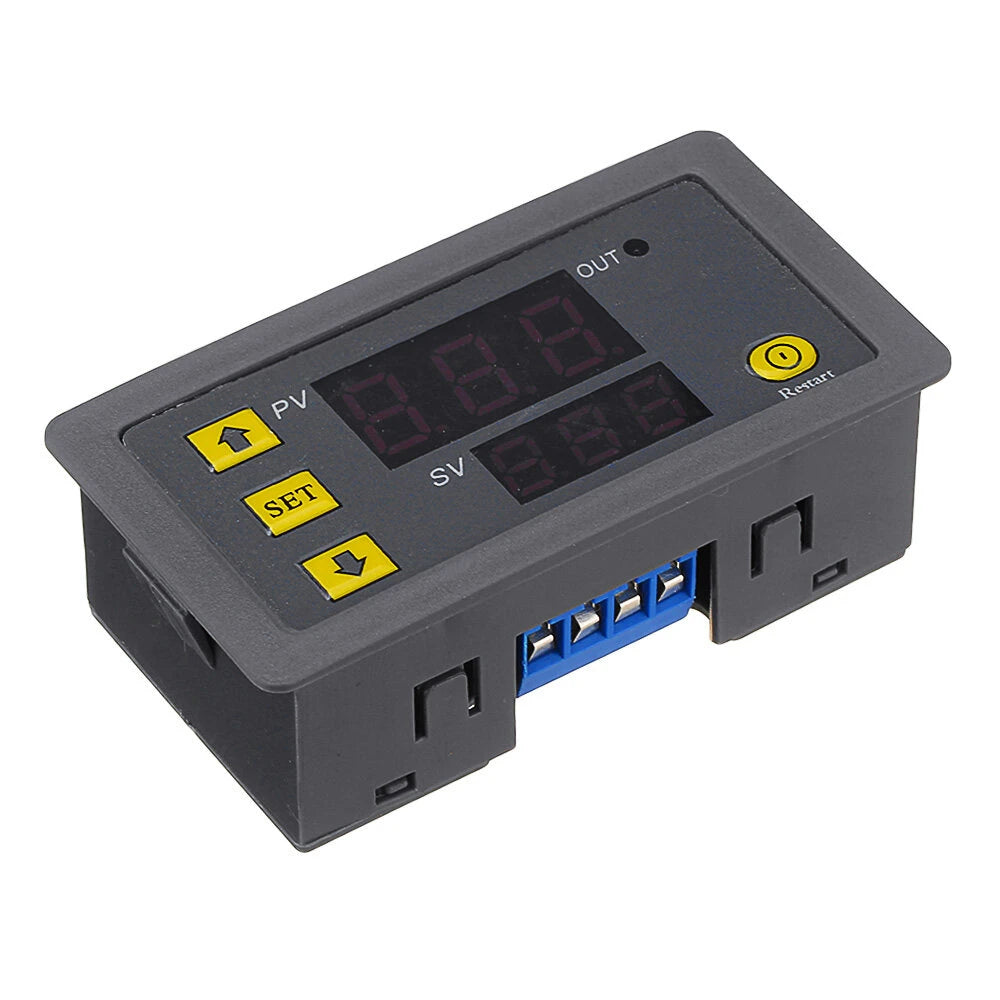

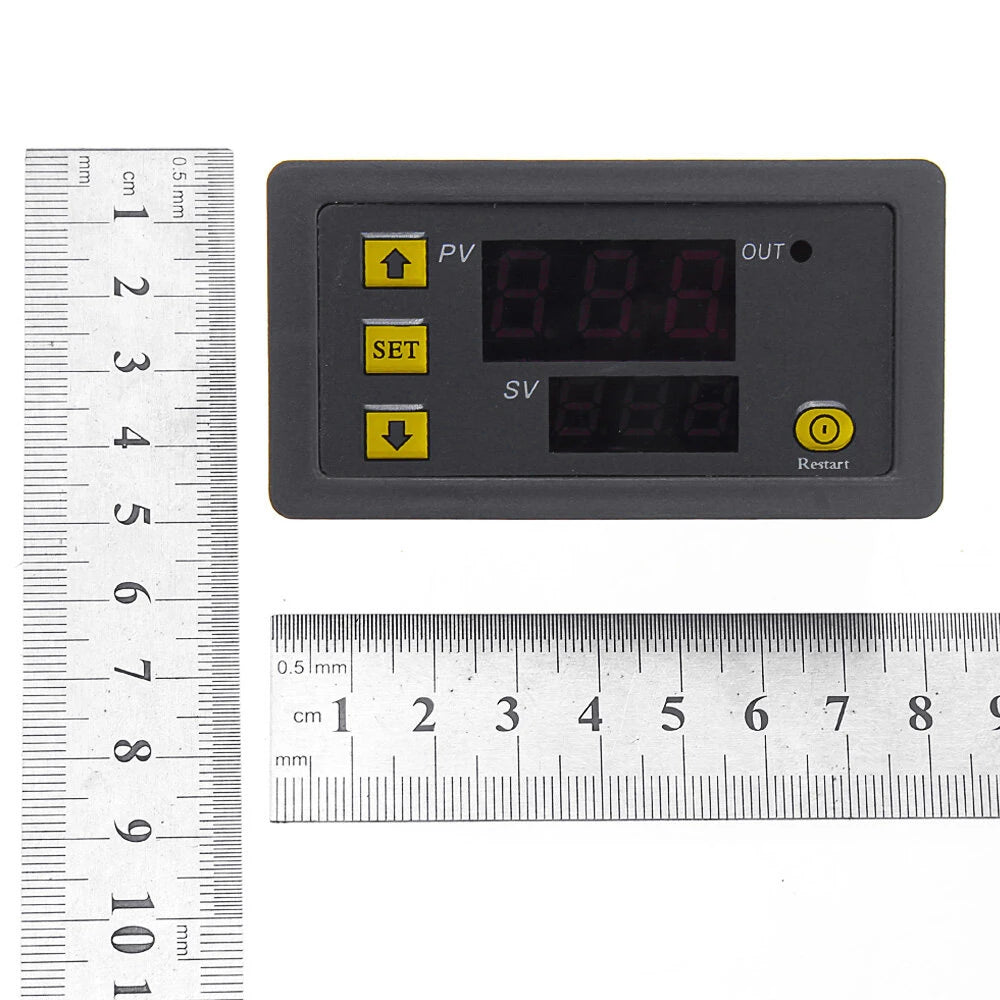

• Dimensions: 79 x 26 x 43 mm
• Hole Size: 72 x 40 mm

Instructions

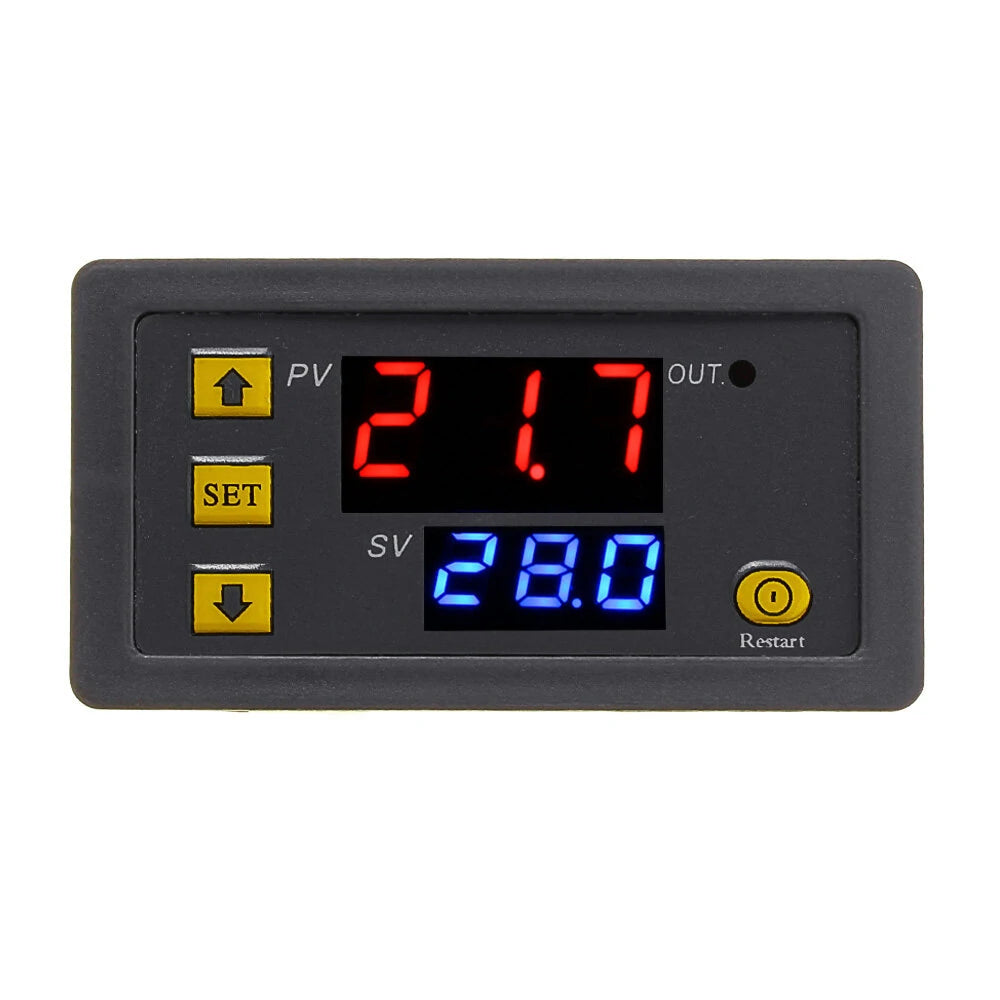

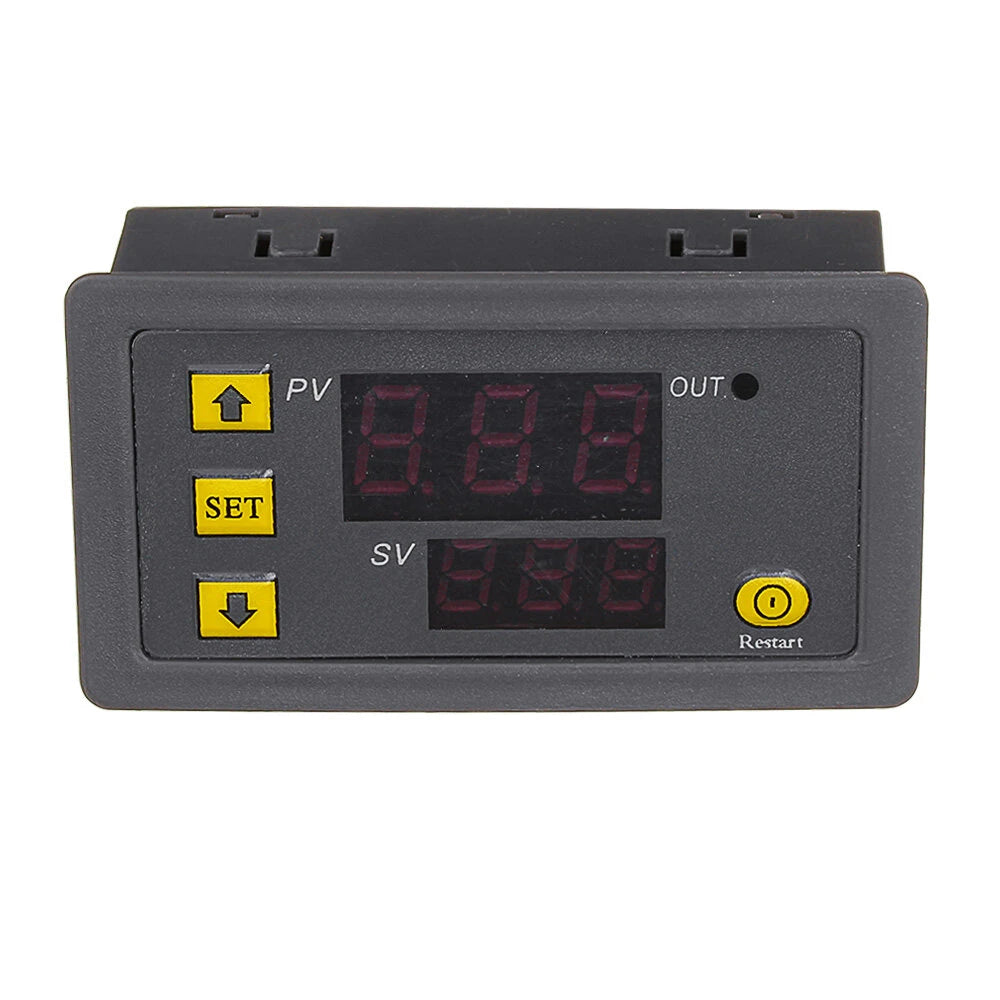

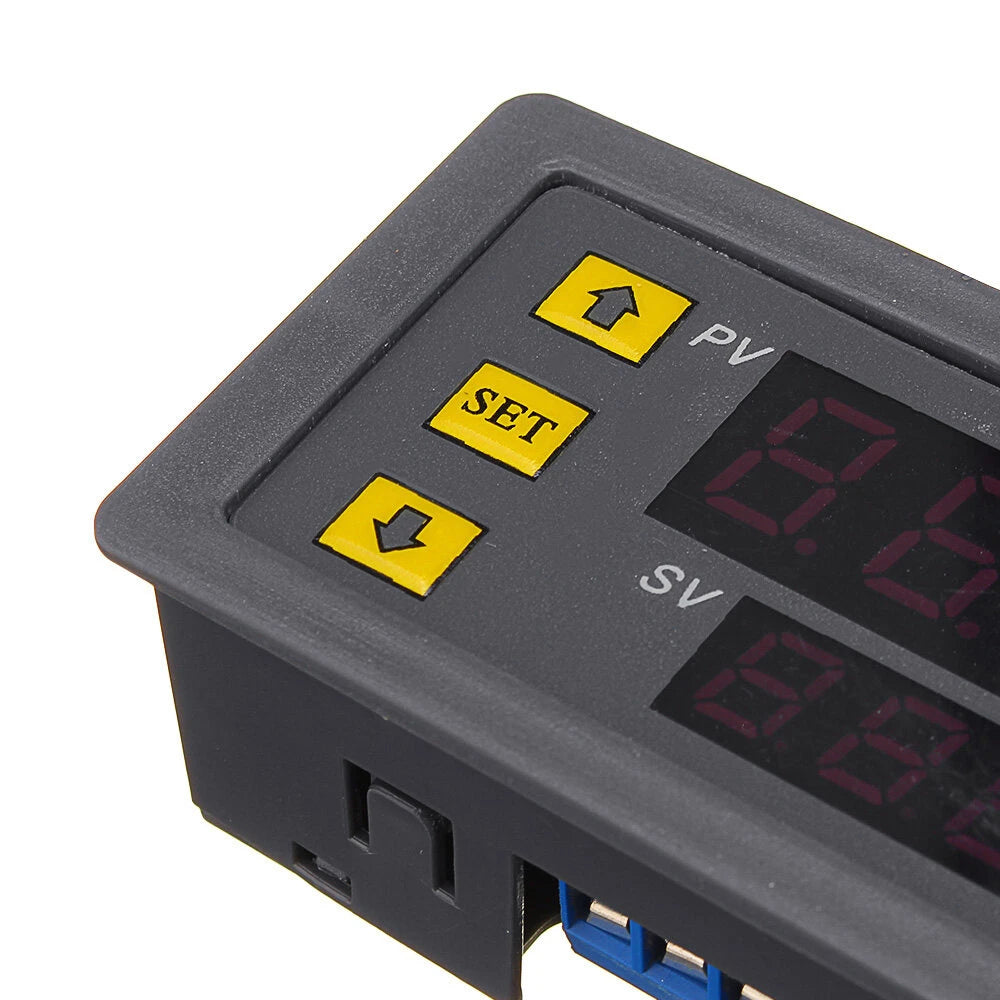

For first-time users, please note the following: After setting the data, wait 6 seconds for the module to save your settings. For time adjustments, press the "SET" button briefly to enter time setting mode; the display will blink, allowing you to adjust T1 and T2 using the "+" and "-" buttons. Wait 5 seconds after setting to save.

For parameter settings, press and hold the "SET" button to enter parameter setting mode. There are two parameter groups: P0 and P1. You can switch between them with a short press of "SET". Adjust the timing mode with the "+" and "-" buttons as follows:

P0 Parameter Group

• P0-0: Timing mode in seconds (0-999s)
• P0-1: Timing mode in minutes (0-999 min)
• P0-2: Timing mode in hours (0-999h)

P1 Parameter Group

• P1-0: Relay connects after T1 delay
• P1-1: Relay disconnects after T1 delay
• P1-2: Relay connects after T1 delay, then disconnects after T2 delay
• P1-3: Relay disconnects after T1 delay, then connects after T2 delay
• P1-4: Relay cycles: connects after T1 delay, then disconnects after T2 delay
• P1-5: Relay cycles: disconnects after T1 delay, then connects after T2 delay

Example: If you need a 10-second start-up and a 20-second off time, set T1 to 10 and T2 to 20, with settings P0-0 and P1-5.

Package Includes

• 1 x Digital Display Time Relay
