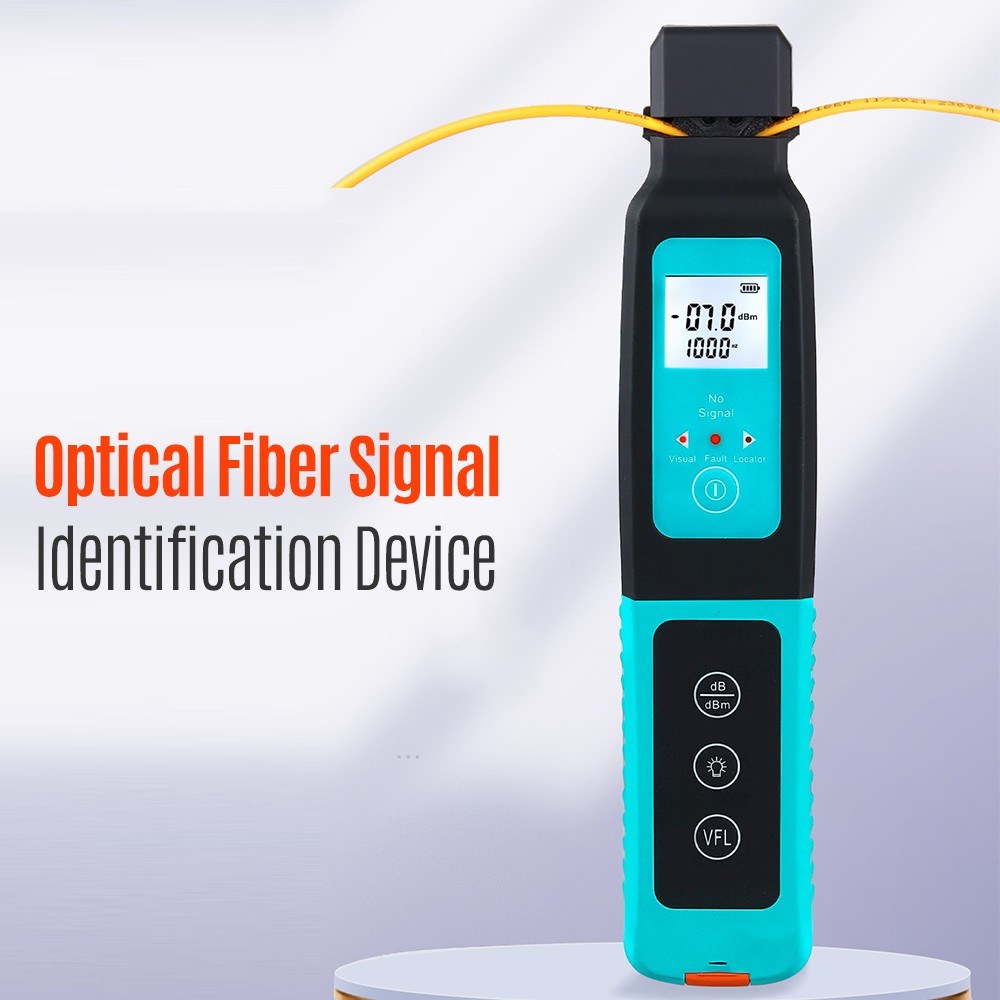

10mW Red Light Fiber Signal Identifier - 3 Frequencies & Direction Indication

Product Features

• Identifies three signal frequencies for diverse utility.

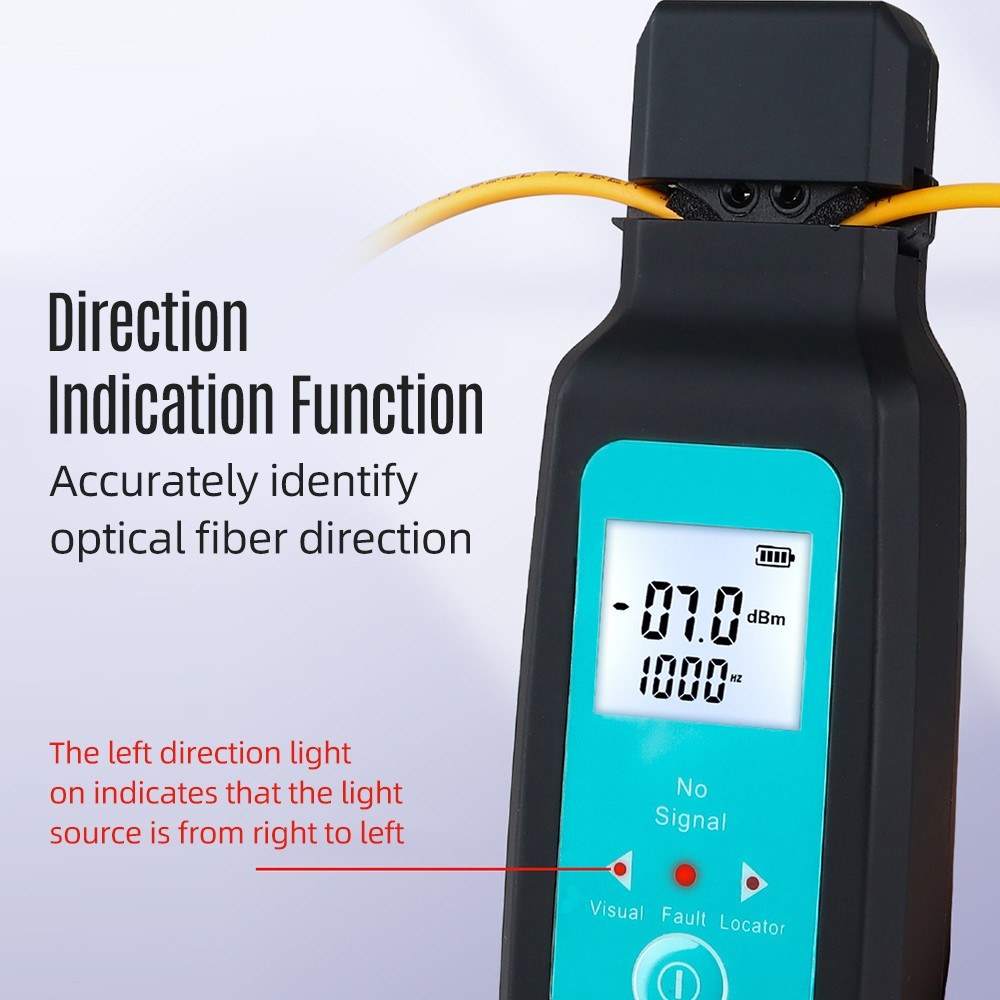

• Features a direction indication function for precise optical fiber direction identification.

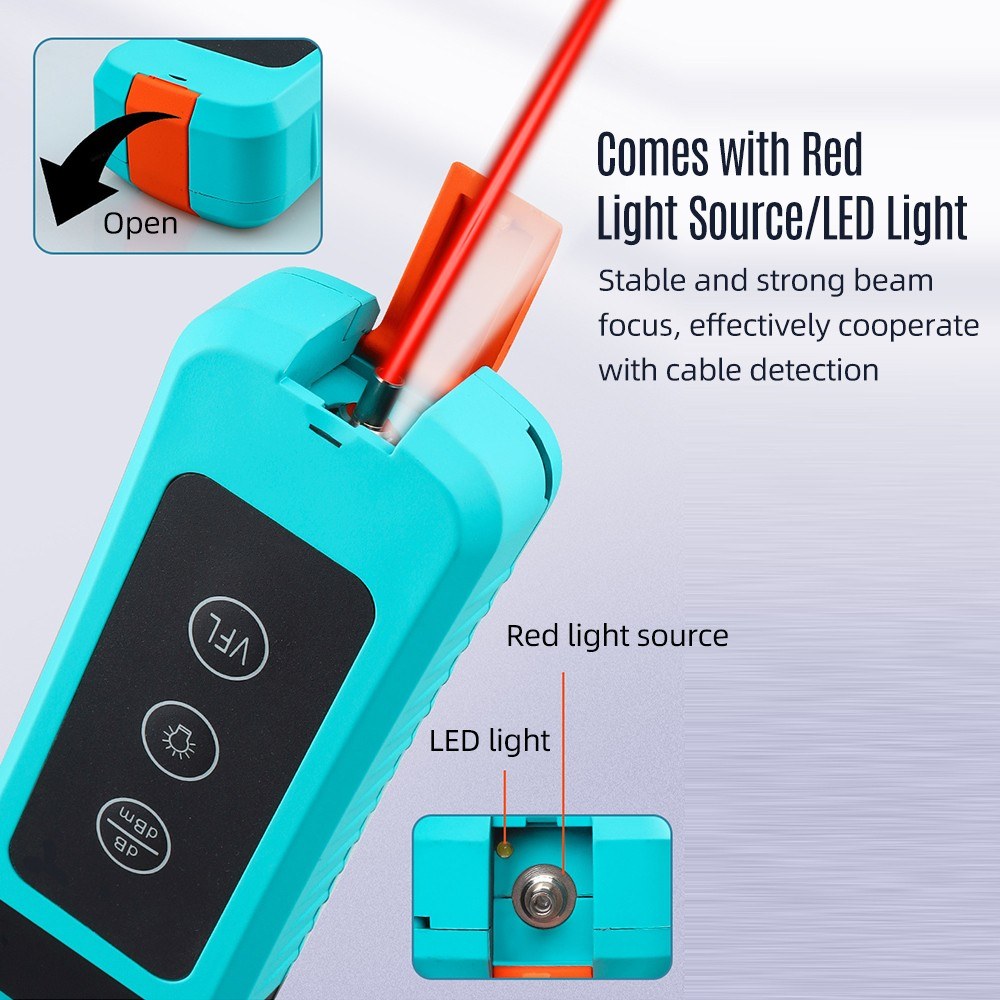

• Includes a red light source and LED light with a stable, strong beam focus for effective cable detection.

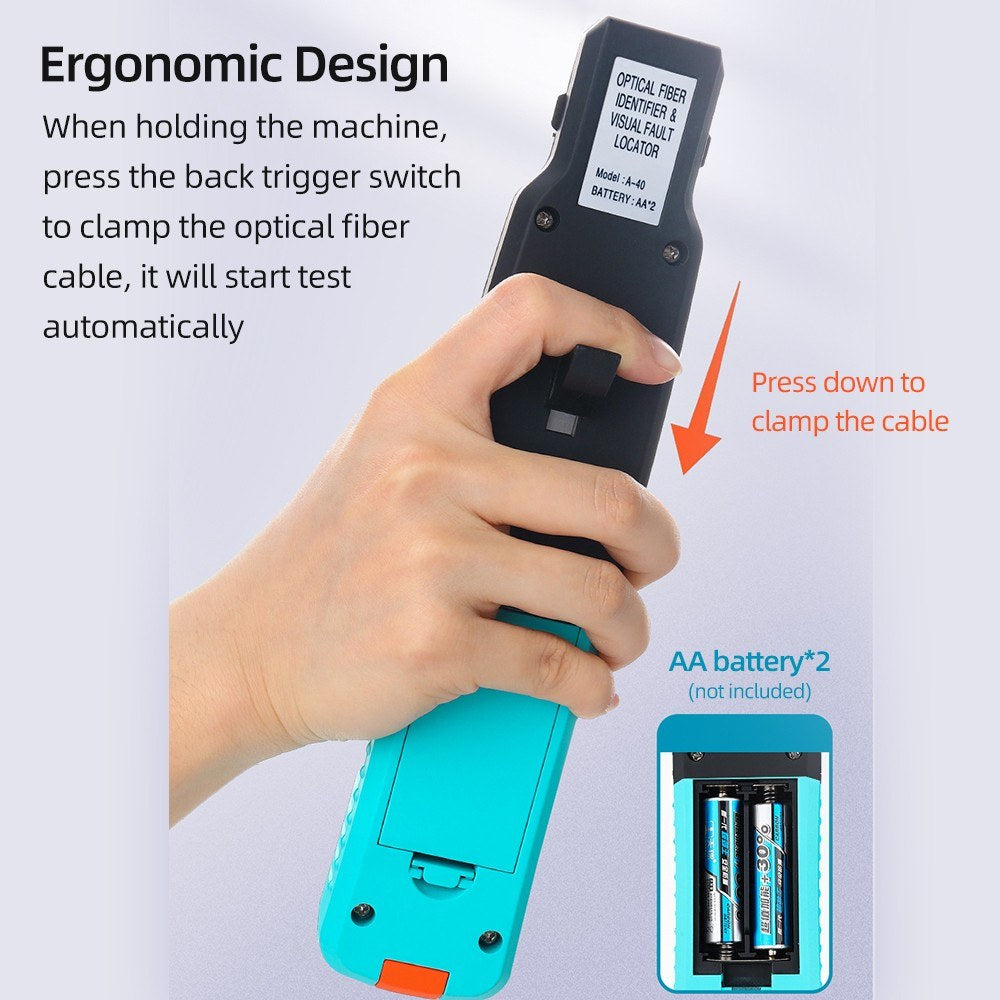

• Ergonomically designed for easy handling; simply press the back trigger switch to clamp the fiber cable and initiate the test automatically.

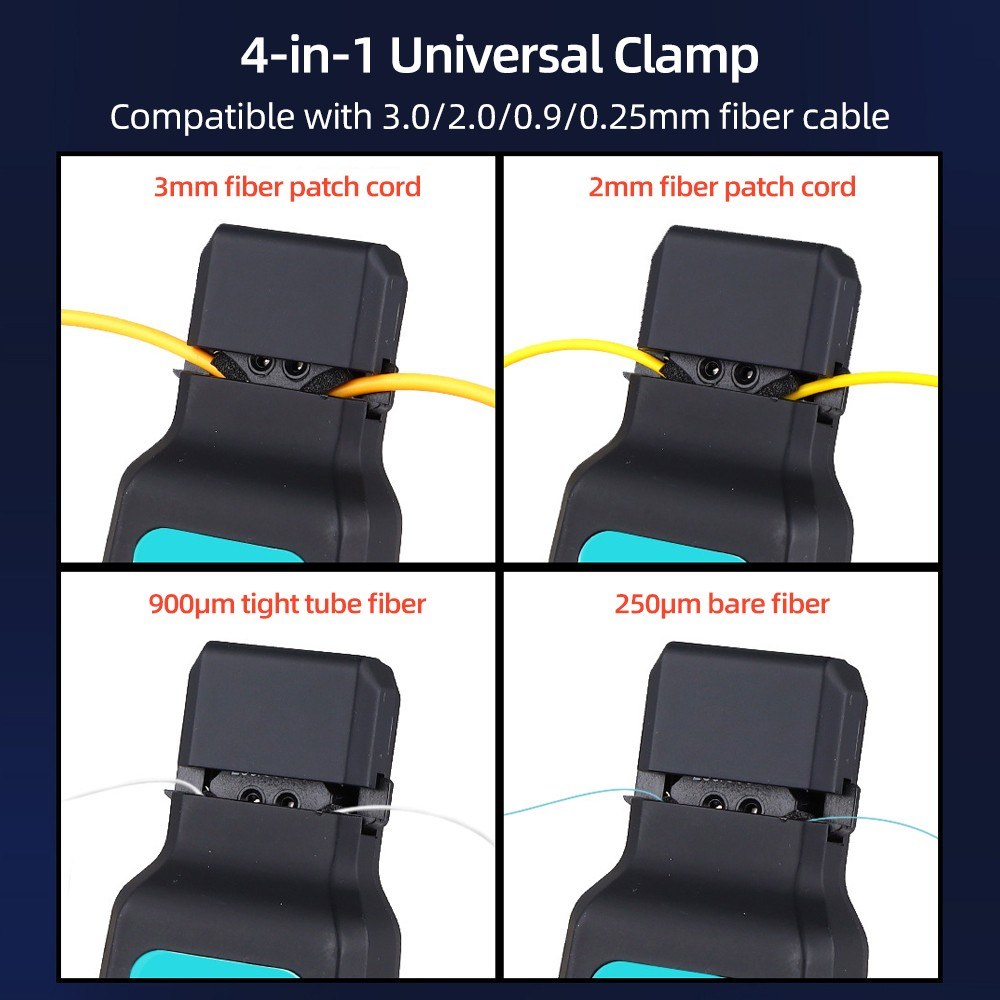

• Compatible with fiber cables of 3.0mm, 2.0mm, 0.9mm, and 0.25mm diameters.

Specifications

• Wavelength range: 800-1700nm
• Optical fiber cable types: 3.0mm/2.0mm/0.9mm/0.25mm
• Recognition signal frequencies: 270Hz, 1kHz, 2kHz
• Sensitivity range: +10 to -50dBm
• Output wavelength: 650±10nm
• Output power: >10mW
• Battery requirement: 2 AA batteries (not included)

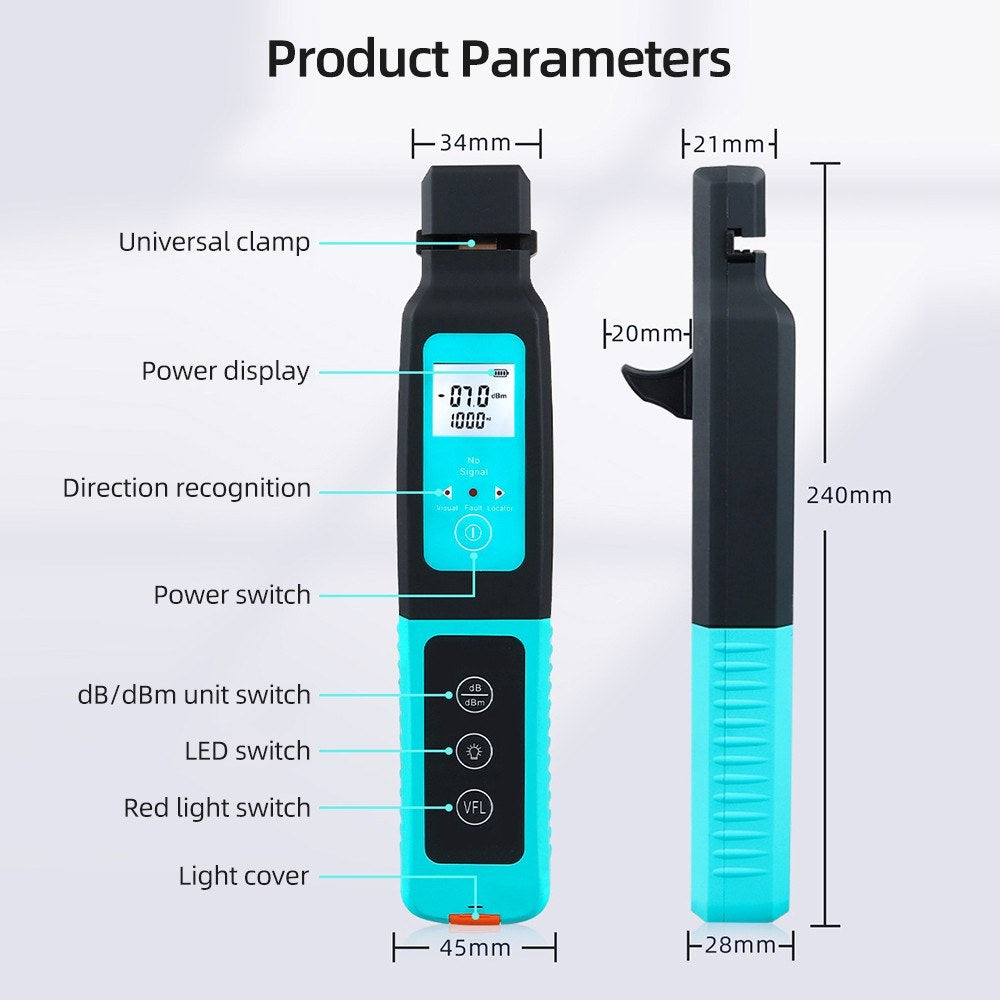

• Size: 24 x 4.5 x 2.8 cm (9.45 x 1.77 x 1.1 in)

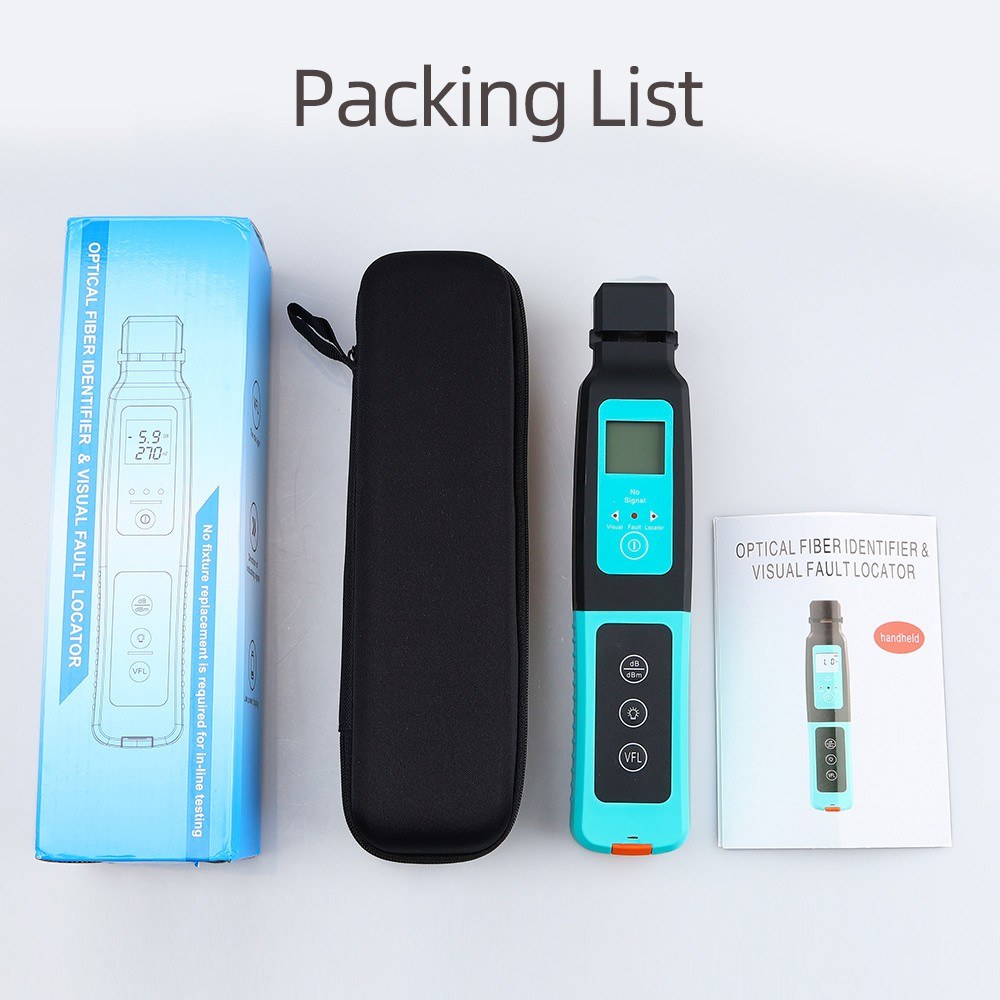

Packaging Includes

• 1 Identification device
• 1 Storage bag
• 1 User manual
