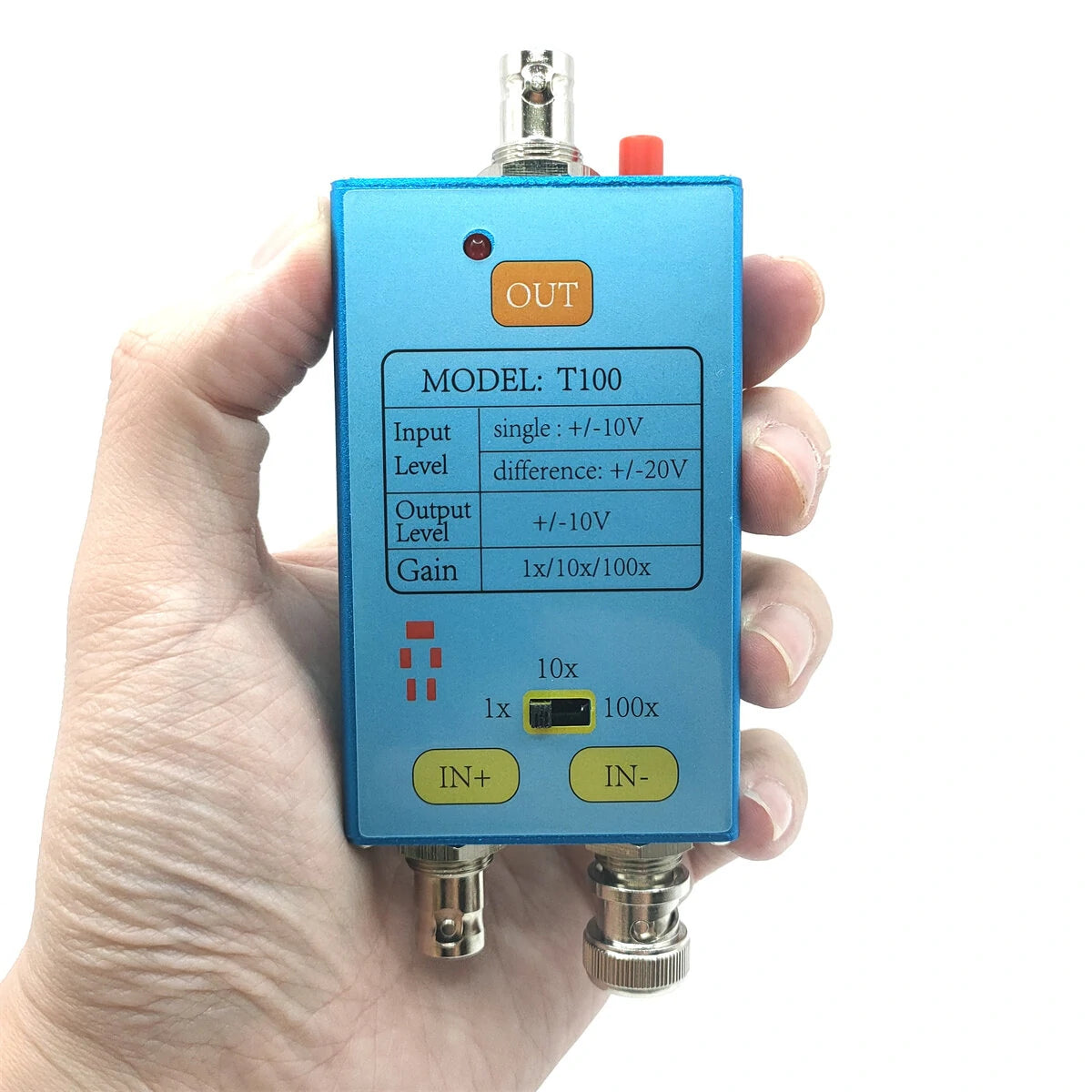

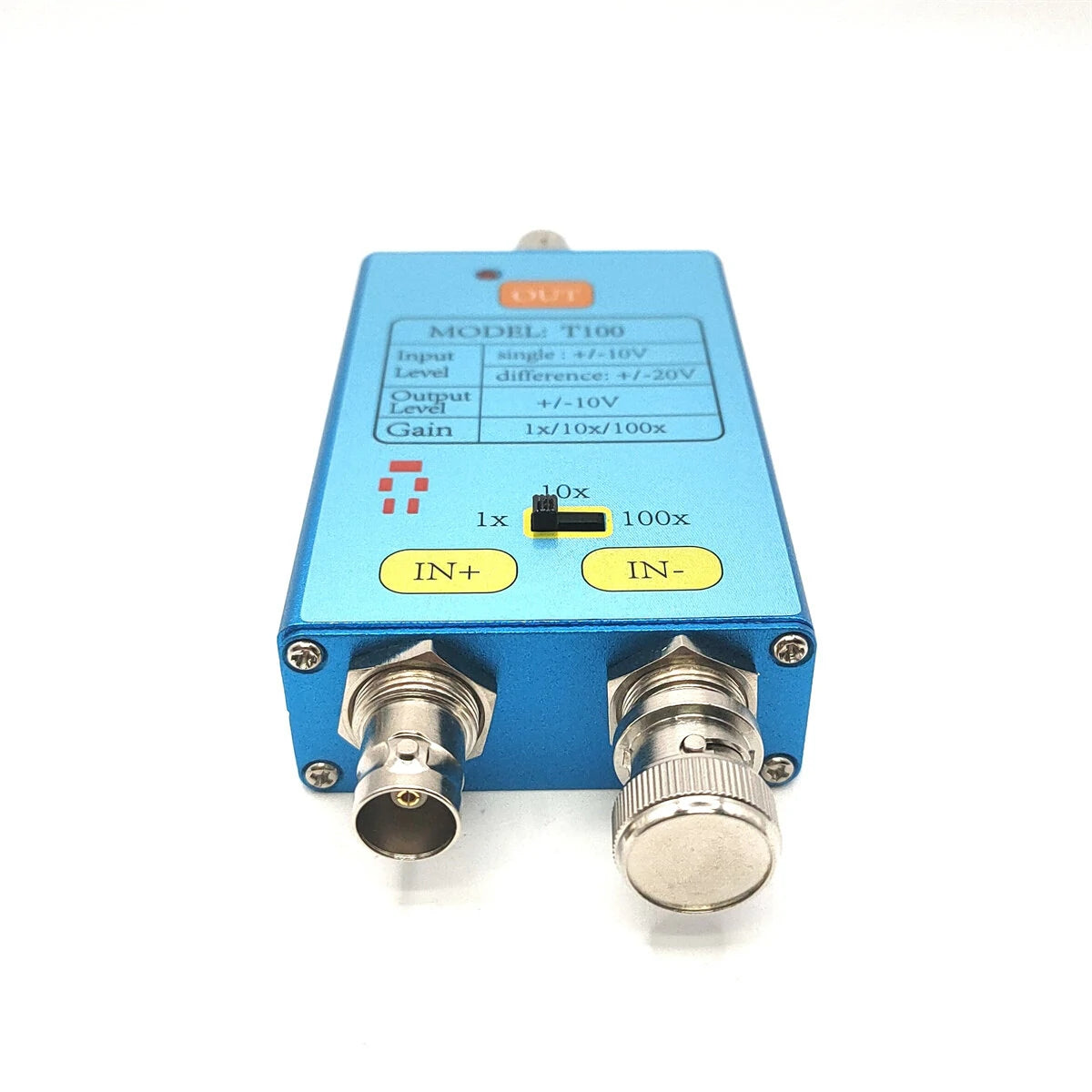

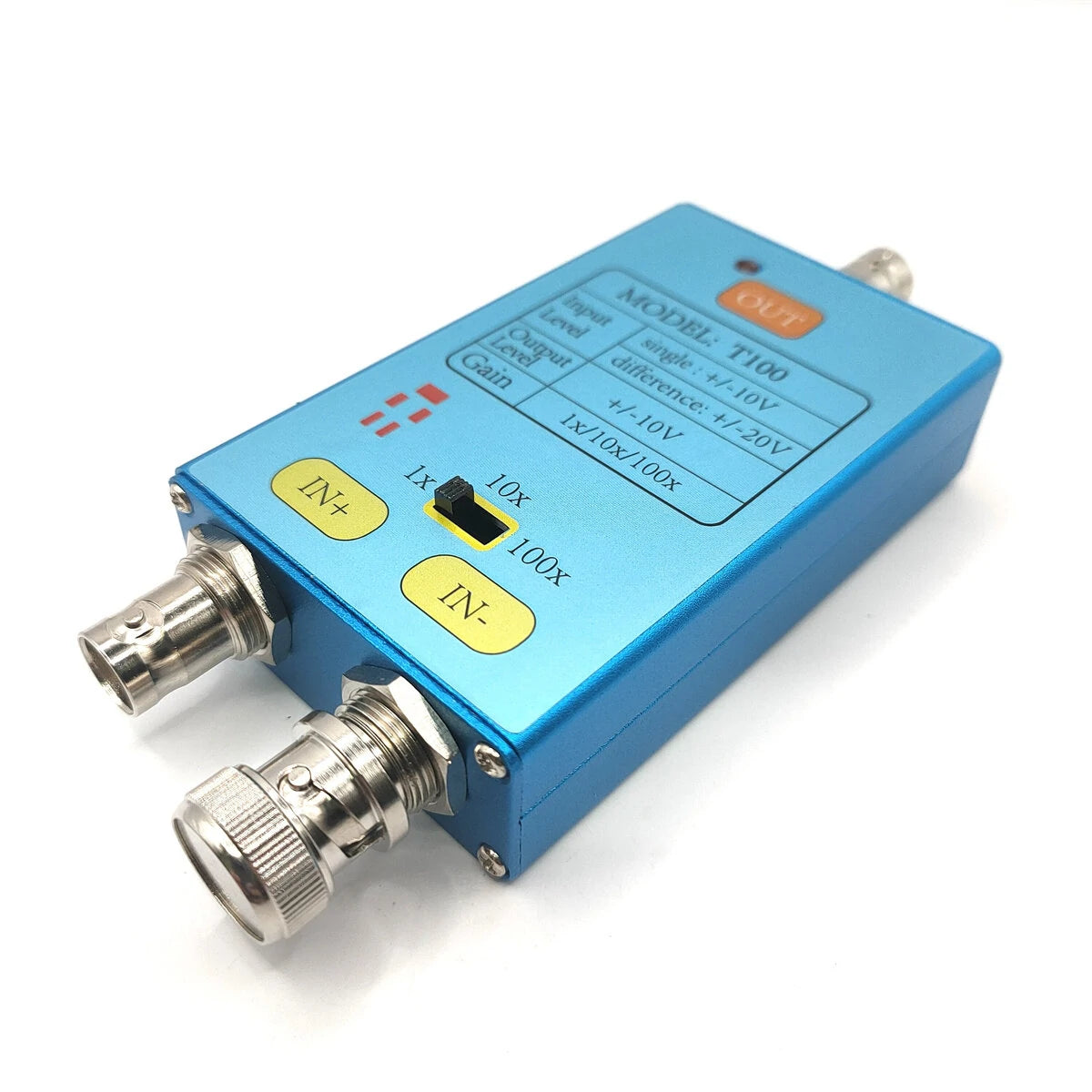

Product Description

This product is expertly engineered to amplify weak signals, delivering high precision with minimal noise. It excels at restoring the original signal quality, making it ideal for scenarios where oscilloscopes struggle to measure small signals. For accurate measurements, the instrument amplifies weak signals prior to recording.

Applications

• Electronic engineering
• Maintenance tasks
• Research and development
• Educational use for college students
• Industrial automation measurement and control

Note: This product is not intended for high voltage operations. A specific high-voltage probe should be used for such measurements.

Features

• Supports both differential and single-ended inputs
• Wide input voltage range (up to +/-10V)
• 1x/10x/100x optional magnification
• Bandwidth of up to 10 MHz

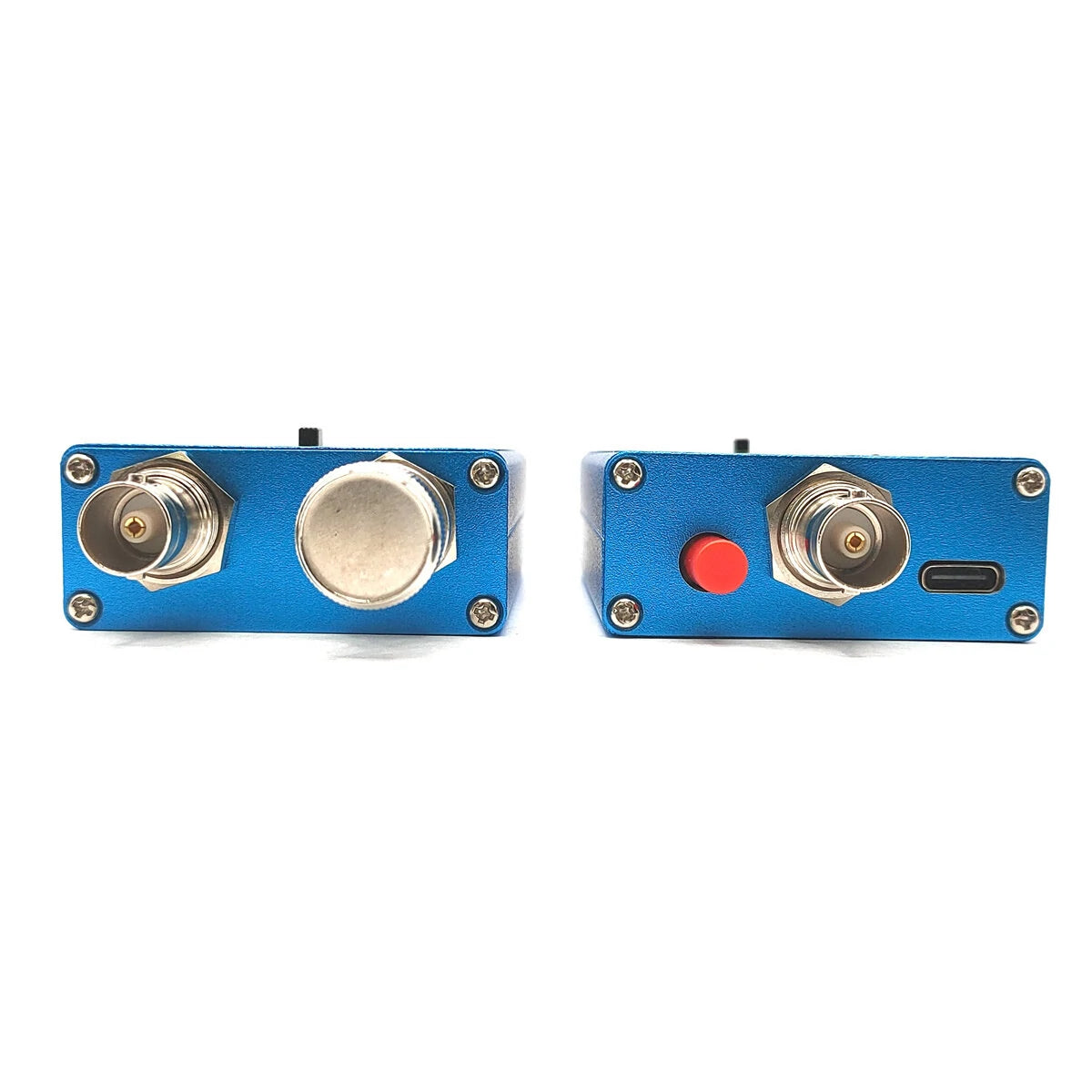

• Battery powered with USB Type-C charging interface
• Ultra low noise and high common mode rejection ratio
• Long battery life
• Durable metal casing for strong anti-interference capability

Specifications

• Single-ended input voltage: -10V to +10V
• Differential input voltage: -10V to +10V
• Single-ended input impedance: 2MΩ
• Differential input impedance: 4MΩ
• Output voltage: -10V to +10V
• Magnification: 1x/10x/100x
• Bandwidth:
  • G=1: 10 MHz
  • G=10: 10 MHz
  • G=100: 2 MHz
• Common mode rejection ratio: >80 dB
• Noise: 5 nV/√Hz @1 kHz
• Power supply: Built-in rechargeable lithium battery
• Charging interface: USB Type-C
• Battery life: Approximately 5 hours
• Operating temperature: 0°C to 40°C
• Operating humidity: ≤90% RH
• Power consumption: ≤0.2W
• Dimensions (L×W×H): 115 x 50.5 x 21 mm
• Host weight: 150 g

Package Includes

• 1 x Host
• 1 x 0.5m BNC straight cable
• 1 x BNC shorting cap
• 1 x Main Unit
• 1 x Antenna
