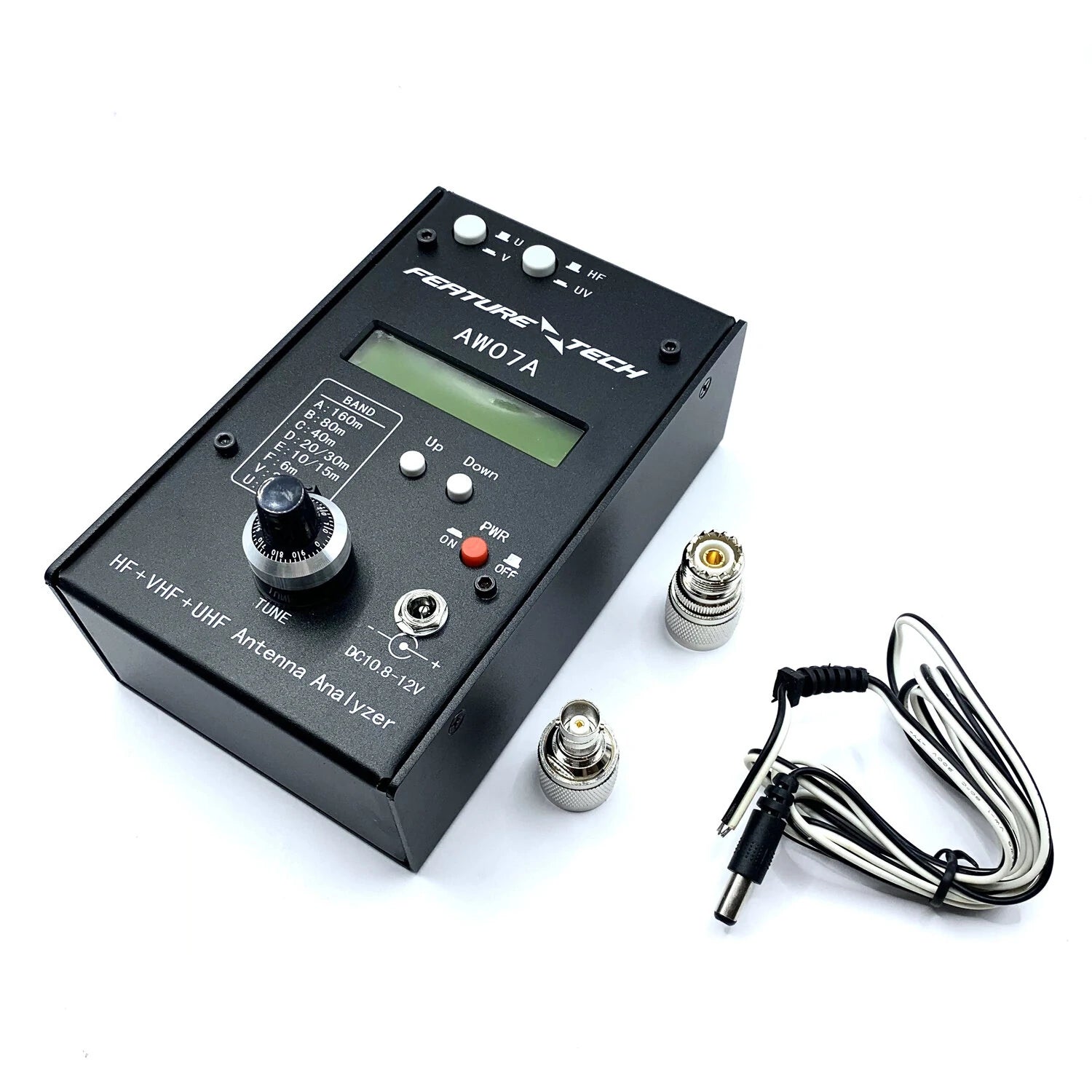

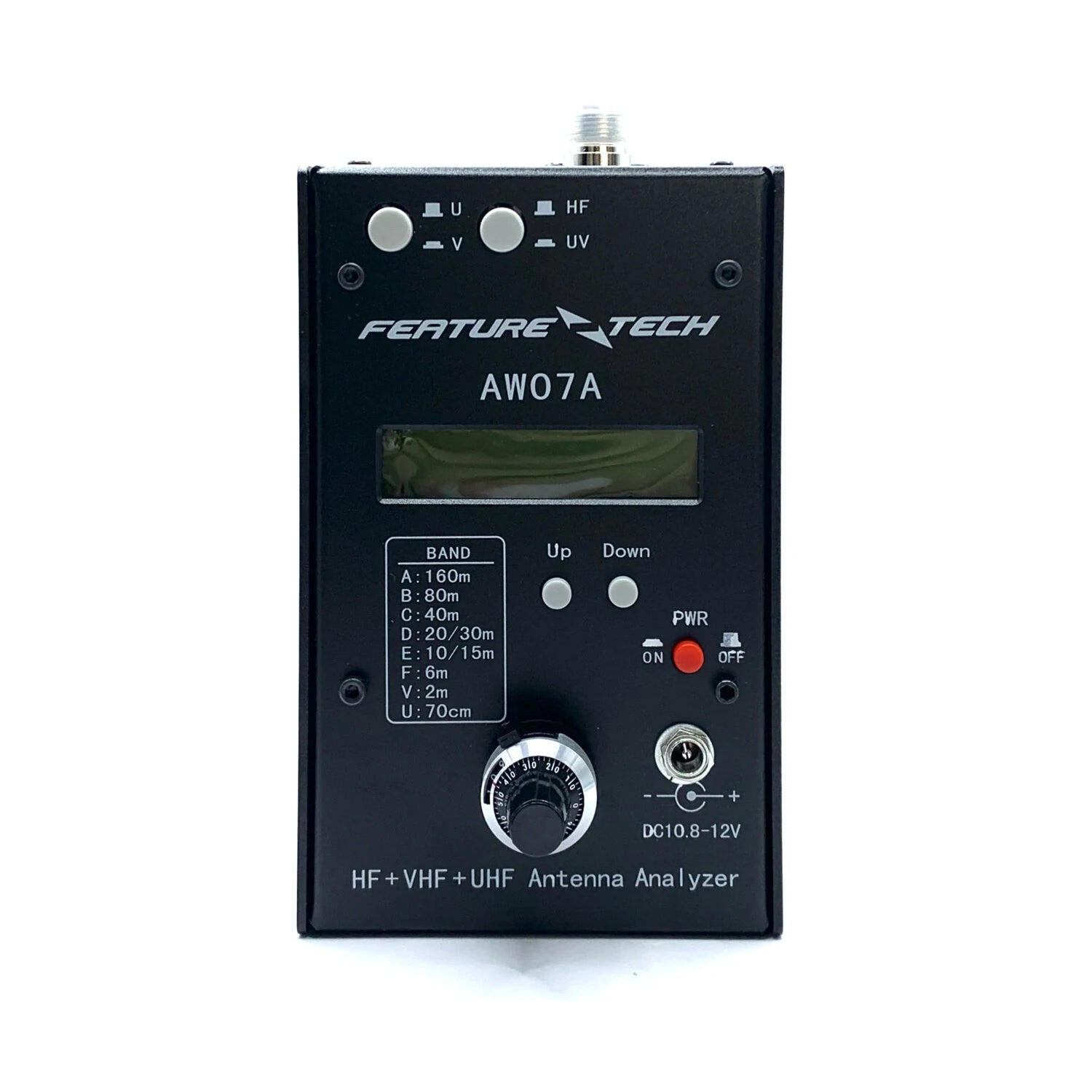

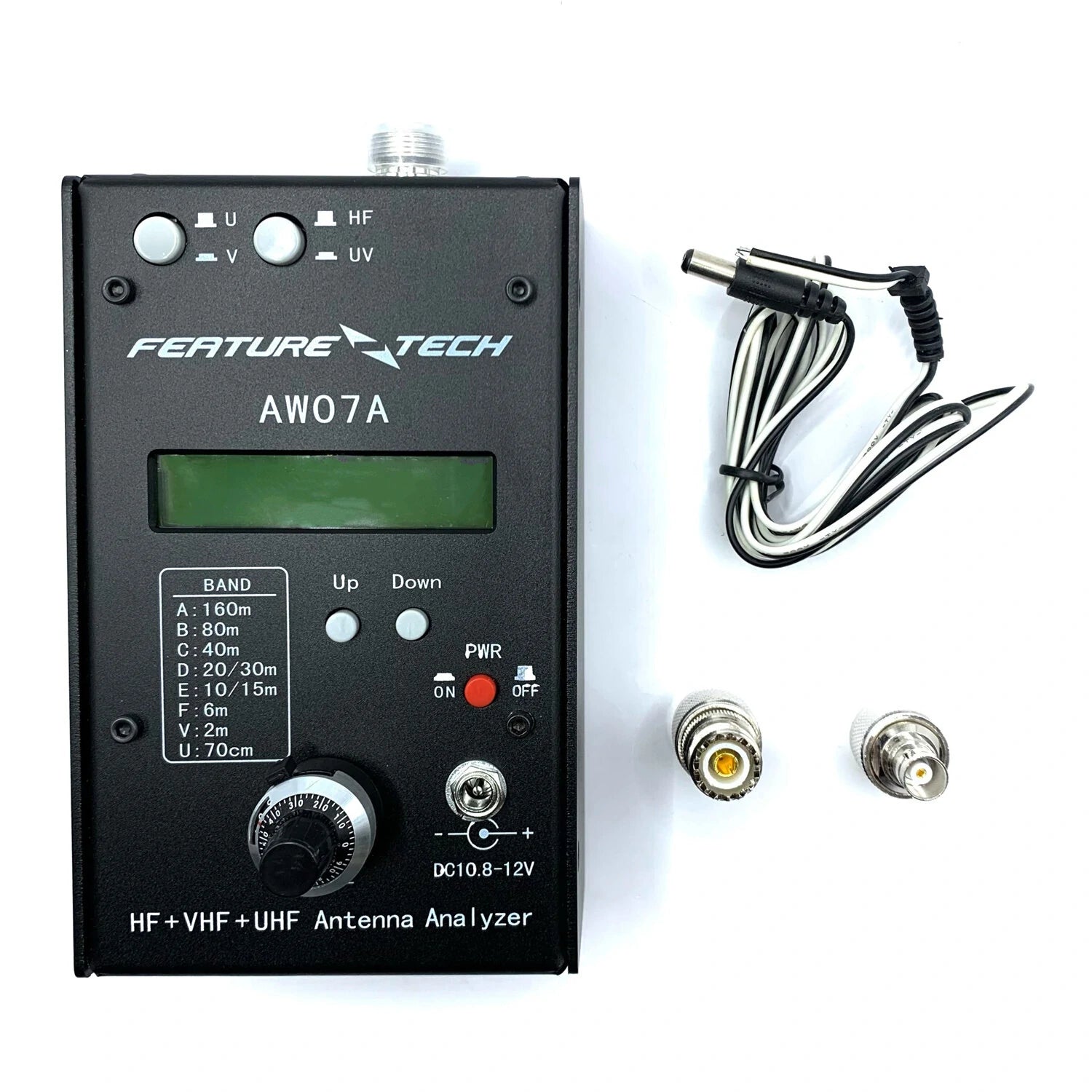

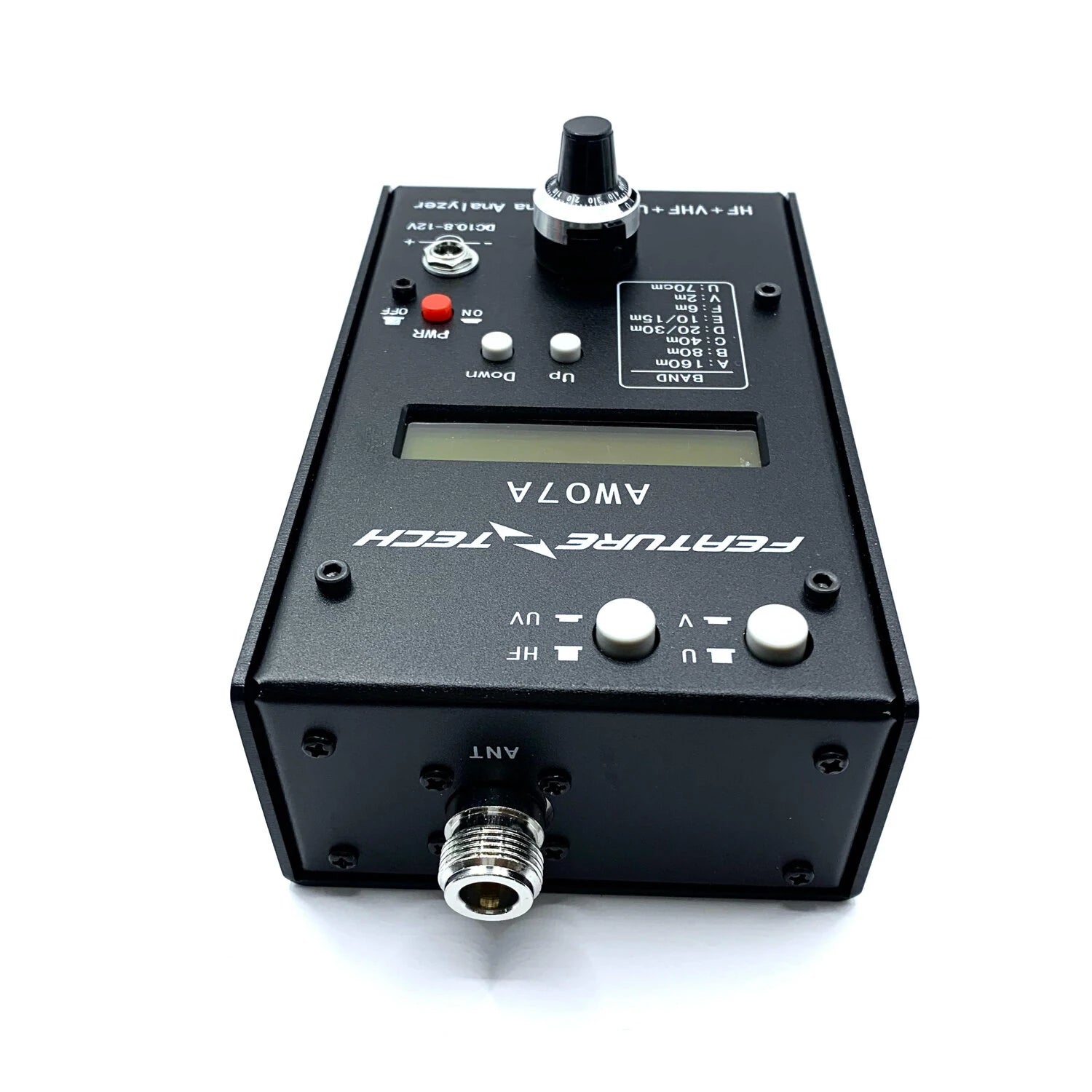

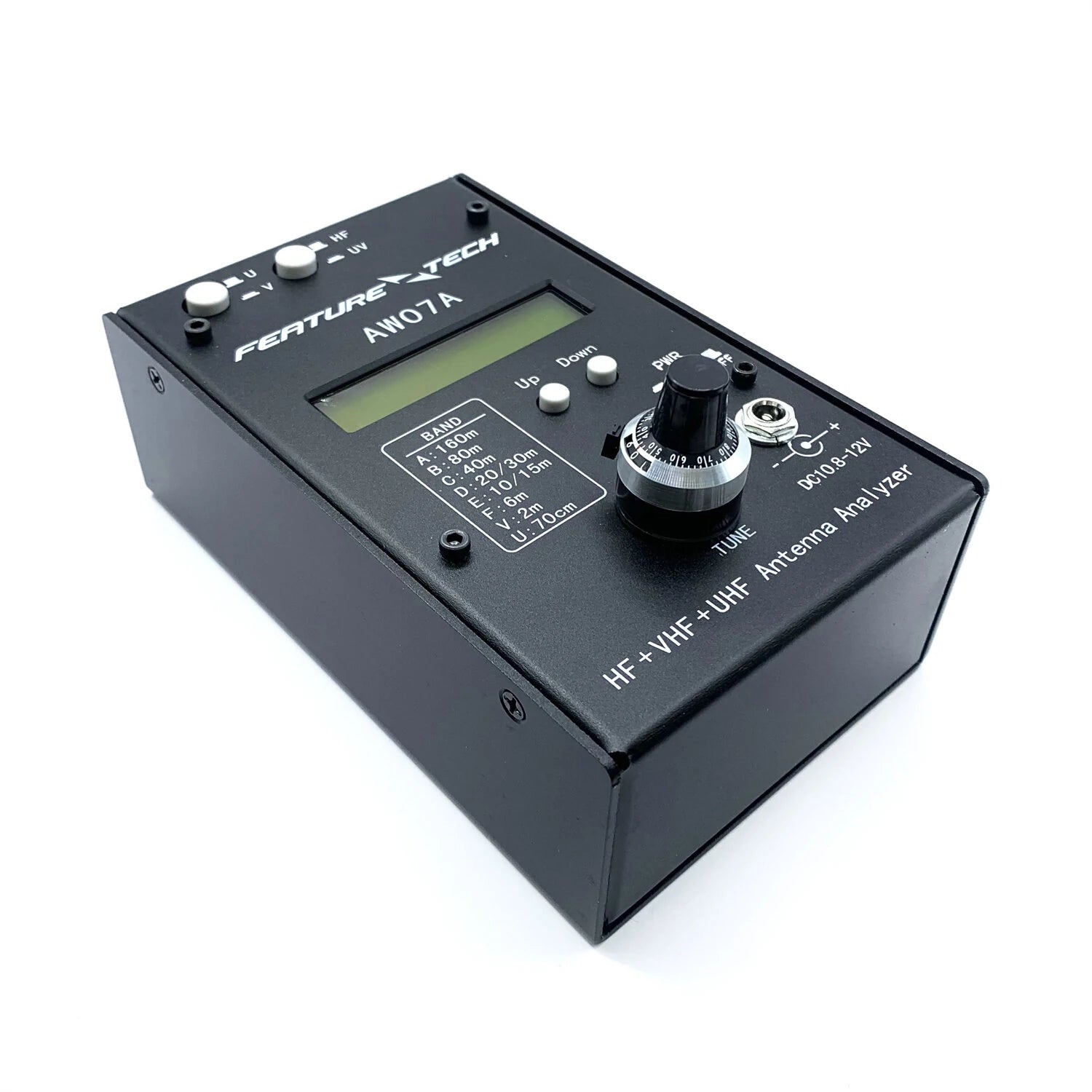

AW07A Antenna Analyzer

Enhance your antenna testing and troubleshooting with the compact, battery-powered AW07A Antenna Analyzer. This reliable RF impedance analyzer is essential for testing the SWR status, measuring impedance and reactance, and resolving antenna issues efficiently.

Product Features

Specially designed for analyzing 50 ohm antenna systems.
Measures SWR, impedance, and reactance components.
Operational frequency range from HF up to 490MHz in six overlapping bands.
Includes SWR measurements for 110-185MHz and 300-490MHz.

Core Components

Variable oscillator
Frequency counter
Independent oscillator
50 ohm RF bridge detector
A-D converter
Microcontroller

Functions

Signal Source
Capacitance Meter
Inductance Meter
Displays Reactance and Impedance Values
SWR Value range: 1.1 to 9.99
RF Strength Meter
Frequency Counter

Note

The unit does not include a built-in battery. It requires an external power supply (between 11V and 12V, with internal positive and external negative). Alternatively, you can install a battery by disassembling the housing.
