FNIRSI-1014D Oscilloscope and Signal Generator

Description

The FNIRSI-1014D is a versatile two-in-one oscilloscope and signal generator. Experience real-time sampling at a rate of 1GSa/s with an analog bandwidth of 100MHz x 2. The 7-inch TFT LCD display provides vibrant visuals and high contrast. This device features a built-in high-voltage protection module that can withstand continuous voltages of up to 400V, preventing accidents from incorrect probe settings.

The built-in DDS function signal generator supports 14 standard and customizable signal types, with signal frequency steps as precise as 1Hz. The innovative chopping output feature allows you to replicate complex measured signals as output signals, with storage capacity for up to 1000 customized signals. Discover the potential of this powerful tool for your projects.

Features

• Integrated DDS signal generator supporting 12 types of function signals.
• Signal capture and storage capacity for up to 1000 captured signals.
• Advanced decoding algorithm, infinite encoder life, and intelligent anti-burn function.
• Dual-channel, 100MHz analog bandwidth with a sampling rate of 1GSa/s.
• Bright 7-inch 800x480 resolution color TFT LCD display.
• Measures 0~40V with 1X probe and 0~400V with 10X probe.
• Measures up to 12 parameters: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Period.
• Cursor measurement for manual period, frequency, and voltage measurement.
• Versatile triggering functions: single, normal, automatic, and waveform freezing (STOP function).
• One-click auto-adjustment, waveform storage, and screenshot capabilities.
• 1GB built-in storage for up to 1000 screenshots and waveform data sets.
• Waveform picture manager supports browsing, viewing, deletion, and zooming.

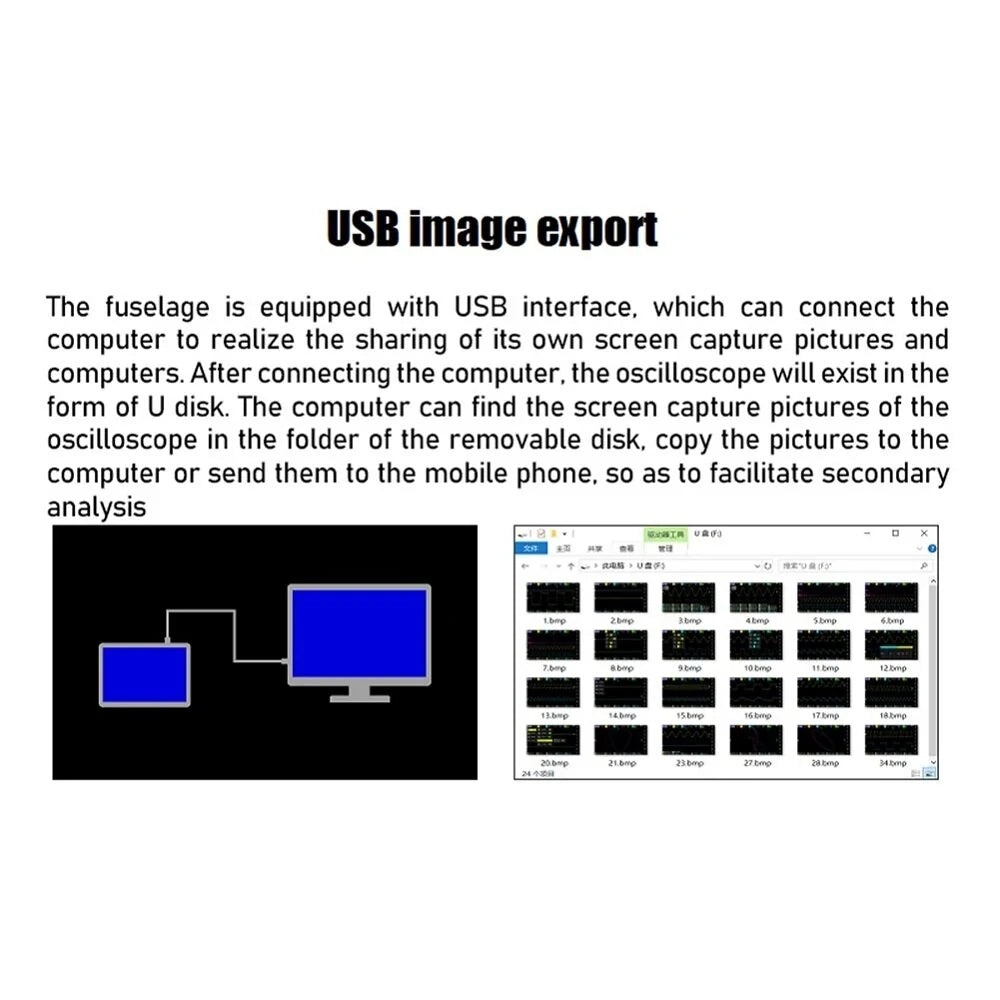

• USB interface for computer connectivity and data transfer.
• Lissajous figures display for amplitude, frequency, and phase contrast analysis.
• FFT display for signal spectral analysis with flicker-free waveform refresh.
• Adjustable screen and grid brightness for optimum viewing.

Specifications

• Material: ABS
• Analog Bandwidth: 100MHz x 2
• Number of Channels: 2
• Max Real-Time Sampling Rate: 1GSa/s
• Vertical Sensitivity: 50 mV/div ~ 500 V/div
• Horizontal Time Base Range: 50S/div ~ 10nS/div
• Max Test Voltage: 40V (1X probe), 400V (10X probe)
• Storage Depth: 240Kbit
• Input Resistance: 1MΩ
• ADC Precision: 8bits
• Coupling Mode: AC/Direct Current
• Trigger Modes: Single, Normal, Auto
• Trigger Edge: Rising edge/Falling edge
• External Trigger Voltage: 0~40V
• Extension Ports: USB for picture export
• Package Size: 340 x 140 x 70mm / 13.4 x 5.5 x 2.8in
• Package Weight: 2500g / 5.5lb

Package Includes

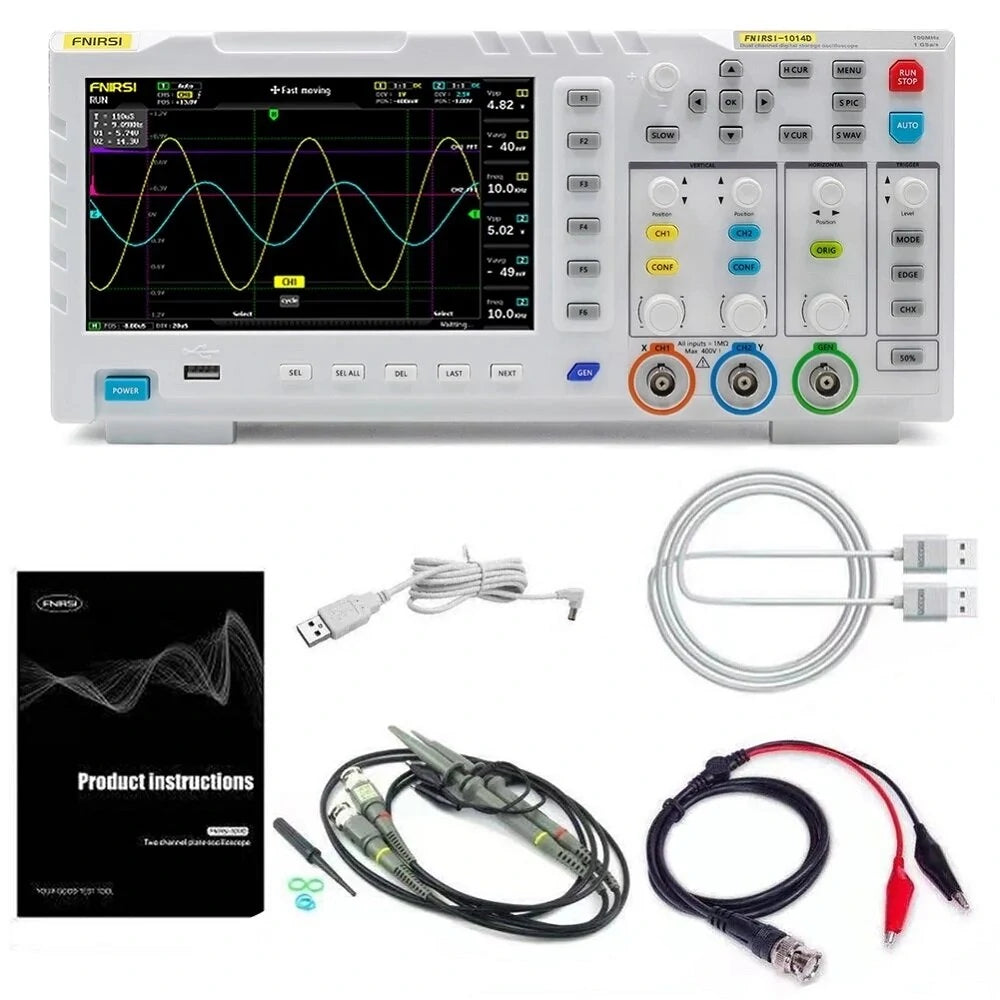

• 1 x FNIRSI-1014D Oscilloscope Host
• 2 x Matching 100MHz Probe (1X and 10X)
• 1 x Clip
• 1 x USB Data Line
• 1 x English User Manual
