10DOF Sensor Module: LSM303, L3G4200D, BMP180 - Barometer, Accelerometer, Magnetometer, Gyroscope, Compass

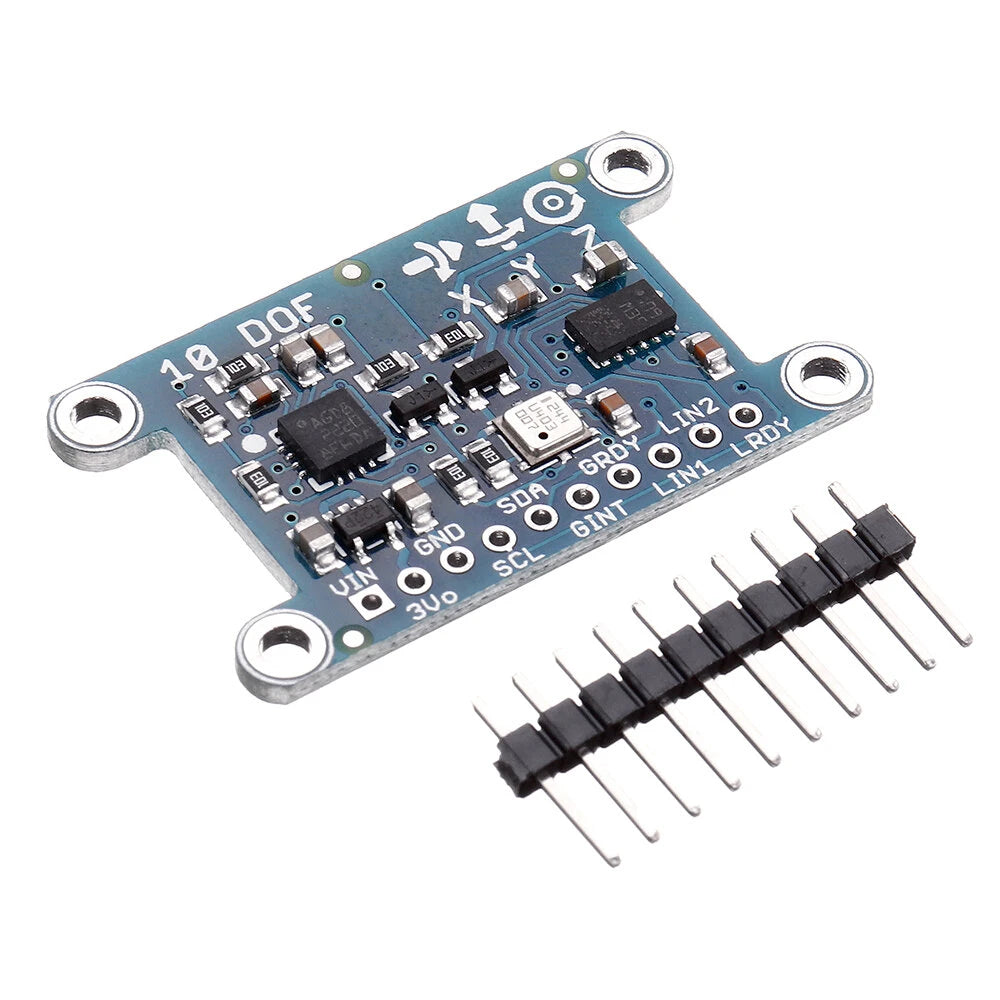

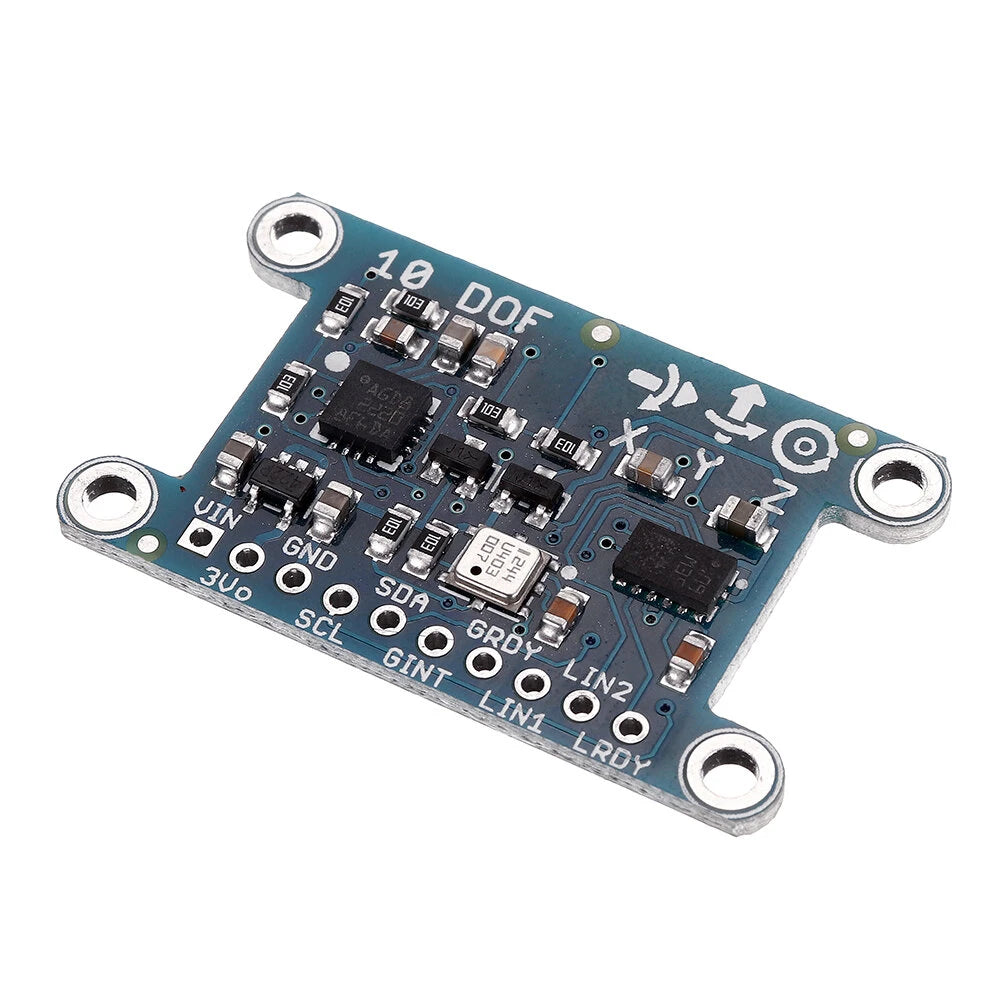

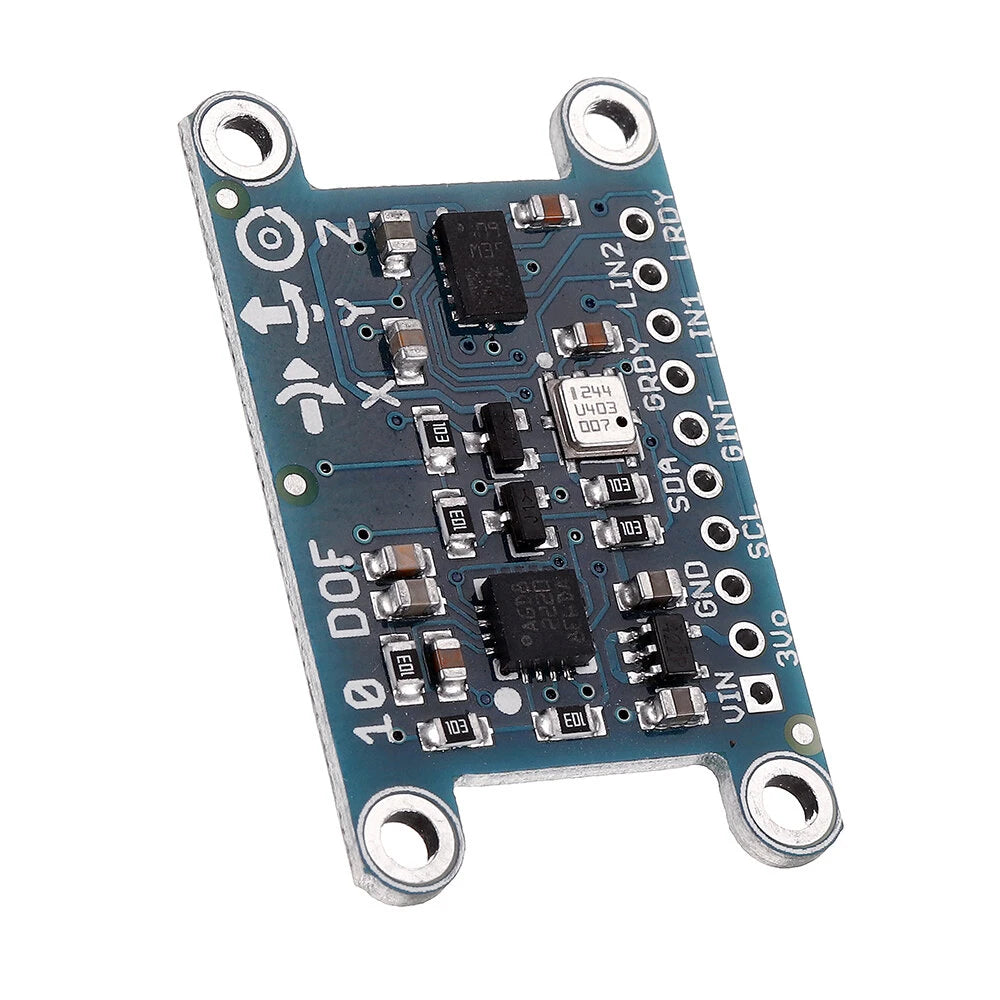

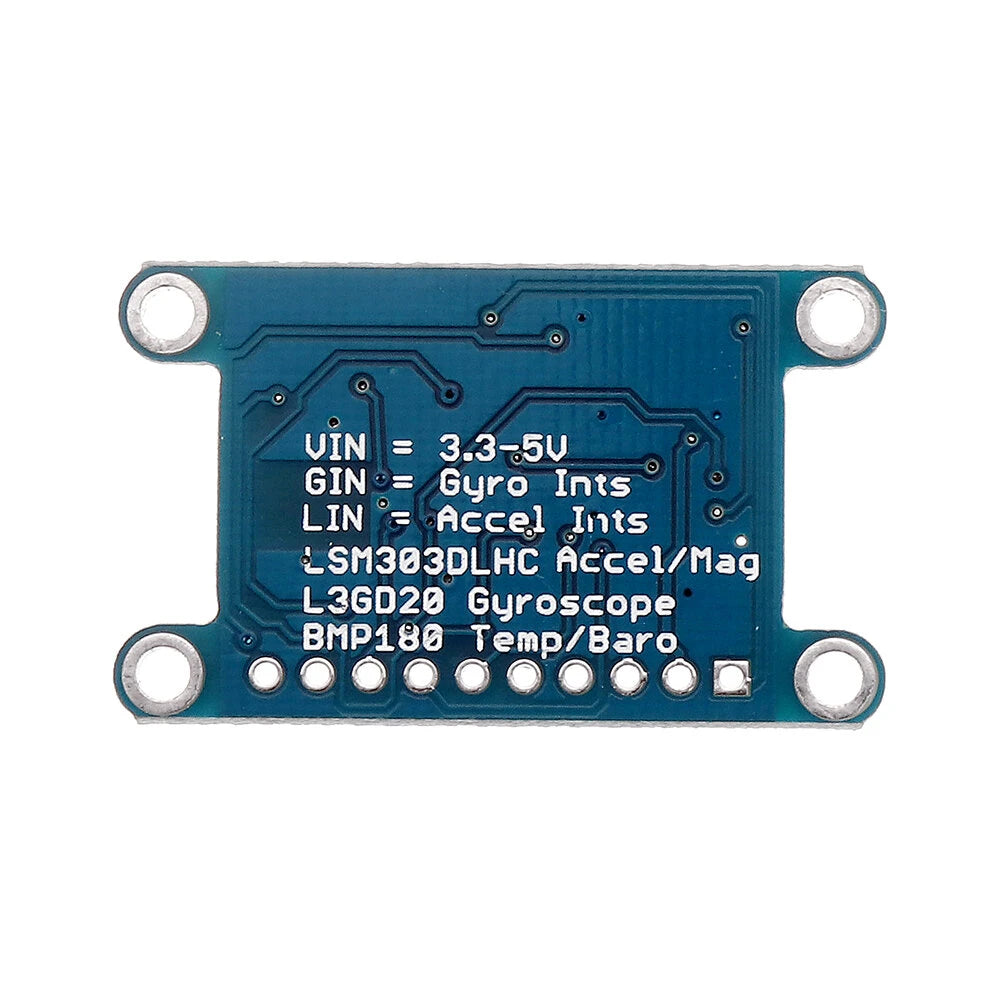

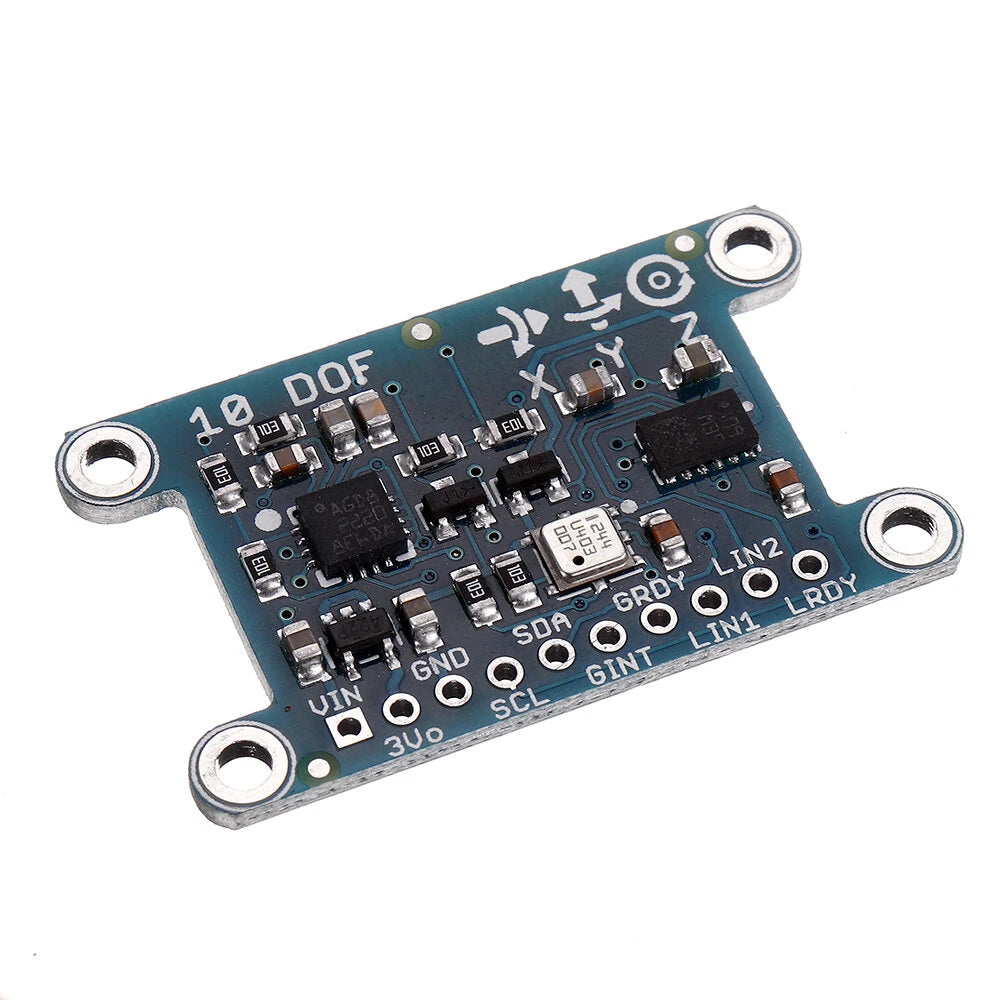

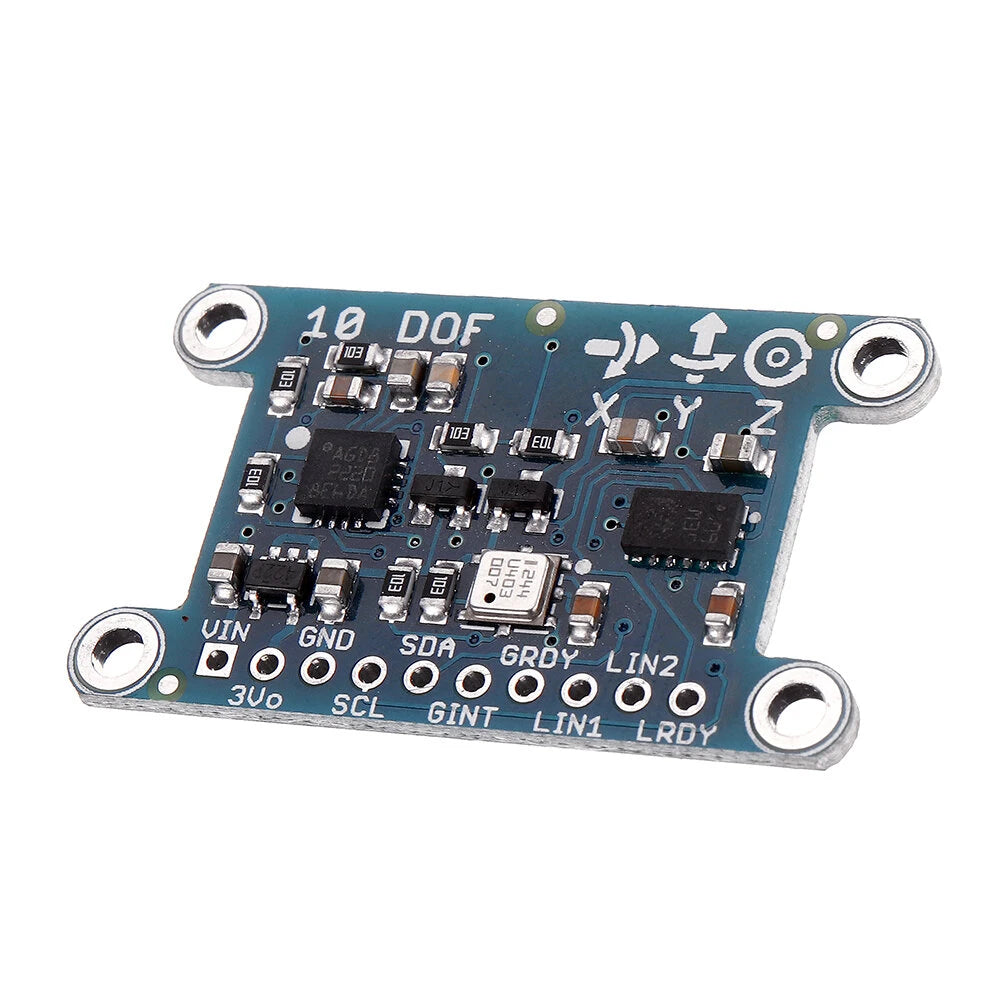

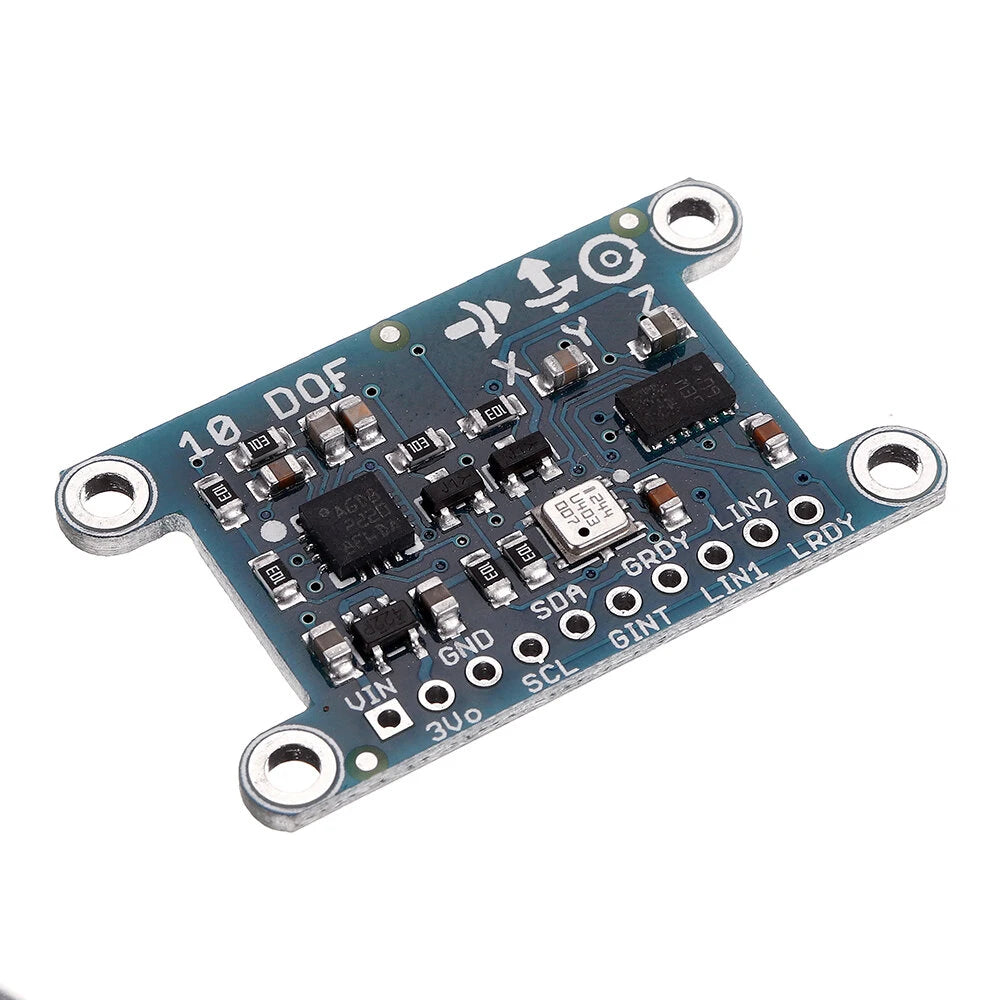

10DOF LSM303 L3G4200D BMP180 Gyro Module

Specifications:

• Operating Voltage: 3.3V to 5V
• Supply Current: 8mA
• Output Format: I2C/SPI
• Sensor Readings:
  • Gyro: One 16-bit reading per axis
  • Accelerometer: One 16-bit reading per axis
  • Magnetometer: One 16-bit reading per axis
  • Barometer: 24-bit pressure reading (I2C only)

Sensitivity Range:

• Gyro: ±245, ±500, or ±2000°/s
• Accelerometer: ±2, ±4, ±6, ±8, or ±16 g
• Magnetometer: ±2, ±4, ±8, or ±12 gauss
• Barometer: 300hPa to 1110hPa

Physical Specifications:

• Dimensions: 33 mm × 23 mm
• Weight without header pins: 1 g

Package Includes:

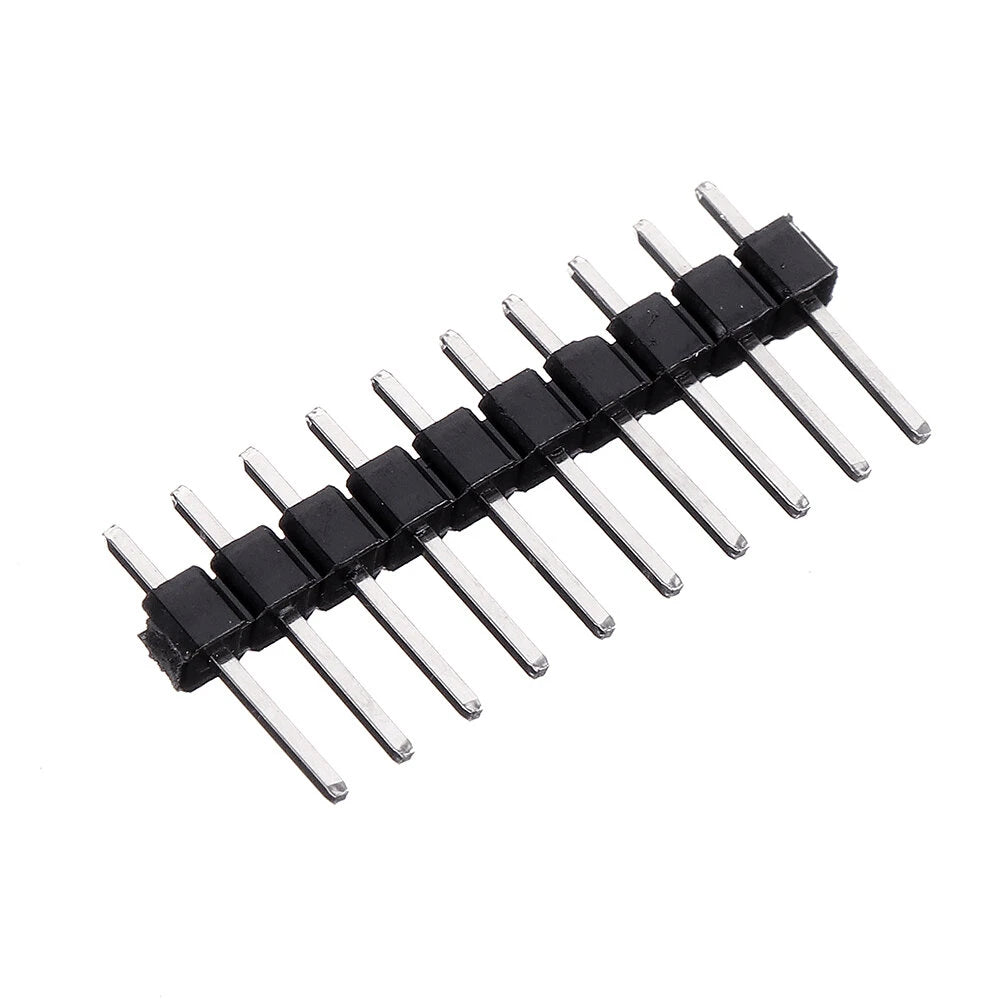

• 1 x 10DOF LSM303 L3G4200D BMP180 Gyro Module
