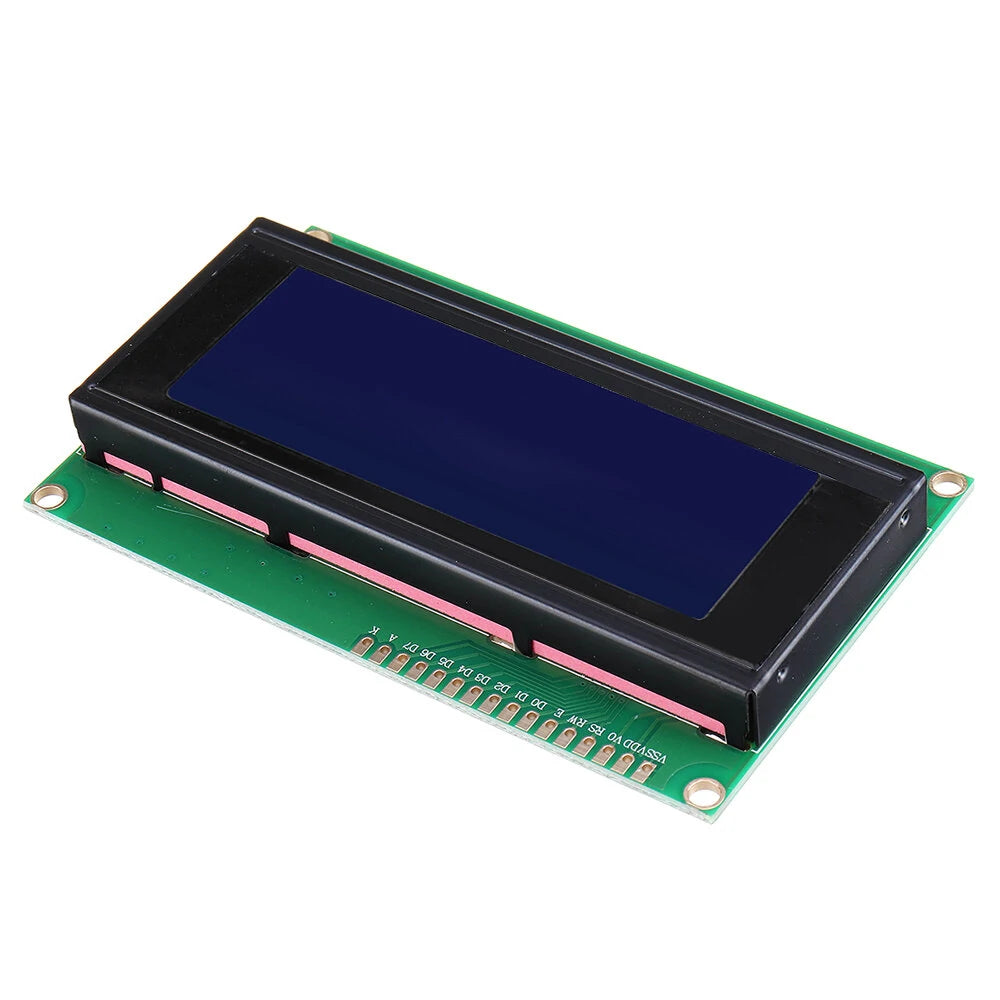

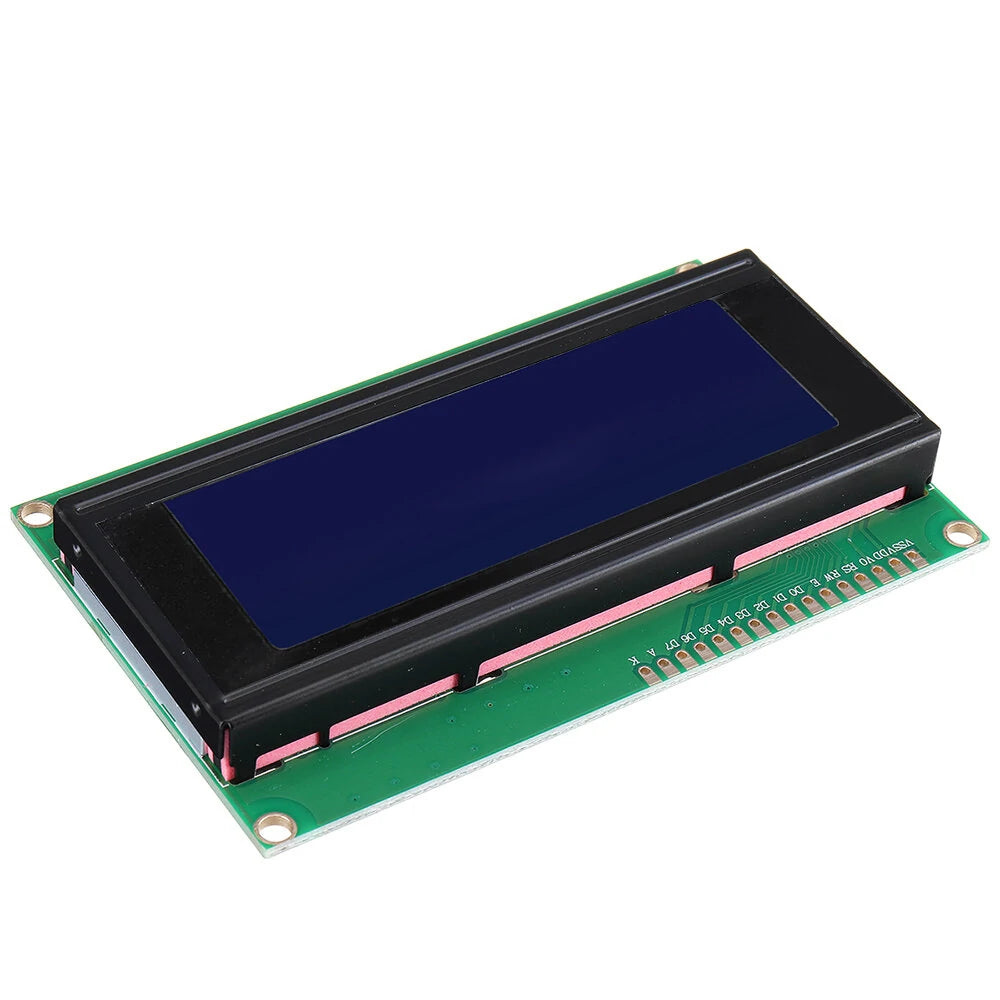

Geekcreit® 20x4 LCD Display Module 5V Blue Screen 2004A

Precise Details

Description

The 2004A character LCD module is expertly crafted to display letters, numbers, and symbols in a dot matrix format. It supports up to 4 lines with 20 characters each, offering both 4-bit and 8-bit data transfer modes. This module features a 5x7 matrix display, complete with a cursor option. Enjoy enhanced functionality with display data buffer DDRAM, character generator CGROM, and CGRAM. Customize your display using CGRAM to store up to eight 5x8 dot matrix character fonts. The module provides a comprehensive instruction set including clear display, cursor return to origin, display on/off, cursor visibility, character blink, cursor shift, and display shift.

Specifications

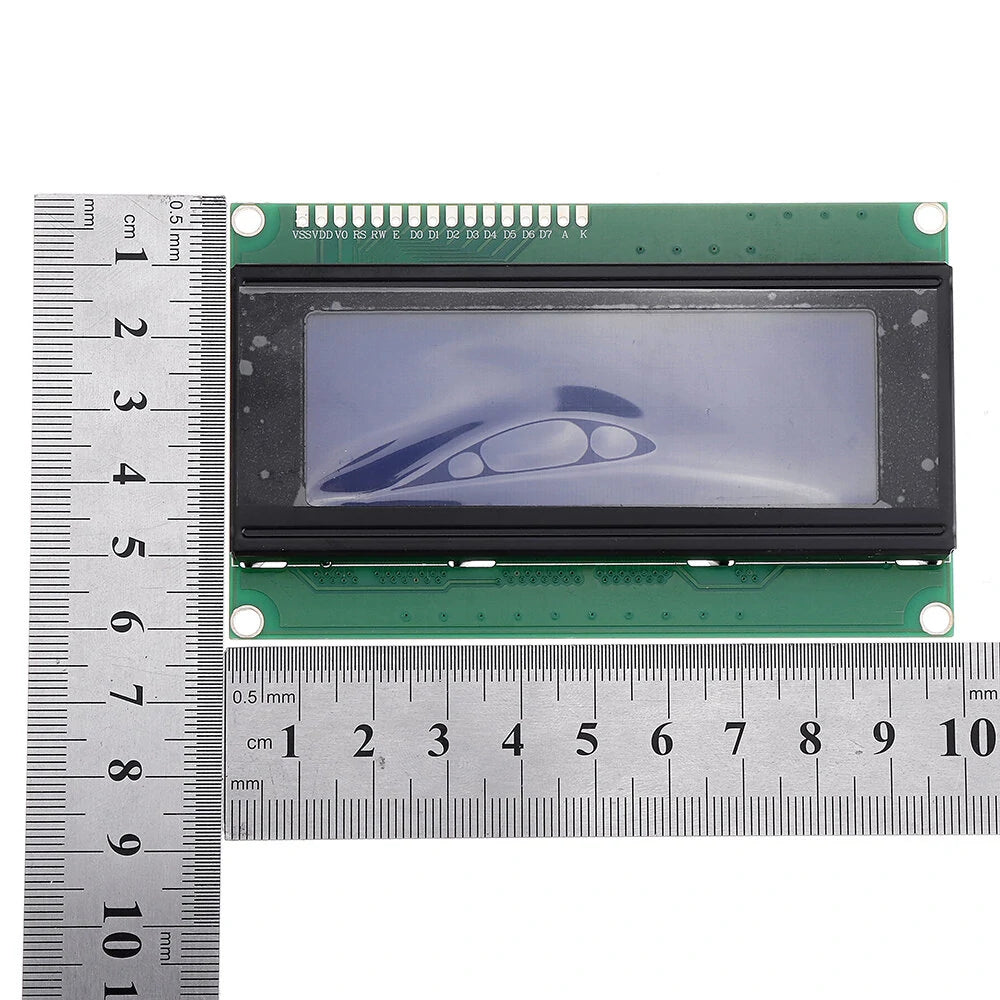

• Module Size (W x H x T): 98.0 x 60.0 x 14.0 mm
• Viewing Area (W x H): 76.0 x 26.0 mm
• Character Size (W x H): 2.94 x 4.74 mm
• Dot Size (W x H): 0.54 x 0.54 mm
• LCD Type & Color: STN (Blue), FSTN
• Viewing Angle: 6 o'clock
• Display Type: Positive / Negative
• Control IC & Package: KS0073 or EQV, COB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C

Package Includes

1 x 5V 2004A LCD Display Module
